Dali OBERON C Series Manuale utente

DALI OBERON

1C – 7C – ON-WALL C

MANUAL

Introduction

Thank you for choosing DALI OBERONC speakers. DALI is

renowned for continually striving to enhance the experience

of music, while simultaneously designing audio products that

beer suit our lives and homes. The OBERONC series of

active wireless speakers is an exhilarating expression of

those twin aspirations.

OBERONC speakers are technologically advanced electro-

acoustic products that require thoughtful installation to

reach their full potential. We recommend that you read this

manual carefully, and follow its advice, when installing your

OBERONC speakers. Please also read the Important Safe

Instructions contained within the document pack.

Following this introduction the manual covers unpacking,

positioning and installation, setup, and use, but begins with a

short overview of the OBERONC range.

Contents

Introduction 2

1. OBERONC Overview 3

2. Unpacking 4

3. Positioning and Installation 6

3.1 OBERON 1C & OBERON 7C – Positioning 8

3.2 OBERON 7C – Floor spikes or feet 9

3.3 OBERON ON-WALL C – Positioning 10

3.4 Using OBERON 1C and ON-WALL C

wall hanging features 11

4. Speaker Connecting and Conﬁguring 13

5. Listening and Using 16

6. Fault Indication 18

7. Technical Speciﬁcations 19

OBERON 7C

NOTE:

OBERONC speakers can be used with

either DALI SOUND HUB or SOUND

HUB COMPACT.

1. OBERONC Overview

The OBERONC series comprises three

active, wireless speaker models designed

primarily for use in stereo audio systems:

the OBERON 1C, the OBERON 7C and

the OBERON ON-WALL C.

The OBERON 1C is a compact speaker

intended for wall or stand-mounting. The

OBERON 7C is a ﬂoor-standing speaker.

And the OBERON ON-WALL C is a low

proﬁle speaker designed speciﬁcally for

wall-mounting.

The OBERONC series is designed

speciﬁcally for use with either the

DALI SOUND HUB or DALI SOUND

HUB COMPACT wireless streaming

preampliﬁers. The SOUND HUB and

SOUND HUB COMPACT enable a varie

of traditional hardware and streaming-

based audio sources to be broadcast to

each connected OBERONC speaker.

OBERON 1C

SOUND HUB

SOUND HUB COMPACT

OBERON ON-WALL C

NOTE:

OBERONC speakers are equipped

to be used in home theatre surround

and front channel roles. However, the

DALI SOUND HUB and SOUND HUB

COMPACT are currently only able to

broadcast conventional stereo. The DALI

SOUND HUB is engineered to support

multi-channel broadcast functionali

should this become available.

The contents of each DALI

OBERONC pack is illustrated in

Diagram 1.

Take care when unpacking your DALI

OBERONC speakers. Be especially

careful not to touch the bass driver

cones or tweeter domes.

NOTE:

We suggest that you retain the

OBERONC packaging for future

use. However, if that is not possible,

please dispose of it responsibly.

7C

ON-WALL C

1C

2. Unpacking

DIAGRAM 1

2. Unpacking

DALI OBERONC speakers are supplied with

grilles ﬁed. However, tweeter protection

masks beneath the grilles must be removed

before the speakers are used. To remove a

mask, detach the speaker grille by pulling it

gently away from the cabinet, li the mask

away, and replace the grille. This is illustrated

in Diagram 2.

DIAGRAM 2

3. Positioning and Installation

The location of speakers within a listening space will inﬂuence their performance, so it is

worth spending some time considering where your OBERONC speakers are best positioned.

Diagram 3 illustrate the positioning guidelines.

DIAGRAM 3

>0.75m

0 – 1.0m

OBERON 1C

>1.0m

>0.75m

0.3 – 1.5m

OBERON 7C ON-WALL C

Although OBERONC

speakers need no wired

signal connection, they

require connection to a

mains power supply. Use

the cables supplied to

connect the speaker rear

panel mains sockets to

mains power. The location

of the mains sockets is

illustrated in the rear panel

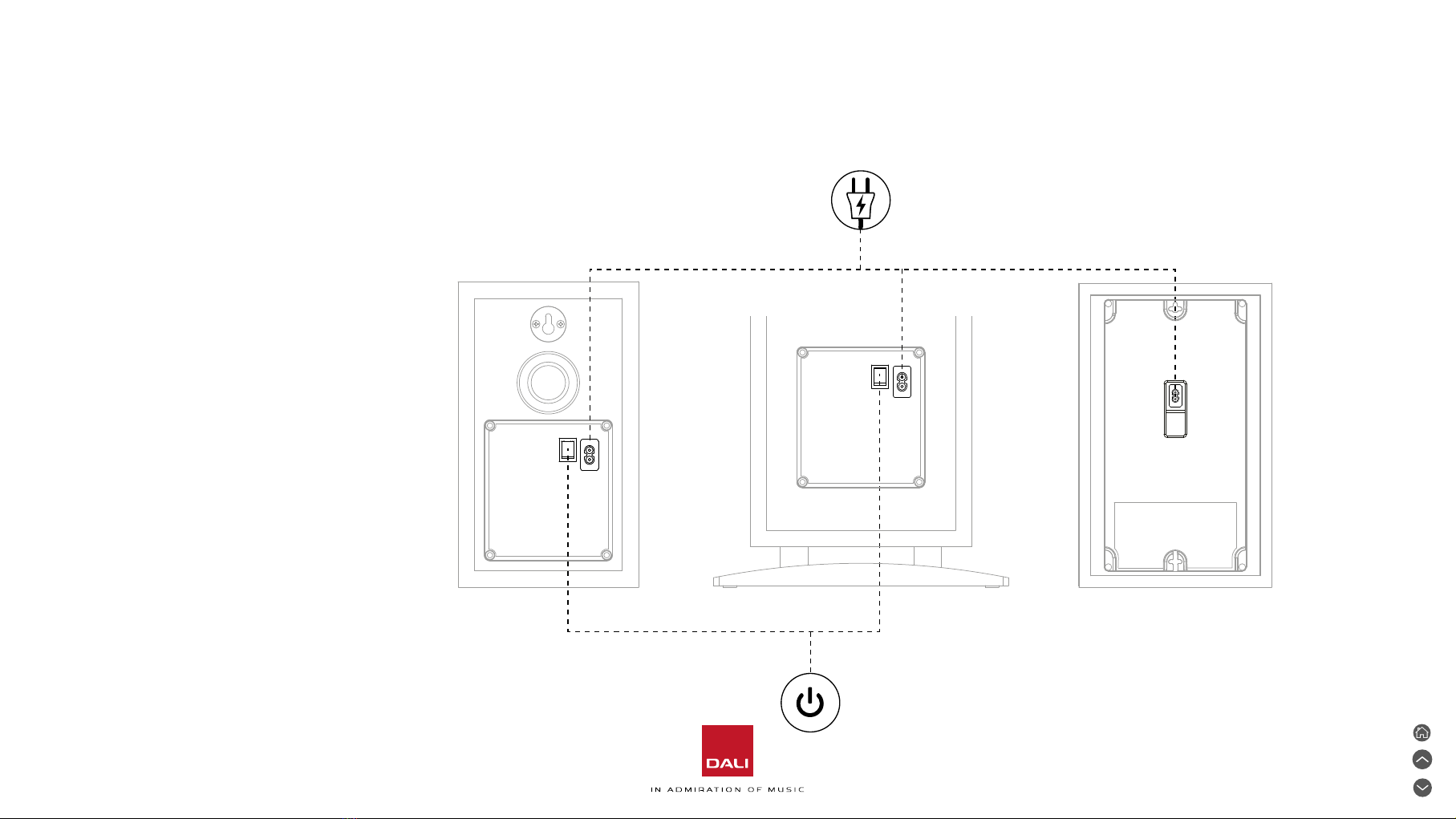

Diagram 4.

3. Positioning and Installation

DIAGRAM 4

OBERON 1C OBERON 7C ON-WALL C

OBERON 1C speakers can be mounted

on either speaker stands, shelves, wall

brackets or furniture units. The speakers

also incorporate keyhole slots on their

rear panels that enable them to be hung

directly on walls. Mounting your OBERON

1C speakers on stands is likely to result in

the best audio performance. However, great

results can also be obtained with wall, shelf

and furniture mounting.

OBERON 7C speakers are intended to

be placed directly on the ﬂoor and are not

suitable for any other kind of installation.

Pairs of OBERON 1C and OBERON 7C

speakers should generally be positioned

between 2.0m and 4.0m apart with the

primary listening area a similar distance

away. OBERON 1C speakers should ideally

be located at, or slightly below, listening head

height. Always aim to keep the speakers

away from room corners and try to ensure

3.1 OBERON 1C & OBERON 7C – Positioning

that the acoustic environment around each

speaker is similar. Solid walls and heavy

curtains, for example, would constitute

dierent acoustic environments.

It is likely to be beneﬁcial to position the

speakers initially at least 0.3m away from

the rear wall. Changing the distance to

the rear wall can be used to adjust the

prominence of bass frequencies. For less

bass, move the speakers further from the

wall.

OBERONC speakers feature response

characteristics optimised for installation

without an inward angle towards the listening

area. They are best aligned at right angles to

the rear wall.

OBERON 1C and OBERON 7C positioning is

illustrated in Diagram 3.

3.2 OBERON 7C – Floor spikes or feet

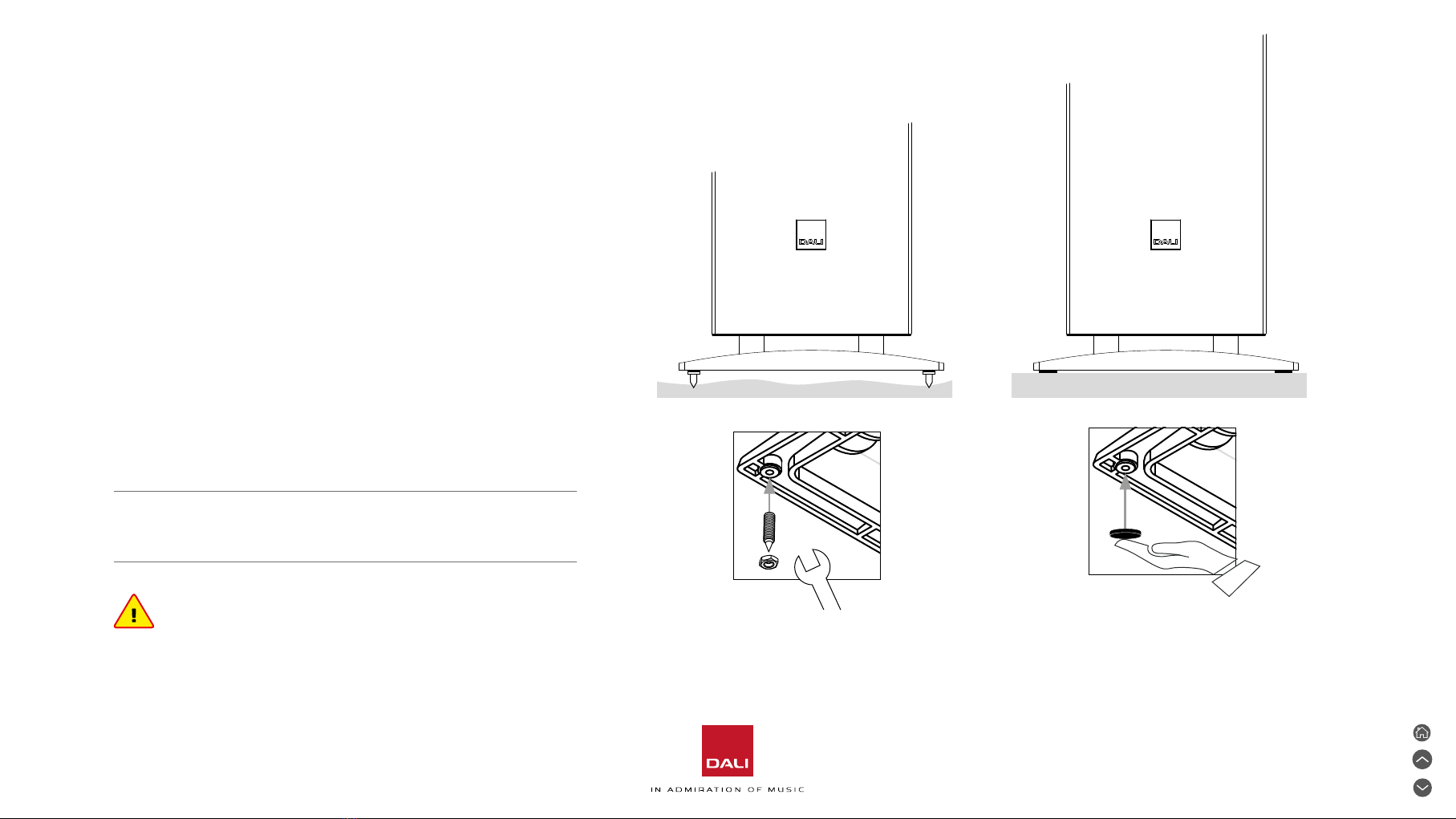

The plinths ﬁed to the underside of OBERON 7C

speakers incorporate screw holes for the installation

of the supplied ﬂoor spikes. We recommend that ﬂoor

spikes are employed if the speakers are to be used on

carpeted ﬂoors. If the speakers are to be installed on

non-carpeted ﬂoors, the supplied self-adhesive rubber

pads can be used in place of the ﬂoor spikes. To ﬁt

the ﬂoor spikes, screw them into the plinth holes and

tighten them with the locknuts using a 10mm spanner.

Once the speakers are located in their ﬁnal position,

the ﬂoor spikes can be adjusted so that the speakers

are vertical and ﬁrmly stable.

NOTE:

Floor spikes can be used on non-carpeted ﬂoors with

coins placed between the ﬂoor and the ﬂoor spike tips.

Always take care when ﬁing ﬂoor spikes or when

moving speakers with ﬂoor spikes ﬁed.

10mm x 4 x 4

OBERON ON-WALL C speakers are designed speciﬁcally to be wall-

mounted in home environments where their low proﬁle dimensions aid

compatibili with interior design schemes. The speakers incorporate

keyhole slots in their rear panels that enable them to be wall-hung

using a single screw. Both portrait and landscape (using two mounting

screws) orientation is possible. However, portrait orientation is likely to

result in beer performance.

OBERON ON-WALL C speakers should generally be positioned

between 2.0m and 4.0m apart with the primary listening area a similar

distance away. If the speakers are to be used for TV audio, they should

be located equidistant either side of the TV on its horizontal centre

line. Speakers used for TV audio are generally beer located closer

together than for music use alone. Aim for each speaker to be no more

than 0.5m distant from the side of the TV.

For more general applications OBERON ON-WALL C speakers should

ideally be located at, or slightly below, listening head height. Aim to

keep the speakers away from room corners and try to ensure that

the acoustic environment around each speaker is similar. Solid walls

and heavy curtains, for example, would constitute dierent acoustic

environments.

OBERON ON-WALL C positioning is illustrated in Diagram 3.

3.3 OBERON ON-WALL C – Positioning

NOTE:

If you wish to position your

OBERON ON-WALL C

speakers signiﬁcantly above

head height, it may beneﬁt

sound quali to mount them

upside down.

The front grille DALI logo

can be rotated to suit upside

down orientation.
