Dali PHANTOM VOKAL Manuale utente

MEGALINE

EUPHONIA

HELICON

MENTOR

PIANO

IKON®

CONCEPT

PHANTOM

SUBWOOFER

DALI PHANTOM VOKAL

ENGLISH - DEUTSCH - DANSK

CONTENTS

DALI – DANISH AUDIOPHILE LOUDSPEAKER INDUSTRIES............................................6

SAFETY GUIDELINES..........................................................................................................7

UNPACKING ......................................................................................................................7

ACCESSORIES ....................................................................................................................7

INTRODUCTION TO DALI PHANTOM VOKAL................................................................8

DOGLEGS........................................................................................................................9

DROP WIRE .....................................................................................................................9

CONNECTION OF CABLES ................................................................................................9

GRILLE ..........................................................................................................................10

MOUNTING TEMPLATE ..................................................................................................11

PAINTING COVER MASK.................................................................................................11

THE INFLUENCE OF THE LISTENING ROOM ................................................................11

PLACEMENT IN THE LISTENING ROOM........................................................................12

INSTALLATION .................................................................................................................13

PAINTING THE LOUDSPEAKER (OPTIONAL).................................................................14

MAINTENANCE...............................................................................................................15

TECHNICAL SPECIFICATIONS.........................................................................................16

INHALT

DALI – DANISH AUDIOPHILE LOUDSPEAKER INDUSTRIES..........................................17

SICHERHEITSRICHTLINIEN...............................................................................................18

AUSPACKEN.....................................................................................................................18

ZUBEHöR .........................................................................................................................18

DALI PHANTOM VOKAL – EINLEITUNG........................................................................19

KIPPBESCHLÄGE............................................................................................................20

FALLSCHUTZDRAHT.......................................................................................................20

KABELANSCHLUSS.........................................................................................................20

SCHUTZGITTER..............................................................................................................21

MONTAGESCHABLONE ..................................................................................................22

LACKIERABDECKUNG ....................................................................................................22

DER EINFLUSS DES HöRRAUMS ....................................................................................22

PLATZIERUNG IM HöRRAUM.........................................................................................23

MONTAGE .......................................................................................................................24

LACKIEREN DER LAUTSPRECHERBOx (WAHLFREI).......................................................25

PFLEGE ..............................................................................................................................26

TECHNISCHE DATEN.......................................................................................................27

INDHOLD

DALI – DANISH AUDIOPHILE LOUDSPEAKER INDUSTRIES..........................................28

SIKKERHEDSFORSKRIFTER...............................................................................................29

UDPAKNING ....................................................................................................................29

PAKKELISTE.......................................................................................................................29

DALI PHANTOM VOKAL .................................................................................................30

DOG-LEGS.....................................................................................................................31

NEDFALDSSIKRING ........................................................................................................31

TILSLUTNING AF KABLER ...............................................................................................31

BESKYTTELSESGITTER....................................................................................................32

OPHÆNGNINGSSKABELON ............................................................................................33

AFDÆKNINGSSKABELON ...............................................................................................33

LYTTERUMMETS INDFLYDELSE På LYDEN ......................................................................33

PLACERING I LYTTERUMMET.......................................................................................... 34

INSTALLATION .................................................................................................................35

MULIGHED FOR MALING AF HøjTTALEREN................................................................36

VEDLIGEHOLDELSE..........................................................................................................37

TEKNISKE SPECIFIKATIONER..........................................................................................38

ENGLISH

DALI is acclaimed around the world for unique loudspeakers designed and built to our uncompro-

mising standards for design and performance.

DALI’s main area of expertise is the development and reﬁnement of known and new techniques in

the ﬁelds of audio and acoustics.

It is essential that your DALI In-Wall loudspeakers are correctly installed and connected. This

manual contains our guidelines for installation, connection and maintenance.

NOTE: The sections on installing and painting the loudspeaker are for the use of

professional installers. If you have any questions, please feel free to contact your

authorized DALI dealer.

Enjoy!

DALI – DANISH AUDIOPHILE LOUDSPEAKER INDUS

TRIES

ENGLISH

SAFETY GUIDELINES

DALI PHANTOM VOKAL must be installed by professionals.

Always make sure that there are no installations such as gas pipes, electrical wiring, heat pipes,

ventilation, etc. in the ceiling or wall at the mounting location.

The wall or ceiling must be able to support the speaker’s weight.

A drop wire support line must be mounted as described in this manual and must be able to sup-

port the weight of the loudspeaker in the event of a fall.

UNPACKING

Carefully unpack the loudspeaker. Please follow the handling instructions on the carton. Be care-

ful not to damage the drivers and the cabinet while unpacking.

ACCESSORIES

The following parts are enclosed in the carton:

• PHANTOM VOKAL, 1pc

• 3 mm Allen wrench, 1pc

• 3 mm Allen bit, 1pc

• Mounting template, 1pc

• Protective template for painting, 1pc

• Manual, 1pc

• White logo badge, 1pc

ENGLISH

INTRODUCTION TO DALI PHANTOM VOKAL

DALI PHANTOM VOKAL provides the unique,

acclaimed sound of the other DALI PHANTOM loud-

speakers for easy and discreet integration into your

home. DALI PHANTOM VOKAL is primarily intended

for use as a center channel in a surround sound

setup. But, it can also be used in stereo or surround

setups – either mounted in a wall or in the ceiling.

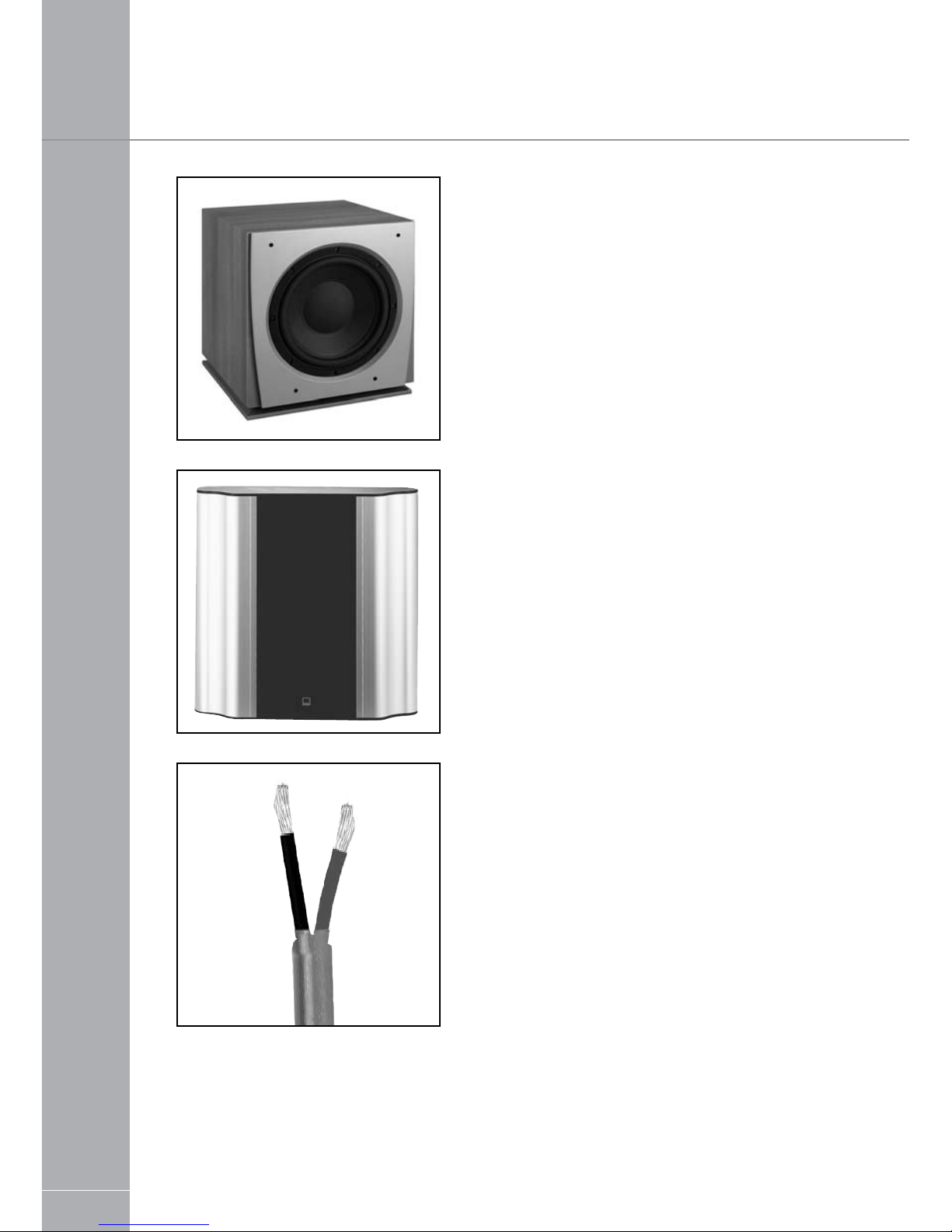

DALI recommends the use of a subwoofer such

as DALI IKON SUB or DALI PIANO FORTE with

the PHANTOM loudspeakers. This will permit the

reproduction of the lowest frequencies for an overall

enhancement of your sound system.

Your choice of cables is a crucial element in your

installation. Be aware that replacing cables after

installation is a difﬁcult task. Therefore, select qual-

ity cables such as DALI SILVER VAWE TWO.

In the following paragraphs, the features of DALI

PHANTOM VOKAL are described.

ENGLISH

DOGLEGS

DALI PHANTOM VOKAL incorporates dogleg brack-

ets for wall or ceiling mounting. The brackets attach

the loudspeaker ﬁrmly to the rear of the surface on

which it is mounted. They extend out at a 90-degree

angle when the screws are tightened. The screws

should be tightened so that the loudspeaker sits

securely in place – but be careful not to tighten them

too much. If you need to remove the loudspeaker,

loosen the screws approximately 5 to 10 turns coun-

terclockwise and the brackets will loosen their grip.

Do not unscrew more than 5 to 10 turns or the

bracket may fall off the screws.

CONNECTION OF CABLES

Connect cables so that the loudspeaker is in correct phase. The red (+) loudspeaker terminal must

be connected to the red (+) ampliﬁer terminal. The black (-) loudspeaker terminal must be con-

nected to the black (-) ampliﬁer terminal.

DROP WIRE

Steel wire, max 30cm/10” drop

DALI PHANTOM VOKAL must be ﬁtted with a drop

wire to prevent the speaker from falling in the event

of ﬁre, earthquake, etc. To prevent injury or damage

from a fall, ﬁt a steel wire or other non-ﬂammable

connection between a solid support in the house

(ceiling beam, wall stud, etc.) and the eyehook on

the PHANTOM VOKAL as shown.

ENGLISH

Remove insulation so that approx. 12mm/½” of bare

wire is exposed. Press the top of the terminal down

and insert the bare wire into the opening. When the

wire is fully in place with no loose strands exposed,

release the terminal. The cable is now connected.

NOTE: The grille is very tightly ﬁtted to the

loudspeaker to prevent rattle noise. Therefore

the grille can be difﬁcult to mount and dis-

mount. To dismount the grille, carefully press

one end of the grille while pulling the grille

from the loudspeaker. When dismounted in one

end, carefully pull the other end of the grille. If

you cannot grip the ends, you can carefully use

an awl or a small screwdriver.

When mounting the grille, be careful not to scratch

the loudspeaker. Follow the guide for dismounting the

grille, but in reverse order.

On the inside of the grille there is a piece of non-woven. The non-woven is on the grille to protect

the drivers against dust and dirt. Therefore the non-woven must remain on the grille.

GRILLE

ENGLISH

MOUNTING TEMPLATE

WARNING:

INSTALLATIONS MUST BE

DONE BY TRAINED PROFESSIONALS.

READ INSTRUCTION MANUAL

BEFORE INSTALLATION.

CUT-OUT SIZE:

15.7 x 9.2”

39.8 x 23.5cm

MOUNTING DEPTH:

3.8”

9.7cm

ADVARSEL:

INSTALLATION SKAL UDFØRES

AF EN KVALIFICERET MONTØR.

LÆS BRUGERMANUALEN INDEN

INSTALLATION.

UDSKÆRING:

15.7 x 9.2”

39.8 x 23.5cm

MONTERINGSDYBDE:

3.8”

9.75cm

MAKE SURE THE TEMPLATE IS 100% HORIZONTAL BEFORE CUTTING

SKABELONEN SKAL VÆRE 100% VANDRET FØR UDSKÆRING

CUT-OUT TEMPLATE

ITEM NO. 951011-3-0

The enclosed template can be used to ini-

tially visualize how your speakers should be

mounted. Tape the template perfectly level

at the selected mounting position, so that

you can mark the necessary opening.

PAINTING COVER MASK

DALI PHANTOM VOKAL is delivered with a transparent painting cover mask (item no. 951011-1-

0), which can be used to cover the bafﬂe and drivers, if the loudspeaker should be painted. For

further information on painting the speaker, look in the chapter about painting DALI PHANTOM

VOKAL.

THE INFLUENCE OF THE LISTENING ROOM

Every room has it own acoustics that affect the way we hear sound from loudspeakers. It is a

question of how the room receives acoustic energy and releases it again. You can improve the

acoustics of your listening room in different ways.

Part of the sound that you hear does not come directly from the loudspeaker. Instead, it is

reﬂected from the ﬂoor, ceiling and walls. Furniture, plants and carpets can reduce reﬂections. If

the sound is overly bright, soft, absorbent objects like curtains and carpets can help.
