Danfoss TP7000M Manuale utente

TP7000 + RF

Installation Instructions

User Instructions

Instructions d’installation

Instructions d’utilisateur

Installationsanweisungen

Inbetriebnahme-Instruktion

Instrucciones de instalación

Instrucciones del usuario

Instruktions vejledning

Brugervejleding

7 day programmable room thermostat

Installatie handleiding

Instructiesevoor Gebruik

Ïäçãßåò åãêáôÜóôáóçò

Ïäçãßåò ÷ñÞóçò

Instrukcja instalacji

Instrukcja Użytkownika

Montavimo instrukcijos

Informacija Vartotojui

Istruzioni per l’uso

Istruzioni per l’utente

INDEX

Installation Instructions 3-6

User Instructions 7-12

Instructions d’installation 13-16

Instructions d’utilisateur 17-22

Installationsanweisungen 23-26

Inbetriebnahme-Instruktion 27-32

Instrucciones de instalación 33-36

Instrucciones del usuario 37-42

Instruktions vejledning 43-46

Brugervejleding 47-52

Installatie handleiding 53-56

Instructiesevoor Gebruik 57-62

Ïäçãßåò åãêáôÜóôáóçò 63-66

Ïäçãßåò ÷ñÞóçò 67-72

Instrukcja instalacji 73-76

Instrukcja Użytkownika 77-82

Montavimo instrukcijos 83-86

Informacija Vartotojui 87-92

Instruzioni per l’uso 93-96

Instruzioni per l’utente 97-102

Installation

Instructions GB

Important note RF products: Ensure that there are no large metal objects, such

as boiler cases or other large appliances, in line of sight between the transmitter

and receiver as these will prevent communication between thermostat and receiver.

Speciﬁcation

GB - Installation Instructions

Thermostat Features TP7000-RF TP7000 TP7000M

Power supply 2 x AA/MN1500/LR6 alkaline

batteries 230v, 50 Hz

Memory backup Capacitor during battery change

for 1 minute

Rechargable

cell, 24 hrs (*1)

Switching action of output relay N/A 1 x SPDT, Type 1B

Switch rating of relay contact,

voltage and current N/A 3(1) A, 230 volts

Transmitter frequency (RF only) 433.92 MHz N/A

Transmitter range (RF only) 30 meters max. N/A

Rated Impulse Voltage N/A 2.5Kv

Dimensions (mm) 138 wide x 88 high x 28 deep

Ball Pressure Test 75°C

Temperature Range 5-30°C

Design Standard EN 60730-2-7 (EN300220 for RF)

Control Pollution Situation Degree 2

Time accuracy ± 1 min.

Temperature accuracy ±1°C

*1: Unit must powered up for 6 days to charge cell before full back-up is available

Please Note:

This product should only be installed by a

qualiﬁed electrician or competent heating

installer and should be in accordance with the

current edition of the IEEE wiring regulations.

All models

Sw15/2 day programming 7 day programming

Sw2Optimum start contoller enabled Optimum start contoller disabled

Sw3Chrono-proportional control On/Off control

TP7000, M & RF models with 3/6 cycles per hour option

Sw4Chrono-proportional, 6 cycles / hour Chrono-proportional, 3 cycles / hou

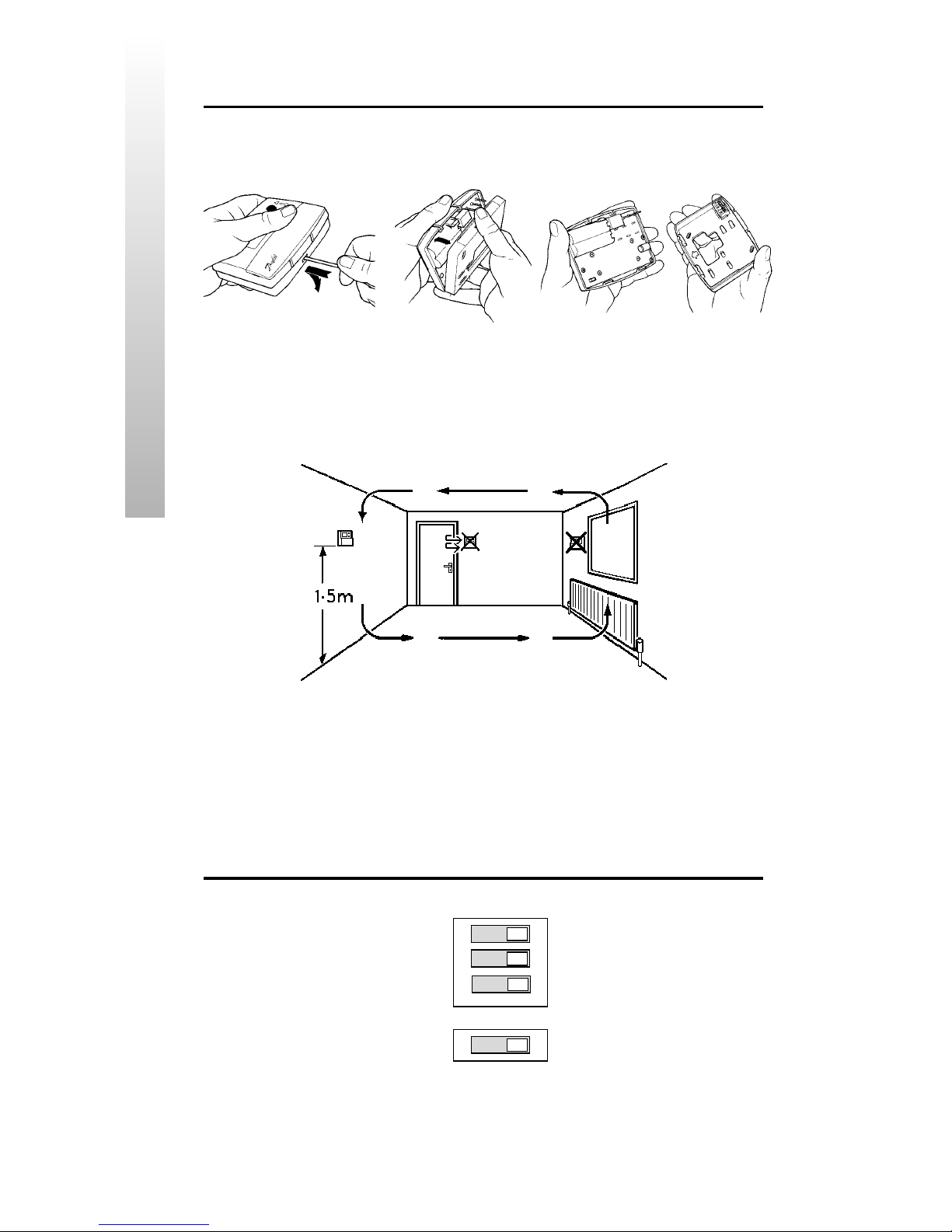

Installation

DIL Switch Settings

GB - Installation Instructions

 First remove the wallplate from the back of the unit

 From the top left hand corner of the wallplate, there

must be clearances of at least 140mm to the right,

15mm to the left, 30mm above and 100mm below in

order to mount the plug-in module.

 Before mounting the unit ensure the 4 DIL switches

on the rear of the unit have been moved to the

required settings (see below). Factory preset is 7-day,

with Optimum Start and Chrono-proportional control OFF.

NOTE

Use Chrono 3 for high thermal inertia systems, e.g. ﬂoor standing cast iron boilers

Use Chrono 6 for low thermal inertia systems, e.g. low water content boilers and

combi boilers

TP7000 Wiring (not RF models)

7-day - each day can be programmed with different times and

temperatures.

5/2 day - one set of times & temperatures for weekdays, and

another set for weekends.

Optimum start control - function which switches the heating on

earlier than the Event 1 programmed time to ensure the required

temperature is achieved by the set time.

Chrono-proportional control - energy saving feature which

ﬁres the boiler at regular intervals to maintain a set temperature,

achieving a constant ambient environment for the user.

L N

M models only

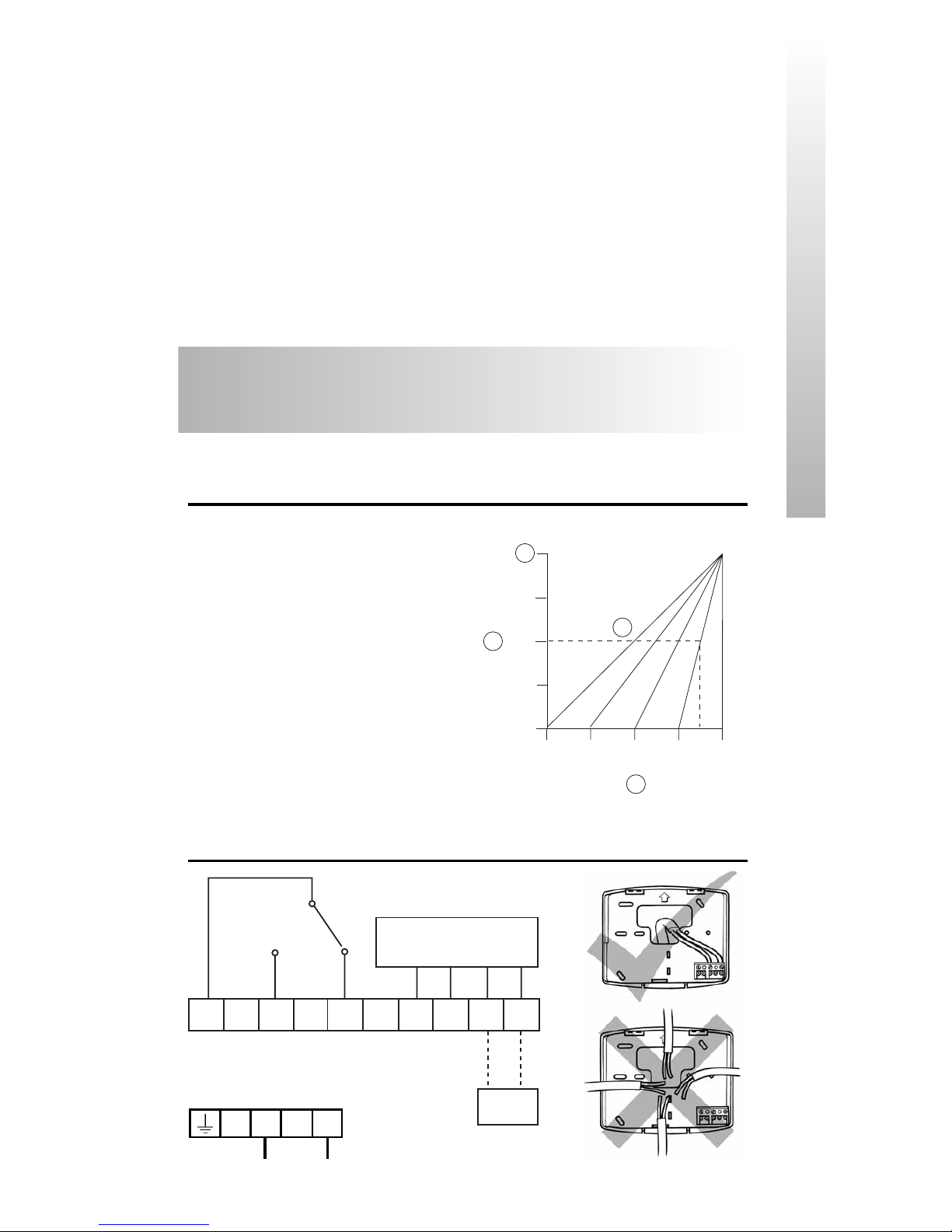

Setting Optimum Start Control

-4˚C

-3˚C

-2˚C

-1˚C

120

min. 90

min. 60

min. 30

min. Event 1

time (0)

 Set Sw2 to OSC ON (see

DIL settings page 4)

 Select OPTIMISER CURVE

in programming mode

A - Event 1 Set Point

B- Deviation from Set Point

C- Switch On Time prior to

Event

D- Optimiser Curve Setting

For a full explanation of all advanced features please visit

our website www.danfoss-randall.co.uk or call 01234 364621

to obtain a copy of our Advanced Features Guide.

GB - Installation Instructions

1234567

ELECTRONICS

REMOTE

SENSOR

'A' models

only

COM ON OFF

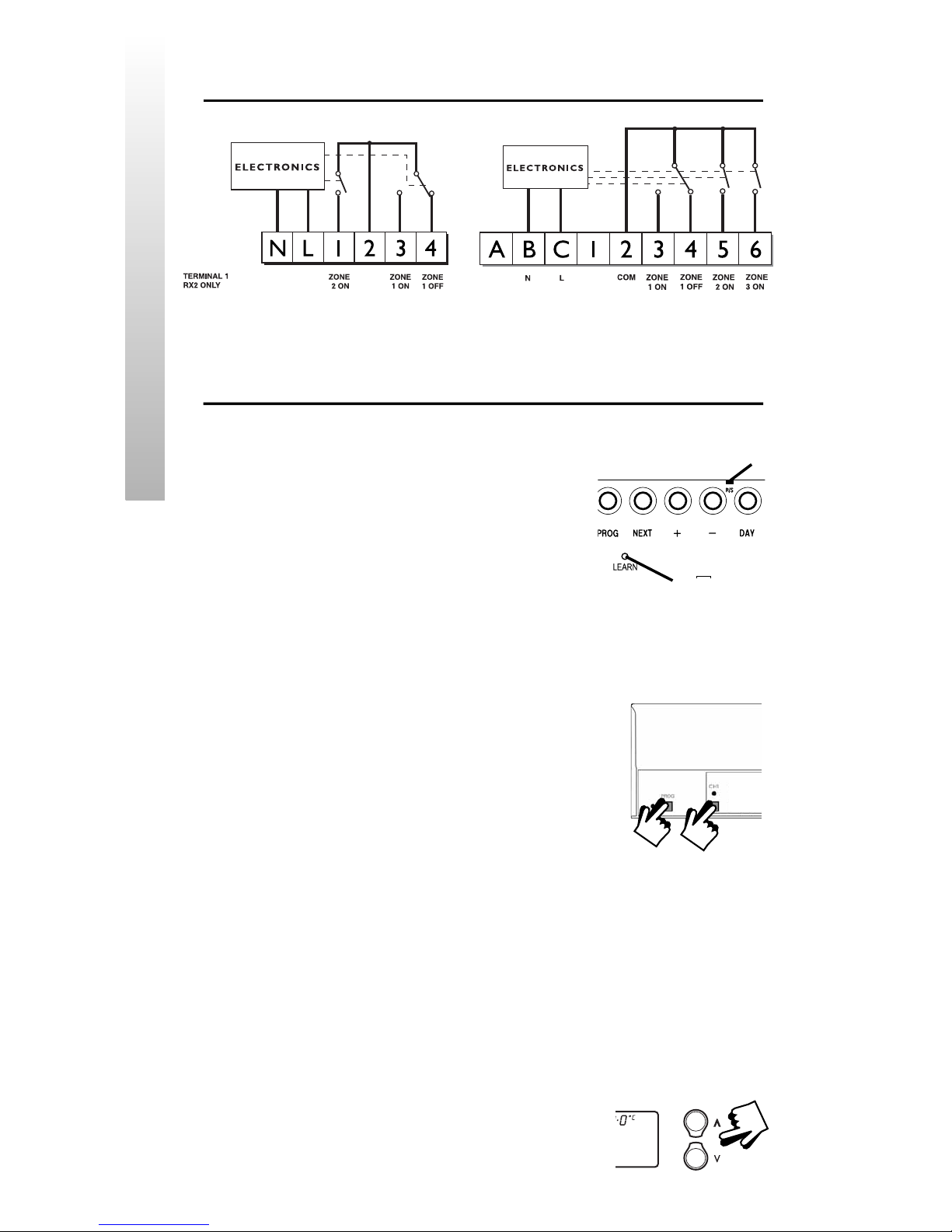

Commissioning (RF versions only)

To tune the RX receiver to the frequency of the thermostat

signal, follow steps 1-5 below

LEARN

1. TP7000-RF

Press the recessed RESET button,

using a non-metallic object, to reset

the unit.

2. Press & hold the recessed LEARN button for 3 seconds,

using a non-metallic object.

NOTE: Thermostat now transmits continuously for 5 mins

3. RX1

Press and hold buttons PROG and CH1

for 3 seconds until green light ﬂashes once

4. RX2 (if applicable)

Stat 1 - perform steps 1-3

Stat 2 - wait 5 mins, perform steps1-2 and then press

PROG and CH2 on RX2

RX3 (if applicable)

Stat 1 - perform steps 1 – 3

Stat 2 - wait 5 mins, perform steps 1-2 and then press

PROG and CH2 on RX3

Stat 3 - wait 5 mins, perform steps 1-2 and then press

PROG and CH3 on RX3

5. TP7000-RF

Press or  to return the unit to

normal operation.

RESET

GB - Installation Instructions

Receiver Wiring (RF models only)

RX1 & 2 (3055 12/01)

COM

RX3 (3056 12/01)

RX1 & RX2 RX3

NB. For mains voltage operated systems link terminal 2 to mains live supply

GB - User Instructions

User

Instructions

Your programmable room thermostat

The TP7000 allows you to programme up to 6 different time

and temperature settings for each day of the week, providing

complete ﬂexibility. It provides several energy saving features

and features several useful user overrides, including a 99

day holiday mode.

Preset Programmes

Your TP7000 comes ready programmed with a set of operating

times and temperatures which often suit most people.

If you want, you can change any of these settings by following

the instructions on pages 9-10. First follow the steps on page 8

to set your display preferences and the correct time and date.

Before you start

Open the ﬂap on the front of your

programmer. Using a non-metallic

object, press the recessed RESET

button, until you hear a click and the

display goes blank.

Weekdays (Mon-Fri) Weekend (Sat-Sun)

Event Time Temp °C Event Time Temp °C

1 06:30 20 1 07:30 20

2 08:30 15 2 09:30 20

3 11:30 20 3 11:30 20

4 13:30 15 4 13:30 20

5 16:30 21 5 16:30 21

6 22:30 15 6 22:30 15

RESET

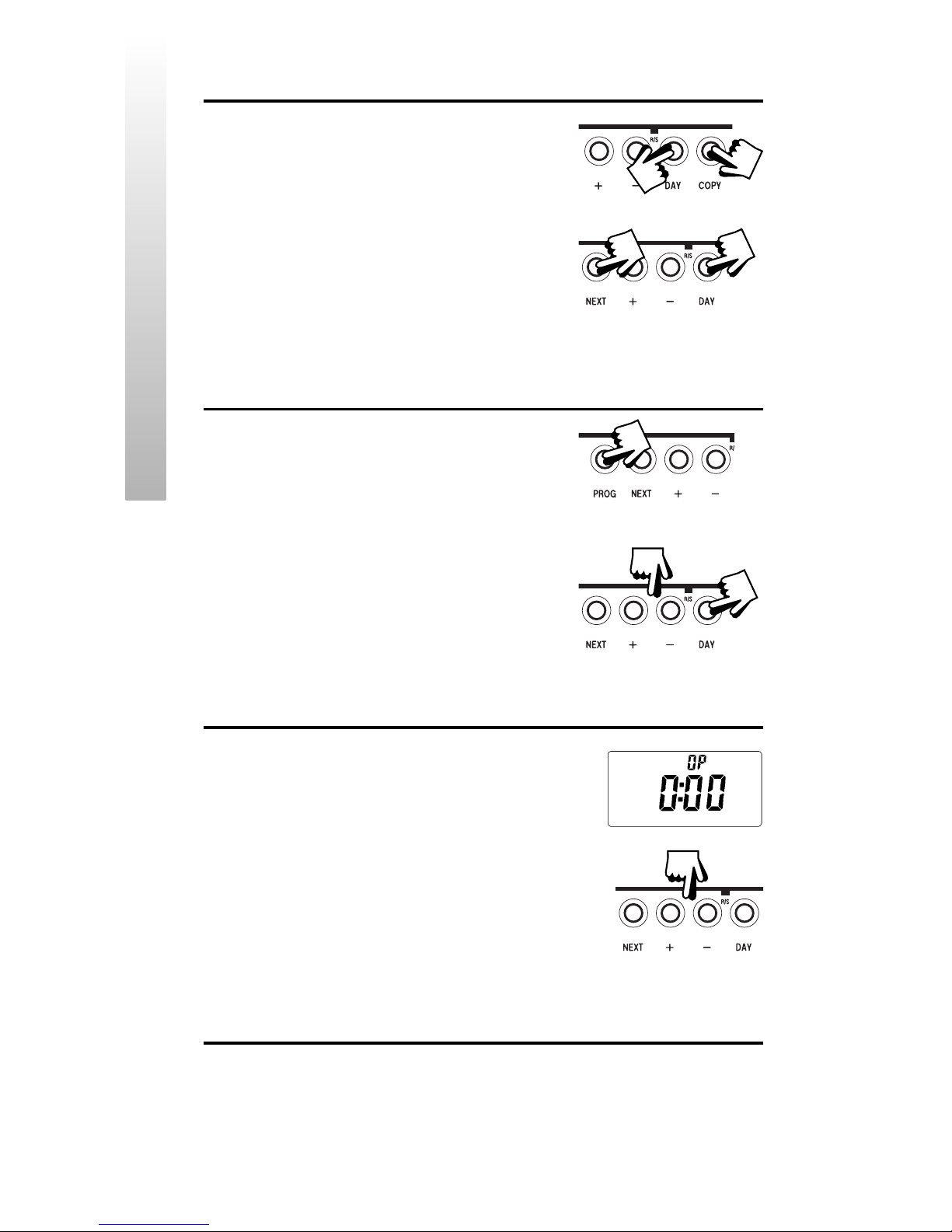

Display preferences

Temperature display (°C or °F)

Press and hold DAY & COPY (for 2-3

seconds) until display changes.

Clock display (12 or 24 hr)

Press and hold NEXT & DAY (for 2-3

seconds) until display changes

(AM or PM will appear in 12 hr mode)

Setting the Clock & Day

Press PROG to begin programming

DAY - Press DAY until correct day is

shown (1=Monday, 2=Tuesday etc)

TIME - Press + and - to change time

(press and hold to change in 10 min

increments)

This display will ONLY appear if the OSC

function has been enabled by your installer.

Use the + or - buttons to select the

OSC period. The choices are 0:30 (30

mins), 1:00 (1 hr), 1:30 and 2:00.

The recommended setting is 0:30. If set

to 0:00 the function is disabled.

change

DAY

To change TIME

GB - User Instructions

Setting the OSC Period, if enabled (see pg.5)

Accepting the preset programmes

If you are happy to use the preset programmes on page 7,

you don’t need to do anything else. To accept these settings

just close the front cover and after 2 minutes the pre-settings

will automatically be accepted.

GB - User Instructions

The unit is now in RUN mode (colon

ﬂashes in display) and the heating

will operate according to the preset

programmes.

a) Press PROG until Event 1

ﬂashes, then press DAY to move from

current day to Day 1.

b) Amend the time and temperature

as follows:

i) Use + and – buttons to

alter time (press and hold to

change in 10 min increments).

ii) Use and buttons to alter

temperature in 0.5°C (1°F) steps.

iii) Press NEXT to advance to

next Event

iv) Repeat steps i,ii & iii above for

Events 2, 3, 4, 5 & 6

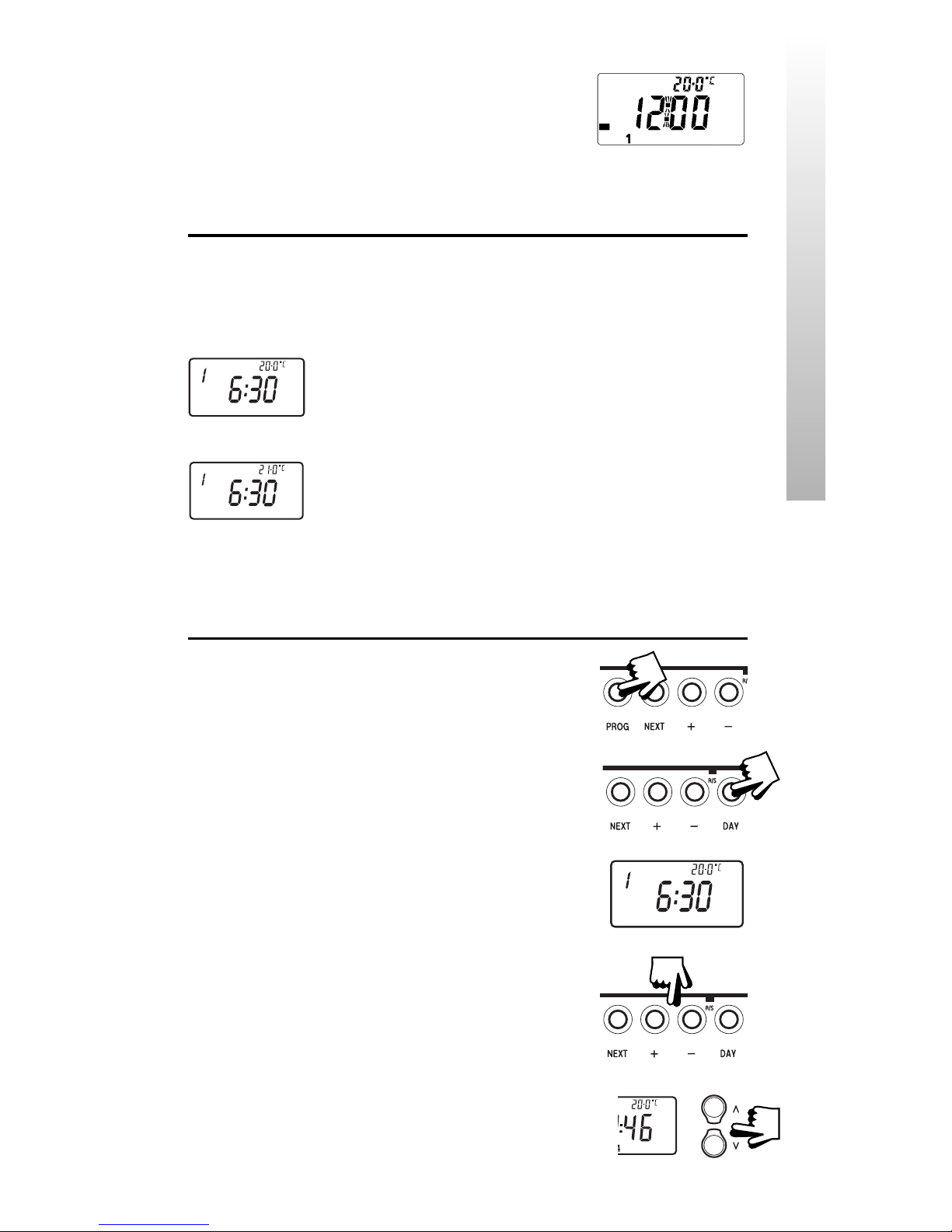

Programming in 7-day mode

(separate programmes for each day of the week)

Before you change the preset programmes

Your installer will have set your unit to operate in either 7-day

mode or 5/2 day mode. To tell which mode your unit is set

press PROG until Event 1 ﬂashes in the display.

This unit is in 7-day mode and you can

programme different settings for each day of the

week (see page 9-10).

This unit is in 5/2 day mode and you can enter

one of set of programmes for weekdays and

another set for weekends (see page 10).

1 2 3 4 5

c) When all 6 events are correct,

press DAY to programme events

for Day 2.

(If you wish to repeat the

previous day’s programme,

simply press COPY)

d) Repeat steps b & c above to

programme (or COPY)

events for Days 3, 4, 5, 6 & 7

Returning to RUN Mode –

press PROG until colon ﬂashes

in display

Press PROG until Event 1

ﬂashes, then press DAY until

display shows Day 1-5.

Follow steps b & c on page

9-10 to programme times &

temperatures for weekdays

Press DAY to programme

events for weekend (Day 6-7) or

press COPY to repeat weekday

programme

Returning to RUN Mode –

press PROG until colon ﬂashes

in display

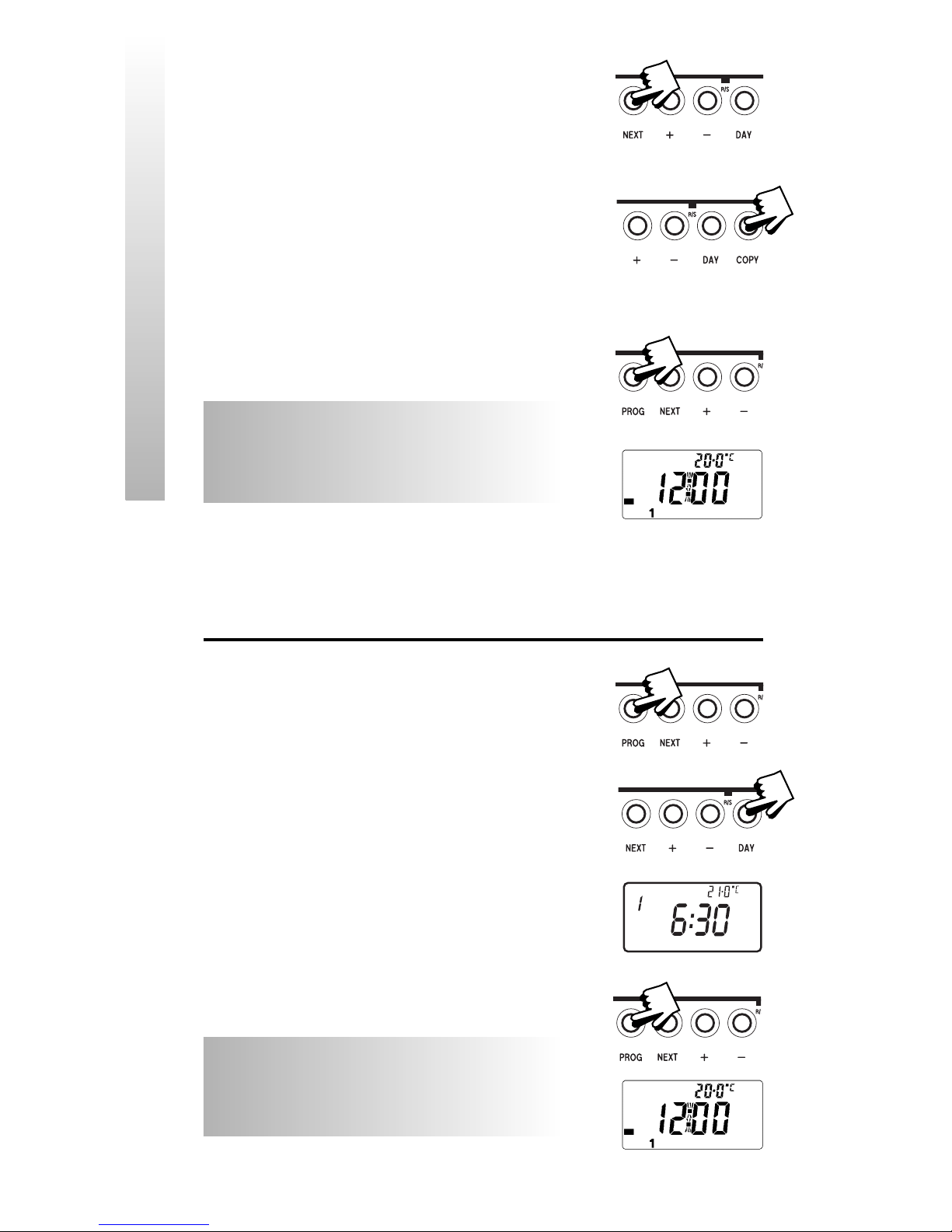

Programming in 5/2 day mode

(one set of programmes for weekdays, another set for weekends)

1 2 3 4 5

GB - User Instructions

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Danfoss Termostato

Danfoss

Danfoss TP9000 Si Manuale utente

Danfoss

Danfoss Icon Master Manuale utente

Danfoss

Danfoss ECtemp 550 Manuale utente

Danfoss

Danfoss DEVIreg 530 Manuale utente

Danfoss

Danfoss TP5001RF Manuale utente

Danfoss

Danfoss ECtemp 330 Manuale utente

Danfoss

Danfoss C37 Manuale utente

Danfoss

Danfoss TP7001 series Manuale utente

Danfoss

Danfoss RET2001 Manuale utente

Danfoss

Danfoss ECL Comfort 110 Manuale utente

Danfoss

Danfoss EFIT 540 Manuale utente

Danfoss

Danfoss DEVIreg Multi Manuale utente

Danfoss

Danfoss RET-B Manuale utente

Danfoss

Danfoss 088U0215 Manuale utente

Danfoss

Danfoss living connect Manuale utente

Danfoss

Danfoss SET3M Istruzioni di montaggio

Danfoss

Danfoss Living Eco Manuale utente

Danfoss

Danfoss FP715Si Manuale utente

Danfoss

Danfoss HC6000 Manuale utente

Danfoss

Danfoss TP75-RF Manuale utente

Danfoss

Danfoss FH-RT Manuale

Danfoss

Danfoss RET2000B-RF + RX1-S Manuale utente

Danfoss

Danfoss RT 101 Manuale utente

Danfoss

Danfoss DEVIreg Opti Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
