QUICK REFERENCE GUIDE

Figure A

4 10

Warning and Device Class Labels

"POWER ON" LED

Mounting Holes

"READY" LED

"TRIGGER" LED

"COM" LED

"STATUS" LED

Push Button

7Laser Beam Output Window

5 "GOOD" LED

ccessory Mounting Holes

NOTE

This manual illustrates a Stand Alone application. For other types of installations, such as

ID-NET™, Pass-Through, Multiplexer Layout, etc. and for a complete scanner configuration using

Genius™ configuration program, refer to the DS2400N Reference Manual available on the CD.

This manual is also downloadable from the Web at www.automation.datalogic.com/ds2400n.

45 6

DS2400N QUICK GUIDE

UPDATES AND LANGUAGE AVAILABILITY

UK/US

The latest drivers and documentation updates for this product are available on Internet.

Log on to: www.automation.datalogic.com

Su Internet sono disponibili le versioni aggiornate di driver e documentazione di questo prodotto. Questo manuale

è disponibile anche nella versione italiana.

Collegarsi a: www.automation.datalogic.com

Les versions mises à jour de drivers et documentation de ce produit sont disponibles sur Internet. Ce manuel est

aussi disponible en version française.

Cliquez sur : www.automation.datalogic.com

Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation von diesem Produkt. Die

deutschsprachige Version dieses Handbuches ist auch verfügbar.

Adresse : www.automation.datalogic.com

En Internet están disponibles las versiones actualizadas de los drivers y documentación de este producto.

También está disponible la versión en español de este manual.

Dirección Internet : www.automation.datalogic.com

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support through its website. Log on to

www.automation.datalogic.com and click on the links indicated for further information including:

• PRODUCTS

Search through the links to arrive at your product page where you can download specific Manuals and

Software & Utilities including:

- Genius™ a utility program, which allows device configuration using a PC. It provides RS232 interface

configuration.

• SERVICES & SUPPORT

- Datalogic Services - Warranty Extensions and Maintenance Agreements

- Authorised Repair Centres

• CONTACT US

E-mail form and listing of Datalogic Subsidiaries

DS2400N QUICK GUIDE

STEP 1 – CONNECT THE SYSTEM

To connect the system in a Stand Alone configuration, you need the hardware indicated in Figure 1. In this layout

the data is transmitted to the Host on the main serial interface. In Local Echo communication mode, the RS232

auxiliary interface can be used to transmit data independently from the main interface selection. When On-Line

Operating mode is used, the scanner is activated by an External Trigger (photoelectric sensor) when the object

enters its reading zone.

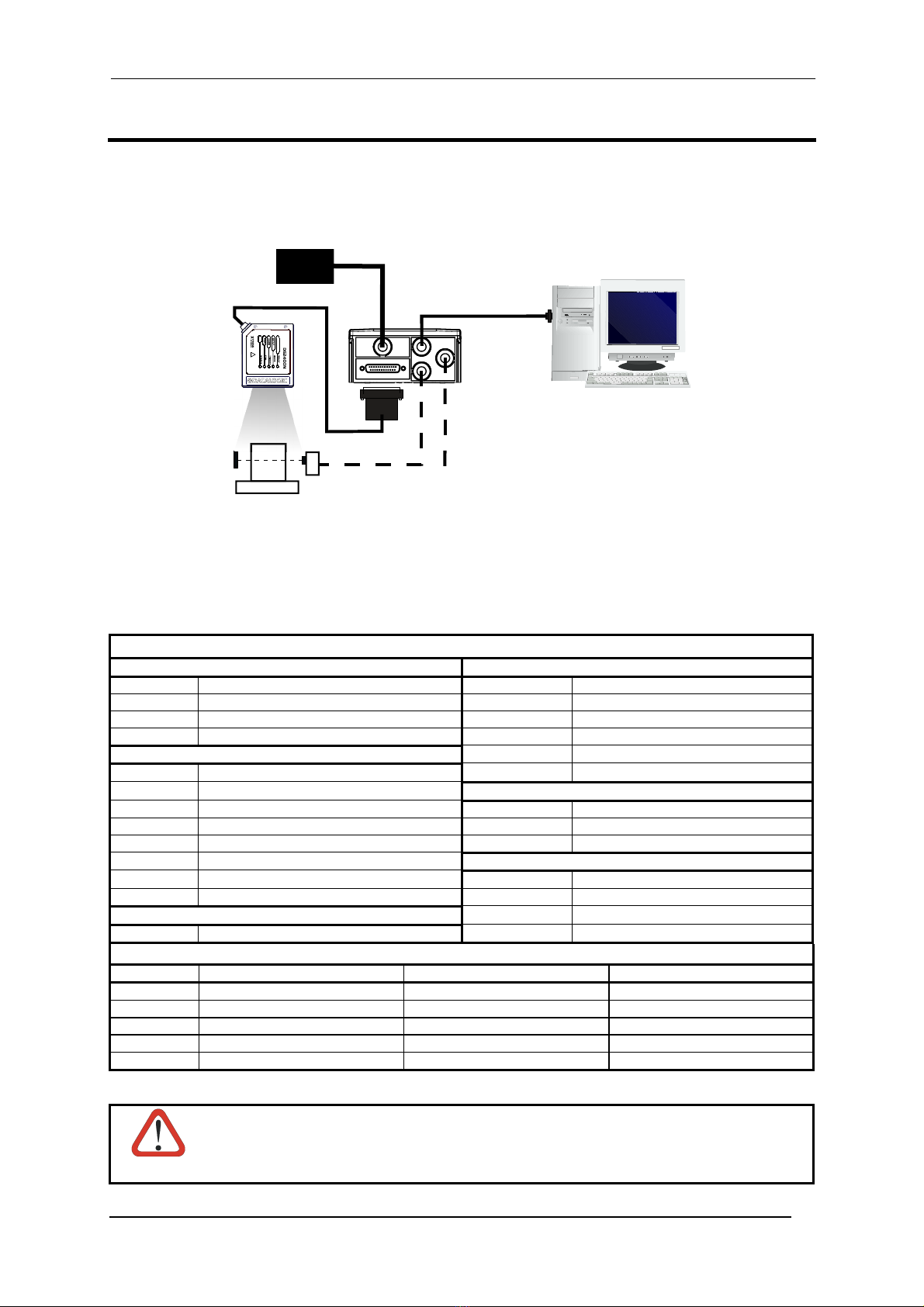

Figure 1 – DS2400N in Stand Alone Layout

CBX100/500 Pinout for DS2400N

The table below gives the pinout of the CBX100/500 terminal block connectors. Use this pinout when the

DS2400N reader is connected by means of the CBX100/500:

CBX100/500 Terminal Block Connectors

Power Outputs

Vdc Power Supply Input Voltage + +V Power Source - Outputs

GND Power Supply Input Voltage - -V Power Reference - Outputs

Earth Protection Earth Ground O1+ Output 1 +

O1- Output 1 -

Inputs O2+ Output 2 +

+V Power Source – External Trigger O2- Output 2 -

I1A External Trigger A (polarity insensitive) Auxiliary Interface

I1B External Trigger B (polarity insensitive) TX Auxiliary Interface TX

-V Power Reference – External Trigger RX Auxiliary Interface RX

+V Power Source – Inputs SGND Auxiliary Interface Reference

I2A Input 2 A (polarity insensitive) ID-NET™

I2B Input 2 B (polarity insensitive) REF Network Reference

-V Power Reference – Inputs ID+ ID-NET™ network +

Shield ID- ID-NET™ network -

Shield Network Cable Shield

Main Interface

RS232 RS485 Full-Duplex RS485 Half-Duplex

TX TX+ RTX+

RTS TX- RTX-

RX *RX+

CTS *RX-

SGND SGND SGND

*Do not leave floating, see Reference Manual for connection details.

CAUTION

Do not connect GND, SGND and REF to different (external) ground references. GND, SGND

and REF are internally connected through filtering circuitry which can be permanently

damaged if subjected to voltage drops over 0.8 Vdc.

DS2400N

Host

PG 6000

P.S.* * Presence Sensor

(for On-Line mode)

MAIN

I/O, AUX

CBX100/500

DS2400N QUICK GUIDE

25-pin Connector Pinout for DS2400N

The table below gives the pinout of the 25-pin male D-sub connector for connection to the power supply and

input/output signals. Use this pinout when the DS2400N reader is connected by means of the 25-pin connector:

2514

Figure 2 - 25-pin Male D-sub Connector

25-pin D-sub male connector pinout

Pin Name Function

13, 9 Vdc Power supply input voltage +

25, 7 GND Power supply input voltage -

1 CHASSIS Cable shield connected to chassis

18 I1A External Trigger A (polarity insensitive)

19 I1B External Trigger B (polarity insensitive)

6 I2A Input 2 A (polarity insensitive)

10 I2B Input 2 B (polarity insensitive)

8 O1+ Output 1 +

22 O1- Output 1 -

11 O2+ Output 2 +

12 O2- Output 2 -

20 RX Auxiliary RS232 RX

21 TX Auxiliary RS232 TX

23 ID+ ID-NET™ network +

24 ID- ID-NET™ network -

14, 15, 16, 17 NC Not Connected

Pin Name RS232

RS485

Full-Duplex

RS485

Half-Duplex

2 TX TX+ RTX+

3 RX

*RX+

4 RTS TX- RTX-

MAIN INTERFACE

(SW SELECTABLE)

CTS *RX-

*Do not leave floating, see Reference Manual for connection details.

DS2400N QUICK GUIDE

STEP 2 – MOUNT AND POSITION THE SCANNER

1. To mount the DS2400N, use the mounting bracket to obtain the most suitable position for the reader as

shown in the figures below.

Figure 3 - Positioning with Mounting Bracket

2. When mounting the DS2400N take into consideration these three ideal label position angles:, Skew 10° to 30°,

Tilt 0° and Pitch 0°.

Assure at least 10° Minimize Minimize

Figure 4 –, Skew, Tilt and Pitch Angles

3. Refer to the Reading Diagrams in the Appendix of this Quick Reference Guide to decide the distance your

scanner should be positioned at.

Skew

Tilt

Skew

Pitch

DS2400N QUICK GUIDE

STEP 3 – X-PRESS™ CONFIGURATION

X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance.

Status and diagnostic information are clearly presented by means of the five colored LEDs, whereas the single

push button gives immediate access to the following relevant functions:

• Test Mode with bar graph visualization to check static reading

performance

• AutoLearn to self-detect and auto-configure for reading unknown

barcodes (by type and length)

• AutoSetup to self-optimize and auto-configure reading performance in

demanding applications

NOTE

If using the OM2000N accessory, when entering the X-PRESS™ interface, the Oscillating Mirror

remains in the default fixed position (-15°) in order to make barcode reading easier while

performing the X-PRESS™ functions.

The colors and meaning of the five LEDs are illustrated in the following table:

READY (green) This LED indicates the device is ready to operate.

GOOD (green) This LED confirms successful reading.

TRIGGER (yellow) This LED indicates the status of the reading phase.

COM (yellow) This LED indicates active communication on main serial port.

STATUS (red) This LED indicates a NO READ result.

During the reader startup (reset or restart phase), all the LEDs blink for one second.

On the back of the reader near the cable, the “POWER ON” LED indicates the laser scanner is correctly powered.

AUTO LEARN

If you are configuring your scanner using X-PRESS™, you must start with the Auto Learn procedure.

1. Enter the Auto Learn function by holding the X-PRESS™ push button pressed until the LEARN LED is on.

2. Release the button to enter the Auto Learn function.

Once entered, the reader starts a procedure to automatically detect and recognize barcodes (by type and

length), which are presented to it (*). The laser turns on and the LEARN LED blinks to indicate the ongoing

process.

green

yellow

red

SETUP

LEARN

TES

READY

GOOD

TRIGGER

COM

STATUS

Figure 5 – X-PRESS™ Interface: Auto Learn Function

The procedure is as follows:

A) place the desired barcode on the scanline.

B) wait until the LEARN LED stays steady on

(indicating the reader has detected the

barcode).

C) repeat, if needed, the above two steps to

program up to 10 different barcodes (the

LEARN LED returns to the blinking state for

the next code). If more than one barcode is

detected, the Multi Label mode is enabled

(refer to the “2K/4K Family Software

Configuration Parameter Guide” Help file).

* In case of Programming Barcodes, refer to the “ID-NET™ Programming Barcodes And Setup Procedure” document in the

product CD.

DS2400N QUICK GUIDE

3. Exit the process by pressing the X-PRESS™ push button once. The scanner will restart at the end of the

process, and then the detected barcodes are automatically configured in scanner memory.

NOTE

If the barcode cannot be read because of low contrast or excessive ambient light, you can

perform the AutoSetup function to optimize the optical parameters. Then you can perform

AutoLearn to recognize the barcode symbology.

AUTO SETUP (OPTIONAL)

At the end of the Auto Learn procedure, you have the possibility to follow the Auto Setup procedure to set up the

reading parameters.

1. Enter the Auto Setup function by holding the X-PRESS™ push button pressed until the SETUP LED is on.

2. Release the button to enter the Auto Setup function.

Once entered, if a barcode label is positioned in front of the scanline, the scanner automatically performs the

optimal setup of the reading parameters for that specific barcode.

green

yellow

red

SETUP

LEARN

TES

READY

GOOD

TRIGGER

COM

STATUS

Figure 6 – X-PRESS™ Interface: Auto Setup Function

The procedure is as follows:

A) place the desired barcode on the scanline.

B) enter the AutoSetup function (the laser turns on

and the SETUP LED blinks to indicate the

ongoing process)

C) wait until the SETUP LED stays steady on

(indicating the reader has detected the

barcode)

This procedure ends either when the barcode is successfully decoded or after a timeout of about 7 (seven) seconds.

The scanner will restart at the end of the process, and then the optimized reading parameters for that barcode are

automatically configured in scanner memory.

NOTE

If your application has been configured using X-PRESS™, go to STEP 5.

RESET SCANNER TO FACTORY DEFAULT (OPTIONAL)

If it ever becomes necessary to reset the scanner to the factory default values, you can perform this procedure by

holding the X-PRESS™ push button pressed while powering up the scanner. At the end of the procedure (about

5-6 seconds), the Configuration and Environmental parameters are reset and all LEDs blink simultaneously 3

times. If connected through a CBX500 with display module, the message "Default Set" is shown on the display.

DS2400N QUICK GUIDE

STEP 4 – INSTALL GENIUS™ CONFIGURATION PROGRAM

Genius™is a Datalogic scanner configuration tool providing several important advantages:

• Wizard approach for new users;

• Multi-language version;

• Defined configuration directly stored in the reader;

• Communication protocol independent from the physical interface allowing to consider the reader as a remote

object to be configured and monitored.

To install Genius™, turn on the PC that will be used for the configuration, running Windows 98, 2000/NT, XP

or Vista, then insert the Genius™ CD-ROM, wait for the CD to autorun and follow the installation

procedure.

This configuration procedure assumes scanner connection to a CBX100/500. Genius™, running on a laptop

computer, is connected to the scanner auxiliary port through the CBX100/500 9-pin connector. To communicate

with the scanner, Genius™ performs an auto baudrate detection starting from its default parameters which are

115200, 8, N, 1. These parameters can also be set in the Genius™ Tools>Options>Communications window.

WIZARD FOR QUICK READER SETUP

After installing the Genius™ software program the following window appears asking the user to choose the

desired configuration level.

Figure 7 - Genius™ Wizard Opening Window

The Wizard option is advised for rapid configuration or for new users, since it shows a step-by-step scanner

configuration.

1. Select the Create a new configuration button.

You will be guided through the configuration being asked to define the following parameters:

DS2400N QUICK GUIDE

a. Barcode selection and definition b. Operating mode selection and definition

c. Digital Outputs configuration d. Hardware interface selection

e. Output data format configuration

The On Line operating Mode requires the reader to be connected to an External Trigger/Presence Sensor

using I1A and I1B inputs.

The Automatic operating mode does not require connection to an external Presence Sensor. When

working in this mode the reader is continuously scanning, while the reading phase is activated each time a

barcode enters the reader reading zone. The reader stops reading after an N number of scans without a

code. Barcode characters are transmitted on the serial interface. In case of a failed reading phase no

message is sent to the host computer.

DS2400N QUICK GUIDE

2. After defining the parameter values the following window appears allowing to complete the reader

configuration as follows:

• Saving the configuration to disk;

• Switching to Advanced mode;

• Sending the configuration to the scanner.

3. After sending the configuration to the scanner you have completed the configuration process.

4. By clicking Finish, the System Information window will be displayed with specific information concerning the

scanner.

Altri manuali per DS2400N

Indice

Altri manuali Datalogic Lettore di codici a barre

Datalogic

Datalogic Magellan 9300i Manuale utente

Datalogic

Datalogic Magellan 8500Xt Guida di riferimento

Datalogic

Datalogic MAGELLAN 8500? Manuale di installazione e funzionamento

Datalogic

Datalogic Gryphon L GD4300 Manuale utente

Datalogic

Datalogic Gryphon I GBT4130 Manuale utente

Datalogic

Datalogic Dragon M101 Manuale utente

Datalogic

Datalogic Gryphon GFS4100 Manuale di installazione e funzionamento

Datalogic

Datalogic PowerScan PM9600 Series Manuale utente

Datalogic

Datalogic matrix 450N Manuale utente

Datalogic

Datalogic PowerScan BT9500 Family Manuale utente

Datalogic

Datalogic Gryphon GM41XX Manuale

Datalogic

Datalogic PowerScan PD953X Manuale utente

Datalogic

Datalogic Gryphon I GD4100 Manuale utente

Datalogic

Datalogic Magellan 9800i Manuale di installazione e funzionamento

Datalogic

Datalogic PowerScan RF Istruzioni operative

Datalogic

Datalogic Gryphon I GFS4400 Manuale di installazione e funzionamento

Datalogic

Datalogic OM6010-R Guida utente

Datalogic

Datalogic QuickScan Lite QW2400 Manuale di installazione e funzionamento

Datalogic

Datalogic Gryphon GD4200 Manuale di installazione e funzionamento

Datalogic

Datalogic QuickScan i QD2100 Manuale utente

Datalogic

Datalogic PD9330 Manuale di installazione e funzionamento

Datalogic

Datalogic DS8100 Manuale utente

Datalogic

Datalogic PowerScan PD9530 Manuale di installazione e funzionamento

Datalogic

Datalogic Magellan 3300HSi Manuale di installazione e funzionamento

Manuali Lettore di codici a barre popolari di altre marche

POSMicro

POSMicro Datalogic PowerScan D7100 Manuale utente

Marson

Marson MT780 Guida rapida alla configurazione

NCR

NCR RealPOS Manuale utente

Motorola

Motorola SE3300 Guida rapida alla configurazione

Element

Element P130BT Manuale utente

Motorola

Motorola Symbol LS3008 Manuale di installazione e funzionamento

Meec tools

Meec tools OBD-II / VAG Manuale utente

SICK

SICK CLP 100 Manuale utente

Royal Tag SA

Royal Tag SA I-Read Manuale utente

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuale utente

Meteor

Meteor 8310 Manuale utente

Denso

Denso BHT-500B Manuale utente

Motorola

Motorola MP6000 Istruzioni di montaggio

Newland

Newland NLS-HR15-BT Manuale utente

ARTDEV

ARTDEV AS-1310 Manuale utente

Aopos

Aopos AS290 Manuale utente

ENS

ENS 367-5455 Manuale utente

Atid

Atid AT188N Plus Manuale utente
