Datamax H-Class Manuale utente

Linear Scanner Option

92-2435-01 Rev.C

Overview

With the H-Class Linear Scanner option and menu-selectable functions that include voiding and

replacement generation, labels can be interrogated at up to 700 times per second to ensure that correct,

readable symbologies have been printed.

Use the sections of this document to find needed information. As a starting point, if your Linear Scanner

arrived factory-installed, see “Controls and Features, Performance, and Configuration” to begin use;

otherwise, proceed to “Installation.”

Installation

If installing the kit, verify the experience level of the installer, the package contents, and the tools needed

before following the steps below.

CAUTION

Only qualified service personnel should perform this installation. For your safety and to

avoid printer damage, always turn OFF the power switch and unplug the AC power cord

before this installation and whenever performing service.

Contents of the Linear Scanner Kit

In addition to this document, this kit contains the following items:

Scanner and Mounting Assembly

Philips Screw (3), M4 x 12

Nut (2), M3 x .5

Philips Screw (2), M3 x 20

Cable Assembly

Tools Required

To install this option a small standard screwdriver and a Philips screwdriver are needed.

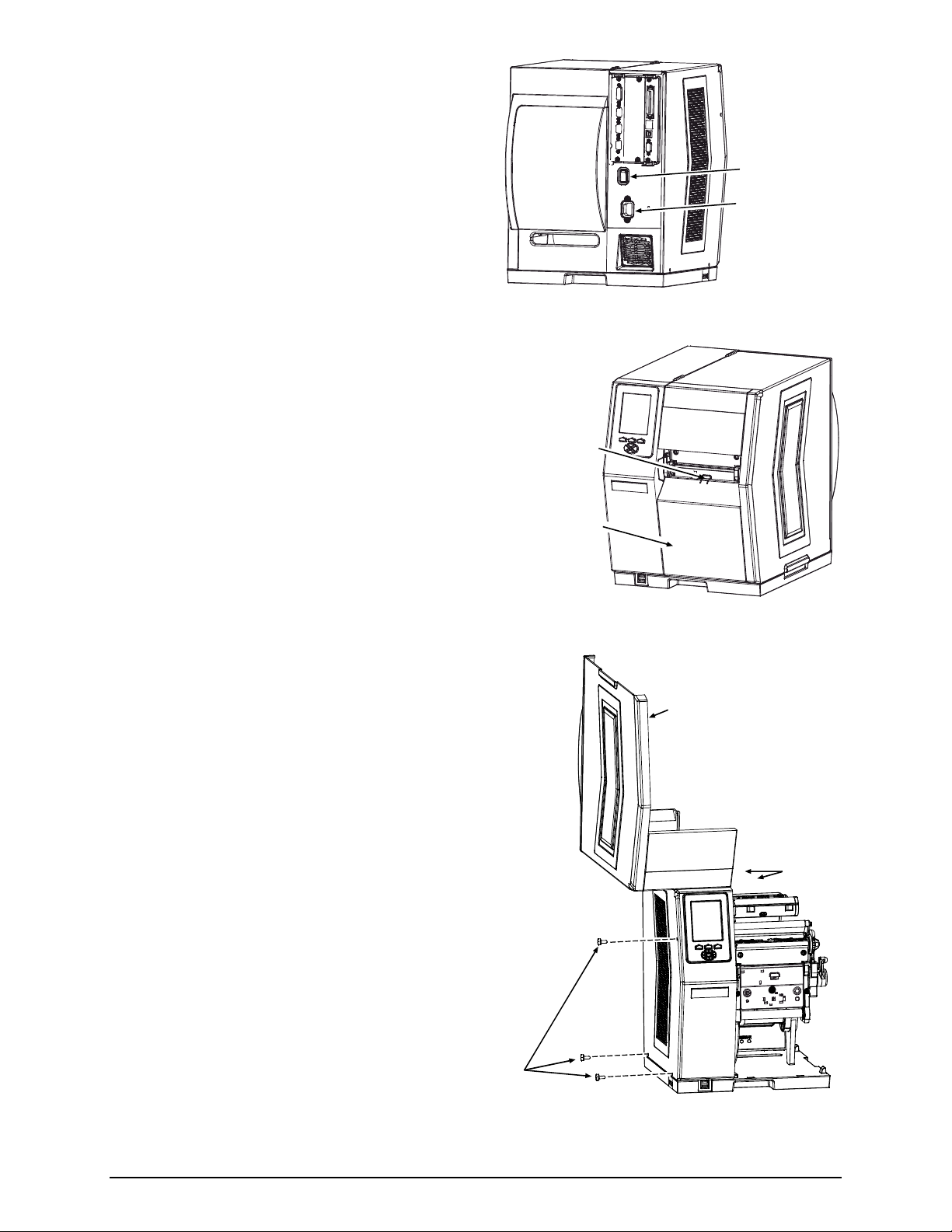

1) Turn OFF the Power Switch and unplug the

power cord from the AC Receptacle.

AC Receptacle

Power Switch

2) Press down on the Catch, then pull forward to remove

the Door.

Door

Catch

3) Raise the Cover. Loosen both Hinge

Screws. Remove the three Cover Screws,

and then lift the Cover off the printer.

Remove any media and ribbon from the

printer.

Cover

Screws

Hinge

Screws

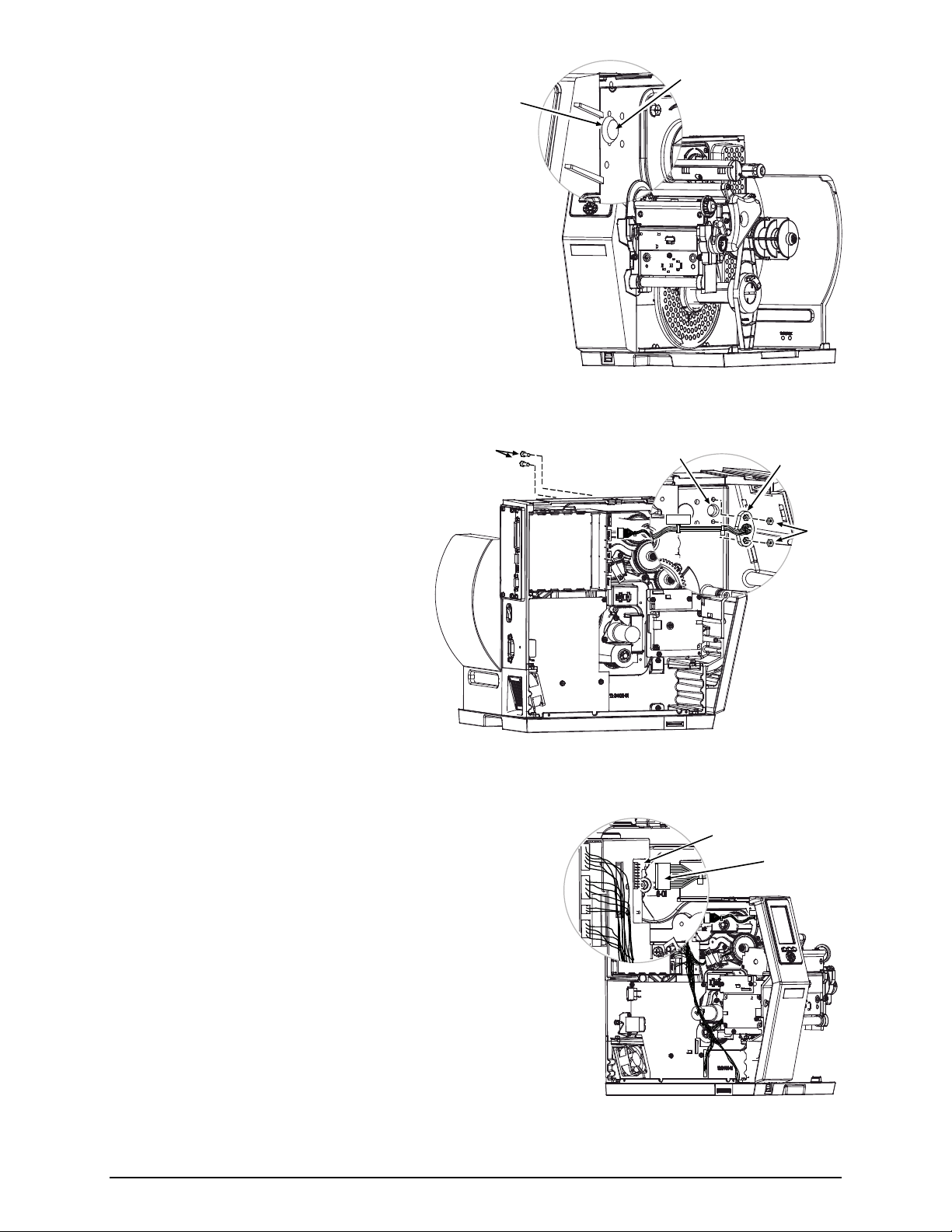

4) Remove the Plug from the Center Plate

Aperture.

Center Plate

Aperture Plug

5) Secure the mini-din connector of the

Cable Assembly (Item 5) to the Center

Plate Aperture using two Screws (Item

4) and two Nuts (Item 3).

Screws Center Plate

Aperture

Nuts

Cable

Assembly

6) After routing the Cable Assembly away from movable

parts, attach its 8-pin connector to J13 of the Backplane

CCA.

Cable

Assembly

J13

Backplane

CCA

7) Secure the Scanner and Mounting

Assembly (Item 1) to the Center Plate

using three Screws (Item 2).

Screws Scanner and

Mounting Assembly

Center Plate

8) Connect the Scanner Cable to the Center

Plate Connector.

Center Plate

Connector Scanner

Cable

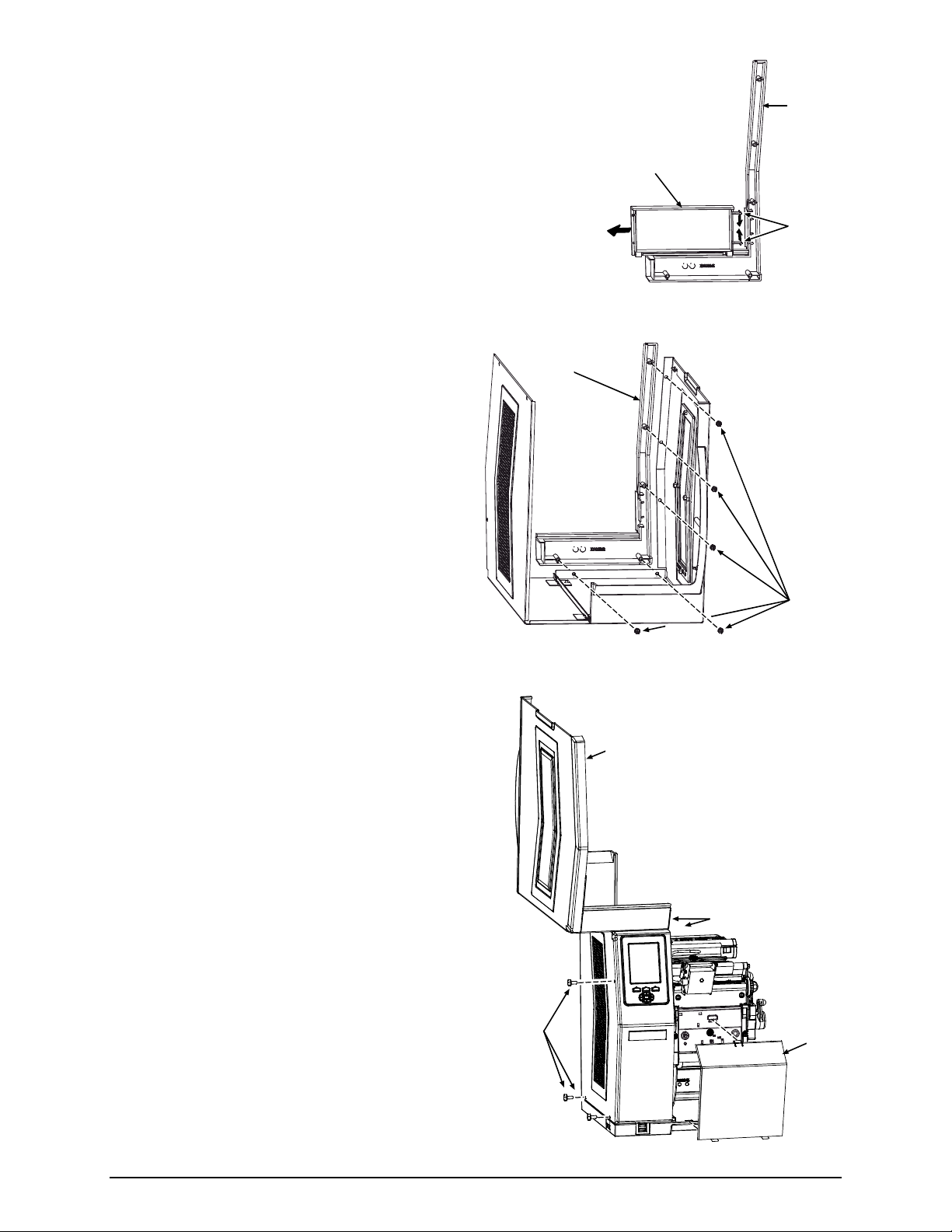

9) Remove the five Screws that secure the Fascia to the

Cover.

Screws

Cover

Fascia

10) Press the Tabs of the Lens together. Then slide the Lens off

the Fascia. (Store the Lens in a safe place, for future use.)

Lens

Fascia

Tabs

11) Secure the Fascia to the Cover using the five

previously removed Screws.

Fascia

Screws

12) Lower the Cover onto the printer. Reinstall and

tighten the three Cover Screws.Tighten both

Hinge Screws. Reinstall the Door and lower

the Cover.Plug the power cord into the AC

Receptacle. Align the scanner; see “Alignment”

section, below.

Door

Cover

Hinge

Screws

Cover

Screws

Controls and Features, Performance, and Configuration

This section includes topics on operations.

Controls and Features

Item Function Location

Connector Cable Scanner to printer interface.

Horizontal Mount Lateral position adjustment.

Mounting Bracket Horizontal support.

Pivoting Mount Spring-loaded holder, also for vertical

Scanner positioning (scan resolution).

Scanner CCD scanning device.

Thumbscrew

Secures the Scanner to the

Horizontal Mount, for lateral

positioning.

Mounting

Bracket

Thumbscrew

Pivoting

Mount

Horizontal

Mount

Scanner

Connector

Cable

LED Goes green to signify a “good” read.

Window Portal for image illumination and

capture; glows red.

Window

LED

Scanner

CAUTION

The Pivot Mount should never be over-extended. The use of controls, adjustments, or

procedures other than those specified herein may result in hazardous LED light exposure.

Class 1 LED power up to 15 mW in a 0.1 ms pulse at 635-670 nm could be accessible in

the interior of the Linear Scanner.

Performance Considerations

Printing with the scanner is a seamless operation; however, consider some important factors that can

affect performance:

Integrity and Speed

If the primary objective is to ensure that correct data is read over a significant region of the

symbology, maximize integrity by (1) increasing the REDUNDANCY LEVEL or the MIN

READABLE HEIGHT setting, (2) slowing the print speed, and (3) increasing the bar code height.

When emphasizing data accuracy, the allowable maximum throughput rate may be affected.

If the primary objective is to achieve the highest label throughput rate, maximize speed by (1)

decreasing the REDUNDANCY LEVEL or the MIN READABLE HEIGHT setting, and (2)

increasing the print speed. When emphasizing throughput, data reliability may be affected.

Media and Ribbon Selection

For best results use carbon-based inks on matte-finished label stocks to achieve a high print contrast.

Label Layout

For proper recognition, the Linear Scanner must be positioned over the bar codes, and the codes

used and the label layout must meet certain requirements:

The bar codes must be placed in the picket fence orientation, with proper quiet zones, and a

narrow bar resolution that is no less than the scan resolution position.

If encoding the same information in multiple-up bar codes arranged in ordered columns (see

below), allow at least ¼ inch of white space between the rows.

104 104 104

1/4 inch (6.5 mm)

Row

Column

Direction

When printing bar codes on small labels, avoid the possible need for backup repositioning by

placing the code(s) near the leading edge of the label.

Although a reduction of print speed may actually improve throughput, to maintain proper

detection when printing small bar codes at high speeds the following parameters should not be

exceeded:

Minimum Bar Code Height Maximum Print Speed (IPS)*

1/16 inch (1.5 mm) 8

1/8 inch (3 mm) 10

* Inches per Second

Configuration

A printer equipped with the Linear Scanner arrives with these default settings:

Menu Location Function and Default Setting

PRINTER OPTIONS SCANNER

MODE = Auto

BARCODES = All, except IATA and codes with

certain addendums

BAR CODE COUNT = 00 (Auto Mode)

MIN READABLE HEIGHT = Disabled

REDUNDANCY LEVEL = 2X

IGNORE NO DATA = Disabled

SYSTEM SETTINGS FAULT HANDLING

FAULT HANDLING = Standard

VOID DISTANCE = 0.5 Inches

RETRY COUNT = 1

BACKFEED ON CLEAR = Disabled

COMMUNICATIONS HOST SETTINGS OPTION FEEDBACK = Disabled

Most settings can be changed via the User Interface, as described below:



Note: Before proceeding, ensure that the ADVANCED MENU is selected: Press MENU then go to

SYSTEM SETTINGS



MENU MODE



ADVANCED MENU and press ENTER.

WED 09:32A 06NOV2006

OFFLINE

PRINTER OPTIONS

EXIT ENTERSYSTEM

MODULES

PRESENT SENSOR

CUTTER

SCANNER

RFID

GPIO PORT

REWINDER

RFID

UP & DOWN

Buttons

ENTER Key

EXIT Key

MENU Button

To change SCANNER settings –

1) Press MENU. Use DOWN or UP to scroll to PRINTER OPTIONS, and then press ENTER.

2) Scroll to SCANNER and then press ENTER.(See table below for listing.)

3) When finished, press EXIT and then YES at the SAVE CHANGES prompt to complete setup.
