Datamax I-Class Manuale utente

Thermal Transfer Option

92-2192-01 Rev.D

1

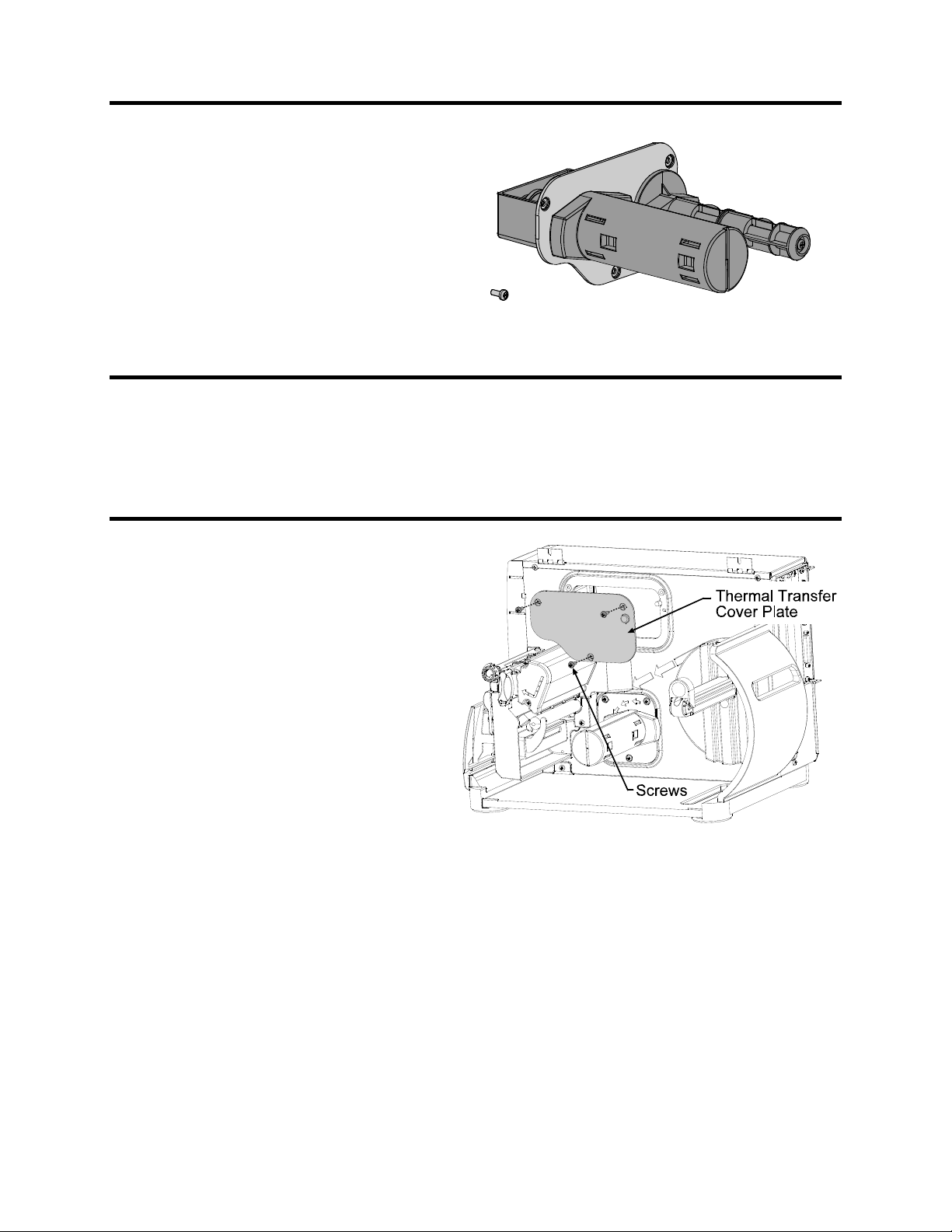

Contents of the Thermal Transfer Kit

This kit contains the following items:

Thermal Transfer Assembly

(3) Screws

Tools Required

The Thermal Transfer Option only requires a #2 Phillips head screwdriver for installation.

Preparing the Printer

Turn the power off and unplug the printer.

Remove any installed media from the printer.

Open the cover and remove the Screws and

the Thermal Transfer Cover Plate.

2

Installing the Thermal Transfer Assembly

Position the Thermal Transfer Assembly in

the printer as shown and secure using the

three provided Screws.

Setup and Configuration

In order to use thermal transfer printing the printer must be loaded with ribbon and the ‘Select Media

Type’ menu function must be set to ‘Ribbon Transfer’. For proper loading of ribbon see the ‘Ribbon

Loading’ instructions in the Operator’s Manual. Follow the steps below to set the printer to ‘Ribbon

Transfer’.

Verify the printer is in the ‘Ready Mode’

Press the button. The ‘Select

Media Type’ menu function should be

displayed, press the button.

Using the button scroll to ‘Ribbon

Transfer’. Press the button to select the

displayed setting, an asterisk will appear to the

left of the setting indicating that it is selected.

Once you have selected the desired setting

press the button repeatedly until the ‘Save

Changes’ message is displayed. Press the

button to save the changes or the button to

discard the changes.
