Decon wheel MED3025 Manuale utente

2020-08-26

Assembly instructions for Etac Sting

MED3025

1. Remove wheels and anti-tip devices on both sides. Check the correct placement for the

stop pin, see placement for the bracket. (See picture below.)

2. Assembly the E-drive bracket (right side) according to picture, here you can see two

placement opportunities.

2020-08-26

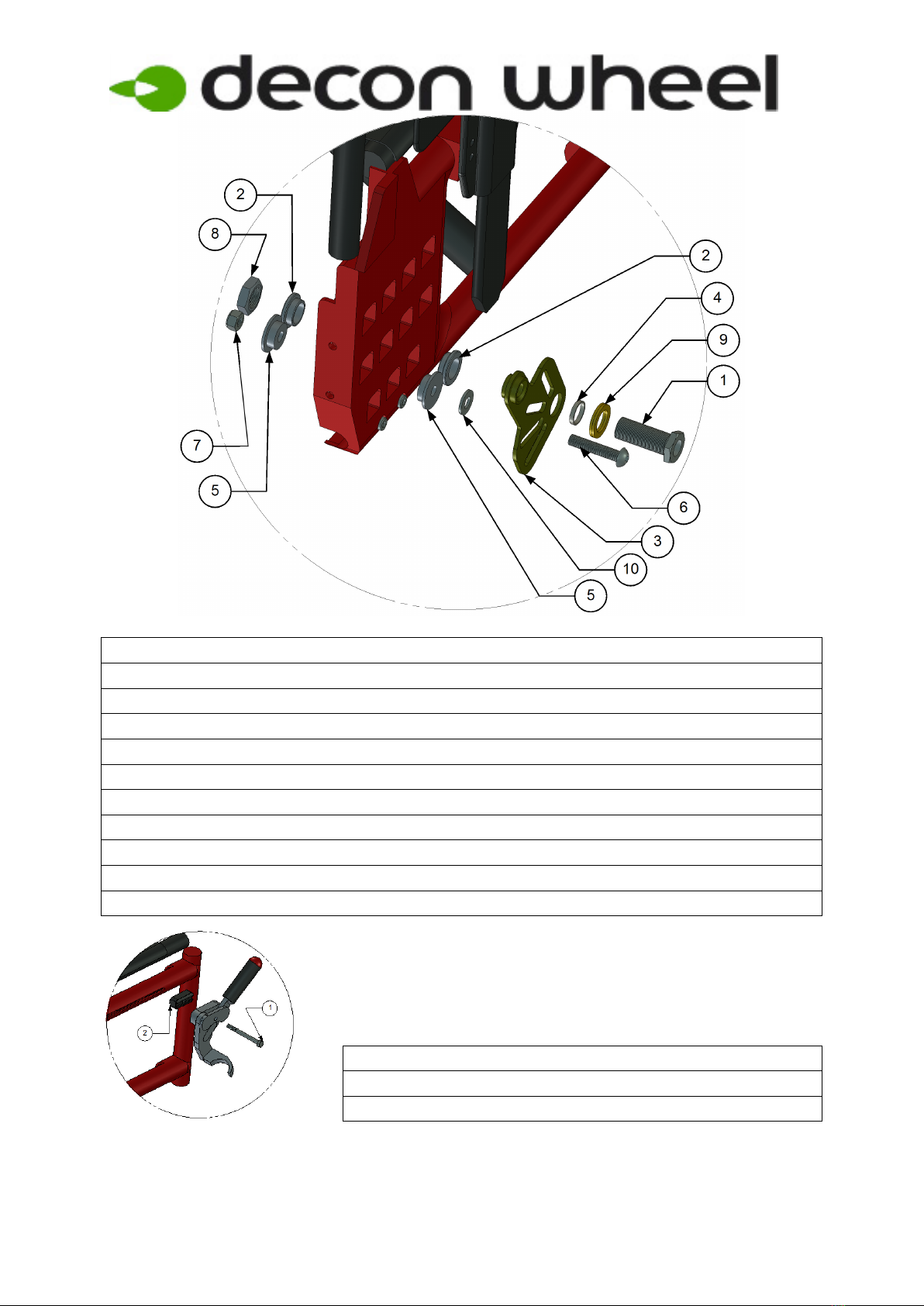

3. Parts pair mountingset:

Item No. Part Number Qty Description

1 HW069 1 Hubsleever

2 BR1100-03 2 Spacer

3 MED 2004 1 Bracket

4 100 400 017 1 Spacer

5 280008 2 Spacer

6 XSM8X40 1 Screw M8 x 40 Rounded head

7 XSM8ML 1 Locknut M8

8 XSM16M 1 Nut M16

9 405239 1 Nordlock Washer

10 XSM8BR 1 Plain Washer M8

Item No. Part Number Qty Description

1 XSM6X65 1 Bolt M6 x 65

2 50393 1 Spacer

4. Assembly the back placed battery bag.

MED1348 or MED1348L

2020-08-26

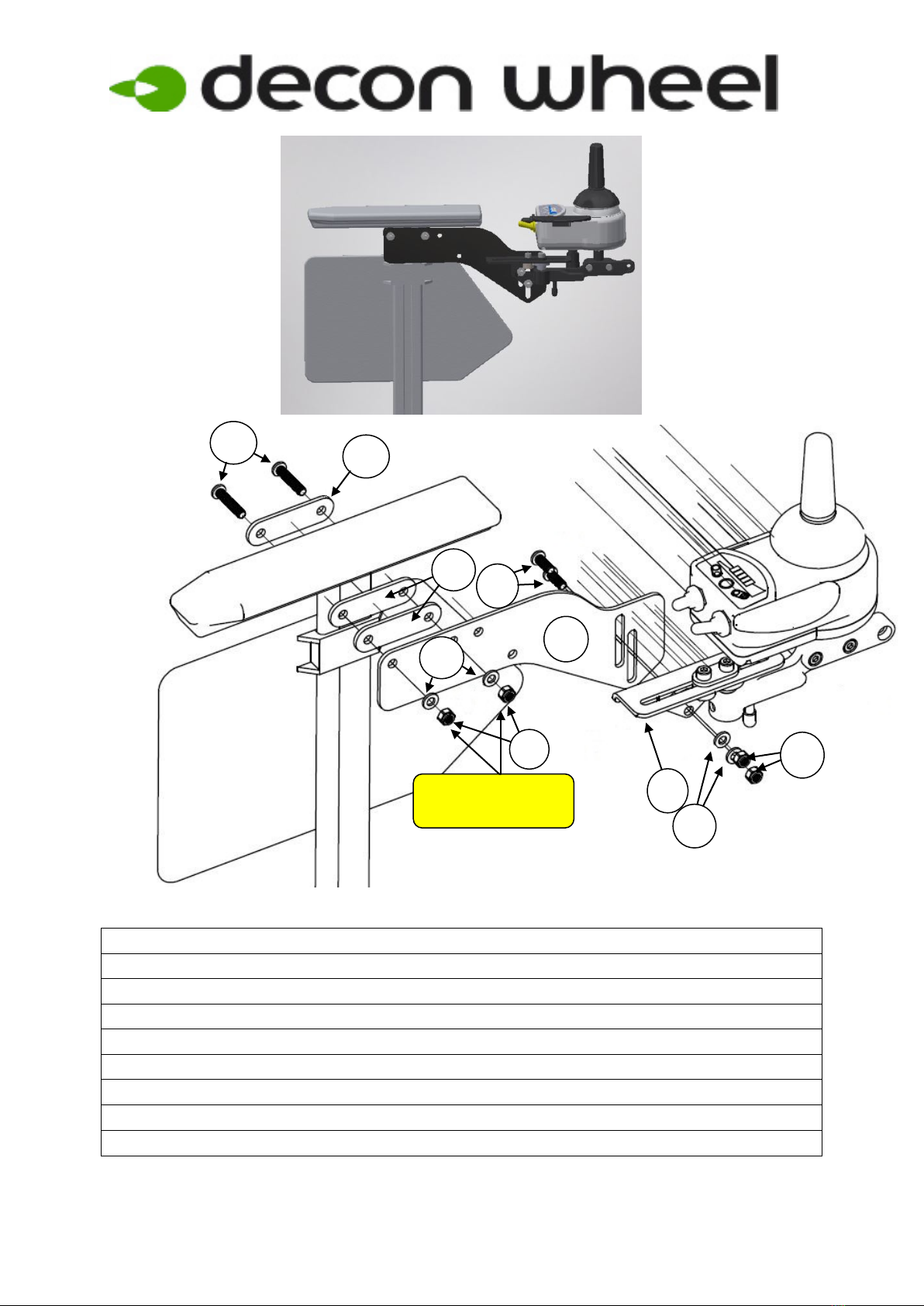

Assembly instructions for Joystick on armrest

Details included in MED1348/MED1348L

Item No Part number Qty Description

1 XOC-48160-B0 1 Upper bracket complete

2 XSM6X30 2 Screw M6 x 30

3 XSM6BR 4 Flat washer M6

4 XSM6ML 4 Lock nut M6

5 XSM6X16 2 Screw M6 x 16

6 MED1547 3 Bracket

7 MED1501 Rev6 1 Bracket for short armrest (Only in MED1348)

MED1482 Rev2 1 Bracket for long armrest (Only in MED1348L)

Tightening torque

6Nm.

2020-08-26

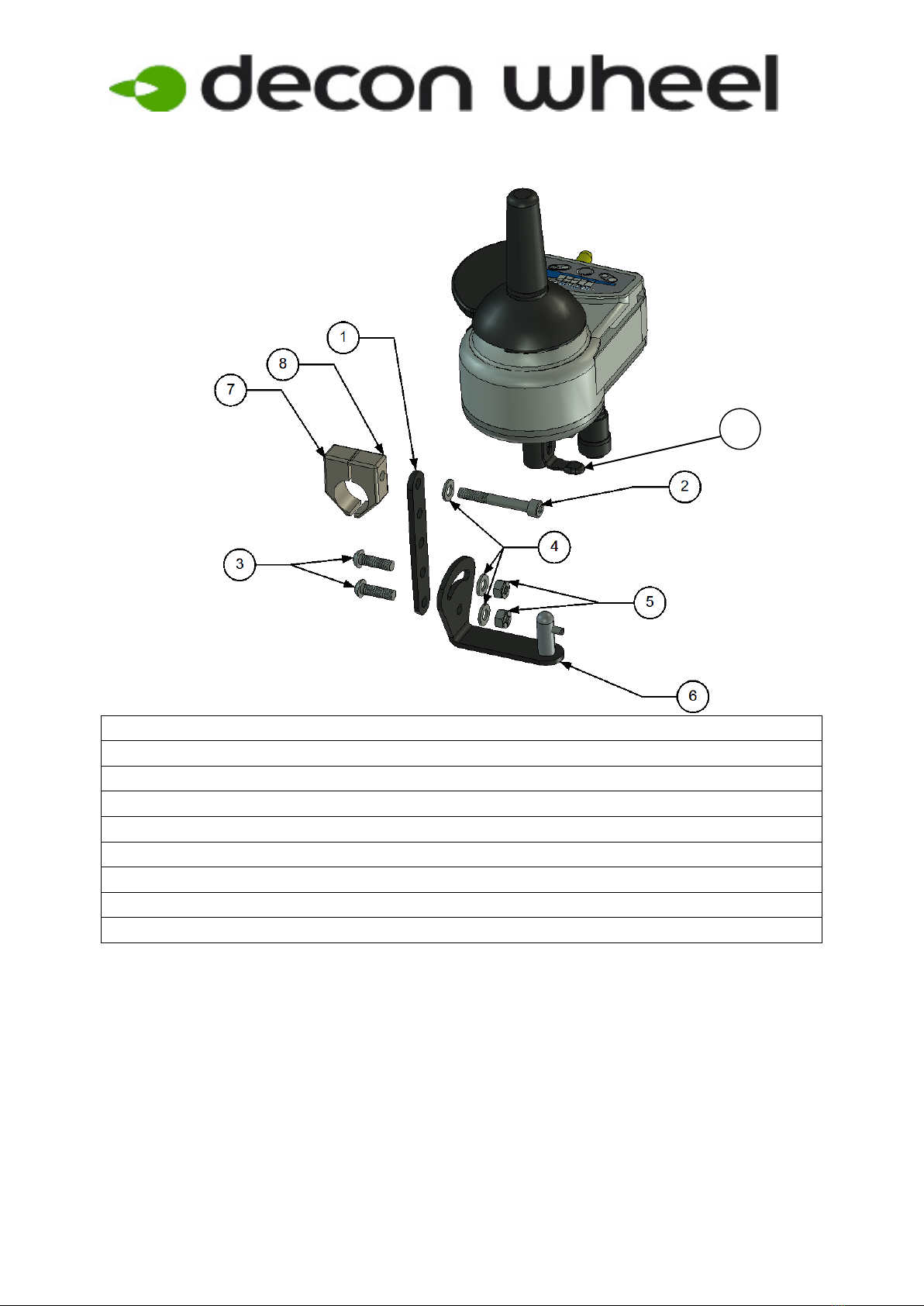

MED1356

Attendant control with Joystick controller

Item No. Part Number Qty Description

1 MED1317 1 Bracket

2 XSM6X35 1 Screw M6 x 35

3 XSM6X16 2 Screw M6 x 16

4 XSM6BR 3 Plain Washer M6

5 XSM6ML 2 Locknut M6

6 MED1316 1 Plate with pin

7 XA2-2612K-00 1 Clamp with thread

8 XA2-2612E-00 1 Clamp with hole

5. Assemble the Attendant control with the Joystick control on any side. If you change

side you must move (A) to the other side.

2020-08-26

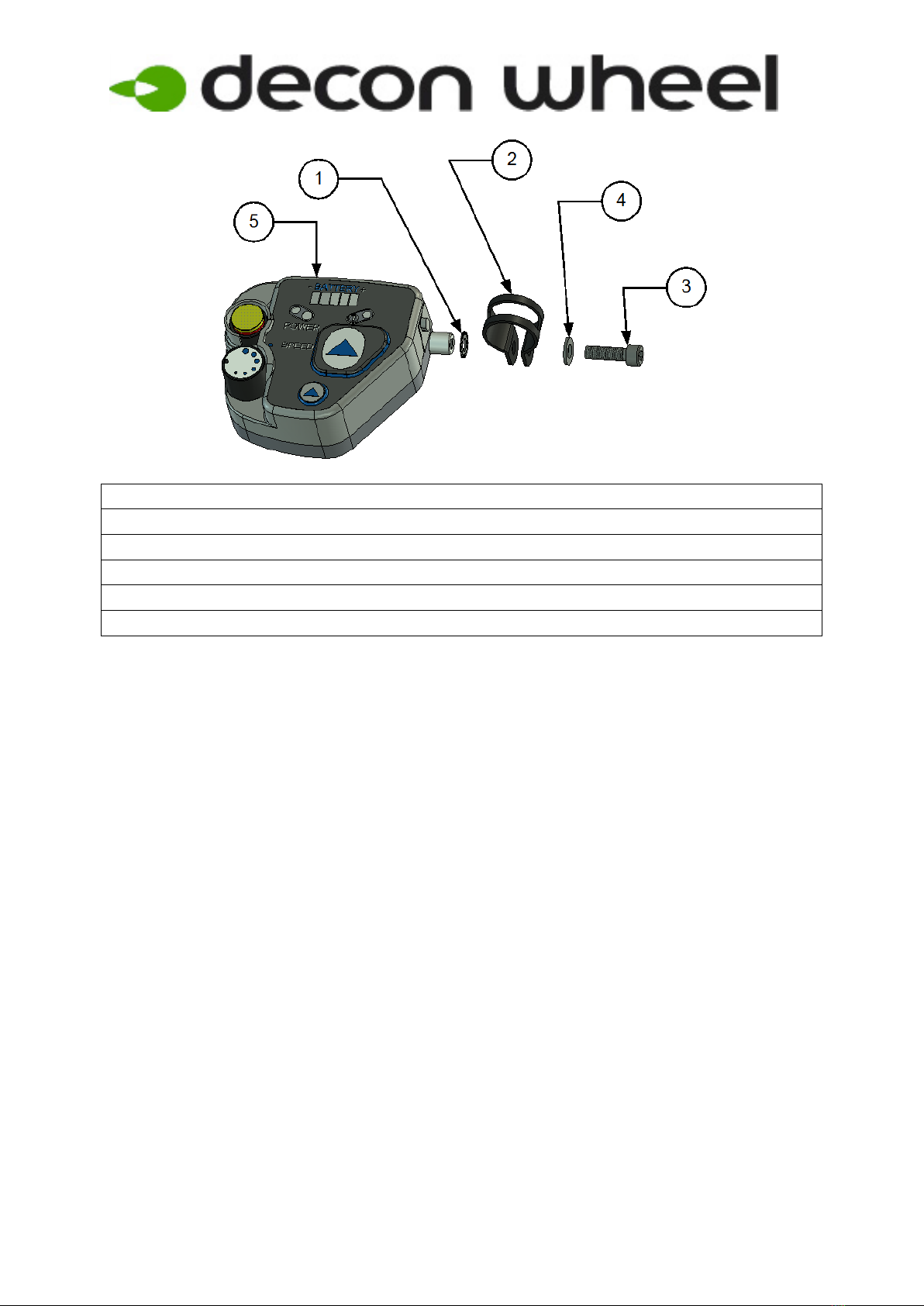

Alternate attendant control (Only on Right side)

Item No. Part Number Qty Description

1 XSM6TG 1 Washer

2 Xklamma2 1 Clamp

3 XSM6X20 1 Screw M6 x 20

4 XSM6BR 1 Plain Washer 6,4

5 MED1200 1 Attendant control

6. For the attendant control unit, you need these parts.

2020-08-26

Om inget annat specifiseras, använd följande åtdragningsmoment.

Unless otherwise specified, use the following tightening torque.

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening torque

1,2 Nm

3 Nm

6 Nm

10 Nm

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Hubsleever.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M16x1

30 Nm

M18x1

40 Nm
