Decon wheel MED3126 Manuale utente

2021-10-15

Assembly instructions for Rea Dahlia

MED3126

1. Check if you have the right type.

2. Check if it is possible to place the battery bag on the back of the seat, if so you can use

a back placed battery bag, if else you need to have the Invacare part Accessory Tray

with Part No: 1574433. The part is needed for assembly the battery. But if you use this

alternative you are not able to use the tilt peddle.

3. Remove wheel, brake, adapter bracket, brake handle on both sides.

4. The easiest way to remove the parts is to loosen the screws that hold the adapter

bracket. Do this on both sides and just lift up the wheelchair. After that you loosen the

screws that hold the brake handles. Remember too save the screws and (bracket) for

recycling, they are for assembling of the new brackets.

Recycled parts

2021-10-15

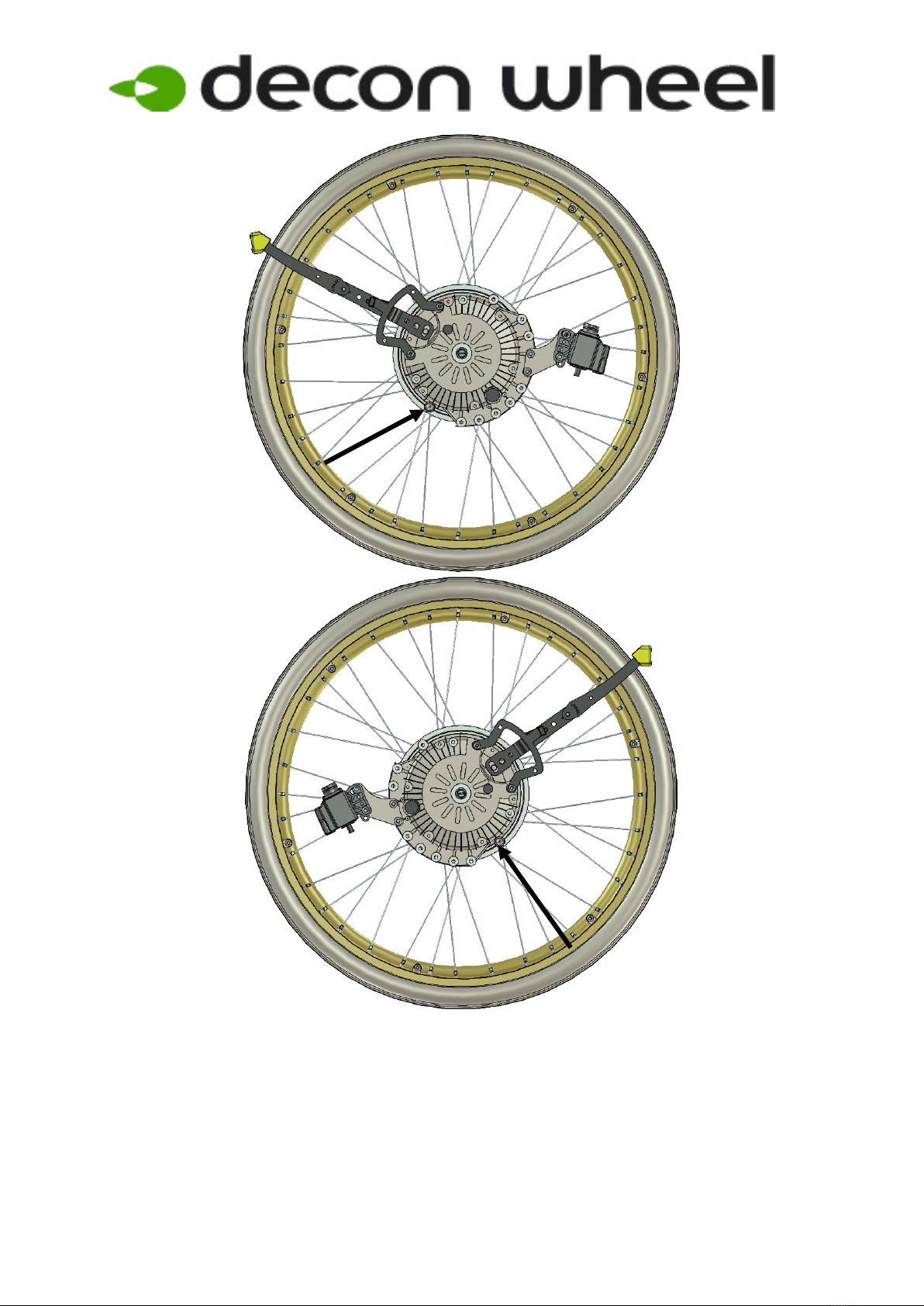

5. Check the correct placement for the stop

2021-10-15

Assembly of the Battery onto the Accessory Tray

6. Follow the instructions of assemble the Accessory Tray from Invacare.

Item No. Part Number Qty Description

1 XSM6ML 4 Lock nut M6

2 XSFM6X16 4 Screw Countersunk M6 x 16

3 XSM8ML 2 Lock nut M8

4 XSSM8X16 2 Bolt Round-Square M8 x 16

5 MED5001 1 Battery plate eDrive/ eMove

2021-10-15

7. Assembly the plate (right side) according to picture.

8. Parts pair mountingset:

Item No. Part Number Qty Description

1 MED3123-01 1 Bracket Dahlia

2 MED2000 1 Bracket

3 100 400 017 1 Spacer

4 XSM8X35 1 Screw Round M8 x 35

5 405239 1 Nordlock Washer M16

6 XSM8ML 1 Nut Self-Locking M8

7 XSM16M 1 Nut M16X1 Low

8 HW069 1 Hubsleever M16x1/12,7

9 100 400 003 2 Spacer

10 100 400 006 2 Spacer

11 100 400 001 1 Spacer

12 100 400 004 1 Spacer

2021-10-15

Assembler the Joystick

9. For assembly of joystick see pictures above.

Item No. Part Number Qty Description

1 MED3123-05 1 Fix Plate

2 MED1505 1 Bracket

3 XSM4BR 1 Washer Plain M4

4 MC6SM4X20 1 Screw Socket M4 x 20

5 XOC-48160-B0 1 Upper holder assembly 2

2021-10-15

Attendant control with joystick (left and right side)

Item No. Part Number Qty Description

1 MED1317 1 Bracket

2 XSM6X45 1 Screw M6 x 45

3 XSM6X20 2 Screw M6 x 20

4 XSM6BR 3 Plain Washer M6

5 XSM6ML 2 Lock Nut M6

6 XOC-48110-AO 1 Joystick

7 MED1316 1 Bracket

8 XA2-2612K-00 1 Clamp with Thread

9 XA2-2612E-00 1 Clamp with hole

Move this

too the

other side,

if you

assemble

the joystick

on the left

side.

2021-10-15

MED1223

Alternative attendant control (only right side)

Item No. Part Number Qty Description

1 XA2-2612E-00 1 Sheet Metal Bracket

2 XA2-2612K-00 1 Bracket

3 91902-06200 1 Plain Washer

4 91312-06050 1 Screw M6

5 XSM6TG 1 Turn Washer M6

2021-10-15

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening torque

1,2 Nm

3 Nm

6 Nm

10 Nm

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Sleeves.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M16x1

30 Nm

M18x1

40 Nm
