DediProg NuProg-E2 Manuale utente

NuProg-E2

Engineering Universal Programmer

User Manual

Version 1.0

DediProg User Manual 03/2021

NuProg-E2 User Manual

www.dediprog.com 1

Table of contents

I. Introduction ............................................................................................ 2

II. Product Information................................................................................ 2

III. System Requirement ............................................................................... 2

IV. Product Descriptions ............................................................................... 3

V. Dediware Quick Installation..................................................................... 5

5.1 Software Installation (DediWare version 3.16.8.3 above)................................................. 5

5.3 Dediware (For MCU/Flash/EEPROM)................................................................................. 6

5.4 Dediware (For UFS/eMMC).............................................................................................. 10

VI. Socket Adaptor Installation ................................................................... 13

VII. Revision................................................................................................. 14

Important notice:

This document is provided as a guide line and must not be disclosed without consent of

DediProg. However, no responsibility is assumed for errors that might appear.

DediProg reserves the right to make any changes to the product and/or the specification at

any time without notice. No part of this document may be copied or reproduced in any

form or by any means without prior written consent of DediProg.

NuProg-E2 User Manual

www.dediprog.com 2

I. Introduction

This manual will be focusing on the hardware specification and the software quick

guide for NuProg-E2. NuProg-E2 is an universal engineering programmer. Widely supports most IC

types on the market, and also support different types of IC packages. Designed FPGA kernel

architecture supplies ultra-high speed programming performance. The Programming project and

sockets are compatible with NuProgPlus. Together with built-in SuperSpeed® USB 3.0 for high-speed

communication, it is an efficient tool for you to focus on application analysis and product

development. If you would like to know more about the Dediware software, please download it from

DediProg website.

https://www.dediprog.com/download

II.Product Information

Support Various Storage IC

UFS, eMMC, MCU, SPI NOR, SPI NAND, Parallel NOR, Parallel NAND, EEPROM, CPLD,

FPGA

Support All IC Package

CSP, BGA, QFN, QFP, SOP, TSOP, SSOP, PLCC, DIP, etc.

Support various file format:

Binary (bin/rom), Intel Hex (h16/h20/hex), Motorola S19 (mhx/mot/s19/srec)

and specific of MCU IC.

Dimension：135 x 91 x 30 mm

Weight：150 g

III.System Requirement

CPU:

i5 or above

OS:

Windows XP/Vista /7/8/8.1/10

USB Port:

USB 3.0

Free Disk Space:

At least twice of the programming memory

*Since UFS and eMMC have mass volumes, please reserve enough space for buffering.

*Computer performances will affect the read and write speed of UFS, please choose a computer that has higher

CPU and better performance.

NuProg-E2 User Manual

www.dediprog.com 3

IV. Product Descriptions

A. Power Signal

Light

B. Operation

Lights

C. Alignment Pin

D. Reset Button

E. Programming

Socket Sites

E. Programming

Socket Sites

NuProg-E2 User Manual

www.dediprog.com 4

A. Power Signal Light

The light indicates the programmer is powered on.

B. Operation Lights

Red LED (Error): Error; programming has failed.

Yellow LED (Busy): The programmer is operating.

Green LED (Pass): Passed; the programming has completed successfully.

C. Alignment Pin

For socket adaptor installation

D. Reset Button

Only for repair use

E. Programming Socket Sites

Built-in high speed connector, which is for installing socket adaptor.

F. USB 3.0 Port

For connecting programmer with the computer.

G. Power Connector

External power inputs (In order to make it more stable, please make sure the power adapter is

connected, and it is recommended to connect the power first, and then plug in USB cable.)

F. USB 3.0 Port

G. Power

Connector

NuProg-E2 User Manual

www.dediprog.com 5

V. Dediware Quick Installation

The software is provided with the purchase of NuProg-E2. The latest version is available on our

website. http://www.dediprog.com/download

5.1 Software Installation (DediWare version 3.16.8.3 above)

1. Install Dediware and driver

2. After installation, three Dediware icons will appear on the desktop.

Run the software for MCU/Flash/EEPROM programming

Run the software for eMMC and UFS programming and duplicating.

Supporting the Command line of the StarProg Series Programmers (Please refer

to the Dediware Command Line User Manual)

NuProg-E2 User Manual

www.dediprog.com 6

5.2 Install NuProg-E2 Programmer

1. Connect the power cable to the NuProgPlus-U8 programmer

2. Connect the USB cable to the NuProgPlus-U8 programmer

3. Install the socket adaptor, please refer to VI. Socket Adaptor Installation

4. Turn on the power of the programmer

5. Place IC into the socket adaptor

6. Open the software and start programming

5.3 Dediware (For MCU/Flash/EEPROM)

Note

It is able to create programming project file without connecting to NuProg-E2. The user can

create project file on any computer that has installed Dediware. After creating the file, the

user can save the file on computer for programming.

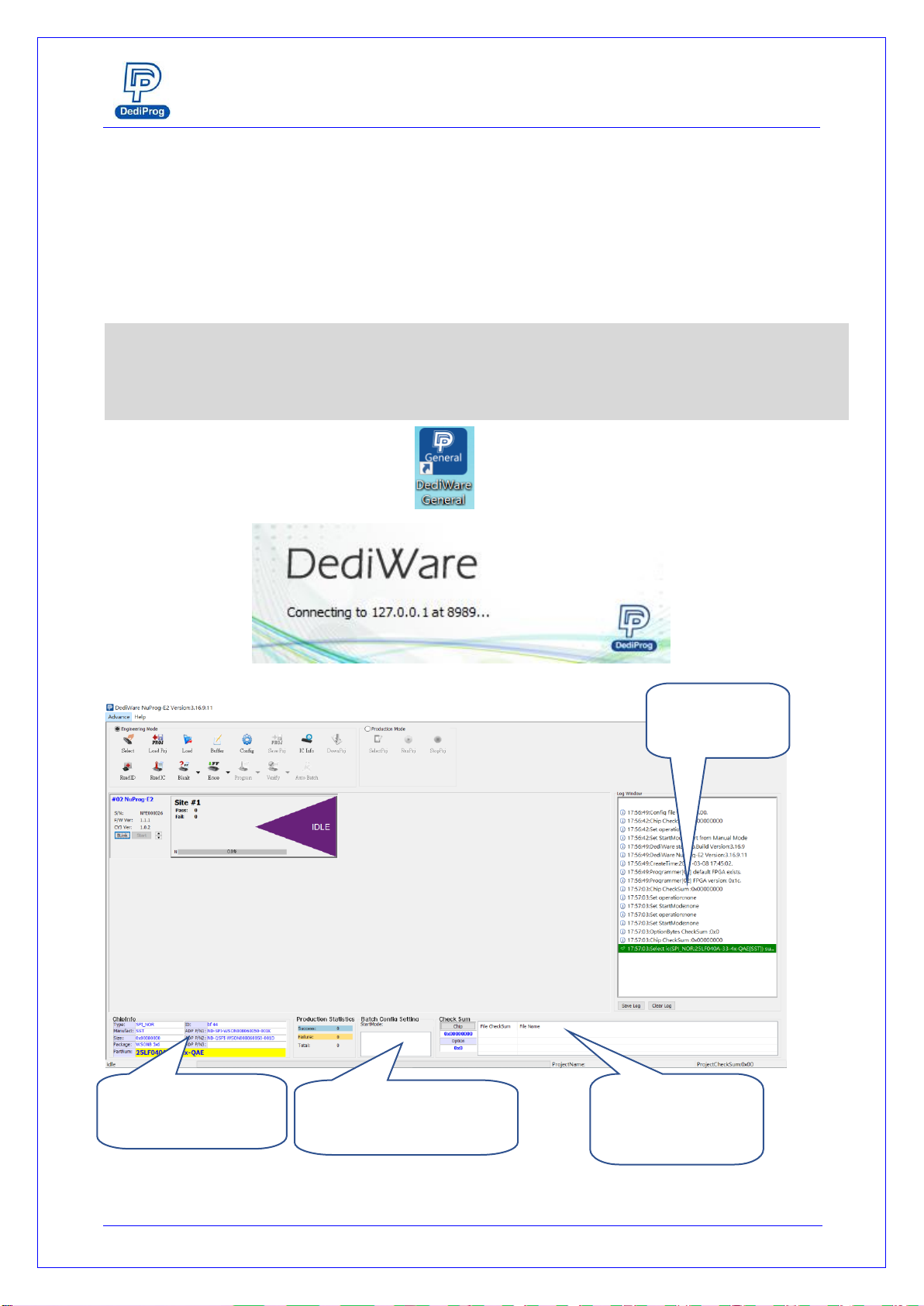

1. Double click the software icon to open it

2. Dediware GUI

IC & Socket

Information

Checksum and

Programming File

Information

Production Quantity and

Batch Information

Log History

NuProg-E2 User Manual

www.dediprog.com 7

3. Select IC brand and IC Part Number (or use search to find the model name)

4. Load the image file

It is faster to find it

by entering the IC

model here

NuProg-E2 User Manual

www.dediprog.com 8

5. Set up the programming procedure and mode

Other than set up Batch according to the programming need, user can also set up the Start Mode

and other functions according to different kinds of IC.

Click Auto Batch to start programming.

NuProg-E2 User Manual

www.dediprog.com 9

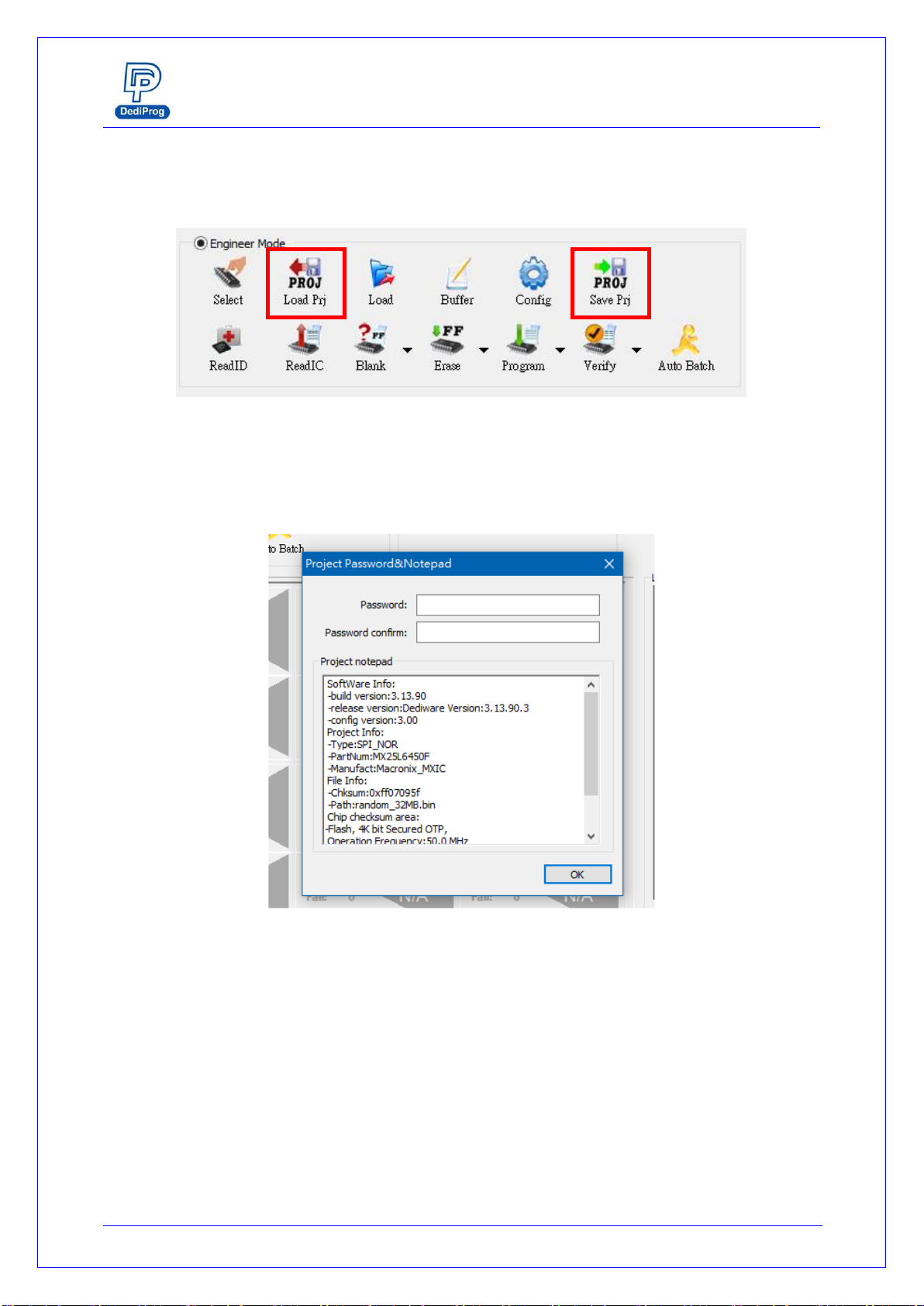

6. Save/Load Programming Project File

SavePrj can save the setting of Select/Load/Config，and pack to a project file(*.dprj) ; LoadPrj can

load previously saved project files.

Name the project file (*.npprj), once the user click ok, a window will appear for the user to set up

the password for production management. If the user has set the password, then it will be

requested when loading the project in the production mode. If not, then it will load the file

directly.
