Definitive Technology DYMENSION DM10 Manuale utente

DM10™ | DM20™ | DM30™| DM40™ | DM60™

DM70™ | DM80™ | DM90™ | DM95™

USER MANUAL

DYMENSION™

MANUEL DE L’UTILISATEUR |MANUAL DE USUARIO

MANUALE D’USO | BENUTZERHANDBUCH | INSTRUKCJA OBSŁUGI

ANVÄNDARMANUAL | HANDLEIDING

Contents

Meet the Dymension Speaker Series . . . . . . . . 3

Speaker Placement . . . . . . . . . . . . . . . . 13

Speaker Wiring . . . . . . . . . . . . . . . . . . 18

The Rear Speaker Array . . . . . . . . . . . . . .20

Installing Height Speakers . . . . . . . . . . . . . 22

Settings and Coniguration . . . . . . . . . . . . . 24

DM80 Wiring Conigurations . . . . . . . . . . . . 27

Speaker Feet Pads and Spikes . . . . . . . . . . . 31

Tips and Troubleshooting . . . . . . . . . . . . . 32

Trademark Information. . . . . . . . . . . . . . . 33

Meet the Dymension

Speaker Series

Thank you for choosing the Deinitive Technology Dymension series loudspeaker

system. Take advantage of a wide range of cutting-edge audio technology features,

including bi-polar array technology, integrated powered subwoofers, and Intelligent

Bass Control™. Truly immerse yourself in 3D sound with Dolby Atmos® and DTS: X™

compatibility. This remarkable speaker system is sure to provide a state-of-the-art

experience in both music and home-theater sound reproduction.

Speakers overview

The Dymension series includes four tower speakers (DM80, DM70, DM60, DM40),

three center speakers (DM30, DM20, DM10), a height-channel module (DM90), and a

surround speaker/wall-mounted height module (DM95).

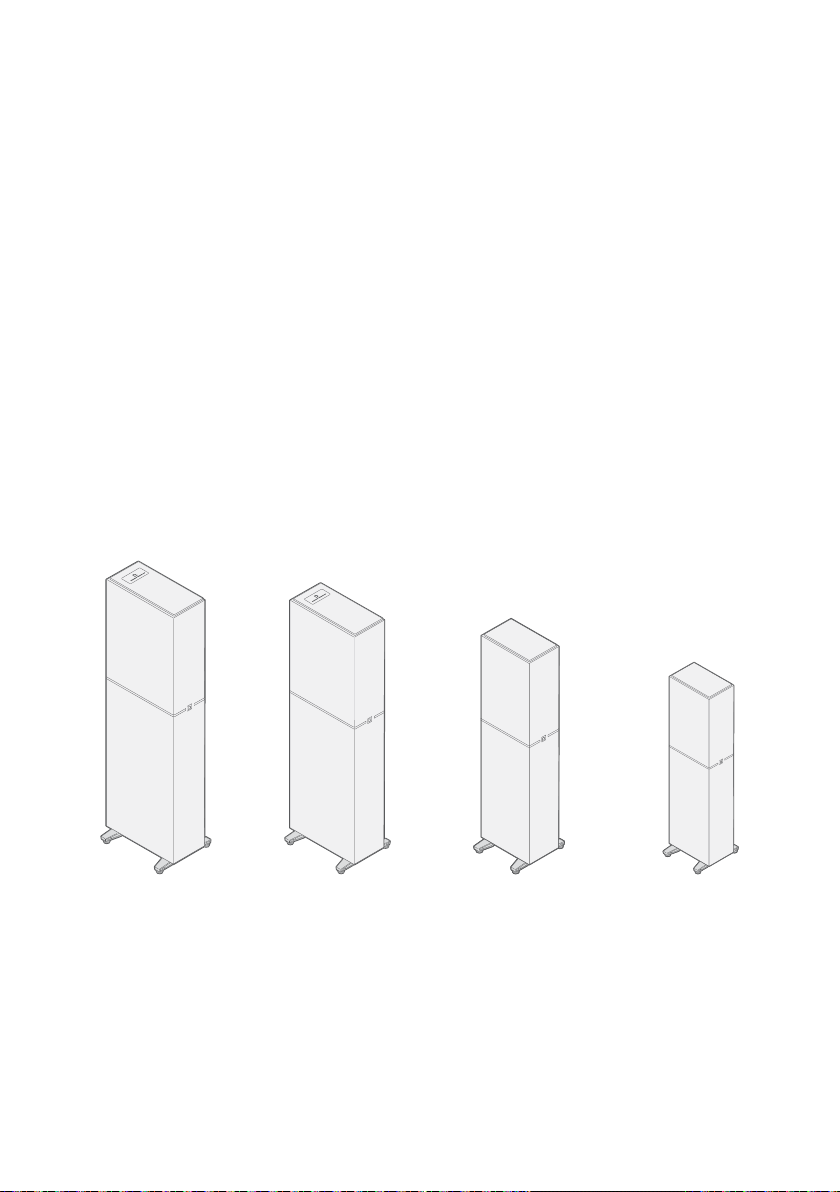

Tower speakers

DM80, DM70, DM60, & DM40

Height speakers

DM90 (compatible with DM80 and DM70 only)

Center speakers

DM30, DM20, & DM10

Surround/Height speakers

DM95

Product speciﬁcations

Every speaker in the Dymension series is covered with a non-removeable, acoustically

transparent black cloth. See below for more technical speciications and details.

Tower speakers

DM80 DM70 DM60 DM40

Dimensions 49.4 x 11.3 x

16.0 in. (1254.9

x 286.7 x 406.7

mm)

47.4 x 11.3 x

16.0 in. (1204.1

x 286.7 x 406.7

mm)

45.4 x 11.3 x

13.7 in. (1153.4

x 286.7 x 349

mm)

37.4 x 10.3 x

10.0 in. (950.1

x 261.4 x 255

mm)

Tweeter (2) 1 in.

aluminum

oxide dome

(2) 1 in.

aluminum

oxide dome

(2) 1 in.

aluminum

oxide dome

(2) 1 in.

aluminum

oxide dome

Midrange/

Midbass

(4) 5.25

in. BDSS

with Linear

Response

Waveguide

(4) 5.25

in. BDSS

with Linear

Response

Waveguide

(4) 4.5 in.

BDSS with

Linear

Response

Waveguide

(4) 4.5 in.

woofers

Subwoofer

system driver

complement

(1) 12 in.

subwoofer

(2) 12 in. bass

radiator

(1) 10 in.

subwoofer

(2) 10 in. bass

radiator

(1) 8 in.

subwoofer

(2) 8 in. bass

radiator

Frequency

response

23 Hz–30,000

Hz (-10 dB)

28 Hz–23,000

Hz (-3 dB)

25 Hz–30,000

Hz (-10 dB)

30 Hz–23,000

Hz (-3 dB)

30 Hz–30,000

Hz (-10 dB)

34 Hz–23,000

Hz (-3 dB)

38 Hz–30,000

Hz (-10 dB)

55 Hz–23,000

Hz (-3 dB)

Nominal

impedance

4Ω(8Ω

compatible)

4Ω(8Ω

compatible)

4Ω(8Ω

compatible)

4Ω(8Ω

compatible)

Sensitivity 90dB

(2.83V/1m)

90dB

(2.83V/1m)

88dB

(2.83V/1m)

87dB

(2.83V/1m)

Subwoofer

ampliier

500W (Peak)

GaN FET

250W (Peak)

Class D

250W (Peak)

Class D X

Bipolar array

adjustment

Fully Bipolar

(default),

Forward Focus

-6dB, Variable

via Biamp

Rear tweeter

switch: 0dB,

-6dB

Rear tweeter

switch: 0dB,

-6dB

Rear tweeter

switch: 0dB,

-6dB

Intelligent

Bass Control™

Variable

+/- 12dB

Variable

+12dB/-15dB

Variable

+12dB/-15dB X

DM30 DM20 DM10

Dimensions 7.5 x 31.5 x 15.9 in.

(190.2 x 800.4 x 403

mm)

5.3 x 30.5 x 6.5 in.

(134.4 x 775 x 165.8

mm)

7.3 x 19.5 x 12.2 in.

(186 x 495.6 x 311

mm)

Tweeter (1) 1 in. aluminum

oxide dome

(1) 1 in. aluminum

oxide dome

(1) 1 in. aluminum

oxide dome

Orientation Horizontal Horizontal Horizontal

Midrange/

Midbass

(4) 5.25 in. BDSS

with Linear

Response

Waveguide

(4) 4 in. midrange

woofers

(2) 5.25 in. woofers

Subwoofer

system driver

compliment

(1) 8 in. subwoofer

(2) 8 in. bass

radiator

(1) 9 in. bass radiator

Frequency

response

36 Hz–30,000 Hz

(-10 dB)

41 Hz–23,000 Hz

(-3 dB)

64 Hz–30,000 Hz

(-10 dB)

91 Hz–23,000 Hz

(-3 dB)

57 Hz–30,000 Hz

(-10 dB)

81 Hz–23,000 Hz

(-3 dB)

Nominal

impedance

6Ω(8Ωcompatible) 4Ω(8Ωcompatible) 4Ω(8Ωcompatible)

Sensitivity 93dB (2.83V/1m) 89dB (2.83V/1m) 90dB (2.83V/1m)

Subwoofer

ampliier

250W (Peak) Class D X X

Intelligent

Bass Control™

Variable +12dB/-15dB X X

Center speakers

DM90 DM95

Dimensions 6.0 x 7.3 x 15.3 in. (151.6 x 185.2 x

388.7 mm)

8.3 x 7.3 x 13.0 in. (210.7 x 184.2

x 330.2 mm)

Tweeter (1) 1 in. aluminum oxide dome (1) 1 in. aluminum oxide dome

Midrange/

Midbass

(1) 5.25 in. BDSS with Linear

Response Waveguide

(1) 5.25 in. BDSS with Linear

Response Waveguide

Frequency

response

81 Hz–30,000 Hz (-10 dB)

130 Hz–27,000 Hz (-3 dB)

62 Hz–30,000 Hz (-10 dB)

110 Hz–23,000 Hz (-3 dB)

Nominal

impedance

4Ω(8Ωcompatible) 4Ω(8Ωcompatible)

Sensitivity 90dB (2.83V/1m) 90dB (2.83V/1m)

Treble control X0dB, +3dB

Height and surround speakers

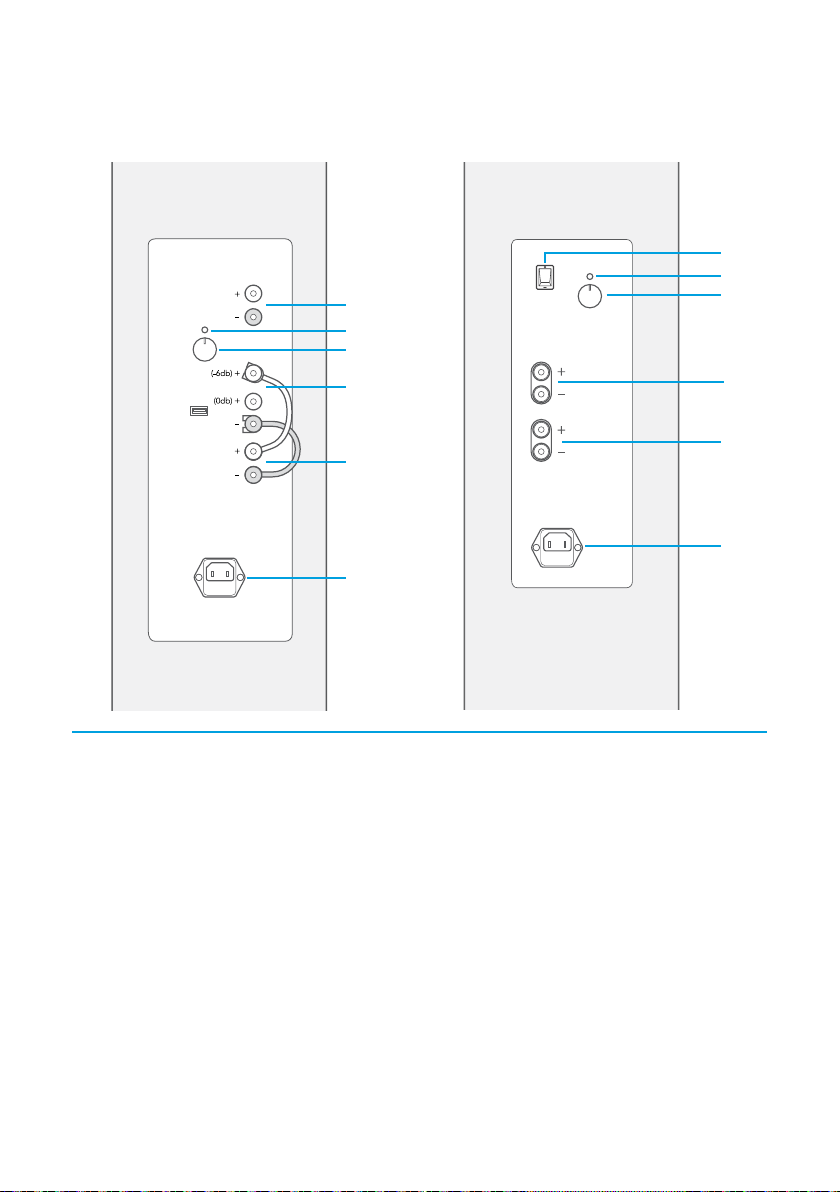

Tower speaker back panels

1 -

2 -

3 -

4 -

5 -

6 -

7 -

Height-channel binding posts: Connect to an ampliier or receiver when the

optional DM90 speaker is installed.

Status light: The light turns from red to blue when the speaker receives a signal

from your ampliier or receiver. For more information, see page 26.

Intelligent Bass Control knob: Increases or decreases the bass level. We recom-

mend starting at the 12-o’clock position when setting up the speaker.

Rear input binding posts: The DM80 speaker comes installed with additional

binding posts and a jumper cable to independently control the rear speaker array

between 0 dB (full bi-polar) and -6 dB (forward-focused).

Speaker input binding posts: Connect the main speakers to your ampliier or

receiver.

Power connector: Required to power the integrated subwoofer.

Rear tweeter switch: Switches the rear tweeter between 0 dB (full bi-polar) and

-6 dB (forward-focused).

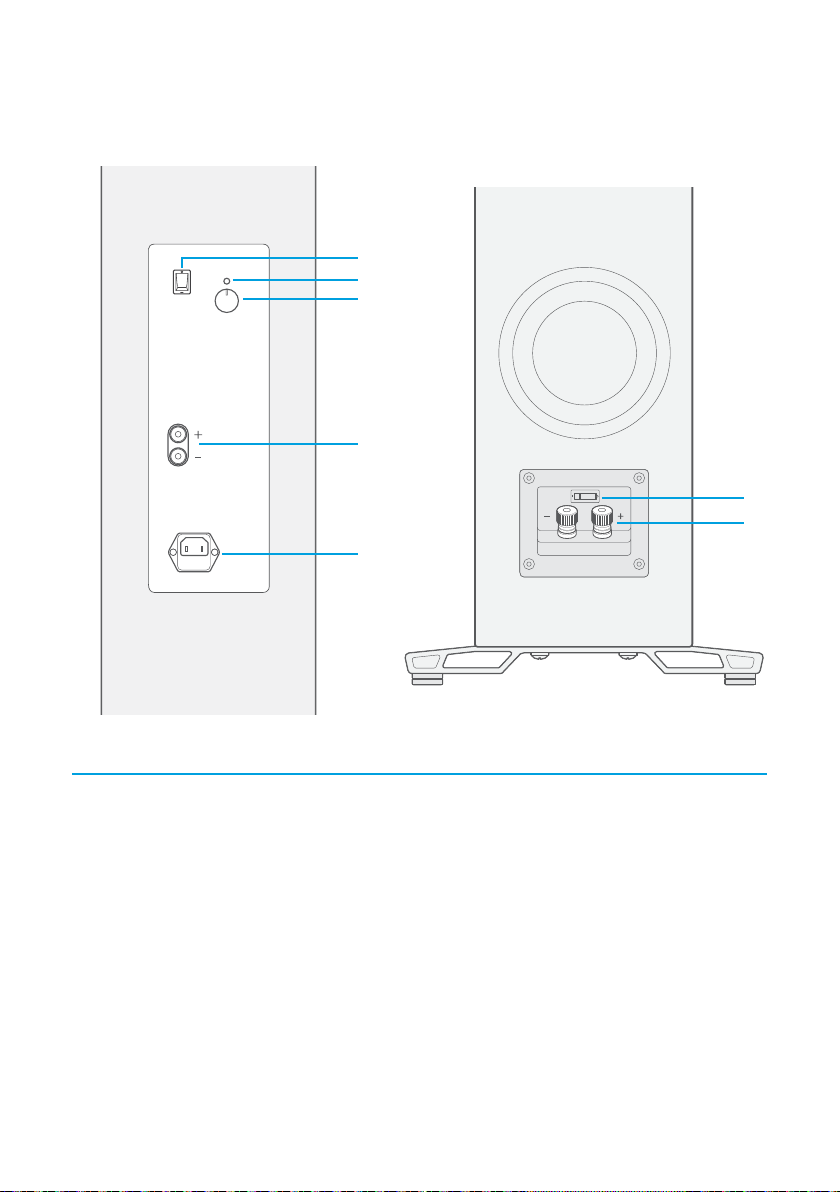

DM80 DM70

DM60 DM40

1 -

2 -

3 -

4 -

5 -

Rear tweeter switch: Switches the rear tweeter between 0 dB (full bi-polar) and

-6 dB (forward-focused).

Status light: The light turns from red to blue when the speaker receives a signal

from your ampliier or receiver. For more information, see page 26.

Intelligent Bass Control knob: Increases or decreases the bass level. We recom-

mend starting at the 12-o’clock position when setting up the speaker.

Speaker input binding posts: Connect the main speakers to your ampliier or

receiver.

Power connector: Required to power the integrated subwoofer.

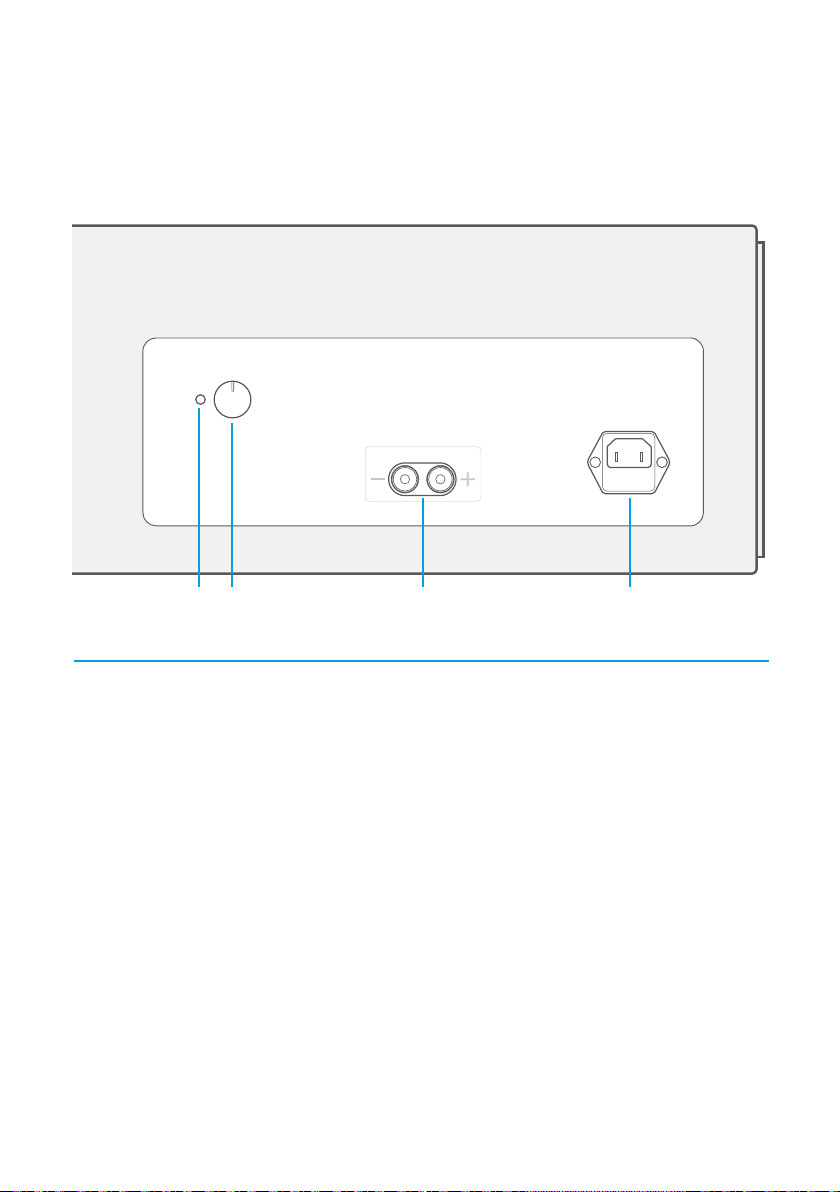

Center speaker back panels

1 -

2 -

3 -

4 -

Status light: The light turns from red to blue when the speaker receives a signal

from your ampliier or receiver. For more information, see page 26.

Intelligent Bass Control knob: Increases or decreases the bass level. We recom-

mend starting at the 12-o’clock position when setting up the speaker.

Binding posts: Connect the speaker to your ampliier or receiver.

Power connector: Required to power the integrated subwoofer.

DM30

1 2 3 4
