Dell™OptiPlex™FX170

Quick Setup Guide

Notes, Cautions, and Warnings

NOTE:

ANOTEindicatesimportantinformation that helpsyou

make better use ofyour thin client

CAUTION: A CAUTION indicates potential damage

to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for

property damage, personal injury, or death.

_____________

Information in this document is subject to change without notice.

© 2011 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and OptiPlex™ are trademarks

of Dell Inc.

Other trademarks and trade names may be used in this publication to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary

interest in trademarks and trade names other than its own.

Power adapter models that may be included are AU1361203N (Elementech International Co.

Ltd.) and FSP036-DGAA1A (FSP Group Inc.)

Regulatory Model: D05U

Regulatory Type: D05U002

March 2011 Rev. A00

| 3

Dell™OptiPlex™FX170

Quick Setup Guide

Before Setting Up Your FX170

NOTE:

Place the thin client in its verticalorientation for best

performance.

Your FX170 terminal is shipped with the following items:

1

Power Cord

2

Adapter

3

Terminal Stand

4

Quick Setup Guide

5

Warranty and Support Information

6

End User License Agreement

7

CD Containing Open Source Code (DeTOS Only)

8

Safety, Environmental, and Regulatory Information

9

DVI-VGA Adapter

NOTE:

Inspect all parts visually fordamage. If anythingis damaged,

please contact Dell immediately to report the issue.

| 4

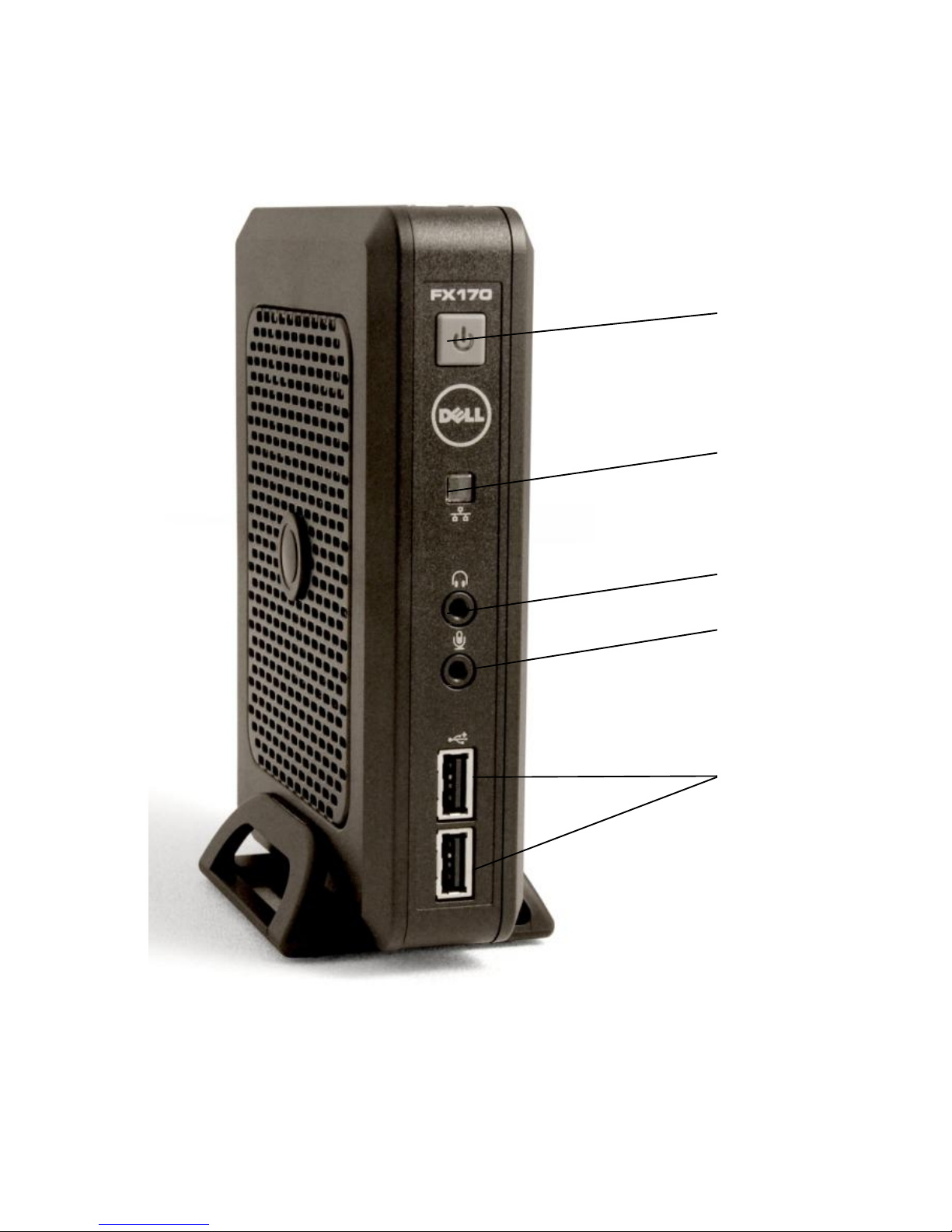

Setup and Features Information

1

Power Button

2

Network Activity Indicator LED

3

Audio Line Out

4

Microphone

6

USB 2.0 Connectors (2)

6

1

2

3

4

6

Front View

| 5

5

Network Connector

6

USB 2.0 Connectors (2)

7

DVI Connector

8

PS/2 Connector

9

Power Connector

10

Security Cable Slot

5

6

7

8

9

10

Back View

| 6

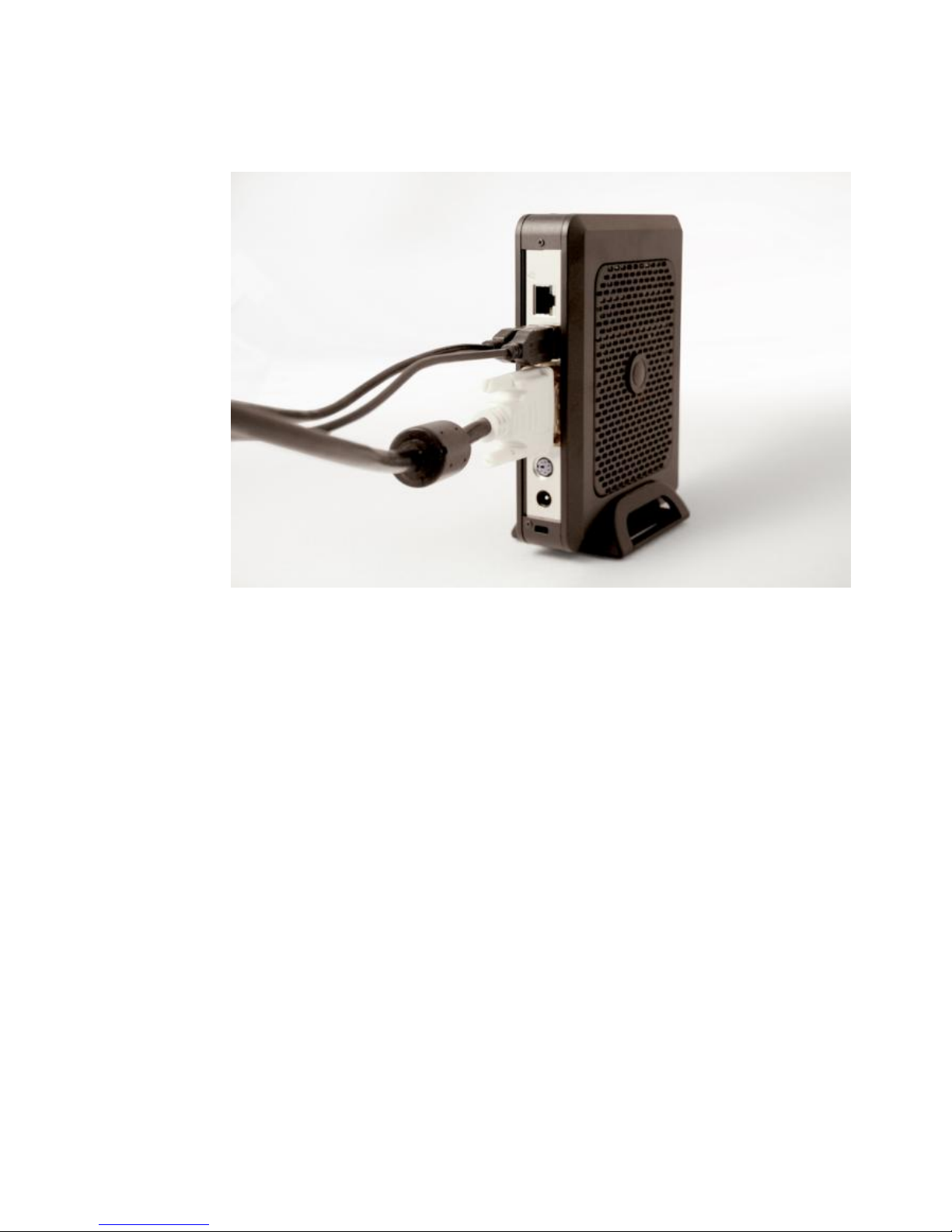

Quick Setup

1

Connect the monitor to the DVI Connector on the back

of the unit.

| 7

2

Connect the mouse and keyboard to the PS/2 or USB

connectors, depending on what type you have.

| 8

3

Connect the network cable to the Network Connector

on the unit and the other end of the cable to your local

network.

| 9

4

Connect the power supply to the FX170’s power

connector on the back of the unit.

| 10

5

Plug the power cord into a surge-protected AC outlet.

CAUTION: To prevent overheating, and thus voiding your

warranty, do not place anything on or over the thin client.
