Dell M110 Manuale utente

Dell™ M110 Projector

User’s Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you

make better use of your projector.

CAUTION: A CAUTION indicates potential damage to hardware

or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property

damage, personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of

Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS

INCORPORATED; Microsoft and Windows are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Dell Inc. disclaims

any proprietary interest in trademarks and trade names other than its own.

Model M110

May 2012 Rev. A01

Contents 3

Contents

1 Your Dell Projector . . . . . . . . . . . . . . . . . . 6

About Your Projector . . . . . . . . . . . . . . . . . 8

2 Connecting Your Projector . . . . . . . . . . . . 10

Connecting to a Computer . . . . . . . . . . . . . . . . 11

Connecting a Computer Using a VGA Cable . . . . 11

Connecting a Computer by USB Cable . . . . . . . 12

Connecting a Computer Using Wireless

Dongle (Optional) . . . . . . . . . . . . . . . . . . 13

Connecting a DVD Player . . . . . . . . . . . . . . . . 14

Connecting a DVD Player Using a A/V to RCA Cable 14

Connecting a DVD Player Using a HDMI Cable . . 15

Connecting to Multi-Media . . . . . . . . . . . . . . . 16

Connecting Multi-Media Using a USB Flash Disk . 16

Connecting Multi-Media Using a MicroSD Card . . 17

3 Using Your Projector . . . . . . . . . . . . . . . . 18

Turning Your Projector On . . . . . . . . . . . . . . . . 18

Turning Your Projector Off . . . . . . . . . . . . . . . . 18

Adjusting the Projected Image . . . . . . . . . . . . . 19

Raising the Projector Height . . . . . . . . . . . . 19

Lowering the Projector Height . . . . . . . . . . . 19

4Contents

Adjusting the Projector Focus . . . . . . . . . . . . . . 20

Adjusting Projection Image Size . . . . . . . . . . . . 21

Using the Control Panel . . . . . . . . . . . . . . . . . 23

Installing the Remote Control Battery (Optional) . . . . 27

Operating Range with Remote Control . . . . . . . . . 28

Using the On-Screen Display . . . . . . . . . . . . . . 29

INPUT SOURCE . . . . . . . . . . . . . . . . . . . 29

AUTO ADJUST . . . . . . . . . . . . . . . . . . . 30

VIDEO MODE . . . . . . . . . . . . . . . . . . . . 31

VOLUME . . . . . . . . . . . . . . . . . . . . . . 31

AUDIO INPUT . . . . . . . . . . . . . . . . . . . . 31

ADVANCED SETTINGS . . . . . . . . . . . . . . . 32

LANGUAGE . . . . . . . . . . . . . . . . . . . . . 42

Multi-Media Introduction . . . . . . . . . . . . . . . . 43

How to set-up File Type for Multi-Media with USB 44

How to set-up File Type for Multi-Media with

MicroSD . . . . . . . . . . . . . . . . . . . . . . 46

How to set-up File Type for Multi-Media with

Internal Memory . . . . . . . . . . . . . . . . . . 48

Office Viewer for the USB, Micro SD, and

Internal Memory . . . . . . . . . . . . . . . . . . 50

Multi-Media SETUP for USB, Micro SD, and

Internal Memory . . . . . . . . . . . . . . . . . . 51

PHOTO SETUP . . . . . . . . . . . . . . . . . . . 51

VIDEO SETUP . . . . . . . . . . . . . . . . . . . . 52

MUSIC SETUP . . . . . . . . . . . . . . . . . . . 52

FIRMWARE UPDATE . . . . . . . . . . . . . . . . 53

Contents 5

4 Troubleshooting Your Projector . . . . . . . . 54

Guiding Signals . . . . . . . . . . . . . . . . . . . . . 57

5 Specifications . . . . . . . . . . . . . . . . . . . . . 58

6 Contacting Dell . . . . . . . . . . . . . . . . . . . . 62

7 Appendix: Glossary . . . . . . . . . . . . . . . . . 63

6Your Dell Projector

Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have all the

items, and contact Dell™ if anything is missing.

Package Contents

Power cable Universal 24-pin to VGA cable

CD User’s Guide and Documentation Carrying case

AC adapter

DOCOMENTATION

Dell

M110/M110HD Projector

Dell

M110/M110HD Projector

Quick Setup Guide

Informacion Importante

Dell

Projectors

oduct Information Guide

Your Dell Projector 7

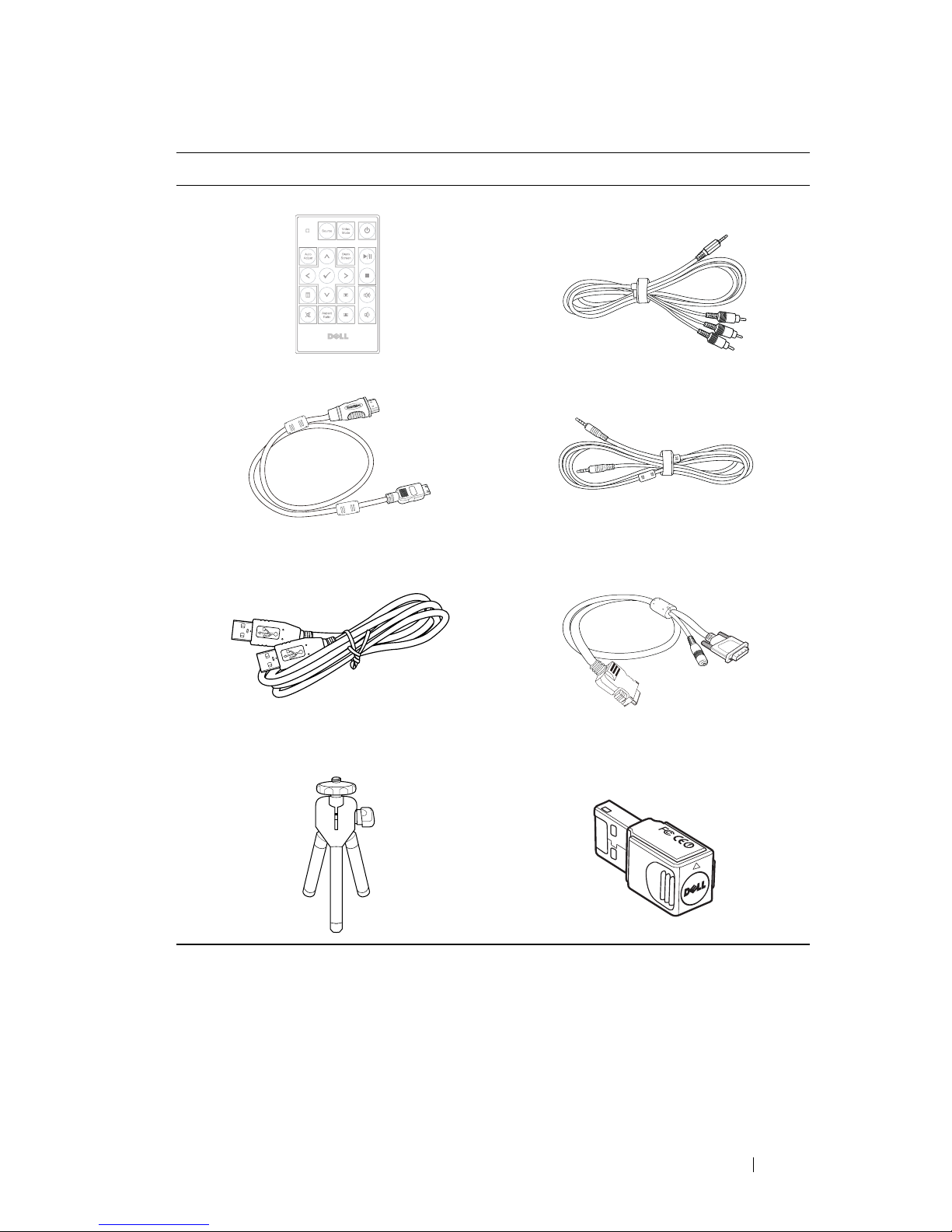

Optional Contents

Remote control 3.5 mm jack A/V to RCA cable

1.2 m HDMI cable 3.5 mm jack A/V cable.

1.2 m USB cable (USB-A to USB-A) Universal 24-pin to VGA and Audio

out cable

Mini tripod Wireless dongle

FCC ID:

SUZ-WU5205C

8Your Dell Projector

About Your Projector

CAUTION: Safety Instructions

Do not use the projector near appliances that generate a lot of heat.

Do not use the projector in areas where there is an excessive amount of dust. The

dust may cause the system to fail and the projector will automatically shut down.

Ensure that the projector is mounted in a well-ventilated area.

Do not block the ventilation slots and openings on the projector.

Ensure the projector operates between ambient temperatures (5 ºC to 35 ºC).

Do not try to touch the ventilation outlet as it can become very hot after the

projector has been turned on or immediately after it is turned off.

Do not look into the lens while the projector is on as it may cause injury to your

eyes.

Do not place any objects near or in front of the projector or cover its lens while the

projector is on as the heat may cause the object to melt or burn.

Do not use alcohol to wipe the lens.

Do not use the wireless projector near cardiac pacemakers.

1Control panel

2Focus ring

3Lens

4Tilt adjusting wheel

5Mounting hole for tripod: Insert nut 1/4"*20 UNC

Top View Bottom View

Your Dell Projector 9

Do not use the wireless projector near medical equipment.

Do not use the wireless projector near microwave ovens.

NOTE:

• Recommended Projector Tripod Kit (VXJN3). For more information, see

the Dell Support website at support.dell.com.

• For more information, see the Safety Information that shipped with your

projector.

10 Connecting Your Projector

Connecting Your Projector

CAUTION: Before you begin any of the procedures in this section, follow the

Safety Instructions as described on page 8.

1MicroSD card slot for multi-

media playback

(Video/Audio/Photo) and

supporting media and image

processor firmware upgrade

5HDMI connector

2USB Type A connector for USB

display, multi-media playback

(Video/Audio/Photo), USB

memory storage access (USB flash

drive/internal memory), projector

firmware upgrade, and supporting

optional wireless dongle and

mobishow

6Universal I/O connector for VGA

input and Audio output

3DC input connector 7Security cable slot

4Audio/Video input connector

34567
