Dell 2300 Projectors

Projectors are being provided and assigned to each classroom for educational

purposes (i.e., not for home use). They should receive the same degree of attention

to security as other materials and equipment in the classroom with regards to safety

and theft. The projector should remain in the assigned room; and if for some reason

it is moved from the assigned classroom, the Tech Assistant should be notified.

* * * * * * * * * * * * * *

For more detailed use information, use the following web link

http://support.dell.com/support/edocs/acc/2300MP/en/index.htm

Part A: Equipment

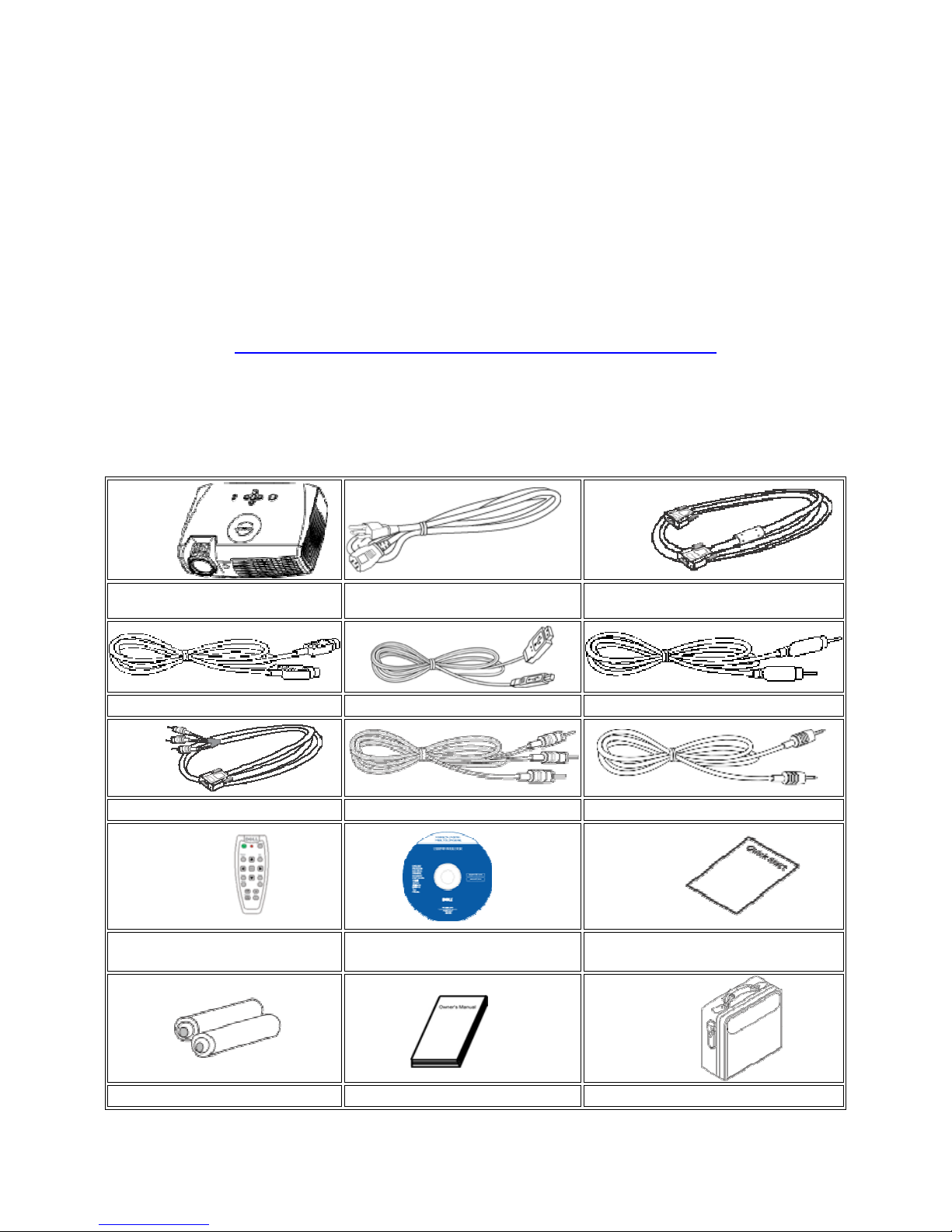

Your projector comes with all the items shown below. Please place the unused cables in the

projector case and store in your room. Keeping the entire box is optional.

Main unit 1.8m Power cord

(3.0m in Americas)

1.8m VGA cable (Blue)

(D-sub to D-sub)

2.0m S-video cable 1.8m USB cable 1.8m Composite Video cable

1.8m D-sub to YPbPr cable 1.8m RCA to Audio cable 1.8m mini pin to mini pin cable

Remote control Dell 2300MP Projector

User's Guide

Dell 2300MP Projector Quick Start

Card

Batteries (2) Owner's Manual Carrying case

Instructional Technology Department

4/22/2005

1 Control panel

2 Elevator button

3 Remote control receiver

4 Lens

5 Focus ring

TOP VIEW

6 Zoom tab

Power button

Source

Keystone adjustment

Resync

Temperature warning light

Lamp warning light

Four directional keys

Keystone adjustment

CONTROL PANEL

IR receiver

VGA out (monitor loop-through)

VGA in (blue, D-sub) connector

USB connector

S-video connector

Composite video connector

Audio input connector

RS232 connector

SIDE VIEW

Kensington lock hole

Instructional Technology Department

4/22/2005

1 Video Mode button

2 Next Page button (page down)

3 Menu button

4 4:3/16:9 (aspect ratio) button

5 Hide button (Similar to Freeze on other models)

6 Volume button

7 Keystone Correction button

8 Resync button

9 Source button

Four Direction buttons

Previous Page button (page up)

Power button

Light

REMOTE CONTROL

Part B: Hooking up the Projector

Connecting to a laptop computer

1 = Power Cord

2 = VGA cable (Blue)

3 = USB to USB (Optional for using

some remote control features)

TIP: If the computer screen is not

showing on the projector, hold down

the blue FN key and tap the F8 key

until it shows.

Instructional Technology Department

4/22/2005

Connecting to a desktop

•Blue VGA cable between

computer & Video In on

projector.

•Monitor cable to Video out on

Projector.

•Power cables for all 3

components.

•USB to USB (Optional for using

some remote control features).

Connecting to other devices? Check this Dell web site.

http://support.dell.com/support/edocs/acc/2300MP/en/install.htm#1

Part C: Powering On/Off

NOTE: Place projector approximately 10 feet from the screen. Turn on the projector before you

turn on the source.

Powering on procedures

1. Remove the lens cap.

Plug in the power cord and appropriate signal cable. The power button light will blink green.

3. Press the power. The Dell logo will be displayed for 30 seconds.

4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically detects

your source.

NOTE: If you are connecting multiple sources to the projector simultaneously or if computer is

not found, press the Source button on the remote control or control panel to select the desired

source.

Instructional Technology Department

4/22/2005

Powering off procedures

1. Press the power button to turn off the projector.

2. Press the power button again. The cooling fans continue to operate for 90 seconds.

3. If disassembling, disconnect the power cord from the electrical outlet and the projector.

Part D: Adjusting the Projector

Use Zoom & projector placement to maximize image size.

Use Keystone feature and directions below to square up the image.

Use Focus ring to perfect clarity of image.

To raise the projector

1. Press the elevator button.

2. Raise the projector to the desired display angle, and then release the button to lock the

elevator foot into position.

3. Use the tilt adjustment wheel on the underside of the projector to fine-tune the display

angle.

To lower the projector

1. Press the elevator button.

2. Lower the projector, and then release the button to lock the elevator foot into position.

Power Management for Extending the Life of the Bulb

When the projector is not receiving an input signal for the selected time period, it will

automatically enter the power saving mode and turn off the lamp. The lamp will turn back on

when it detects a signal again. However, after 2 hours of delay the projector will shut totally

off. To set this up, do the following:

1. Using the On-Screen Display, navigate with the up and down arrows to Management.

2. Arrow down to Power Saving and over to Yes to turn it on.

3. Set Time to 5, 15, 30, 45, or 60 minutes delay.
