Delta Children CRUZER 11511 Manuale utente
1
INSTRUCTION MANUAL
Customer Experience Center
www.DeltaChildren.com
WARNING:
Adult assembly required because of
small parts. Keep assembly parts
out
of reach of children under 3 years.
CHOKING HAZARD
CRUZER
DOUBLE
STROLLER
Read all instructions BEFORE assembly and USE of product
KEEP INSTRUCTIONS FOR FUTURE USE.
11511
ADULT ASSEMBLY REQUIRED
STYLES AND COLORS MAY VARY
2
CARE AND MAINTENANCE
WARNING: Please follow all of these instructions to ensure the safety of your child.
Keep these instructions for future reference.
WARNING: Failure to follow these instructions could result in serious injury or death.
• Avoid serious injury from falling or sliding out. ALWAYS insure that the child is properly positioned by
using the safety harness according to these instructions. ONLY children who have developed enough
upper body control to sit without leaning forward can use the front seat in the upright position.
• NEVER leave children unattended.
WARNING: CHOKING HAZARD Adult assembly required because of small parts.
Keep (assembly parts) out of reach of children under 3 years.
CAUTION: Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the
stroller and cause hazardous unstable conditions.
TO PREVENT INJURY
• Make sure all body parts are clear of the stroller when folding and unfolding.
• The maximum weight that can be carried in the lower basket, and child tray, each is 3 lbs (1.36 kg).
Excessive weight may cause a hazardous unstable condition to exist.
• Before allowing the children near the stroller, be certain the stroller is fully erect and latched in the open
locked position.
• Use of the stroller with children weighing more than 50 pounds (22.62 kg) per seat or over 42 inches
(106.7 cm) tall, may cause a hazardous unstable condition to the stroller.
• NEVER use the stroller on stairways or escalators.
• NEVER allow your stroller to be used as a toy.
• NEVER use the stroller in conjunction with bicycles, skateboards, roller skates, or in-line skates. Please
discuss using the jogging stroller with your health care provider prior to jogging use.
We recommend that the child occupant needs to be 6 months of age, at the minimum, before use
of the stroller.
Product features and decorations may vary from the photo.
• To clean the plastic parts on stroller use a mild cleaning solution with warm water on a sponge or
damp cloth. Hand wash fabric with damp cloth and air dry. Do not use bleach.
• To keep your stroller wheels from squeaking, use silicone or graphite based lubricant.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or
repair parts as needed, discontinue use of stroller if it should become damaged or malfunctions.
3
LIMITED MANUFACTURER WARRANTY
This Delta product is warranted to be free from defects for a period of 90 days from the
date of purchase under normal use. This warranty extends only to the original retail
purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the
registration is on file with Delta. This limited manufacturer warranty does not cover the following:
• Products purchased as floor models or samples.
• Items purchased on an “as-is” basis, as a second hand product, or as a resale product.
• Items purchased at a Final sale, a “Going out of Business” sale, or a Liquidation sale.
TO REGISTER YOUR PRODUCT for important safety alerts and updates to your product please
visit www.deltachildren.com
TO REPORT A PROBLEM, please log on to www.deltachildren.com and click the Consumer
Date of Purchase: _____________ (you should also keep your receipt)
DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFES MISHAPS!
With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if your item
stops working due to normal wear and tear, plus all those unexpected surprises.
2 YEARS OF PROTECTION
For Additional Information:
Simply visit our Website, register your product, and add the Extended Warranty
https://www.deltachildren.com/pages/product-registration
Extended Warranty only available in the following States: Arkansas, Colorado, Delaware, District of Columbia, Georgia, Idaho, Illinois, Indiana,
Iowa, Kansas, Kentucky, Louisiana, Maryland, Michigan, Mississippi, Missouri, Nebraska, Nevada, New Hampshire, New York, North Carolina,
North Dakota, Pennsylvania, Rhode Island, South Dakota, Tennessee, Utah, West Virginia
EXTENDED WARRANTY
4

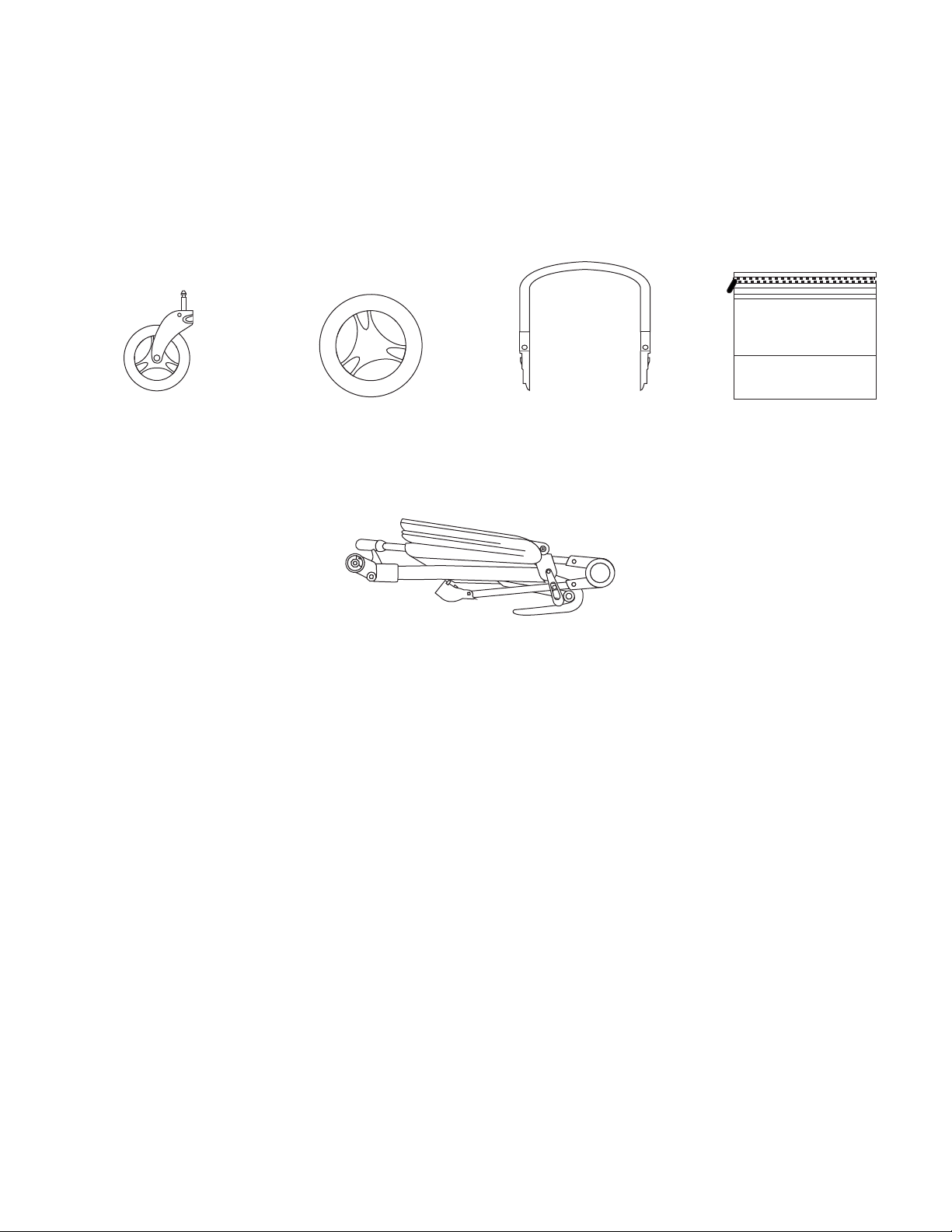

Chid Bar
Front Wheel (X2) Pouch (X2)
Stroller Frame
Rear Wheel (X2)
IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts, or sharp
edges. NEVER use if any parts are missing or broken. Contact manufacturer for replacement parts and instructions if needed.
Never substitute parts. IMPORTANT! Adult assembly is required.
PARTS
IMPORTANT! Please remove all parts from the package and identify them before assembly.
5
ASSEMBLY
WARNING: Care must be taken when folding and unfolding the stroller to
prevent nger entrapment.

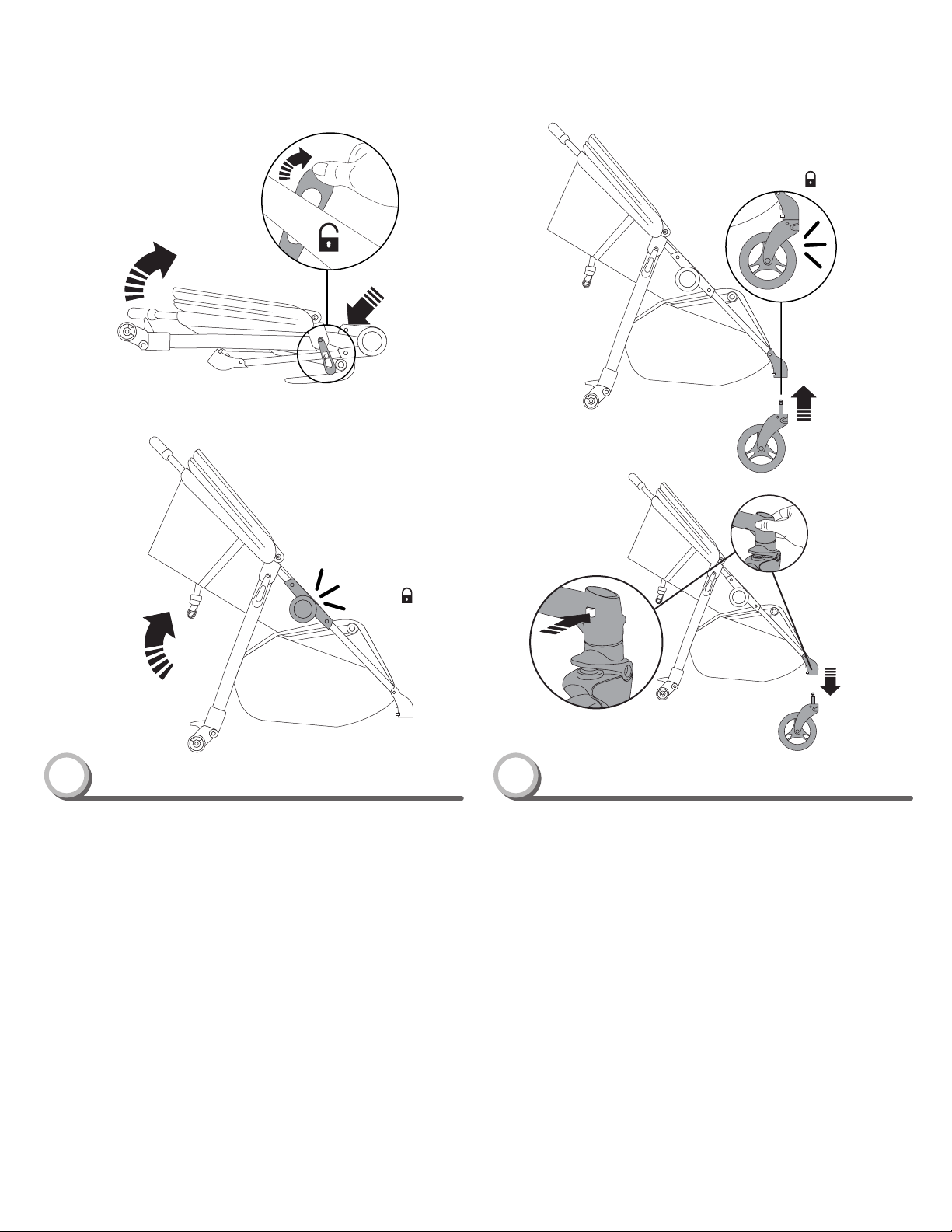

OPENING STROLLER FRAME
• First, release the locking latch clip which is located on the right side of
the stroller frame. (Fig. 1)
• Second, lift up on the stroller handle with both hands until the stroller
frame is in a fully opened and locked position. (Fig. 1A)
• The stroller is in a fully locked position when both side handle latches
are in a fully locked position and “CLICK”
NOTE: Before attaching front wheel, make sure the stroller is in a fully
open position.
ATTACHING FRONT WHEELS
• Push front wheel post into the front wheel housing until it “CLICKS” into
a fully locked position. (Fig. 2)
• Repeat on opposite side.
NOTE: Pull downward on each wheel to ensure that each wheel is securely
locked.
REMOVING FRONT WHEELS
NOTE: Make sure the back brakes are fully engaged.
• Press the metal button located on the back of the wheel housing and
push inward to release. (Fig. 2A)
• Repeat on opposite side.
1 2
CLICK
CLICK
Fig. 1
Fig. 1A
Fig. 2
Fig. 2A
6
ASSEMBLY
TO LOCK FRONT SWIVEL WHEELS
• Press downward on the lever located on the top of the front wheel
housing. Rotate wheel until it “CLICKS” into a fully locked position. (Fig. 3)
TO UNLOCK FRONT SWIVEL WHEELS
• Press upward on the lever located on the top of the front wheel housing
until it “CLICKS” into a fully unlocked position. (Fig. 3A)
ATTACHING REAR WHEELS
• Push rear wheel post into the rear wheel housing until it “CLICKS” into a fully
locked position. (Fig. 4)
• Repeat on opposite side.
NOTE: Pull outward on each wheel to ensure that each wheel is securely
locked.
REMOVING REAR WHEELS
• Press button located on the back of the wheel housing and pull wheel
outward until wheel is released. (Fig. 4A)
• Repeat on opposite side.
WARNING: Always lock brakes when the stroller is not being pushed so
that the stroller will not roll away. Never leave stroller unattended on a hill or
incline as the stroller may slide down the hill.
WARNING: NEVER leave child unattended in stroller.
Rear Wheel Brake – One Touch Brake System
TO ENGAGE BRAKES
• Apply light downward pressure on bottom section of the linked brake
lever located in the middle of the rear wheel axle. (Fig. 5)
• Check to make sure the brakes are in a fully locked position, stroller will
not move when pushed.
TO RELEASE BRAKES
• Apply light downward pressure on top section of the linked brake lever
located in the middle of the rear wheel axle. (Fig. 5A)
3
4
5
Fig. 3
Fig. 4
Fig. 4A
Fig. 3A Fig. 5A
Fig. 5
7
ASSEMBLY

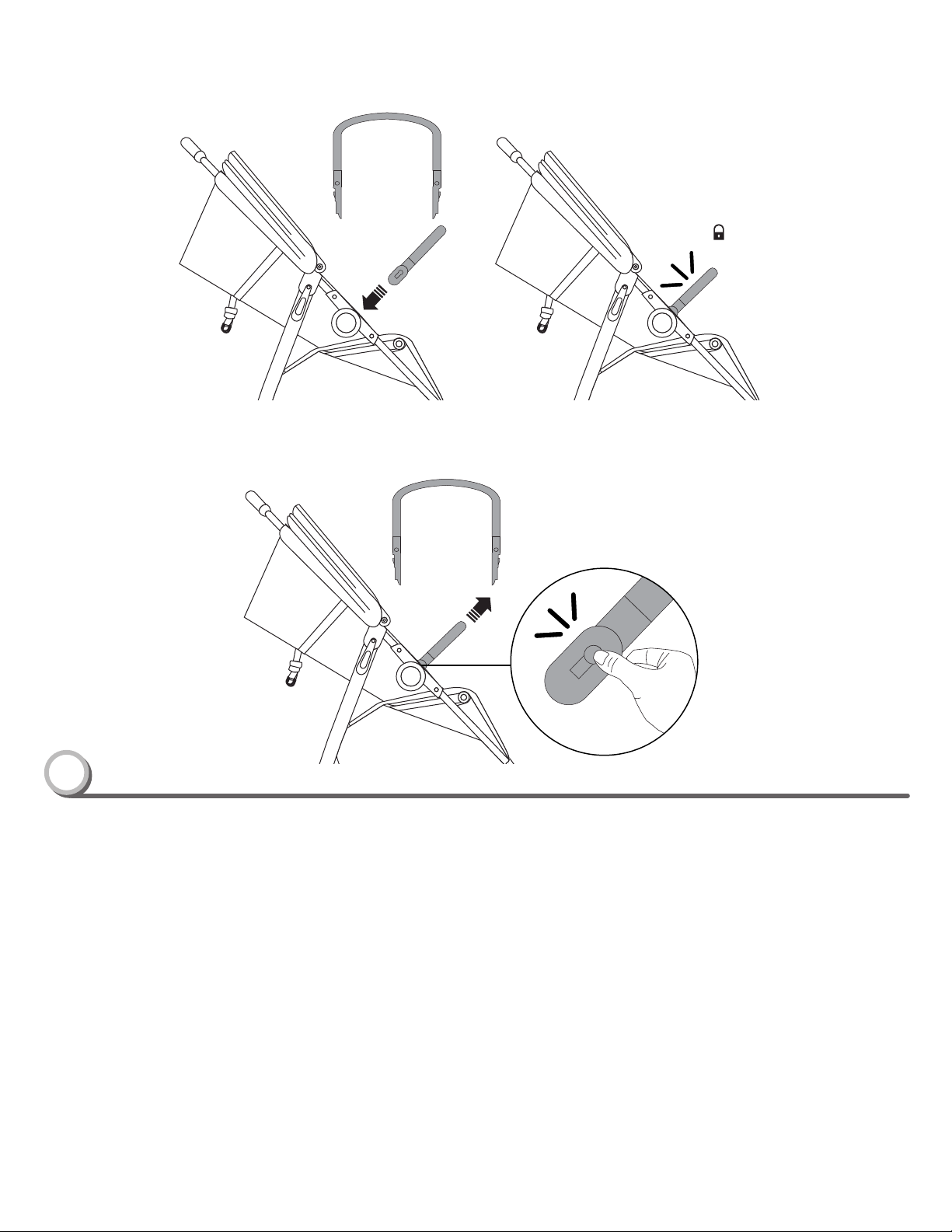

ATTACHING CHILD BAR
• Insert left / right sides of the child bar into the child bar housing located
on the left / right side of the stroller frame. (Fig. 6)
• The child bar “CLICKS” on both sides once it is in a fully locked position.
(Fig. 6A)
• NOTE: Pull upward on the child bar to ensure it is securely locked onto the
stroller frame.
REMOVING CHILD BAR
• Press both child bar buttons located on both sides of the stroller
frame and pull upward to release. (Fig. 6B)
6
CLICK
Fig. 6
Fig. 6A
Fig. 6B
8
ASSEMBLY
ATTACHING POUCHES
• Locate two (X2) pouches and zipper it on the back of the stroller and velcro
the bottom. (Fig. 7)
• Repeat on opposite side.
• Fully assembled pounches on rear of stroller. (Fig. 7B)
7
Fig. 7A
Fig. 7B
Fig. 7
9
SETUP AND USE
1
2

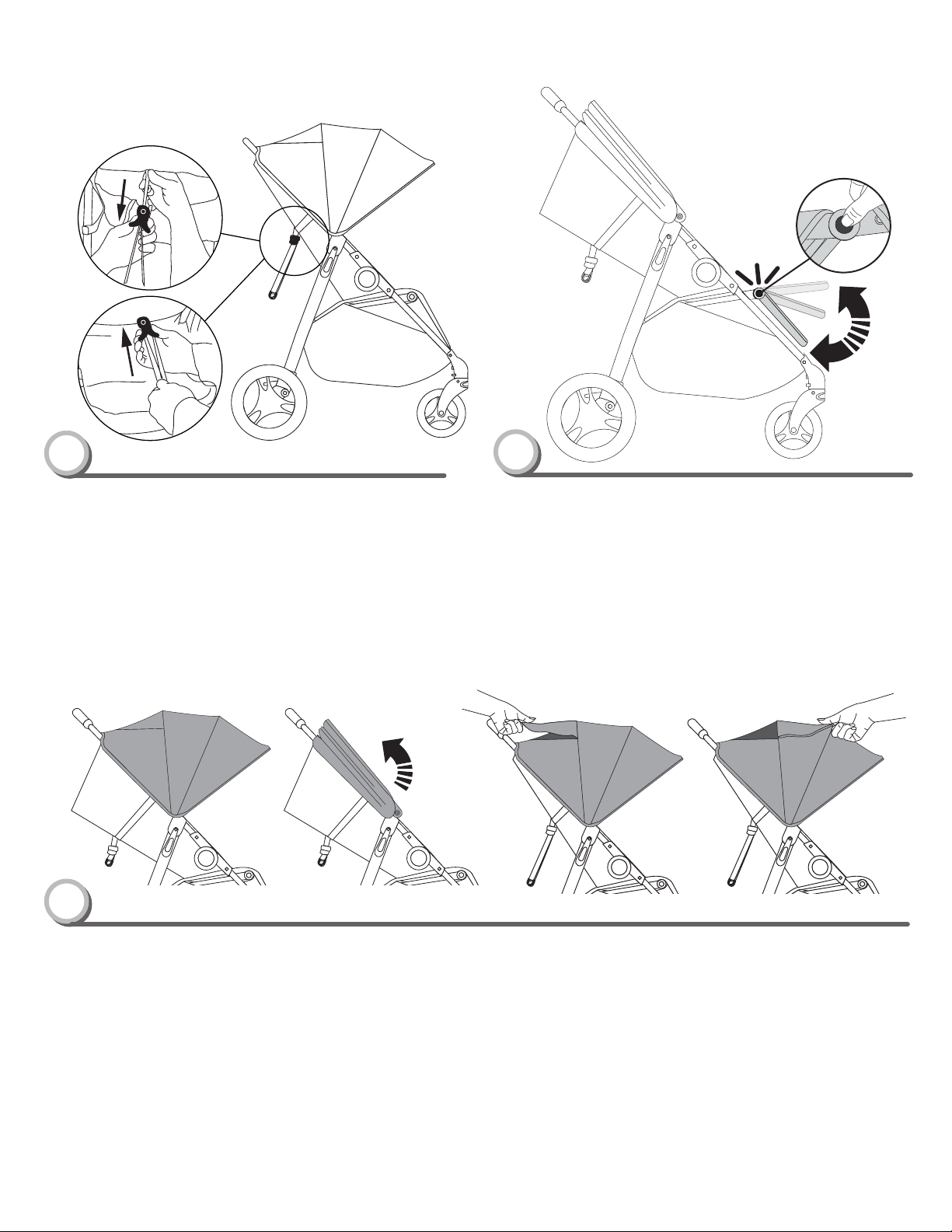

SEAT BACK ADJUSTMENT
• Recline Position: To return to a recline position, squeeze the cord
housing and pull downward away from the seat. (Fig. 1).
• Upright Position: To return to an upright position, squeeze the
cord housing and pull toward the back of the seat. (Fig. 1A)
TO CLOSE EXTENDABLE CANOPY
• Push backward on the front edge of canopy until it is all the way
collapsed (Fig. 2)
TO OPEN PEEK A BOO WINDOW
• Pull upward on window flap until it is in a fully opened position. (Fig. 2A)
Fig. 1
Fig. 1A
Fig. 2 Fig. 2A
FOOTREST ADJUSTMENT
• Press both left / right recline buttons located on left/right side of foot rest.
While pressing both recline buttons, rotate foot rest upward or downward
to its desired position.
• The footrest “CLICKS” on both sides once it is in a fully locked position.
(Fig. 3)
3
Fig. 3
CLICK
10
SETUP AND USE
Fig. 13
Fig. 13B
Fig. 13A
Fig. 13C
Fig. 13D
13

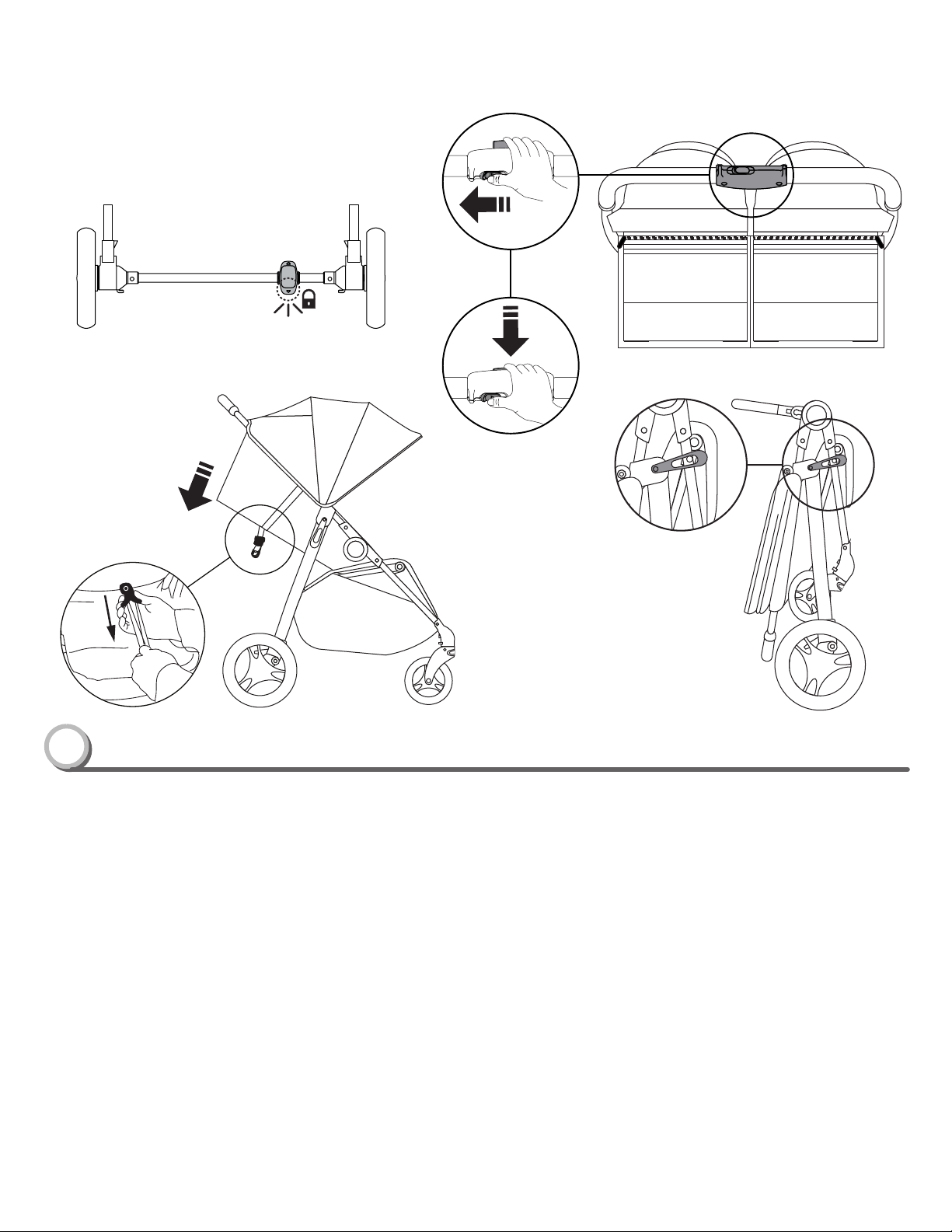

FOLDING STROLLER
NOTE: Make sure the brake pedal is pressed down completely. Always set the brake pedal when
parking the stroller. Always recline seat to its lowest position before folding the stroller.
• Close the extendable canopy.
• Position footrest to its lowest position.
• Position the stroller seat to a fully reclined position.
• Press the brake pedal down until it “CLICKS” into the locked position. (Fig. 13)
• To return to a recline position, squeeze the cord housing and pull downward away from the
seat. (Fig. 13A)
• Slide the unlock tab to the left with your thumb and hold. (Fig. 13B)
• While holding the unlock tab, squeeze the release button inward and push downward on the
handle (Fig. 13C) until the auto-latch is in a fully locked position. (Fig. 13D)
