Delta Childrens Products DX Side X Side Manuale utente

11601 & 11701 USD V2

ASSEMBLY INSTRUCTIONS

ADULT ASSEMBLY REQUIRED

STYLE & COLORS MAY VARY

DX SIDE X SIDE /LX SIDE X SIDE STROLLER

www.DeltaChildrensProducts.comCustomer Service Tel. (212) 645-9033

Prevent serious injury from falls

or sliding out:

• ALWAYS use the restraint system.

• Only children who have developed enough

upper body control to sit without leaning

forward can use the front seat in the

upright position.

• NEVER leave child unattended.

• DO NOT use the storage bag to carry children.

To prevent product from tipping over:

• DO NOT exceed the maximum storage weight

limit of 3 lbs (1.36 kg) in the storage bag.

• DO NOT exceed the maximum storage weight

limit of 3 lbs (1.36 kg) in the cup holder.

• DO NOT place additional items on this

product, except as recommended in

the instructions.

To prevent injury:

• Make sure all body parts are clear of the

stroller when folding and unfolding.

• DO NOT place hot liquids in the cup holder.

Hot liquids can burn your child.

WARNING

• Please read these instructions before assembly and use of this product.

• Adult assembly is required.

• Use only for a child who weighs less than 35 lbs (15.88 kg).

• Maximum weight limit for the storage bag is 3 lbs (1.36 kg).

• Maximum weight limit for the cup holder is 3 lbs (1.36 kg).

• Product features and decorations may vary from the photo.

Consumer Information

Care

• The plastic parts may be wiped clean using a mild cleaning solution and

damp cloth. Hand wash fabric with damp cloth and air dry.

Do not use bleach.

• To keep your stroller wheels from squeaking, use a silicone or graphite

based lubricant.

Customer Service

Tel. 212-645-9033

www.DeltaChildrensProducts.com

MADE IN CHINA

Manufactured for and distributed by:

114 West 26th Street, New York, NY 10001

Cup Holder

Parts Assembly

• Locate the latch clip on the side frame of the stroller.

• Pull to release the latch clip.

IMPORTANT! Before assembly or each use, inspect this product for

damaged hardware, loose joints, missing parts or sharp edges. DO NOT

use if any parts are missing or broken. Contact manufacturer for replace-

ment parts and instructions if needed. Never substitute parts.

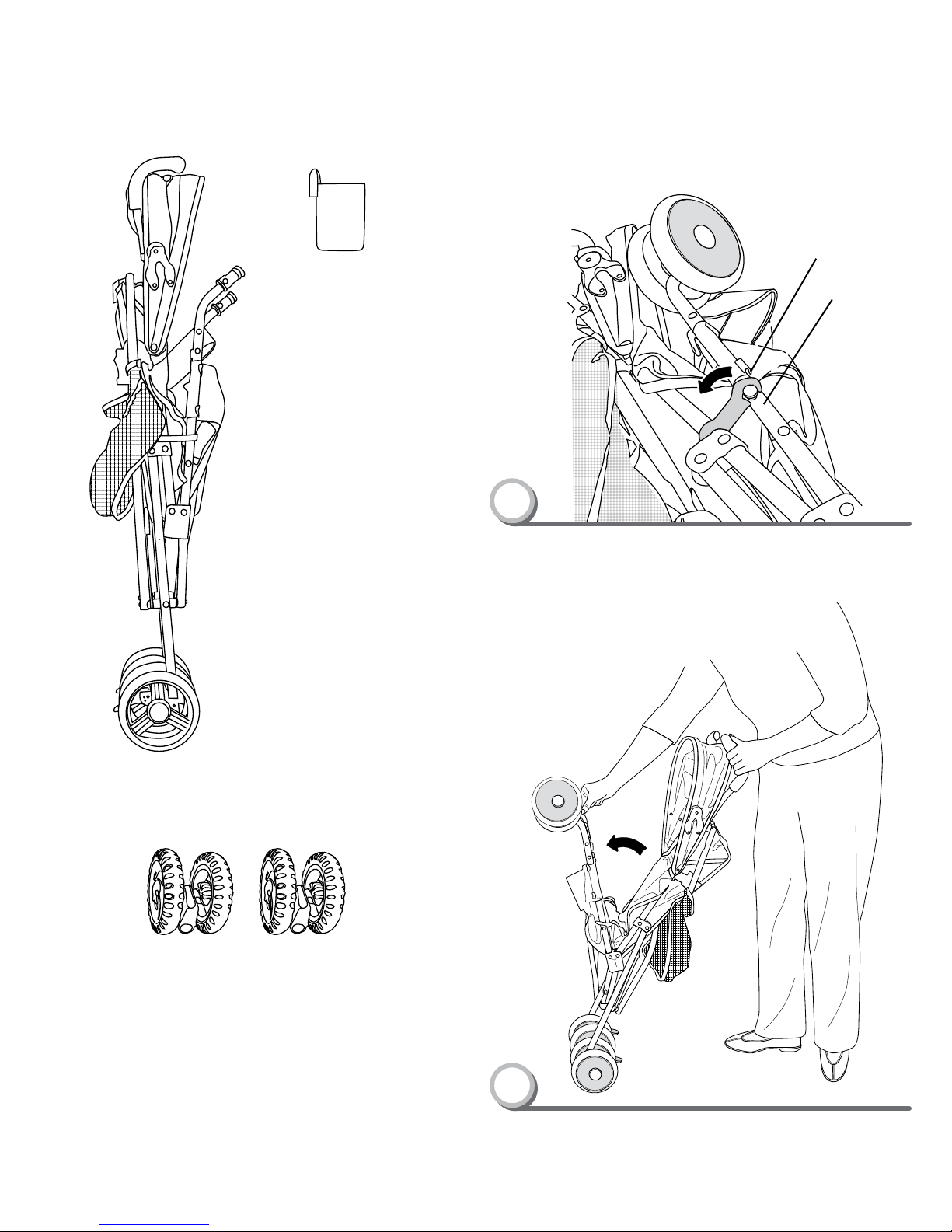

IMPORTANT! Please remove all parts from the package and identify

them before assembly.

• Position the stroller upright on its rear wheels.

• Grasp a handle with one hand. With your other hand, push down on the

front of the stroller to open.

Latch Clip

Side Frame

Customer Service Tel. (212) 645-9033 www.DeltaChildrensProducts.com

Stroller

2 Front Wheel Assemblies

• With your foot, press down on the frame bar until it “clicks” into place.

• Check to be sure the stroller is locked open by pulling up on the frame bar.

Assembly

Frame Bar

Attaching Cup Holder

• Locate the knob on the side of the stroller.

• Fit the notch in the cup holder over the knob on the side rail and push

down until you hear a “click”. Pull up on the cup holder to be sure it

is secure.

Notch

Knob

Locked Position

Customer Service Tel. (212) 645-9033 www.DeltaChildrensProducts.com

*MAKE SURE TO DO

TO BOTH SIDES

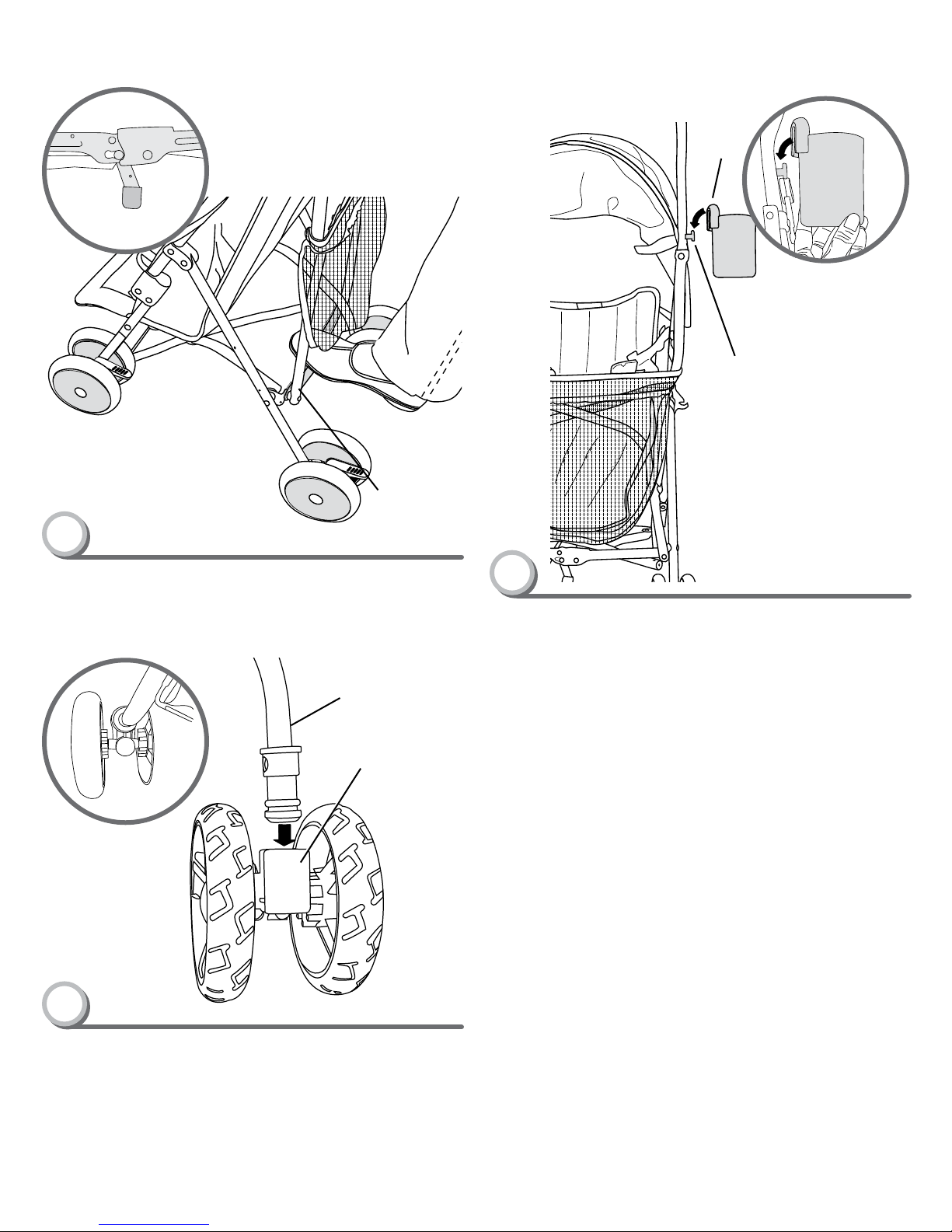

Front Wheel Assembly

• With the word UP facing toward the front leg, slide the front wheel caster

onto a front leg. Make sure you hear a “click”.

• Pull on the front wheel assembly to make sure it is securely attached to the

front leg.

• Repeat this procedure to attach the other front wheel assemblies.

Front Wheel Caster

Front Leg

Latch Clip

Setup and Use

To Unfold

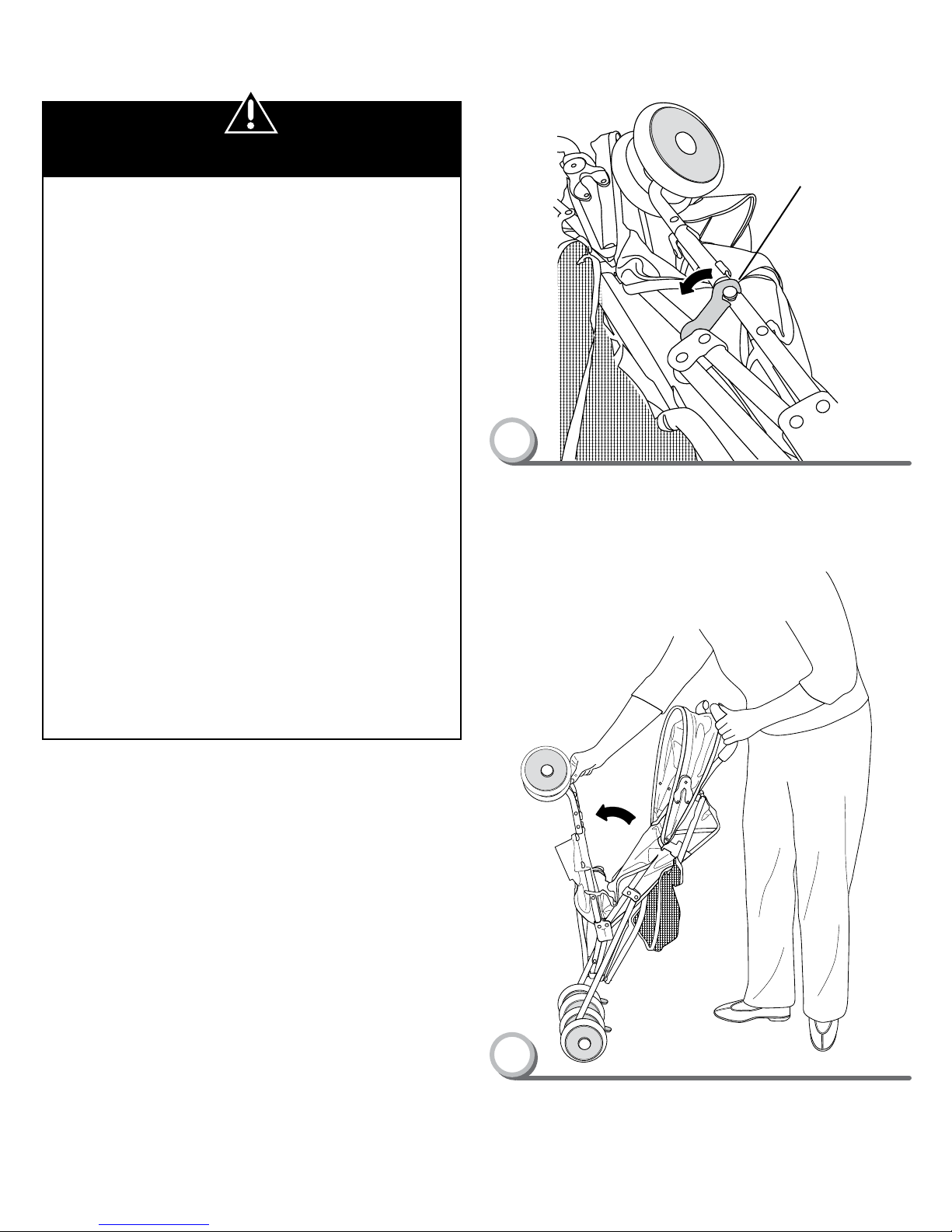

• Locate the latch clip on the side of the stroller.

• Pull to release the latch clip on the side of the stroller.

• Grasp a handle with one hand. With your other hand, push down on the

front leg. Pull the stroller apart.

Prevent serious injury from falls

or sliding out:

• ALWAYS use the restraint system.

• Only children who have developed enough

upper body control to sit without leaning

forward can use the front seat in the

upright position.

• NEVER leave child unattended.

• DO NOT use the storage bag to carry children.

To prevent product from tipping over:

• DO NOT exceed the maximum storage weight

limit of 3 lbs (1.36 kg) in the storage bag.

• DO NOT exceed the maximum storage

weight limit of 3 lbs (1.36 kg) in the cupholder.

• DO NOT place additional items on this

product, except as recommended in

the instructions.

To prevent injury:

• Make sure all body parts are clear of the

stroller when folding and unfolding.

• DO NOT place hot liquids in the cup holder.

Hot liquids can burn your child.

WARNING

Customer Service Tel. (212) 645-9033 www.DeltaChildrensProducts.com

Setup and Use

• With your foot, press down on the frame bar until it “clicks” into place.

• Pull up on the frame bar to make sure it is locked.

Seat Back Adjustment

•The seat back straps can be adjusted to multiple positions for

baby’s comfort.

• For upright positions, fasten the seat back straps on the back of the

stroller. Pull free end of the strap to increase the incline of the upright

position. Loosen the strap to decrease the incline position.

• For the recline position, unfasten the seat back straps on the back of

the stroller.

Canopy Adjustment

• The canopy can be adjusted to the open or closed position.

Frame Bar

UPRIGHT RECLINE

CANOPY CLOSEDCANOPY OPEN

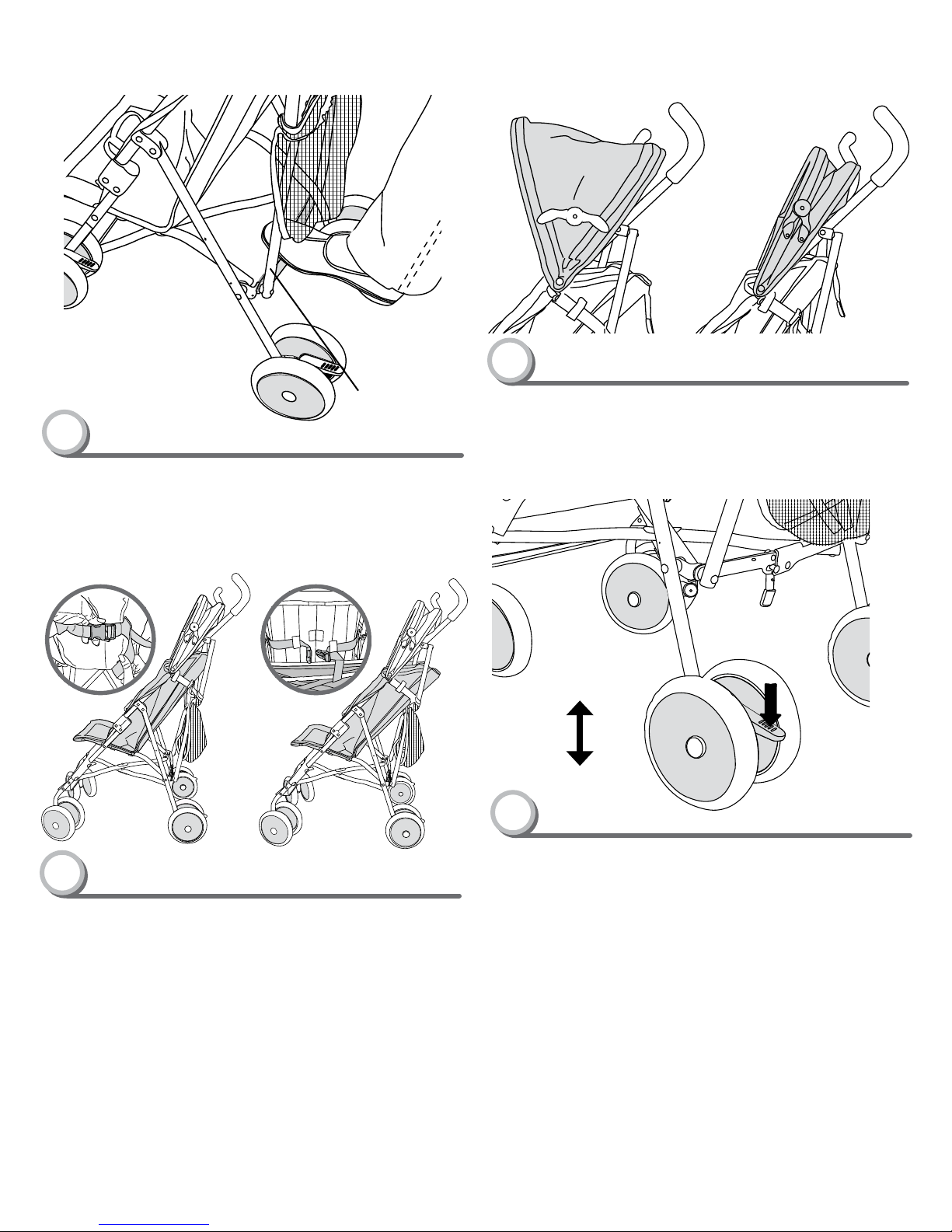

Rear Wheel Brakes

To lock the rear wheel brakes:

• Press both brake pedals down until they “click” into the locked position.

Make sure the brake pedals are pressed down completely.

• Always set both brake pedals whenever you park the stroller.

To unlock the rear wheel brakes:

• Lift both brake pedals until they “click” into the unlocked position.

UNLOCK

LOCK

Customer Service Tel. (212) 645-9033 www.DeltaChildrensProducts.com

*MAKE SURE TO DO

TO BOTH SIDES

*MAKE SURE TO DO

TO BOTH SIDES

Customer Service Tel. (212) 645-9033 www.DeltaChildrensProducts.com

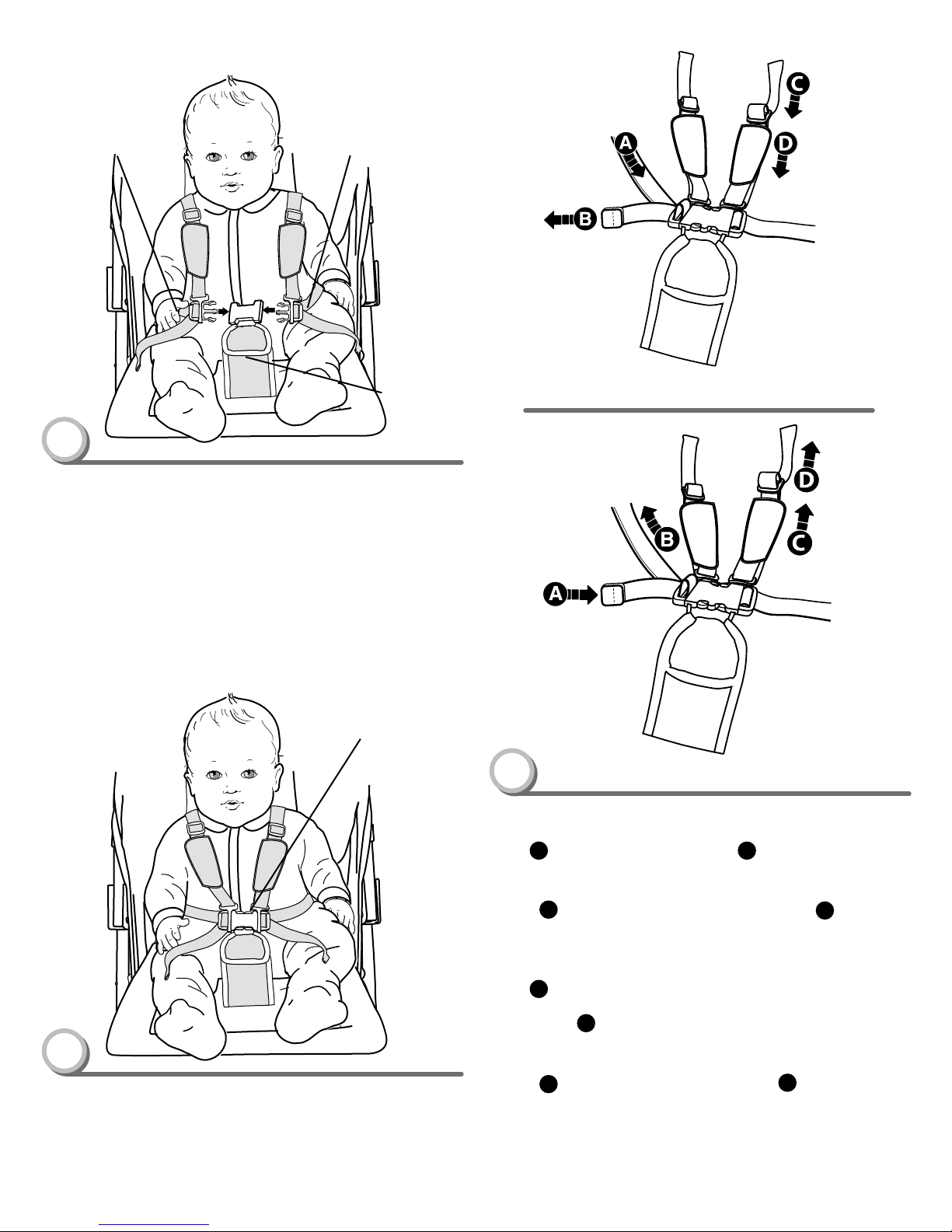

Securing Child

• Place your child in the stroller. Position the crotch belt between your

child’s legs.

• Pull shoulder straps over childs arm and shoulder and fasten both strap

ends to the restraint system.

• Fasten both waist belts to the buckle on each side of the crotch belt.

Make sure you hear a “click” on both sides.

• Check to be sure the restraint system is securely attached by pulling it

away from your child. The restraint system should remain attached.

To tighten the waist belts and shoulder straps (on some models):

• Feed the anchored end of a waist belt up through the buckle to form a

loop A. Pull the free end of the waist belt B.

• Repeat this procedure to tighten the other waist belt.

• Feed the top end of the shoulder strap through the plastic stay to form

a loop . Pull the bottom end down to tighten the strap .

• Repeat this procedure to tighten the other shoulder strap.

To loosen the waist belts and shoulder straps (on some models):

• Feed the free end of the waist belt up through the buckle to form a

loop A. Enlarge the loop by pulling on the end of the loop toward the

buckle. Pull the anchored end of the waist belt to shorten the free end of

the waist belt B.

• Repeat this procedure to loosen the other waist belt.

• Feed the bottom end of the shoulder strap through the plastic stay to form

a loop . Pull the top end up to loosen the strap .

• Repeat this procedure to loosen the other shoulder strap.

Please note: After adjusting the restraint system to ﬁt your child, make sure

you pull on it to be sure it is securely fastened.

TIGHTEN

LOOSEN

Crotch Belt

Waist BeltWaist Belt

• Tighten each waist belt and shoulder strap so that the restraint system is

snug against your child.

Please refer to the next section for instructions to tighten the waist belts.

Restraint System

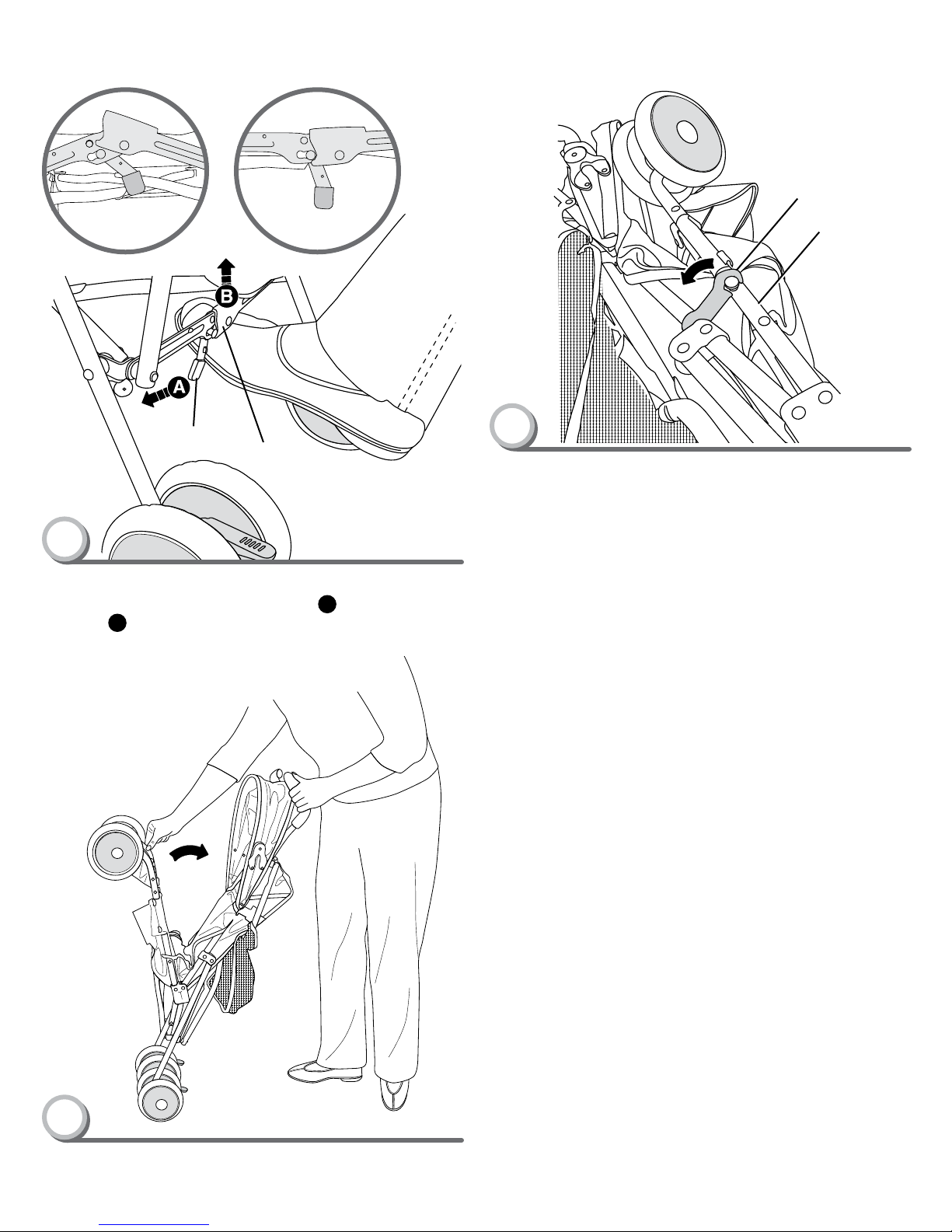

Hint: Make sure canopy is in the closed position before folding the stroller.

• With your foot, slide the frame release to the left A, then push up on the

frame bar B.

Storage

• Lift the front wheels toward the closed canopy.

• Slide the latch clip onto the side frame to secure in the folded

storage position.

Latch Clip

Frame Release

Side Frame

Unlocked Position Locked Position

Frame Bar

*MAKE SURE TO DO

TO BOTH SIDES

Customer Service Tel. (212) 645-9033 www.DeltaChildrensProducts.com
