DELTA DORE PACK TYBOX 5000 Manuale utente
Installation instructions
Installationsanleitung
Installatie-instructies
EN
DE
NL
TYBOX 5000
Hard-wired room thermostat for boiler
Drahtgebundenes Raumthermostat
Kamerthermostaat met draad
EN
DE
NL
EN
32
CONTENT
1/ Location 4
2/ Connection 5
2.1 Circulator control 5
2.2 Control of the thermostat input of
the boiler or heat pump (HP) no-reversible 6
3/ Mounting 8
4/ Conguration 9
5/ Compatible options 14
6/ Troubleshooting 15
• Contact output 2A (230V) - 1.C (brownout)
• Ball test: 125 ° C
• Rated surge voltage: 4000V
• Powered by 2 lithium batteries 1.5V, LR03/AAA
(supplied), 5-year life under normal use
• Class II insulation
• Radio frequency 868.7 MHz to 869.2 MHz
• Maximum wireless power: <10 mW
• Receiver category: 2
• Wireless remote control device
• Wireless range: 100 to 300 metres outside,
variable depending on the associated equipment
(the range can vary depending on the installation
conditions and the electromagnetic environment)
• Dimensions: 80 x 84 x 21 mm
• Degree of protection: IP 20
• Wall mounting
• Installation in an environment
with normal pollution levels
• Storage temperature:
-10 to +70°C
• Operating temperature:
0 to +55°C
TECHNICAL CHARACTERISTICS
D
e
l
t
a
D
o
r
e
S
m
a
r
t
i
s
t
h
e
n
e
w
p
o
w
e
r
D
e
l
t
a
D
o
r
e
S
m
a
r
t
i
s
t
h
e
n
e
w
p
o
w
e
r
D
e
l
t
a
D
o
r
e
S
m
a
r
t
i
s
t
h
e
n
e
w
p
o
w
e
r
Boiler Plus
Compliant
EN
54
2A max. / 230V~
2A max. / 230V~
NL
2A max. / 230V~
Circulator
Since the temperature measurement sensor is
inside the box, you must install the thermostat
ush-mounting box:
- on an accessible wall at a height of 1.50 m
- away from heat sources ( replaces, sunlight) and
draughts (windows, doors)
IMPORTANT: Do not install the thermostat on
a wall in contact with the outdoors or with an
unheated room (e.g. garage, etc.) The sleeve output
in the ush-mounting box must be blanked off (with
mastic) in order to avoid unwanted air movements
that could bias the sensor reading.
1/ LOCATION 2/ CONNECTION
The diagrams provided are simpli ed for greater
clarity. Protections and other accessories required
by standards are not illustrated. - Standard NF
C15-100 and good practice must be complied
with. Connected or nearby units must not
generate excessive interference
(directive 89/336/EEC).
2.1 Circulator control
EN
76
Thermostat
input
HP
Thermostat
input
2A max. / 230V~ 2A max. / 230V~
NL
2A max. / 230V~
2A max. / 230V~
2A max. / 230V~
NL
2A max. / 230V~

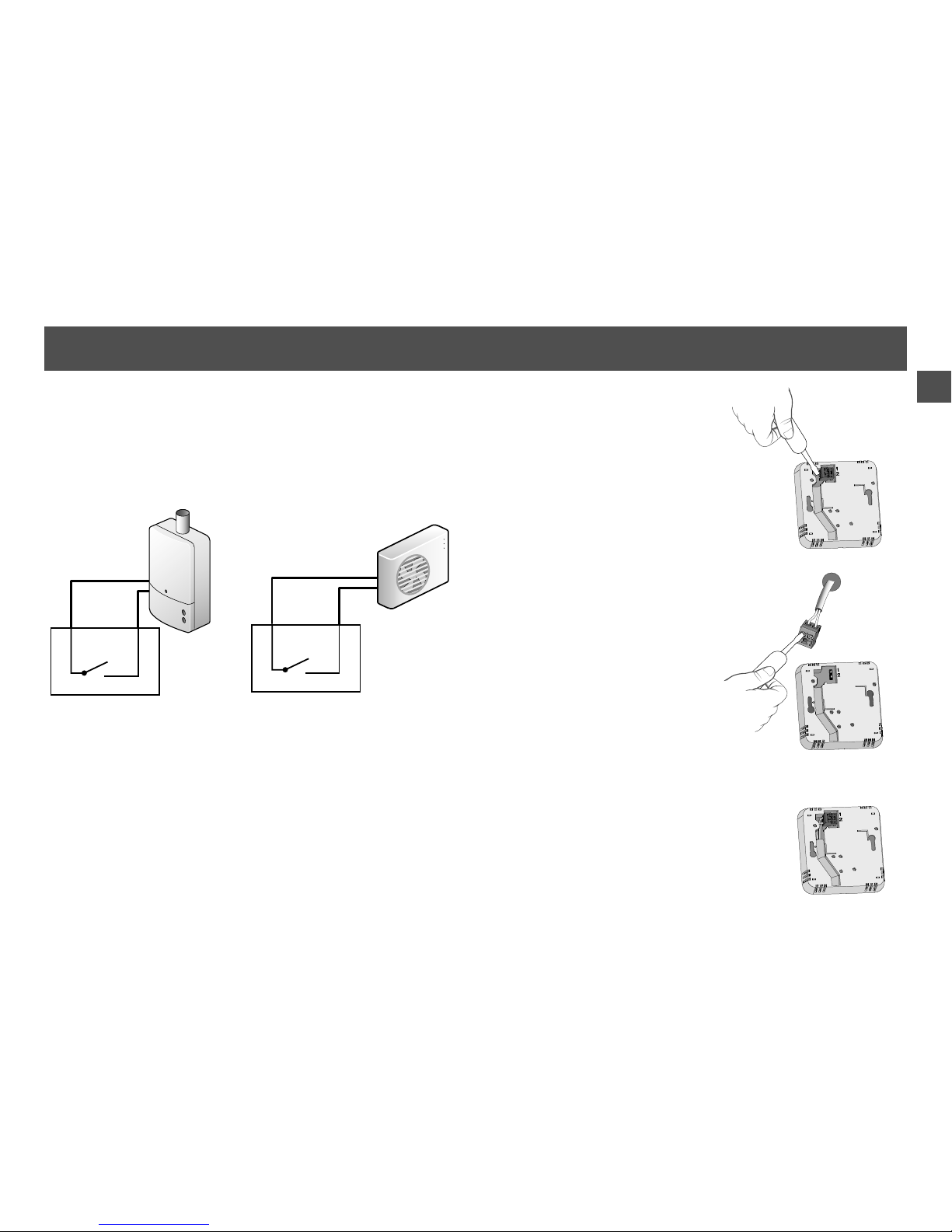

2/ CONNECTION
Boiler
2.2 Control of the thermostat input of the boiler
or heat pump (HP) no-reversible
❶ Remove the terminal, on
the back of the device, using a
screwdriver.
❷Connecttheterminaltothe
control wire (circulator, boiler
or heat pump thermostat
input).
❸ Fit the terminal back into its
position.
EN
98
4/ CONFIGURATION
This menu is used to determine all the settings
adapted to your installation.
❶To enter conguration mode, press the MODE
button for 10 seconds until the screen displays
CF01.
❷Press +or -to set.
❸Briey press MODE to go to the next menu.
Press MODE or wait 5 seconds to exit.
CF01 - Correcting the temperature measured
Setting from -5°C to +5°C
Example: If the temperature displayed by the unit is
15°C and the actual temperature (thermometer) is
16°C, set +1°C.
❶Remove the thermostat cover by pushing the pin
using a screwdriver.
❷ Attach the base by using suitable xings for
mounting. Fit the cover back onto the thermostat.
❸ Insert the batteries, with the right polarity
3/ MOUNTING
2 x 1,5V - AAA LR03
Click
Click
2
3
1
4
EN
1110
0No locking (default setting)
1Total locking
2Partial locking. Modication of the
temperature setting at +/-2°C
The screen will display '____' if it is locked
To unlock (selection 1 and 2), simultaneously press
+ or - the buttons for 10 seconds.
CF04 - Frost protection mode temperature setting
Setting of 5°C to 15°C. Default value: 10°C.
4/ CONFIGURATION
CF06 - Regulation time base
15 15 minutes (default settings)
30 30 minutes
45 45 minutes
60 60 minutes
On/Off On/Off
CF05 - Type of temperature displayed in AUTO
mode
0Temperature setting permanent display
(default selection)
1Permanent display of the measured room
temperature.
1: Pressing the + or - button once displays and sets
the temperature setting (in ON mode).
CF02 - Settings lock
EN
1312
4/ CONFIGURATION
CF07 - Modication of the on/off regulation
hysteresis
Only displayed if menu CF06 = on/off
Setting of 0.2°C to 2°C. Default value: 0.4°C
CF08 - Anti-seize function
The Anti-seize function activates the circulator 1
minute per day to prevent any seizing up during a
non-heating period.
0 Anti-seize disabled
1 Anti-seize enabled (default settings)
CF09 - Reversal of relay direction
The relay contact is normally open. It closes during
a heating request. You can reverse the direction of
operation.
0 Normally open (default selection)
1 Normally closed
CF10 - Return to initial settings
This menu resets all the CF01 to CF09 settings to
their default value.
By default CF10 = 0.
To reset, press + to display 1 and conrm by
pressing MODE.
EN
1514
When you press a button, the screen displays: _ _ _ _
Access to the settings is locked.
To unlock, press and hold the + and - buttons for 10
seconds.
Important: if you want to lock the device again,
refer to the con guration menu (CF02).
The screen displays the low battery symbol. Replace
the batteries The batteries are spent.
mode
>10s
5/ COMPATIBLE OPTIONS 6/ TROUBLESHOOTING
Association with a TYDOM home automation box
Your TYBOX 5000 can be used as a connected
thermostat, if it is associated with a TYDOM home
automation thermostat. Remote control and programming
from a tables or smartphone with the TYDOM application.
Association with a door/window magnetic contact
(DO / MDO / DOI TYXAL+)
If a door/window magnetic contact (e.g. window) is
associated with the TYBOX 5000, the heating switches to
Frost Protection mode when an open window is detected.
❶Press the +and MODE buttons simultaneously
until the screen shows for example rF00.
❷ On the door/window magnetic contact, press the
button.
❸ Check that the screen evolved and shows rF01 on
TYBOX 5000.
mode
mode
> 3s
1 2 3
mode / +mode / +
2 x 1,5V - AAA LR03
www.deltadore.com
DELTA DORE - 08/18
