DELTA DORE TYBOX PAC Manuale utente

RADIO TYBOX PAC

Installation guide

Wireless programmable thermostat for heat pumps

RADIO TYBOX

DELTA DORE - Bonnemain

35270 COMBOURG - FRANCE

E-mail : deltadore@deltadore.com

Device compliant with the requirements of directives:

R&TTE 1999/5/CE

Because of changes in standards and equipment, the characteristics

given in the text and the illustrations in this document are not binding

unless confirmed by Delta Dore.

*2701907_rev1*

- 3 -

Contents

Carefully read these instructions prior to installation.

• The unit must be installed in compliance with

currently applicable standards.

• Always switch off the mains before installing or

servicing the unit.

• Do not attempt to repair the unit yourself; an after-

sales service is available.

• Check that the fastenings are suited to the surface

that the unit will be attached to (plasterboard, brick,

etc.).

• The diagrams provided are simplified for greater

clarity.The protective units and other accessories

required by the standards are not illustrated.

Standard UTE NF C15-100 and good practice must

be complied with. Connected or nearby equipment

must not generate excessive interference (directive

2004/108/EEC).

Warnings

- 2 -

Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Location of the receiver . . . . . . . . . . . . . . . . . . 6

Mounting the receiver . . . . . . . . . . . . . . . . . . . 7

Connecting the receiver . . . . . . . . . . . . . . . . . . 8

Receiver operating modes . . . . . . . . . . . . . . . . . 8

Location / Mounting the transmitter . . . . . . . . . 9

Screw-fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Fitting to the base . . . . . . . . . . . . . . . . . . . . . . . . . 10

Non-reversible heat pump . . . . . . . . . . . . . . . . 11

Reversible heat pump

With thermostat input + change-over . . . . . . . . . . 12

With 2 thermostat inputs (cool - heat) . . . . . . . . . . 13

Starting up . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 16

Basic configurations (menu 1) . . . . . . . . . . . . 17

Choice of programming . . . . . . . . . . . . . . . . . . . . . 17

Choice of programming increments . . . . . . . . . . . 17

Choice of heat pump type . . . . . . . . . . . . . . . . . . . 17

Controlling the comfort temperature . . . . . . . . . . . 18

Circulator anti-seizing . . . . . . . . . . . . . . . . . . . . . . 18

- 5 -

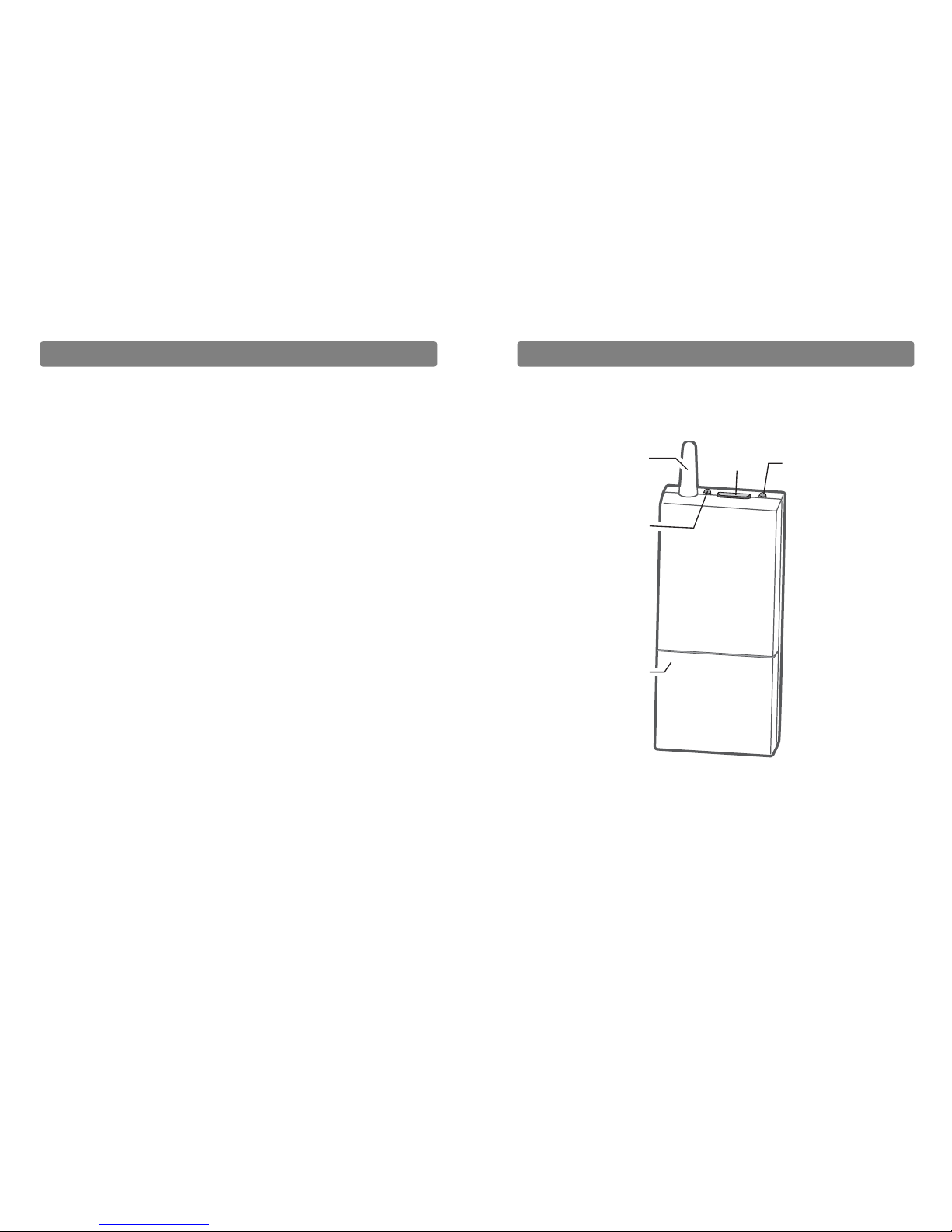

Presentation

RADIO TYBOX PAC is composed of a RADIO TYBOX

PAC transmitter associated with an RF 652 receiver.

RF 652

Button ON LED

Antenna

HEAT

LED

Removable

cover

The RF 652 receiver is connected to the heat pump

The elements of your system (receiver and transmitter)

are already associated when delivered.

- 4 -

Contents

Advanced configurations (menu 2) . . . . . . . . . 19

Modification authorization for the user . . . . . . . . . 19

Correction of the measured temperature . . . . . . . 20

Automatic mode temperature display option . . . . . 20

Regulation time base . . . . . . . . . . . . . . . . . . . . . . 20

Selection of the opening direction of the

change-over relay . . . . . . . . . . . . . . . . . . . . . . . . . 20

Radio association (menu R) . . . . . . . . . . . . . . 21

Home automation features on the installation . . . . 21

“Consumption indication” feature . . . . . . . . . . . . . 22

Associating radio products with the

RADIO TYBOX . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Option configuration (menu 3) . . . . . . . . . . . . 27

Removing radio associations . . . . . . . . . . . . . . 29

Return to the factory configuration . . . . . . . . . 30

Radio test . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Summary table of configurations . . . . . . . . . . . 31

Technical characteristics . . . . . . . . . . . . . . . . . 34

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 36

- 7 -

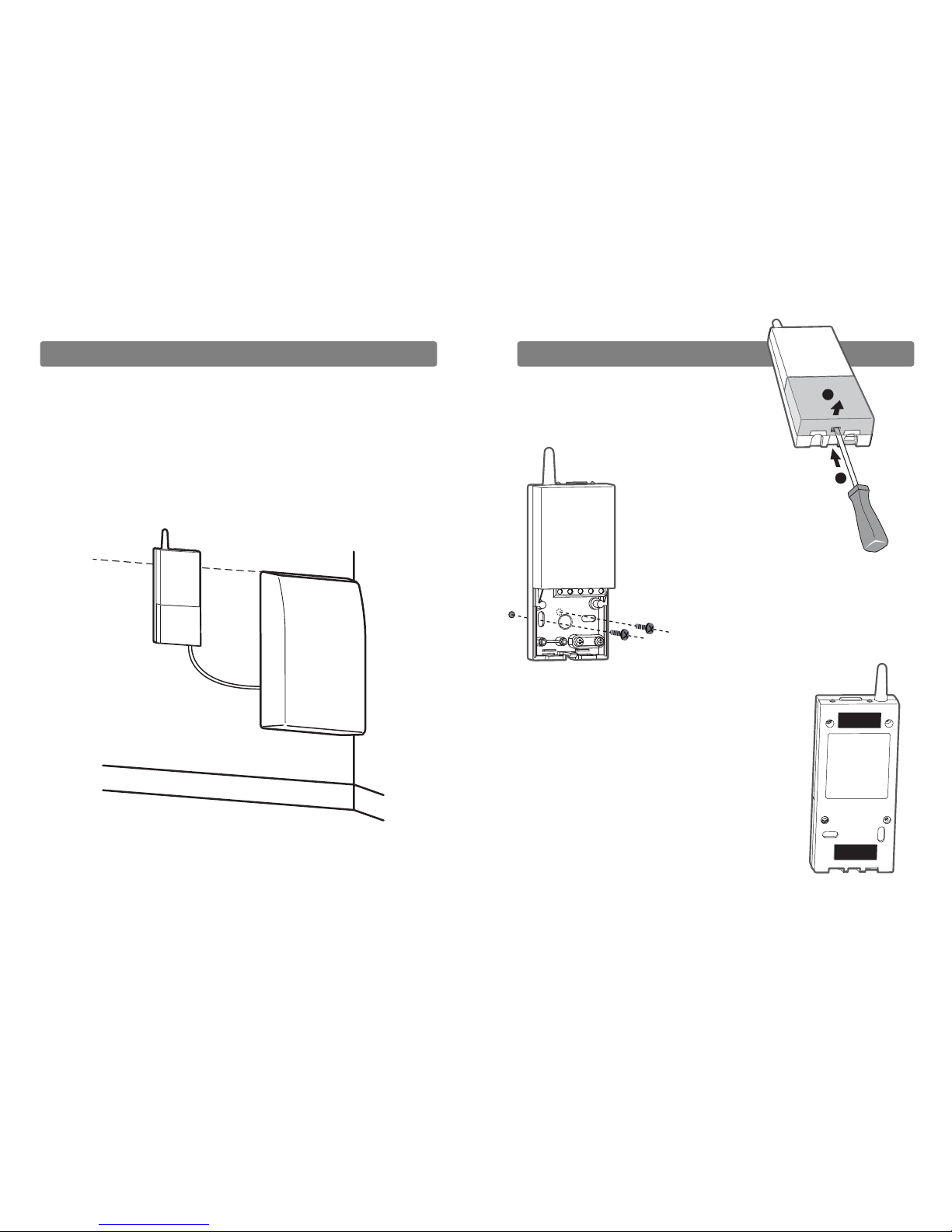

Mounting the receiver

Mounting by double-sided

adhesive tape

If you fit the receiver using adhesive

tape, you must strictly follow the

installation recommendations

(see “location” section).

Ensure that the surface on which the

tape is applied is thoroughly clean

before attaching the tape.

Removing the cover

To remove the cover, push the tab

and lift the cover.

Screw-

mounting

Mounted on a wall using the

screws and pegs suited to the

support

- 6 -

Location of the receiver

The receiver must be positioned near the heat pump

control unit (e.g. Hydraulic module).

To avoid interference with the radio transmission, the

antenna must be free from any metallic elements

(cables, metallic covers, etc.).

- 9 -

- 8 -

Connecting the receiver

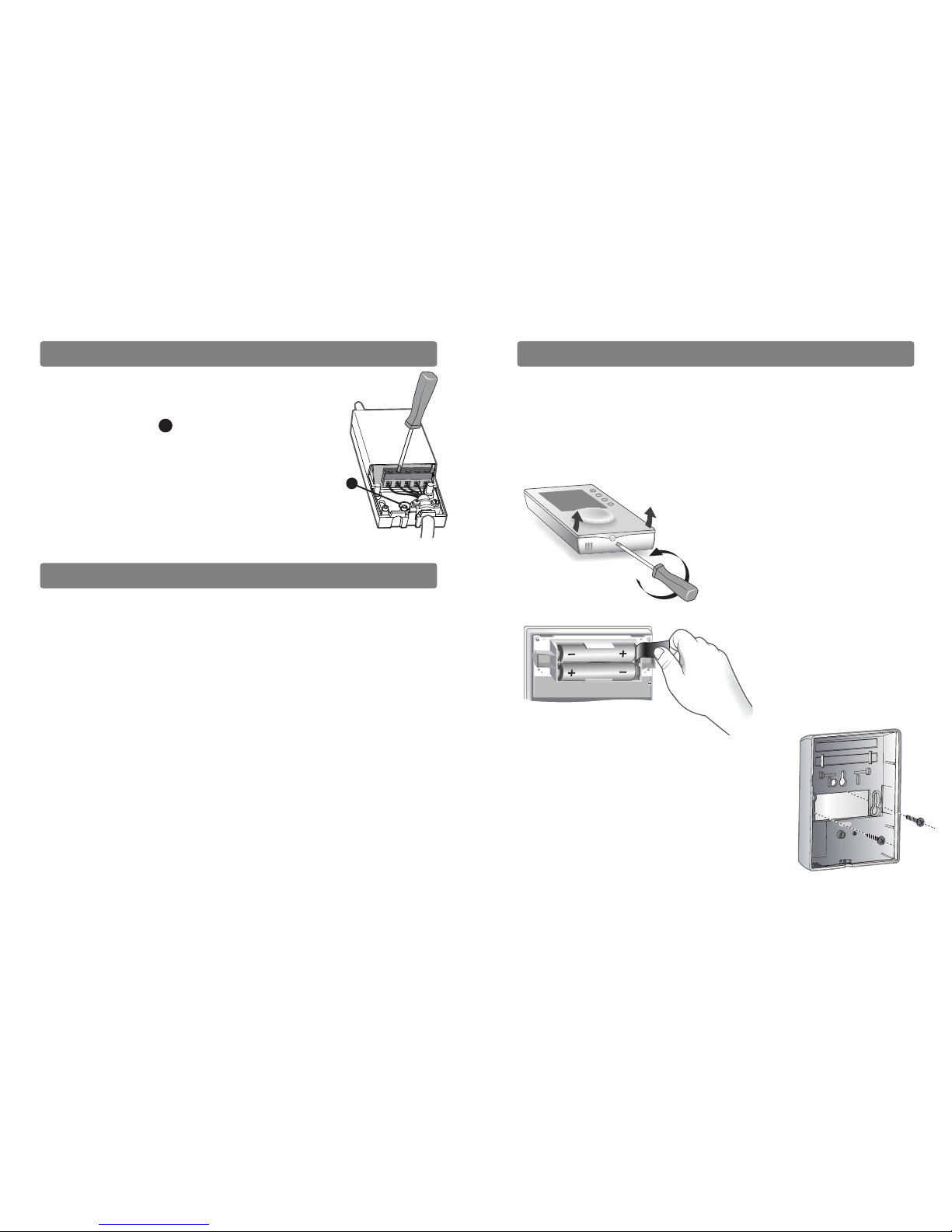

Connect the control wires, pass the wires

through the provided raceway or through

the pierced hole .

Refer to the section that deals with your

type of installation.

When the connection is made, fit the cover

and switch on the current at the circuit

breaker.

Location / Mounting the transmitter

For easier use, the RADIO TYBOX can be installed:

- on a wall: at an approximate height of 1.5 m, with

screws/plugs,

- on a support: Placed on an item of furniture or a

shelf.

Remove the battery

cover.

Separate the unit from its

base by unlocking the

casing.

Depending on the type of heat pump used, 2 operating

modes are possible.

Mode 1 (default)

One change-over output + 1 thermostat output

- Output 1 (terminal 4):

Change-over control of the heat pump

Contact closed = Cool

Contact open = Heat (Configuration 2-09)

- Output 2 (terminal 5):

On/Off control of the heat pump

Contact closed = On

Mode 2(2 thermostat outputs)

- Output 1 (terminal 4): Heat mode command

- Output 2 (terminal 5): Cool mode command

Receiver operating modes

Screw-mounting

Mount the base with screws and

pegs suited to the support or on a

flush-mounted box, then close and

lock the unit.

- 10 - - 11 -

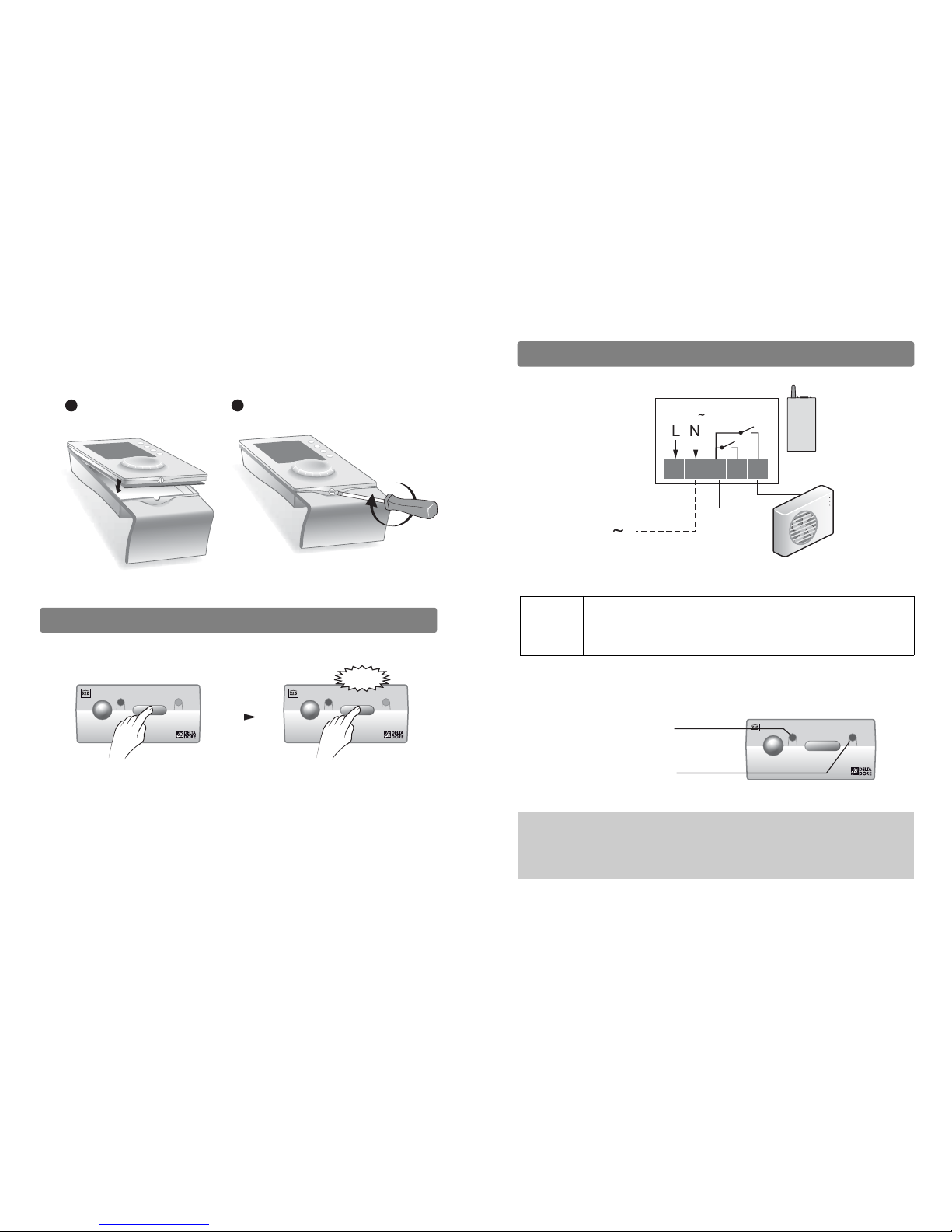

Non-reversible heat pump

34512

RF 652

Thermostat

input

Com

230 V

Power supply

230 V

Do not wire

the output S1

- Menu configuration

1-06Choice of the heat pump type

1 = Non-reversible heat pump (heat only)

LED is lit up if heat

mode is enabled

LED is lit up if “On”

is requested

RF 652

ONHEAT

- Description of the operating LEDs

The receiver is associated with the RADIO TYBOX

802 in mode 1 by default

(see radio association/ menu R section)

Fitting to the base

Position the unit on its base and lock it.

Position the thermostat

on its base.

Lock the thermostat

1 2

If necessary, the On position for the thermostat output

can be switched around.To do this:

RF 652

ONHEAT

RF 652

ONHEAT

Press the button for approximately 10 seconds

until the relay status changes

click

Mode 1 : Modification of the On position for the output S2

Mode 2: Modification of the On positions for outputs S1

and S2

Modifying the positions of the receiver’s outputs

Mode 1

For this type of use, the receiver must be set to

mode 2before wiring the heat pump’s heat and cool

inputs on the thermostat.

5 sec.

To change the mode on your receiver:

RF 652

ONHEAT

Choose mode 2

Pressing the receiver button switches between mode 1

and 2. Let the HEAT LED flash rapidly.

- 13 -

turn the knob to ,

- Press the

button to display the

temperature

- then press the

button for 5

seconds.

The HEAT LED flashes slowly: Mode 1

The HEAT LED flashes rapidly: Mode 2.

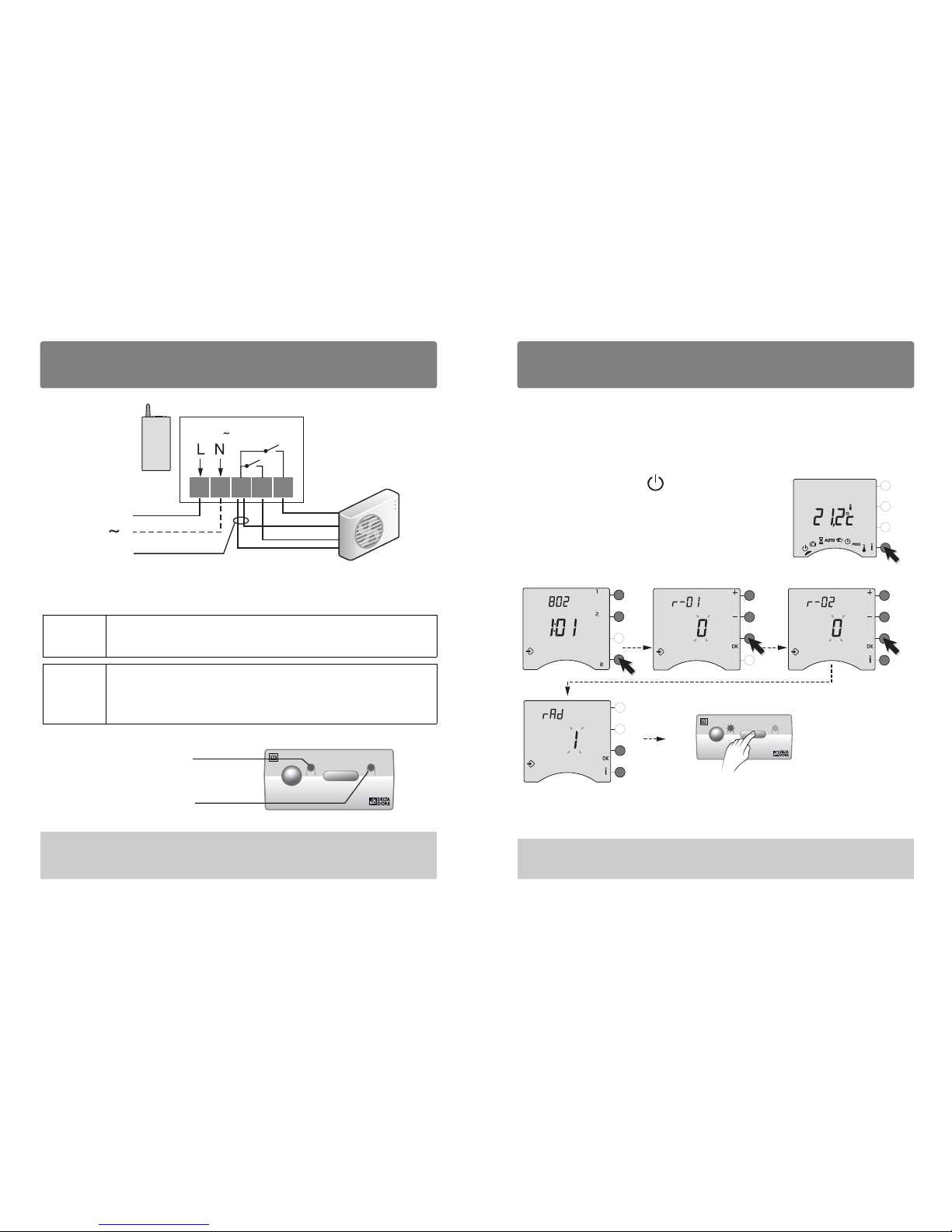

Reversible heat pump thermostat

+ change-over

- 12 -

34512

RF 652

Thermostat

input

Com

Heat pump relay

common contacts

230 V

Power supply

230 V

Change-over input

- Menu configuration

1-06Choice of heat pump type

0 = Heat cool reversible heat pump (by default)

2-09 Selection of the opening direction for the

change-over relay

0 = Closed in cool mode - 1 = Closed in heat mode

LED is lit up if heat

mode is enabled

LED is lit up if “On”

is requested

RF 652

ONHEAT

- Description of the operating LEDs

The receiver is associated with the RADIO TYBOX 802 in

mode 1 by default (see radio association/ menu R section)

Mode 1

Reversible heat pump with

2 thermostat inputs (cool / heat)

Mode 2

- 15 -

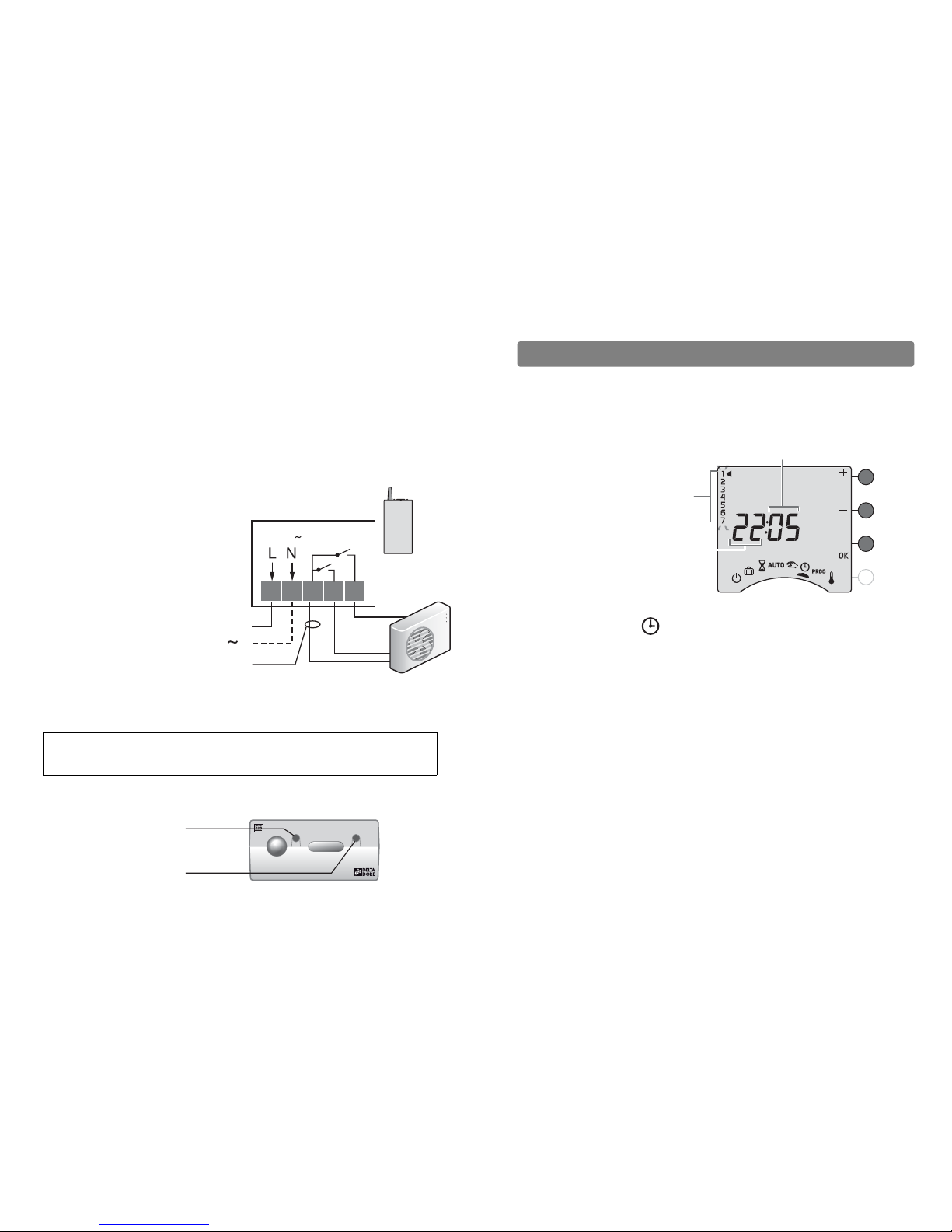

When you turn the unit on for the first time, you will

need to set the time.

Turn the knob to .

The days flash.

Press + or - to change the day, then press OK

to confirm and continue on to the next setting.

Repeat the operations to set the hours and minutes.

To leave the “time setting” mode, turn the knob.

Starting up

Minutes

Hours

Days

(1 : Monday… 7 : Sunday)

- 14 -

- Menu configuration

1-06Choice of heat pump type

0 = Heat cool reversible heat pump (default)

Cool request

Heat request RF 652

ONHEAT

- Description of the operating LEDs

34512

RF 652

Thermostat

cool input

Thermostat heat input

Com

Heat pump relay

common contacts

230 V

Power supply

230 V

On the RADIOTYBOX:

- Pres the button i, the receiver is set to mode 2

- Turn the knob to AUTO to exit the association mode

- Cut off the power supply to the receiver and connect

it to the heat pump.

The S1 output controls

the thermostat’s cool input.

The S2 output controls

the thermostat’s heat input.

- 17 -

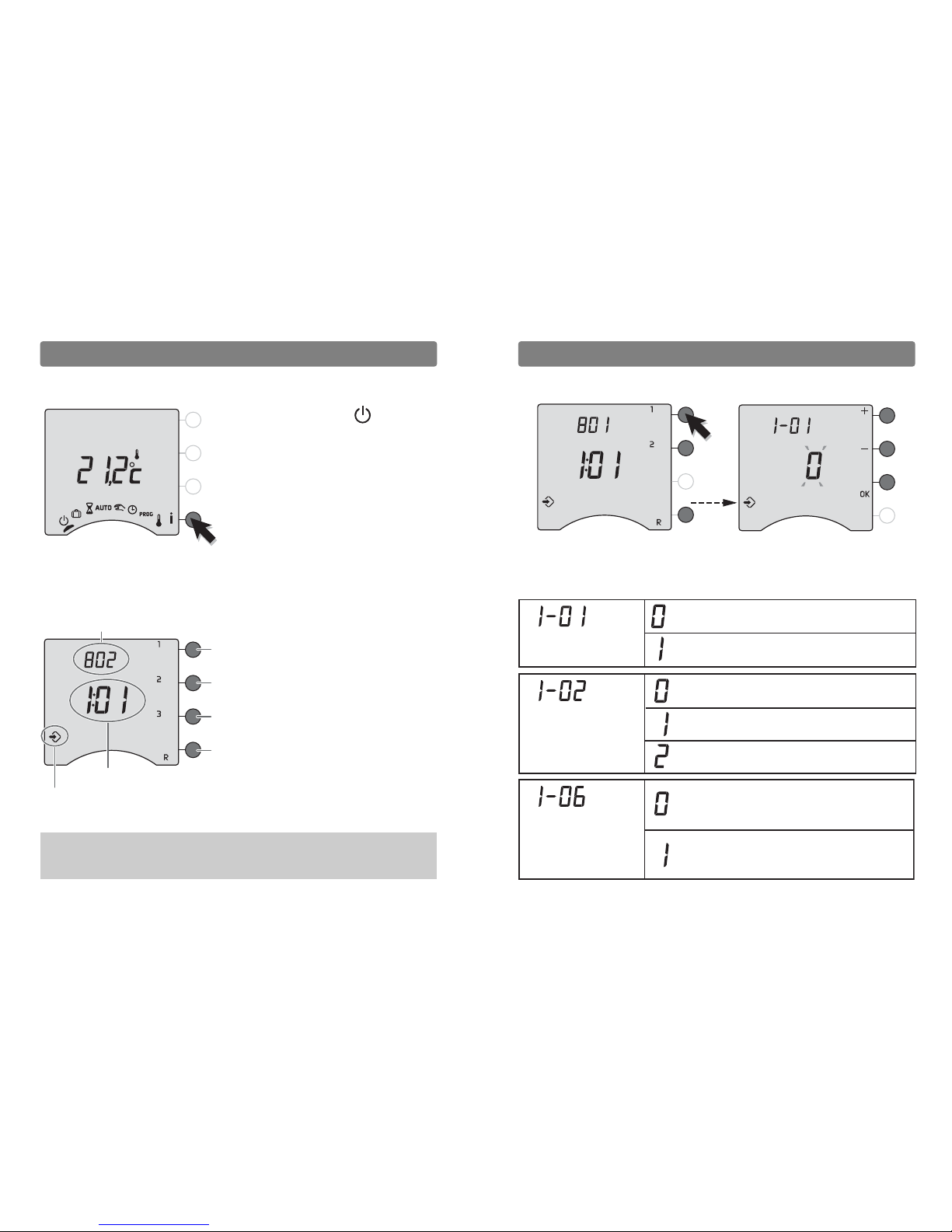

Basic configurations (menu 1)

Press button 1,

To change the various settings, press the + or - but-

tons, then press OK to confirm the change and go to

the next setting.

Choice of

programming

Weekly (by default)

Daily

Choice of

programming

increments

1-hour increments (by default)

30-minute increments

15-minute increments

Choice of heat

pump type Non-reversible heat pump

(heat only)

Reversible heat pump (by default)

(heat and cool)

- 16 -

To access the configuration menus,

The unit will propose 4 configurations to choose from:

Configuration

Configurations of the consumption

indication function (Menu 3)

Basic configurations (Menu 1)

Unit version (e.g. RADIO TYBOX 802)

Advanced configurations (Menu 2)

Radio association

Unit version

Configuration mode

5 sec.

Menu 3 is only accessible if the RADIO TYBOX is

associated with RADIO TYWATT.

- turn the knob to ,

- press the i button to display

the temperature

- then press the i button for

5 seconds.

- 19 -

Press button 2.

To change the various settings, press the + or - but-

tons, then press OK to confirm the change and go to

the next setting.

If there is a difference between the temperature noted

(thermometer) and the temperature measured and

displayed by the unit, function 2-02 modifies the way

the probe takes measurements so as to compensate

for this difference.

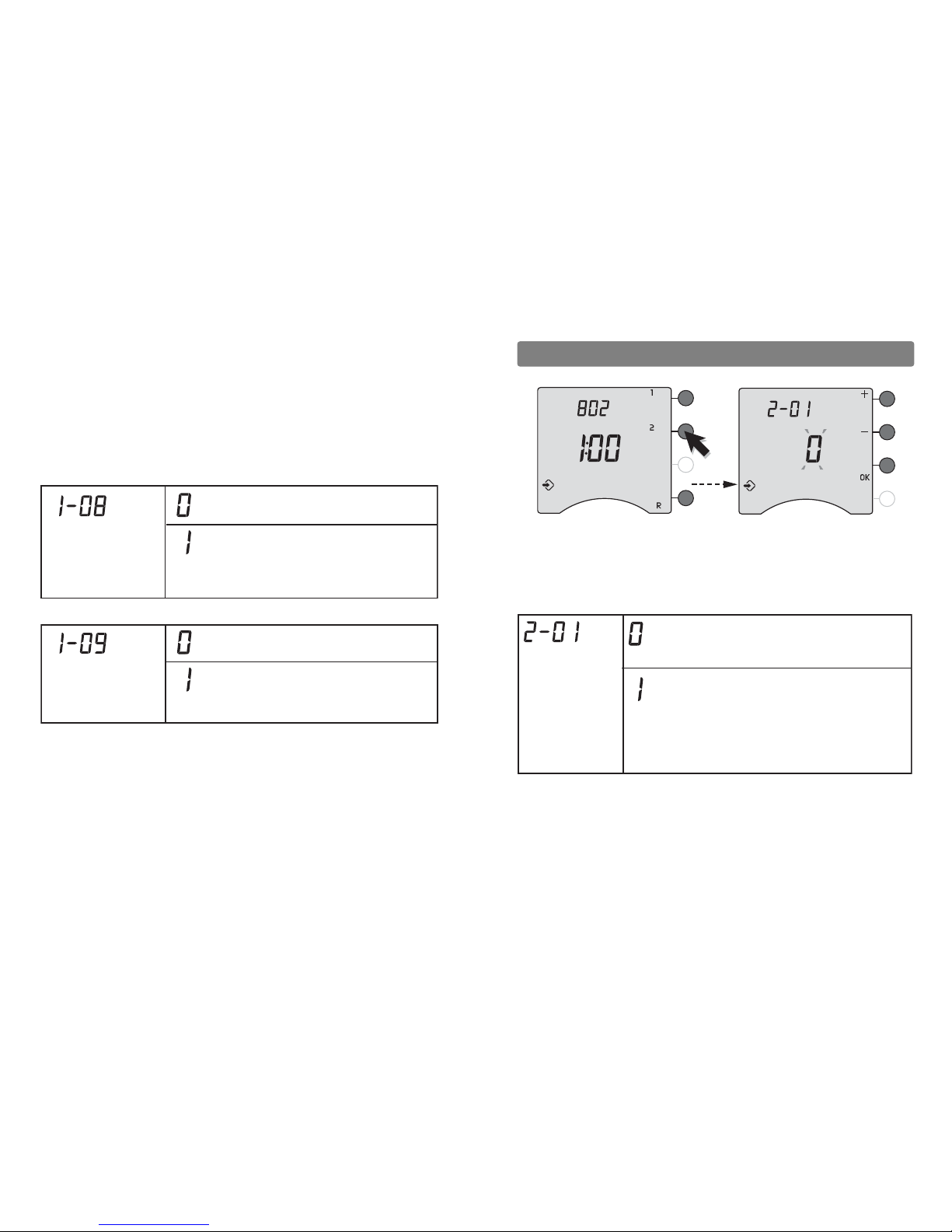

Advanced configurations (menu 2)

Modification

authorization

for the user

Program and temperature settings

(from 5 to 30°C) modification authorized

Program and set-point setting

modification unauthorized

(Heat comfort: 16 to 22°C,

Cool comfort: 21 to 27°C,

Warm economy: 13 to 19°C,

Cool economy: 24 to 30°C)

- 18 -

For hot water heaters with thermostatic valves, the

Comfort temperature can be provided by adjusting the

thermostat of each radiator.

In this case, only Economy and Frost Protection tem-

peratures are set by the RADIO TYBOX.

Comfort temperature set by the

TYBOX (by default)

Controlling the

Comfort

temperature

Comfort temperature controlled by

each radiator or fan coil unit.

Here, the display reads ConF

during Comfort period.

Anti-seizing disabled (default)

Circulator

anti-seizing Anti-seizing enabled

(circulator operates for 1 minute

every 24 hours)

Altri manuali per TYBOX PAC

Indice

Altri manuali DELTA DORE Termostato

DELTA DORE

DELTA DORE TYBOX 137 Manuale utente

DELTA DORE

DELTA DORE TYBOX 5200 Manuale utente

DELTA DORE

DELTA DORE TYBOX 1127 Manuale utente

DELTA DORE

DELTA DORE TYBOX B+ Manuale utente

DELTA DORE

DELTA DORE TYBOX 31 Manuale utente

DELTA DORE

DELTA DORE Pack TYBOX 137 Manuale utente

DELTA DORE

DELTA DORE TYBOX 117 Manuale utente

DELTA DORE

DELTA DORE TYBOX Manuale utente

DELTA DORE

DELTA DORE TYBOX 117 Manuale utente

DELTA DORE

DELTA DORE DELTA 8000 TA BUS Manuale utente

DELTA DORE

DELTA DORE CALYBOX 110 Manuale utente

DELTA DORE

DELTA DORE Radio Diana D20 Manuale utente

DELTA DORE

DELTA DORE TYBOX 5150 Manuale utente

DELTA DORE

DELTA DORE TYBOX 147 Manuale utente

DELTA DORE

DELTA DORE DRIVER 230 CPL Manuale utente

DELTA DORE

DELTA DORE TYBOX 34 Manuale utente

DELTA DORE

DELTA DORE TYBOX 610 RF Manuale utente

DELTA DORE

DELTA DORE TYBOX 811 W RF Manuale utente

DELTA DORE

DELTA DORE TYBOX 610 Manuale utente

DELTA DORE

DELTA DORE Rodio Tybox Pac Manuale utente

DELTA DORE

DELTA DORE D10 W RF Manuale utente

DELTA DORE

DELTA DORE TYBOX 417 Manuale utente

DELTA DORE

DELTA DORE Micro TYBOX H RADIO X2D Manuale utente

DELTA DORE

DELTA DORE RADIO DIANA D10 - GUIDE D Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
