Delta 48V 3U Lithium-ion

Battery Module

SEG-48100-02I

Operation Manual

1 Guide 03

1.1 Scope 03

1.2 Package Content 03

1.3 Safety Notice 03

1.3.1 Legal and Safety Information 03

1.3.2 Limitation 04

1.3.3 Third Party Devices 04

1.4 Special Instruction 04

1.4.1 Operation Notice 05

1.4.2 Safety Notice 05

1.4.3 General Notice 06

2 Product Specification 06

2.1 Overview 06

2.2 Specification 06

2.3 Appearance 07

2.5 Dimention 08

3 Installation 08

3.1 Preparation 08

3.2 Environment Requirement 09

3.3 Tool Required For Installation 09

3.4 Power Source Confirmation 10

3.5 Installation Instruction 10

3.6 Installation Procedure 10

3.6.1 Unpacking the battery Module 11

3.6.2 Placement of Battery 11

3.6.3 Polarity Identification 11

3.6.4 Interconnection of Battery with Power Plant 12

3.6.5 Communication Cable Installation: 12

3.6.6 Pin configuration 13

3.6.7 Start the battery module: 14

3.6.8 Confirm the LED indicator display: 14

3.6.9 Measure the output voltage of the battery module: 14

4 Operation 14

4.1 Introduction to Indication Status 14

4.2 Capacity Indication 15

5 Shipping, Storage, and Maintenance 15

5.1 Shipping 15

5.2 Storage 15

5.3 Maintenance 15

5.4 Periodic Maintenance 16

6 Disposal of Lithium Batteries 16

Application : 3U 100 Ah Telecom LIB

Item Description Quantity

1 Delta 48V/100Ah Li-ion Battery Module 1 Nos

2 Power Wire 35 Sq mm 1 Set

3 RJ 45 Cable for Battery to Battery Communication. 1 Nos

1 Guide

1.1 Scope

This manual describes the working principle, basic structure, operating parameters, operation,



Warning!

Warning labels are indicated in bold italics to warn maintenance and installation engineers to

follow the steps on the warning labels

1.2 Package Content

During the transportation process, some unpredictable circumstances may cause product

damage. It is recommended that to check the basic product appearance and checklist. If

found any missing parts or damage, please contact Delta Electronics India.

1.3 Safety Notice

1.3.1 Legal and Safety Information

Before operating product, please read all safety regulations and legal information in this

section carefully. Ignoring these instructions can result in equipment damage, health hazards,

or loss of life.

The installation must be made by trained personnel and familiar with the provisions of the

local installation. Installation must comply with local legal requirements (including installation

in buildings and main AC switchboards). And follow the installation, operation and

maintenance system in the manual. In addition to safety instructions and work safety, please

refer to the laws of various countries.

1.3.2 Limitation

This device is mainly used for backup power. Improper use of this equipment may result in

equipment damage that could result in personal injury or serious physical or environmental

damage.

Incorrect installation, maintenance, operation, or use exceeds its intended purpose, does not

follow status instructions, and/or does not comply with applicable safety regulations. Delta is

not responsible for any hazard or damage.

Delta is solely responsible for the components and services provided by Delta.

Third-party components and/or services, such as distribution boxes or GPS repair or

maintenance or use or improper use of the equipment, Delta is not responsible. In addition,

Delta shall not be liable for any malfunction, danger, or damage to the equipment of any third

party component or service.

Unauthorized modifications may result in equipment failure or damage. Delta assumes no

responsibility or liability.

Installation, operation and maintenance of the equipment can only be done by qualified

professionals (and with proper training). Operators are responsible for ensuring equipment

operators and professional training.

If the power system does not have a disconnect switch or equivalent device installed, the

operator must be responsible for assembling a disconnect switch that complies with the

relevant regulations.

1.3.3 Third Party Devices

Delta shall not be responsible for or bear any legal responsibility for any danger or damage

caused by equipments provided by Third Party.

1.4 Special Instruction

Warnings, Caution and Note are important information for identification. They are categorized

as followed:

Warning!

Warning means that if information or instructions are not followed, it may result in injury or

death.

Caution!

Caution means that if the information or instructions are not complied with, the device may be

damaged.

Note!

Note that it is additional information that may be beneficial to the operation.

Below Are the safety caution for User & battery protection.

1.4.1 Operation Notice

 

only be performed by trained and qualified personnel. Please read this product's safety

precautions and related operating procedures carefully before installation and use, otherwise

it may cause personal injury or product damage. The precautions mentioned in this manual

are general precautions. In case of special use environment or use conditions, please contact

Delta service personnel.

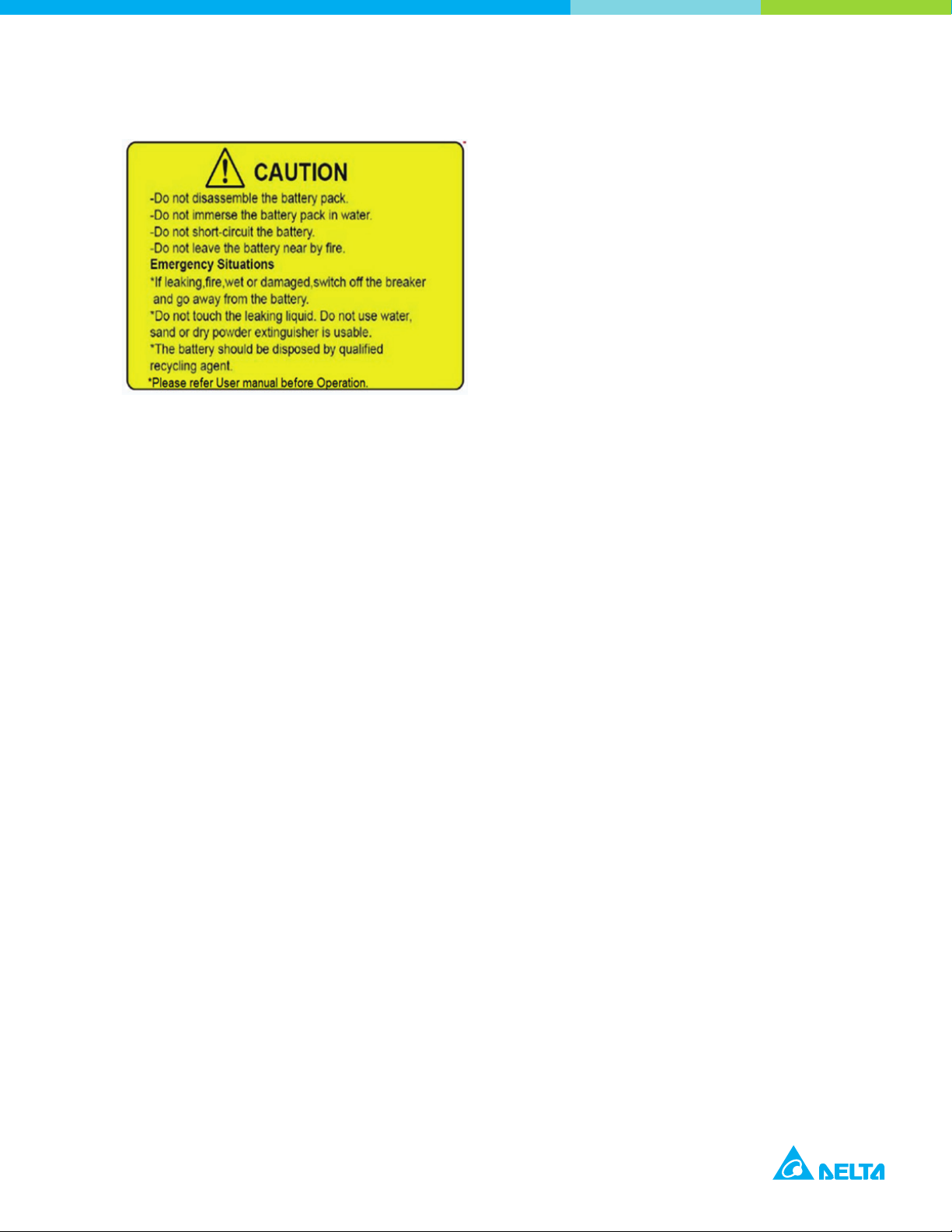

1.4.2 Safety Notice

Please read and follow the instructions below to install and use the battery. Improper

installation and use of the battery may result in personal injury or damage to the product.

1. Do not immerse the battery in water. When not in use, it should be placed in a cool, dry

environment.

2. It is forbidden to put the battery into the fire or heat it from the outside to avoid explosion

or other dangers.

3. Please use lithium-ion battery compatible charger when charging, and follow the correct

instructions.

4. Do not use the battery to reverse the positive and negative electrodes. Do not connect the

battery directly to the power socket. Do not short-circuit the positive and negative

terminals of the battery.

5. Do not mix different manufacturers or different types and types of batteries and old and

new batteries.

6. Do not charge, discharge, bulge, deform, or leak battery into the device.

7. Do not pierce the battery with nails or other sharp objects. Do not throw, step on, strike, or

hit the battery.

8. It is forbidden to disassemble batteries and components. Delta will not be responsible for

any damage caused by unauthorized disassembly or maintenance

1.4.3 General Notice

1. The battery has been strictly inspected before leaving the factory. If the customer finds

that the purchased battery has over-heat, bulging or odor, please do not use it and return

it to the factory immediately.

2. When storage for a long period of time, in order to ensure the best performance of the

battery, the battery need to charged and discharged once every three months, and it is

guaranteed to carry 50% to 60% of capacity for storage.

3. Please use the battery within the temperature range specified in the specification.

  

before use.

2 Product Specification

2.1 Overview

The SEG-48100-02I lithium-ion battery is an external battery system that provides backup

power for 48V devices. When the Input AC power supply is normal, the rectifier power module

supplies power to the device and charges the battery pack. When the mains power is off, the

rectifier power module stops supplying power. At this time, the battery module provides

uninterrupted power supply to the device and protects the device.

Normal operation; when the utility power is turned on again, the rectifier power module

restores power to the communication device while charging battery.

2.2 Specification

Specification Details

Dimensions W*D*H (mm) 442×430×130.5 ±1mm

Weight with Packing (KG) 42±5% Kgs

Rated voltage (V) 48V

Rated capacity [0.33C][Ah] 100Ah

Voltage range (V) 42V – 54V

Charging voltage (V) 54V

Charging mode CC/CV

Rated charging current (A) 100 A (Max)

50 A (Rated)

Note!

It is recommended to store the Battery in the ventilated, damp-proof, anti-corrosion and



better Battery Life.

1. The battery has been strictly inspected before leaving the factory. If the customer finds

that the purchased battery has over-heat, bulging or odor, please do not use it and return

it to the factory immediately.

2. When storage for a long period of time, in order to ensure the best performance of the

battery, the battery need to charged and discharged once every three months, and it is

guaranteed to carry 50% to 60% of capacity for storage.

3. Please use the battery within the temperature range specified in the specification.

before use.

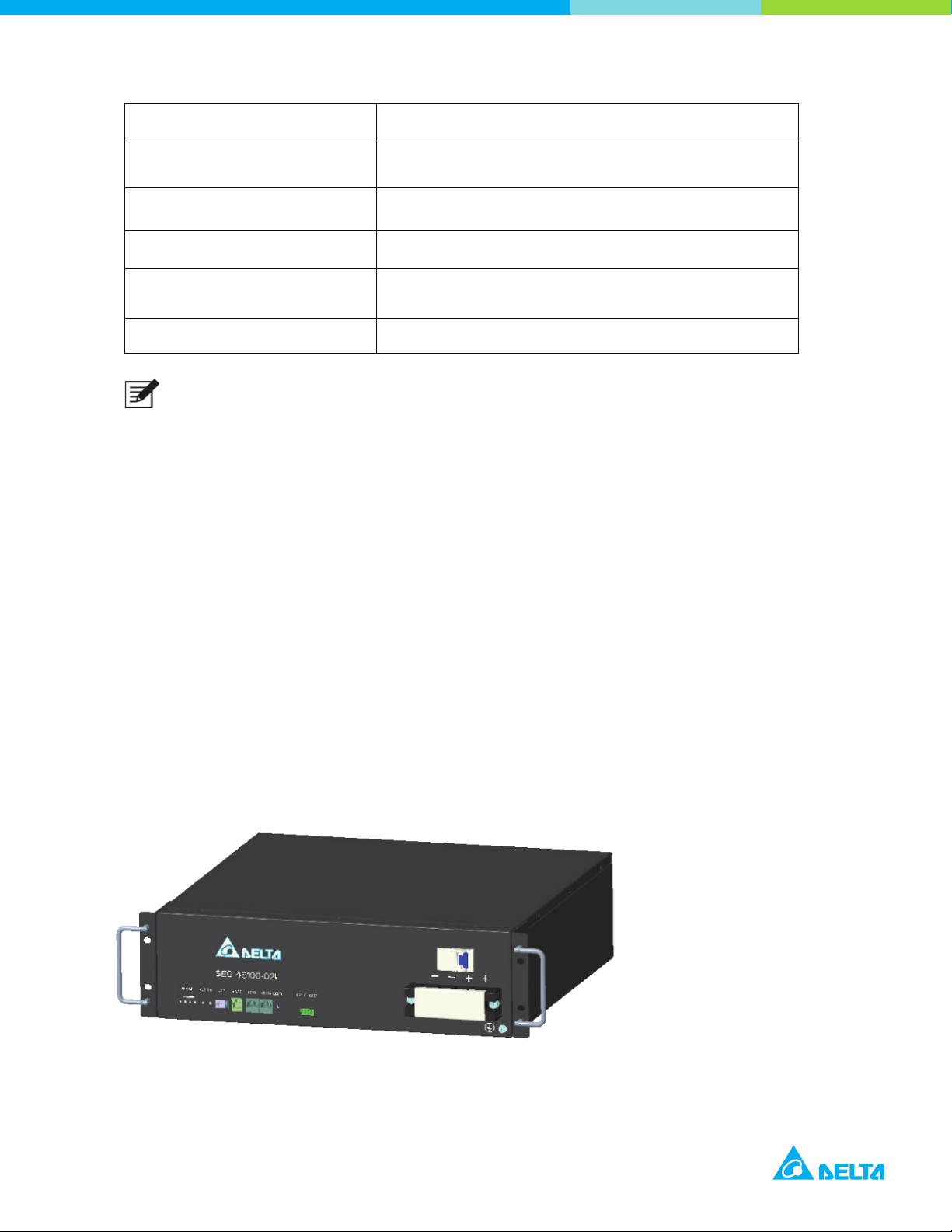

2.3 Appearance

Specification Details

Rated discharging current (A) 100 A (Max)

50 A (Rated)

 〜

 〜

 〜

Relative humidity 5%〜95%RH

(Non-Condensing)

 

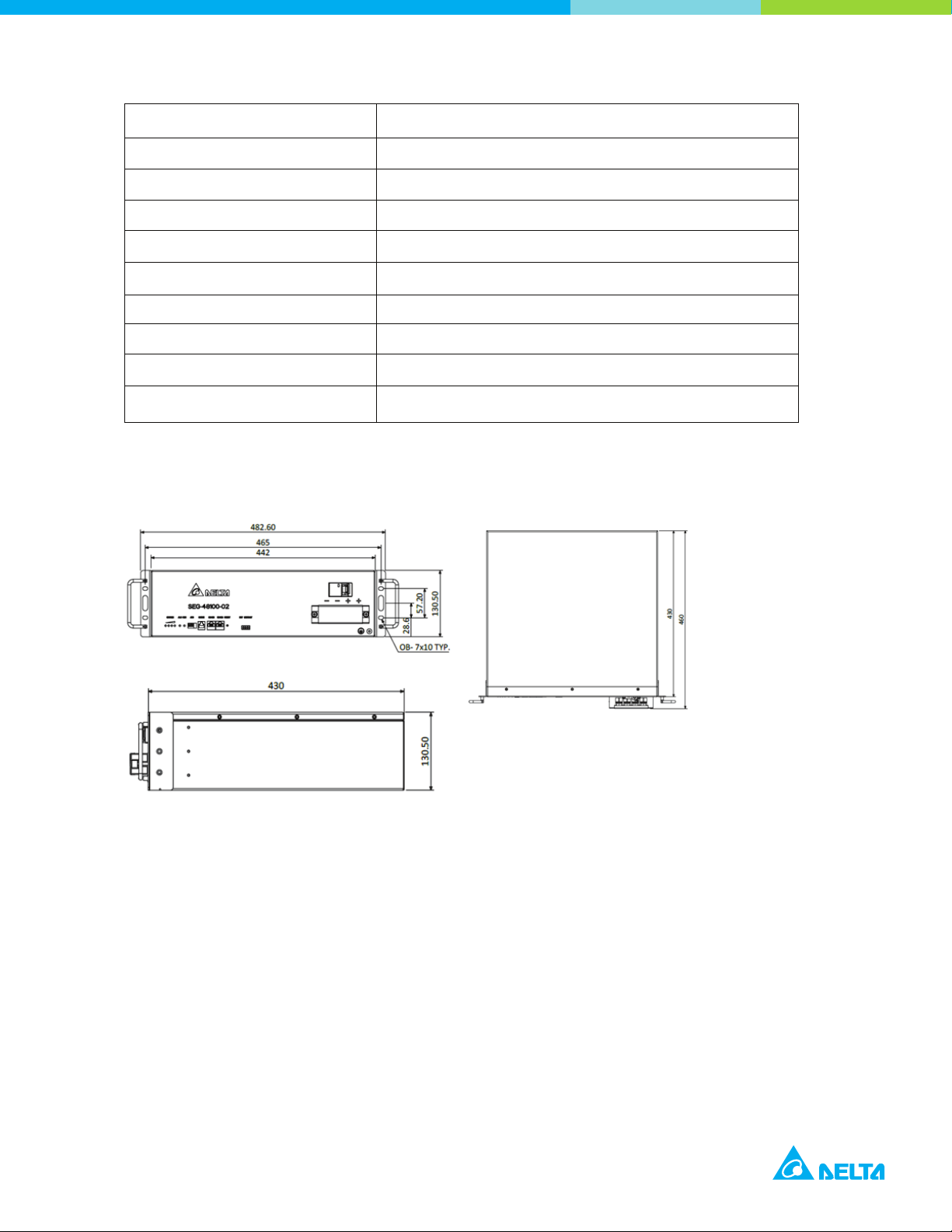

2.5 Dimention

3 Installation

3.1 Preparation

only be performed by trained and qualified personnel. Before installation and use, please read

carefully the safety precautions and related operating procedures of this product. The

installation process should strictly abide by the following safety regulations and local safety

regulations, otherwise it may result in personal injury or product damage.

Abbreviation Description

SOC LED 4 LED Indication for state of Charge

ALM & RUN LED Battery alarm status LED

ADD Address of Battery for communication

RS-232 RS 232 Port

RS-485 RS 485 Port

Reset Reset button

DRY Contact Potential free Digital output alarm

P-/P+ Power termination point

MCB Inbuilt Battery MCB

1. Make sure that the power system connected to the battery is a qualified communication

power system.

2. When installing the battery, please make sure that the power supply system is in the off

state without current, and that the battery module is turned off.

3. There must be a corresponding level of insulation measures for the power cables. It is

forbidden to have exposed power cables.

4. Ensure that the battery and power system are grounded reliably during installation

3.2 Environment Requirement

The installation environment must meet the product operating temperature, storage

temperature, relative humidity, and atmospheric pressure requirements. The installation site

must be free from conductive dust and corrosive gases, explosion hazards, vibration bumps,

and away from heat and fire sources

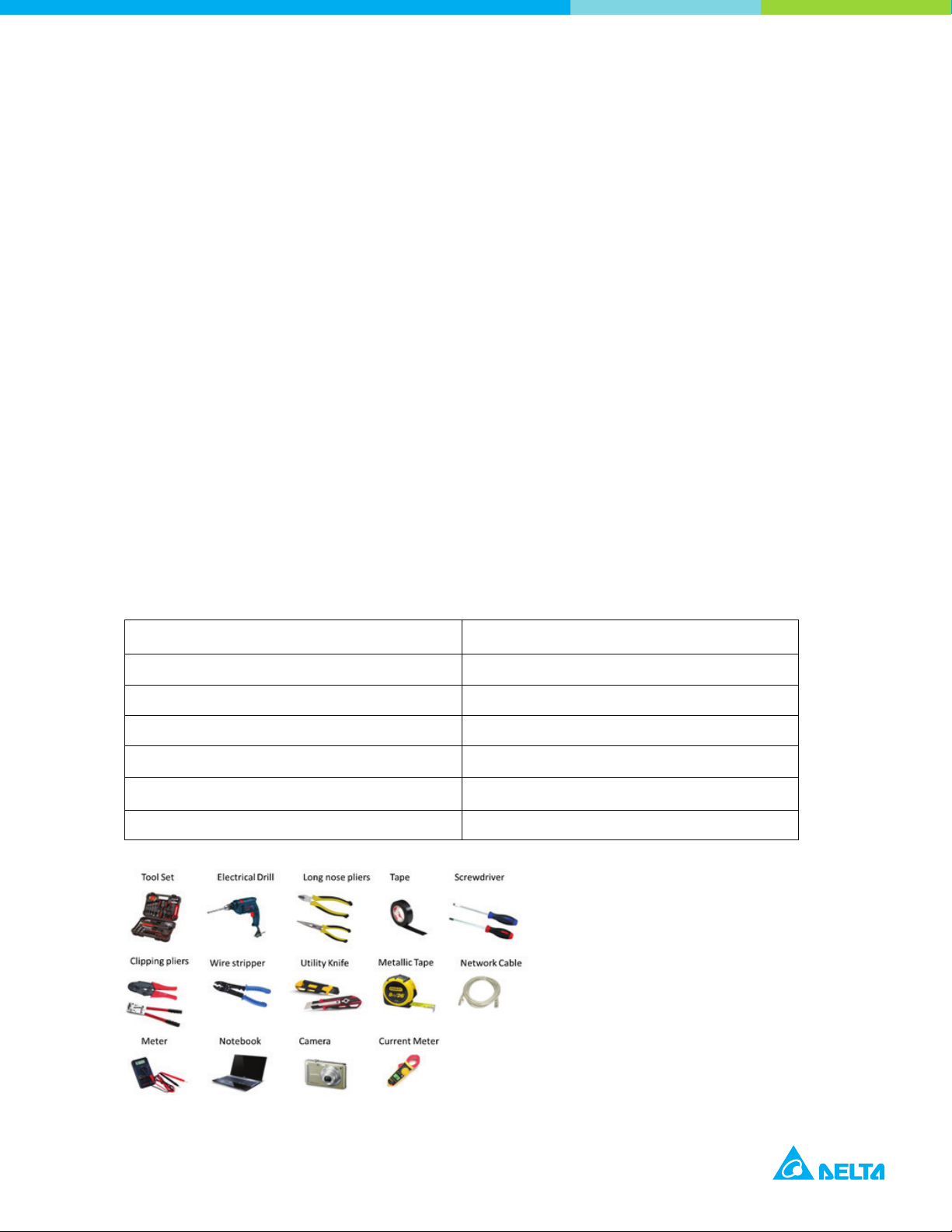

3.3 Tool Required For Installation

Before removing the battery module from the box, inspect the cartons/box for any damage.

Then check the integrity of the parts to see if any damage. If this happens, contact the

shipping staff immediately.

The following tools list are provided for reference when installing the system

Installation Tool Installation Tool

Installation and User's Manual Diagonal Cutting Pliers

Screwdriver (slot, cross) Meter

Wrench Current Meter

Long nose pliers Insulation tape

Wire stripper Anti-static bracelet

Clipping pliers Cable tie

3.4 Power Source Confirmation

–Check that the device properties directly connected to the battery are user equipment,

switching power supplies, or other power devices.

–Check the position of the DC interface in the device and the output voltage to see if it

meets the voltage requirements.

–Check that the maximum output current of the DC device interface matches the selected

battery.

–Check the maximum operating current of the battery-operated device and ensure that the

current is less than the maximum discharge current of the product being used.

–Check and confirm the working ground position of the power system in the equipment

room.

3.5 Installation Instruction

Installation should pay attention to the following matters:

–Mounting space and support weight. Make sure the battery has enough space for

installation, and make sure that the battery mounting bracket or cabinet can withstand the

battery's gravity.

–Make sure that the power cable meets the maximum current requirement for the device to

operate.

–Ensure that the power equipment, batteries and other assembly locations are reasonable

during the entire construction process.

–Ensure that the wiring is reasonable and orderly; consider moisture protection and

corrosion protection.

–The Installation site should be operated by at least two people

Waring！

Before installation, please ensure that the site meets the requirements of the installation

environment.

3.6 Installation Procedure

System Power-off

Before installing the battery, make sure that the battery is turned off and disconnect the

power supply of the device that needs to be connected to the battery to ensure that the

installation process is not powered

Indice

Altri manuali Delta Unità di controllo

Delta

Delta STEAMSCAPE 5CH-250 Series Manuale utente

Delta

Delta TECK II Manuale di istruzioni

Delta

Delta MultiChoice T27897 Series Manuale utente

Delta

Delta 160 T6 Series Manuale utente

Delta

Delta MultiChoice T24 Series Manuale utente

Delta

Delta DVP04TC-S Manuale utente

Delta

Delta Hikvision DS-2FP2020 Manuale utente

Delta

Delta AH500 series Manuale utente

Delta

Delta 1700 Series Istruzioni operative e di manutenzione

Delta

Delta Electronic Exposed Teck II Manuale utente

Delta

Delta CANopen DVPCOPM-SL Manuale utente

Delta

Delta DVP06XA-H Manuale utente

Delta

Delta AS Series Manuale utente

Delta

Delta IFD8540 Manuale utente

Delta

Delta 160 T6 Series Manuale utente

Delta

Delta DVP04PT-E2 Manuale utente

Delta

Delta T13H Series Manuale utente

Delta

Delta DVPAEXT01-E2 Manuale utente

Delta

Delta TECK 81T2 -WHSHWA Series Manuale utente

Delta

Delta MultiChoice T27859 Series Manuale utente

Delta

Delta DVP04AD-H Manuale utente

Delta

Delta EnviroStation EMS2000 Manuale utente

Delta

Delta TECK II Manuale utente

Delta

Delta DVP series Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
