AVR-S650H
INTEGRATED NETWORK AV RECEIVER
Quick Start Guide
Read Me First....
Guide de démarrage rapide / Guía de inicio rápido
Please do not return this unit to the
store.
If you need help…
Check our AVR setup tips online
Usa.denon.com/SetupTips
Ca.Denon.com/SetupTips
Call for Assistance
1-855-MY.DENON (USA) 1-855-693-3666
1-800-668-0652 (Canada)
Monday – Friday 10:00AM to 10:00PM E.S.T
Saturday 12:00PM to 8:00PM E.S.T
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 1 2019/01/30 14:56:00
PrintingColor:Black
1
Thank you for choosing a Denon AV
receiver. This guide provides step-by-
step instructions for setting up your AV
receiver.
Welcome Before You Begin

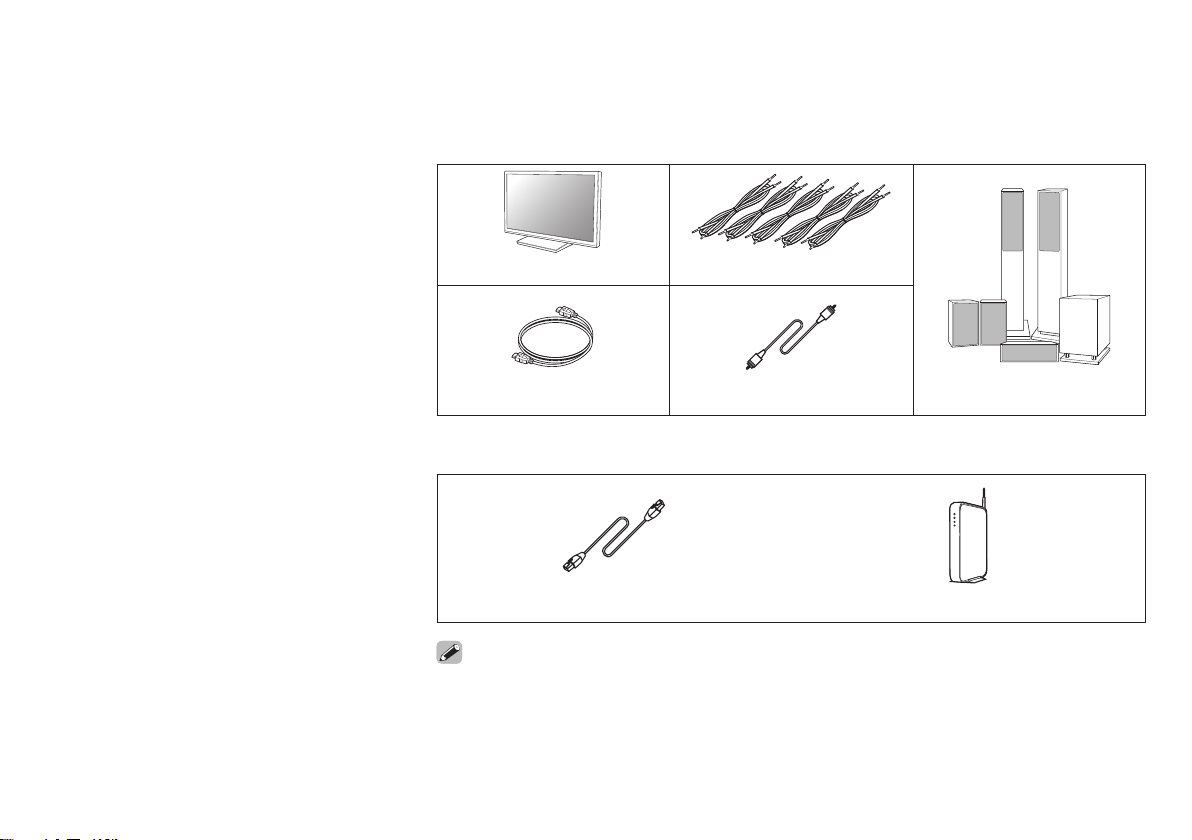

Required for Setup
TV Speaker cables
HDMI cable Subwoofer cable Speakers
Optional
LAN cable Wi-Fi router
• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC
functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.
• These drawings are for illustrative purposes only and may not represent the actual product(s).
or
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 1 2019/01/30 14:56:00
PrintingColor:Black
2

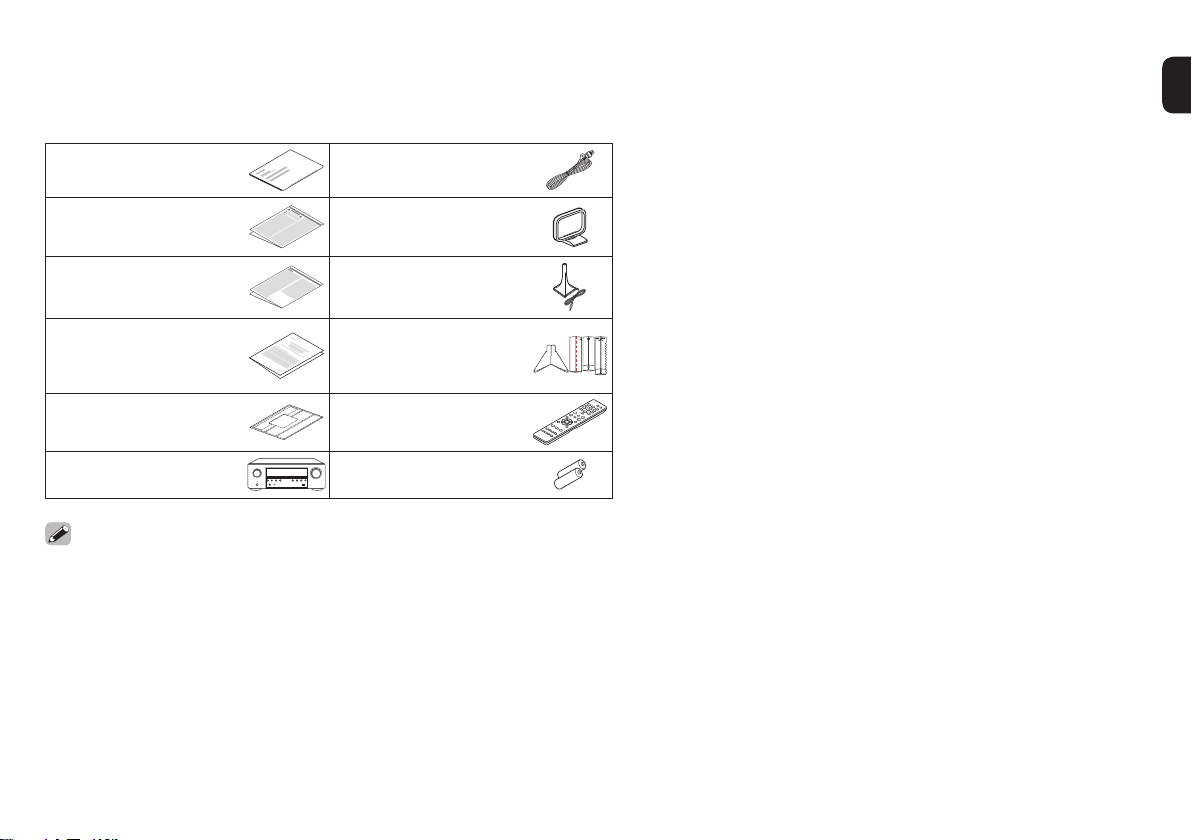

What’s In the Box
Quick Start Guide
FM indoor antenna
Safety Instructions AM loop antenna
Notes on radio Sound calibration
microphone
Warranty
(for North America
model only)
Sound calibration
microphone stand
Cable labels Remote control unit
(RC-1226)
Receiver R03/AAA batteries
• The included sound calibration microphone stand is convenient for use
when performing Speaker Calibration. Using your own tripod or the supplied
Sound calibration microphone stand enables settings to be automatically
configured to the optimum listening environment, providing exceptionally
high performance.
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 2 2019/01/30 14:56:01
PrintingColor:Black
3

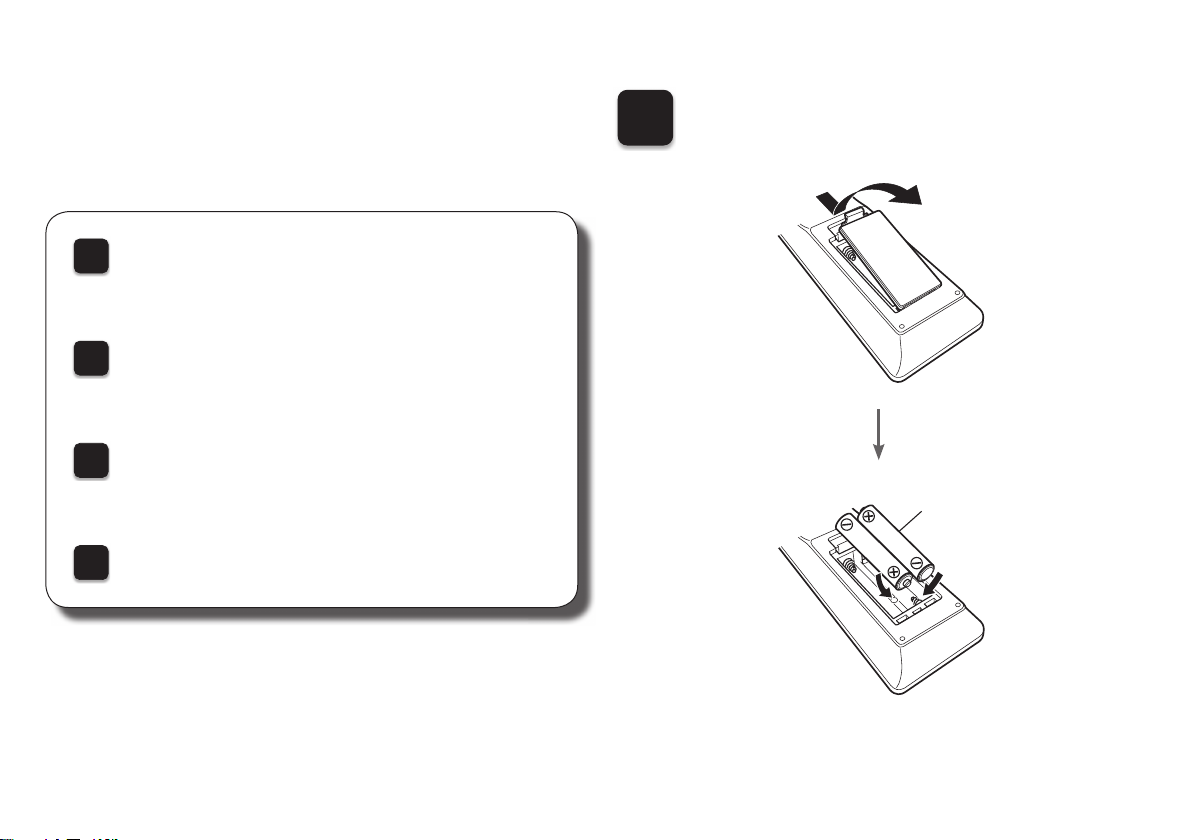

1Installing batteries in the
remote control unit
Batteries
There are four steps to the setup
process.
1Installing batteries in the remote control unit
2Connecting the receiver
3Following the On-Screen Setup Assistant
4Downloading the Mobile Apps
Setup
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 3 2019/01/30 14:56:01
PrintingColor:Black
4
2Connecting the receiver
1) Place the receiver near your TV and
connect the power cord
TV
Receiver
Power cord
Connect to household
power outlet
(AC 120 V, 60 Hz)
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 4 2019/01/30 14:56:01
PrintingColor:Black
5
2) Connect the receiver to your home network
Wired LAN
Connect an Ethernet cable (not included) between your
receiver and your network router.
PRE OUT
2
SUBWOOFER
AUDIO
(ASSIGNABLE)
IN
AUDIO
IN
CBL/SAT
2
MEDIA
PLAYER
1 TV
AUDIO
OPTICAL
IN
DIGITAL AUDIO
(ASSIGNABLE)
COAXIAL
MONITOR
VIDEO
OUT
1
CBL/SAT
2
AUX
1
CBL/SAT
2
AUX
(ASSIGNABLE)
SIGNAL GND
PHONO
ANTENNA
FMAM
VIDEO
IN
1
Router
To LAN port
Wireless LAN
Rotate the two antennas located on the back of the receiver
upwards for maximum performance.
PRE OUT
2
SUBWOOFER
AUDIO
(ASSIGNABLE)
IN
AUDIO
IN
CBL/SAT
2
MEDIA
PLAYER
1 TV
AUDIO
OPTICAL
IN
DIGITAL AUDIO
(ASSIGNABLE)
COAXIAL
MONITOR
VIDEO
OUT
1
CBL/SAT
2
AUX
1
CBL/SAT
2
AUX
(ASSIGNABLE)
SIGNAL GND
PHONO
ANTENNA
FMAM
VIDEO
IN
1
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 5 2019/01/30 14:56:01
PrintingColor:Black
6

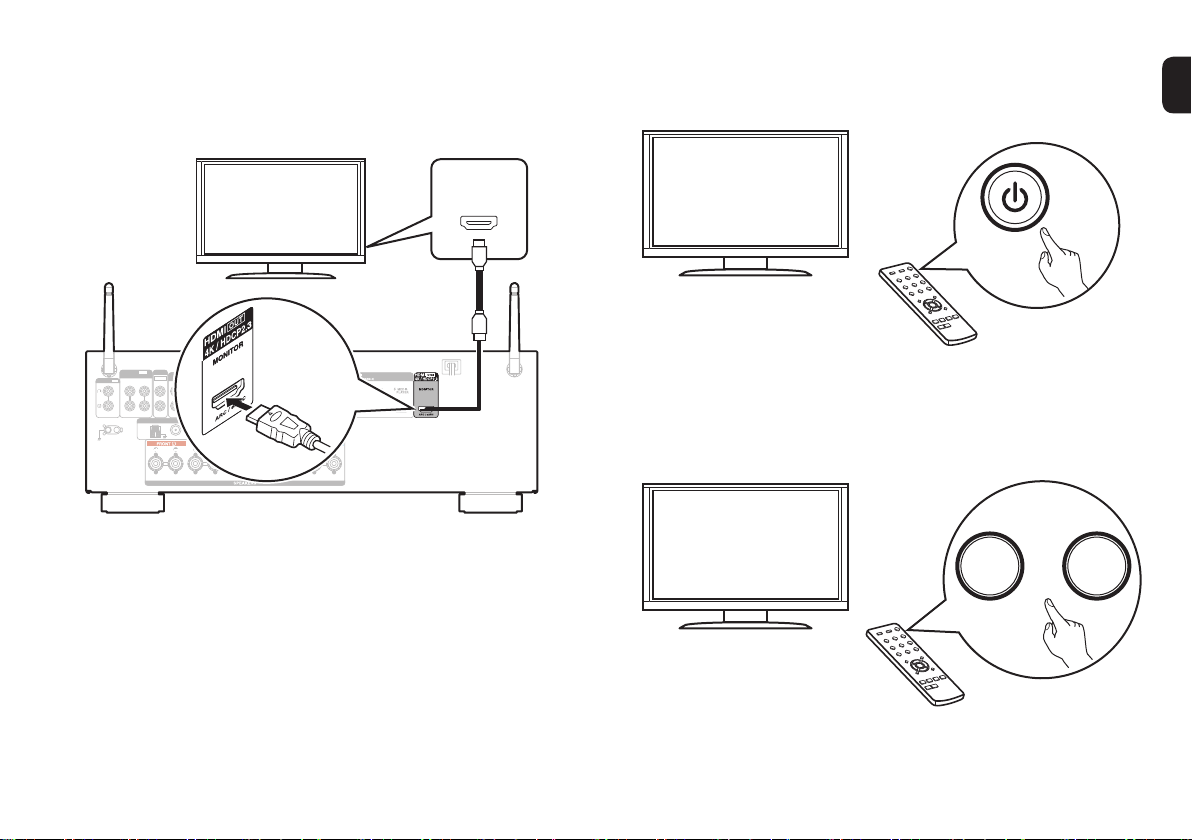

3) Connect the receiver to your TV with
an HDMI cable
PRE OUT
2
SUBWOOFER
AUDIO
(ASSIGNABLE)
IN
AUDIO
IN
CBL/SAT
2
MEDIA
PLAYER
1 TV
AUDIO
OPTICAL
IN
DIGITAL AUDIO
(ASSIGNABLE)
COAXIAL
MONITOR
VIDEO
OUT
1
CBL/SAT
2
AUX
1
CBL/SAT
2
AUX
(ASSIGNABLE)
SIGNAL GND
PHONO
ANTENNA
FMAM
VIDEO
IN
1
(ARC/eARC)
HDMI IN
HDMI OUT
MONITOR
(ARC/eARC)
HDMI cable
Receiver (Rear panel)
ARC (Audio Return Channel) and eARC (Enhanced Audio
Return Channel) support:
If your TV supports ARC, your TV can send audio back to the AV receiver
when you are using your TV’s built-in video sources (TV tuner, Smart TV
streaming services, etc.) ARC requires that you enable HDMI CEC on your
TV. Please refer to your TV’s Owner’s Manual for instructions on how to
setup HDMI CEC. In addition, if your TV supports eARC, it can also send
back high bitrate audio formats such as Dolby TrueHD and DTS-HD Master
Audio. Please refer to your TV’s Owner’s Manual for additional information
about enabling the eARC function.
4) Turn on the TV
TV remote control unit
5) Select the appropriate HDMI input on
your TV
HDMI
TV/
VIDEO
INPUT or
TV remote control unit
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 6 2019/01/30 14:56:02
PrintingColor:Black
7
6) Turn on the receiver
• Press Xto turn on the receiver.
7) Verify the connection
• Verify that you can see this screen on your TV.
Setup Assistant
Please select a language...
English
Français
Español
If this screen is not displayed, please go back and retry
the steps again in the recommended sequence.
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 7 2019/01/30 14:56:02
PrintingColor:Black
8
3Following the On-Screen Setup Assistant
Now TV is connected to the receiver.
The Setup Assistant will walk you through connecting and
configuring your speakers and components to your Denon
receiver. Please use the remote control and follow the
on-screen instructions.
Setup Assistant
Please select a language...
English
Français
Español
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 8 2019/01/30 14:56:02
PrintingColor:Black
9
4Downloading the Mobile Apps
Download both the “HEOS” App and the “Denon 2016 AVR Remote” App for the full home entertainment experience.
The HEOS App is required to access online music through your AVR.
HEOS
The HEOS App allows you to explore,
browse, and play music from many online
streaming services or from your own music
library.
Denon 2016 AVR Remote
Control your new AVR with the latest
Denon 2016 AVR Remote App. Volume
control, sound mode selection and
advanced settings are always only a tap
away.
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 9 2019/01/30 14:56:02
PrintingColor:Black
