AVR-X2100W

INTEGRATED NETWORK AV RECEIVER

Quick Start Guide

Read Me First....

Please do not return this unit to

the store – call for assistance.

If you need help… :

If you need additional help in solving problems,

contact Denon customer service in your area.

1-855-MY.Denon

1-855-693-3666

Call for Assistance:

Monday – Friday 10:00AM to 10:00PM E.S.T

Saturday 12:00PM to 8:00PM E.S.T

For frequency asked questions please visit

www.usa.denon.com/FAQ

For US and Canada only

Thank you for choosing a Denon AV receiver. This guide

provides step-by-step instructions for setting up your AV

receiver.

Welcome Before You Begin

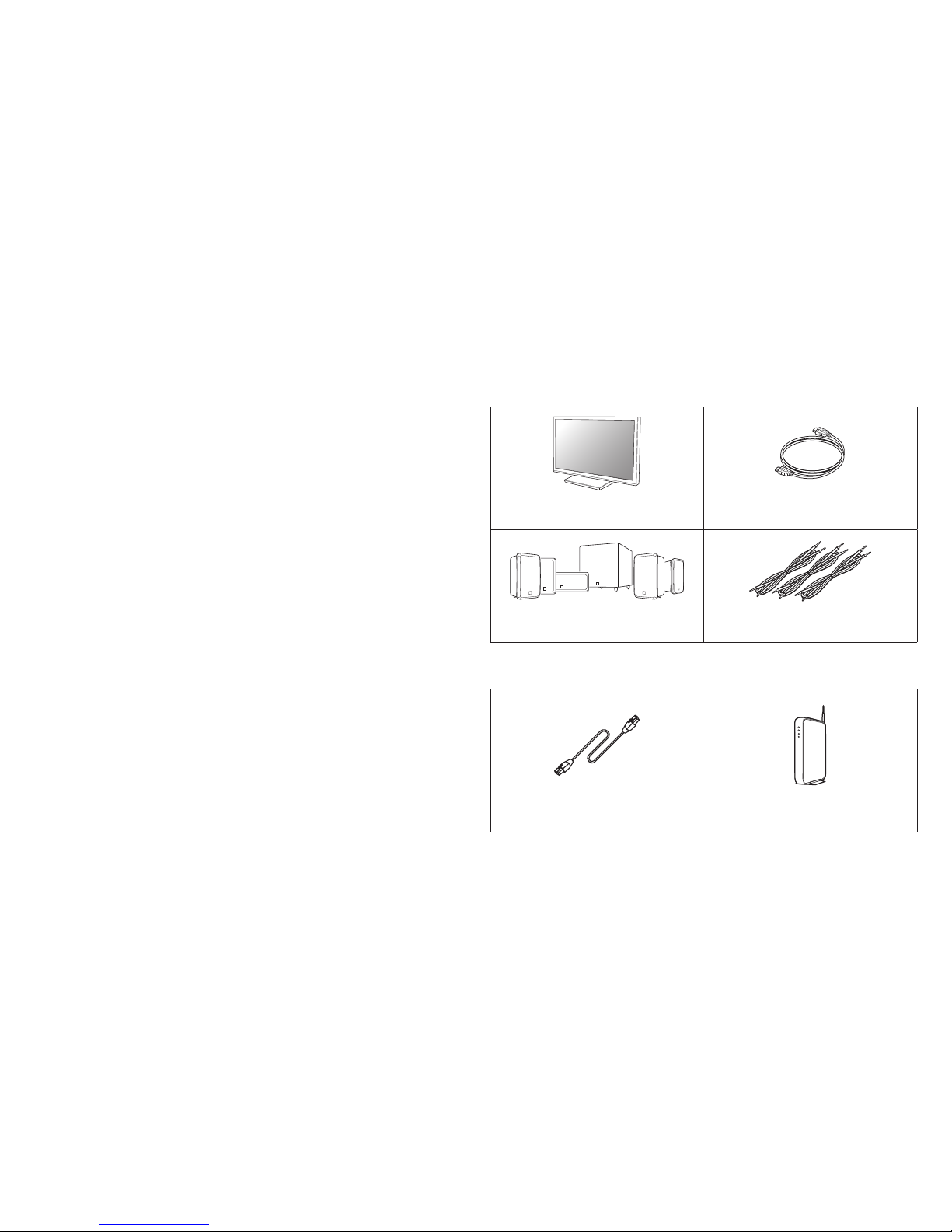

Required for Setup

TV HDMI cable

Speaker systems Speaker cables

Optional

LAN cable Wi-Fi router

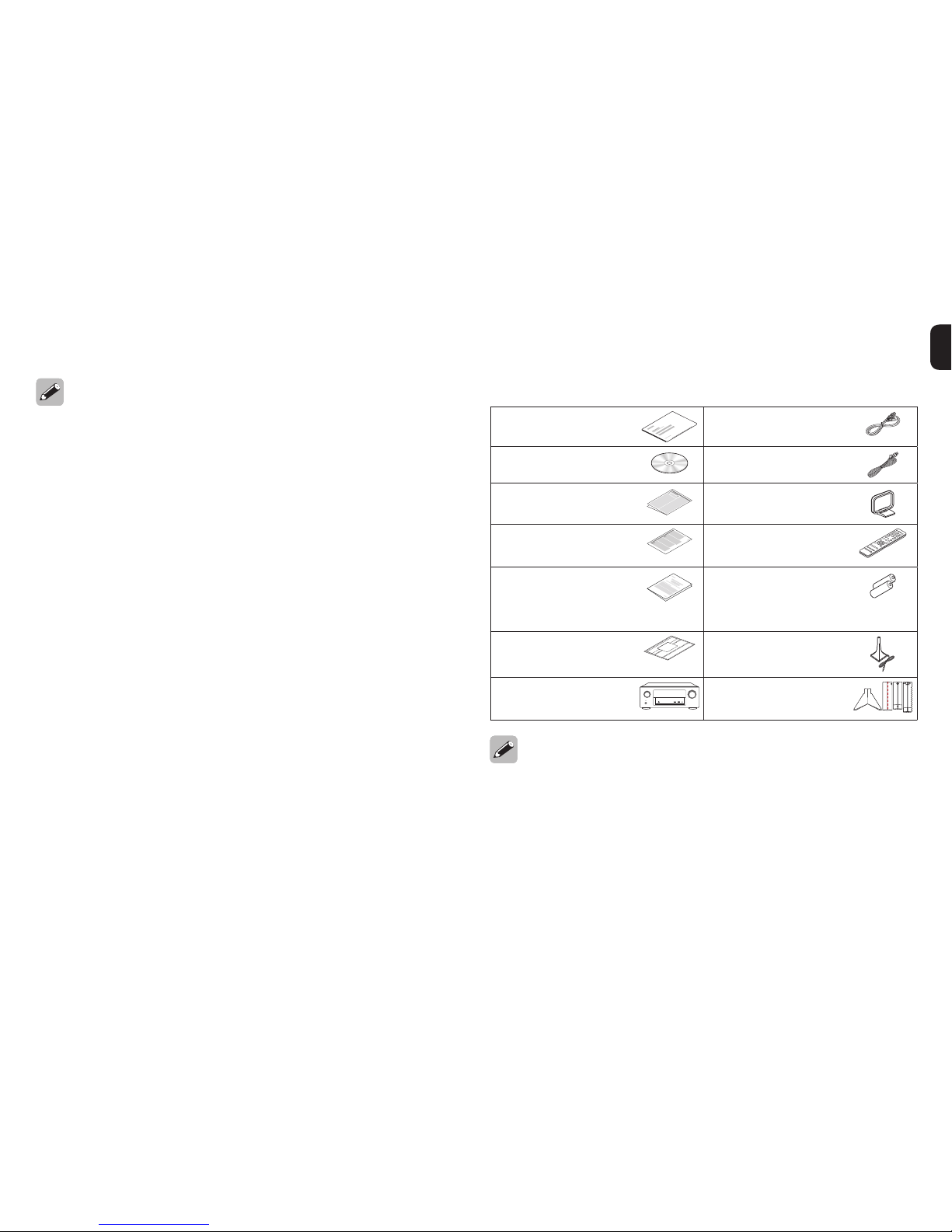

What’s In the Box

Quick Start Guide

Power cord

Owner’s Manual FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Remote control

unit

Warranty

(for North America

model only)

R03/AAA batteries

Cable labels Sound calibration

microphone

Receiver Sound calibration

microphone stand

The supplied Sound calibration microphone stand is

convenient for use when performing Speaker Calibration.

Using your own tripod or the supplied Sound calibration

microphone stand enables settings to be automatically

conﬁgured to the optimum listening environment, providing

exceptionally high performance.

•When connecting this unit to a device that is compatible

with the Deep Color, 4K and ARC functions, use an

“Ethernet-compatible High Speed HDMI cable” that

comes with the HDMI logo.

•These drawings are for illustrative purposes only and may

not represent the actual product(s).

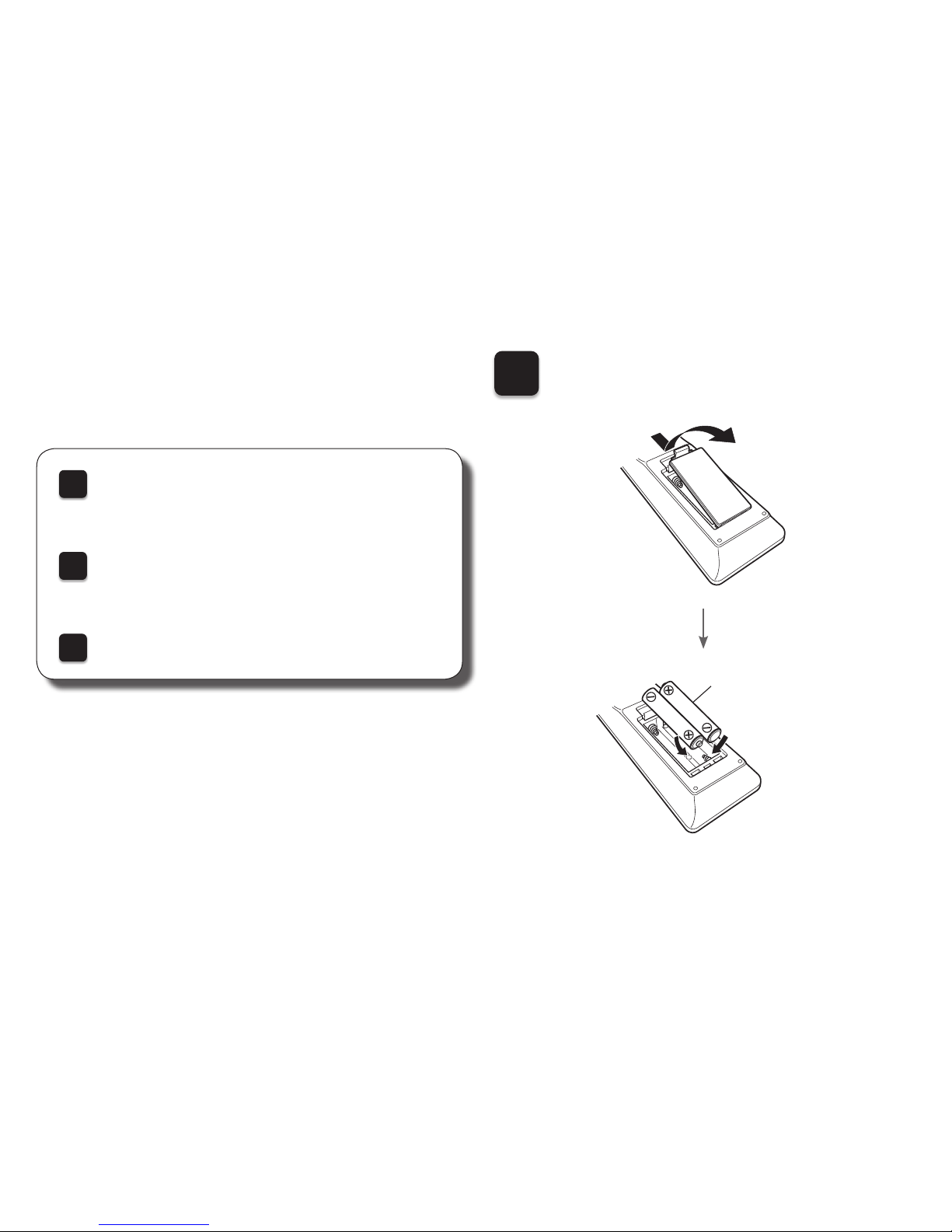

1Installing batteries in the

remote control unit

R03/AAA batteries

There are three steps to the setup

process.

1Install batteries in the remote control unit

2Connecting the receiver

3Follow the On-Screen Setup Assistant

Setup

2Connecting the receiver

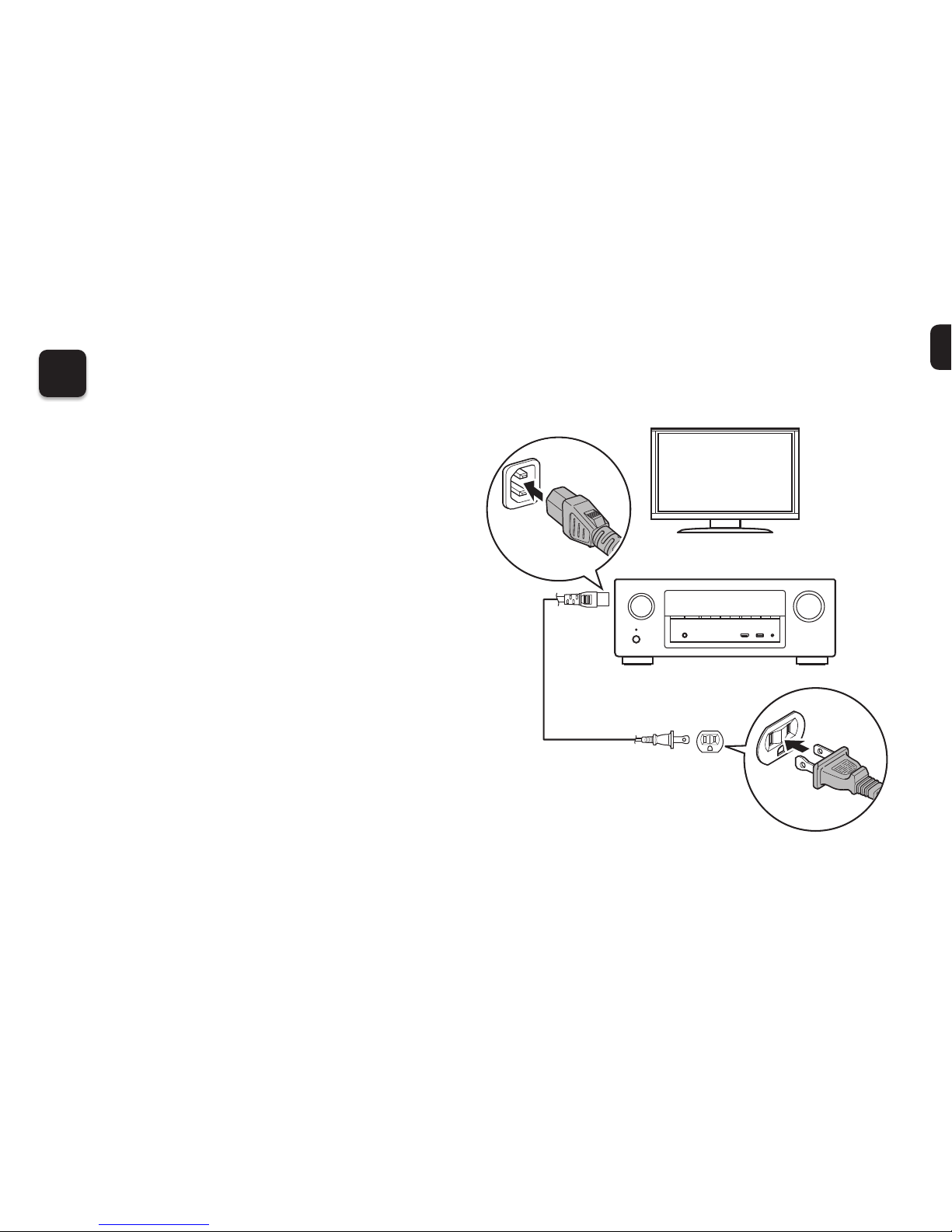

nPlace the receiver near your TV and

connect the power cable.

Receiver

Power cord

(supplied)

Connect to household

power outlet

(AC 120 V, 60 Hz)

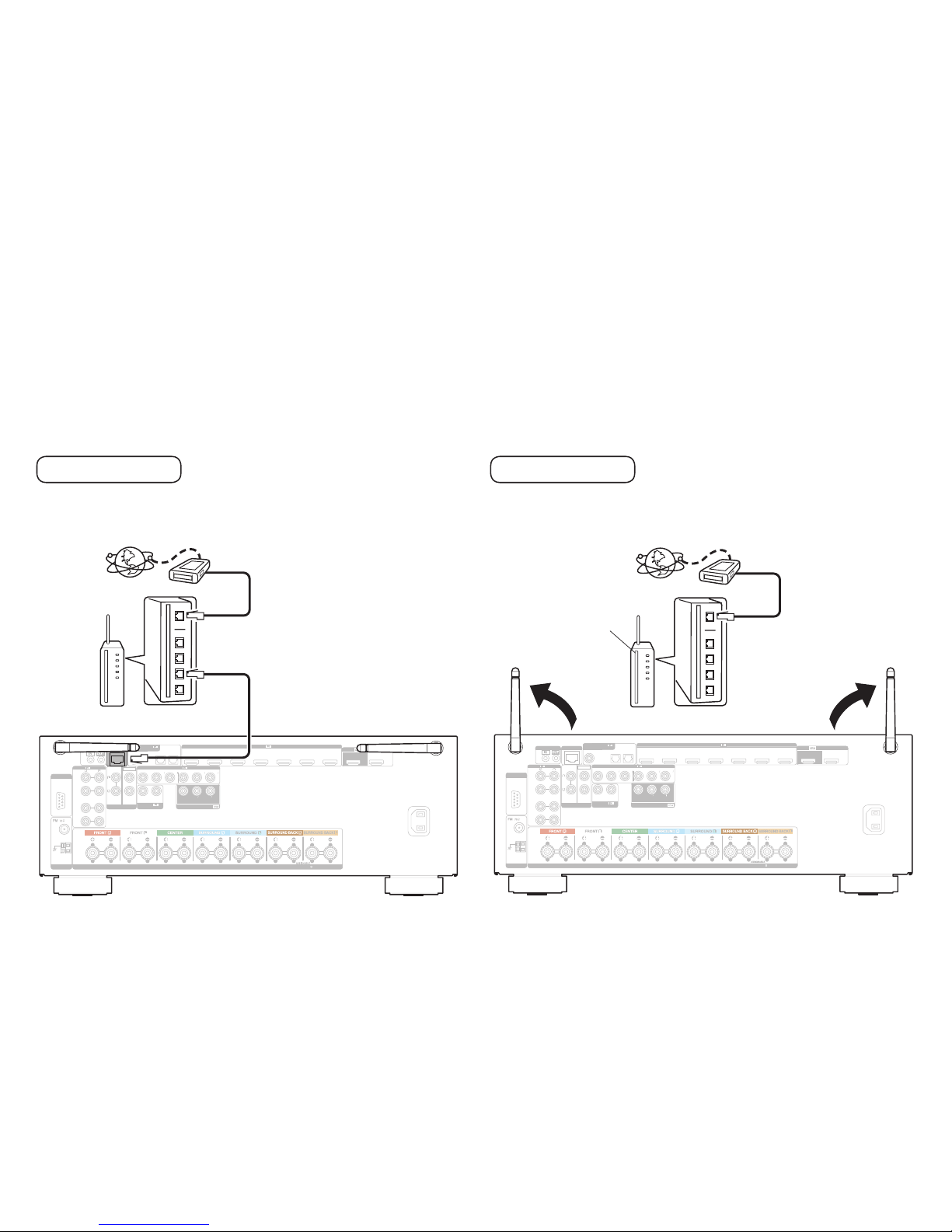

nConnect to the network.

Wired LAN

When connecting cables (wired connection), connect a LAN

cable between your receiver and your network router.

CBL/

SAT

1 CBL/SAT

STRAIGHT

CABLE

CBL/SAT

COAXIAL

OPTICAL

DVD

Blu-ray

AUX2

GAME

CBL/SAT

DVD

Blu-ray

MEDIA

PLAYER

REMOTE CONTROL

(ASSIGNABLE)

HDMI

SPEAKERS

(ASSIGNABLE)

VIDEO

HDMI

ZONE2

RS-232C

ANTENNA

AC IN

ARC

MONITOR1 MONITOR2

2 DVD

COMPONENT VIDEO

MONITOR

AUDIO

(ASSIGNABLE)

DIGITAL AUDIO

PRE OUT

DVD

IMPEDANCE : 4㹼16

CLASS 2 WIRING

CBL/

SAT

(ASSIGNABLE)

COMPONENT VIDEO

SUBWOOFER

(ASSIGNABLE)

AUDIO

NETWORK

Internet Modem

Router

To WAN side

To LAN port

Wireless LAN

When using a wireless connection (Wi-Fi), rotate the

antennas upword.

CBL/

SAT

1 CBL/SAT

STRAIGHT

CABLE

CBL/SAT

COAXIAL

OPTICAL

DVD

Blu-ray

AUX2

GAME

CBL/SAT

DVD

Blu-ray

MEDIA

PLAYER

REMOTE CONTROL

(ASSIGNABLE)

HDMI

SPEAKERS

(ASSIGNABLE)

VIDEO

HDMI

ZONE2

RS-232C

ANTENNA

AC IN

ARC

MONITOR1 MONITOR2

2 DVD

COMPONENT VIDEO

MONITOR

AUDIO

(ASSIGNABLE)

DIGITAL AUDIO

PRE OUT

DVD

IMPEDANCE : 4㹼16

CLASS 2 WIRING

CBL/

SAT

(ASSIGNABLE)

COMPONENT VIDEO

SUBWOOFER

(ASSIGNABLE)

AUDIO

NETWORK

Router with

access point To WAN side

Internet Modem

nTurn on the TV.

TV remote control unit

nSelect the appropriate HDMI input

on your TV.

HDMI TV/

VIDEO

INPUT or

TV remote control unit

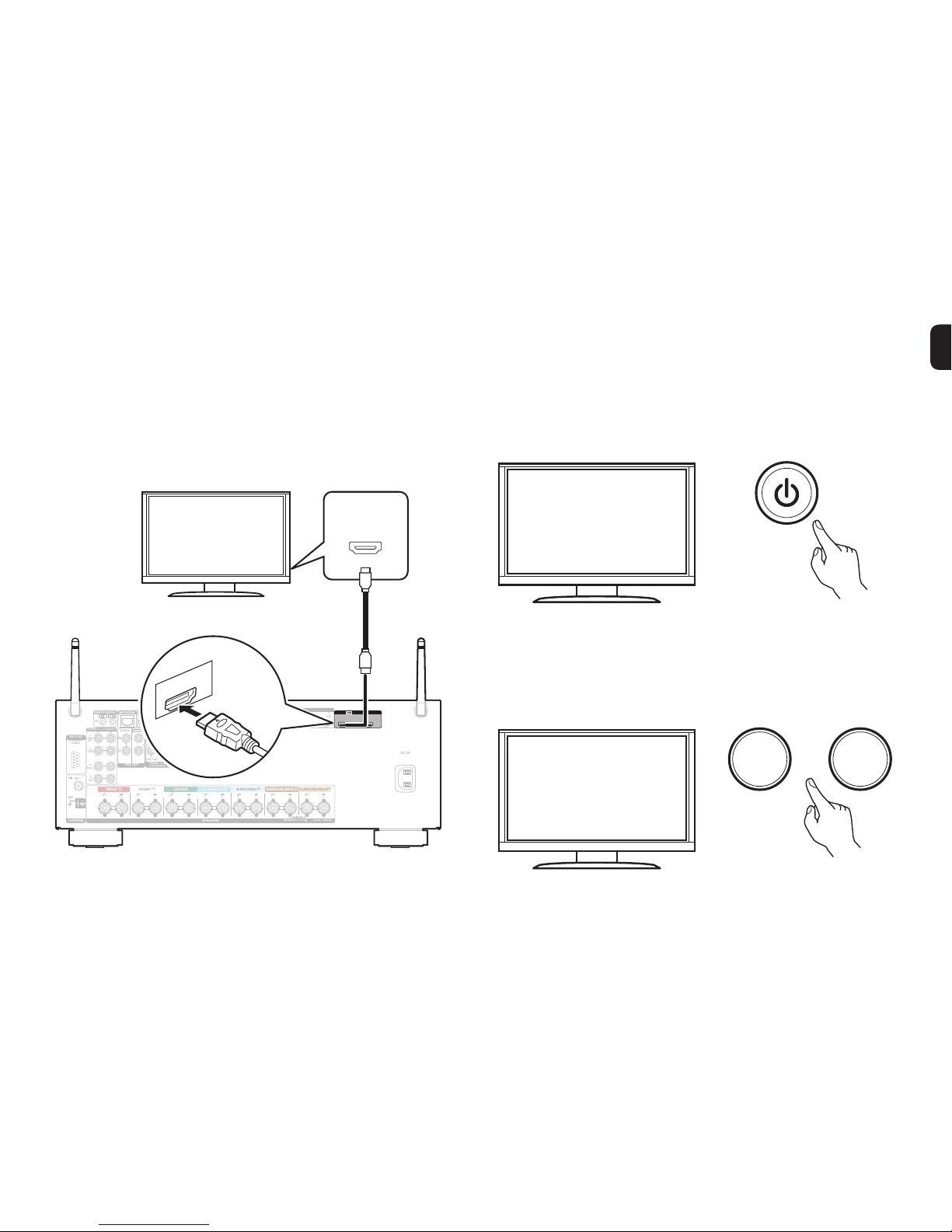

nConnect the receiver to your TV with

an HDMI cable.

CBL/

SAT

1 CBL/SAT

STRAIGHT

CABLE

DVD

Blu-ray

AUX2

GAME

CBL/SAT 2

DVD

Blu-ray

MEDIA

PLAYER

NETWORK

REMOTE CONTROL

(ASSIGNABLE)

HDMI

SPEAKERS

(ASSIGNABLE)

VIDEO

ZONE2

RS-232C

ANTENNA

AC IN

12 DVD

PR/

PB/

PR/

PB/

PR/

PB/

COMPONENT VIDEO

MONITOR

PRE OUT

DVD

IMPEDANCE : 4～16

CLASS 2 WIRING

CBL/

SAT

(ASSIGNABLE)

COMPONENT VIDEO

SUBWOOFER

(ASSIGNABLE)

AUDIO

DIGITAL AUDIO

CBL/SAT

COAXIAL

OPTICAL

AUDIO

HDMI

ARC

MONITOR1

(ASSIGNABLE)

MONITOR2

(ARC)

HDMI IN

(ARC)

HDMI OUT

MONITOR

ARC

MONITOR1

HDMI cable

Receiver (Rear panel)

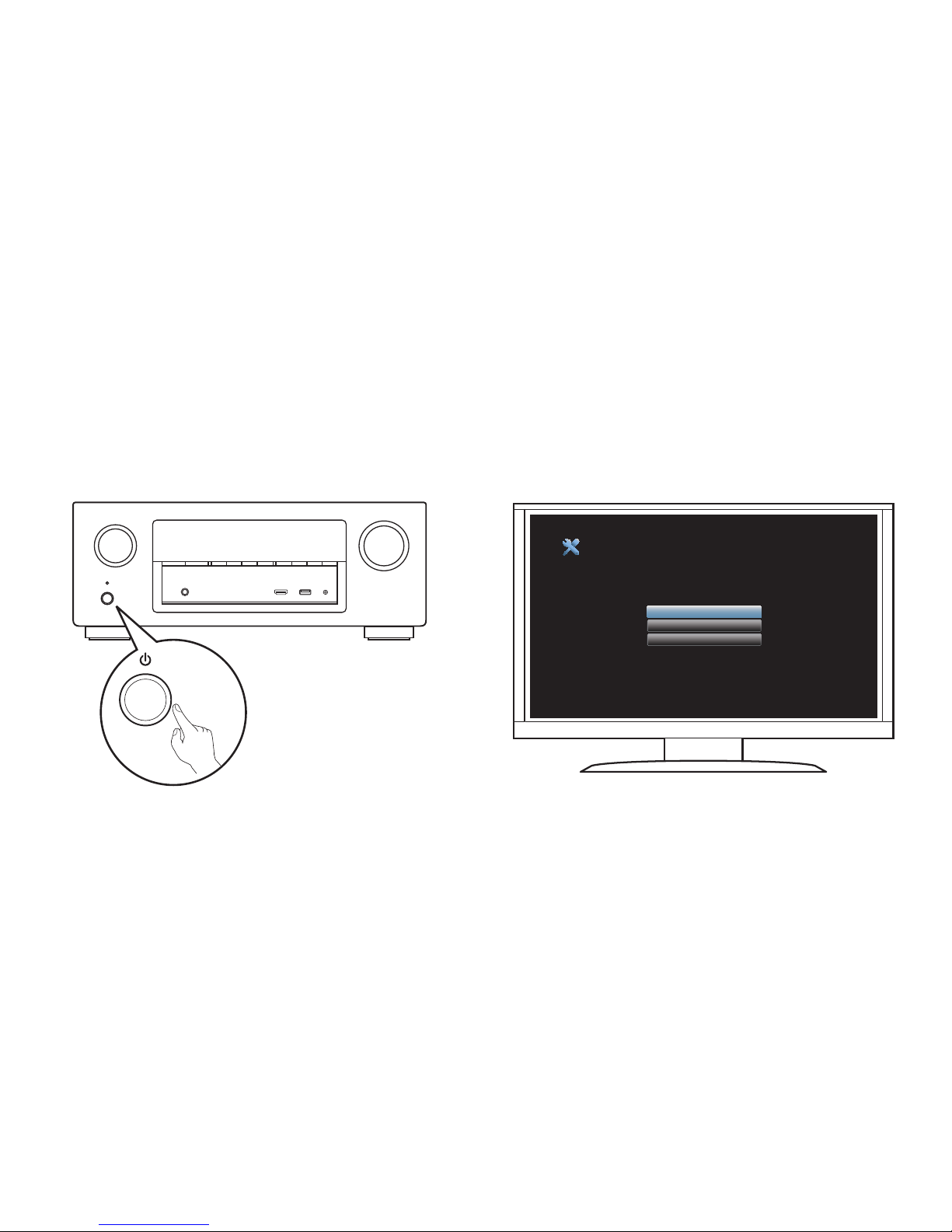

nTurn on the receiver.

•Press Xto turn on the receiver.

nVerify the connection.

•Verify that you can see this screen on your TV.

AV Reciever Setup Assistant

Please select a language...

Español

Français

English

When this screen is not displayed, please read operation

from the beginning.

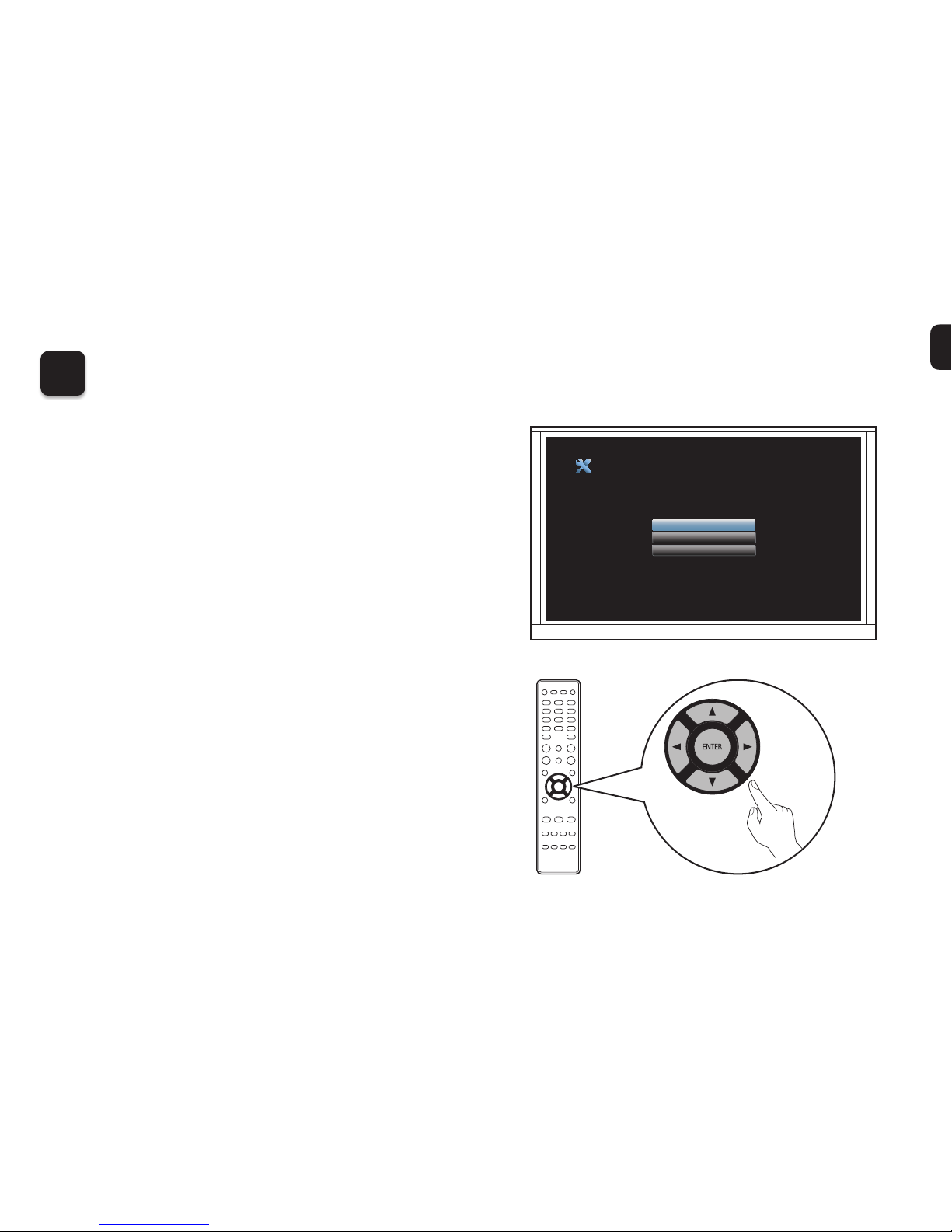

3Follow the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Denon

receiver. Please use the remote control and follow the

on-screen instructions.

AV Reciever Setup Assistant

Please select a language...

Español

Français

English

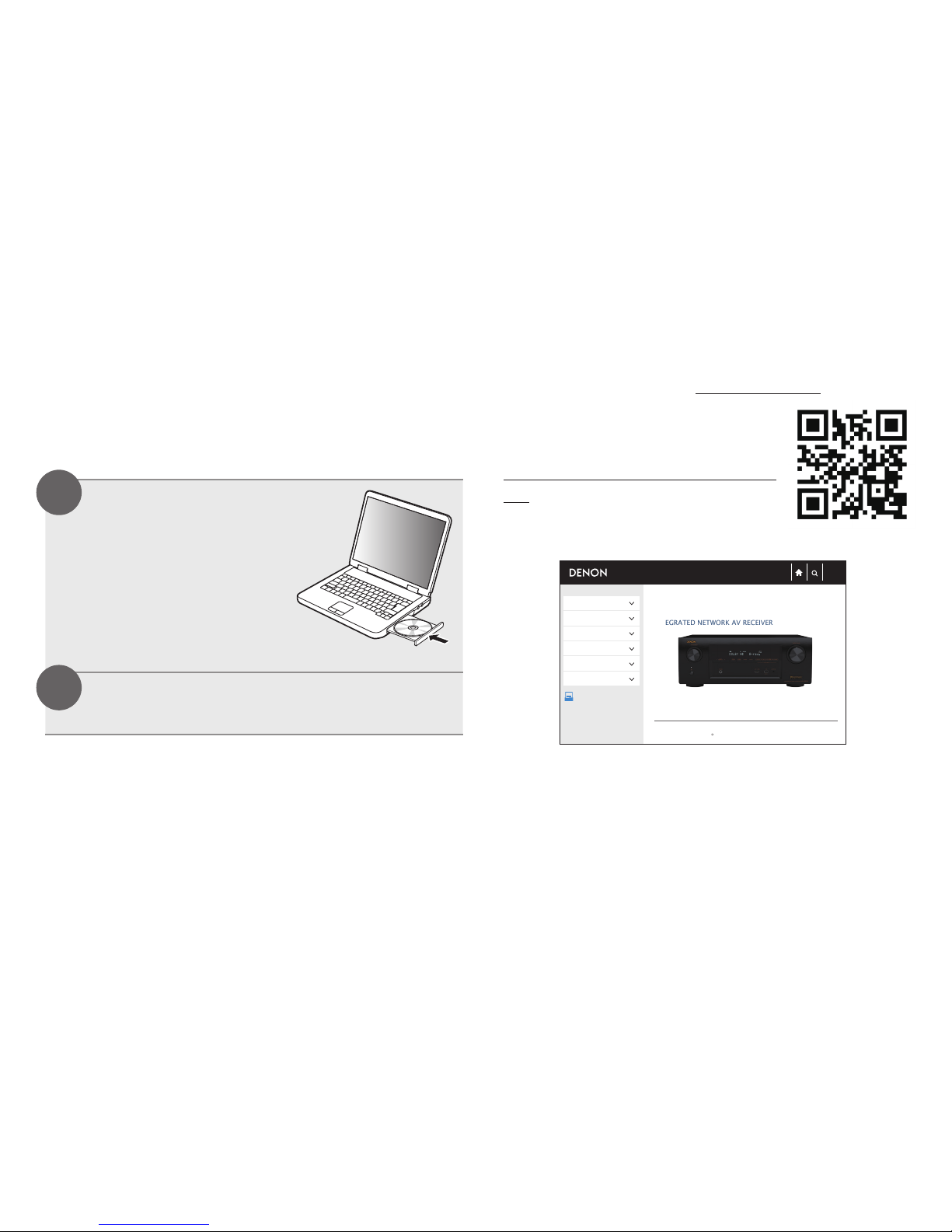

•The included CD-ROM contains an Adobe PDF version of

the full Owner’s Manual for the AV receiver.

Please reference this manual for more details about the

setup and operation of the receiver and it’s features.

Insert the disc into

your PC.

Follow the screen or double click on

the PDF le.

Owner’s Manual

•For more information, visit www.denon.com.

•Refer to the Web Manual for other

functions information and operation

procedure details.

manuals.denon.com/AVRX2100W/NA/

EN/

Introductions

Connections

Playback

Settings

Tips

Appendix

PDF Download

INTEGRATED NETWORK AV RECEIVER

WEB Manual

PDF

Contents

Web Manual
