Denon Heos 7 Manuale utente

Wireless Speaker

Owner’s Manual

HEOS 7

HEOS 5

HEOS 3

Contents Setup Use Troubleshooting Status LED Appendix

INTRODUCTION 4

BEFORE YOU BEGIN 5

System Requirements 5

Network Requirements 5

Controller Requirements 6

Getting To Know Your Speaker 7

Front panel 8

Controls 9

Back panel 10

Placing Your Speaker 11

Wall or Ceiling Mounting (HEOS 3 only) 11

Powering Your Speaker 12

Getting the HEOS App 12

SETTING UP YOUR FIRST HEOS SPEAKER 13

ADDING MORE HEOS SPEAKERS 14

Adding Wired Speakers 14

Adding Wireless Speakers 14

USING YOUR HEOS SPEAKER 15

Selecting a Room/Speaker 15

Listening to Radio 16

Playing music stored on your mobile device 16

Playing music from your networked PC or NAS 17

Playing music from the AUX input 18

Playing music from a USB device 19

HEOS account 20

What is a HEOS account? 20

Why do I need a HEOS account? 20

Signing up for a HEOS account 20

Changing Your HEOS account 20

Playing from Streaming Music Services 21

Adding a Music Service 21

Changing Music Service Settings 21

Using Headphones (HEOS 7 only) 22

Listening To The Same Music In Multiple Rooms 23

Grouping Rooms 23

Ungrouping Rooms 24

Grouping All Rooms (Party Mode) 25

Ungrouping All Rooms 26

Using the Now Playing Queue 27

Play Now 27

Play Now & Replace Queue 27

Play Next 27

Add to End of Queue 27

Repeat and Shuffle Playback 27

Rearranging the Now Playing Queue 28

Deleting Songs from the Play Queue 28

Deleting All Songs from the Play Queue 29

Saving Playlists 29

Contents Setup Use Troubleshooting Status LED Appendix

Contents

MAKING SPEAKER ADJUSTMENTS 30

Changing the Name of a Speaker 30

Changing the Wireless Network Connection 30

Changing the Speaker’s Equalizer 31

Changing the Speaker’s Orientation (HEOS 3 Only) 31

Adjusting the Audio Quality 31

Creating a Stereo Pair (HEOS 3 Only) 32

Removing a Stereo Pair (HEOS 3 Only) 32

Adjusting the Status Light Brightness 32

Advanced Speaker Settings 33

Network Settings 33

Firmware Upgrade 33

About 34

UPDATING YOUR SYSTEM 35

ADVANCED FEATURES 36

Submit Diagnostics 36

Sharing Music from your Mobile Device 37

Resetting Your Controller App 37

Power Modes 37

Network Standby 37

Deep Standby 37

Off 37

BASIC TROUBLESHOOTING 38

My speaker won’t connect to my network using the audio cable 38

I get a message “Device was not found” 38

Music cuts out or delays sometimes 39

I hear a delay when using the AUX Input with my TV 39

Connecting to a WPS Network 39

Resetting Your Speaker 40

Restoring the Speaker to Factory Defaults 40

Contact Denon 41

Status LED Table 42

Supported File Types and Codecs 48

SPECIFICATIONS 49

Speaker Specifications 49

HEOS 7 49

HEOS 5 50

HEOS 3 51

INFORMATION 52

Trademarks 52

License 53

License Information for the Software Used in the Unit 53

Contents Setup Use Troubleshooting Status LED Appendix

Thank you for purchasing this HEOS product. To ensure proper operation, please read this owner’s manual carefully before using the product.

NOTE

THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.

For latest information, please visit HEOSbyDenon.com

INTRODUCTION

The HEOS speaker is part of the HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere

around your home. By utilizing your existing home network and the HEOS app on your iOS or Android™ device, you can explore, browse, and play music

from your own music library or from many online streaming music services.

0True multi-room audio - play different songs in different rooms or the same song in every room

0Utilizes your existing home wireless network for quick and easy setup

0Industry leading microsecond audio synchronization between HEOS device

0Legendary Denon audio quality

If you are in a hurry, you can be enjoying great sounding music in no time by following the steps outlined in the HEOS Quick Start Guide (packaged with

your HEOS device).

[Example] HEOS 5

HEOS 5 QUICK START GUIDE

Please continue reading this Owner’s Manual for more detailed information about the features and benefits of your HEOS Speaker.

Contents Setup Use Troubleshooting Status LED Appendix

BEFORE YOU BEGIN

NOTE

If you have already installed at least one HEOS speaker, please skip to the section “ADDING MORE HEOS SPEAKERS” below (v p. 14).

System Requirements

Before you begin installing your first HEOS speaker, please make sure you understand and meet a few basic requirements.

oNetwork Requirements

Wireless Router - In order to use your HEOS music system, you should have a working wireless (Wi-Fi) network in your home. If you do not have a

wireless network, please contact your local Denon dealer or electronics retailer to assist you with purchasing and installing a wireless network in your

home.

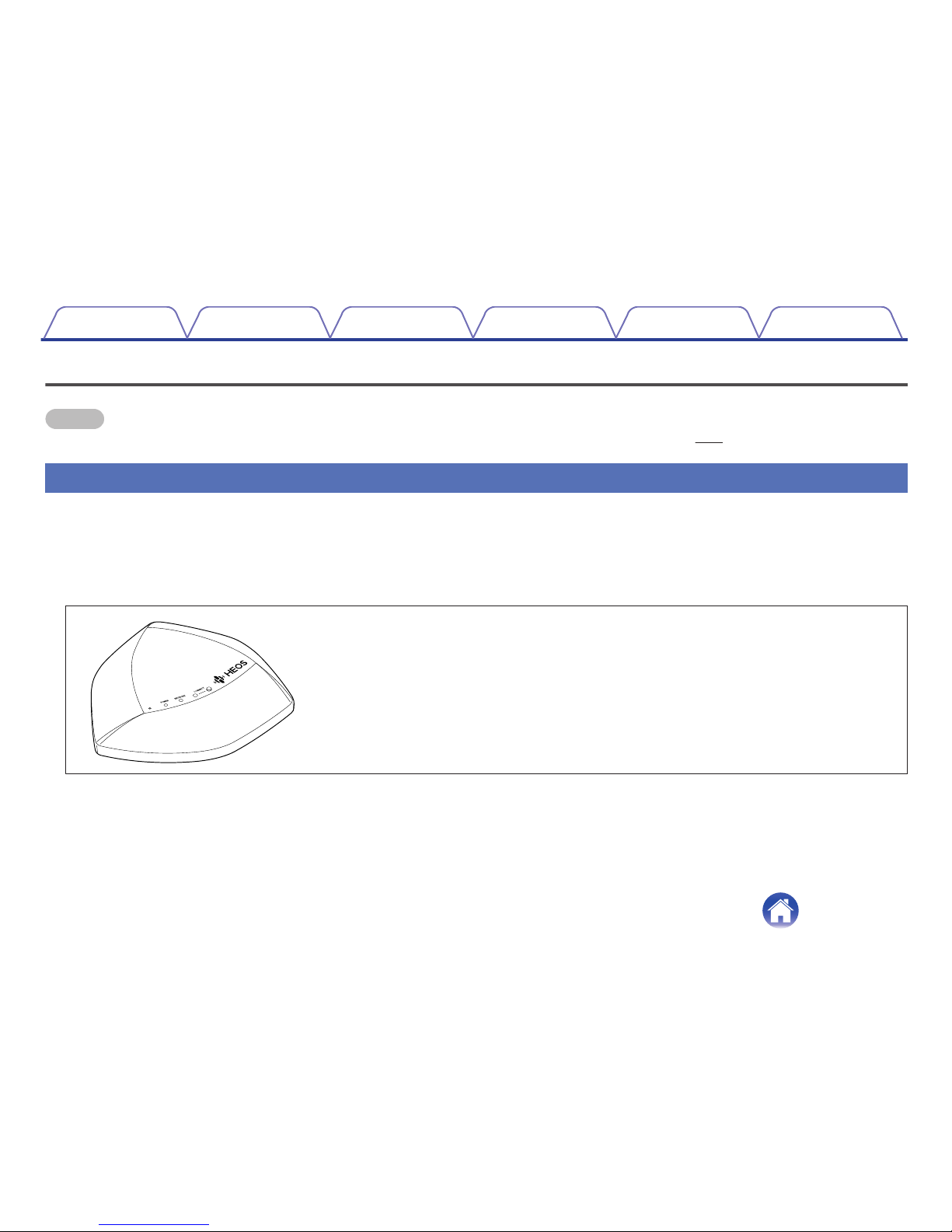

The HEOS Extend Wireless Range Extender (sold separately) is available as an accessory, should

you need to setup a new wireless network or extend the range of your existing network. Please

contact Denon for more information about the Wireless Extender.

High Speed Internet Connection - HEOS accesses the Internet to stream music to your home from many popular online music services. HEOS is

also designed to provide you with software updates, which are delivered via your home Internet connection. DSL, Cable, and Fiber services will

provide the best experience and reliability. You may experience performance issues with slower Internet connections like satellite based services.

Contents Setup Use Troubleshooting Status LED Appendix

oController Requirements

You can control your HEOS wireless multi-room sound system using the free HEOS app on any iOS or Android mobile device that meets these

minimum requirements:

iOS Minimum Requirements

0iOS version 5.0 or later

0iPhone® 3GS or newer

0iPad®

0iPod touch® (3rd generation) or newer

Android Minimum Requirements

0Android OS version 2.3 or later

0All resolutions

Contents Setup Use Troubleshooting Status LED Appendix

Getting To Know Your Speaker

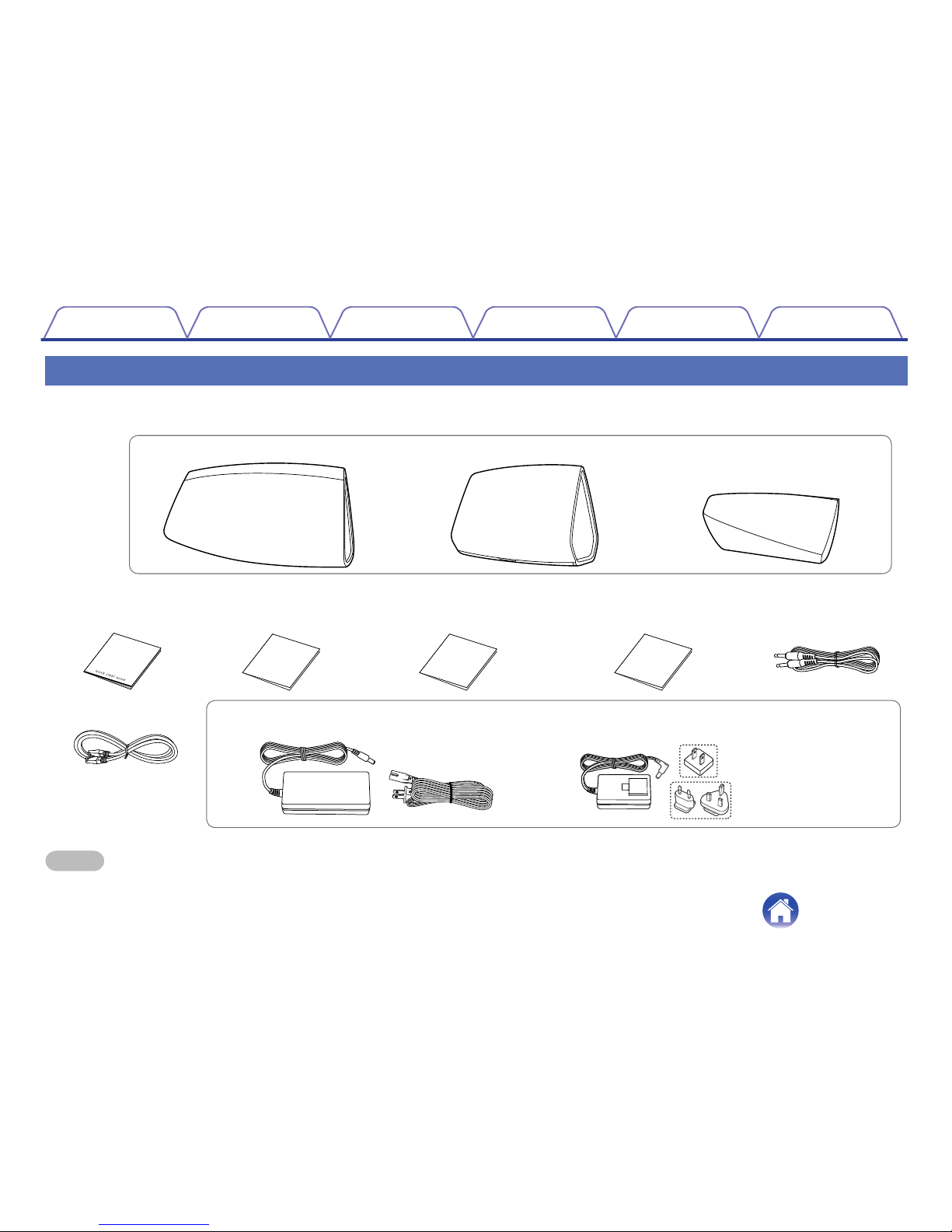

Unpack your speaker from the box and verify that the following items are included:

wer t y

uio

(European model only)

(North America model only)

Power supply

(for HEOS 3)

Power supply and Power cord

(for HEOS 7/5)

Ethernet cable

oror

HEOS Speaker

Quick Start Guide Safety Information

Sheets

Warranty

(North America model only)

Extended Protection Plan

(North America model only)

Audio/Setup cable

HEOS 7 HEOS 5 HEOS 3

NOTE

Please use the power supply and power cord included in the box for your device.

Contents Setup Use Troubleshooting Status LED Appendix

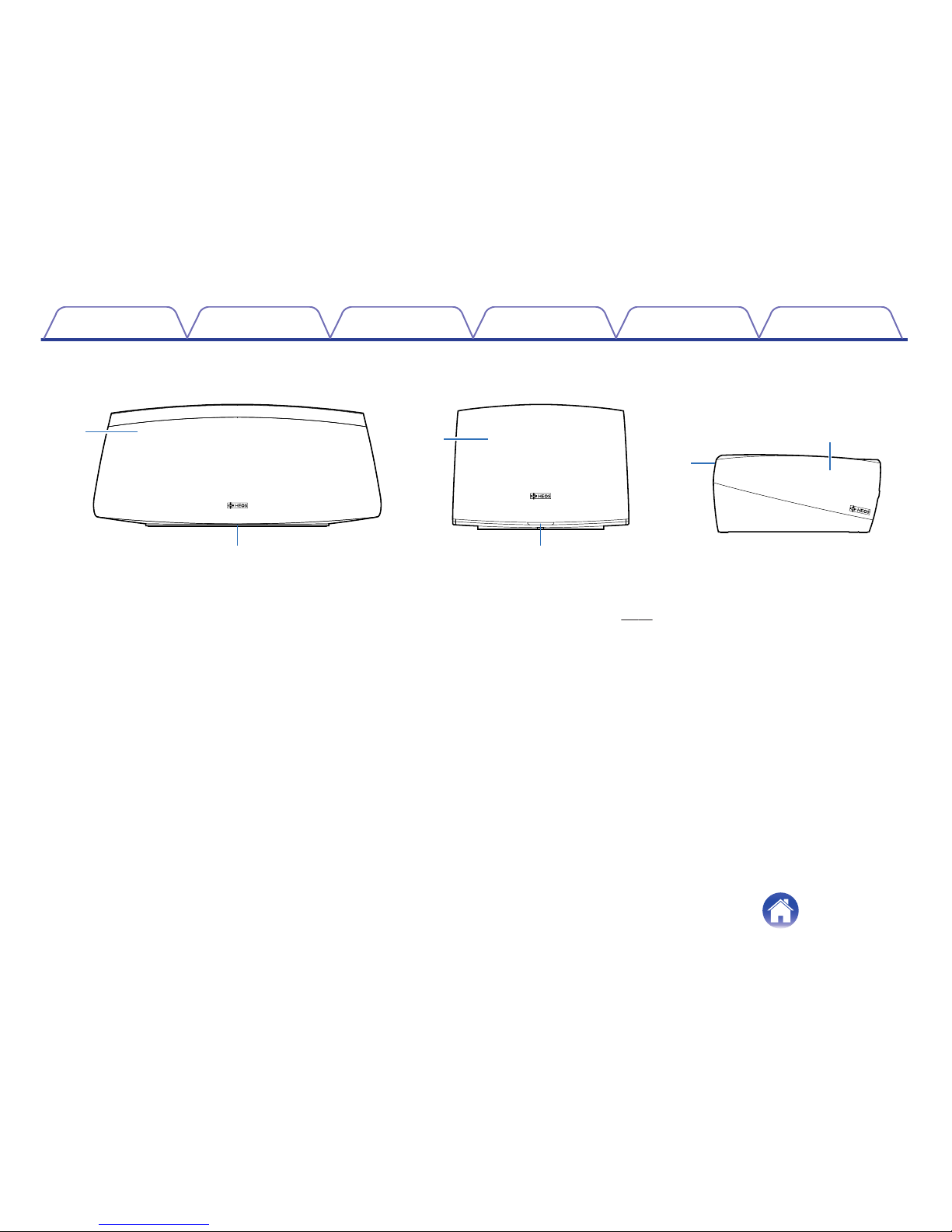

oFront panel

HEOS 7 HEOS 5 HEOS 3

ASpeakers

BStatus LED

Please refer to the “Status LED Table” for LED color and state meaning “Status LED Table” (v p. 42).

Contents Setup Use Troubleshooting Status LED Appendix

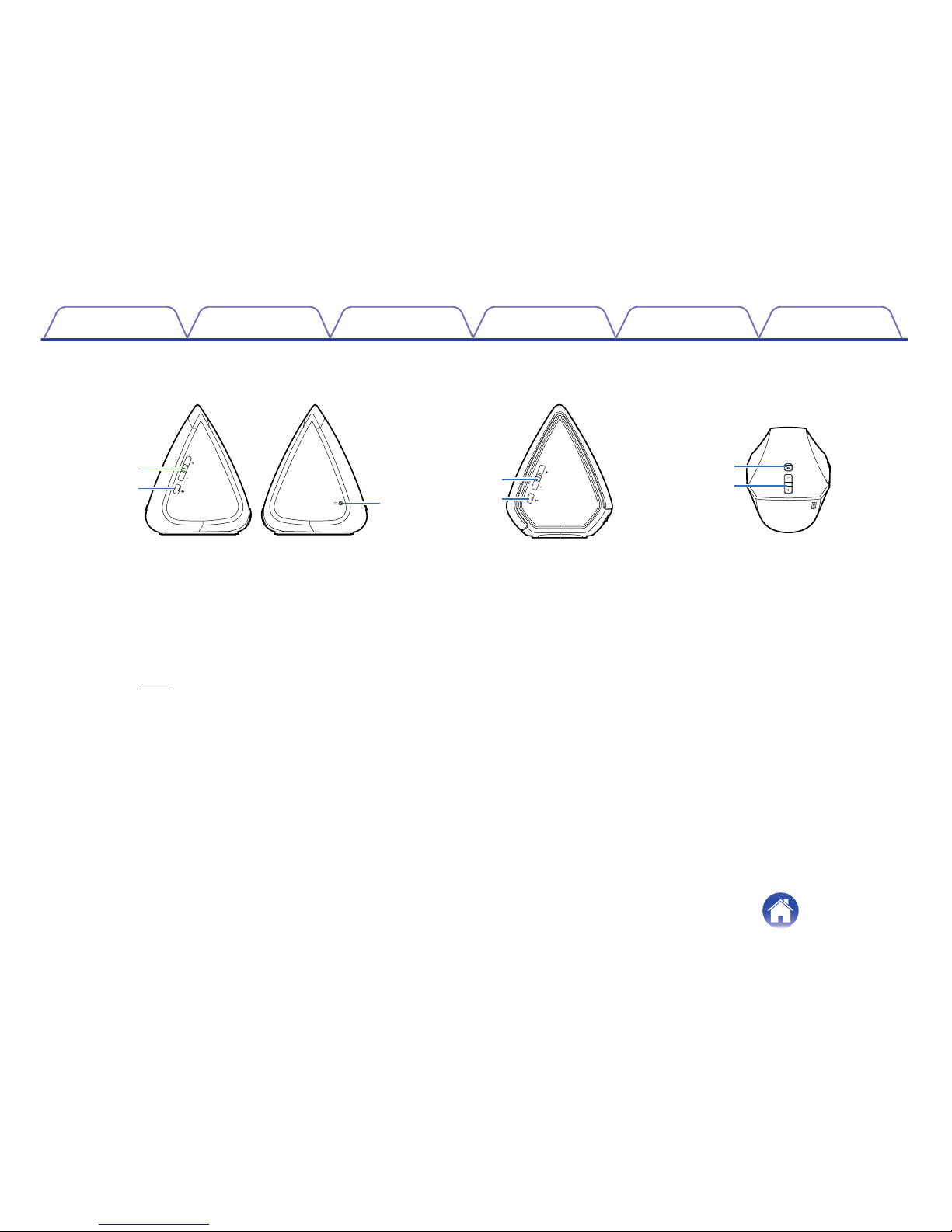

oControls

HEOS 7 HEOS 5 HEOS 3

AVolume Up/Down buttons (+, –)

Adjusts the HEOS device’s volume level up or down.

BMute button (:)

Mutes or unmutes the HEOS device’s volume.

CHeadphone output (HEOS 7 only)

The music will stop playing through the built in speakers when you insert the headphones and turn back on when you remove the headphones.

See (v p. 22).

Contents Setup Use Troubleshooting Status LED Appendix

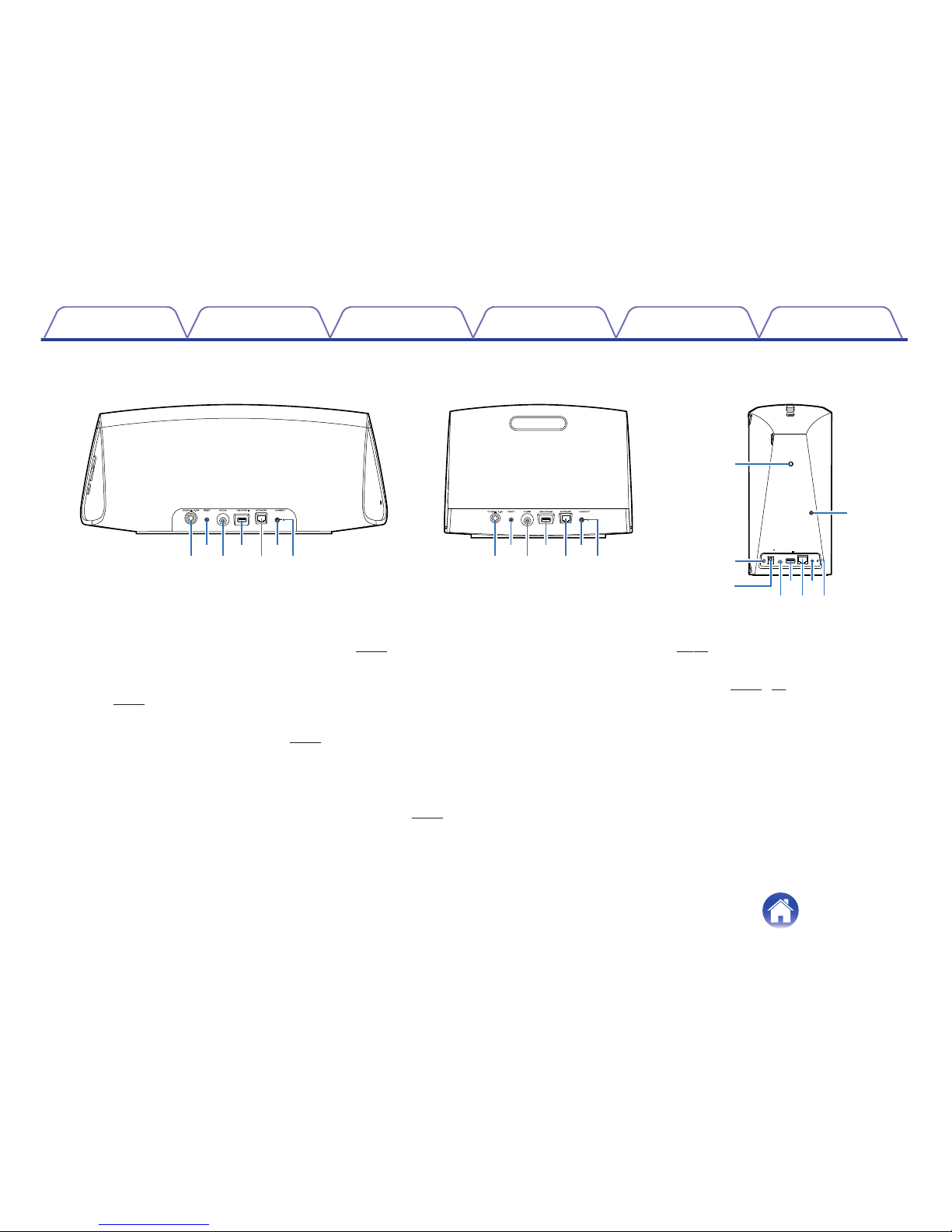

oBack panel

e t u

qw y e t u

qw y DC18V

2.0ARESET AUX IN 5V/1A

USB

NETWORK CONNECT

e t u

r y

HEOS 7 HEOS 5 HEOS 3

APower Input (DC)

Used to connect the external power supply (v p. 12).

BReset Button (RESET)

Various settings are reset to the factory default values

(v p. 40).

CAUX Input (AUX IN)

Used to connect audio devices (v p. 18).

DUSB Input (USB 5V/1A)

Used to connect USB storage devices.

ENetwork Connector (NETWORK)

Used to connect this unit to a wired Ethernet network (v p. 14).

FConnect Button (CONNECT)

Used for Wi-Fi setup (v p. 39).

GConnect in Status LED

Indicates the status of this unit (v p. 39, 42).

HThreaded Mounting Hole

Used to mount this unit on a wall or ceiling.

ISafety Wiring Hole

Used to prevent from dropping.

Contents Setup Use Troubleshooting Status LED Appendix
