Denver DMB-119CI Manuale utente
Important safety instructions to be kept with the product
Please read attentively
To prevent fire and electric shock, do not expose this receiver to rain or
moisture. In order to avoid any possible risk of electric shock, never
attempt to open the unit. In case of breakdown, reparation should be
made by qualified technicians. No part of this unit should be repaired by
users.
WARNING!
Presence of dangerous tension inside apparatus! Do not open. Risk of electric shock!
No part should be repaired by users. The maintenance of the receiver should be
carried out exclusively by qualified persons.
If the power cord is damaged, it must be replaced or repaired by the manufacturer, its
after-sales service, qualified electrician or persons of similar qualification in order to avoid
possible danger.
The product must be installed in accordance with national regulations.
The used batteries must be disposed of safely. Throw them in collection bins provided is
prohibited (inquire after your retailer for more details) in order to protect the environment.
Proper Installation
- Place the receiver on a flat, firm and stable surface. Do not put it on a carpet or rug.
- Do not place the receiver on top of another device, such as an amplifier. This may lead to
overheating.
- Do not put anything above the unit (for example, CDs or magazines).
Sufficient Ventilation
- Place the receiver in a well-ventilated location to prevent accumulation of internal heat.
Allow a gap of at least 10cm to the rear and the top of the unit, as well as a space of 5cm to
both sides to avoid overheating.
- Do not obstruct any ventilation openings with items such as newspapers, tablecloths,
curtains, etc.
Protecting the Receiver from High Temperatures, Humidity, Water and Dust
- The receiver should not be exposed to dripping water or splashing.
- No objects filled with liquids, such as vases, shall be placed on the unit.
- Do not place any objects that might damage your unit near it (e.g. liquid filled objects or
candles).
- Do not place any source of flames such as lit candles on the receiver.
- This receiver is to be used in a temperate climate and should not be used in a tropical
climate.
Electricity Supply
HSILGNE
1
2
- Please unplug the receiver in case of prolonged non-use.
- If the power cord is damaged, it must be replaced or repaired by the manufacturer, its
after-sales service, qualified electrician or similar qualifications to those to avoid possible
danger.
- This device must be connected to a 240V ~ 50Hz electrical network.
- The plug must remain readily accessible after the installation of the product.
Main features：
Slim size
MPEG-2, MPEG-4(H.264) decoding
USB2.0 for software update , music ,image, movie and recording
LCN(Logical Channel Number) supported;
Parental control
Favorite lists
Timer
EPG/TXT/SUBTITLE supported
Digital sound through COAXIAL output (S/PDIF)
PVR ready supported
HSILGNE
3
Contents
1. Installation of STB..............................................................................................................6
1.1 Front Panel.....................................................................................................................6
1.2 Rear Panel .....................................................................................................................6
1.3 Connection.....................................................................................................................7
2. IR..........................................................................................................................................9
2.1 Remote...........................................................................................................................9
3. Basic functions ..................................................................................................................10
3.1 First Installation..............................................................................................................10
3.2 Volume adjustment and Mute ........................................................................................10
3.3 TV/RADIO programs switch...........................................................................................10
3.4 Station switch .................................................................................................................10
3.5 Program list....................................................................................................................10
3.6 Display information of programs ....................................................................................10
3.7 Program return...............................................................................................................10
3.8 Audio language switch and L/R channel switch.............................................................11
3.9 Electronic programs guide (EPG) ..................................................................................11
3.10 Teletext.........................................................................................................................11
3.11 Subtitle .........................................................................................................................11
3.12 REC..............................................................................................................................11
3.13 Time shift......................................................................................................................11
4. Installation ..........................................................................................................................12
4.1 Auto Search..................................................................................................................12
4.2 Manual Search .............................................................................................................12
4.3 Channel Filter...............................................................................................................12
4.4 LCN...............................................................................................................................12
4.5 Country.........................................................................................................................12
4.6 Active Antenna .............................................................................................................12
5. Channel...............................................................................................................................13
5.1 Channel Manager.........................................................................................................13
5.2 Favorite List..................................................................................................................13
6. Preference Setting .............................................................................................................14
6.1 OSD Language ............................................................................................................14
6.2 OSD Timeout................................................................................................................14
HSILGNE
4
6.3 OSD Transparency.......................................................................................................14
6.4 Preferred Subtitle .........................................................................................................14
6.5 Hard Hearing................................................................................................................14
6.6 Preferred Audio ............................................................................................................14
6.7 Multimedia....................................................................................................................14
6.8 PVR Config.................................................................................................................15
7. System Setting .................................................................................................................15
7.1 Timers ..........................................................................................................................15
7.2 Child Lock ....................................................................................................................16
7.3 Date Time.....................................................................................................................16
7.4 Common Interface .......................................................................................................16
7.5 Factory Reset...............................................................................................................16
7.6 Upgrade .......................................................................................................................16
7.7 Version .........................................................................................................................16
7.8 Auto Standby................................................................................................................16
8. AV Setting ....................................................................................................................... 17
18
8.1 SPDIF......................................................................................................................... 17
20
21
21
2
22
22
22
8.2 Aspect Ratio............................................................................................................... 17
8.3 Video Output .............................................................................................................. 17
8.4 Video Resolution....................................................................................................... 17
8.5 HDMI Audio................................................................................................................ 17
9. OSD Game ...................................................................................................................... 17
10. Multi-Media ...................................................................................................................
10.1 MOVIE..................................................................................................................... 18.
10.1.1 Movie file browser......................................................................................................... 18
.
10.1.2 Movie playback ........................................................................................................... 18
10.2 MUSIC..................................................................................................................... 19.
10.3 PHOTO .................................................................................................................... 19
10.3.1 Photo file browser ....................................................................................................... 19
10.3.2 Photo playback ...........................................................................................................
10.3.3 Photo thumbnail ......................................................................................................... 20
10.4 NATIVE32 GAME.................................................................................................... 20
10.5 RECORDER MANAGER .........................................................................................
10.5.1 Recorder manager browser ........................................................................................
10.6 DISK MANAGER ..................................................................................................... 1
10.6.1 Disk manager browser ................................................................................................
10.6.2 Move/Copy..................................................................................................................
10.7 E-Book .....................................................................................................................
HSILGNE
5
10.7.1 E-Book browser ..........................................................................................................
10.8 ISO............................................................................................................................ 22
22
11. Upgrade......................................................................................................................... 23
11.1 USB Upgrade ........................................................................................................... 23
12. Troubleshooting............................................................................................................ 24
HSILGNE
1. Installation of STB
1.1 Front Panel
1:Switch between Standby mode and active mode.
2 CH-: Down channel
3 CH+: Up channel
4On/off:Power lamp, red color in Standby mode, green color in active mode
5IR : Receives the remote control signal
6LED: Display the state and the channel number
1.2 Rear Panel
1. RF IN
Connect cable signal.
2. RF OUT
To connect to TV.
3. HDMI
Connecting to the HDMI input on the TV set.
HSILGNE
6
7
4.TV SCART Connector
Use this connector to connect your receiver to your video recorder using a SCART cable.
Your video signal will now be looped through your receiver to your TV set.
5. SCART VCR
Connect the external video input
6. S/PDIF
Digital audio signal output
7.CI
Insert CI module and Smart Card into CI slot, to decode pay tv programs
8. USB
It is used for playing media and PVR
USB harddisc on products with PVR function.
Please notice that we recommend using a hard disc with OWN power supply on this
unit. This is to ensure that it has enough power to work properly.
You can buy many hard discs without power supply, but our experience is that they
need too much power to work stable. MAXIMUM power for hard discs without
power supply is 500mAh.. If they use more than this, they will fail when recording.
9. Power Cord
1.3 Connection
Note: Before connect this STB to other devices, please close all devices’ power.
1.3.1 Connecting to cable signal
To receive the broadcast signal, the cable signal should be connected to the CABLE IN
HSILGNE
8
connector at the back of the receiver.
1.3.2 Connecting to TV
1. Connect the scart connectors at the back of the receiver to the scart connectors on
your TV set.
2. Connect the HDMI connector at the back of the receiver to the HDMI connector on
your TV set.
1.3.3 Connecting to Digital Audio Amplifier
Connect OPTICAL connector at the back of your receiver to appropriated input of your
Digital Audio
HSILGNE
9
2. IR
2.1 Remote
1、『STANDBY』switch of power supply
2、『RECALL』return to upper menu or previous program palyed.
3、『AUDIO』audio pid switch and left/right channel
4、『MUTE』mute control
5、『TV/RADIO』TV/RADIO switch
6、『FAV』enter channel/Fav list
7、『TEXT』Teletext
8、『EPG』go to EPG
9、『INFO』Display information of programs
10、『SUB』Subtitle
11、『MENU』Enter main menu
12、『CH+/-』left/right channel
13、『RETURN/EXIT』Exit to the menu or escape from the item
14、『VOL＋/－』 volume adjusting
15、『 / / / & OK』move high_light and confirm
16、『PAGE UP&DOWN』Page up&down
17、『NUMBER』digital strokes
18、『REC』enter REC
19、『DTV/VCR』switch DTV to VCR
20、『USB』Into USB menu
21、『PLAY/PAUSE』play/pause key
22、『STOP』stop playing USB Media
23、『REPEAT』set repeat mode
24、『PREV & NEXT』play previous&next USB Media
24、『REV & FWD』speed up&down while USB Media playing
25、『COLOUR』Use to navigate between pages in teletext mode.
HSILGNE
10
3. Basic functions
3.1 First Installation

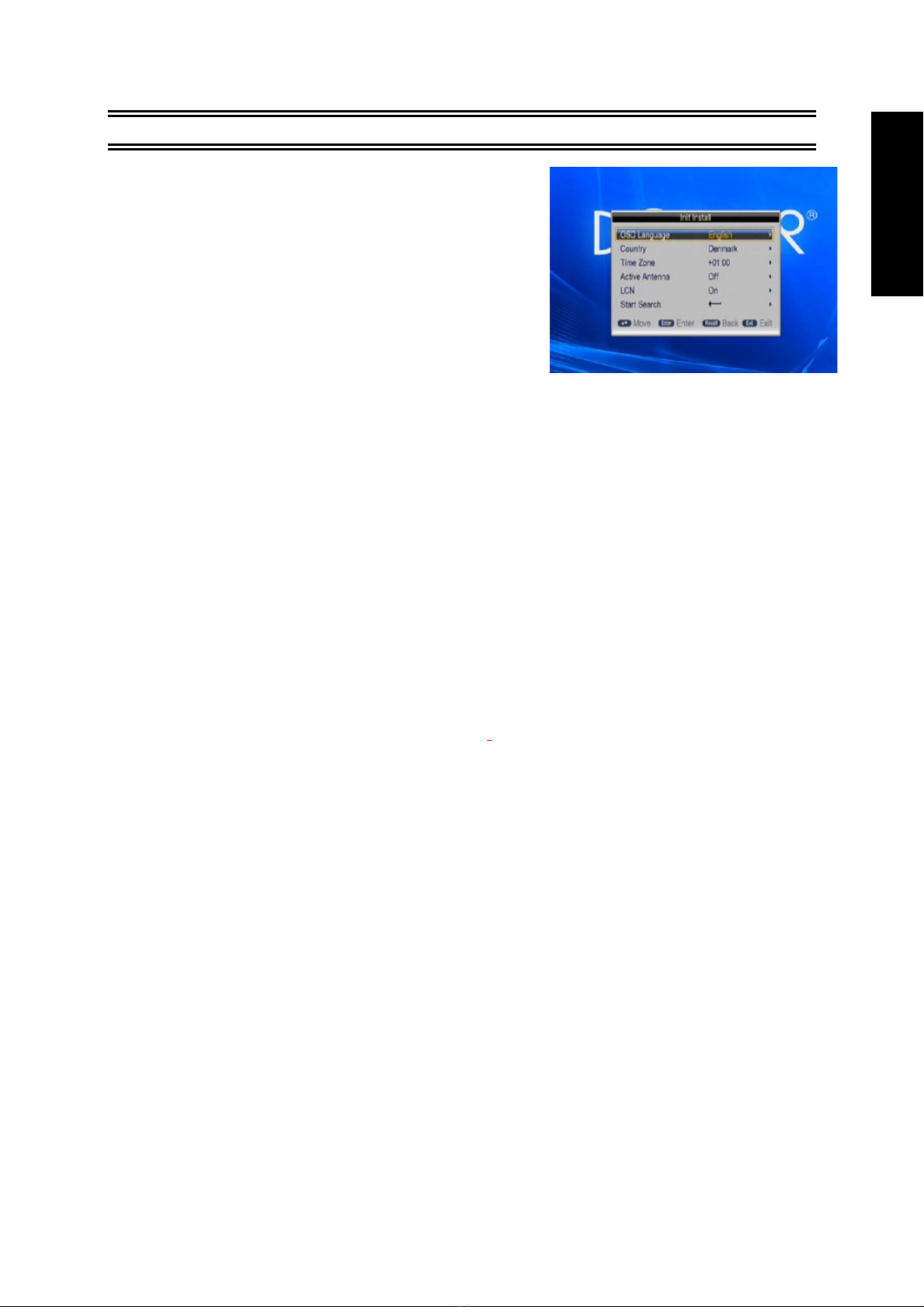

First installation shall setup some important
configures.
User can select OSD Language、Country、Time Zone、
Active Antenna and LCN from this menu，when it is
set completely，User can use “Start Search”to search
channels.
3.2 Volume adjustment and Mute
1. Press “vol+/-” to adjust volume when system is in normal playing mode; and it will show
volume bar on the image.
2. Press “MUTE” to enter into the mode when normally playing and repress “MUTE” to back
the normal state.
3.3 TV/RADIO programs switch
Press “TV/RADIO” to switch the programs when it is in full screen.
3.4 Station switch
1. Press “CH+/-” to switch to the next or previous program.
2. Press number keys to input program number.
3.5 Program list
1. Press “ENTER” to switch to the program list, press “LEFT/RIGHT” to select different
program class; press “UP/DOWN” to select program.
2.If there are some favorite programs that been set up, just press “FAV” key to enter into the
favorite program list:
3.6 Display information of programs
Press key “INFO” to show the information of current programs when it is in normal
playing state.
3.7 Program return
Press “RECALL” under state of full-screen to return to the previous program palyed.
HSILGNE
Indice
Altri manuali Denver Decoder
Denver
Denver DMB-113CI Manuale utente
Denver
Denver DMB-106HD Manuale utente
Denver
Denver DMB-105HD Manuale utente
Denver
Denver DTB-120CP Manuale utente
Denver
Denver DVBT-12 Manuale utente
Denver
Denver DTB-142 Manuale utente
Denver
Denver DVH-1240M Manuale utente
Denver
Denver DVBT-11 Manuale utente
Denver
Denver DMB-105HD Manuale utente
Denver
Denver DVBT-42 Manuale utente
