Dexter Laundry WCVD-WN Series Istruzioni operative

8533-075-001 (6/13)Starting serial number 516180

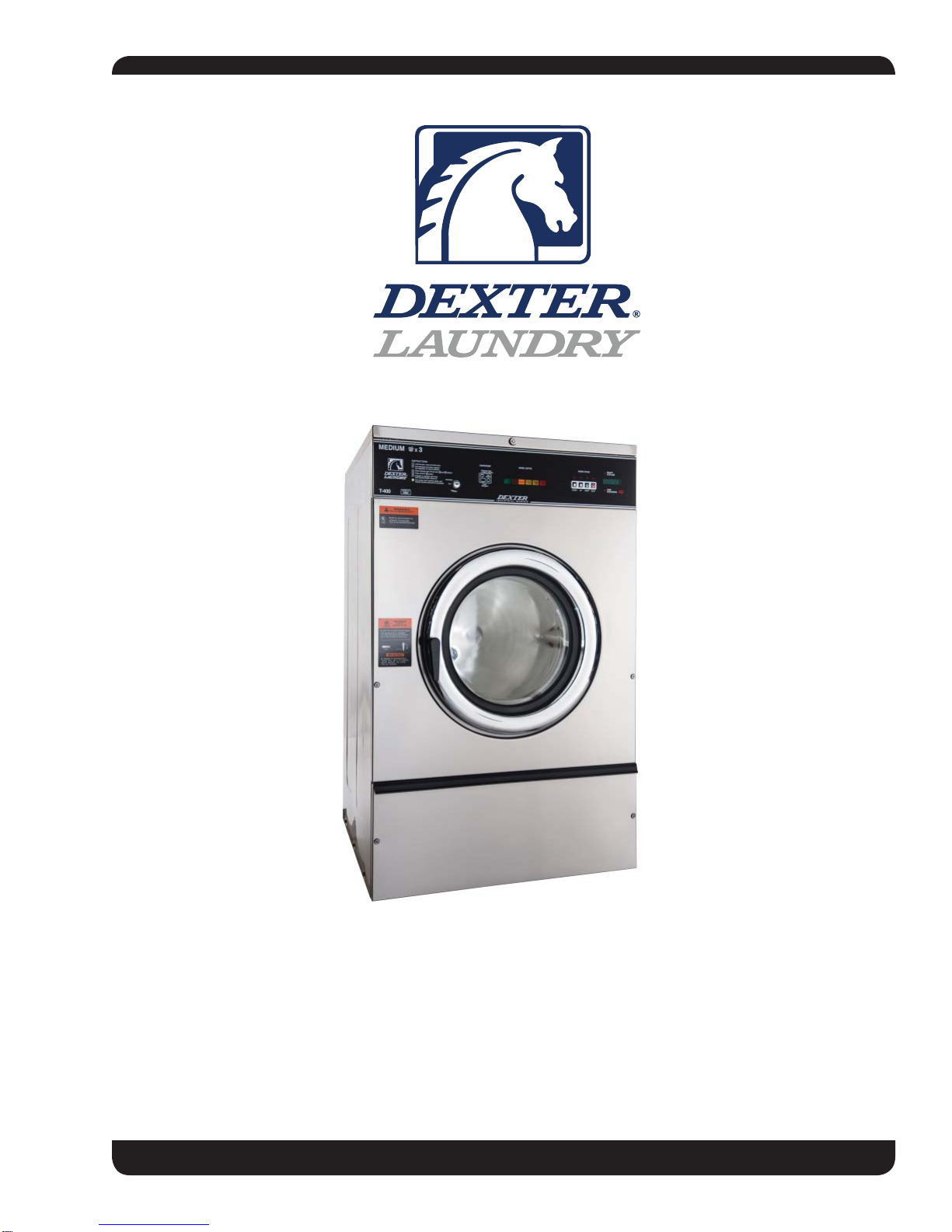

WCVD-WN Series OPL Washers

Programming Guide

Bath Cycle Time “ct”

0 to 15 minutes for Prewash, Rinse1 and Rinse 3 to 15 minutes for Wash and Final Rinse. For the

baths that can, if the time is set to zero, then that bath will be eliminated from the cycle.

Bath Water Temperature “t”

HH – hot, CH – warm, CC – cold, EE – no water. The owner can set the bath default. For the wash

bath, the default is over ridden for that cycle by the customer when the temperature is selected.

Bath Water Level “L”

LO – low The owner can change the displayed value, but for a coinwasher only LO will be put into

the cycle.

Bath Delay Fill “dF”

The selections are “d” for delay the bath time until water level is reached or “t” for decrement bath

time during the ﬁll.

Bath Spin Time “S”

0 to 10 minutes for Prewash, Wash, Rinse1 and Rinse2 1 to 10 minutes for Final Spin.

Bath “IS”

The owner can change the displayed value, but for a coin washer only 0 will be put into the cycle.

Washer 6 Default Cycles (Preset at Factory)

There are 6 pre programmed baths on the control which are set up at the factory. The

formulas for each are shown on the following pages. Each of these 6 programs can be

adjusted and saved as the owner needs.

2Part # 8533-075-001 6/13

Cycle 2: Towels / Pads / Diapers (Health Care)

Bath Bath Cycle Water Water Delay Spin Injection

Time (min.) Temp. Level Fill Time (min.) Source

Flush 3 CH HI d

Prewash 2 CH HI d

Wash 7 HH LO d 1 #1 (Detergent)

Rinse 1 1 HH HI d

Rinse 2 7 HH LO d 2 #2 (Bleach)

Rinse 3 2 CH HI d 1

Rinse 4 2 CH HI d

Final Rinse 4 CH LO d 5 #4 (Sour/Soft)

Cycle 3: White Towels (Hotel / Motel)

Bath Bath Cycle Water Water Delay Spin Injection

Time (min.) Temp. Level Fill Time (min.) Source

Flush

Prewash

Wash 7 HH LO d 1 #1(Detergent)

Rinse 1 1 HH HI d

Rinse 2 7 HH LO d 2 #2 (Bleach)

Rinse 3 2 CH HI d 1

Rinse 4 2 CH HI d

Final Rinse 4 CH LO d 5 #4 (Sour/Soft)

Cycle 1: Sheets and Pillowcases (Health Care)

Bath Bath Cycle Water Water Delay Spin Injection

Time (min.) Temp. Level Fill Time (min.) Source

Flush 3 CH HI d

Prewash 2 CH HI d

Wash 7 HH LO d 1 #1(Detergent)

Rinse 1 7 HH LO d 2 #2 (Bleach)

Rinse 2 2 CH HI d 1

Rinse 3 2 CH HI d

Rinse 4

Final Rinse 4 CH LO d 4 #4 (Sour/Soft)

Cycle 1: Sheets and Pillowcases (Health Care)

Part # 8533-075-001 6/13

Cycle 4: Guest Laundry (Hotel / Motel / Healthcare)

Bath Bath Cycle Water Water Delay Spin Injection

Time (min) Temp. Level Fill Time (min) Source

Flush 3 CH HI d

Prewash

Wash 7 HH LO d 5 (#6(Detergent/Bleach)

Rinse 1 2 HH HI d

Rinse 2 2 CH HI d

Rinse 3 2 CH HI d

Rinse 4

Final Rinse 4 CH LO d 4 #4 (Sour/Soft)

Cycle 5: Rags and Mops (Hotel / Motel)

Bath Bath Cycle Water Water Delay Spin Injection

Time (min) Temp. Level Fill Time (min) Source

Flush 3 CH HI d

Prewash 2 CH HI d

Wash 2 CH HI d

Rinse 1 7 HH LO d 1 #1 (Detergent)

Rinse 2 2 HH HI d

Rinse 3 7 HH LO d 2 #2 (Bleach)

Rinse 4 2 CH HI d 1

Final Rinse 2 CH LO d 5

Cycle 6: Colored Cotton Linen (Hotel & Food Service)

Bath Bath Cycle Water Water Delay Spin Injection

Time (min) Temp. Level Fill Time (min) Source

Flush 3 CH HI d

Prewash 2 CH HI d

Wash 2 CH HI d

Rinse 1 7 HH LO d 1 #1(Detergent)

Rinse 2 2 HH HI d

Rinse 3 7 HH LO d 2 #2 (Bleach)

Rinse 4 2 CH HI d 1

Final Rinse 2 CH LO d 5

4Part # 8533-075-001 6/13

Washer Programming Instructions

THERE ARE TWO WAYS TO MODIFY PROGRAMMING OF THE V-SERIES OPL SIX (6)

PREPROGRAMMED FORMULAS

Option 1: Programming can be accomplished manually using the machine controls or by connecting to

the machine control using a PDA (personal digital assistant). For instructions on using a PDA with this

washer control and software, please contact your local Dexter distributor. Please read below for manual

programming instructions.

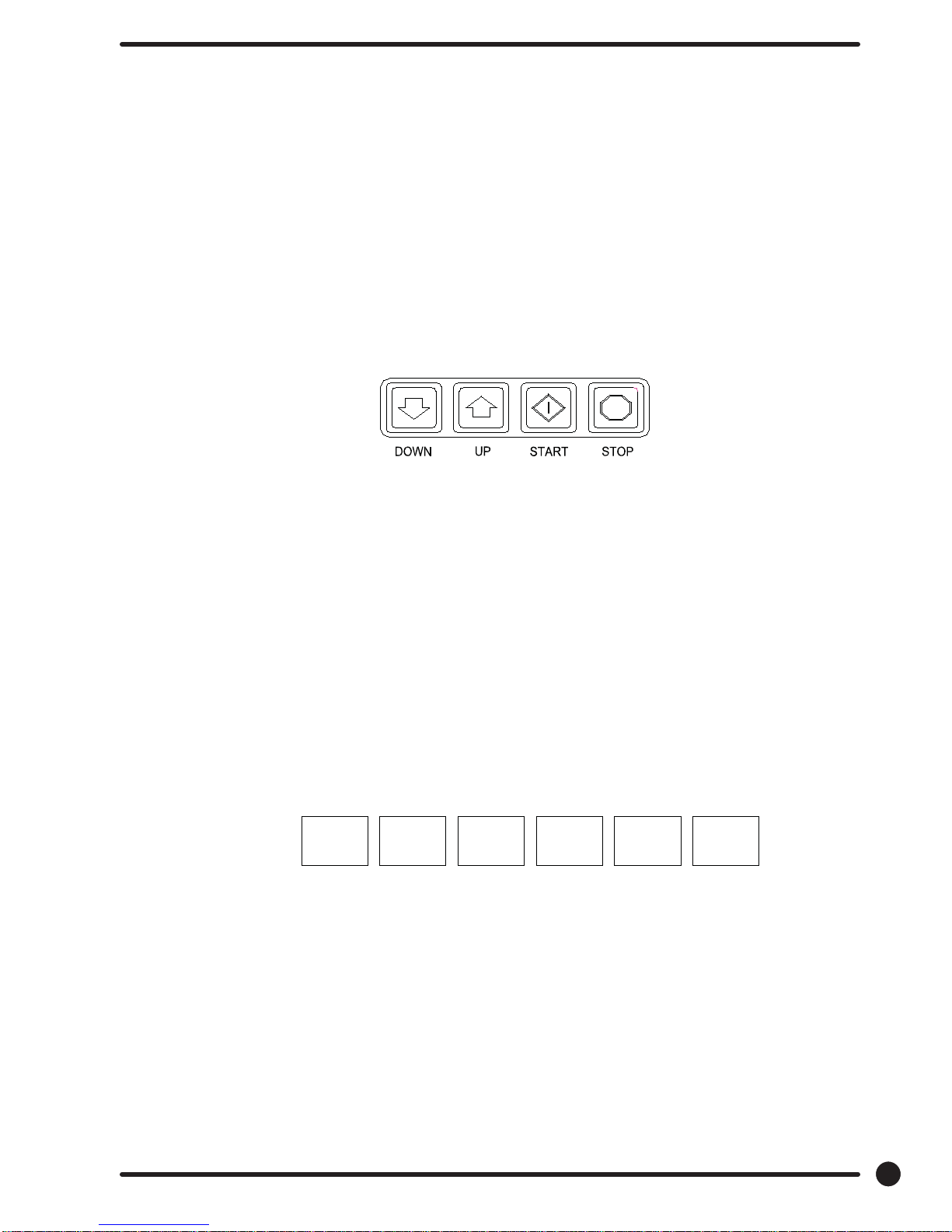

The keypad layout for the washer control is shown below.

Option 2: Wash Cycle Manually Programming

1. Turn on the power to the washer.

2. Turn the Run/Program key to the Program position. Display will show

“CO” and the “ADD BLEACH” will blink and will continue to blink

during the programming mode.

3. Press the “DOWN” or “UP” buttons to select which cycle to alter. When

the desired cycle number is displayed, press “START”.

4. The display should now show a “b”. The “b” and the cycle indicator

lights indicate which bath is being selected to alter. Press the “UP”

and “DOWN” buttons to select a bath to change and then press

“START”.

The indicator lights are shown above:

When “RINSE” is selected, “b r1” through “b r4” may be selected.

There may be multiple rinses that are indicated by br 1, br 2, br 3, and br 4

5. Each bath can be programmed with the following options. Use the “DOWN” and

“UP” keys to select the desired setting and the “START” key to move to the

next option.

To exit the programming of a bath, press the “STOP” button once and use the “UP” and “DOWN”

keys select another bath. Press the “STOP” button again to select a different cycle to change. To end

programming, turn the key to “RUN” positon.

FINAL

RINSE

PRE

WASH

FLUSH WASH RINSE SPIN

Part # 8533-075-001 6/13

Rapid Advance Mode

To enter the Rapid Advance mode, turn the key CCW. The Rapid Advance setting is not marked next to

the key, but turning the CCW until it stops selects this mode. The Rapid Advance mode can be entered

from either the Idle mode or during the cycle. If the cycle has not yet started, press the “START” button.

To rapid advance to the next step in the wash cycle, push both the “UP” and “START” buttons at the same

time. The display will show an “Ad” (advance) in the display. The washer will advance to the next bath

segment. The water will drain before the advance will occur and the time displayed may not be accurate.

Notes: - The indicator lights will show to which segment the cycle has been advanced.

- The cycle will continue in rapid advance mode even if the key is turned to “RUN” and/

or removed.

- Rapid advance cannot skip the final 1- minute tumble of the cycle, and the door

lock may remain activated for up to 3 minutes after the cycle has been completed.

- Chemical 120 volt signals will be lost after Rapid advance Mode has been activated

until cycle resets. To exit the Rapid Advance mode, push and hold the STOP button.

Injection Source Details

The washer control may be programmed to send

output signals for a chemical injection system.

There is a separate terminal block for connection

of the external injection signals. For the injection

sources, program codes 0 through 6 are as shown

in the table below. Injection signal will trigger a 120

volt reading at rear terminal block for approximately

5-10 seconds and will start to trigger at about 10- 15

seconds

after start of ﬁll bath.

Dexter Controller Injection

Recommended Connections Programmed Signals Terminal Block

Circuits

Detergent 1 A

Bleach 2 B

Starch 3 C

Sour/Softener 4 D

5 A and B

6 C and D

0 None

NOTE: The Wash Cycle programming mode will automatically exit and return to the Idle

mode if no buttons are pushed for one minute.

6Part # 8533-075-001 6/13
