DFI AZ30-EC Manuale utente

AZ30-EC

AZ30-EL

Rev.A+

System Board User’s Manual

Carte Mère Manuel Pour Utilisateur

System-Platine Benutzerhandbuch

Manual del Usuario de Placas Base

935-AZ3001-000

58400213

This publication contains information that is protected by copyright.

No part of it may be reproduced in any form or by any means or

used to make any transformation/adaptation without the prior

written permission from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any

express or implied warranties of merchantability or fitness for any

particular purpose.The user will assume the entire risk of the use or

the results of the use of this document. Further, the manufacturer

reserves the right to revise this publication and make changes to its

contents at any time, without obligation to notify any person or

entity of such revisions or changes.

Trademarks

Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,

Windows®98 SE, Windows®ME, Windows®2000, Windows NT®

4.0 and Windows®XP are registered trademarks of Microsoft

Corporation.AMD, AthlonTM XP,AthlonTM and DuronTM are registered

trademarks of Advanced Micro Devices, Inc. VIA is a registered

trademark of VIA Technologies, Inc. Award is a registered trademark

of Award Software, Inc. Other trademarks and registered

trademarks of products appearing in this manual are the properties

of their respective holders.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range.....

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing,

cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

the manufacturer.

• Dispose of used batteries according to the battery

manufacturer’s

instructions.

Joystick or MIDI port:

• Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that

exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

2. Shielded interface cables must be used in order to comply with

the emission limits.

Quick Setup Guide

Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

English......................................................................

Chapter 3

Français (French).................................................

Chapter 4

Deutsch (German)................................................

Chapter 5

Español (Spanish)..................................................

ADMtekAN983B

RJ45 LAN port

AZ30-EL

AZ30-EC

Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 System Board Layout..................................................................................................

1.2 Jumpers.....................................................................................................................................

1.3 Ports and Connectors................................................................................................

1.4 Award BIOS Setup Utility.......................................................................................

Note:

The user’s manual in the provided CD contains detailed information

about the system board. If, in some cases, some information doesn’t

match those shown in this manual, this manual should always be

regarded as the most updated version.

Quick Setup Guide

Quick Setup

Guide

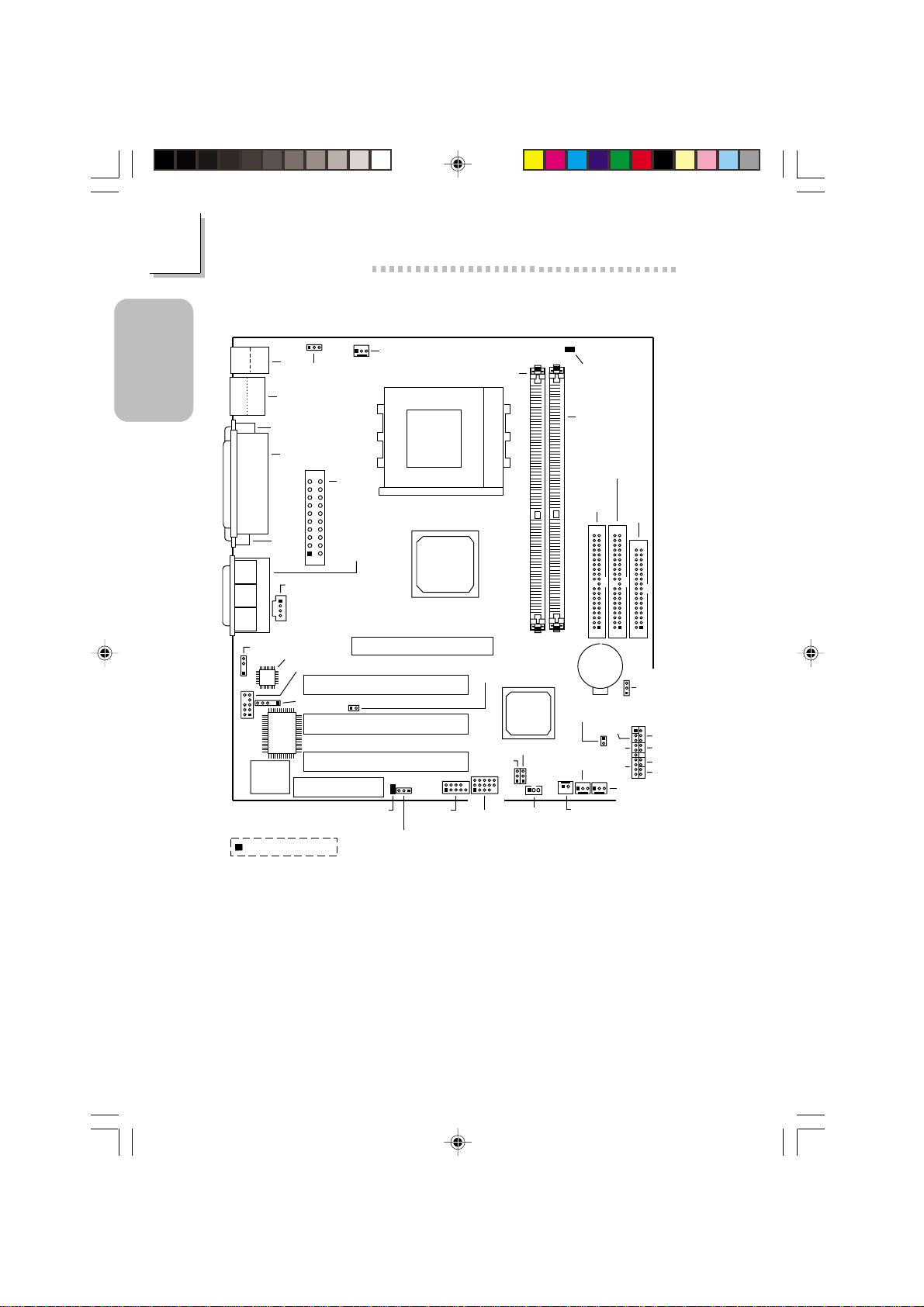

1.1 System Board Layout

AZ30-EC

Mouse

J8 CPU fan (J15)

USB 1

USB 2

J10

COM 1 (J2)

Parallel (J9)

VGA

(J1)

ATX

power

(J14)

Line

out

Line

Mic

Game/MIDI

CD-in (J13)

S/PDIF-out

(J6)

Front audio (J7)

IrDA (J12)

CNR setting

(JP4)

COM 2

(J16)

USB3&4

(J17)

JP5 JP6

Battery

DDR SDRAM

DIMM 1

DDR SDRAM

DIMM 2

DIMM standby

power LED

CPU FSB

select (JP8)

Wake-On-

LAN (J18)

Wake-On-

Ring (J19)

Second

fan (J20)

Chassis

fan (J22)

ATX-SW

G-LED

G-SW

HD-LED

RESET

SPEAKER

PWR-LED

J25

Clear

CMOS

(JP9)

IDE 1

(J21)

IDE 2

(J23)

FDD

(J24)

Socket A

VIA

KM266

VT8375

VIA

VT8233ACD

AC’97

Winbond

W83697HF

BIOS

AGP Slot

PCI 1 Slot

PCI 2 Slot

PCI 3 Slot

CNR Slot

PCI standby

power LED

3.3VSB standby

for PCI (JP3)

Game/MIDI (J11)

Line-out (J3)

Line-in (J4)

Mic-in (J5)

Square denotes pin 1

Power select for PS/2

KB/Mouse (JP1)

Audio codec setting (JP5 & JP6)

Quick Setup Guide

Quick Setup

Guide

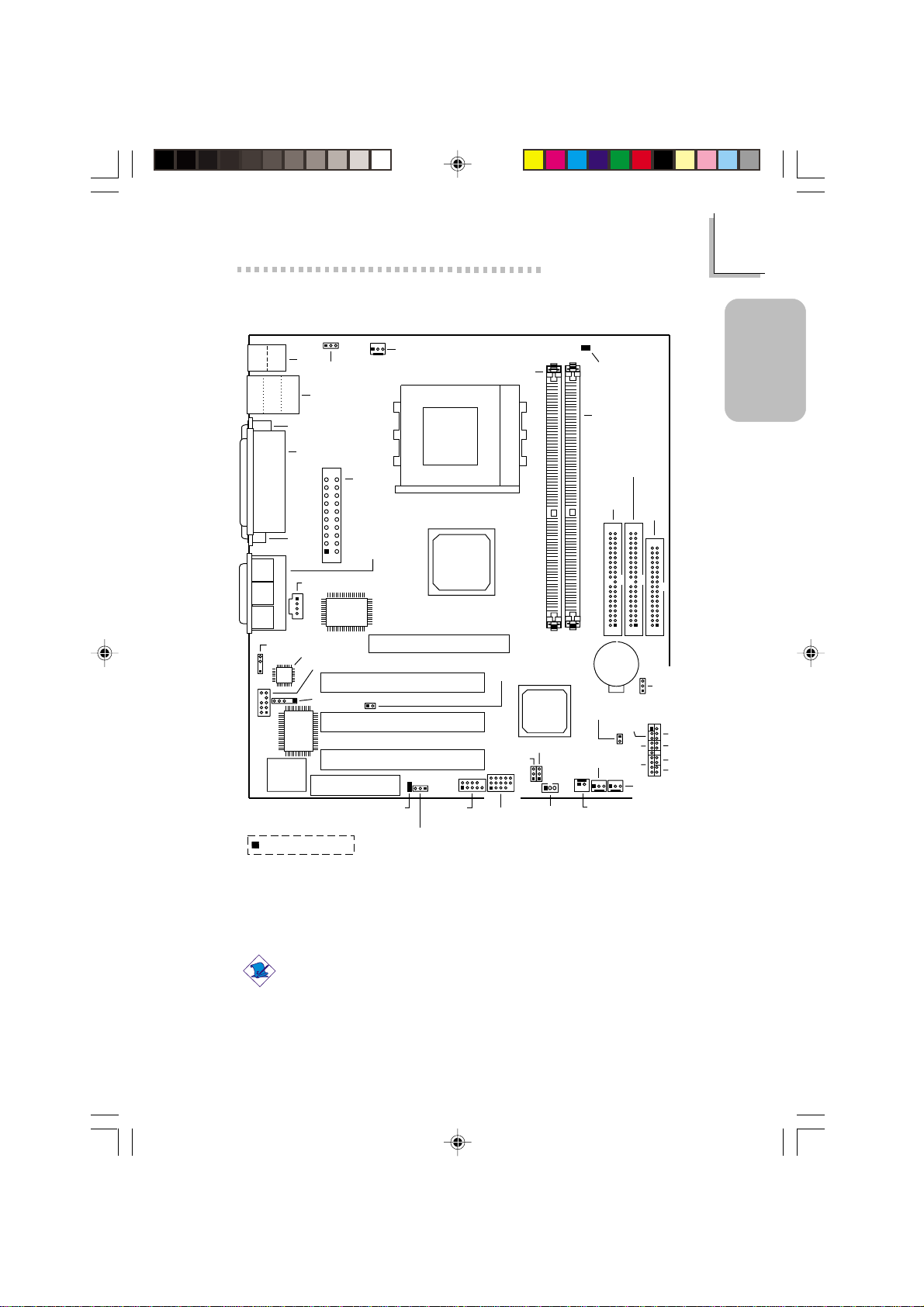

AZ30-EL

(Supports onboard LAN)

Note:

The illustrations on the following pages are based on the system

board that supports onboard LAN.

J8 CPU fan (J15)

LAN

USB 1

USB 2

J10

COM 1 (J2)

Parallel (J9)

VGA

(J1)

ATX

power

(J14)

Audio codec setting (JP5 & JP6)

Line

out

Line

Mic

Game/MIDI

CD-in (J13)

S/PDIF-out

(J6)

Front audio (J7)

IrDA (J12)

CNR setting

(JP4)

COM 2

(J16)

USB3&4

(J17)

JP5 JP6

Battery

DDR SDRAM

DIMM 1

DDR SDRAM

DIMM 2

DIMM standby

power LED

CPU FSB

select (JP8)

Wake-On-

LAN (J18)

Wake-On-

Ring (J19)

Second

fan (J20)

Chassis

fan (J22)

ATX-SW

G-LED

G-SW

HD-LED

RESET

SPEAKER

PWR-LED

J25

Clear

CMOS

(JP9)

IDE 1

(J21)

IDE 2

(J23)

FDD

(J24)

Socket A

VIA

KM266

VT8375

VIA

VT8233ACD

ADMtek

AN983B

AC’97

Winbond

W83697HF

BIOS

AGP Slot

PCI 1 Slot

PCI 2 Slot

PCI 3 Slot

CNR Slot

PCI standby

power LED

3.3VSB standby

for PCI (JP3)

Game/MIDI (J11)

Line-out (J3)

Line-in (J4)

Mic-in (J5)

Square denotes pin 1

Mouse

Power select for PS/2

KB/Mouse (JP1)

Quick Setup Guide

Quick Setup

Guide

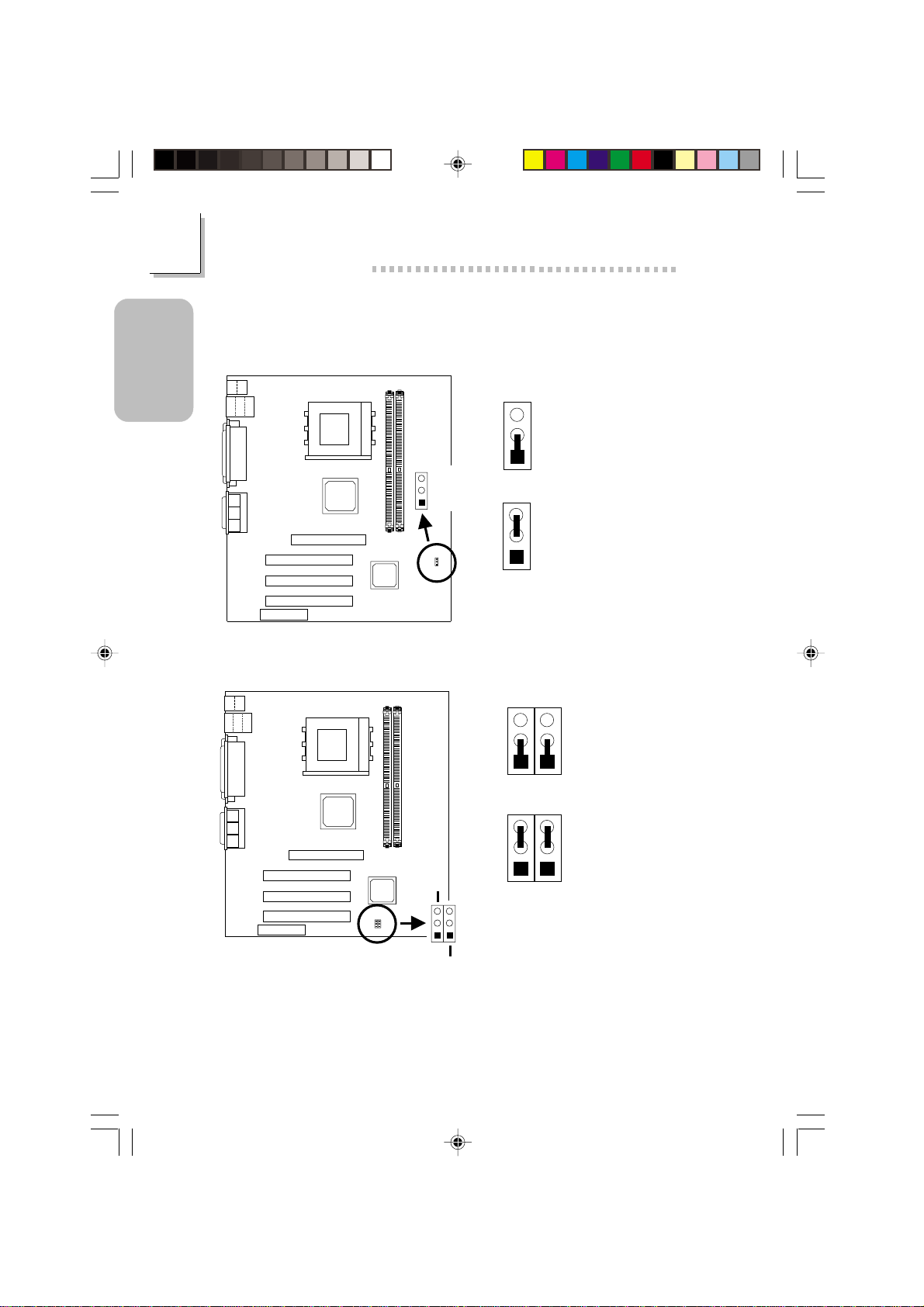

1.2 Jumpers

1.2.1 Clear CMOS Data - JP9

1.2.2 Onboard Audio Codec - JP5 and JP6

If you are not using the onboard audio codec, set pins 2 and 3 to On

(Disabled) and set the “VIA-3058 AC97 Audio” (“VIA OnChip PCI

Device” field) in the Integrated Peripherals submenu of the BIOS to

Disabled.

Clear

CMOS

(JP9)

1-2 On:

Normal (default)

2-3 On:

Clear CMOS Data

JP5

JP6

JP5

JP6

1-2 On:

Enable the Onboard

Audio Codec

(default)

2-3 On:

Disable the Onboard

Audio Codec

JP5

JP6

Audio

codec

setting

(JP5 & JP6)

Quick Setup Guide

Quick Setup

Guide

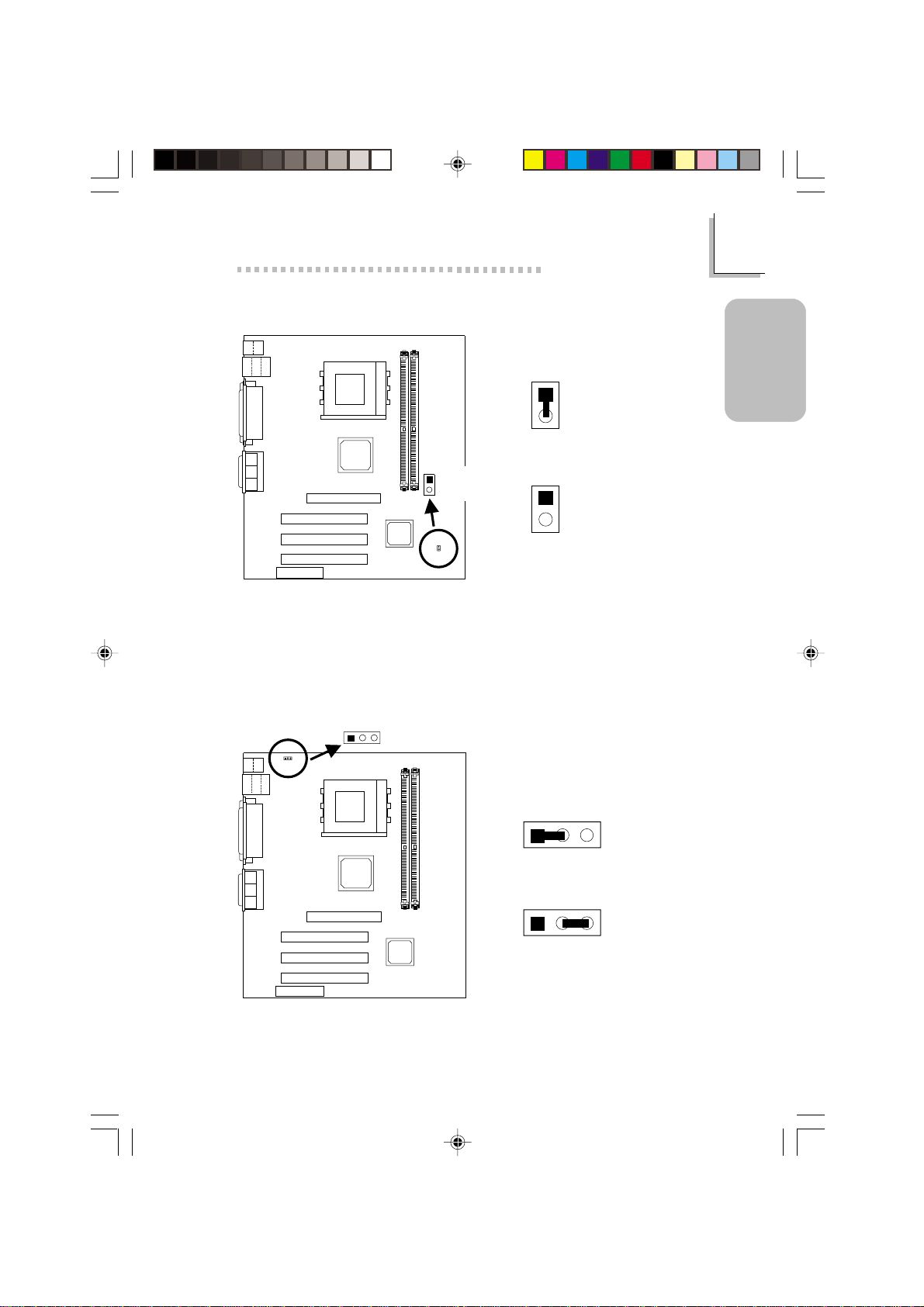

1.2.3 CPU’s Front Side Bus - JP8

To ensure proper boot up and operation of your system, you must power-

off the system then turn off the power supply’s switch or unplug the AC

power cord prior to altering the setting of the jumper.

CPU FSB

select (JP8)

On: 100MHz

(200MHz FSB) CPU

(default)

Off: 133MHz

(266MHz FSB) CPU

123

Power select for

PS/2 KB/Mouse (JP1)

1.2.4 Power Select for PS/2 Keyboard/Mouse (JP1)

123

1-2 On: 5V

(default)

2-3 On: 5VSB

Quick Setup Guide

Quick Setup

Guide

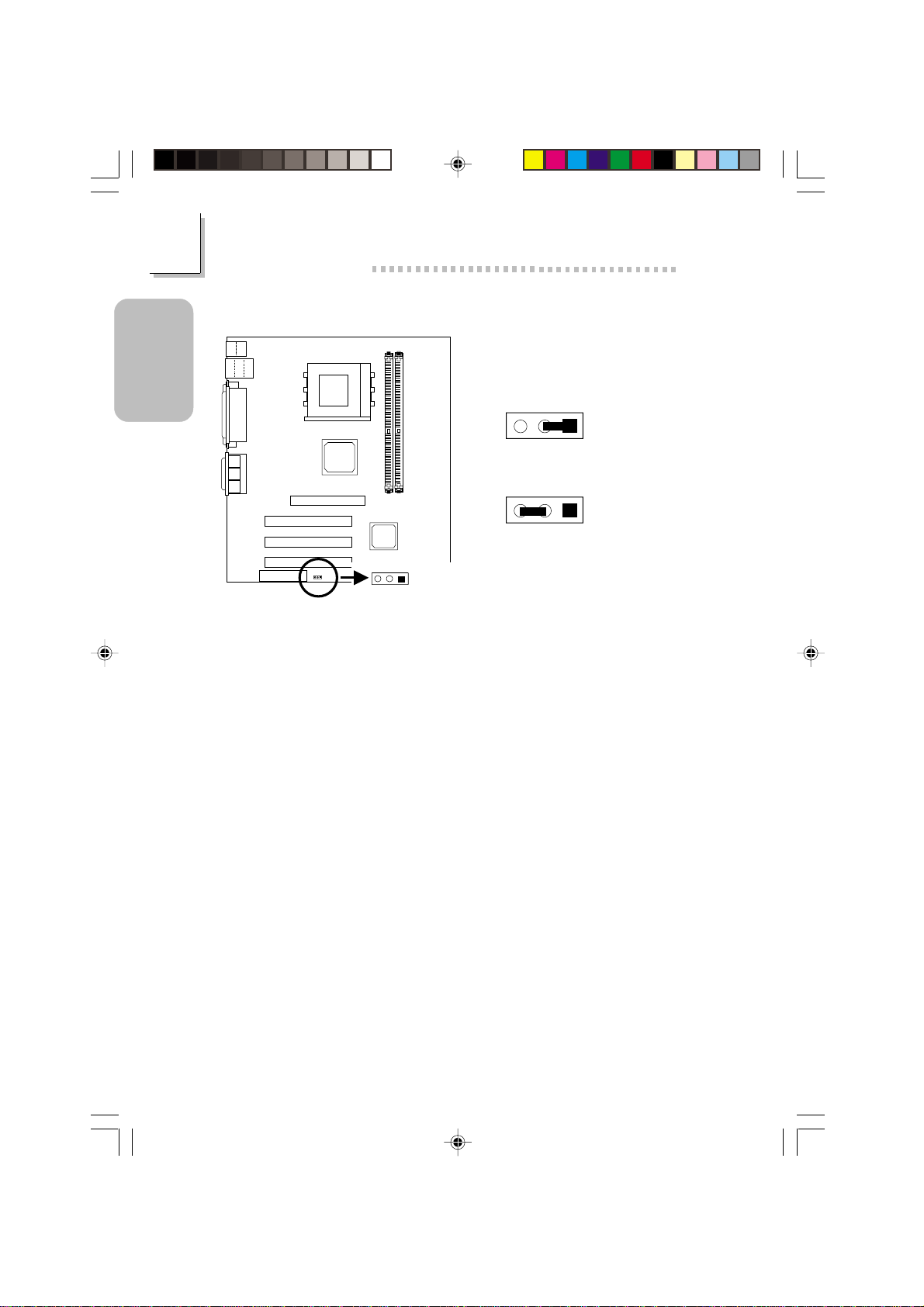

1.2.5 CNR Settings - JP4

321

CNR setting

(JP4)

321

1-2 On:

Secondary (default)

2-3 On:

Primary
