Quick Setup Guide



Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

En lish......................................................................

Chapter 3

Français (French).................................................

Chapter 4

Deutsch (German)................................................

Chapter 5

Español (Spanish)..................................................



Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 System Board Layout..................................................................................................

1. Jumpers.....................................................................................................................................

1.3 Ports and Connectors................................................................................................

1.4 Award BIOS Setup Utility.......................................................................................

Note:

The users manual in the provided CD contains detailed information

about the system board. If, in some cases, some information doesnt

match those shown in this manual, this manual should always be

regarded as the most updated version.

Quick Setup Guide



Quick Setup

Guide

1.1 System Board Layout

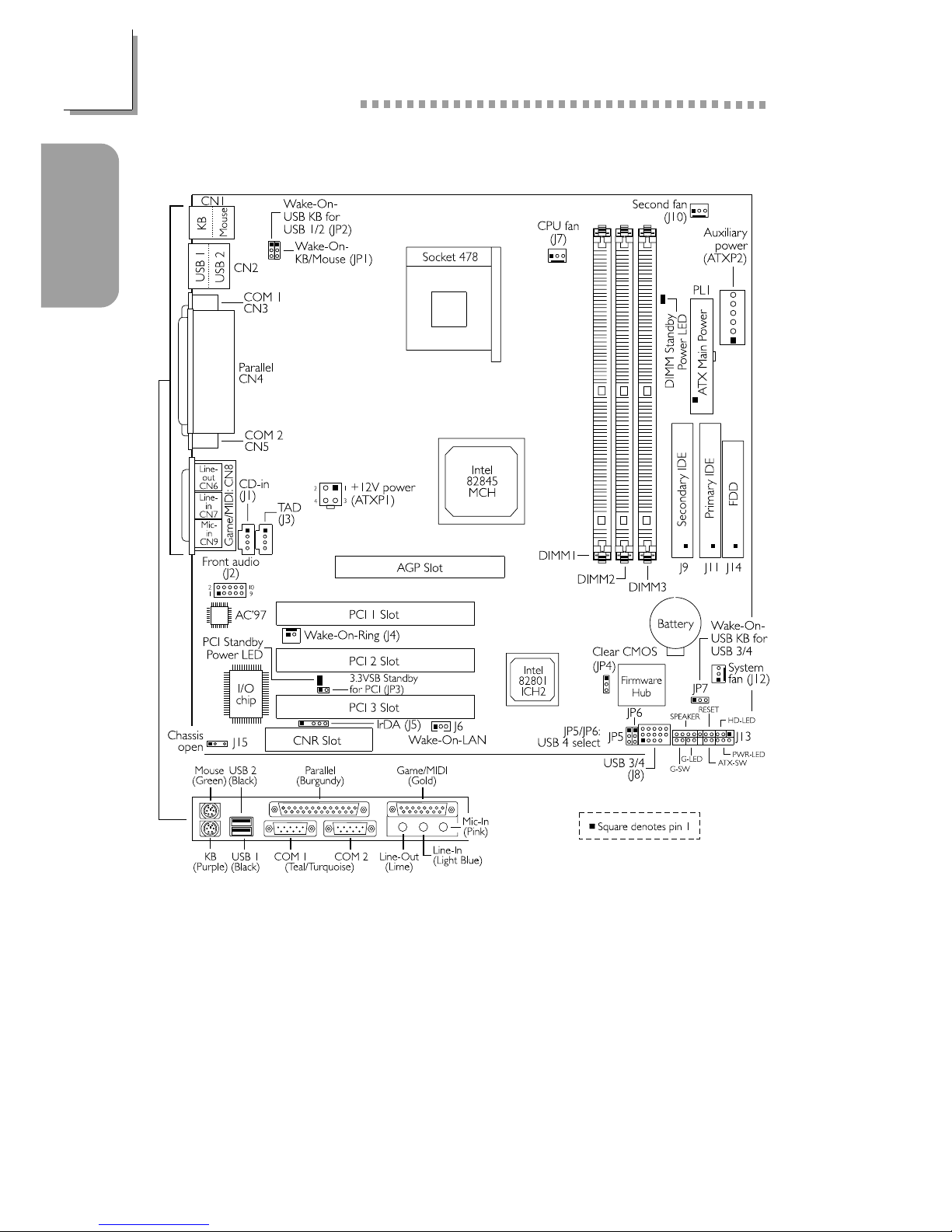

NB32-SC



Quick Setup Guide

Quick Setup

Guide

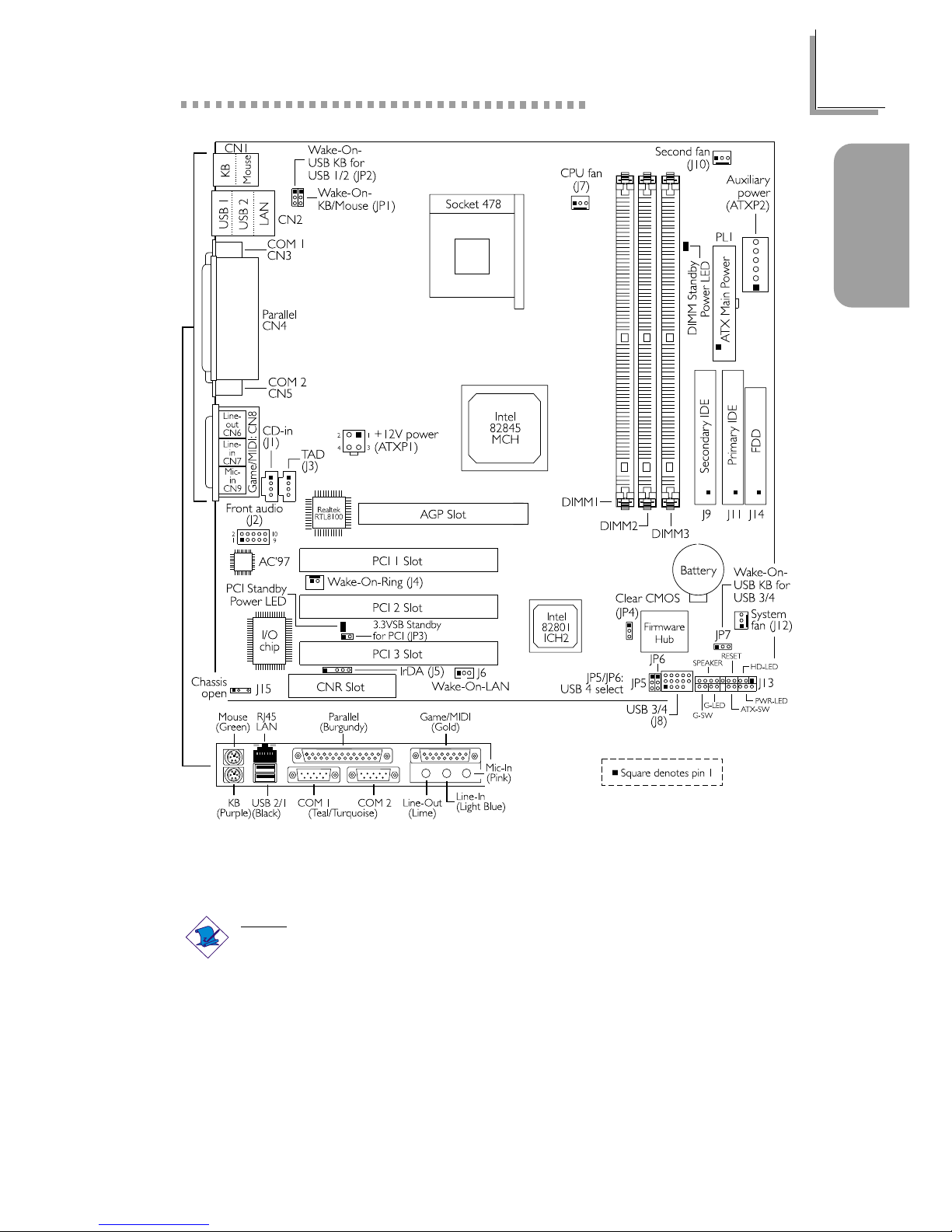

NB32-SL

(Supports Onboard LAN)

Note:

The illustrations on the following pages are based on the NB 2-SL

system board, which is the board that supports onboard LAN.

Quick Setup Guide



Quick Setup

Guide

1.2 Jumpers

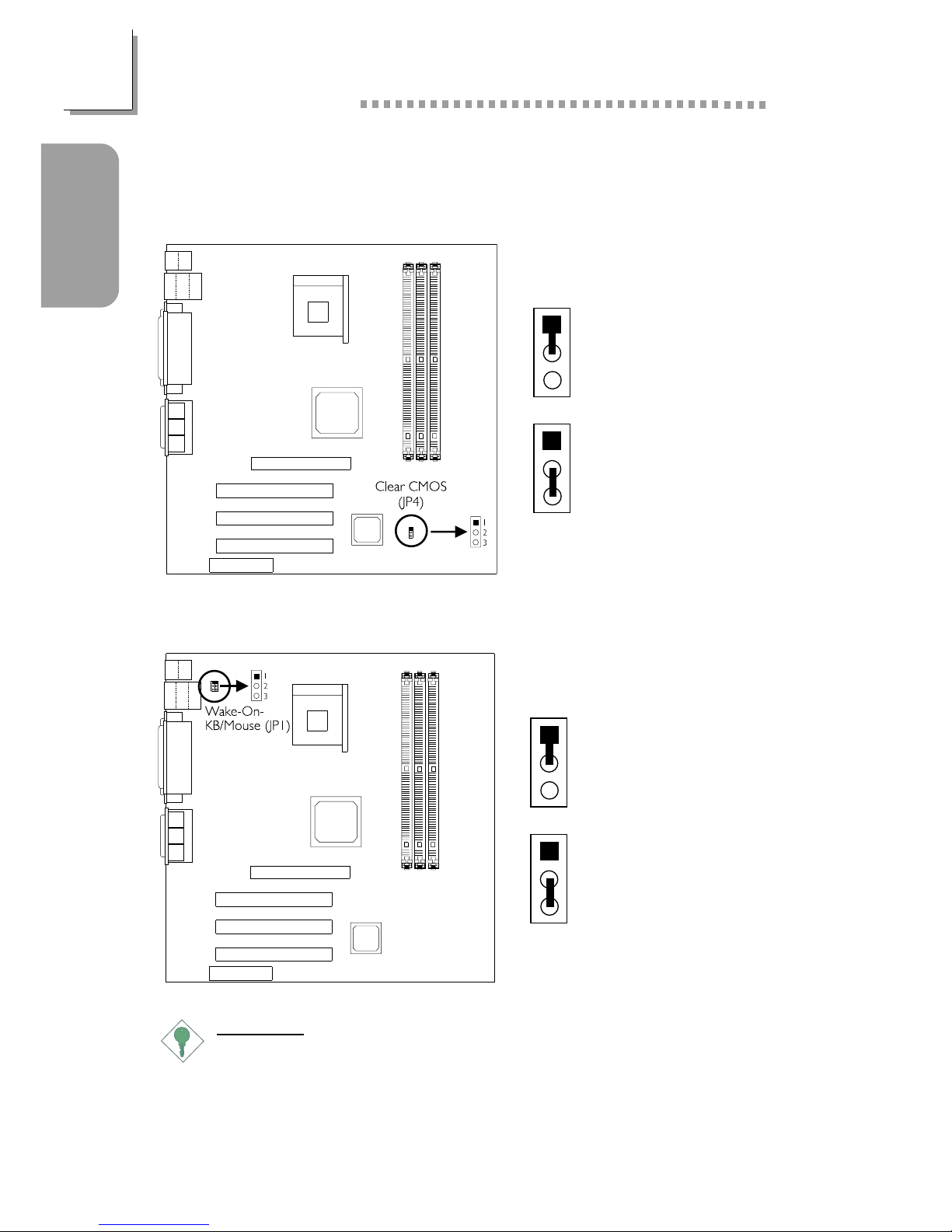

1.2.1 Clear CMOS Data - JP4

-3 On:

Clear CMOS Data

1- On:

Normal (default)

1.2.2 Wake-On-Keyboard / Wake-On-Mouse - JP1

1- On:

Disable the Wake-On-

KB/Mouse function

(default)

-3 On:

Enable the Wake-On-

KB/Mouse function

Important:

The 5VSB power source of your power supply must support

≥

720mA.



Quick Setup Guide

Quick Setup

Guide

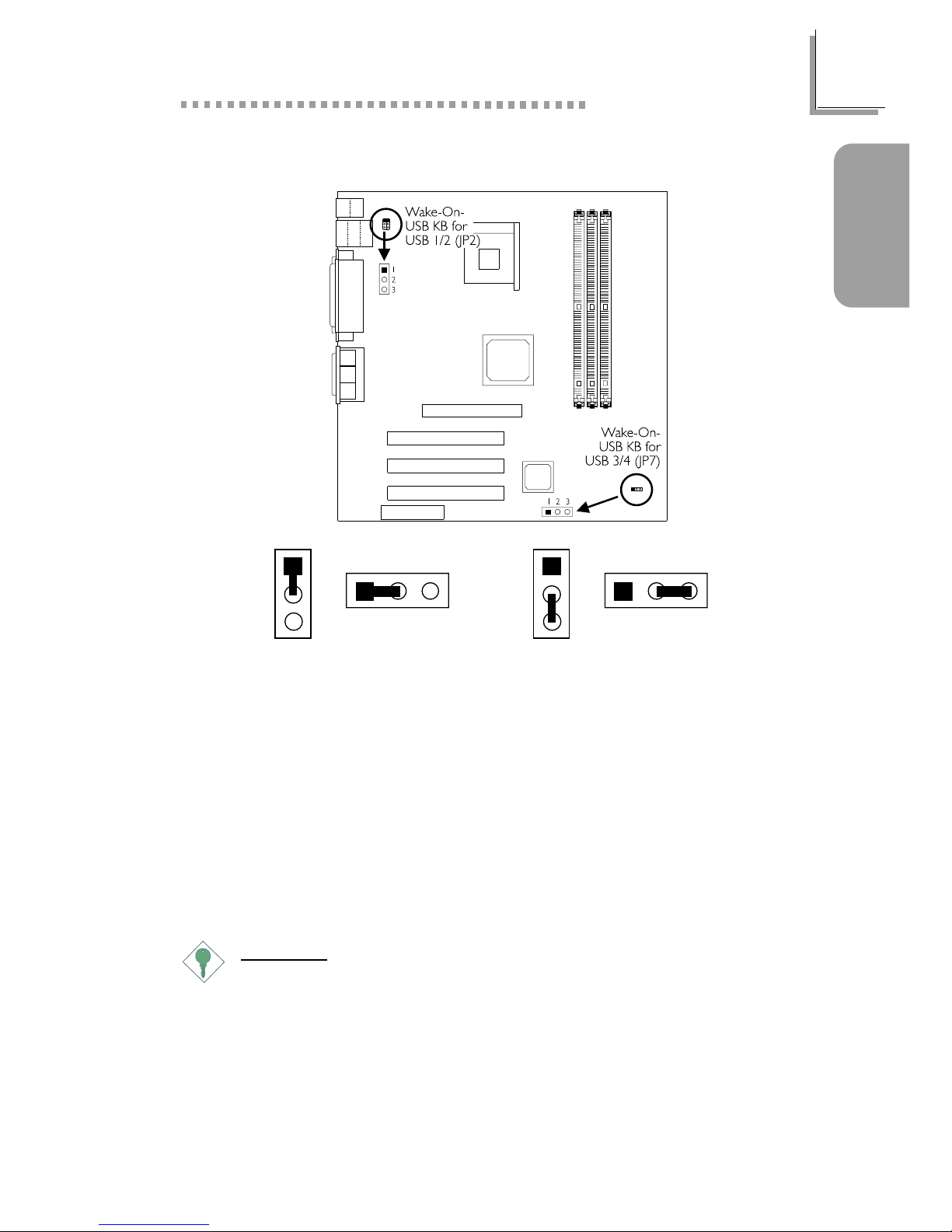

1.2.3 Wake-On-USB Keyboard - JP2 and JP7

Important:

 If you are using the Wake-On-USB Keyboard function for 2 USB

ports, the 5VSB power source of your power supply must

support

≥

1.5A.

 If you are using the Wake-On-USB Keyboard function for 4 USB

ports, the 5VSB power source of your power supply must

support

≥

2A.

JP2 - for the USB keyboard that is connected to the USB 1 or USB

port.

JP7 - for the USB keyboard that is connected to the USB 3 or USB 4

port.

USB KB Wake-Up From S3 in the Power Management Setup submenu

of the BIOS must also be enabled.

JP7

-3 On: Enable1- On: Disable

(default)

Quick Setup Guide



Quick Setup

Guide

1.3 Ports and Connectors

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports

Make sure to turn off your

computer prior to connecting

or disconnecting a mouse or

keyboard. Failure to do so

may damage the system

board.

PS/ Mouse

PS/ Keyboard

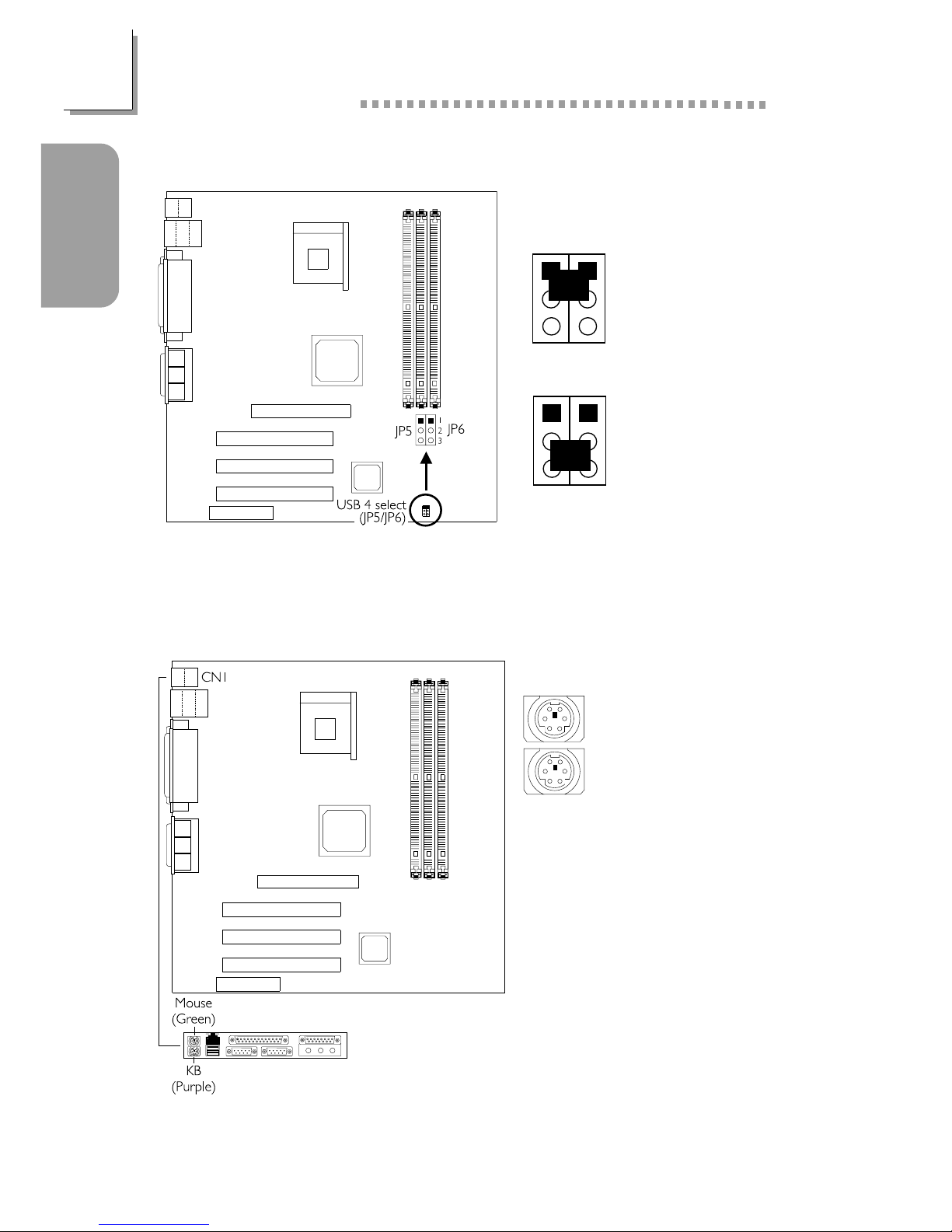

1.2.4 USB 4 Select - JP5 and JP6

1- On:

USB 4 on J8

(default)

-3 On:

USB 4 on CNR

JP5 JP6
