DFI NS70-EC Manuale utente

NS70-EC

NS70-EL

Rev.A+

System Board User’s Manual

Carte Mère Manuel Pour Utilisateur

System-Platine Benutzerhandbuch

Tablero Electrónico del Sistema Manual del Usuario

935-NS7001-200

58200210

This publication contains information that is protected by copyright.

No part of it may be reproduced in any form or by any means or

used to make any transformation/adaptation without the prior

written permission from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any

express or implied warranties of merchantability or fitness for any

particular purpose.The user will assume the entire risk of the use or

the results of the use of this document. Further, the manufacturer

reserves the right to revise this publication and make changes to its

contents at any time, without obligation to notify any person or

entity of such revisions or changes.

Trademarks

Windows®98, Windows®98 SE, Windows®ME, Windows®2000,

Windows NT®4.0 and Windows®XP are registered trademarks of

Microsoft Corporation. Intel®and Pentium®4 are registered

trademarks of Intel Corporation. SiS®is a registered trademark of

Silicon Integrated Systems Corporation. Award is a registered

trademark of Award Software, Inc. Other trademarks and registered

trademarks of products appearing in this manual are the properties

of their respective holders.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range.....

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing,

cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

the manufacturer.

• Dispose of used batteries according to the battery

manufacturer’s

instructions.

Joystick or MIDI port:

• Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that

exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

2. Shielded interface cables must be used in order to comply with

the emission limits.

Quick Setup Guide

Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

English......................................................................

Chapter 3

Français (French).................................................

Chapter 4

Deutsch (German)................................................

Chapter 5

Español (Spanish)..................................................

ADMtek AN983B

RJ45 LAN port

NS70-EL

NS70-EC

Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 System Board Layout..................................................................................................

1.2 Jumpers.....................................................................................................................................

1.3 Ports and Connectors................................................................................................

1.4 Award BIOS Setup Utility.......................................................................................

Quick Setup Guide

Quick Setup

Guide

1.1 System Board Layout

NS70-EC

Mouse

USB 1

USB 2

ATX power

(ATXPWR2)

AC’97

SiS

961B

SiS

645DX

Socket 478

DDR SDRAM

DIMM 1

Floppy

Primary IDE

(IDE 1)

Secondary

IDE (IDE 2)

CPU fan

(J10)

+12V power

(ATXPWR1)

DDR SDRAM

DIMM 2

DDR

SDRAM

DIMM 3

AUX-in

(J4)

CD-in

(J3)

System

fan 2 (J1)

Front audio (J5)

Wake-On-LAN (J7) System

fan 1 (J8)

USB3&4(J9)

IrDA

(J14)

Clear

CMOS

(JP3)

KBMS1

LAN-USB1

COM 1 (CN2)

COM 2 (CN1)

Parallel (CN4)

I/O

chip

Game/Audio

(CN3)

Battery

G-LED

HD-LED

SPEAKER

RESET G-SW

P-LED

SP-LED

SP-SW

J11

Wake-On-

Ring (J6)

BIOS

AGP Slot

PCI 5 Slot

PCI 4 Slot

PCI 2 Slot

PCI 1 Slot

PCI 3 Slot

CNR Slot

Square denotes pin 1

USB 1

(Black)

Mouse

(Green)

(Purple)

COM 1 COM 2

Parallel

(Burgundy)

Game/MIDI

(Gold)

Line-In

(Light Blue)

Speaker-Out

(Lime)

Mic-In

(Pink)

USB 2

(Black)

(Teal/Turquoise)

Quick Setup Guide

Quick Setup

Guide

NS70-EL

(Supports onboard LAN)

Note:

The illustrations on the following pages are based on the NS70-EL

system board, which is the board that supports onboard LAN.

Mouse

LAN

USB 1

USB 2

ATX power

(ATXPWR2)

AC’97

SiS

961B

SiS

645DX

Socket 478

DDR SDRAM

DIMM 1

Primary IDE

(IDE 1)

Secondary

IDE (IDE 2)

CPU fan

(J10)

+12V power

(ATXPWR1)

DDR SDRAM

DIMM 2

DDR

SDRAM

DIMM 3

AUX-in

(J4)

CD-in

(J3)

System

fan 2 (J1)

Front audio (J5)

Wake-On-LAN (J7) System

fan 1 (J8)

USB3&4(J9)

IrDA

(J14)

Clear

CMOS

(JP3)

KBMS1

LAN-USB1

ADMtek

AN983B

I/O

chip

Game/Audio

(CN3)

Battery

G-LED

HD-LED

SPEAKER

RESET G-SW

P-LED

SP-LED

SP-SW

J11

Wake-On-

Ring (J6)

BIOS

AGP Slot

PCI 5 Slot

PCI 4 Slot

PCI 2 Slot

PCI 1 Slot

PCI 3 Slot

CNR Slot

COM 1 (CN2)

COM 2 (CN1)

Parallel (CN4)

Floppy

USB 2/1

(Black)

Mouse

(Green)

(Purple)

COM 1

Parallel

(Burgundy) Game/MIDI

(Gold)

Line-In

(Light Blue)

Speaker-Out

(Lime)

Mic-In

(Pink)

RJ45

LAN

(Teal/Turquoise)

COM 2

Square denotes pin 1

Onboard LAN

setting (JP1)

Quick Setup Guide

Quick Setup

Guide

1.2 Jumpers

1.2.1 Clear CMOS Data - JP3

321

1-2 On:

Clear CMOS Data

321

2-3 On: Normal

(default)

Clear CMOS

(JP3)

321

1.2.2 Onboard LAN - JP1 (NS70-EL only)

123

1-2 On: Enabled

(default)

1232-3 On: Disabled

Onboard LAN

setting (JP1)

123

Quick Setup Guide

Quick Setup

Guide

1.3 Ports and Connectors

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports

The Wake-On-PS/2 Keyboard/

Mouse function, when enabled,

allows a PS/2 keyboard or

PS/2 mouse to wake up a

system from the S3/S4/S5 state.

Make sure to turn off your

computer prior to connecting or

disconnecting a mouse or

keyboard. Failure to do so may

damage the system board.

PS/2 Mouse

PS/2 Keyboard

1.3.2 Parallel Port

Parallel Port

Mouse

(Green)

(Purple)

KBMS1

Parallel

(Burgundy)

CN4

Quick Setup Guide

Quick Setup

Guide

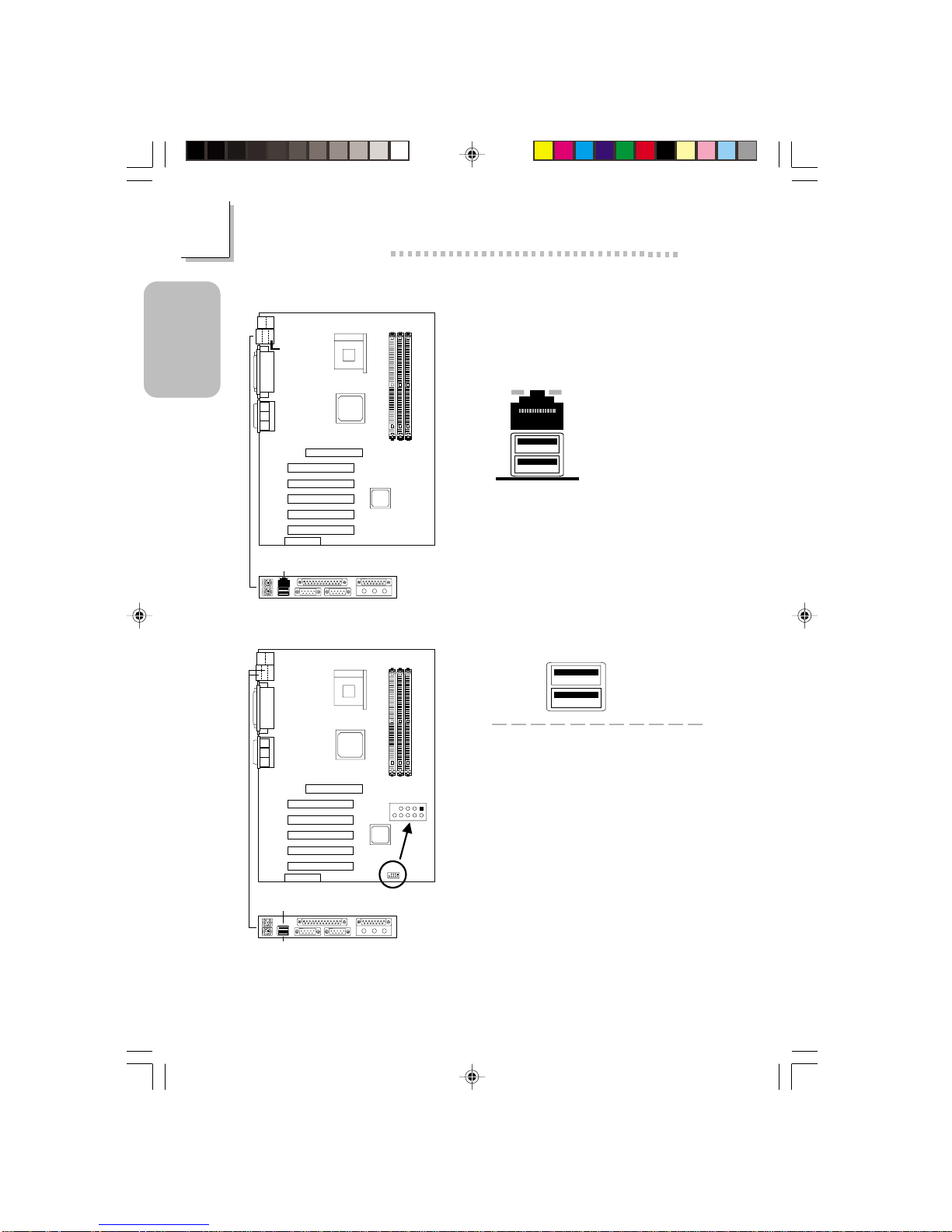

1.3.4 Universal Serial Bus Ports

The Wake-On-USB function, when

enabled, allows a USB keyboard to

wake up a system from the S3/S4/

S5 state.

1 VCC

2 -Data

3 +Data

4 Ground

5 Key

6 VCC

7 -Data

8 +Data

9 Ground

10 N. C.

Onboard USB Ports (USB 1 & 2)

Additional USB Ports (USB 3 and 4)

1.3.3 RJ45 Fast-Ethernet Port (NS70-EL only)

RJ45 LAN

RJ45

LAN

LAN-USB1

USB 2

(Black)

USB 1

(Black)

USB3&4

(J9)
