Digiflex CM743 Come usare

Installer

Reference Guide

CM743

2G Radio Module

Rev 1.6

N12138N12138 RoHS



Introduction

The CM743 2G radio module allows you to interface

compatible security control panels to the GSM/GPRS /

SMS network providing a high reliability primary or

backup reporting path.

The unit is designed to plug onto the main control panel

with the supplied antenna mounting onto the metal

cabinet.

Module Compatibility

Panels Supported Version

Vision-X 2.12

Getting Started

There are four main steps required to conﬁgure the

CM743 for reporting to the control room. The instruc-

tions assume that you already have purchased a SIM

card and that the card has been charged with credit and

activated on the network if necessary.

1. Install the CM743 hardware on the control panel.

2. Install the antenna.

3. Conﬁgure the module’s features and parameters.

4. Conﬁgure the control panel for reporting.

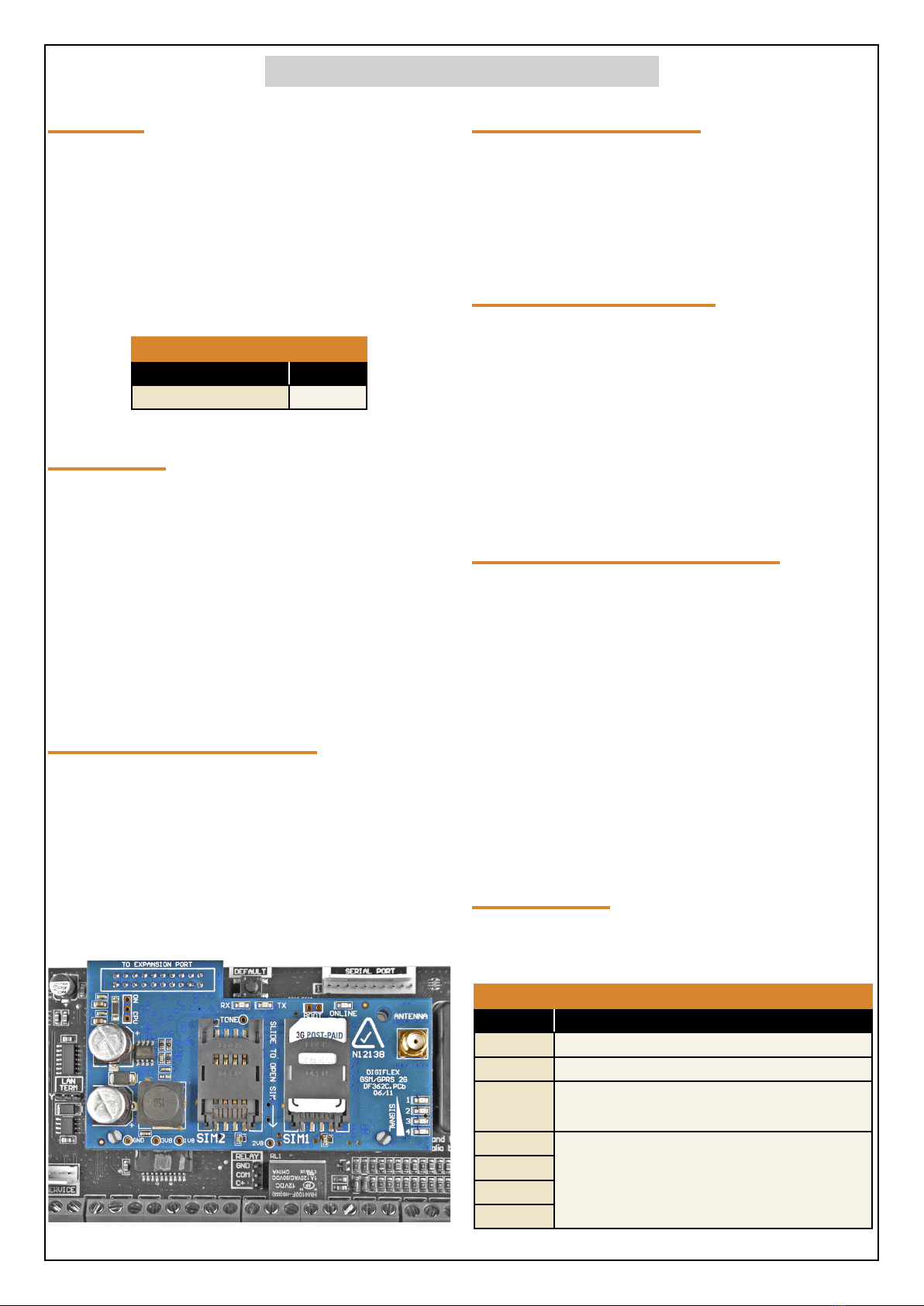

Step 1 - Installing the Radio Module

Ensure that the panel is powered oﬀ before proceeding.

Plug the 3 short plastic standoﬀs into the module and

then plug it onto the Expansion Port header pins on the

panel as shown in. If you are connecting the CM743 to a

panel which also has a CM101 Voice Module ﬁtted then

you should use the longer standoﬀs from the HW750

Riser Kit.

Install the SIM card into the SIM 1 card position.

Step 2 - Installing the Antenna

Remove the knockout in the top of the cabinet and pass

the antenna lead through the hole ensuring the antenna

is on the outside of the cabinet. Screw the lead to the

socket on the radio module before power the panel.

Do not ﬁx the antenna in place at this stage.

Step 3 - Conﬁguring The Module

Once powered the radio will attempt to connect to the

network. This may take up to a minute to complete.

During this time the online indicator on the module will

be on solid. Once the radio has registered the online in-

dicator will begin to ﬂash and the signal strength indica-

tors will show the current signal condition.

Experiment with the position of the antenna to ﬁnd the

best signal strength before ﬁxing it in place.

Step 4 - Conﬁguring The Panel Reporting

Reporting conﬁguration will vary depending on the

required options and whether or not the GSM module is

to be used as the primary or secondary reporting route.

Conﬁgure the required reporting formats in MENU 5-4-0

and 5-4-1. The system can be conﬁgured to report to

the base in CID and also to selected phone numbers via

SMS, or to the base in CID via PSTN line and then CID via

GSM if the PSTN line is cut.

All reporting scenarios are conﬁgured by varying the

programming of the reporting format and reporting

routes conﬁgurations options.

Module Indicators

The module includes 7 led indicators which are used to

show status and signal strength. See table below.

Module Indicators

Indicator Meaning

TX Module Transmitting Data (Tx Data In CID)

RX Module Receiving Data (Kiss Oﬀ In CID)

Online ON Steady = Not Registered On Network

Pulsing = Registered On Network

Signal 1 Signal strength indicators show relative

signal level at the radio. Signal indicator 1

on indicates weak signal and all 4 indicators

on indicates stronger signal strength.

Signal 2

Signal 3

Signal 4

CM743 2G Radio Module

P/N: CM743IRG Rev 1.6 Page 3

CLI Triggers

The CLI trigger tables in MENU 6-5-5-1 and 6-5-6-2 can

be used to store a list of telephone numbers that can

trigger an output on the control panel. If you call the

GSM unit from a telephone number that matches a num-

ber in the CLI list then the appropriate output will be

operated.

An output needs to be programmed with an event type

of CLI Trigger and event assignment of 1 or 2 depending

on which table is to be checked.

Simply call the GSM unit from a telephone number that

is programmed in the CLI trigger list to activate the

output.

Module Status

MENU 6-5-0 can be used to obtain various information

on the radio module. The following information is cur-

rently available.

1) Connected Network

2) Signal Strength in dB

3) IMEI Number

4) Radio Firmware Revision

5) SIM Card Present

Dial Number Test

It is possible to check the SIM phone number by select-

ing the dial number test via GSM option in MENU 5-9-5.

SMS Remote Control

The SMS control option in MENU 6-5-6 allow you to pro-

gram up to 10 telephone numbers that are allowed to

send SMS commands to the GSM unit. The ﬁrst number

in this list is considered as the administrator who will

also receive SMS messages that the GSM unit is unable

to interpret. i.e. any message sent to the radio which

cannot be interpreted will be sent back via SMS to the

ﬁrst number in the SMS control number list.

Numerous commands can be sent to the panel using

the SMS control functions including arming/ disarming

areas, controlling outputs and doors or checking system

status. The panel can also be requested to send a conﬁr-

mation SMS if required.

The control messages must be sent to the SIM phone

number.

The following table shows the correct method for con-

structing the SMS messages. Note there are no spaces

between the ﬁelds only commas as shown.

The MyAlarm SMS Control App for iOS and Android

devices is now available and can be used to simplify the

conﬁguration and sending of SMS control messages.

You can search for the app in the app store or scan the

QR codes below using your device’s barcode reader for a

direct link to the app.

Description SMS String

Arming / Disarming Areas

Turning Area 1 On <User Code>,AREA,1,ON

Turning Area 1 On With Conﬁrmation <User Code>,AREA,1,ON,CONFIRM

Turning Area 1 Part 1 On <User Code>,AREA,1,PART 1

Turning Area 1 Part 1 On With Conﬁrmation <User Code>,AREA,1,PART 1,CONFIRM

Turning Area 1 Part 2 On <User Code>,AREA,1,PART 2

Turning Area 1 Part 2 On With Conﬁrmation <User Code>,AREA,1,PART 2,CONFIRM

Turn Multiple Areas On <User Code>,AREA,1,2,3,4,ON

Turn All Areas On That the User Belongs To <User Code>,AREA,ON

Turning Area 1 OFF <User Code>,AREA,1,OFF

Turning Area 1 OFF With Conﬁrmation <User Code>,AREA,1,OFF,CONFIRM

Check Area Status <User Code>,AREA,1,STATUS

Check Status Of Multiple Areas <User Code>,AREA,1,2,3,STATUS

Turning Outputs On/Oﬀ

Turn Output 1 On <User Code>,OUTPUT,1,ON

Turn Output 1 On With Conﬁrmation <User Code>,OUTPUT,1,ON,CONFIRM

Turn Multiple Outputs On <User Code>,OUTPUT,1,2,3,4,ON

Turn Multiple Outputs On With Conﬁrmation <User Code>,OUTPUT,1,2,3,4,ON,CONFIRM

Turning Output 1 OFF <User Code>,OUTPUT,1,OFF

Turning Output 1 OFF With Conﬁrmation <User Code>,OUTPUT,1,OFF,CONFIRM

Turning Multiple Outputs OFF <User Code>,OUTPUT,1,2,3,4,OFF

Turning Multiple Outputs OFF With Conﬁrmation <User Code>,OUTPUT,1,2,3,4,OFF,CONFIRM

Check Output Status <User Code>,OUTPUT,1,STATUS

Check Status Of Multiple Outputs <User Code>,OUTPUT,1,2,3,4,STATUS

Locking and Unlocking Doors

Unlock Door 1 <User Code>,DOOR,1,UNLOCK

Unlock Door 1 With Conﬁrmation <User Code>,DOOR,1,UNLOCK,CONFIRM

Unlock Multiple Doors <User Code>,DOOR,1,2,3,UNLOCK

Unlock Multiple Doors With Conﬁrmation <User Code>,DOOR,1,2,3,UNLOCK,CONFIRM

Lock Door 1 <User Code>,DOOR,1,LOCK

Lock Door 1 With Conﬁrmation <User Code>,DOOR,1,LOCK,CONFIRM

Lock Multiple Doors <User Code>,DOOR,1,2,3,LOCK

Lock Multiple Doors With Conﬁrmation <User Code>,DOOR,1,2,3,LOCK,CONFIRM

Check Status Of A Door <User Code>,DOOR,1,STATUS

Check Status Of Multiple Doors <User Code>,DOOR,1,2,3,STATUS

System Information

Check System Status <User Code>,SYSTEM,STATUS

SIM Balance Check - Must have been conﬁgured under site settings

Check Current SIM Balance <User Code>,SIMBAL
