Digimerge DBD14 Manuale utente
Model: DBD14
High Resolution
Indoor Dome Camera
INSTRUCTION MANUAL
Please read this manual thoroughly before use and keep it handy for future reference.
-2-
-3-
INTRODUCTION
Features
Model Features:
• 1/3”SonySuperHAD™IICCD
• 2.8-10.5mmVarifocalDay/NightLens
• 540TVlinesofresolution
• VIDEOOUT(BNC)
• Operatesin12VDC
• IndoorDomeModel
• CameraMounting:Surface
• Full3Axismovement
• Easyinstallation.
General DBD14
Image Sensor 1/3” Sony Super HAD(tm) II CCD
Effective Pixel H: 768 V: 494
Effective Pixel Area H: 5.59mm V: 4.68mm
Scan System 2:1 Interlace NTSC
Scan Frequency H: 15.734KHz, V: 59.94Hz
Synchronization Internal
Minimum Illumination 0.1 Lux F 1.2
S/N Ratio 50dB @ AGC Off
Resolution 540 TV Line
White Balance Auto 1800°K ~ 10500°K
AES Speed 1/60~1/100000 Sec
Gain Control Auto
BLC Manual
Video Output 1.0Vpp @ 75 ohm
Termination BNC Female
Lens/ Lens Mount Manual 2.8 – 10.5mm F1.4
Viewing Angle H: 96.7° ˜ 24.1°, V: 71.2° ˜ 18.2°, D: 124.3° ˜ 30.2°
Power Source 12Vdc
Power Consumption Max 3.5W
Operating Tem Range -10°C ~ 50° C
Operating Range Within 90% RH
Dimension 150x109mm
Gamma 0.45
Housing Material ABS
Dome Bubble Material Polycarbonate
SPECIFICATIONS
-4-
MEASUREMENTS
PACKING CONTENTS
PARTS DESCRIPTION
Indoor Dome package contains the following:
Camera in housing ---------------------------------1
Instruction guide (This Document)-------------1
Drill Template ----------------------------------------1
Mounting screw pack ------------------------------1
Front View Bottom View
Dome cover (transparent)
Camera body
Dome base
Mounting Holes
Wire hole
Body cover
150 mm
5.91 in
109 mm
4.29 in
95.0 mm
3.74 in
56.0 mm
2.20 in
140.0 mm
5.51 in
140.0 mm
5.51 in
-5-

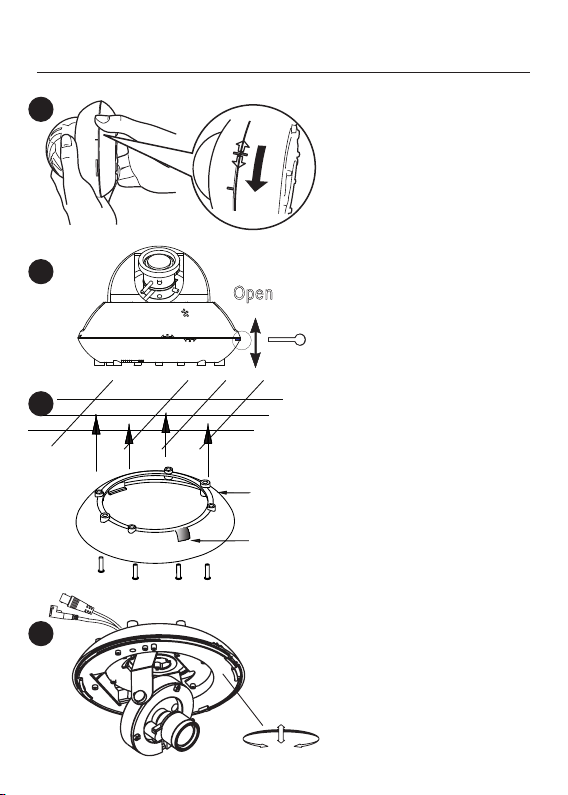

INSTALLATION. INDOOR DOME
1) Remove camera base by twisting it
clockwise to lign up the arrows on
the side of the camera housing (see
FIG 1). Remove the camera base by
pulling it away from the camera.
Note: Dome cover is attached to a cord
to stop falling off.
FIG 1
FIG 2
2) Remove the dome cover by
inserting a at screw driver into the
slot next to the dome cover release
clip (See FIG 2) and pressing down
on the screwdriver
Note: If your installation requires
cable to be from side of dome,
remove the cut away portion of
the base.
3) Attach base to surface using drill
template as a guide.
With base attached, re-t the body of
the camera onto the base using the
arrows as a guide (see FIG 1) and
turning the camera clockwise.
4) Adjust camera viewing angle and
secure into place by tightening
thumb screws.
Re-attach the camera cover, using the
dome cover release clip as a guide,
until it snaps into place.
Note: Lens adjustment levers are by
default in the locked position.
Turn counter clockwise to
unlock. Tighten levers to
secure lens setting.
Camera Body
Open Close
1
2
3
4
Ceiling
Dome base
Cut Away for
Cable side exit
OpenOpen
-6-
Refer to the following table if you are experiencing trouble with your camera.
Contact an authorized technician if the table does not provide you with a solution
to the trouble.
¤ Nothing appears on the screen.
¤ Check that the power cord and line connection between the camera and monitor are connected
properly.
¤ Check that you have properly connected VIDEO cable to the camera VIDEO output jack.
• The image on the screen is dim.
¤ Is lens stained with dirt? Clean lens with soft, clean cloth.
¤ Adjust the monitor contrast & brightness controls
¤ Re-position the camera if necessary.
• The image on the screen is dark.
¤ Adjust the contrast feature of the monitor.
¤ If you have an intermediate device, set the 75Ω/ Hi-z properly.
¤ The camera is not working properly, and the surface of the camera is hot.
• Color is not correct.
¤ Under certain incandescent lighting,some color shifting may take place.
This is normal due to sensitivity to IR light.
When the resistance value of copper wire is at [20˚C(68˚F)]
Copper wire size (AWG) #24(0.22mm) #22(0.33mm) #20(0.52mm) #18(0.83mm)
Resistance (Ω/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an
excessively long adaptor output line for connection to the camera may affect the performance of
the camera.
*Standard voltage for camera operation : DC 12V ±10%
*There may be some deviation in voltage drop depending on the type of wire and the
manufacturer.
• Be sure to connect power only after all the installation is complete.
• Use the UL listed, CLASS 2 power transformer for 12v adaptor.
TROUBLE SHOOTING
Notes
