Digital Projection LIGHTNING 30-1080p Manuale utente

LIGHTNING 30/40/45-1080p

LIGHTNING 40/45-1080p Ultra Contrast

LIGHTNING 40/45-1080p 3D

LIGHTNING 40/45-1080p 3D-Ultra Contrast

Super High Brightness Digital Video Projector

16:9 widescreen display

User Manual

108-721B

All manuals and user guides at all-guides.com

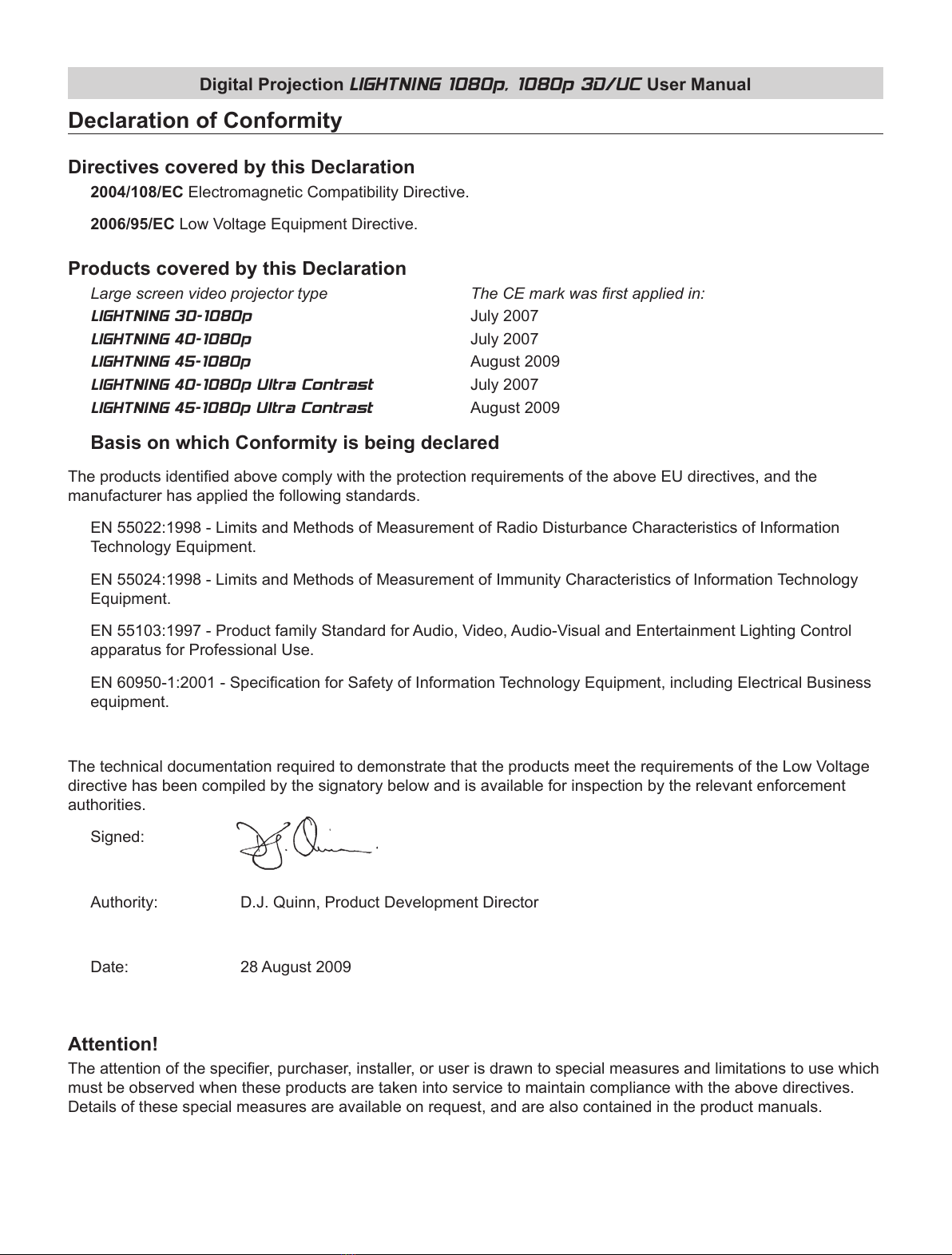

Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual

Declaration of Conformity

Directives covered by this Declaration

2004/108/EC Electromagnetic Compatibility Directive.

2006/95/EC Low Voltage Equipment Directive.

Products covered by this Declaration

Large screen video projector type The CE mark was rst applied in:

LIGHTNING 30-1080p July 2007

LIGHTNING 40-1080p July 2007

LIGHTNING 45-1080p August 2009

LIGHTNING 40-1080p Ultra Contrast July 2007

LIGHTNING 45-1080p Ultra Contrast August 2009

Basis on which Conformity is being declared

The products identied above comply with the protection requirements of the above EU directives, and the

manufacturer has applied the following standards.

EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information

Technology Equipment.

EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information Technology

Equipment.

EN 55103:1997 - Product family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control

apparatus for Professional Use.

EN 60950-1:2001 - Specication for Safety of Information Technology Equipment, including Electrical Business

equipment.

The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage

directive has been compiled by the signatory below and is available for inspection by the relevant enforcement

authorities.

Signed:

Authority: D.J. Quinn, Product Development Director

Date: 28 August 2009

Attention!

The attention of the specier, purchaser, installer, or user is drawn to special measures and limitations to use which

must be observed when these products are taken into service to maintain compliance with the above directives.

Details of these special measures are available on request, and are also contained in the product manuals.

All manuals and user guides at all-guides.com

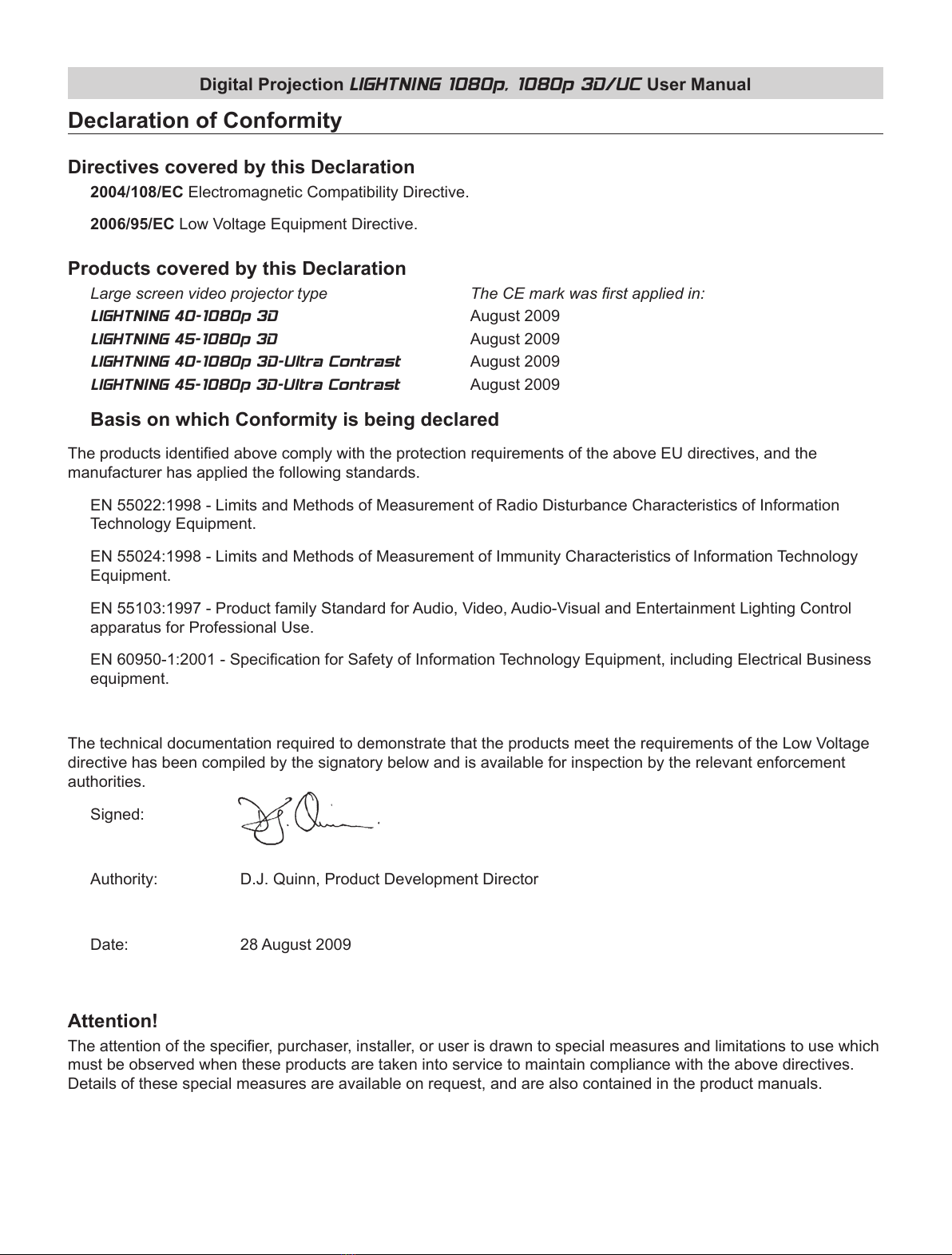

Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual

Declaration of Conformity

Directives covered by this Declaration

2004/108/EC Electromagnetic Compatibility Directive.

2006/95/EC Low Voltage Equipment Directive.

Products covered by this Declaration

Large screen video projector type The CE mark was rst applied in:

LIGHTNING 40-1080p 3D August 2009

LIGHTNING 45-1080p 3D August 2009

LIGHTNING 40-1080p 3D-Ultra Contrast August 2009

LIGHTNING 45-1080p 3D-Ultra Contrast August 2009

Basis on which Conformity is being declared

The products identied above comply with the protection requirements of the above EU directives, and the

manufacturer has applied the following standards.

EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information

Technology Equipment.

EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information Technology

Equipment.

EN 55103:1997 - Product family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control

apparatus for Professional Use.

EN 60950-1:2001 - Specication for Safety of Information Technology Equipment, including Electrical Business

equipment.

The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage

directive has been compiled by the signatory below and is available for inspection by the relevant enforcement

authorities.

Signed:

Authority: D.J. Quinn, Product Development Director

Date: 28 August 2009

Attention!

The attention of the specier, purchaser, installer, or user is drawn to special measures and limitations to use which

must be observed when these products are taken into service to maintain compliance with the above directives.

Details of these special measures are available on request, and are also contained in the product manuals.

All manuals and user guides at all-guides.com

Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual

All manuals and user guides at all-guides.com

Rev B. January 2010 Page v

Please read this user manual carefully before using the projector, and keep

the manual handy for future reference.

A serial number is located on the side of the projector. Record it here:

Symbols used in this guide

Warnings

ELECTRICAL WARNING: this symbol indicates that there is a danger of

electrical shock unless the instructions are closely followed.

WARNING: this symbol indicates that there is a danger of physical

injury to yourself and/or damage to the equipment unless the

instructions are closely followed.

NOTE: this symbol indicates that there is some important information that

you should read.

Trademarks

IBM is a registered trademark of International Business Machines Corporation.

Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.

Other product and company names mentioned in this user’s manual may be the

trademarks of their respective holders.

Product revision

Because we at Digital Projection continually strive to improve our products, we

may change specications and designs, and add new features without prior

notice. Projectors built prior to this revision of the User Manual may therefore not

include all the features described.

Manual revision

Date Description Revision

April 2008 Rev A

January 2010 3D and Ultra Contrast added Rev B

•

Important Information

All manuals and user guides at all-guides.com

Page vi Rev B. January 2010

Important Information Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual

General precautions

Do not open the cabinet. There are no user serviceable parts inside.

Use only the power cable provided.

Ensure that the power outlet includes a Ground connection, as this

equipment MUST be earthed.

Take care to prevent small objects such as paper or wire from falling

into the projector. If this does happen, switch off immediately, and have

the objects removed by authorised service personnel.

Do not expose the projector to rain or moisture, and do not place any

liquids on top of the projector.

Unplug before cleaning, and use a damp, not wet, cloth.

Do not touch the power plug with wet hands.

Do not touch the power plug during a thunder storm.

Handle the power cable carefully and avoid sharp bends. Do not use a

damaged power cable.

There are no user-serviceable parts inside the lamp module. The whole

module should be replaced and returned to Digital Projection for re-

furbishment.

Take care when removing the lamp module, as it is heavy (>10kg).

Take care not to touch the glass surface of the lamp module. If you do

accidentally touch the glass, it should be cleaned before use.

Do not use the lamp for more than 750 hours, as this may cause

serious lamp failure, damage the lamp module and cause extra cost on

replacement.

Xenon lamps produce high intensity light. Do not look directly at the

light coming from the lamp housing, or the lens, or allow items such

as magnifying lenses to be placed in the light path. This could result in

serious eye damage.

Do not touch the ventilation outlets, as they will become hot in use.

Do not cover the ventilation outlets or inlets.

Do not cover the lens whilst the projector is switched on. This could

cause a re

Always allow the projector to cool for 5 minutes before switching off

the power, moving the projector or changing the lamp.

Never use strong detergents or solvents such as alcohol or thinners to

clean the projector and lens.

Notes

All manuals and user guides at all-guides.com

Rev B. January 2010 Page vii

Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual Important Information

Installation precautions

Connect the LAN cable only to a computer LAN connection. Other

similar connectors may have a dangerously high voltage source.

The projector must be installed only by suitably qualied personnel, in

accordance with local building codes.

The projector should be installed as close to the power outlet as

possible.

The power connection should be easily accessible, so that it can be

disconnected in an emergency.

Ensure that there is at least 30cm (12in) of space between the

ventilation outlets and any wall, and 10cm (4in) on all other sides.

Do not install the projector close to anything that might be affected by

its operational heat, for instance, polystyrene ceiling tiles, curtains etc.

The projector weighs over 100kg (200lbs). Use safe handling

techniques when lifting the projector.

Do not stack more than four projectors.

When stacking projectors, the stack MUST be vertical, to ensure that

the stresses are distributed to all for frame couplings.

Before installation, make sure that the surface, ceiling or rigging that is

to support the projector is capable of supporting the combined weight

of the projector and lens (see specication for exact weights).

Separate backup safety chains or wires should always be used for each

projector.

Do not place heavy objects on top of the projector chassis. Only

the rigging frame is capable of withstanding the weight of another

projector.

Do not drop or jarr the projector.

The lens release lever should always be set to the locked position to

prevent the lens from falling out.

Place the projector in a dry area away from sources of dust, moisture,

steam, smoke, sunlight or heat.

Do not tilt the projector more than ±12° from side to side when in use,

as this may cause serious lamp failure, damage the lamp module and

cause extra cost on replacement. The projector my be tilted forwards

and backwards as necessary.

Notes

±12°

360°

All manuals and user guides at all-guides.com

Page viii Rev B. January 2010

Important Information Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual

Notes

Operation and conguration precautions

Do not make changes to the networking conguration unless you

understand what you are doing, or have taken advice from your

Network Manager. If you make a mistake, it is possible that you will lose

contact with the projector. Always double-check your settings before

pressing the APPLY button. Always keep a written note of the original

settings, and any changes you have made.

Software update should NOT be carried out except by, or with the

supervision of, Digital Projection Service personnel.

Compliance with international standards

Noise

GSGV Acoustic Noise Information Ordinance

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

RF Interference

FCC

The Federal Communications Commission does not allow any modications or

changes to the unit EXCEPT those specied by Digital Projection in this manual.

Failure to comply with this government regulation could void your right to operate

this equipment.

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant with Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area may cause harmful interference, in

which case the user will be responsible for correcting any interference.

This equipment contains an FCC approved RF transmitter module with FCC ID:

R68WIPORT.

European Waste Electrical and Electronic Equipment

(WEEE) Directive

Digital Projection Ltd is fully committed to minimising Waste Electrical and

Electronic Equipment. Our products are designed with reuse, recycling

and recovery of all components in mind. To this end, at end of life, your

projector may be returned to Digital Projection Ltd or its agent so that the

environmental impact can be minimised.

All manuals and user guides at all-guides.com

Rev B. January 2010 Page ix

Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual Important Information

Notes

Digital Projection Contact details

Digital Projection Limited,

Greenside Way, Middleton, Manchester M24 1XX, UK.

Registered in England No. 2207264, Registered Ofce: as above

Tel +44 (0) 161 947 3300

Fax +44 (0) 161 684 7674

Email [email protected], service@digitalprojection.co.uk

Web Site www.digitalprojection.co.uk

Digital Projection Inc.

55 Chastain Road, Suite 115, Kennesaw, GA 30144. USA

Tel (USA) 770 420 1350

Fax (USA) 770 420 1360

Email [email protected]

Web Site www.digitalprojection.com

All manuals and user guides at all-guides.com

Page x Rev B. January 2010

Important Information Digital Projection LIGHTNING 1080p, 1080p 3D/UC User Manual

All manuals and user guides at all-guides.com

Altri manuali per LIGHTNING 30-1080p

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Digital Projection Proiettore

Digital Projection

Digital Projection TITAN SX+ 500 Manuale utente

Digital Projection

Digital Projection M-Vision Manuale utente

Digital Projection

Digital Projection LIGHTNING 30isx+ Manuale operativo

Digital Projection

Digital Projection LIGHTNING 38-WUXGA 3D Ultra Contrast Manuale utente

Digital Projection

Digital Projection E-Vision 6800 3D Series Manuale utente

Digital Projection

Digital Projection THUNDER 9000gv Manuale utente

Digital Projection

Digital Projection dVision 1080p Manuale utente

Digital Projection

Digital Projection HIGHlite 660 Series Manuale utente

Digital Projection

Digital Projection HIGHlite Laser 3D Series Manuale utente

Digital Projection

Digital Projection HIGHlite Laser 4K Series Manuale utente

Digital Projection

Digital Projection E-Vision 7500 Series Manuale utente

Digital Projection

Digital Projection E-Vision 6500 Series Manuale utente

Digital Projection

Digital Projection HIGHlite 740 Series Manuale utente

Digital Projection

Digital Projection E-Vision 6900 Series Manuale utente

Digital Projection

Digital Projection INSIGHT 4K Quad Series Manuale utente

Digital Projection

Digital Projection iVision Manuale utente

Digital Projection

Digital Projection M-Vision 930 3D Series Manuale utente

Digital Projection

Digital Projection M-Vision LED 1000 1080p Manuale utente

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Manuale operativo

Digital Projection

Digital Projection Titan 1080p-250 Manuale operativo

Digital Projection

Digital Projection E-Vision Laser 7500 Series Manuale utente

Digital Projection

Digital Projection 7000 Series Manuale utente

Digital Projection

Digital Projection E-Vision 8000 Series Manuale utente

Digital Projection

Digital Projection HIGHlite 12000Dsx+ Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
