Digital Projection M-Vision LED+IR series Manuale utente
Rev D July 2014
USER GUIDES
INSTALLATION AND QUICK-START GUIDE
CONNECTION GUIDE
OPERATING GUIDE
REMOTE COMMUNICATIONS GUIDE
112-564D
M-Vision LED+IR series
High Brightness Digital Video Projector
16:10 widescreen display
Rev D July 2014
M-Vision LED+IR series
High Brightness Digital Video Projector
16:10 widescreen display
INSTALLATION AND QUICK-START GUIDE
112-158D
BOOK CONTENTS
INSTALLATION AND
QUICK-START GUIDE
About this Guide
Symbols used in this guide
Warnings
Digital Projection M-Vision LED+IR series CONTENTS Installation and Quick-Start Guide
Rev D July 2014
CONTENTS
About this Guide ...................................................................................Inst_1
Symbols used in this guide..................................................................Inst_1
Warnings .......................................................................................Inst_1
Notes.............................................................................................Inst_1
Product revision....................................................................................Inst_1
What’s in the Box?...............................................................................Inst_2
Getting to Know the Projector....................................................Inst_3
Front and rear views .............................................................................Inst_3
Remote control......................................................................................Inst_3
Control panel and indicators................................................................Inst_4
Error codes....................................................................................Inst_4
Positioning the Screen and Projector....................................Inst_5
Operating the Projector...................................................................Inst_6
Switching the Projector On .................................................................Inst_6
Selecting an Input Signal or Test Pattern ...........................................Inst_6
Input signal....................................................................................Inst_6
Test pattern ...................................................................................Inst_6
Adjusting the Lens................................................................................Inst_7
Zoom.............................................................................................Inst_7
Focus ............................................................................................Inst_7
Shift...............................................................................................Inst_7
Adjusting the Image..............................................................................Inst_8
Orientation.....................................................................................Inst_8
Aspect Ratio..................................................................................Inst_8
Picture...........................................................................................Inst_8
Switching the Projector Off..................................................................Inst_8
Digital Projection M-Vision LED+IR series ABOUT THIS GUIDE Installation and Quick-Start Guide
Page Inst_1
Rev D July 2014
About this Guide
Please read this guide carefully before using the projector, and keep it handy for future reference.
A serial number is located on the side of the projector. Record it here:
Symbols used in this guide
Warnings
ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely
followed.
WARNING: this symbol indicates that there is a danger of physical injury to yourself and/or damage to the equipment unless
the instructions are closely followed.
Notes
NOTE: this symbol indicates that there is some important information that you should read.
Product revision
Because we at Digital Projection continually strive to improve our products, we may change specications and designs, and add new features
without prior notice. Projectors built prior to this revision of the Operating Guide may therefore not include all the features described.
Digital Projection M-Vision LED+IR series WHAT'S IN THE BOX? Installation and Quick-Start Guide
Page Inst_2
Rev D July 2014
What’s in the Box? Notes
Make sure your box contains
everything listed. If any pieces are
missing, contact your dealer.
You should save the original box
and packing materials, in case you
ever need to ship your Projector.
Only one power cable - dependent
on the destination territory - will be
supplied with the projector.
Remote control
(109-685)
2x AAA batteries
User Manual on disc
(115-759)
Important Information
(110-287)
Power cable 10A, United Kingdom
(102-180)
Power cable 10A, Europe
(102-163)
Power cable 13A, North America
(102-165)
Projector
5mm Allen wrench
Digital Projection M-Vision LED+IR series GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide
Page Inst_3
Rev D July 2014
Getting to Know the Projector

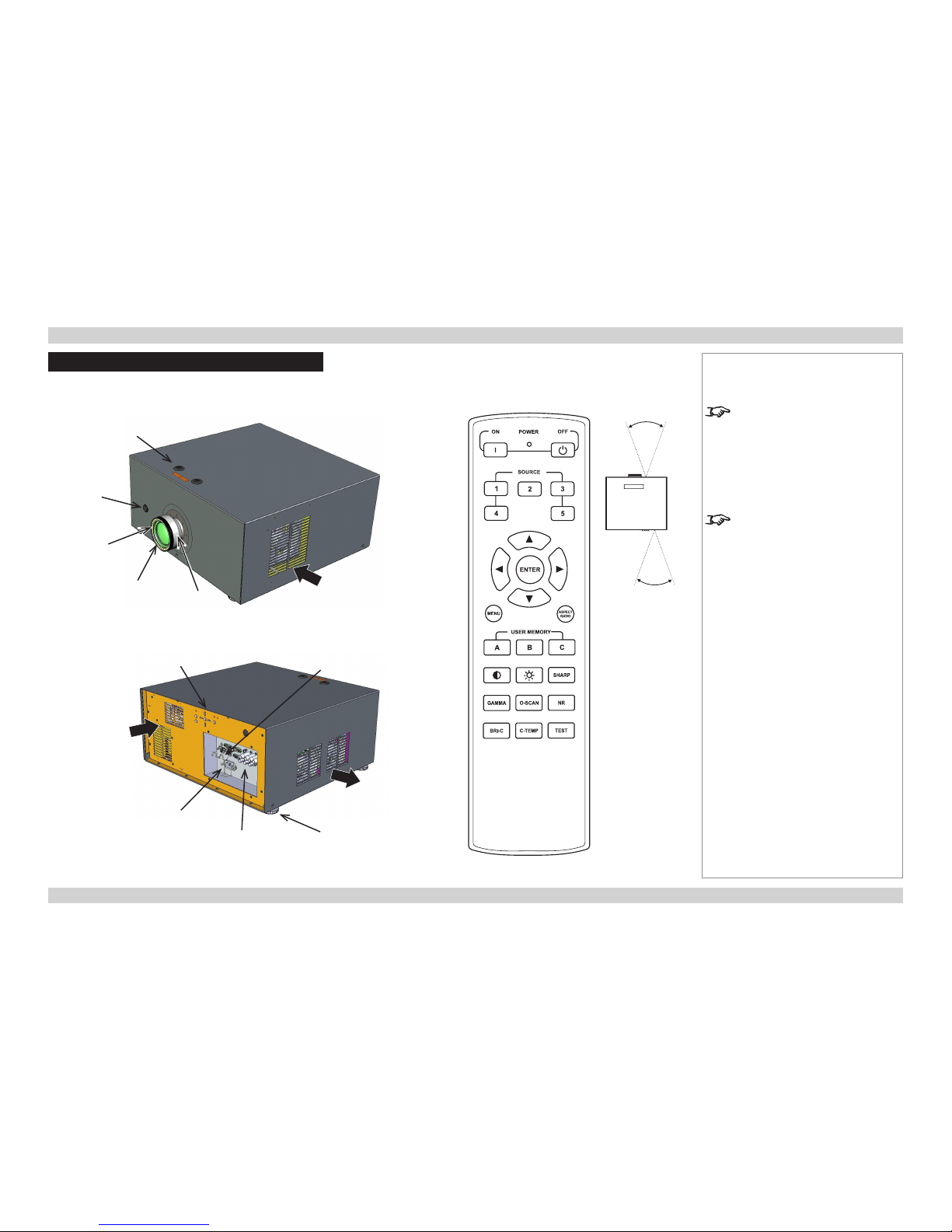

Front and rear views
Notes
The projector uses the standard
MVision series infra-red remote
control.
Some of the controls are duplicated
on the projector control panel, as
shown on the next page.
For full details of how to use the
controls and the menu system, see
the Operating Guide.
Lens
Connection
panel
Mains
input
Control
panel
Adjustable
feet
Front
infra-red
window
Rear
infra-red
window
Remote control
Infra-red
reception
40°
40°
Air
inlets
Air
inlet
Lens shift
controls
Focus
adjustment
Zoom
adjustment
Air
outlets
Digital Projection M-Vision LED+IR series GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide
Page Inst_4
Rev D July 2014

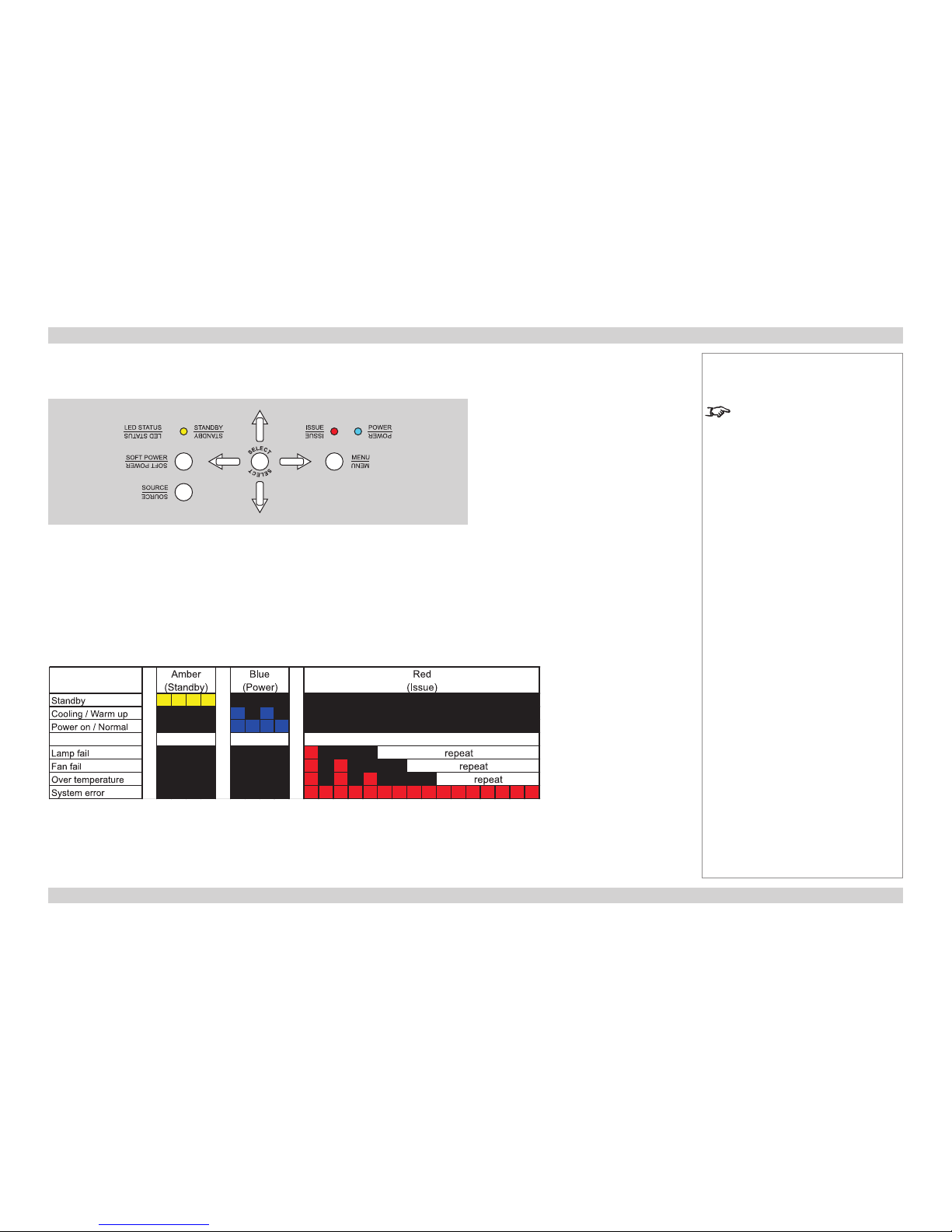

Control panel and indicators
Some of the controls from the remote control are duplicated on the projector control panel, as
shown here.
The yellow Standby indicator will light when the projector is in standby. The blue Power
indicator will ash when the projector is cooling down or warming up. It will be steady when
the projector is in normal running mode, as shown in the chart below.
Error codes
If the projector detects an error, the red Issue indicator will ash, as shown in the chart below.
For example, if the fan fails, the red indicator will ash twice followed by a pause, then the
sequence will repeat until the error condition is corrected.
Notes
For full details of how to use the
controls and the menu system, see
the Operating Guide.
Digital Projection M-Vision LED+IR series POSITIONING THE SCREEN AND PROJECTOR Installation and Quick-Start Guide
Page Inst_5
Rev D July 2014
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
Ensure that there is at least
30cm (12in) of space between the
ventilation outlets and any wall,
and 10cm (4in) on all other sides.
Do not stack more than 3
projectors.
Positioning the Screen and Projector
• Install the screen, ensuring that it is in the best position for viewing by your audience.
• Mount the projector, ensuring that it is at a suitable distance from the screen for the image to ll the screen. Set the adjustable feet so that
the projector is level, and perpendicular to the sceen.

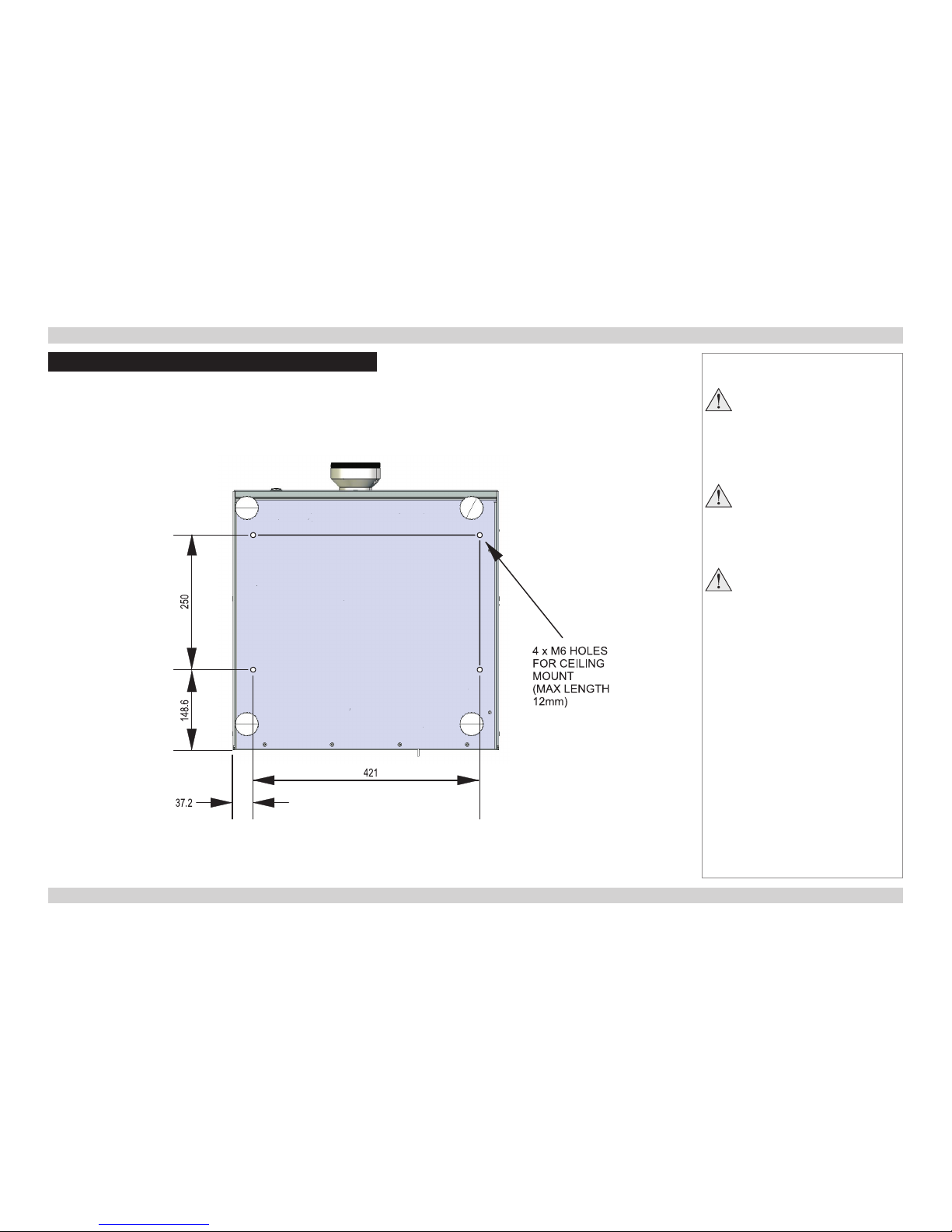

• The dimension drawing below shows the positions of the feet for table mounting, and the xing holes for ceiling mounting.
Digital Projection M-Vision LED+IR series OPERATING THE PROJECTOR Installation and Quick-Start Guide
Page Inst_6
Rev D July 2014
Operating the Projector
Switching the Projector On
• Connect the power cable between the mains supply and the projector. Switch on at the switch next to the power connector.
• Wait until the self-test has completed and the Standby indicator on the projector control panel shows amber. The lamp will be off and the
projector will be in STANDBY mode.
• Press POWER on the control panel or on the remote control, and hold for 3 seconds.
The Power indicator on the control panel will ash blue for a few seconds whilst the lamp comes up to full brightness. When the projector
is ready for use, the Power indicator will show steady blue.
Selecting an Input Signal or Test Pattern
Input signal
• Connect an image source to the projector. The signal should be automatically detected by the projector, and should be displayed within a
two or three seconds.
• If more than one signal is connected, then select the image you want to display:
Select from ve of the inputs using to on the remote control,
or press SOURCE on the control panel to cycle through all the inputs.
or use Source Select in the General menu.
Test pattern
If you have no image source connected to the projector, then you can display a test pattern instead:
Select a Test Pattern from the General menu.
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
For full details of how to connect an
image source to the projector, see
the Connection Guide.
For full details of how to use the
controls and the menu system, see
the Operating Guide.
Digital Projection M-Vision LED+IR series OPERATING THE PROJECTOR Installation and Quick-Start Guide
Page Inst_7
Rev D July 2014

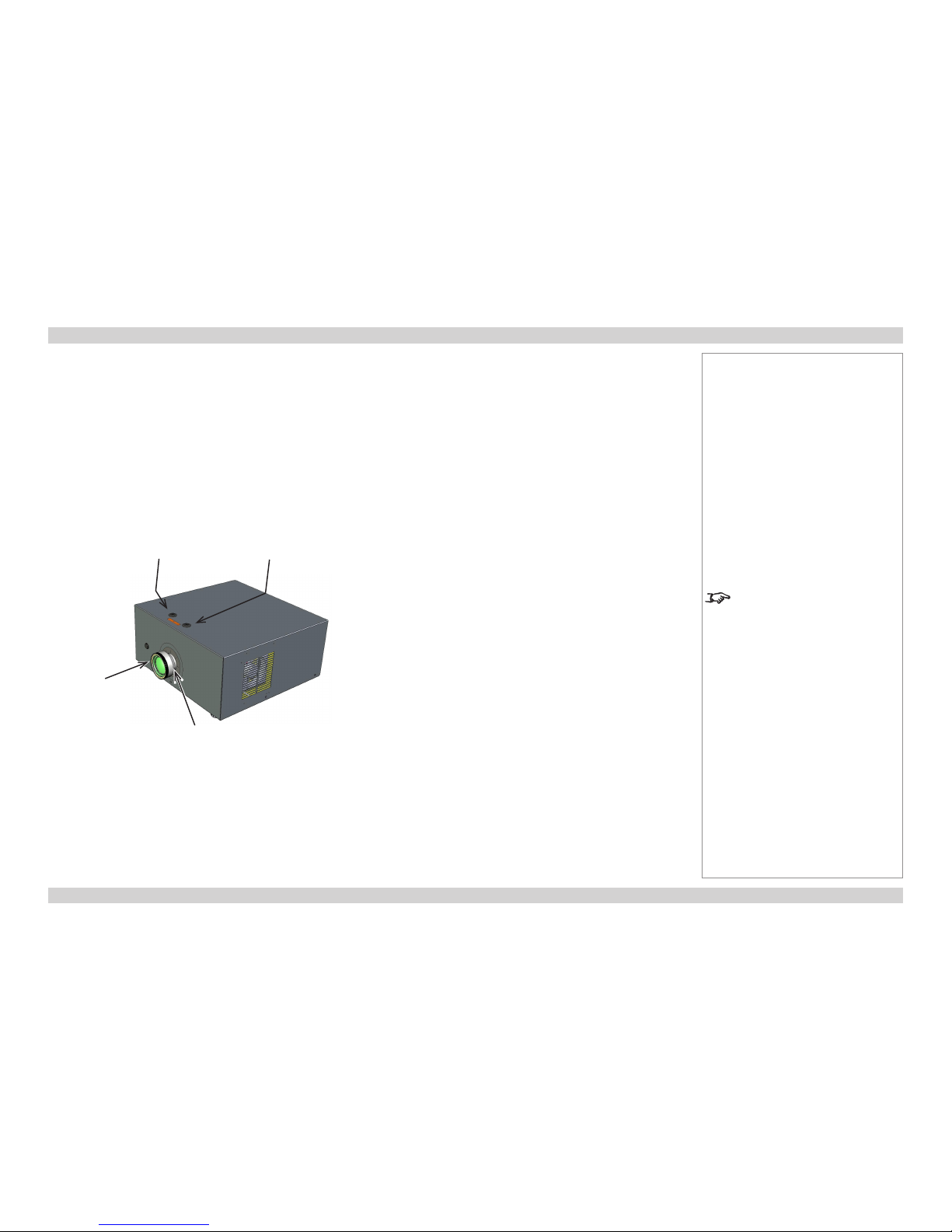

Adjusting the Lens
Zoom
• Turn the smooth ring on the lens, closest to the case, to adjust the zoom so that the image lls the screen.
Focus
• Turn the knurled ring at the outer end of the lens, to adjust the focus until the image is sharp.
Shift
• Use the 5mm allen wrench to adjust the horizontal and vertical position of the image.
Notes
Iftheprojectoristtedwiththexed
0.73:1 lens then there are no lens
shift controls.
Horizontal
shift
Vertical
shift
Focus
adjustment
Zoom
adjustment
