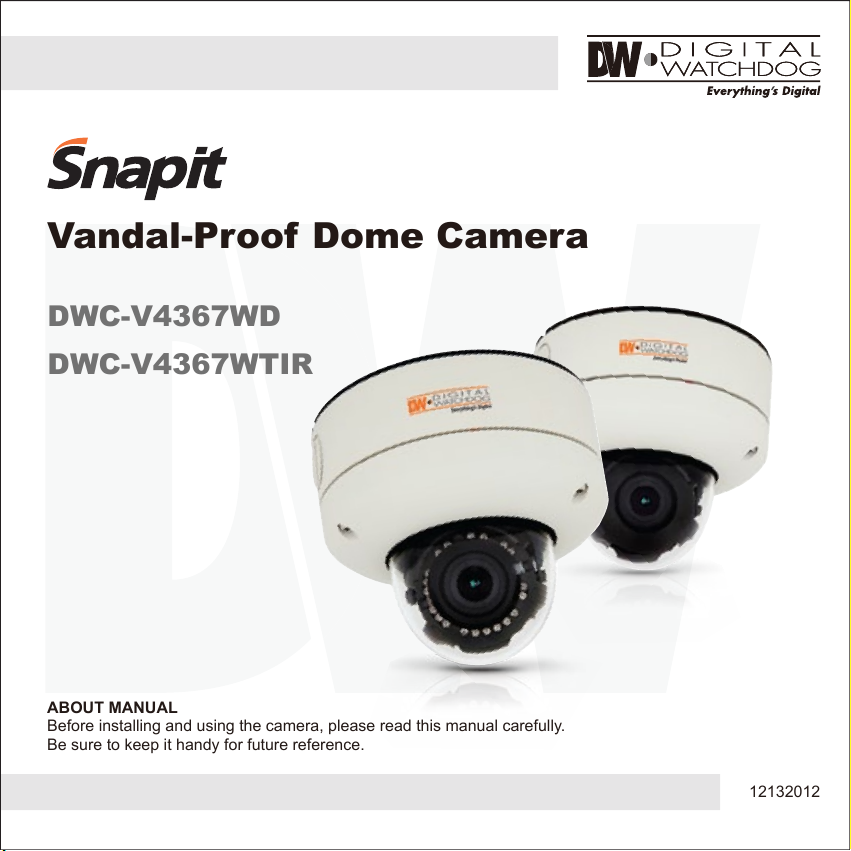

Digital Watchdog Snapit DWC-V4367WD Manuale utente

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Vandal-Proof Dome Camera

DWC-V4367WD

DWC-V4367WTIR

12132012

All manuals and user guides at all-guides.com

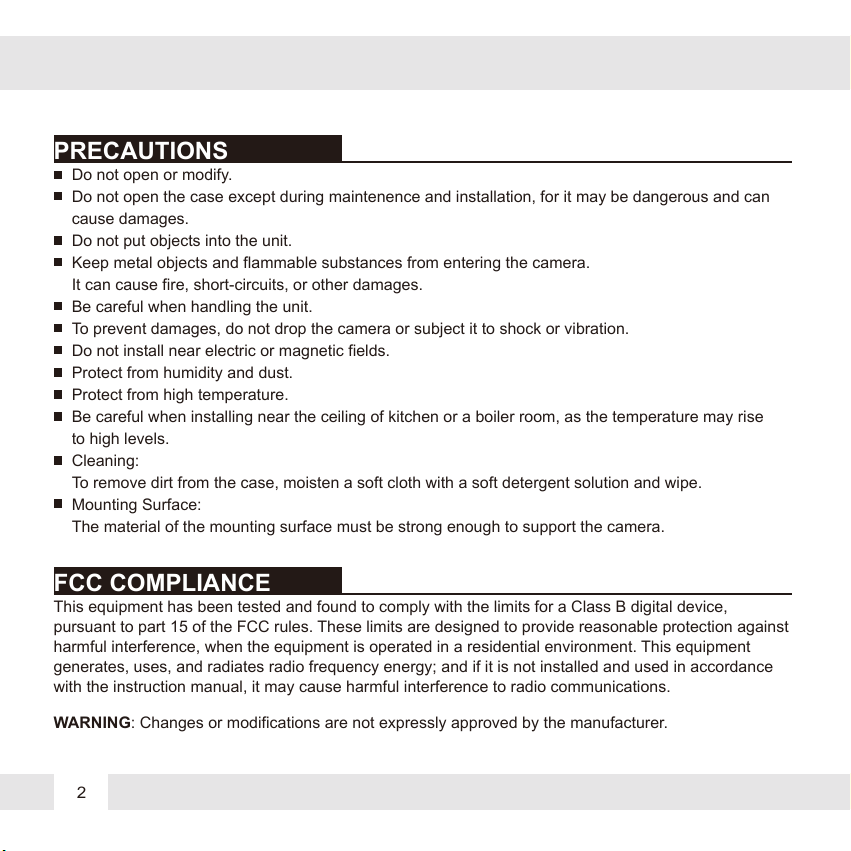

PRECAUTIONS

FCC COMPLIANCE

Do not open or modify.

Do not open the case except during maintenence and installation, for it may be dangerous and can

cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room, as the temperature may rise

to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against

harmful interference, when the equipment is operated in a residential environment. This equipment

generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance

with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

All manuals and user guides at all-guides.com

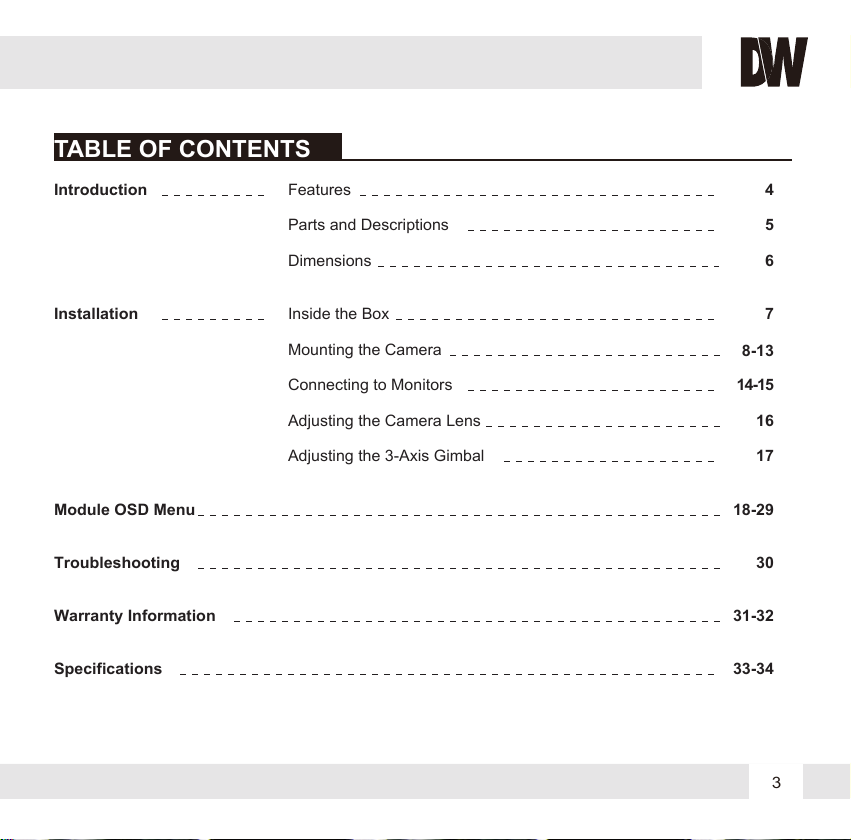

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mounting the Camera

Connecting to Monitors

Adjusting the Camera Lens

8-13

14-15

18-29

31-32

33-34

Adjusting the 3-Axis Gimbal 17

All manuals and user guides at all-guides.com

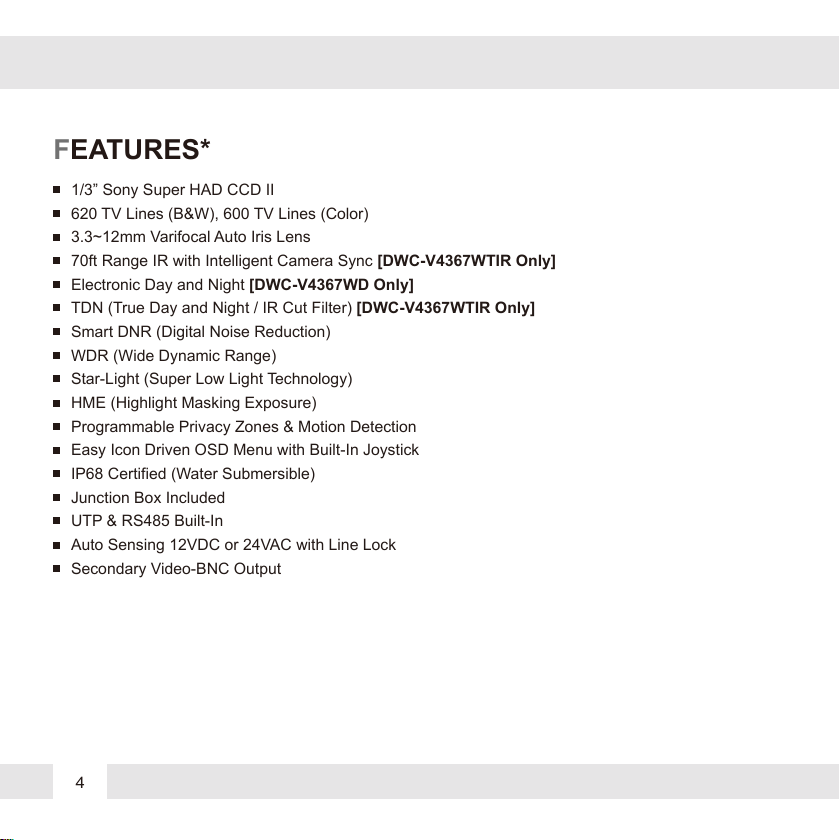

FEATURES*

1/3” Sony Super HAD CCD II

620 TV Lines (B&W), 600 TV Lines (Color)

3.3~12mm Varifocal Auto Iris Lens

70ft Range IR with Intelligent Camera Sync [DWC-V4367WTIR Only]

Electronic Day and Night [DWC-V4367WD Only]

TDN (True Day and Night / IR Cut Filter) [DWC-V4367WTIR Only]

Smart DNR (Digital Noise Reduction)

WDR (Wide Dynamic Range)

Star-Light (Super Low Light Technology)

HME (Highlight Masking Exposure)

Programmable Privacy Zones & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

IP68 Certified (Water Submersible)

Junction Box Included

UTP & RS485 Built-In

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

All manuals and user guides at all-guides.com

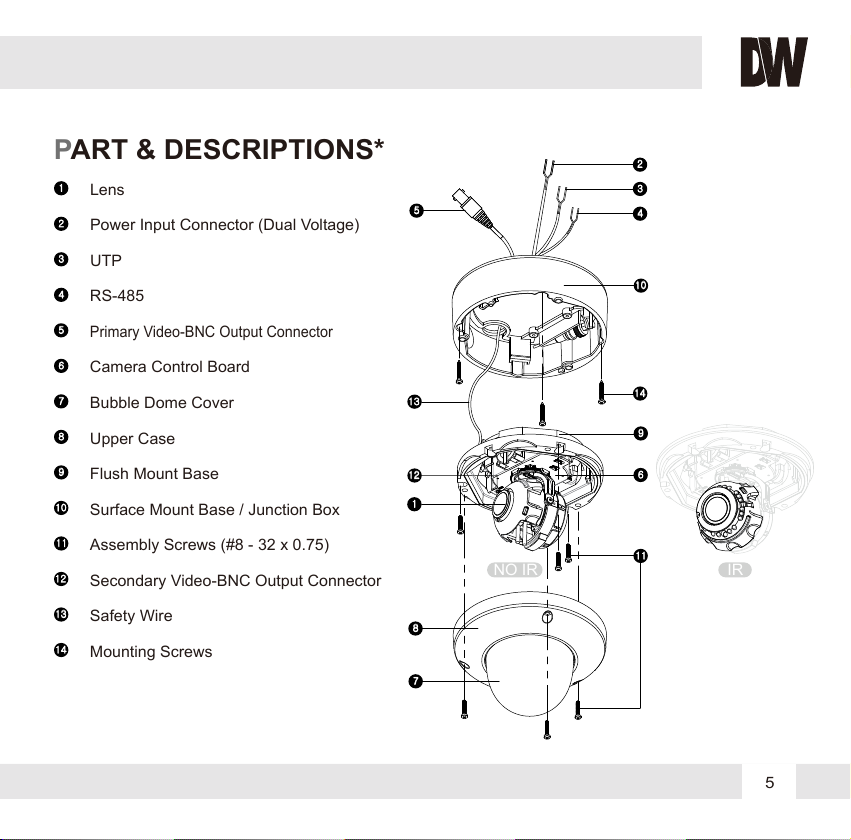

PART & DESCRIPTIONS*

1Lens

Power Input Connector (Dual Voltage)

UTP

RS-485

Primary Video-BNC Output Connector

Camera Control Board

Bubble Dome Cover

Upper Case

Flush Mount Base

Surface Mount Base / Junction Box

Assembly Screws (#8 - 32 x 0.75)

Secondary Video-BNC Output Connector

Safety Wire

Mounting Screws

NO IR IR

All manuals and user guides at all-guides.com

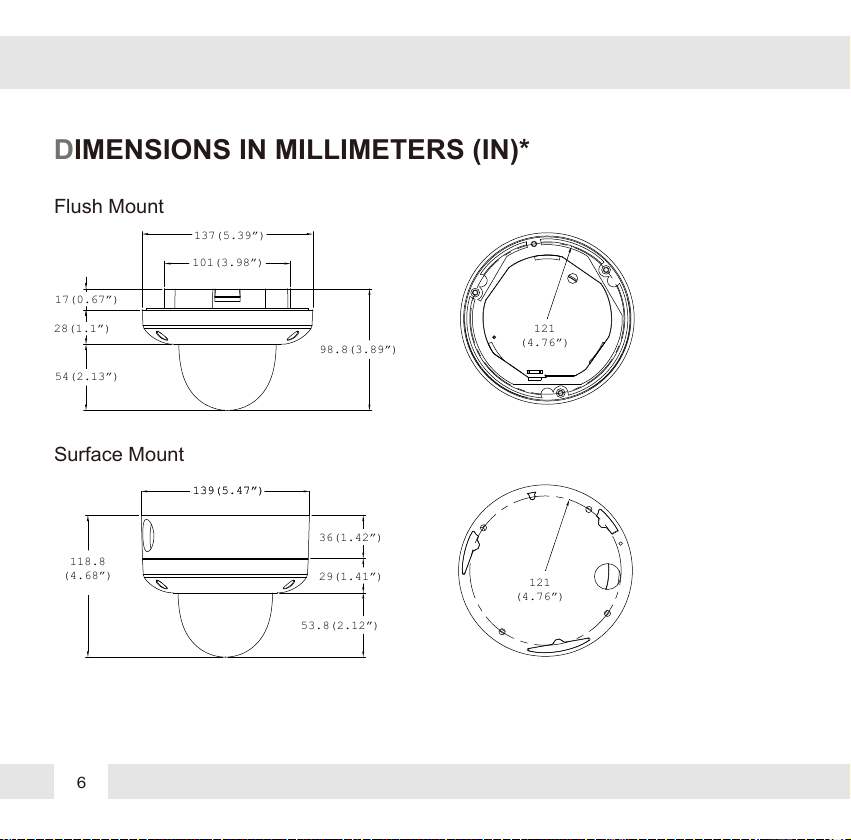

DIMENSIONS IN MILLIMETERS (IN)*

101(3.98”)

137(5.39”)

17(0.67”)

28(1.1”)

54(2.13”)

98.8(3.89”)

121

(4.76”)

118.8

(4.68”)

139(5.47”)139(5.47”)

36(1.42”)

29(1.41”)

53.8(2.12”)

Flush Mount

Surface Mount

121

(4.76”)

All manuals and user guides at all-guides.com

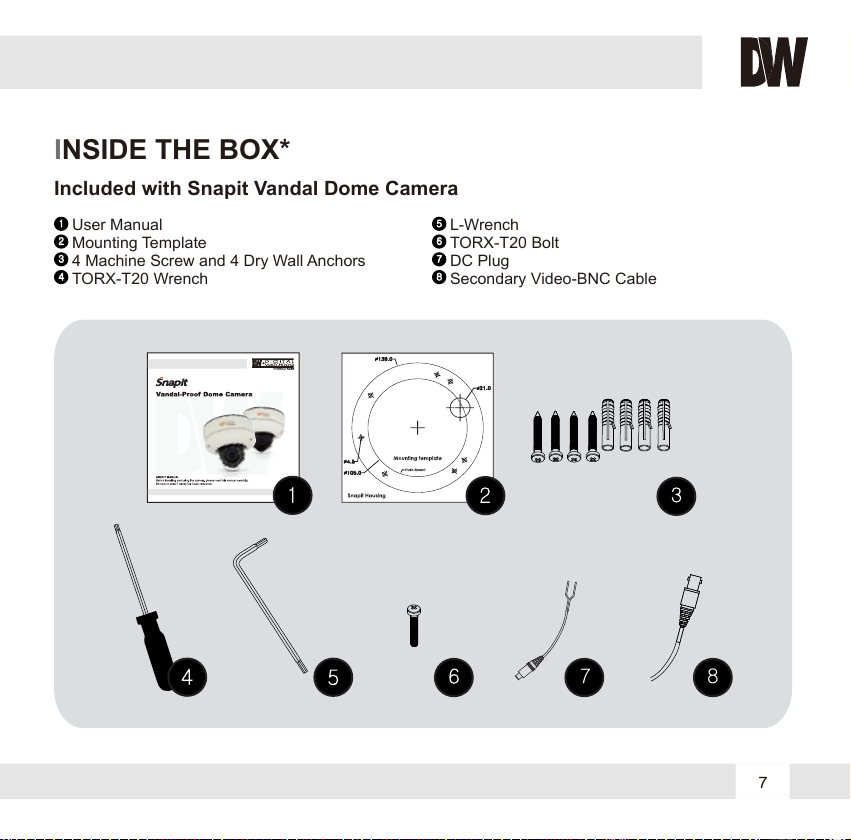

INSIDE THE BOX*

Included with Snapit Vandal Dome Camera

User Manual

Mounting Template

4 Machine Screw and 4 Dry Wall Anchors

TORX-T20 Wrench

L-Wrench

TORX-T20 Bolt

DC Plug

Secondary Video-BNC Cable

7 8

All manuals and user guides at all-guides.com

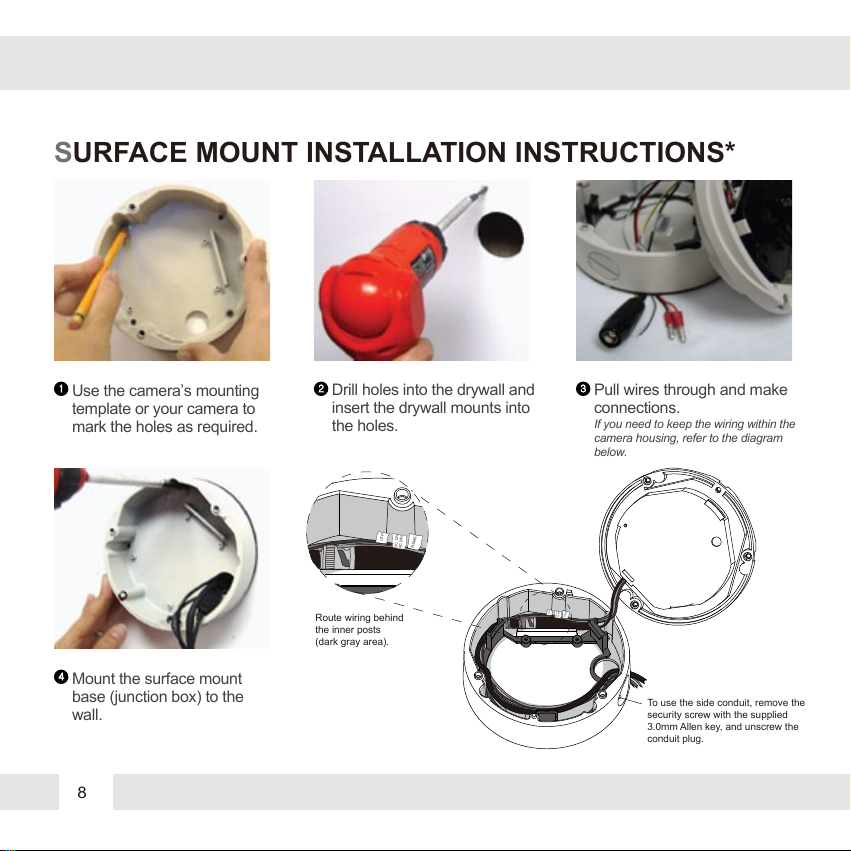

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

Use the camera’s mounting

template or your camera to

mark the holes as required.

Drill holes into the drywall and

insert the drywall mounts into

the holes.

Pull wires through and make

connections.

If you need to keep the wiring within the

camera housing, refer to the diagram

below.

Mount the surface mount

base (junction box) to the

wall.

DC 12V

AC 24V

UTP

RS485

To use the side conduit, remove the

security screw with the supplied

3.0mm Allen key, and unscrew the

conduit plug.

Route wiring behind

the inner posts

(dark gray area).

DC 12V

AC 24V

UTP

RS485

1 2 3

All manuals and user guides at all-guides.com

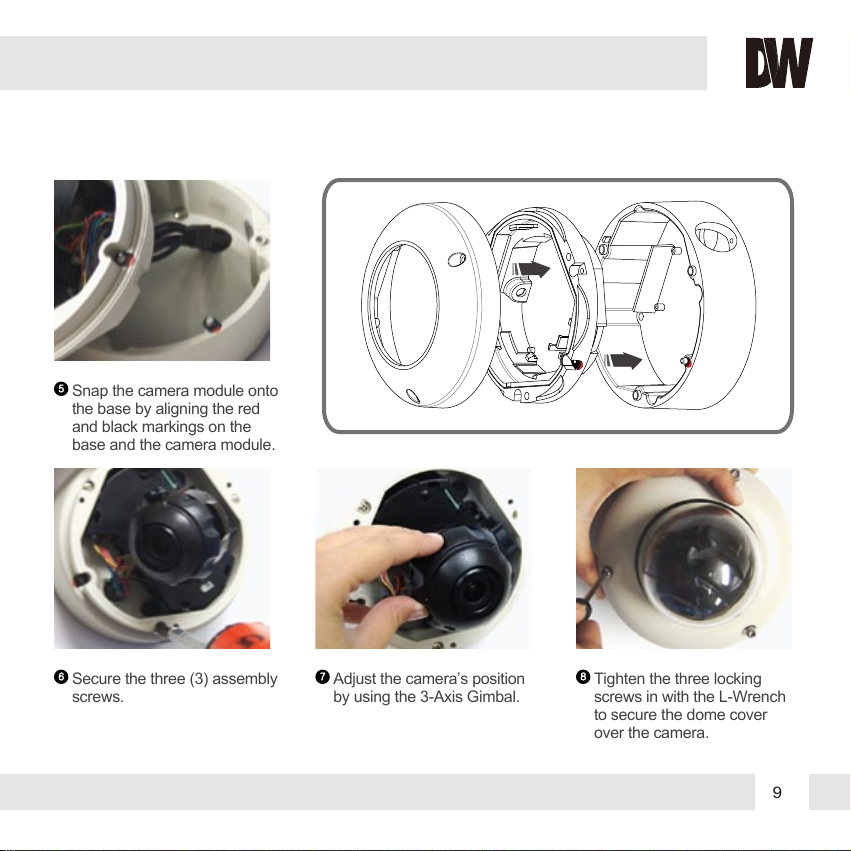

Secure the three (3) assembly

screws.

Adjust the camera’s position

by using the 3-Axis Gimbal.

Tighten the three locking

screws in with the L-Wrench

to secure the dome cover

over the camera.

Snap the camera module onto

the base by aligning the red

and black markings on the

base and the camera module.

6 7 8

All manuals and user guides at all-guides.com

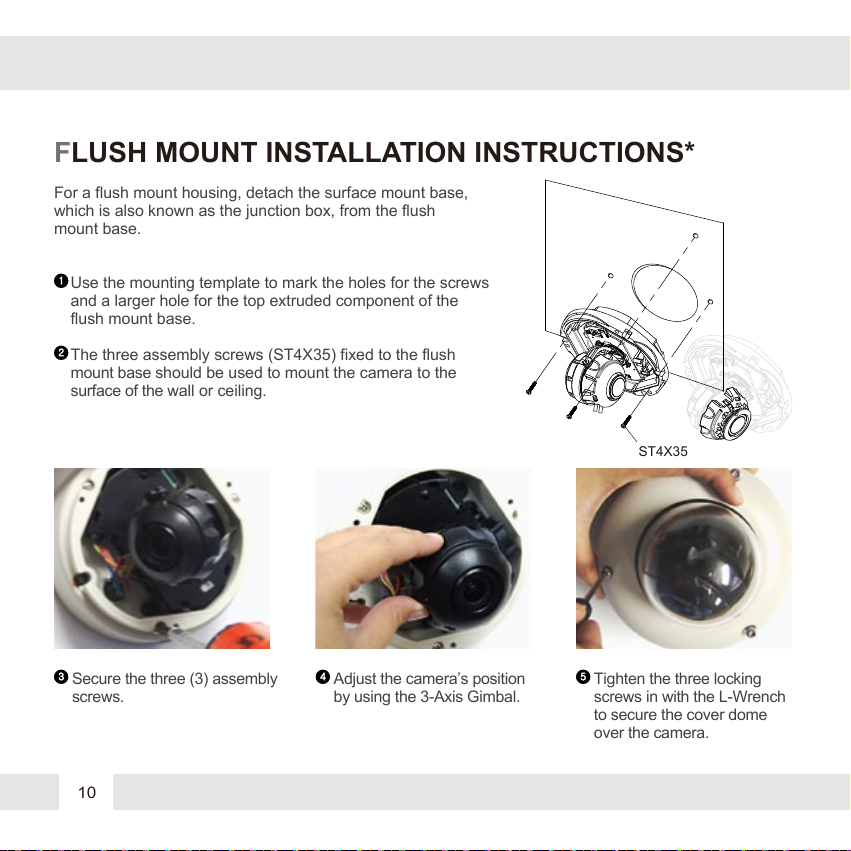

FLUSH MOUNT INSTALLATION INSTRUCTIONS*

For a flush mount housing, detach the surface mount base,

which is also known as the junction box, from the flush

mount base.

Use the mounting template to mark the holes for the screws

and a larger hole for the top extruded component of the

flush mount base.

The three assembly screws (ST4X35) fixed to the flush

mount base should be used to mount the camera to the

surface of the wall or ceiling.

ST4X35

Secure the three (3) assembly

screws.

Adjust the camera’s position

by using the 3-Axis Gimbal.

Tighten the three locking

screws in with the L-Wrench

to secure the cover dome

over the camera.

3 4 5
