Digital Watchdog Star-Light DWC-D4783WD Manuale utente

01/2016

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

ANALOG HIGH DEFINITION

SnapIt Indoor Dome Camera

DWC-D4783WD

DWC-D4783WTIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Installation Instructions

Connecting to Monitors 11

Gang Box Installation Instructions

8-9

13-26

28-29

30-31

Adjusting the Camera Angle

FEATURES*

Analog High Definition (AHD) HD over Coax Technology

STAR-LIGHT™ Super Low Light Technology

Panasonic 1/3" CMOS Sensor

1080P Resolution at 30fps

Wide Dynamic Range (WDR)

Varifocal Auto-Focus P-Iris Lens 2.8~12mm

Smart IR™ with Intelligent Camera Sync. 70ft Range [DWC-D4783WTIR Models]

Smart DNR™ 3D Digital Noise Reduction

Highlight Masking Exposure (HME)

True Day/Night Mechanical IR Cut Filter [DWC-D4783WTIR Models]

Auto Sensing 24VAC/12VDC with Line Lock

Secondary Video-BNC Output (While UTP in use)

Easy Icon Driven OSD Menu with Built-in Joystick

Programmable Privacy Zones

Auto Gain Control (AGC)

Back Light Compensation (BLC)

Dynamic Range Compressor (DRC) Reveals Low Light Detail

Auto White Balance (AWB)

UTP Built-In

RS-485 Built-in

Set Screw

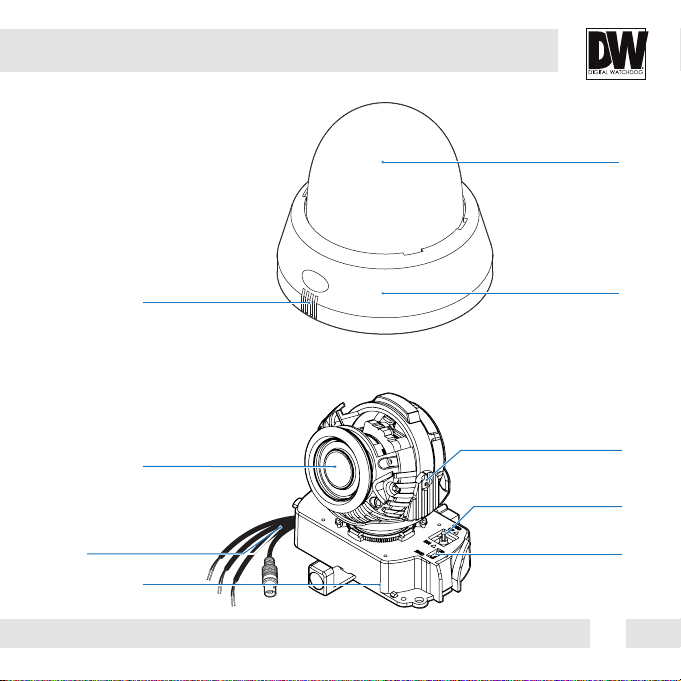

PARTS & DESCRIPTION*

Vent

Cables: BNC, UTP, RS485

Control Borad

UpperCase

Bubble Dome Cover

Tilt Stopper Screw

Joystick

Test Monitor Cable Slot

Lens

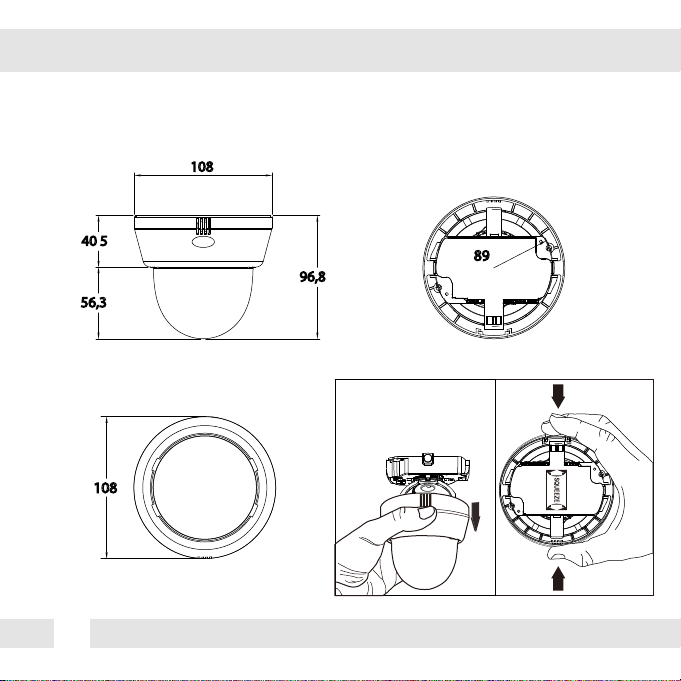

DIMENSIONS IN MILLIMETERS (IN)*

108

TOP VIEW

40,5

56,3

96,8

108 (4.25”)

(3.81”)

(1.59”)

(2.22 ”)

(4.25”)

3.50”)

INSIDE THE BOX*

Included with your camera:

Camera

Template Sheet

Cables

Screw &

Plastic Anchor-2pcs

Test Monitor Calbe

User’s Manual

INSTALLATION INSTRUCTIONS*

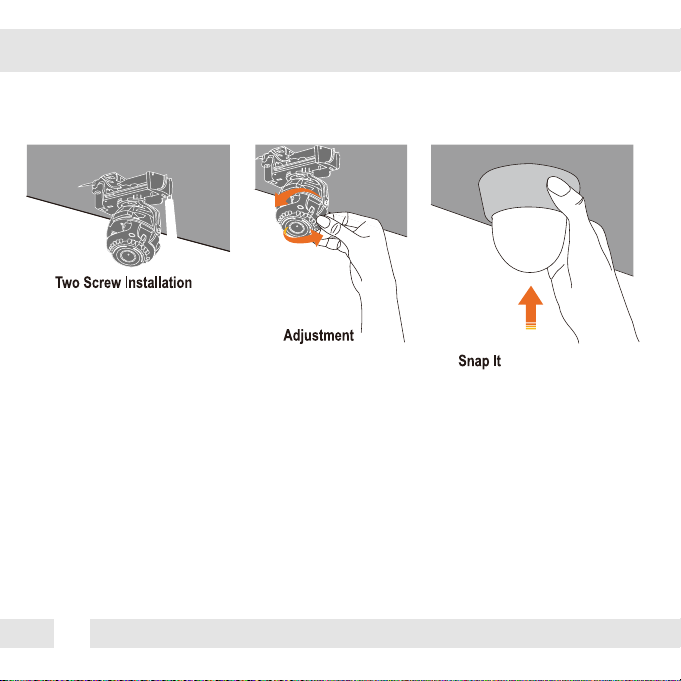

1. To remove the camera’s dome for installation, squeeze the sides of the camera

and separate the camera module from the camera dome.

2. Use the camera’s mounting template or your camera and drill the necessary

mounting holes to the mounting surface.

3. Pull Wires through and make connections.

4. Mount the camera to the mounting surface using the included screws.

5. Adjust the camera’s lens position by using the 3-Axis gimbal.

6. Snap the camera dome over the camera module to complete the installation.

INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Use the mount to mark the

pilot holes required. Drill

holes into the drywall and

insert the drywall mounts.

Secure the wall mount to the

wall using the mounting

screws.

Attach the base of the camera

to the wall mount with the

smaller machine screws.

Adjust the camera lens, and

snap the dome cover over

the camera module.

1 2 3

4 5

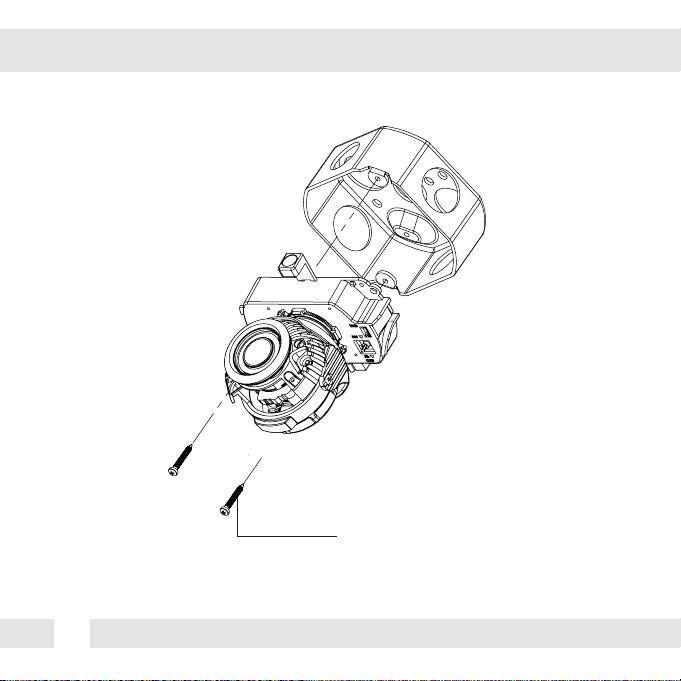

INSTALLATION INSTRUCTIONS*

NOTE: Screws required for electrical junction boxes are not supplied. These

screws are readily available at an electrical supply store.

Philips #8-32 x 0.75
