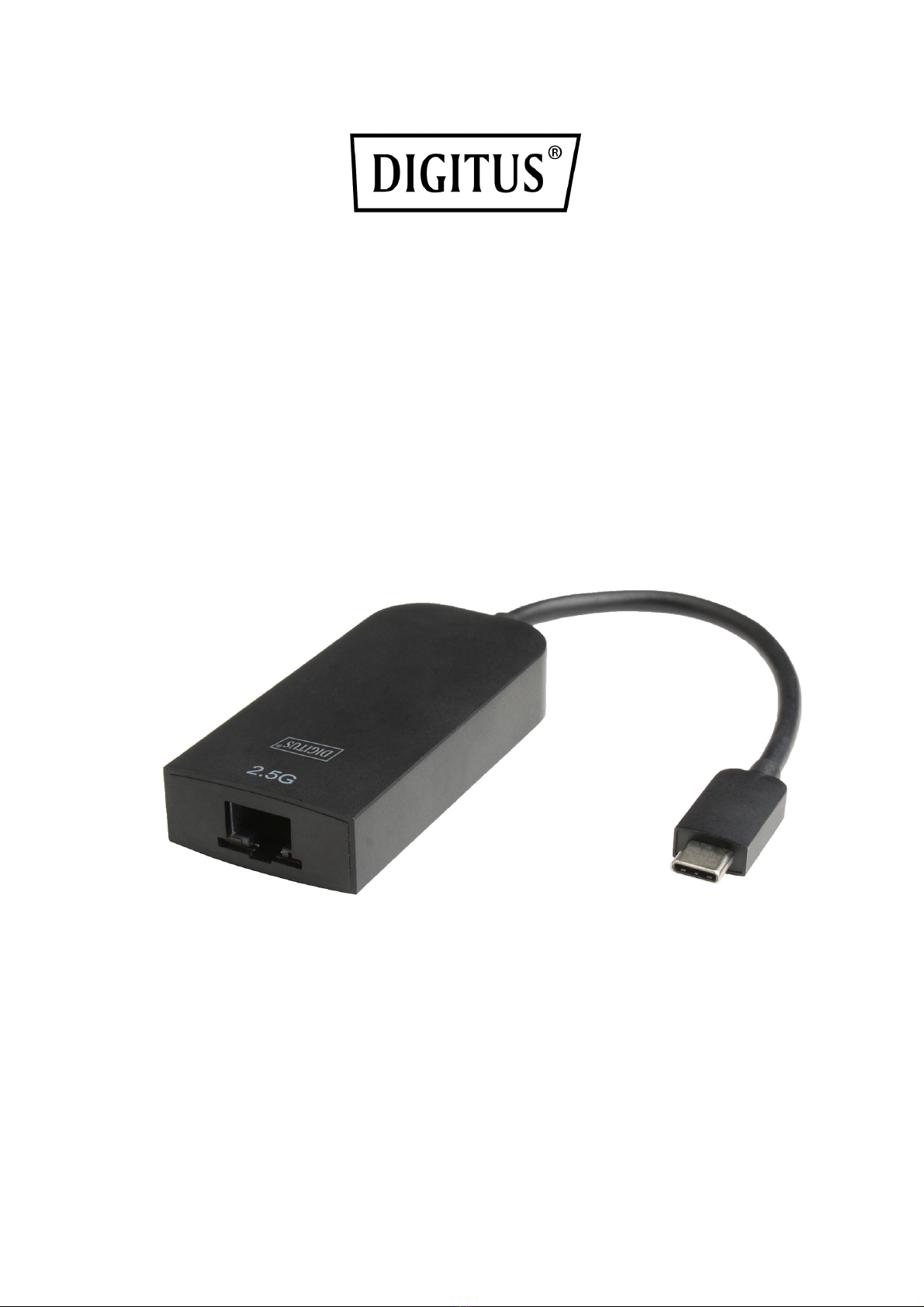

Digitus DN-3025 Manuale utente

USB Type-C™

2.5 Gigabit Ethernet Adapter

User Manual

DN-3025

Introduction

This Type-C™ to 2.5Gbps Ethernet Adapter is a high performance and

low expenditure solution. It enables your new Macbook Pro,

Chromebook or other USB-C supported host PC to get access to a fast

Ethernet network by connecting the Gigabit Ethernet port.

Package Contents

Before attempting to use this unit, please check the packaging and

make sure the following items are contained in the shipping carton:

Main unit x1

User Manual x1

Features

Supports Type-C™ input and 2.5Gbps RJ45 output

Supports USB-C plug and play, hot swap

Supports 10M/100M/1G/2.5G bandwidth

Supports twisted pair crossover detection and auto-correction

USB bus power (no external power supply)

Support WOL(Wake-On-LAN), Full Duplex flow

(10M/100M/1G/2.5G Rate), Auto-Negotiation

Supports Operating system for computers –

Windows: Windows 7 / Windows 8/Windows10/ Windows Vista/

Windows XP (32/64bit)

Mac: Mac OS X 10.6 to 10.12.5

Note:

Driver software installation is required, you need to download driver from official

website:

https://www.realtek.com/zh-tw/component/zoo/category/network-interface-contro

llers-10-100-1000m-gigabit-ethernet-usb-3-0-software

Specifications

Input/ Output Connector

Input Type-C™ Male ×1

Output RJ45 ×1

RJ45 Basic Specifications

Supported

communication rate

10Mbps/100Mbps/

1Gbps/2.5Gbps

Main features supported WOL(Wake-On-LAN)

Full Duplex flow

(10M/100M/1G/2.5G Rate)

Auto-Negotiation

Physical

Weight 34g

Size(L-W-H) 74.5*35*15.5mm

Environmental

Operating Temperature 0 ℃to +45℃

Operating Humidity 10% to 85 % RH

(no condensation)

Storage Temperature -10℃to +70℃

Storage Humidity 5% to 90 % RH

(no condensation)

Power Consumption

Voltage 4.75V～5.25V

Standby Power <60mA

(When Ethernet cable is not

connected)

Normal

Operating Power

<80mA 10Mbps

<130mA 100Mbps

<300mA 1Gbps

<460mA 2.5Gbps

Operation

①Connect Type-C™ host PC to USB-C port of this product

②Connect Gigabit Ethernet port of this product to Ethernet

Router with an Ethernet cable

③Automatically or manually set IP address of computer

Connection

Application Diagram

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity

is part of the shipping content. If the Declaration of Conformity is missing, you

can request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
