Digitus DN-80067 Manuale utente

8-Port Gigabit + 2 Gigabit

SFP Ethernet, Unmanaged Switch

Quick Installation Guide

DN-80067

Our company reserves all copyrights of this document. Any

reproduction, excerption, backup, modification, transmission,

translation or commercial use of this document or any portion of

this document, in any form or by any means, without the prior

written consent of our company is prohibited.

Exemption Statement

This document is provided "as is". The contents of this document

are subject to change without any notice. Please obtain the latest

information through our company website. Our company

endeavors to ensure content accuracy and will not shoulder any

responsibility for losses and damages caused due to content

omissions, inaccuracies or errors.

Before you install and use this product, please read this manual

carefully for full exploiting the functions of this product.

1. Product Introduction

The Switch is 8 ports 10/100/1000Mbps + 2 ports 100/1000Mbps

SFP Slots Unmanaged Ethernet Switch. This switch is a design of

high integration level, exquisite, portable, easy to operate, which

is suitable for the small and medium office and home network.

The switch provide you with a simple, economic, standard and

high performance of network application plan, it is ideal choice to

promote the department and working group performance. It

provide simple and understood LED indicator light on the front

panel, so that you can quickly judge the working state of the

switch, and help to diagnose the network failure.

1.1 Package Content

Before installing the Switch, make sure that the following the

"packing list" listed OK. If any part is lost and damaged, please

contact your local agent immediately. In addition, make sure that

you have the tools install switches and cables by your hands.

1 x 8-Port Gigabit + 2 Gigabit SFP

Ethernet, Unmanaged Switch



1 x Power supply



1 x Quick Start Guide

1.2 Features

Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x,

IEEE802.3ab standards

Support ports Auto MDI/MDIX

4K entry MAC address table of the switch

with auto-learning and auto-aging

Supports IEEE802.3x flow control for Full-duplex Mode

and backpressure for Half-duplex Mode

Support packet length 9216 bytes jumbo frame packet

forwarding at wire speed

8 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet port

Two 1000Mbps SFP Slots

LED indicators for monitoring Link / Activity/Speed

1.3 Hardware Specifications

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,

IEEE 802.3x, IEEE 802.3z

Interface

8 x 10/100/1000Mbps

Auto-Negotiation ports

2x 1000Mbps SFP ports

Network Media



10BASE-T: UTP category 3, 4, 5 cable

(maximum 100m)

100BASE-Tx:UTP category 5, 5e cable

(maximum 100m)

1000Base-T: UTP category

5e, 6 cable

(maximum 100m)

1000Base-SX: 62.5μm/

50μm MMF (2m~550m)

1000Base-LX: 62.5μm/

50μm MMF (2m~550m)

or 10μm SMF (2m~5000m)

Transfer Method

Store-and-Forward

MAC Address Table

Switching Capacity

20Gbps

Buffer

1.5Mbit

Packet Forwarding

14.88Mpps

Jumbo Frame

9216Bytes

Indicators

Per Device

Power

Per Port

Link/Activity/Speed

Power Supply

12V 1A External Power Supply

Power Consumption

Maximum: 5.78W (220V/50Hz)

Dimensions (W x D x H)

190x100x28mm

Environment



Operating Temperature: 0°C~45°C

Storage Temperature: -40°C~70°C

Operating Humidity:

10%~90% non-condensing

Storage humidity:

5%~90% non-condensing

1.4 External Component Description

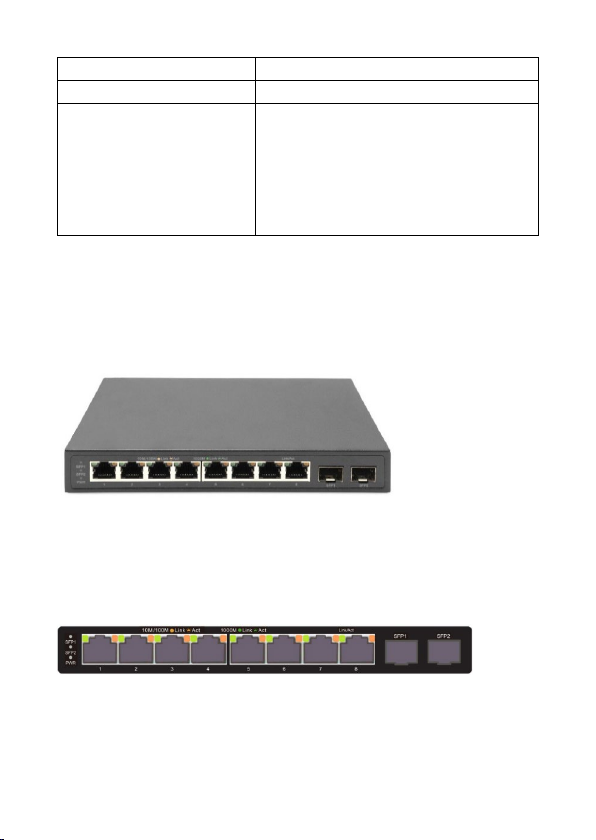

Front Panel

The front panel of the Switch consists of a series of LED indicators

and 8 x 10/100/1000Mbps RJ-45 ports and two SFP ports.

LED indicators:

The LED Indicators will allow you to monitor, diagnose and

troubleshoot any potential problem with the Switch, connection

or attached devices.

The following chart shows the LED indicators of the Switch along

with explanation of each indic a t o r.

Indicator

Faceplate

Marker

Status Indication

PWR

Status Light PWR

Off

Power Off.

Solid

green

Power On.

10/100/1000

BASE-adaptive

Ethernet

port indicator

Link/Act/

Speed

Off

Power Off.

Solid

green

Power On.

Solid

orange

The port is

connected at

100/10Mbps.

Blinking

The port is

transmitting or

receiving data.

SFP port

indicators Link/Act

Off

The port is

NOT connected.

Solid

green

The port is

connected

Blinking

The port is

transmitting or

receiving data.

10/100/1000 Mbps RJ-45 ports (1~8):

Designed to connect to the device with a bandwidth of 10Mbps,

100Mbps, 1000Mbps. Each has a corresponding Link/Act/Speed

indicator.

SFP ports (SFP1, SFP2):

The interface card provides an interface so that you can insert a

transceiver module (SFP) into the interface and connect it to the

interface of another switch with cables. Each has a corresponding

Link/Act LED.

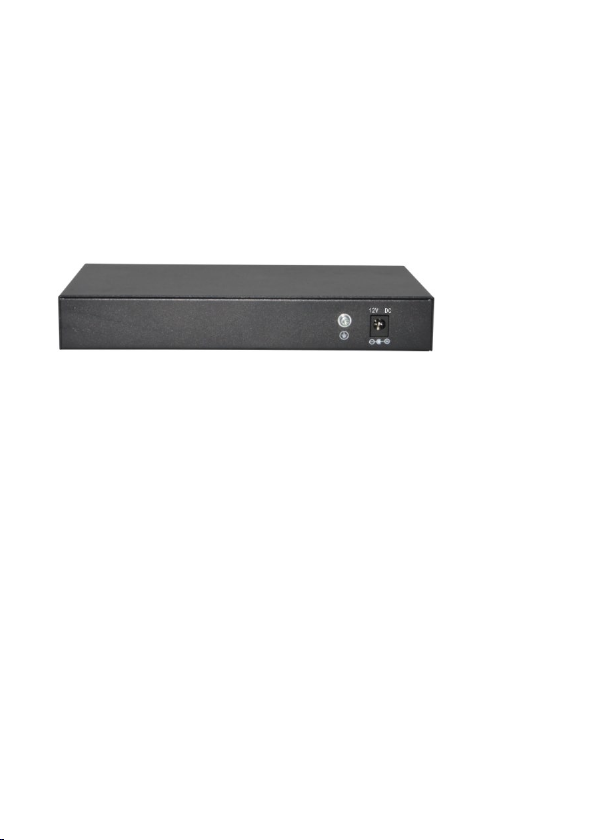

Rear Panel

The rear panel of the Switch contains one Grounding Terminal

and DC power adapter

Grounding Terminal:

Located on the right side of the power supply connector, use wire

grounding to lightning protection.

DC Power Connector:

external power supply.

2. Installing and Connecting the Switch

This part describes how to install your Ethernet Switch and make

connections to it. Please read the following topics and perform

the procedures in the order being presented.

2.1 Installation

Please follow the following instructions in avoid of incorrect

installation causing device damage and security threat.

Put the Switch on stable place or desktop in case of

falling damage.

Make sure the Switch works in the proper DC input range

and matches the voltage labeled on the Switch.

To keep the Switch free from lightning, do not open the

Switch's shell even in power failure.

Make sure that there is proper heat dissipation from and

adequate ventilation around the Switch.

Make sure the cabinet to enough back up the weight of

the Switch and its accessories.

2.2 Desktop Installation

Sometimes users are not equipped with the 19-inch standard

cabinet. So when installing the Switch on a desktop, please attach

these cushioning rubber feet provided on the bottom at each

corner of the Switch in case of the external vibration. Allow

adequate space for ventilation between the device and the

objects around it.

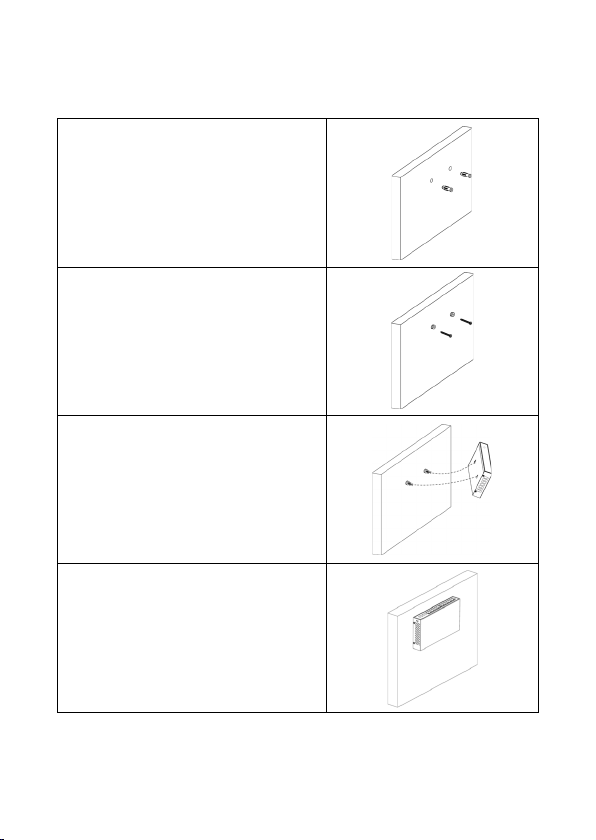

2.3 Wall Installation

The installation process is as follows:

Step one:

Please drill two suitable holes,

press two expansion tubes into

the two holes respectively.

Step two:

Insert the screw into the

expansion tube.

Step three:

Hang the switch on the two

screws.

Step four:

Installation is completed.

2.4 Power on the Switch

The Switches connected an external power adapter power

12V/1A supply, make sure you use the proper power supply.

AC Electrical Outlet:

It is recommended to use single-phase three-wire receptacle with

neutral outlet or multifunctional computer professional

receptacle. Please make sure to connect the metal ground

connector to the grounding source on the outlet.

DC Power Adapter Connection:

Connect the DC power connector in the back panel of the Switch

to external receptacle with the included DC Power Adapter and

check the power indicator is ON or not. When it is ON, it indicates

the power connection is OK.

2.5 Connect Computer (NIC) to the Switch

Please insert the NIC into the computer, after installing network

card driver, please connect one end of the twisted pair to RJ-45

jack of your computer, the other end will be connected to any RJ-

45 port of the Switch, the distance between Switch and computer

is around 100 meters. Once the connection is OK and the devices

are power on normally, the LINK/ACT/Speed status indicator lights

corresponding ports of the Switch.
