Dimplex AC3 Manuale utente

Air Curtain

Model AC3 and Model AC45

IMPORTANT

These instructions should be read and carefully retained

by the user.

The installation of this appliance should be carried out by a

competent electrician and be in accordance with the current

IEE wiring regulations. Tools required are an electrical

screwdriver with a 3mm wide blade, a No 2 posidriver, a

7mm AF open ended or box spanner, an 8mm AF open

ended spanner.

Installation and Operating

Instructions

DO NOT COVER OR OBSTRUCT the air inlet or outlet

grille.

Special instructions on fitting the heater to

a wall or ceiling:-

Solid brick or concrete block walls must be drilled and

plugged with Rawlplug No 10 size FIBRE inserts. The plug

must be located in the solid part of the wall, not just in the

plaster layer.

For panelled internal walls or ceilings, it is best to locate

the studding, position the heater fixing bracket accordingly

and use No 10 size wood screws. If it is not possible to

locate the studding, use type M5 Rawlplug INTERSETS,

making the 10mm holes with a drill rather than a bradawl or

a screwdriver.

Fixing Positions

Ceiling

mounting

Wall

mounting

Heaters may be mounted end to

end for wide doorways.

Installation

1 (a) Remove front louvered panelby

removing two screws on top flange.

1 (b) If the electricity supply to the heater

is required via conduit entry or through

the remote control switch, it will be

necessary to remove the knockout

around the cable entry bush to provide

a 2Omm diameter hole.

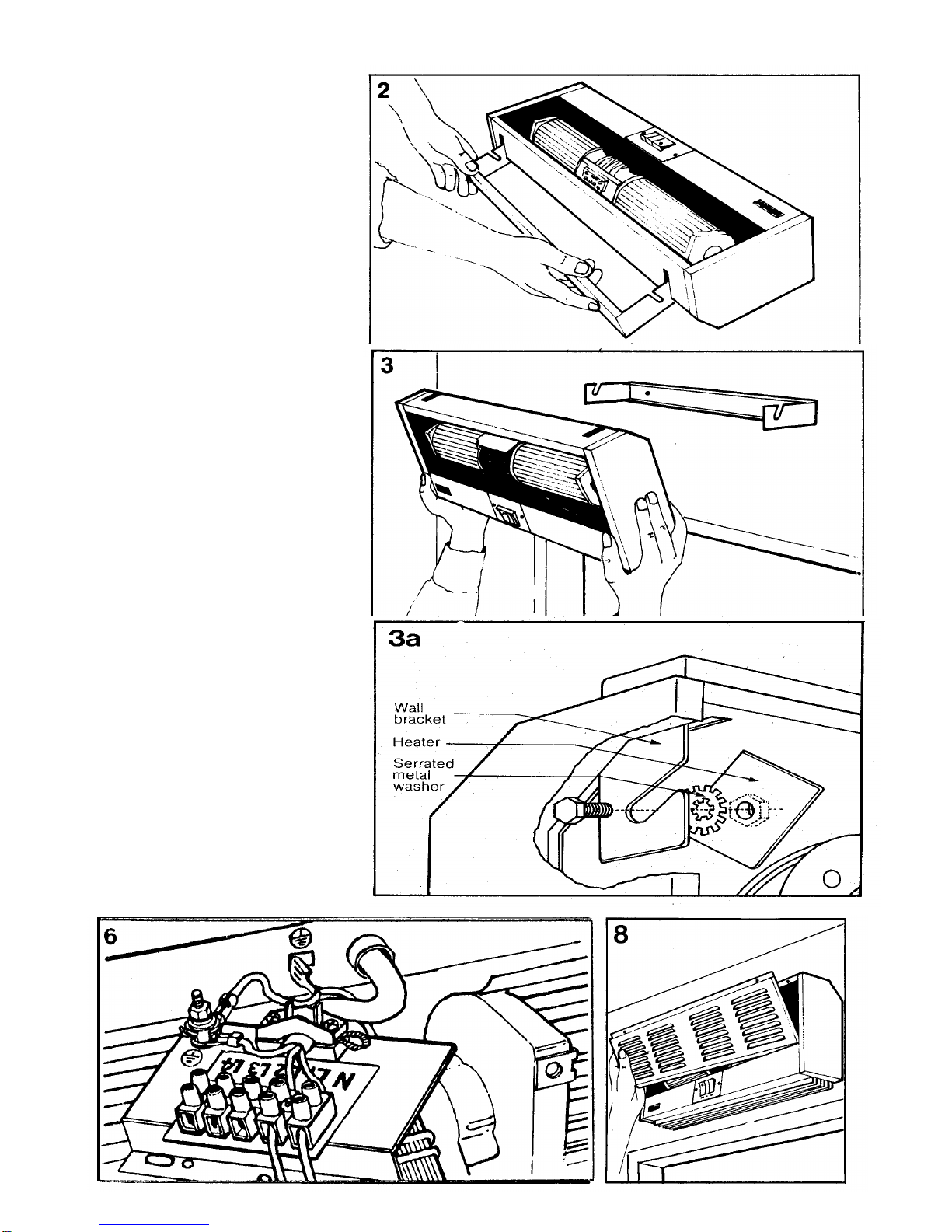

2. Remove the mounting bracket and mark

off the screw positions on the wall or

ceiling. Fix the bracket in position by

making the necessary wall fixings as

described under the heading "Special

Instructions on Fitting Heater to a Wall or

Ceiling".

3. Locate the heater on the mounting

bracket ensuring that the hexagonal

headed screws are fully engaged in the

slots of the bracket.

3a. It is important that the serrated metal

washer is located between the heater wall

fixing member and the wall-mounting

bracket. Adjust heater to the required

angle then firmly tighten the hexagonal

headed screws using the 8mm spanner.

4. Connection to the fixed wiring of the

premises should be done through an

adjacent 20 amp double-pole switch.

5. Connection from the remote control

switch (accessory Ref. No. AC0001) may

be carried out either by conduit entry or

cables run into the heater through a conduit

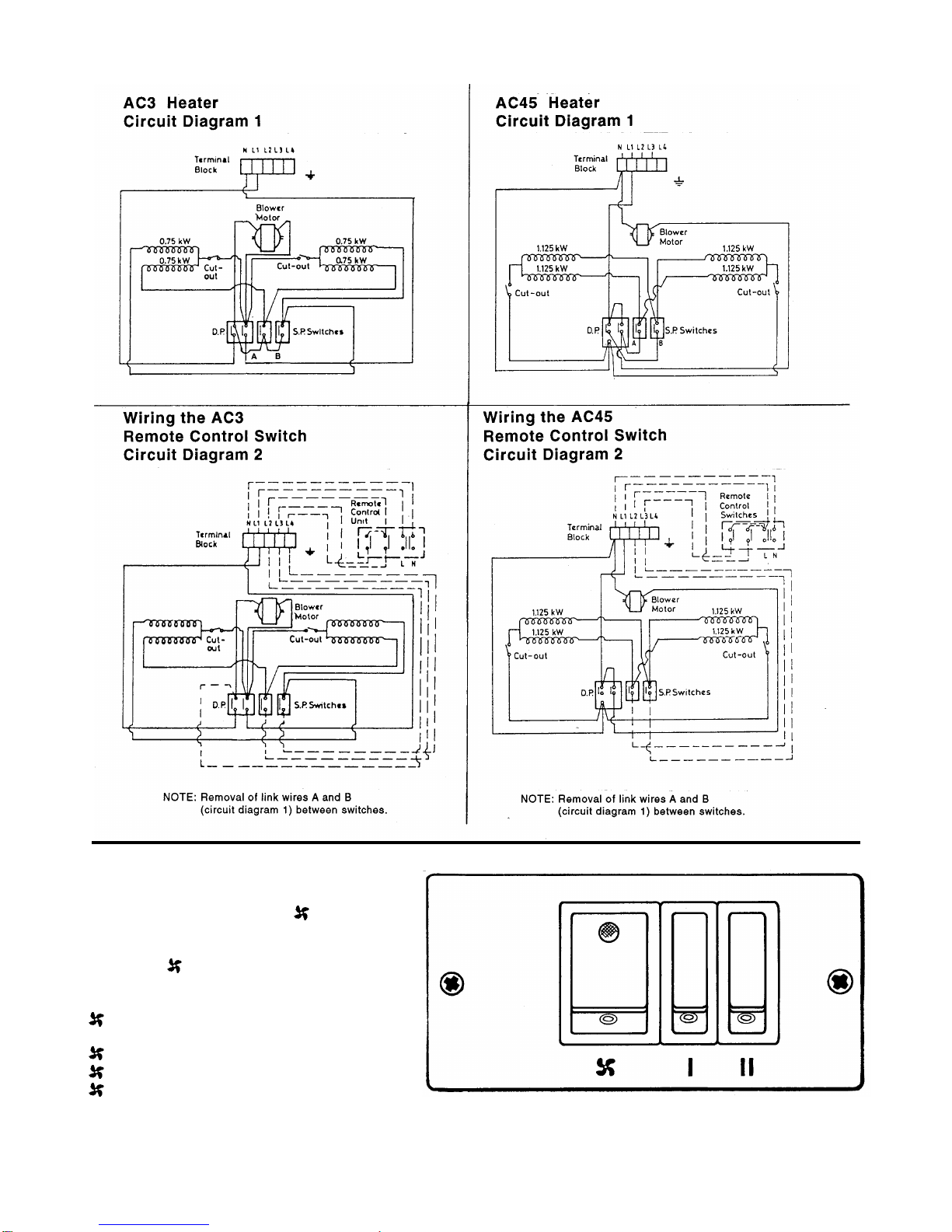

bush. Refer to circuit diagrams 1 and 2

opposite for removal and substitution of

wires within the appliance.

6. Release the screws securing the mains

supply terminal bracket to gain better

access to the terminal for connection of the

supply cable, which should be carried out

at this point.

WARNING: THIS APPLIANCE MUST BE

EARTHED.

Also ensure that supply cables are of

adequate current carrying capacity and are

protected by a suitable fuse.

If the appliance is mounted in a bathroom,

the appliance should be mounted such that

no part of it can be touched by a person

using a fixed bath or shower. An isolating

switch must be provided outside the

entrance door to the bathroom or be of the

pull-cord type.

7.Re-secure mains supply terminal

bracket,

ensuring that the original screws are used

to do this.

8.Re-secure front cover.

Operation

1. Switch on electricity supply to the heater.

2. Switching the switch marked " "

energises blower and illuminates neon

indicator.

3. Select " " and switches marked " xx " and

" xx xx " as required :-

Switch : Cooling

+ xx : half heat

+ xx xx : half heat

+ xx + xx xx : full heat

NOTE: When remote control switch is fitted,

ensure that all three appliance switches are

switched to the "ON" position.

Maintenance WARNING: DISCONNECT SUPPLY before carrying out

maintenance.

Thermal Safety Cut outs Two cut-outs are fitted to the heater, situated on the end of the heat exchanger, and

accessible as described below * * . The cut-outs will operate if the appliance

overheats for the following reasons.

a) Air inlet louvered panel obstructed.

b) Air outlet grille obstructed.

c) Fan motor stalled or slow start due to build-up of dirt or fluff.

Rectification procedure:

a) Establish cause and eliminate.

b) Reset thermal cut out (s) by depressing black button on side of cut out as

described in 1-3 below.

Air Outlet

1) Pass flat head screwdriver through air Centre Panel Grille

outlet grill to centre panel side of reset button.

2) Press buttons in directions shown to

reset cut-outs. Cut-out clicks when reset.

3) Remove screwdriver carefully.

Cleaning External appearance can be maintainedby wiping occasionally with a damp cloth;

for stain removal, a weak soap solution can be applied, then wipe dry.

Internal cleaning should be carried out periodically to maintain the performance of

the heater. Remove the louvered front panel andclean the inside of the heater of

fluff and dust, using a small soft dry brush or vacuumcleaner attachment, taking

extreme care not to disturb internal wiring.

After Sales Service Your Dimplex Air Curtain is guaranteed for one year from date of purchase. We

undertake to exchange or repair free of charge within this period any part found to be

defective due to a manufacturing fault. This guarantee in no way prejudices your

rights under common law.

Should you require after sales service, please getin touch with the supplier through

whom you purchased the appliance, or your nearest service agent.

Please do not initially return a faulty appliance or part of an appliance to us as this

may result in transit damage and or delay in providing service. Let us know your

difficulty, quoting the model number and series letter of the appliance. We will then

take the appropriate action.

This product complies with the European standard for Electromagnetic Compatibility (EMC) ENS5014, EN60555-2 and

EN60555-3 which cover the essential requirements of EEC Directive 891336.

issue 1. 10/10/95

Glen Dimplex UK Limited UK customer helpline (8.00am –6.00pm Mon-Fri; 8.30am-1.00pm Sat)

Millbrook House

Grange Drive Customer Services: Tel. 0870 7270101

Hedge End Fax. 0870 7270102

Southampton.

Hampshire, SO30 2DF Republic of Ireland 01 8424833
