Dimplex DAC 12000R Manuale utente

Dimplex

Air Conditioner – DAC 12000R

CONTENTS.

Page

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Introduction.

Thank you for choosing a Dimplex air conditioner.This manual contains information,

regulations and warnings which are of fundamental importance if the appliance is to be

installed correctly and the highest performance, in the safest possible conditions is to be

obtained.We suggest that you read the manual carefully before installing or starting up

the appliance.

The new Dimplex appliances represent the most highly developed air conditioning units

available today.

Features

The air-conditioning unit is of the mono tube type, transferable (on Wheels) with air/air

operating system for domestic use and has 3 settings.

• Ventilate/Fan.

• Cool.

• Dehumidify.

The ventilation mode "moves" the air allowing for its recycling.

The cooling mode, a refrigerating circuit (compressor), cools the room by transferring

the heat from inside to outside though the air exhaust hose.While cooling, the air-

conditioning unit also dehumidifies the room air.

Humidity absorbed from the air condenses and turns into water that is collected in the

internal tank.The water level in the tank is automatically controlled by a float and micro

switch and when the preset level is exceeded the compressor indicator will blink and

the compressor will shut off automatically, the fan will stay on circulating the air. At this

time, you must empty the water tank as described in "Drainage" page 9.

Please Note!

During very humid conditions it will be necessary to empty the water tank more

frequently.

An added feature of this model, when enough water is collected in the tank, water is

automatically pumped up and through the condenser.The recycled water cools the

condenser which increases the cooling capacity output also evaporating some of the

water alleviating the frequency of having to empty the water tank.

Dehumidification, in the cooling mode your air-conditioner does remove moisture from

the air however another feature of this machine it can be set up to operate as a

Dehumidifier with better moisture removal performance.

Specifications.

Cooling Capacity 12000TU/hr

3024cal/hr

3516 watts

Power consumption 850 Watts

Air Volume (max setting) 455m3/h

Humidity removal capacity 24L/day

Net weight 36 kg

Power supply 230-240V/50Hz

Compressor Rotary

Refrigerant R22

Fan Speed 2

Timer 1-12 hours

Thermostat 16-30

Dimension(WxDxH) 377x400x750 mm

Test Conditions Temperature 27°C

Humidity 60%

Important Safeguards.

• The air conditioning unit must always be stored and transported upright. Otherwise

you may cause irreparable damage to the compressor; in case of doubt we suggest

you wait for at least 24 hours before you start the air-conditioner.

• Avoid restarting the air conditioning unit unless 4 minutes have passed since it was

turned off or the compressor may suffer damage.

• Never use the mains plug as a switch to start and turn off the air conditioning unit.

Use the provided ON/OFF button located on the control panel.

• Always place the portable air conditioner on a stable surface.

• Connect the portable air conditioner to a correct wall socket.

• Mount the exhaust hose on the portable air conditioner.

• The air conditioning unit should only be used by adults: do not allow children to play

with it.

Energy Saving Tips.

• Do not cover or restrict the airflow from the Outlet or Inlet grills.

Minimal distance from furniture and wall is 50cm.

• Keep blinds and /or draperies, on any windows, closed during the sunniest part of the

day.

• Keep the filter clean. Under normal conditions, the filters should be cleaned

approximately every 30 days. Since the filters remove airborne particles, more

frequent cleaning maybe necessary, depending on the indoor air quality.

• Please read the instructions carefully and save them in a safe place for future reference.

1. Control panel

2. Cooling air outlet

3. Handle

4. Castor

5. Air filter

6. Air inlet

7. Exhaust air outlet

8. Cord storage

9. Water stopper (rubber plug inside)

Know your Air Conditioner.

Installation.

Mounting of the unit

This unit is a PORTABLE AIR CONDITIONER. It can be moved from room to room, so

the cooling can follow you anywhere.The mounting is easy, beneath a window or wall.

Please refer to either of the following ways -

1. Using the foam strips

• Connect the supplied foam

strips with the exhaust pipe,

let the hot air flow to the

outside.

• Should the foam strip(s) be

too large, cut off the extra

part to fit the window.

1. Adaptor - for insertion over hose and

into back of the air conditioner.

2. Adaptor - for insertion over hose and

into foam strip.

3. Exhaust hose.

4. Foam strip - for filling the open

window space and with hole for

connection to exhaust hose.

5. Foam strip - for filling the open

window space.

6. Round window connector.

7. Cap for round window connector.

8. Water tray.

9. Remote control.

Accessories.

Foam

strips

Adaptor

50cm

2. Using the round window

connectors.

• Make a hole (diameter >112mm)

in the wall/glass to fit the

supplied round window

connector.

• Take off the adaptor (the

one which does not connect

with the unit), fit the hose

directly to the round window

connector.

• When the hole is not in use.

Use the cap for the round

window connector to cover

the hole.

Mounting of the exhaust pipe

1. The supplied exhaust hose can be extended

from 300 to 1500mm for mounting. It is

recommended that you use the hose in the

shortest possible length.

2. Take care to prevent any bow or bend in

the middle of the exhaust hose, as this will

trap hot exhaust air, which will radiate into

the room and cause this unit to shut itself

off due to overheating.

WARNING!

The length of the exhaust pipe is specially

designed according to the specification of

this product. Do not replace or extend it

with your own private hose as this could

cause the unit to malfunction and

VOIDS WARRANTY

Round window

connector

50cm

Operation.

1. Comfort Level setting indicator.

2. Room Level /Temperature Indicator.

3. Lo Fan Indicator.

4. High Fan Indicator.

5. Automatic Mode Indicator.

6. Cooling Mode Indicator.

7. Fan Mode Indicator.

8. Timer Indicator.

9. Compressor On Indicator / Water tank full indicator,

blinks when tank requires emptying.

10. Comfort / Temperature Level UP Button.

11. Comfort/ Temperature Level Down Button.

12. Fan Speed Button.

13. Mode Option Button.

14. Timer Button.

15. ON/OFF Button.

Turning ON/OFF.

Press ON/OFF button, the unit will start automatically. If the ambient temperature is

- Higher than 23°C, the unit will start

in cooling mode.

- Below or equal to 23°C, the unit will start in fan/ventilation mode.

Indicator lights up indicating what functions have been activated.

The display window shows the ambient room temperature.

To turn the unit off press ON/OFF button again.

Setting Mode/Function.

Press MODE button to select required mode, automatic, cooling or fan.

The indicator of your selected mode will illuminate.

Setting the Temperature/ Comfort Level.

Press “Temperature up’ or ‘Temperature down’ button to regulate the comfort you desire.

The display window will indicate the Comfort you set as you press ‘Temperature up’ or

‘Temperature down’ button.

The indicator will always revert back to show the ambient room temperature.

The preset Comfort level of the machine is level 24.The comfort level setting ranges

from 16 to 30.

LEVEL

TEMPERATUREDAC •12000RTIMERMODESPEED

ROOMLOWHIGH AUTOCOOLFAN

TIMER

23456789

11 12 14 15

Setting the Fan Speed.

1. Press SPEED button to choose the speed you require, low or high.The indicator of

high or low will illuminate to show your selection.

2. If the unit is in Auto mode, the fan speed is automatically set according to the

ambient temperature (the related indicators will illuminate) the speed button is

invalid.

Setting the Auto OffTimer.

Press TIMER button to set the operating hours you desire (1 to 12 hours, the timer

indicator will illuminate).When the set time has been reached, the machine will turn off

automatically.The display window will show the hour(s) you set as you press the TIMER

button.

If the timer button is not pressed, the unit will work continuously.

Setting the Pre-Set Timer.

When the machine is switched off, the pre-set timer

can be used to turn the machine on, between 1 and

12 hours later. Press the timer button only, the

display window will show 1 indicating the machine

will start operating in 1 hour. Each press increases

the time by 1 hour.

All of the above functions can also be

performed with the supplied remote control.

This remote control requires 2 x AAA

batteries to operate.

Regulating air flow direction

Turn the roller on air vent to control the air flow

direction of the vertical louvres.

Move the air vent directly to adjust the air flow

direction of the horizontal louvres.

NOTICE!

To prolong the compressor’s life, the compressor will only work 3 minutes after you switch the

unit on or re-switch on.The cooling system will switch off if the ambient temperature is lower

than the set comfort level.The ventilation, however, keeps working on the set level. If the

ambient temperature rises above the selected level, the cooling will start working again.

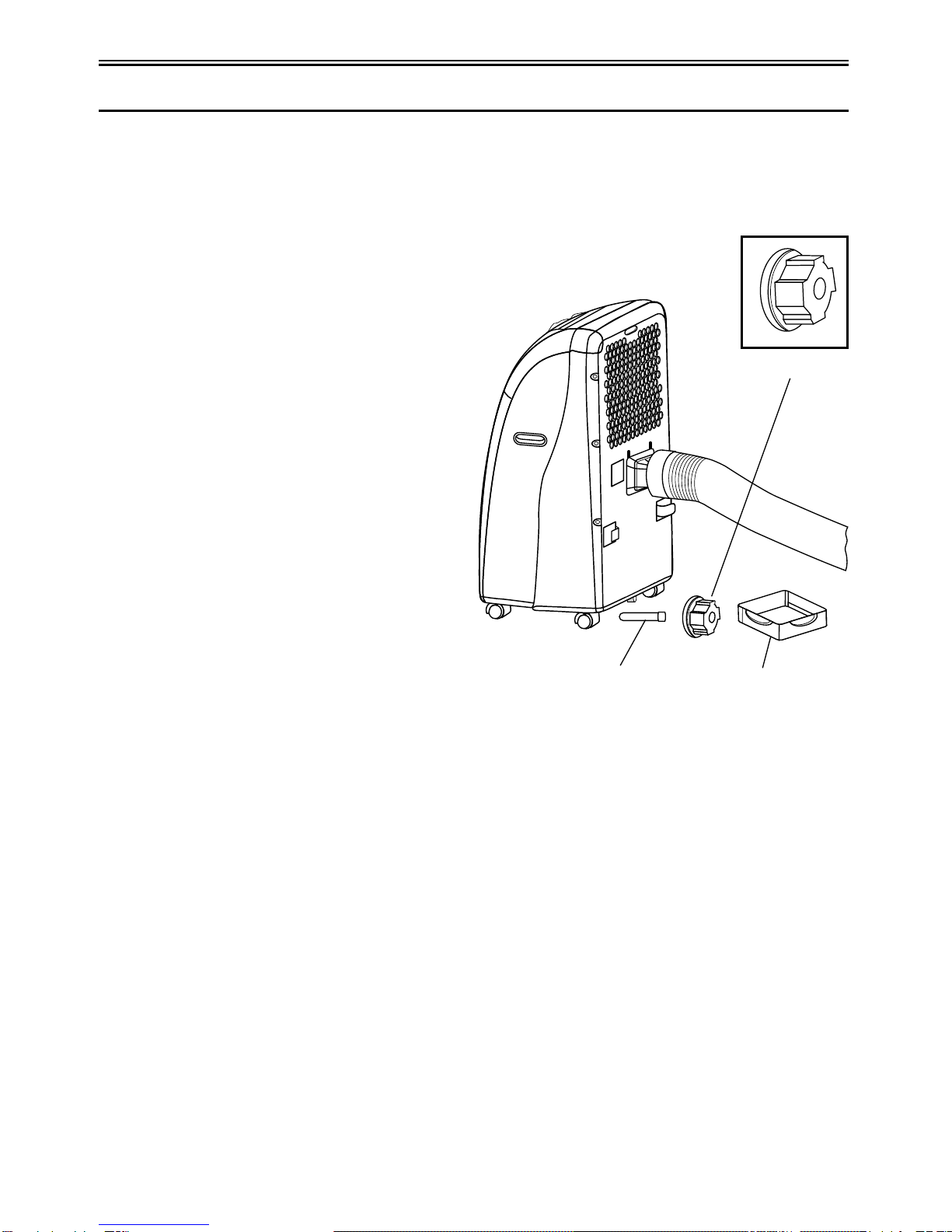

Drainage.

During the process of cooling, water is extracted from the air and collected in the water

tank inside the unit.When the tank is full the compressor will stop and the ‘Compressor

On Indicator’ (Indicator 9 on control Panel) will blink to remind you to empty the water

tank. During this time the fan will continue to operate, circulating the air.The water tank

should be emptied as follows.

1. Turn off the unit.

2. Position the supplied plastic water tray,

flat on the floor, under the drain hole.

3. Remove the water stopper and the

rubber plug. Empty the condensed

water from the air conditioner.

4. When the water tray is almost full,

replace the rubber plug to stop the

flow of water, empty the water tray.

5. Repeat step 2, 3, 4, till all the condensed

water is emptied.

6. After all condensed water is drained,

replace the rubber plug and water

stopper.

The Compressor indicator should

stop blinking.

1. All condensed water must be drained

prior to relocation or storage.

Water stopper

Rubber

plug Water

tray

Indice

Altri manuali Dimplex Condizionatore d'aria

Dimplex

Dimplex DCEVP5WG Manuale utente

Dimplex

Dimplex KSS 6004 Manuale utente

Dimplex

Dimplex GDPAC32RC Manuale utente

Dimplex

Dimplex DCB07C Manuale utente

Dimplex

Dimplex GDPAC12 Manuale utente

Dimplex

Dimplex DPRC35ECO Manuale utente

Dimplex

Dimplex DCEVP20 Manuale utente

Dimplex

Dimplex DCP7W Manuale utente

Dimplex

Dimplex DC09MINI Manuale utente

Dimplex

Dimplex DAC12004RC Manuale utente

Dimplex

Dimplex DPRC20ECO-A Manuale utente

Dimplex

Dimplex DCB09 Manuale utente

Dimplex

Dimplex GDC10CWB Manuale utente

Dimplex

Dimplex DAC 12005 Manuale utente

Dimplex

Dimplex DPRC41ECO-C Manuale utente

Dimplex

Dimplex DCP11MULTI Manuale utente

Dimplex

Dimplex DCP16C Manuale utente

Dimplex

Dimplex EVA-20 Manuale utente

Dimplex

Dimplex DAC 12001 Manuale utente

Dimplex

Dimplex DAC12AC Manuale utente

Dimplex

Dimplex GDC16RWA Manuale utente

Dimplex

Dimplex DC10RC Manuale utente

Dimplex

Dimplex DCPAC07C Manuale utente

Dimplex

Dimplex DAC14006 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
