Dimplex GDDEYS40A Manuale utente
– 1 –

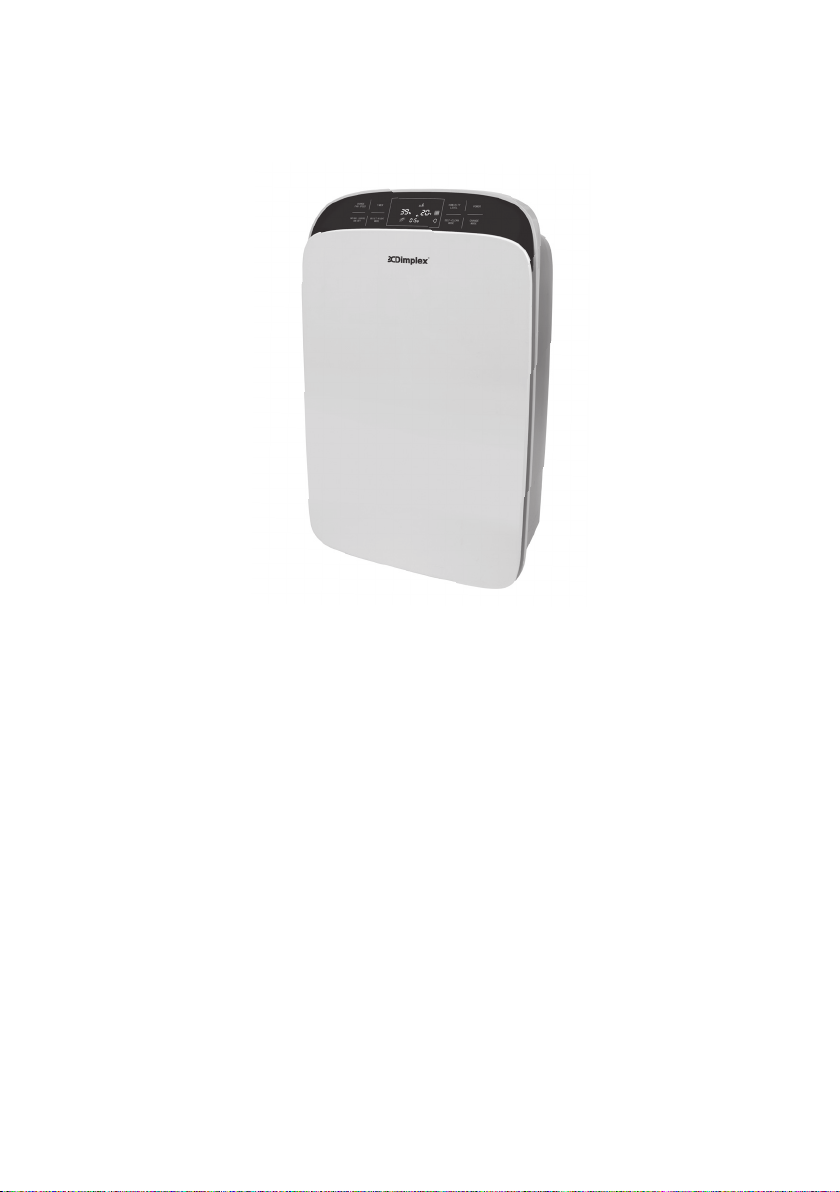

40L DEHUMIDIFIER
AND AIR PURIFIER
INSTRUCTION MANUAL
GDDEYS40A
Dehumidifies a large home and purifies air
– 2 –
CONTENTS
Safety and usage notices 5
Components 9
Control panel 10
Display screen 11
Setting Timer 12
Dehumification instructions 13
Automatic dehumification 13
Continuous dehumification 13
Clothes drying 13
Emptying the tank and drainage 14
Air purification and filters 16
Ventilation 16
Air purification function 16
Inserting a filter 17
Filter information 18
Maintenance 19
Self-cleaning mode 20
Troubleshooting 21
Technical specifications 22
– 4 –
Before operating this appliance, please read this instruction manual
carefully. Please also keep for future reference.
– 5 –
SAFETY AND USAGE NOTICES
The power supply for this appliance is 220-
240V~ If the voltage is 10% higher or lower
than the normal voltage, the appliance will
not operate. It is suggested that a voltage
stabilizer be equipped.
The working range of this appliance
is between 5-32oC, outside of these
temperatures the appliance will not operate
normally. However the optimum working
temperature is between 16-32oC. The unit
will dehumidifiy between 30%-85% relative
humidity.
Technical Specifications
Please position the appliance on a flat and
stable surface to reduce vibration and noise.
Please do not position your appliance near
flames or heating appliances.
Please do not use the appliance if plug or
electrical cord is damaged.
Multi-socket plug adapters are not
recommended for use with this appliance.
Usage
Please do not immerse the appliance in
water.
– 6 –
SAFETY AND USAGE NOTICES
The appliance is designed for domestic use
only, not for commercial purposes.
Please do not use aerosols or other
flammable substances near the appliance.
Please do not place anything on top of the
appliance.
Please do not tilt the appliance when in use.
Please do not use sharp objects on the
appliance to prevent scratching.
Usage
Please do not knot, or fold the power cord,
also ensure the power cord is free from
tangle and nothing is place on top of it while
in operation.
Please do not hang anything over the air
outlet, by doing this you will reduce the
dehumidification capacity and increase
the noise.
Please do not put the automatic drainage
pipe directly in the cold outdoors.
– 7 –
When operating the appliance, please
keep a clearance of 50cm above and
over 30cm surrounding. Please refer to
the following figure.
Please keep windows closed when
appliance is in use.
Please clean the mesh filter regularly to
prevent clogging and maintain optimal
performance (see page 19 for
instructions).
Please do not direct your appliance
towards plants or pets for long periods of
time.
Please do not operate in direct sunlight,
this will influence the dehumidification
capacity.
SAFETY AND USAGE NOTICES
Usage
– 8 –
SAFETY AND USAGE NOTICES
If the unit is faulty (e.g., burning smells, smoke
detected), please turn off the appliance and
unplug it, then contact a qualified service
agent for maintenance.
If the appliance is not to be used, or is to be
stored for a period of time, please activate
the self-cleaning function, which will dry the
internal components of the appliance and
prevent mildew growth.
If the power cord is damaged, it must be
replaced by a qualified electrician, service
agent or similarly qualified persons in order
to avoid malfunction.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
unless they have are supervised or given
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised at all times. Please do not hose down the appliance.
Maintenance and Storage
Repairs are to be done by a qualified
electrician or service agent.
Please unplug the appliance when not in use
for long periods of time.
Please do not use chemical solvents (e.g.,
benzene, gasoline, alcohol,etc.) to clean the
appliance. Instead, use warm soapy water.
– 9 –
COMPONENTS
Front side
Rear side
Front panel
Tank lid
Full tank
float device
Water level
window
Tank
Control panel
Air purification
filters (HEPA
or activated
carbon filter)
Inlet grid
Lifting handle
Swing lourve
Continuous
drainage outlet
Mesh filter
(for large partcles)
– 10 –
CONTROL PANEL
CHANGE
FAN SPEED TIMER HUMIDITY
LEVEL
SELF-CLEAN
MODE
CHANGE
MODE
POWER
QUIET/NIGHT
MODE
SWING LOUVRE
ON/OFF
POWER: turn on or turn off the appliance.
CHANGE MODE: cycles between different modes: automatic dehumidification,
continuous dehumidification, clothes drying, air purification or ventilation. You can also
press this button for 3 seconds to activate child lock mode.
QUIET/NIGHT MODE: minimises fan noise and dehumidification rate.
SELF CLEAN MODE: dries the internal components of the appliance. Press for 3
seconds to activate seconds.
SWING LOUVRE ON/OFF: activate oscillation of the wind vent louvres for wider air
movement.
TIMER: set the number of hours until the appliance turns on or off.
HUMIDITY LEVEL: Set desired humidity level for “automatic dehumidification” mode;
CHANGE FAN SPEED: changes speed of fan and air that is emitted from the
appliance.
Press this button and the “TIMER” button together to toggle between oC and oF
temperature displays.
