1 Overview

In these documents information about of LoRa Module DF702 Trash Bin Sensor are given

with detailed.

The function of device

Hardware interface

How to set LoRa module parameters

Equipment parameters (full height value, upload interval data etc)

Equipment upgrades

For more information if you have any questions, please contact us first.

2 Device Function Descriptions

Note

Device will upload data when its power is activated it can send us data automatically to the

user through LoRa Module.

Main Function of Device

LoRa Module DF702 Sensor can give detailed about the using place for example Trash Bin

its full Detection, fire detection, fall Detection , Full ,Half and Empty Condition of Device and

about the power Detection of Sensor.

Notes: the standard version does not have the fall detection, only the enhanced

version has this function.

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700

http://www.dingtek.com E-mail: service@dingtek.com

Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page 5

Data Time Intervals

For example Test time data every 10 minutes, when a change of state is detected the data

will be upload, the state remains unchanged in next intervals, and no data will be uploaded.

The data will be uploaded periodically like as heartbeat the data interval default 4 hours can

be modified, specific reference to the agreement.

State change means:

From full to not from

Not from to full

Main

Function

Functional

Descriptio

Default Alarm

Threshold

Whether the

data will be

reported

immediately

when the

alarm

condition is

reached

Remarks

Full

Check if the

Trash bin is

full

30cm

(Can be

modified)

The Device will detect

the Distance between

sensor and garbage if

this Distance is more

Then 30cm no alarm

if less than 30 cm

alarm will be

activated.

Fire

Detect if a

fire has

been

occurred

75℃

(Can be

modified above

75℃

Fire alarm will

be activated )

Yes

Detected temperature

is less than 75℃

above this

Temperature sensor

will activate the

alarm.

Fall

Check

whether the

trash Bin

can fallen

any side

This feature is

available in enhanced

version not in

slandered version.

Battery

Check if the

battery is

about to run

out

20%

(Can be

modified)

It will detect the

power of battery

more than 20% no

alarm less than 20%

alarm will be

activated.

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700

http://www.dingtek.com E-mail: service@dingtek.com

Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page 6

For example: Time State Upload data or no

10:10 full Yes (Battery Should be connected)

10:20 full No

10:30 not full Yes

10:40 not full No

10:50 full Yes

3 The Main LoRa Band Introduction

The main LoRa band are used given below CN470, EU868, US915, AU915, AS923.

4 Device Interface Definition

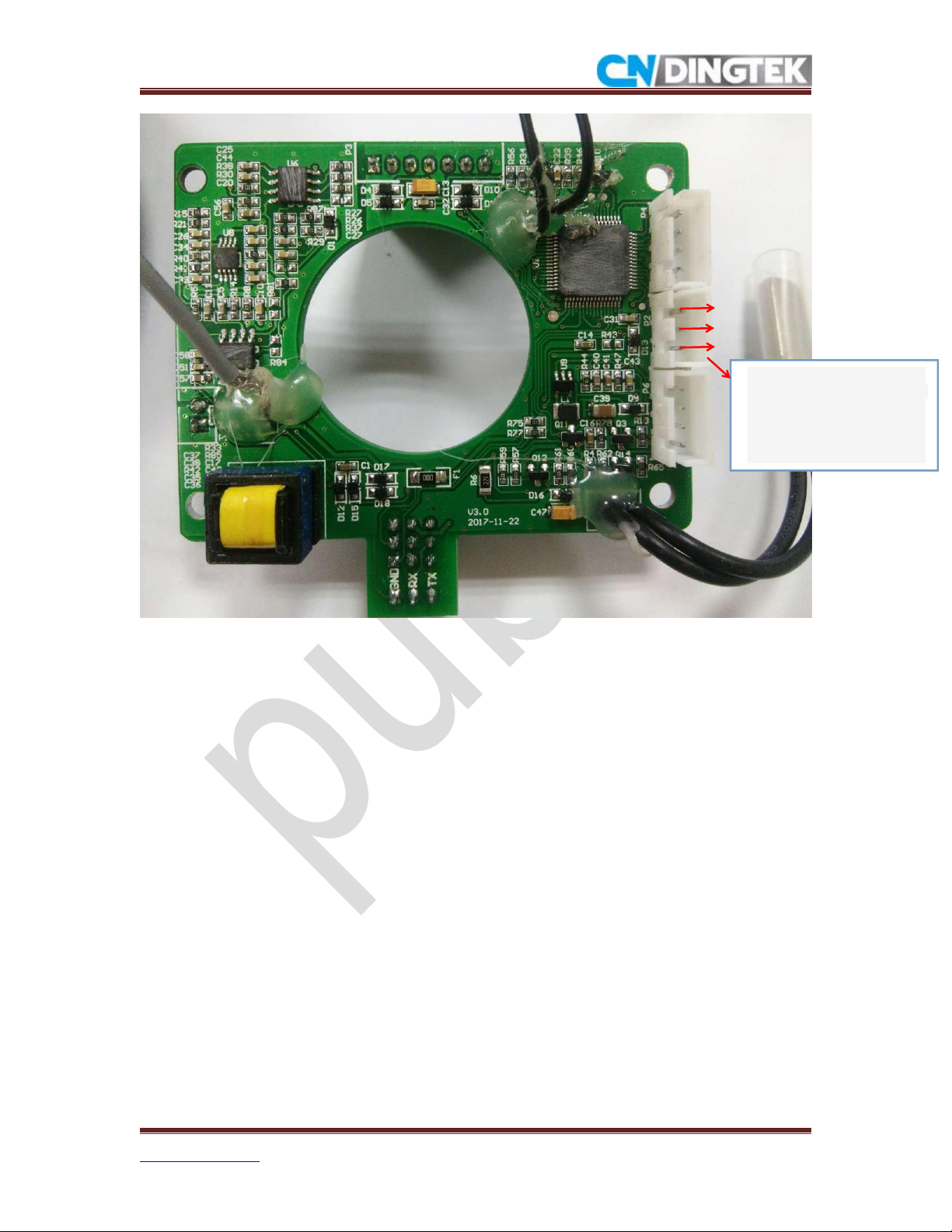

In the given figure, the power interface, module configuration debugging, interface, device

parameter configuration and upgrade interface are introduced respectively with detailed.

In figure 4.1 PCB board is shown and all connecting parts are also shown which part where

will be placed.

4.1 Connection of Hollow Sockets

Power socket: connect the battery

Hollow positions: Configure the LoRa module parameters or debug module the

jumper cap should be placed in a hollow position.

Solid position: The default position the device to transmit data/configure device

parameters such as data upload interval and full height the jumper cap should be

placed at right side a solid position.

Band

The default uplink

frequency

The default downlink

frequency(RXWIN1)

The default

downlink

frequency

（RXWIN2）

CN470

(470-510MHz)

470.3,470.5,470.7,470.9,

471.1,471.3,471.5,471.7,

500.3,500.5,500.7,500.

501.1,501.3,501.5,501.

505.3

EU868

(863-870MHz)

868.1,868.3,868.5

869.525

US915

(902-928MHz)

902.3,902.5,902.7,902.9,

903.1,903.3,903.5,903.7

923.3,923.9,924.5,925.

925.7,926.3,926.9,927.

923.3

AU915

(915-928MHz)

915.2,915.4,915.6,915.8

916.0,916.2,916.4,916.6

923.3,923.9,924.5,925.

925.7,926.3,926.9,927.

923.3

AS923

(915-928MHz)

923.2,923.4

923.2

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700

http://www.dingtek.com E-mail: service@dingtek.com

Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page 7

Figure4.1

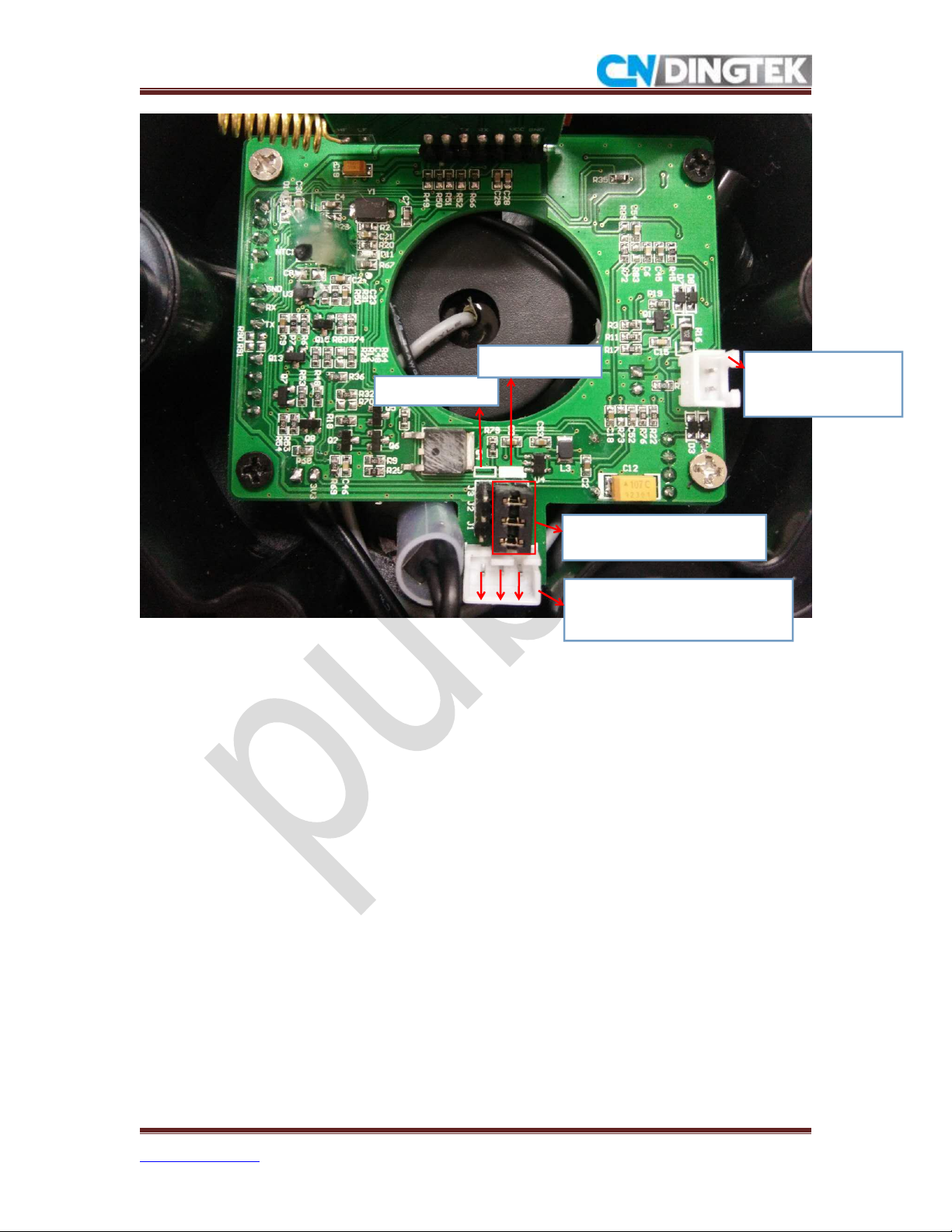

4.2 Reverse side of picture of PCB board ( open the Screws of PCB Board) as shown in

figure 4.2.

GND

Hollow position

Solid position

Black part of the jumper cap,

the default in this position

This interface can be used to

modify Lora parameters as well

as debug module

This power socket is

used to connect the

Battery

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700

http://www.dingtek.com E-mail: service@dingtek.com

Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page 8

Figure4.2

5 Configure LoRa parameters

LoRa can be configured according to the relevant parameters such as devaddr, deveui and

nwkskey are helpful in configuration process.

Required tools for configuration of LoRa Device

TTL and its cable

Serial software

LoRa instruction manual

Equipment

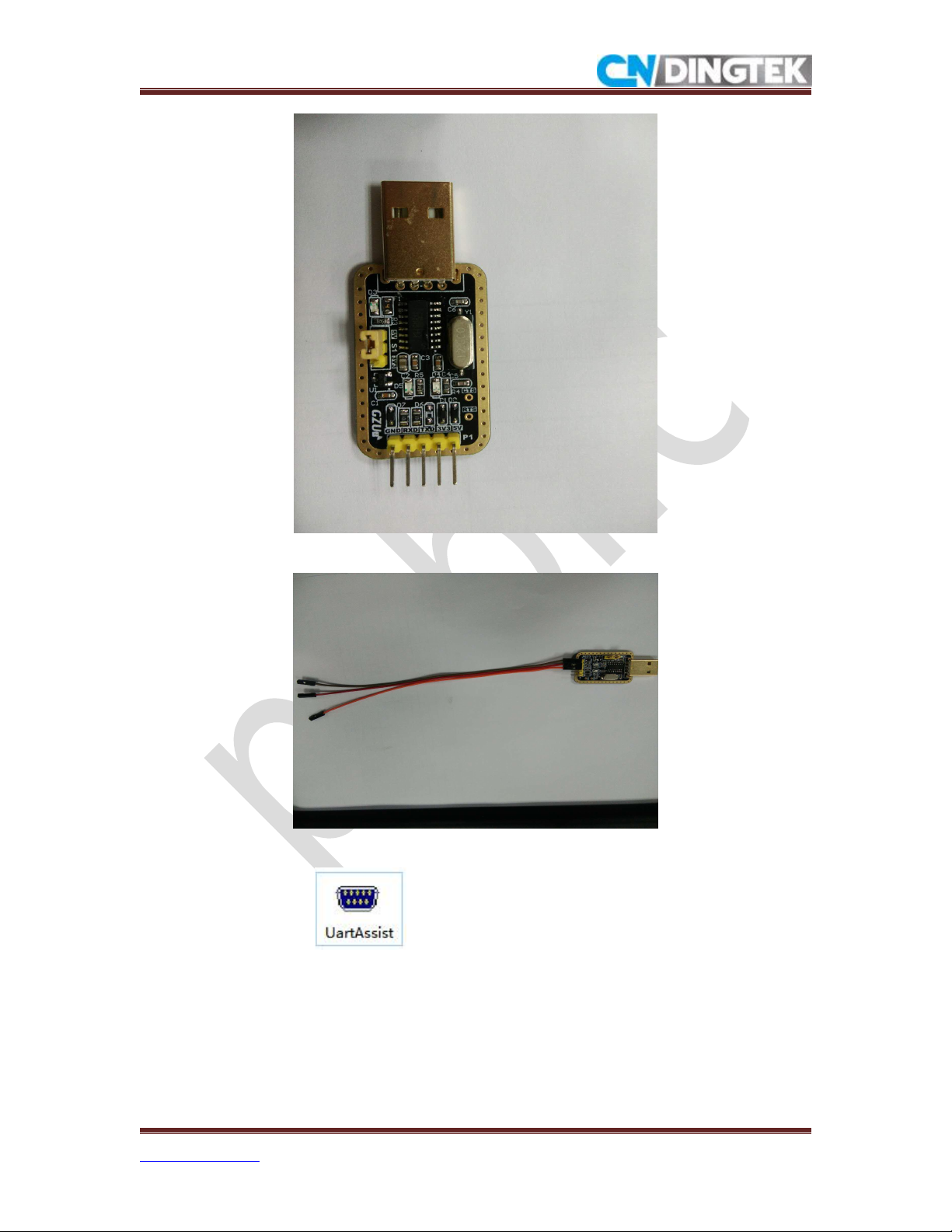

TTL and cable for the goods accessories

Please check these two items when you receive package from company as shown in Figure

5.1 and Figure5.2.

GND

This interface is used to

configure device parameters

(data upload interval, full

height value, etc.), device

upgrade, or device

debugging.

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700

http://www.dingtek.com E-mail: service@dingtek.com

Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page 9

Figure5.1

Figure5.2

Serial software:

5.2 Connect TTL to sensor

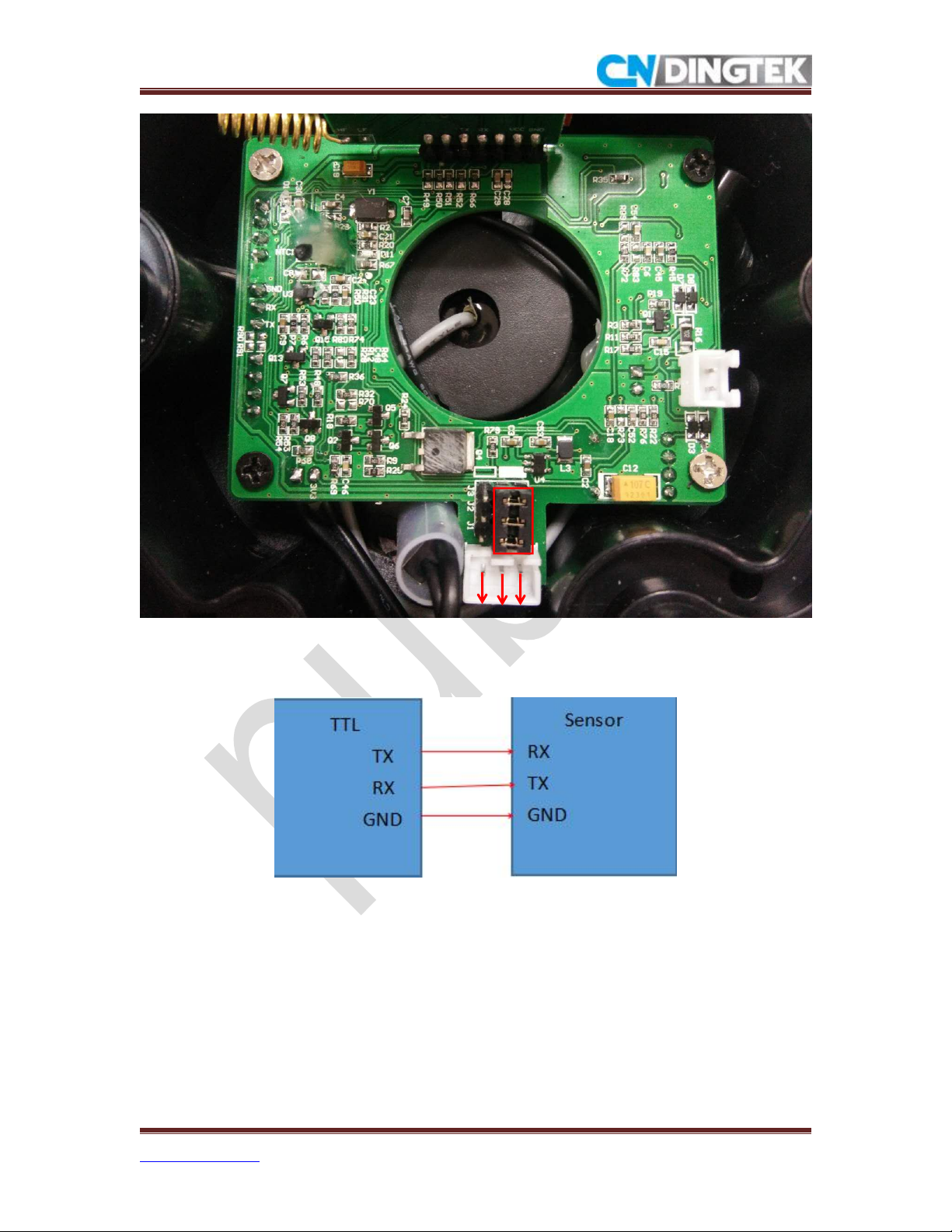

Device Serial Port connection GND, TX, and RX locations have been marked on the diagram

as shown in Figure5.3.

TTL

Cable

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700

http://www.dingtek.com E-mail: service@dingtek.com

Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page 10

Figure5.3

Connect TTL to device, as shown in Figure 5.4.

Figure5.4

Steps

1 Change jumper cap to hollow position (default it is in the solid position) as shown in

figure5.5.

2 Connect the TTL to the device as shown in figure 5.4.

3 Connect the device's power supply, as shown in figure5.6.

GND
