Model 400ESP

Owner's Guide

All manuals and user guides at all-guides.com

all-guides.com

All manuals and user guides at all-guides.com

Limited Lifetime

Consumer Warranty

Directed Electronics, Inc. ("DEI®") promises to the original purchaser to repair or

replace with a comparable reconditioned model any of the purchased brand unit

(hereafter the "unit"), excluding without limitation the siren, the remote transmit-

ters, the associated sensors and accessories, which proves to be defective in work-

manship or material under reasonable use during the lifetime of the vehicle provided

the following conditions are met: the unit was professionally installed and serviced

by an authorized DEI dealer; the unit will be professionally reinstalled in the vehicle

in which it was originally installed by an authorized DEI dealer; and the unit is

returned to DEI, shipping prepaid with a legible copy of the bill of sale or other dated

proof of purchase bearing the following information: consumer's name, telephone

number and address; the authorized dealers name, telephone number and address;

complete product description, including accessories; the year, make and model of the

vehicle; vehicle license number and vehicle identification number. All components

other than the unit, including without limitation the siren, the remote transmitters

and the associated sensors and accessories, carry a one-year warranty from the date

of purchase of the same. This warranty is non-transferable and is automatically void

if: the original purchaser has not completed the warranty card and mailed it within

ten (10) days of the date of purchase to the address listed on the card; the unit's

date code or serial number is defaced, missing or altered; the unit has been modified

or used in a manner contrary to its intended purpose; the unit has been damaged by

accident, unreasonable use, neglect, improper service, installation or other causes

not arising out of defects in materials or construction. The warranty does not cover

damage to the unit caused by installation or removal of the unit. DEI, in its sole dis-

cretion, will determine what constitutes excessive damage and may refuse the return

of any unit with excessive damage. TO THE MAXIMUM EXTENT ALLOWED BY LAW,

ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED

WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE

AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE

EXPRESSLY EXCLUDED; AND DEI NEITHER ASSUMES NOR AUTHORIZES ANY PERSON

OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNEC-

TION WITH ITS PRODUCTS. DEI DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY

FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS

OR INSTALLERS. DEI SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS

AGAINST POSSIBLE THEFT. DEI IS NOT OFFERING A GUARANTEE OR INSURANCE

AGAINST VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CON-

TENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-

ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM.

All manuals and user guides at all-guides.com

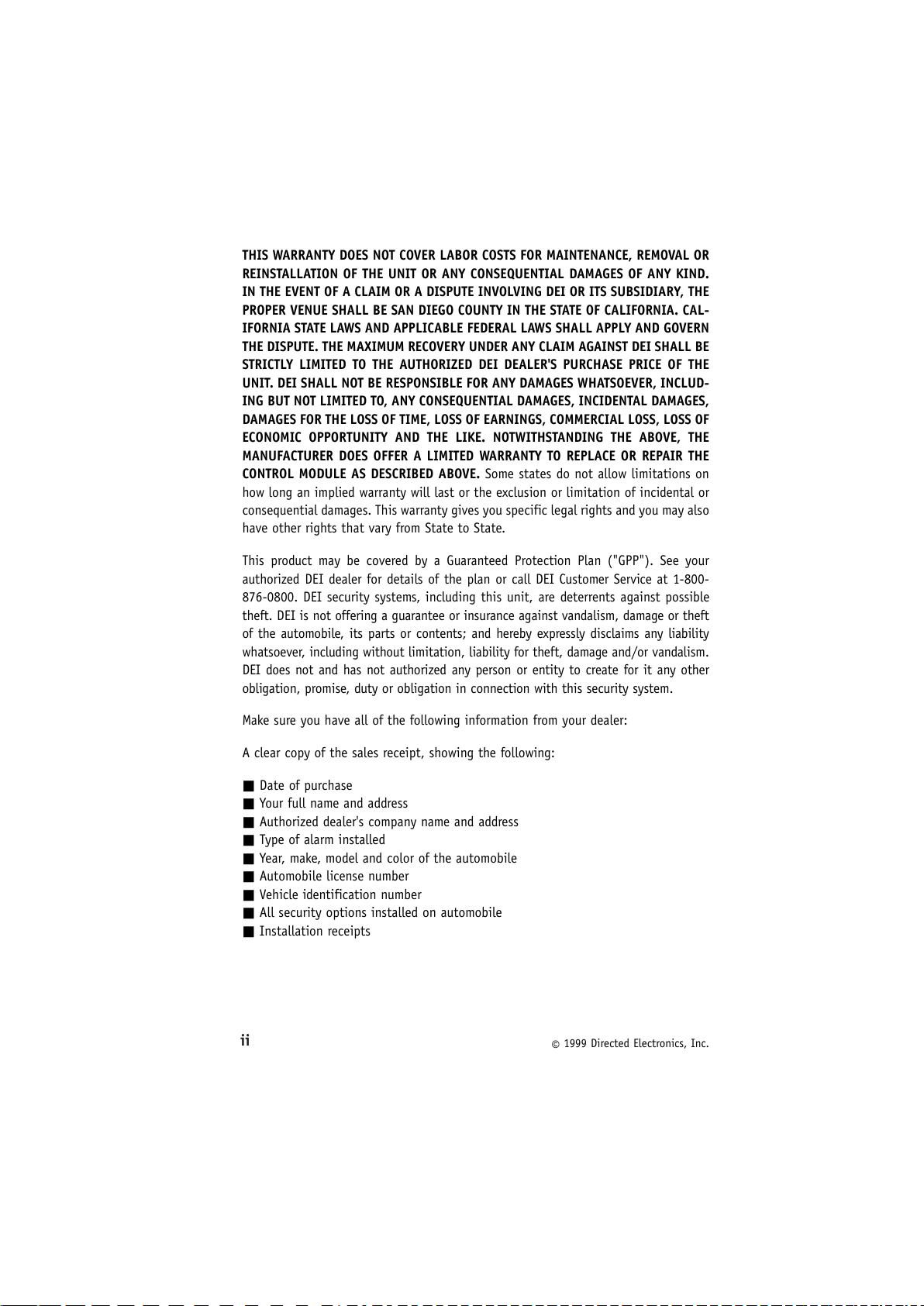

THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR

REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND.

IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DEI OR ITS SUBSIDIARY, THE

PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CAL-

IFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN

THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DEI SHALL BE

STRICTLY LIMITED TO THE AUTHORIZED DEI DEALER'S PURCHASE PRICE OF THE

UNIT. DEI SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUD-

ING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES,

DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF

ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE

MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE

CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on

how long an implied warranty will last or the exclusion or limitation of incidental or

consequential damages. This warranty gives you specific legal rights and you may also

have other rights that vary from State to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your

authorized DEI dealer for details of the plan or call DEI Customer Service at 1-800-

876-0800. DEI security systems, including this unit, are deterrents against possible

theft. DEI is not offering a guarantee or insurance against vandalism, damage or theft

of the automobile, its parts or contents; and hereby expressly disclaims any liability

whatsoever, including without limitation, liability for theft, damage and/or vandalism.

DEI does not and has not authorized any person or entity to create for it any other

obligation, promise, duty or obligation in connection with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■Date of purchase

■Your full name and address

■Authorized dealer's company name and address

■Type of alarm installed

■Year, make, model and color of the automobile

■Automobile license number

■Vehicle identification number

■All security options installed on automobile

■Installation receipts

All manuals and user guides at all-guides.com

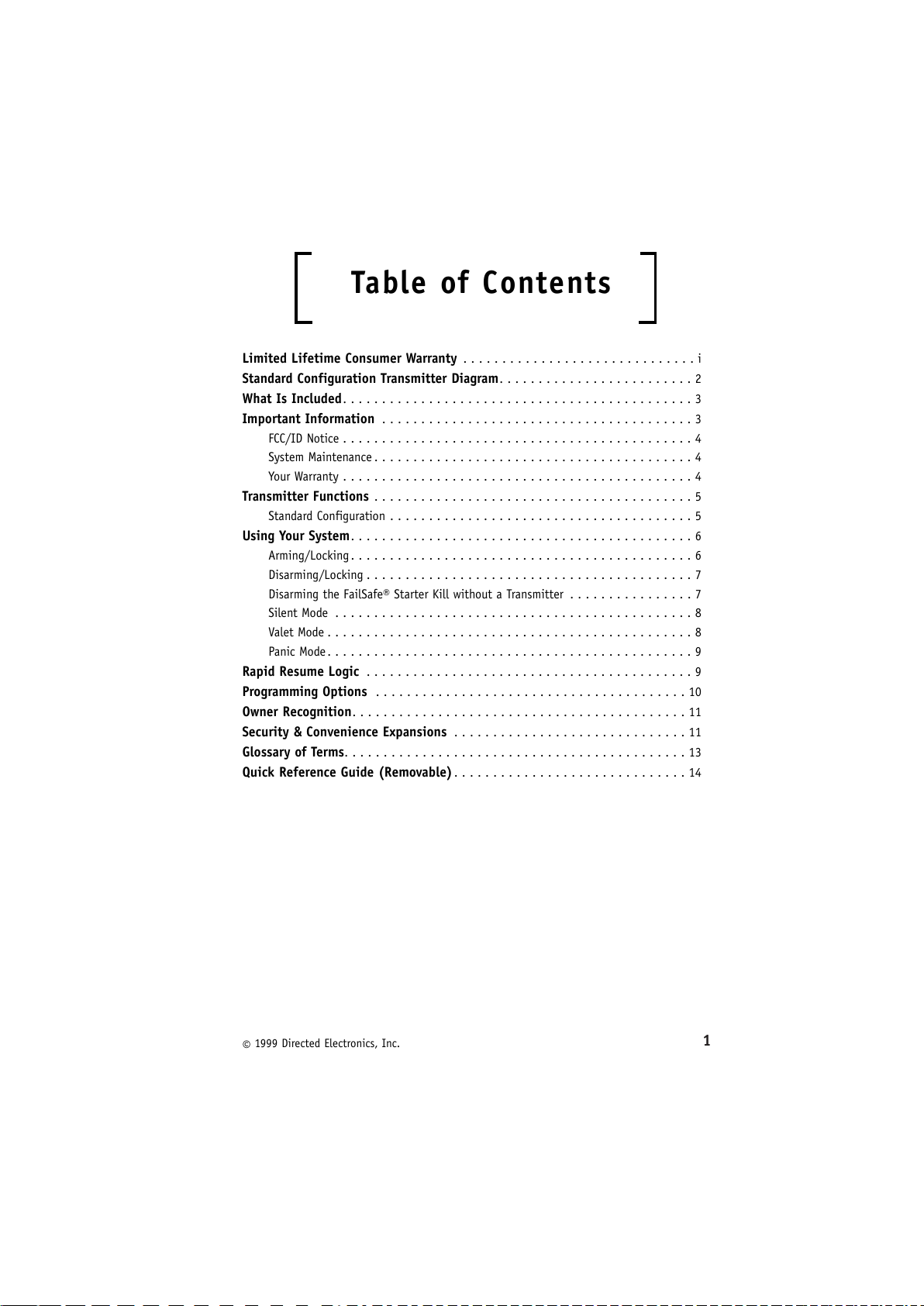

Table of Contents

Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Standard Configuration Transmitter Diagram. . . . . . . . . . . . . . . . . . . . . . . . . 2

What Is Included. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using Your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Arming/Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disarming/Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disarming the FailSafe® Starter Kill without a Transmitter . . . . . . . . . . . . . . . . 7

Silent Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Panic Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Rapid Resume Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Owner Recognition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Glossary of Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Quick Reference Guide (Removable). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

All manuals and user guides at all-guides.com

Standard Configuration

All manuals and user guides at all-guides.com

all-guides.com

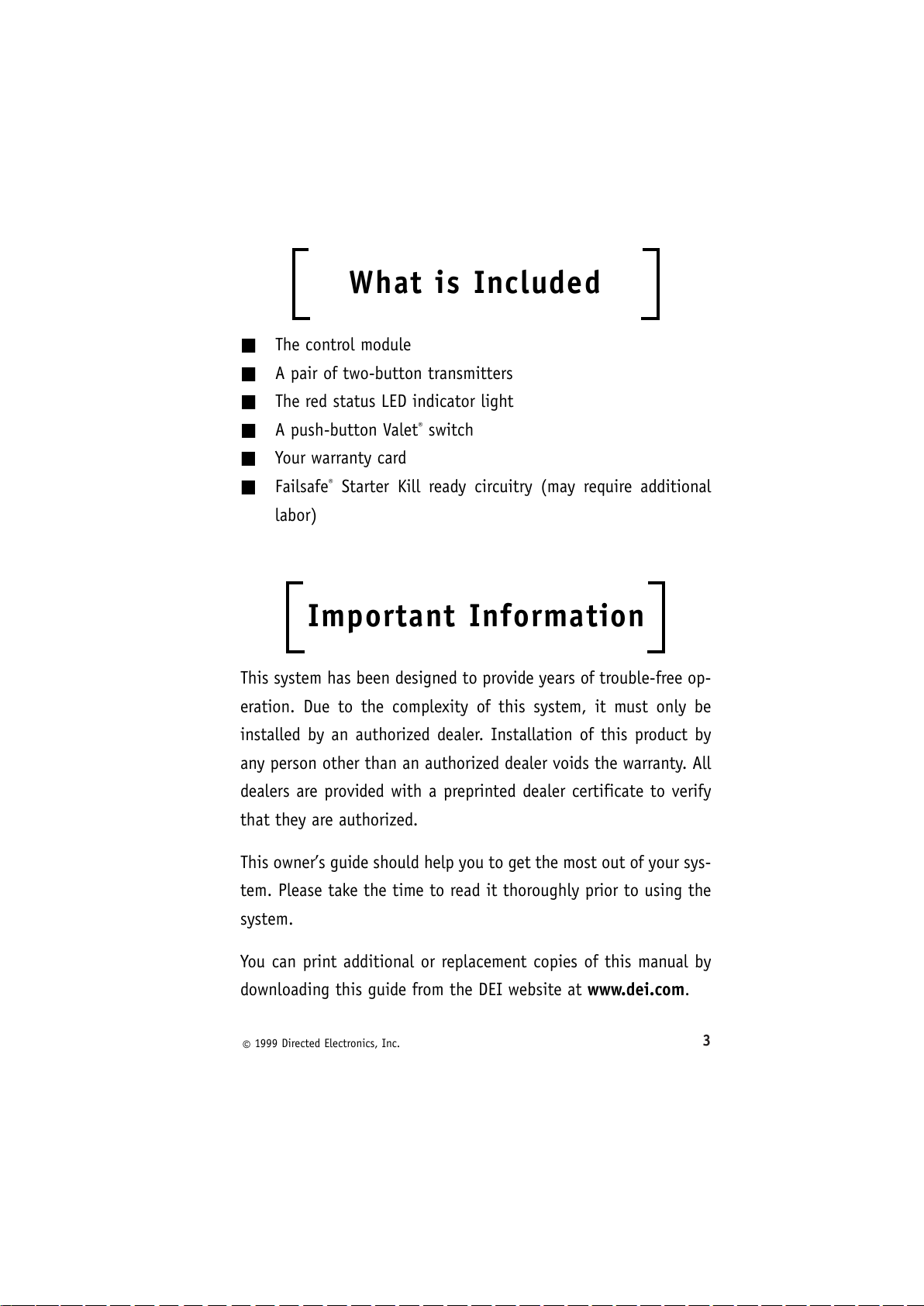

What is Included

■The control module

■A pair of two-button transmitters

■The red status LED indicator light

■A push-button Valet®switch

■Your warranty card

■Failsafe®Starter Kill ready circuitry (may require additional

labor)

Important Information

This system has been designed to provide years of trouble-free op-

eration. Due to the complexity of this system, it must only be

installed by an authorized dealer. Installation of this product by

any person other than an authorized dealer voids the warranty. All

dealers are provided with a preprinted dealer certificate to verify

that they are authorized.

This owner’s guide should help you to get the most out of your sys-

tem. Please take the time to read it thoroughly prior to using the

system.

You can print additional or replacement copies of this manual by

downloading this guide from the DEI website at www.dei.com.

All manuals and user guides at all-guides.com

This device complies with Part 15 of FCC rules. Operation is subject

to the following conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference re-

ceived, including interference that may cause undesired operation.

Caution: Changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate this device.

The system requires no specific maintenance. Your remote control

is powered by a miniature 12V battery, type GP23A, that will last

approximately one year under normal use. When the battery weakens,

operating range will be reduced and the LED on the remote will dim.

Your warranty card must be returned and the bar code serial num-

ber must not be removed. If the warranty card is not returned you

do not have a warranty. It is also necessary to keep your proof of

purchase which reflects that the product was installed by an au-

thorized dealer. Make sure you receive the warranty card from

your dealer.

Your Warranty

System Maintenance

FCC/ID Notice

All manuals and user guides at all-guides.com

Transmitter Functions

Your vehicle keyless entry system is programmable, making it pos-

sible to assign any transmitter button to any specific receiver func-

tion. The transmitter initially comes programmed with Standard

Configuration, but may also be customized by an authorized deal-

er. The buttons in all of the instructions in this manual correspond

to a Standard Configuration transmitter.

Button

The arm/lock, disarm/unlock, and panic functions are controlled by

. Pressing for one second will alternately arm/lock or dis-

arm/unlock. Panic Mode is activated by pressing for 1.5 seconds.

Button

Silent Mode and an optional auxiliary function are controlled by

pressing . Silent Mode™ works by pressing for less than

one second prior to arming or disarming with the transmitter. An

optional auxiliary function is controlled by pressing and holding

for 1.5 seconds.

The auxiliary output controls _____________________________.

and Buttons

An optional auxiliary function that you have added to your system

can be activated by pressing and simultaneously.

The auxiliary output controls _____________________________.

Standard Configuration

All manuals and user guides at all-guides.com

Using Your System

Pressing for one second will arm the system and lock the

doors. The red LED will begin to flash once per second. The

Failsafe® Starter Kill will prevent the vehicle’s starter from crank-

ing if it has been installed. If connected, the vehicle's horn will

honk and the parking lights will flash once to confirm arming of

the system. If the ignition is turned on while the system is armed

the horn will honk and the parking lights will flash (if connected).

NOTE: You must use your remote transmitter to lock the vehicle in order

for the system to be armed. Manually locking the vehicle does not arm

the system; it will only lock the doors. If you have not used the remote

transmitter to lock the vehicle doors (i.e. the vehicle has been locked using

the lock/unlock switch) the transmitter cannot be used to unlock the doors.

The system also can be programmed to arm the starter kill auto-

matically (called passive mode). If the system is programmed for

passive mode, it will automatically activate the starter kill 30 sec-

onds after the ignition is turned off. Passive mode is indicated by

rapid flashing of the LED after the ignition is turned off.

NOTE: For passive mode to be effective, the Failsafe® Starter Kill relay

must be installed.

If passive mode is programmed on, it is also possible to program

the system to lock the doors automatically. This is called passive

locking. If passive locking is turned on, care must be taken to pre-

vent the keys from being locked in the vehicle.

Arming/Locking

All manuals and user guides at all-guides.com

Indice

Altri manuali Directed Electronics Allarme auto

Directed Electronics

Directed Electronics 435 Manuale utente

Directed Electronics

Directed Electronics SmartStart 5000-series Manuale utente

Directed Electronics

Directed Electronics 2000 MAX Manuale utente

Directed Electronics

Directed Electronics Concept 650 Manuale utente

Directed Electronics

Directed Electronics 736T Manuale utente

Directed Electronics

Directed Electronics 430 Series Manuale utente

Directed Electronics

Directed Electronics 560T Manuale utente

Directed Electronics

Directed Electronics Python 881XP Manuale utente

Directed Electronics

Directed Electronics 791XV Manuale utente

Directed Electronics

Directed Electronics Security System and Convenience 125xv Manuale utente

Directed Electronics

Directed Electronics Intelliguard 750 Manuale utente

Directed Electronics

Directed Electronics Hurricane 3 Manuale utente

Directed Electronics

Directed Electronics MERLIN 2000 Manuale utente

Directed Electronics

Directed Electronics Valet 561T Manuale utente

Directed Electronics

Directed Electronics 550ESP Manuale utente

Directed Electronics

Directed Electronics K10 Manuale utente

Directed Electronics

Directed Electronics Viper 350HV Manuale utente

Directed Electronics

Directed Electronics 436 Series Manuale utente

Directed Electronics

Directed Electronics 300 ESP Manuale utente

Directed Electronics

Directed Electronics Vehicle Security System 3901V Manuale utente

Directed Electronics

Directed Electronics 425 Series Manuale utente

Directed Electronics

Directed Electronics AVITAL 3001L Manuale utente

Directed Electronics

Directed Electronics VIPER 3203 Manuale utente

Directed Electronics

Directed Electronics PYTHON 333 Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
