NOTE: This product is intended for installation by a professional installer only!

Any attempt to install this product by any person other than a trained professional

may result in severe damage to a vehicle’s electrical system and components.

PPyytthhoonn

MMooddeell557711XXPP

IInnssttaallllaattiioonnGGuuiiddee

ttaabblleeooffccoonntteennttss

Bitwriter™, Code Hopping™, Doubleguard®, ESP™, FailSafe®, Ghost Switch™, Learn

Routine™, Nite-Lite®, Nuisance Prevention Circuitry®, NPC®, Revenger®, Silent

Mode™, Soft Chirp®, Stinger®, Valet®, Vehicle Recovery System®, VRS®, and Warn

Away® are all Trademarks or Registered Trademarks of Directed Electronics, Inc.

wwaarrnniinngg!!ssaaffeettyyffiirrsstt..........................................33

iinnssttaallllaattiioonnppooiinnttssttoorreemmeemmbbeerr..........................44

before beginning the installation. . . . . . . . . . 4

after the installation . . . . . . . . . . . . . . . . . . 4

ddeecciiddiinnggoonnccoommppoonneennttllooccaattiioonnss........................44

control module . . . . . . . . . . . . . . . . . . . . . . 4

valet/program switch . . . . . . . . . . . . . . . . . . 5

status LED . . . . . . . . . . . . . . . . . . . . . . . . . 5

optional starter kill relay . . . . . . . . . . . . . . . 6

ffiinnddiinnggtthheewwiirreessyyoouunneeeedd..................................66

obtaining constant 12V . . . . . . . . . . . . . . . . 6

finding the 12V switched ignition wire . . . . . . 6

finding the starter wire . . . . . . . . . . . . . . . . 7

finding a (+) brake light wire . . . . . . . . . . . . 7

finding the accessory/heater wire . . . . . . . . . 8

finding the tachometer wire . . . . . . . . . . . . . 8

finding the wait-to-start bulb wire for diesels . 8

wwiirriinnggddiiaaggrraammss................................................99

primary harness (H1) wiring diagram . . . . . . . 9

remote start ribbon harness wiring diagram . . 10

heavy gauge relay satellite wiring diagram . . 10

auxiliary harness (H2) wiring diagram. . . . . . 11

remote start harness (H3) wiring diagram . . . 11

door lock harness (H4) wiring diagram . . . . . 11

remote start auxiliary harness wiring diagram 11

pprriimmaarryyhhaarrnneessss((HH11))wwiirreeccoonnnneeccttiioonngguuiiddee........1122

rreellaayykkeeyysswwiittcchhiinntteerrffaacceewwiirreeccoonnnneeccttiioonngguuiiddee..1166

aauuxxiilliiaarryyhhaarrnneessss((HH22))wwiirreeccoonnnneeccttiioonngguuiiddee......1177

rreemmootteessttaarrtthhaarrnneessss((HH33))wwiirreeccoonnnneeccttiioonngguuiiddee..1199

nneeuuttrraallssaaffeettyysswwiittcchhiinntteerrffaaccee..........................2200

testing the neutral safety switch . . . . . . . . . 21

11999955aannddnneewweerrvveehhiicclleeaannttii--tthheeffttssyysstteemmss..........

((iimmmmoobbiilliizzeerrss))................................................2233

passlock I and passlock II (PL-1 and PL-2) . . 23

passkey III (PK-3), transponder-based systems23

bbyyppaassssiinnggGGMMvveehhiicclleeaannttii--tthheeffttssyysstteemmss((VVAATTSS))..2244

pplluugg--iinnLLEEDDaannddvvaalleett//pprrooggrraammsswwiittcchh................2255

pprrooggrraammmmeerriinntteerrffaaccee,,33--ppiinnppoorrtt........................2255

pprrooggrraammmmiinnggjjuummppeerrss......................................2266

light flash (+)/(-) . . . . . . . . . . . . . . . . . . . 26

tach threshold on/off . . . . . . . . . . . . . . . . . 26

ttrraannssmmiitttteerr//rreecceeiivveerrlleeaarrnnrroouuttiinnee......................2277

ttrraannssmmiitttteerrccoonnffiigguurraattiioonnss................................2299

button configuration . . . . . . . . . . . . . . . . . 29

ssyysstteemmffeeaattuurreesslleeaarrnnrroouuttiinnee............................3300

ffeeaattuurreemmeennuuss..................................................3311

menu #1. . . . . . . . . . . . . . . . . . . . . . . . . . 31

menu #2. . . . . . . . . . . . . . . . . . . . . . . . . . 32

ffeeaattuurreeddeessccrriippttiioonnss..........................................3322

menu #1. . . . . . . . . . . . . . . . . . . . . . . . . . 32

menu #2. . . . . . . . . . . . . . . . . . . . . . . . . . 34

ttaacchhlleeaarrnniinngg..................................................3355

sshhuuttddoowwnnddiiaaggnnoossttiiccss......................................3366

rraappiiddrreessuummeellooggiicc............................................3377

ttiimmeerrmmooddee....................................................3377

vvaalleettmmooddee......................................................3388

ssaaffeettyycchheecckk....................................................3388

ttrroouubblleesshhoooottiinngg..............................................3399

wwiirriinnggqquuiicckkrreeffeerreenncceegguuiiddee..............................4411

rreellaayyssaatteelllliitteewwiirriinnggqquuiicckkrreeffeerreenncceegguuiiddee..........4422

The Bitwriter®(p/n 998T)

requires chip version 1.5 or

newer to program this unit.

wwaarrnniinngg!!ssaaffeettyyffiirrsstt

The following safety warnings must be observed at all times:

■Due to the complexity of this system, installation of this product must only be performed by an authorized

Directed dealer.

■When properly installed, this system can start the vehicle via a command signal from the remote control

transmitter. Therefore, never operate the system in an area that does not have adequate ventilation. The fol-

lowing precautions are the sole responsibility of the user; however, authorized Directed dealers should make

the following recommendations to all users of this system:

1. Never operate the system in an enclosed or partially enclosed area without ventilation (such as a garage).

2. When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote

start system must be disabled using the installed toggle switch.

3. It is the user's sole responsibility to properly handle and keep out of reach from children all remote

control transmitters to assure that the system does not unintentionally remote start the vehicle.

4. TTHHEEUUSSEERRMMUUSSTTIINNSSTTAALLLLAACCAARRBBOONNMMOONNOOXXIIDDEEDDEETTEECCTTOORRIINNOORRAABBOOUUTTTTHHEELLIIVVIINNGGAARREEAAAADDJJAACCEENNTTTTOO

TTHHEEVVEEHHIICCLLEE..AALLLLDDOOOORRSSLLEEAADDIINNGGFFRROOMMAADDJJAACCEENNTTLLIIVVIINNGGAARREEAASSTTOOTTHHEEEENNCCLLOOSSEEDDOORRPPAARRTTIIAALLLLYY

EENNCCLLOOSSEEDDVVEEHHIICCLLEESSTTOORRAAGGEEAARREEAAMMUUSSTTAATTAALLLLTTIIMMEESSRREEMMAAIINNCCLLOOSSEEDD..

■Use of this product in a manner contrary to its intended mode of operation may result in property damage,

personal injury, or death. Except when performing the Safety Check outlined in this installation guide, (1)

Never remotely start the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with the

keys in the ignition. The user will be responsible for having the neutral safety feature of the vehicle period-

ically checked, wherein the vehicle must not remotely start while the car is in gear. This testing should be

performed by an authorized Directed Electronics dealer in accordance with the Safety Check outlined in this

product installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult

with the user to fix the problem immediately.

■After the remote start module has been installed, test the remote start module in accordance with the Safety

Check outlined in this installation guide. If the vehicle starts when performing the Neutral Safety Shutdown

Circuit test, the remote start unit has not been properly installed. The remote start module must be removed

or properly reinstalled so that the vehicle does not start in gear. All installations must be performed by an

authorized Directed Electronics dealer. OOPPEERRAATTIIOONNOOFFTTHHEERREEMMOOTTEESSTTAARRTTMMOODDUULLEEIIFFTTHHEEVVEEHHIICCLLEESSTTAARRTTSSIINN

GGEEAARRIISSCCOONNTTRRAARRYYTTOOIITTSSIINNTTEENNDDEEDDMMOODDEEOOFFOOPPEERRAATTIIOONN..OOPPEERRAATTIINNGGTTHHEERREEMMOOTTEESSTTAARRTTSSYYSSTTEEMMUUNNDDEERR

TTHHEESSEECCOONNDDIITTIIOONNSSMMAAYYRREESSUULLTTIINNPPRROOPPEERRTTYYDDAAMMAAGGEEOORRPPEERRSSOONNAALLIINNJJUURRYY..IIMMMMEEDDIIAATTEELLYYCCEEAASSEETTHHEEUUSSEE

OOFFTTHHEEUUNNIITTAANNDDRREEPPAAIIRROORRDDIISSCCOONNNNEECCTTTTHHEEIINNSSTTAALLLLEEDDRREEMMOOTTEESSTTAARRTTMMOODDUULLEE..DDIIRREECCTTEEDDEELLEECCTTRROONNIICCSS,,

IINNCC..WWIILLLLNNOOTTBBEEHHEELLDDRREESSPPOONNSSIIBBLLEEOORRPPAAYYFFOORRIINNSSTTAALLLLAATTIIOONNOORRRREEIINNSSTTAALLLLAATTIIOONNCCOOSSTTSS..

iinnssttaallllaattiioonnppooiinnttssttoorreemmeemmbbeerr

IIMMPPOORRTTAANNTT!!This product is designed for fuel-injected, automatic transmission vehicles only.

Installing it in a standard transmission vehicle is dangerous and is contrary to its intended use.

■Please read this entire installation guide before beginning the installation. The installation of this remote start

system requires interfacing with many of the vehicle’s systems. Many new vehicles use low-voltage or multi-

plexed systems that can be damaged by low resistance testing devices, such as test lights and logic probes

(computer safe test lights). Test all circuits with a high quality digital multi-meter before making connections.

■Do not disconnect the battery if the vehicle has an anti-theft-coded radio. If equipped with an air bag, avoid

disconnecting the battery if possible. Many airbag systems will display a diagnostic code through their

warning lights after they lose power. Disconnecting the battery requires this code to be erased, which can

require a trip to the dealer.

■Remove the domelight fuse. This prevents accidentally draining the battery.

■Roll down a window to avoid being locked out of the car.

■Test all functions. The "Using Your System" section of the Owner's Guide is very helpful when testing.

■Complete the vehicle

Safety Check

outlined in this manual prior to the vehicle reassembly.

ddeecciiddiinnggoonnccoommppoonneennttllooccaattiioonnss

Things to remember when positioning the control module:

■Never place the control module in the engine compartment!

■The first thing a thief will do when hot-wiring a vehicle is to remove the driver's side under-dash panel to

access the starter and ignition wires. You should therefore avoid placing the control module just behind the

driver’s side dash to prevent it from being easily disconnected during a theft attempt.

■When locating the control module, try to find a secure location that will not require you to extend the harness

wires (they are 1.5 meters long).

■Keep the control module away from the heater core (or any other heat sources) and any obvious leaks.

ccoonnttrroollmmoodduullee

aafftteerrtthheeiinnssttaallllaattiioonn

bbeeffoorreebbeeggiinnnniinnggtthheeiinnssttaallllaattiioonn

Ensure that the location you pick for this switch has sufficient clearance to the rear. The switch should be well

hidden. It should be placed so that passengers or stored items (such as items placed in a glove box or center

console) cannot accidentally bump it. The switch fits in a 9/32-inch hole.

IIMMPPOORRTTAANNTT!!When the vehicle is delivered, please show the user where the Valet®/Program

switch is located and how to disarm the system using the switch.

Things to remember when positioning the status LED:

■It should be visible from both sides and the rear of the vehicle, if possible.

■It needs at least 1/2-inch clearance to the rear.

■It is easiest to use a small removable panel, such as a switch blank or a dash bezel. Remove it before drilling

your 9/32-inch hole.

■Use quick-disconnects near the LED wires if the panel is removable. This lets mechanics or other installers

remove the panel without having to cut the wires.

ssttaattuussLLEEDD

vvaalleett//pprrooggrraammsswwiittcchh

If the optional starter kill relay or its connections are immediately visible upon removal of the under-dash panel,

they can easily be bypassed. Always make the relay and its connections difficult to discern from the factory

wiring! Exposed yellow butt connectors do not look like factory parts, and will not fool anyone! For this reason,

routing the starter kill wires away from the steering column is recommended.

ffiinnddiinnggtthheewwiirreessyyoouunneeeedd

Now that you have determined where each component will be located, your next step is to find the wires in the

vehicle that the security system will be connected to.

IIMMPPOORRTTAANNTT!!Do not use a 12V test light to locate these wires! All testing described in this

manual assumes the use of a digital multimeter.

We recommend two possible sources for 12V constant: The (+) terminal of the battery, or the constant 12V supply to

the ignition switch. Always install a fuse within 12 inches of this connection. If the fuse will also be powering other

circuits, such as door locks, a power window module, or a Nite-Lite® headlight control system, fuse accordingly.

IIMMPPOORRTTAANNTT!!Do not remove the fuse holder on the red wire. It ensures that the control module

has its own fuse, of the proper value, regardless of how many accessories are added to the main

power feed.

The ignition wire is powered when the key is in the run or start position. This is because the ignition wire powers

the ignition system (spark plugs, coil) as well as the fuel delivery system (fuel pump, fuel injection computer).

Accessory wires lose power when the key is in the start position to make more current available to the starter motor.

ffiinnddiinnggtthhee1122VVsswwiittcchheeddiiggnniittiioonnwwiirree

oobbttaaiinniinnggccoonnssttaanntt1122VV

ooppttiioonnaallssttaarrtteerrkkiillllrreellaayy

HHoowwttooffiinndd((++))1122VViiggnniittiioonnwwiitthhyyoouurrmmuullttiimmeetteerr::

1. Set to DCV or DC voltage (12V or 20V is fine).

2. Attach the (-) probe of the meter to chassis ground.

3. Probe the wire you suspect of being the ignition wire. The steering

column harness or ignition switch harness is an excellent place to find

this wire.

4. Turn the ignition key switch to the run position. If your meter reads

(+)12V, go to the next step. If it does not read (+)12V, probe another wire.

5. Now turn the key to the start position. The meter display should stay steady, not dropping by more than a

few tenths of a volt. If it drops close to or all the way to zero, go back to Step 3. If it stays steady at (+)12V,

you have found an ignition wire.

The starter wire provides 12V directly to the starter or to a relay controlling the starter. In some vehicles, it is

necessary to power a cold start circuit. A cold start circuit will test exactly like a starter circuit, but it does not

control the starter. Instead, the cold start circuit is used to prime the fuel injection system for starting when the

vehicle is cold.

HHoowwttooffiinnddtthheessttaarrtteerrwwiirreewwiitthhyyoouurrmmuullttiimmeetteerr::

1. Set to DCV or DC voltage (12V or 20V is fine).

2. Attach the (-) probe of the meter to chassis ground.

3. Probe the wire you suspect of being the starter wire. The steering column

is an excellent place to find this wire. Remember you do not need to

interrupt the starter at the same point you test it. Hiding your optional

starter kill relay and connections is always recommended.

4. Turn the ignition key switch to the start position. Make sure the car is

not in gear! If your meter reads (+)12V, go to the next step. If it doesn’t, probe another wire.

5. Cut the wire you suspect of being the starter wire.

6. Attempt to start the car. If the starter engages, reconnect it and go back to Step 3. If the starter does not

turn over, you have the right wire.

Most vehicles use a (+) brake light circuit. The (+) brake light wire is often found near the brake pedal. The same

wire can often be accessed in the kick panel or running board.

HHoowwttooffiinnddaa((++))bbrraakkeelliigghhttwwiirreewwiitthhyyoouurrmmuullttiimmeetteerr::

1. Set to DCV or DC voltage (12V or 20V is fine).

ffiinnddiinnggaa((++))bbrraakkeelliigghhttwwiirree

ffiinnddiinnggtthheessttaarrtteerrwwiirree

2. Attach the (-) probe of the meter to chassis ground.

3. Probe the wire you suspect of being the brake light wire.

4. Press the brake pedal. If your meter shows (+)12V, release the brake pedal and make sure it goes back to zero.

5. If it does return to zero, this is the correct brake wire.

An accessory/heater wire will show +12V when the key is in the accessory and run positions. It will not show

+12V during the cranking cycle. There will often be more than one accessory wire in the ignition harness. The

correct accessory wire will power the vehicle's climate control system. Some vehicles may have separate wires for

the blower motor and the air conditioning compressor. In such cases, it will be necessary to add a relay to power

the second accessory wire.

To test for a tachometer wire, a multimeter capable of testing AC voltage must be used. The tachometer wire will

show between 1V and 6V AC. In multi-coil ignition systems, the system can learn individual coil wires. Individual

coil wires in a multi-coil ignition system will register lower amounts of AC voltage. Also, if necessary, the system

can use a fuel injector control wire for engine speed sensing. Common locations for a tachometer wire are the

ignition coil itself, the back of the gauges, engine computers, and automatic transmission computers.

IIMMPPOORRTTAANNTT!!Do not test tachometer wires with a test light or logic probe. The vehicle will be

damaged.

HHoowwttooffiinnddaattaacchhoommeetteerrwwiirreewwiitthhyyoouurrmmuullttiimmeetteerr::

1. Set to ACV or AC voltage (12V or 20V is fine).

2. Attach the (-) probe of the meter to chassis ground.

3. Start and run the vehicle.

4. Probe the wire you suspect of being the tachometer wire with the red probe of the meter.

5. If this is the correct wire the meter will fluctuate with the rpm of the motor and read between 1V and 6V.

In diesel vehicles it is necessary to interface with the wire that turns on the WAIT TO START light in the dash-

board. This wire illuminates the bulb until the vehicle’s glow plugs are properly heated. When the light goes out

the vehicle can be started. This wire is always available at the connector leading to the bulb in the dashboard.

It can also be found at the Engine Control Module (ECM) in many vehicles.

ffiinnddiinnggtthheewwaaiitt--ttoo--ssttaarrttbbuullbbwwiirreeffoorrddiieesseellss

ffiinnddiinnggtthheettaacchhoommeetteerrwwiirree

ffiinnddiinnggtthheeaacccceessssoorryy//hheeaatteerrwwiirree

TTootteessttaannddddeetteerrmmiinneetthheeppoollaarriittyyoofftthhiisswwiirree::

1. Set your multimeter to DCV or DC voltage (12 or 20V is fine).

2. Attach the (+) probe of the meter to (+)12V.

3. Probe the wire that you suspect leads to the bulb with the (-) probe of the meter.

4. Turn the ignition switch to the ON position.

5. If the meter indicates 12 volts until the light goes out you have isolated the correct wire and the wire's polar-

ity is negative (ground while the bulb is on).

6. If the meter reads zero volts until the light goes out and then reads 12 volts, you have isolated the correct

wire and the wire's polarity is positive.

wwiirriinnggddiiaaggrraammss

The primary harness supplied with this unit is the standard 12-pin harness used by Directed Electronics, Inc.

security systems. Three wires in the plug are not used. The upgrade from this unit to a security system would

simply require unplugging and exchanging control units and connecting the necessary wires to the vehicle. The

functions of all the wires that are used in the primary harness are outlined in the following wiring diagram and

the wire connections are described in the wire connection guides.

______

______ RREEDD//WWHHIITTEE((--))220000mmAACCHHAANNNNEELL22VVAALLIIDDIITTYYOOUUTTPPUUTT

RREEDD((++))CCOONNSSTTAANNTTPPOOWWEERRIINNPPUUTT

BBRROOWWNN((--))HHOORRNNHHOONNKKOOUUTTPPUUTT

NNOOFFUUNNCCTTIIOONN

BBLLAACCKK((--))CCHHAASSSSIISSGGRROOUUNNDDIINNPPUUTT

NNOOFFUUNNCCTTIIOONN

BBLLUUEE((--))SSEECCOONNDDUUNNLLOOCCKKOOUUTTPPUUTT

NNOOFFUUNNCCTTIIOONN

BBLLAACCKK//WWHHIITTEE((--))220000mmAADDOOMMEELLIIGGHHTTSSUUPPEERRVVIISSIIOONNOOUUTTPPUUTT

WWHHIITTEE//BBLLUUEE((--))RREEMMOOTTEESSTTAARRTTAACCTTIIVVAATTIIOONNIINNPPUUTT

WWHHIITTEE((++))//((--))SSEELLEECCTTAABBLLEELLIIGGHHTTFFLLAASSHHOOUUTTPPUUTT

OORRAANNGGEE((--))550000mmAAAARRMMEEDDOOUUTTPPUUTT

HH11//11

HH11//22

HH11//33

HH11//44

HH11//55

HH11//66

HH11//77

HH11//88

HH11//99

HH11//1100

HH11//1111

HH11//1122

pprriimmaarryyhhaarrnneessss((HH11))wwiirriinnggddiiaaggrraamm

______

______ PPIINNKK//WWHHIITTEE((++))OOUUTTPPUUTTTTOOSSEECCOONNDDIIGGNNIITTIIOONN//AACCCCEESSSSOORRYYCCIIRRCCUUIITT

RREEDD//WWHHIITTEEHHIIGGHHCCUURRRREENNTT1122VVIINNPPUUTT

PPIINNKK((++))OOUUTTPPUUTTTTOOIIGGNNIITTIIOONNCCIIRRCCUUIITT

RREEDD((++))((3300AA))HHIIGGHHCCUURRRREENNTT1122VVIINNPPUUTT

OORRAANNGGEE((++))OOUUTTPPUUTTTTOOAACCCCEESSSSOORRYYCCIIRRCCUUIITT

RREEDD((++))((3300AA))HHIIGGHHCCUURRRREENNTT1122VVIINNPPUUTT

GGRREEEENNSSTTAARRTTEERRIINNPPUUTTFFRROOMMIIGGNNIITTIIOONN((KKEEYYSSIIDDEE))

PPUURRPPLLEE((++))SSTTAARRTTEERROOUUTTPPUUTTTTOOSSTTAARRTTEERR((SSTTAARRTTEERRSSIIDDEE))

hheeaavvyyggaauuggeerreellaayyssaatteelllliitteewwiirriinnggddiiaaggrraamm

BBLLUUEE((--))220000mmAASSTTAATTUUSSOOUUTTPPUUTT

OORRAANNGGEE//BBLLAACCKK((--))AANNTTII--GGRRIINNDDOOUUTTPPUUTT//GGRROOUUNNDDWWHHEENNAARRMMEEDDOOUUTTPPUUTT

PPUURRPPLLEE((--))220000mmAASSTTAARRTTEERRRREELLAAYYTTUURRNN--OONN

OORRAANNGGEE((--))220000mmAAAACCCCEESSSSOORRYYRREELLAAYYTTUURRNN--OONN

PPIINNKK((--))220000mmAAIIGGNNIITTIIOONNRREELLAAYYTTUURRNN--OONN

YYEELLLLOOWW((++))IIGGNNIITTIIOONNIINNPPUUTTTTOORREEMMOOTTEESSTTAARRTT

PPIINNKK//WWHHIITTEE((--))220000mmAAPPRROOGGRRAAMMMMAABBLLEEAACCCC//IIGGNNOOUUTTPPUUTT

rreemmootteessttaarrttrriibbbboonnhhaarrnneesssswwiirriinnggddiiaaggrraamm

Questo manuale è adatto per i seguenti modelli

Altri manuali Directed Electronics Allarme auto

Directed Electronics

Directed Electronics Intelliguard 750 Manuale utente

Directed Electronics

Directed Electronics 410S Manuale utente

Directed Electronics

Directed Electronics Hornet 563T Manuale utente

Directed Electronics

Directed Electronics Hornet 740T Manuale utente

Directed Electronics

Directed Electronics 400ESP Manuale utente

Directed Electronics

Directed Electronics VIPER 5701 Manuale utente

Directed Electronics

Directed Electronics Intelliguard 950 Manuale utente

Directed Electronics

Directed Electronics 671XV Manuale utente

Directed Electronics

Directed Electronics 592 Manuale utente

Directed Electronics

Directed Electronics Viper 5904 Manuale utente

Directed Electronics

Directed Electronics AM2 Manuale utente

Directed Electronics

Directed Electronics Python 500 Manuale utente

Directed Electronics

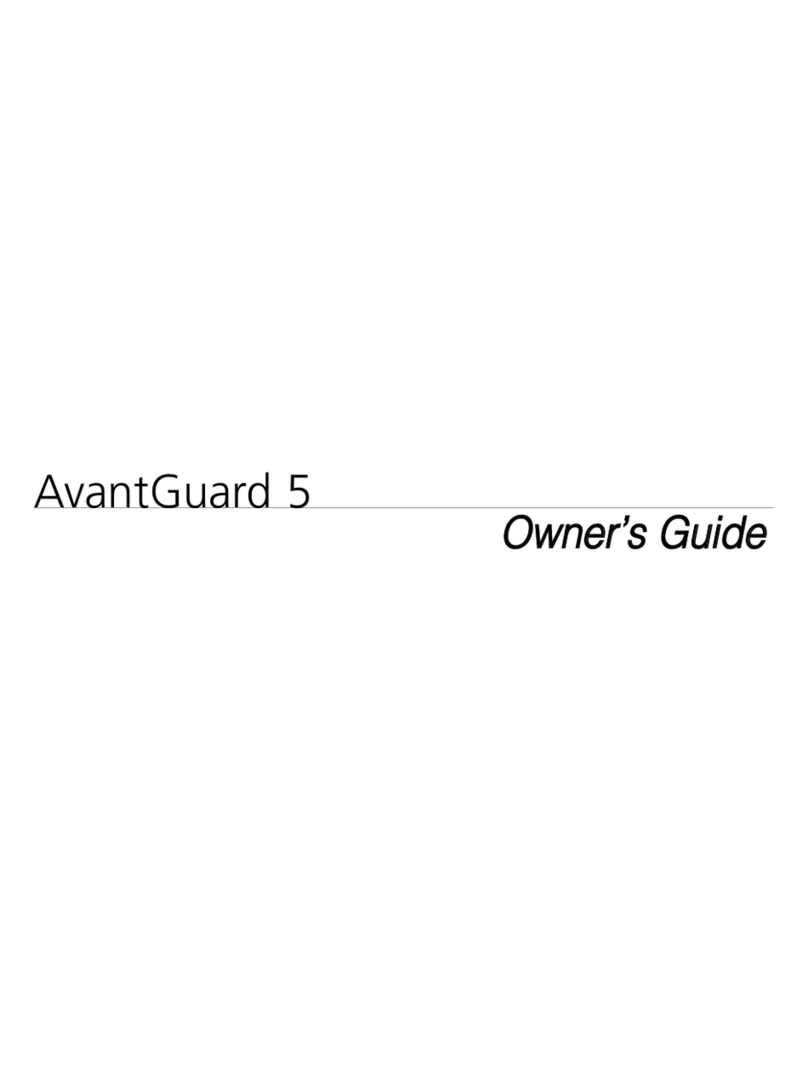

Directed Electronics AdvantGuard 5 Manuale utente

Directed Electronics

Directed Electronics 381 Series Manuale utente

Directed Electronics

Directed Electronics 425 Series Manuale utente

Directed Electronics

Directed Electronics Hornet 740T Manuale utente

Directed Electronics

Directed Electronics 460MAX Manuale utente

Directed Electronics

Directed Electronics 791XV Manuale utente

Directed Electronics

Directed Electronics 736T Manuale utente

Directed Electronics

Directed Electronics ProSecurity SR6000 Manuale utente

Directed Electronics

Directed Electronics AM1 Manuale utente

Directed Electronics

Directed Electronics 553S Manuale utente

Directed Electronics

Directed Electronics PYTHON 333 Manuale utente

Directed Electronics

Directed Electronics 411R Series Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
