Primary Harness (H1) Wire Connection Guide

Primary Harness Wiring Diagram

___

Primary Harness Wiring Instructions

This guide describes in detail the connection of each wire. Also included are possible applications

of each wire. This system was designed with the ultimate in flexibility and security in mind. Many

of the wires have more than one possible function. Please read carefully to ensure a thorough under-

standing of this unit.

H1/1 ORANGE (-) ground-when-armed output

This wire supplies a (-) ground as long as the system is armed. This output ceases as soon as the

system is disarmed. The orange wire is pre-wired to control the 8618 starter kill relay. It can supply

up to 500 mA of current.

NOTE: If using the H1/1 ORANGE wire to activate an add-on accessory such as window

automation, pager or voice module a 1Amp diode must be installed to ensure proper operation.

Insert the diode as shown in the following diagram.

RED/WHITE (-) 200 mA Channel 2 Output

RED (+) Constant Power Input

BROWN (+) Siren Output

YELLOW (+) Switched Ignition Input, Zone 5

BLACK (-) Chassis Ground Input

VIOLET (+) Door Trigger Input, Zone 3

BLUE (-) Instant Trigger Input, Zone 1

GREEN (-) Door Trigger Input, Zone 3

BLACK/WHITE (-) 200 mA Domelight Supervision Output

WHITE/BLUE (-) 200 mA Channel 3 Programmable Output

WHITE (+)/(-) Selectable Light Flash Output

ORANGE (-) 500 mA Armed Output

H1/1

H1/2

H1/3

H1/4

H1/5

H1/6

H1/7

H1/8

H1/9

H1/10

H1/11

H1/12

2005

H1/2 WHITE (+/-) light flash output

As shipped, the H1/2 WHITE wire should be connected to the (+) parking light wire. If the light flash

polarity jumper is moved to the (-) position (see the

Programming Jumper

section of this installation

guide), this wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in

Toyota, Lexus, BMW, some Mitsubishi, some Mazda, and other models.

NOTE: For parking light systems that draw 10 amps or more, the jumper must be switched to a

(-) light flash output (see the

Programming Jumpers

section of this guide). P/N 8617 or a standard

automotive SPDT relay must be used on the H1/2 light flash output wire.

IMPORTANT! DO NOT connect this wire to a negative vehicle light flash wire before

changing the programming jumper to the negative polarity position or damage to

vehicle light circuit may occur.

IMPORTANT! Never interrupt any wire other than the starter wire.

2005

H1/3 WHITE/BLUE 200 mA (-) channel 3 output

This wire provides a (-) 200 mA output whenever the transmitter button(s) controlling channel

three is pressed. This output can be programmed to provide the following types of output (see

System Features Learn Routine

section of this guide):

➤➤A vvaalliiddiittyyoutput will send a signal as long as the transmission is received.

➤➤A llaattcchheeddoutput will send a signal continuously when the channel three button(s) is pressed and

released. The signal will continue until channel three is pressed again.

➤➤A llaattcchheedd//rreesseettwwiitthhiiggnniittiioonnoutput works similar to the latched output, but will also reset

(output will stop) when the ignition is turned on and then off.

➤➤A 3300sseeccoonnddttiimmeeddoutput will send a signal for 30 seconds when channel three is pressed. This

output can be shut off during the 30-second period by pressing Channel 3 again.

➤➤This output can also be programmed to provide a sseeccoonndduunnlloocckkppuullsseewhen the unlock button

is pressed a second time after disarming the system. This can be used to unlock the passenger

doors when installing progressive door locks.

H1/4 BLACK/WHITE (-) 200 mA domelight supervision output

Connect the H1/4 wire to the optional domelight supervision relay as shown in the following

diagram:

IMPORTANT! This output is only intended to drive a relay. It cannot be connected

directly to the domelight circuit, as the output cannot support the current draw of one

or more bulbs.

IMPORTANT! Never use this wire to drive anything but a relay or a low-current input!

This transistorized output can only supply 200 mA, and connecting directly to a

solenoid, motor, or other high-current device will cause the module to fail.

2005

H1/5 GREEN (-) door trigger input

Most vehicles use negative door trigger circuits. Connect the green wire to a wire showing ground

when any door is opened. When connecting to newer model vehicles there is generally a need to use

individual door triggers. See DirectFax document 1076 for wiring instructions. This wire will report

Zone 3.

NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6 or the 998T

Bitwriter can be used to turn Bypass Notification off.

H1/6 BLUE (-) instant trigger input

This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk pins

and will report on Zone 1. It can also be used with Directed single-stage sensors. The H1/6 blue

instant trigger wire can also be used to shunt sensors during operation of auxiliary channels or remote

start. (See

Bypassing Sensor Inputs

section of this guide.)

H1/7 VIOLET (+) door trigger input

This type of dome circuit is used in many Ford products. Connect the violet wire to a wire that shows

(+)12V when any door is opened. This wire will report Zone 3.

NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6 or the 998T

Bitwriter can be used to turn Bypass Notification off.

2005

H1/8 BLACK (-) chassis ground connection

Connect this wire to a clean, paint-free sheet metal location (driver kick panel) using a factory bolt

that DOES NOT have any vehicle component grounds attached to it. A screw should only be used

when in conjunction with a two-sided lock washer. Under dash brackets and door sheet metal are

not acceptable ground points. It is recommended that all security components be grounded at the

same location.

H1/9 YELLOW (+) ignition input

Connect this wire to the (+) 12 volts ignition wire. This wire is pre-wired to the starter kill relay and

must show (+) 12 volts with the key in RUN position and during cranking. Take great care that this

wire cannot be shorted to the chassis at any point.

\\\\\\\

H1/10 BROWN (+) siren output

Connect this to the RED wire of the Revenger® siren. Connect the BLACK wire of the siren to (-)

chassis ground, preferably at the same point you connect the control module’s BLACK ground wire.

2005

H1/11 RED (+)12V constant power input

Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or

the constant 12V supply to the ignition switch.

NOTE: Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 15 amp

fuse in the harness for this purpose. This fuse protects the module itself.

H1/12 RED/WHITE 200 mA (-) channel 2 output

When the system receives the code controlling channel 2 for longer than 1.5 seconds, the

RED/WHITE will supply an output as long as the transmission continues. This is often used to

operate a trunk/hatch release or other relay/driven function.

IMPORTANT! Never use this wire to drive anything but a relay or a low-current input!

The transistorized output can only supply 200 mA of current. Connecting directly to a

solenoid, motor, or other high-current device will cause it to fail.

2005

Door Lock Harness (H2), 3-PIN Connector

___

NOTE: For detailed instructions about connecting to the vehicle’s power door lock systems, refer

to the Door Lock Wiring guide (Document No. 1041) available to authorized dealers only from the

technical resources listed at the front of this guide.

Peripheral Plug-In Harnesses

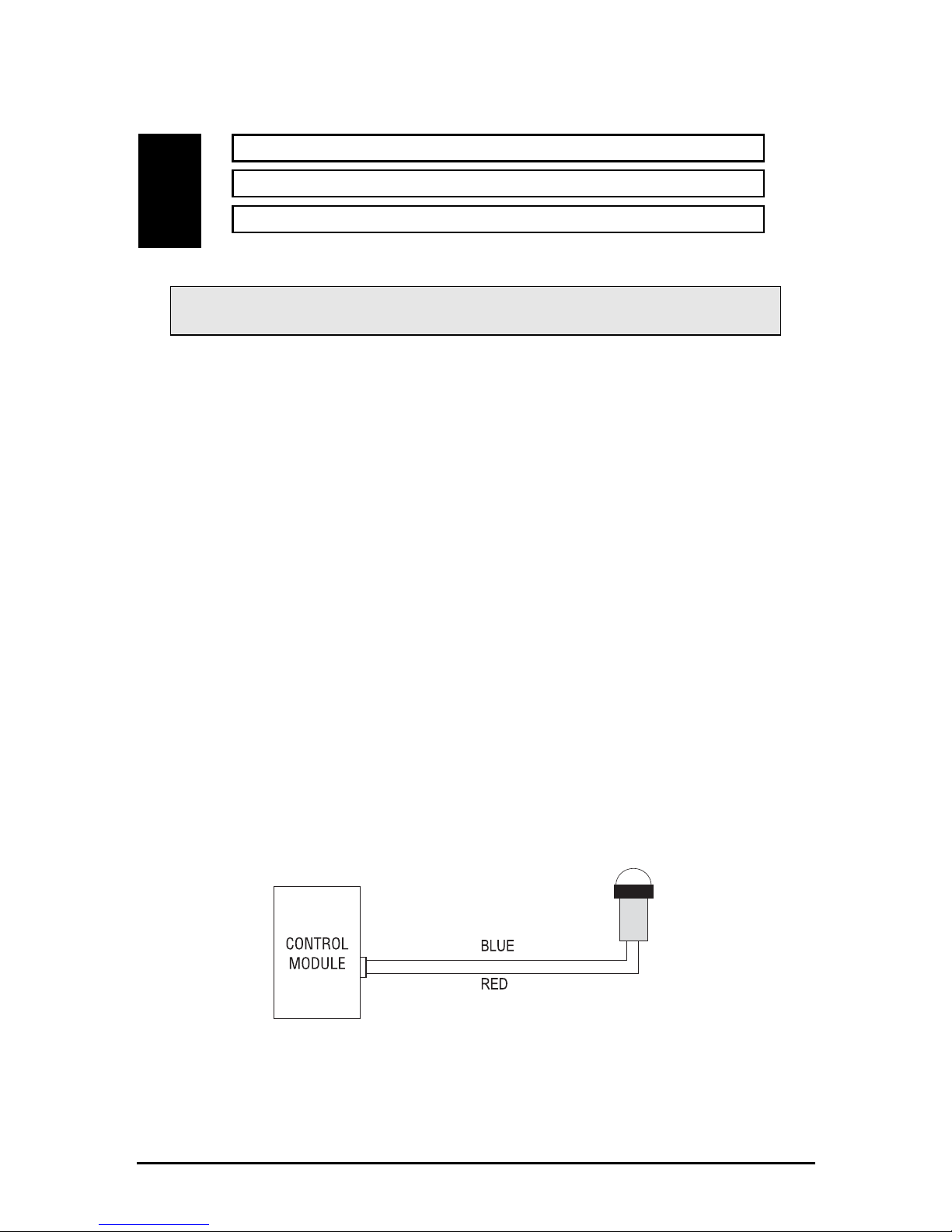

Super Bright LED, 2-Pin WHITE Plug

The super bright LED operates at (+) 2 volt DC and plugs into the two-pin WHITE port. Make

sure the LED wires are not shorted to ground as the LED will be damaged. Multiple LED’s can be

used, but they must be wired in series. The LED fits into a 9/32-inch mounting hole. Be sure to

check for clearance prior to drilling the mounting hole.

NOTE: Never use a BLUE LED in combination with a RED LED.

DIA-41

IMPORTANT! The door lock outputs are low current and should not be attached

directly to any high current device; they are only to be used to activate relays

Blue (-) Unlock, (+) Lock Output

Empty Unless Using 451M

Green (-) Lock, (+) Unlock Output

H2/A

H2/B

H2/C

Altri manuali per Viper 350HV

Indice

Altri manuali Directed Electronics Allarme auto

Directed Electronics

Directed Electronics Python 3000 ESP Manuale utente

Directed Electronics

Directed Electronics Viper 5904 Manuale utente

Directed Electronics

Directed Electronics IntelliGuard 7000 Manuale utente

Directed Electronics

Directed Electronics G312R Guida rapida

Directed Electronics

Directed Electronics 791XV Manuale utente

Directed Electronics

Directed Electronics AutoCommand 20095 Manuale utente

Directed Electronics

Directed Electronics 6000 Manuale utente

Directed Electronics

Directed Electronics Matrix RS 2 Manuale utente

Directed Electronics

Directed Electronics 2102T Manuale utente

Directed Electronics

Directed Electronics SmartStart 5000-series Manuale utente

Directed Electronics

Directed Electronics Hornet 719T Manuale utente

Directed Electronics

Directed Electronics Python 500 Manuale utente

Directed Electronics

Directed Electronics Car Alarm Manuale utente

Directed Electronics

Directed Electronics AM2 Manuale utente

Directed Electronics

Directed Electronics 2100 Manuale utente

Directed Electronics

Directed Electronics PYTHON 333 Manuale utente

Directed Electronics

Directed Electronics Hurricane 3 Manuale utente

Directed Electronics

Directed Electronics WASP 718W Manuale utente

Directed Electronics

Directed Electronics 700J Manuale utente

Directed Electronics

Directed Electronics Python 460HP Manuale utente

Directed Electronics

Directed Electronics Avital 2300 Manuale utente

Directed Electronics

Directed Electronics Intelliguard 950 Manuale utente

Directed Electronics

Directed Electronics MERLIN 2000 Manuale utente

Directed Electronics

Directed Electronics 732T Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
