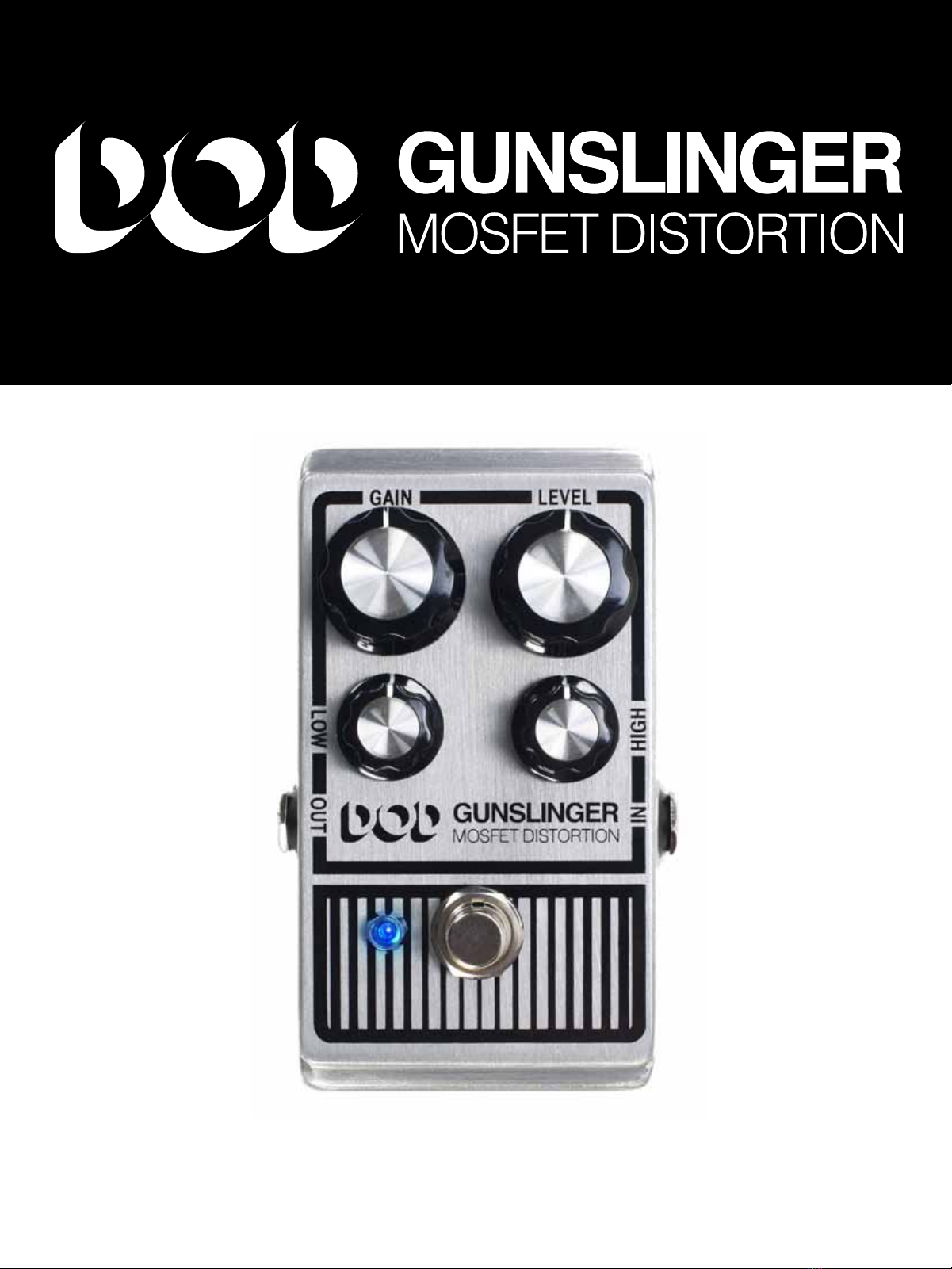

DOD GUNSLINGER Manuale utente
1 2
3 4
5
6
8
7

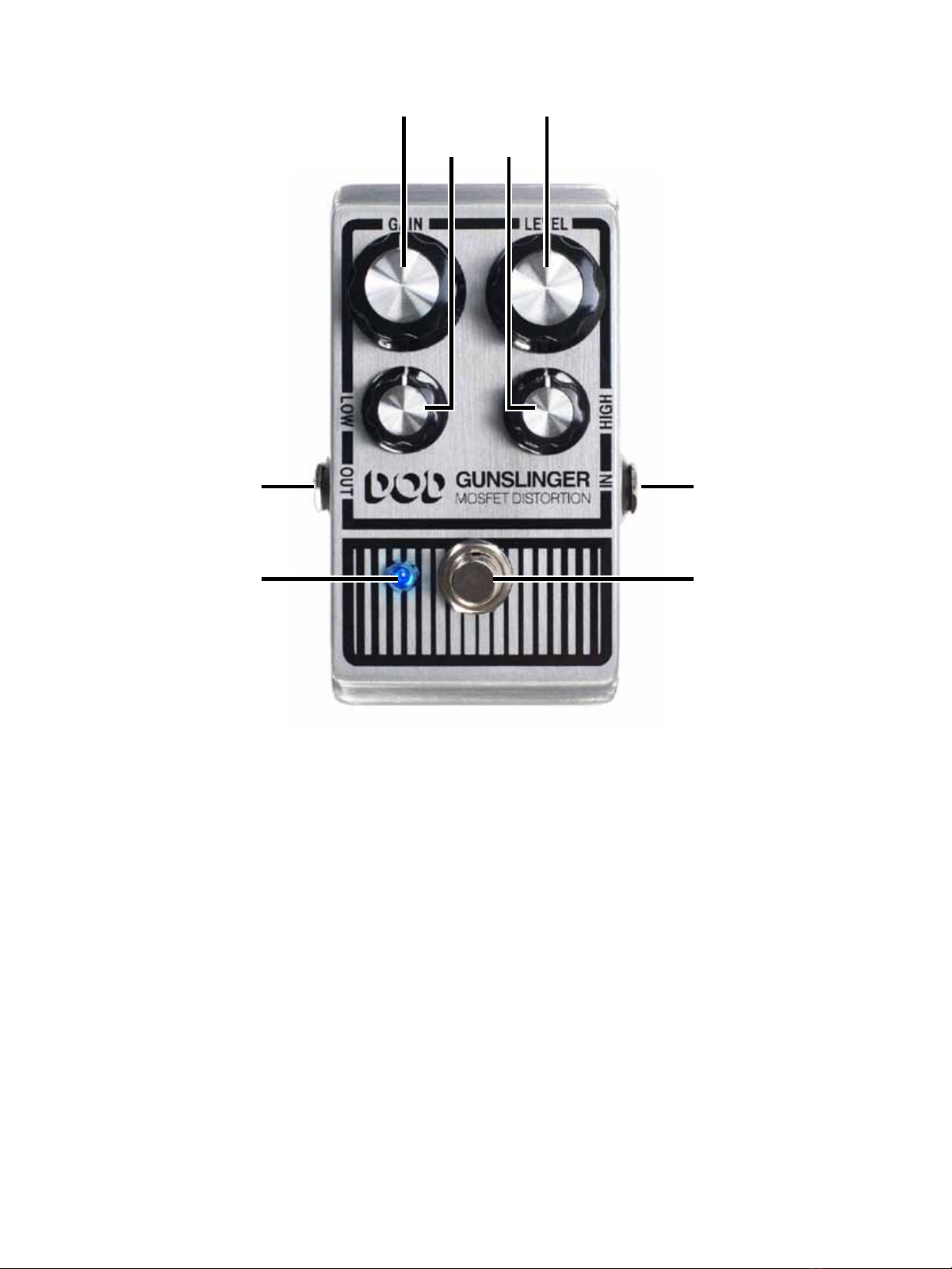

1. GAIN - adjusts the amount of distortion gain.
2. LEVEL - adjusts the overall output level of the distortion eect.
3. LOW - adjusts the amount of low frequencies in the distortion signal.
4. HIGH - adjusts the amount of high frequencies in the distortion signal.
5. INPUT - connect your instrument here.
6. FOOTSWITCH - turns the eect on and o.
7. LED - turns on when the eect is enabled.
8. OUTPUT - connect to the next pedal’s input or to the input of your amplier.
USING GUNSLINGER:
Most guitarists/bassists will favor placing the Gunslinger at the
beginning of their chain of eects, so start with that placement.
A typical eects signal chain will consist of Distortion eects rst
then Modulation eects (Chorus, Flanger, Phaser, Tremolo, etc...)
next and then nally Time based eects (Delay and Reverb).
Placing the Gunslinger toward the front of your chain or eects
will preserve the vibe no matter the pedal combination that
follows. That being said you may wish to experiment with
dierent eect placements.
SPECIFICATIONS:
Input 1/4”TS Unbalanced - 470 kΩ
Output 1/4”TS Unbalanced - 100 Ω
Current Draw 20 mA
Bypass True Bypass
Power 9VDC alkaline battery (not included)
HARMAN PS0913DC power adapter (optional)
also compatible with or 18VDC negative center tap PSU
Warranty 1 Year
DOD
10653 River Front Parkway
South Jordan, UT 84095
USA
801-566-8800 Rev A - 6/15
