RECORD THIS UNIT INFORMATION FOR

FUTURE REFERENCE:

Model Number

Date Purchased

SERVICE OFFICE:

USA

Dometic Corporation

1120 North Main Street

Elkhart, IN 46514

For Service Center

Assistance Call:

Please Visit

www.Dometic.com

INSTALLATION INSTRUCTIONS DOM070XXXX

DOM07ZXXXX

REVISION A

Form No. 3312719.000 8/19

LaGrange, IN 46761

This manual must be read and

understood before installation,

adjustment, service, or mainte-

nance is performed. This unit must

be installed by a qualied service

technician. Modification of this

product can be extremely hazard-

ous and could result in personal

injury or property damage.

Lire et comprendre ce manuel avant

de procéder à l’installation, à des ré-

glages, de l’entretien ou des répara-

tions. L’installation de cet appareil doit

être e󰀨ectuée par un réparateur quali-

é. Toute modication de cet appareil

peut être extrêmement dangereuse et

entraîner des blessures ou dommages

matériels.

S7 WINDOWS

S7Z WINDOWS

Installation instructions S7-/S7Z-Window

Wall thickness 24-42 mm (S7-Window)

Wall thickness 28-40 mm (S7Z-Window)

Before installing the S7-/S7Z-Window please read carefully the installation instructions.

Prerequisite for correct installation is a flat outer wall surface of the vehicle.

The place where the S7-/S7Z-Window is to be installed must be selected to ensure that the window will not

impair any adjacent components, cables or fitted cupboards in the vehicle interior or detract from the

functions of fastening or reinforcing components. To avoid damage to the wall, the cut-out must be sturdy

(for example reinforced with wooden frames – not included in the package). The vehicle wall has to be

constructed in the area of the window frame in such a way that the power of the clamps can be transferred.

The S7-Window profile is suitable for a wall thickness 15/16-1 21/32" [24-42 mm]. The S7Z-Window is suitable for

wall thickness 1 3/32-1 9/16" [28-40 mm]. The frame will be screwed with clamps from the back side on the wall.

Remark: No liability is assumed for incorrect installation of the S7-/S7Z-Window.

Installation Steps:

1. Ascertain the position of the S7-/S7Z-Window

according to the conditions mentioned above.

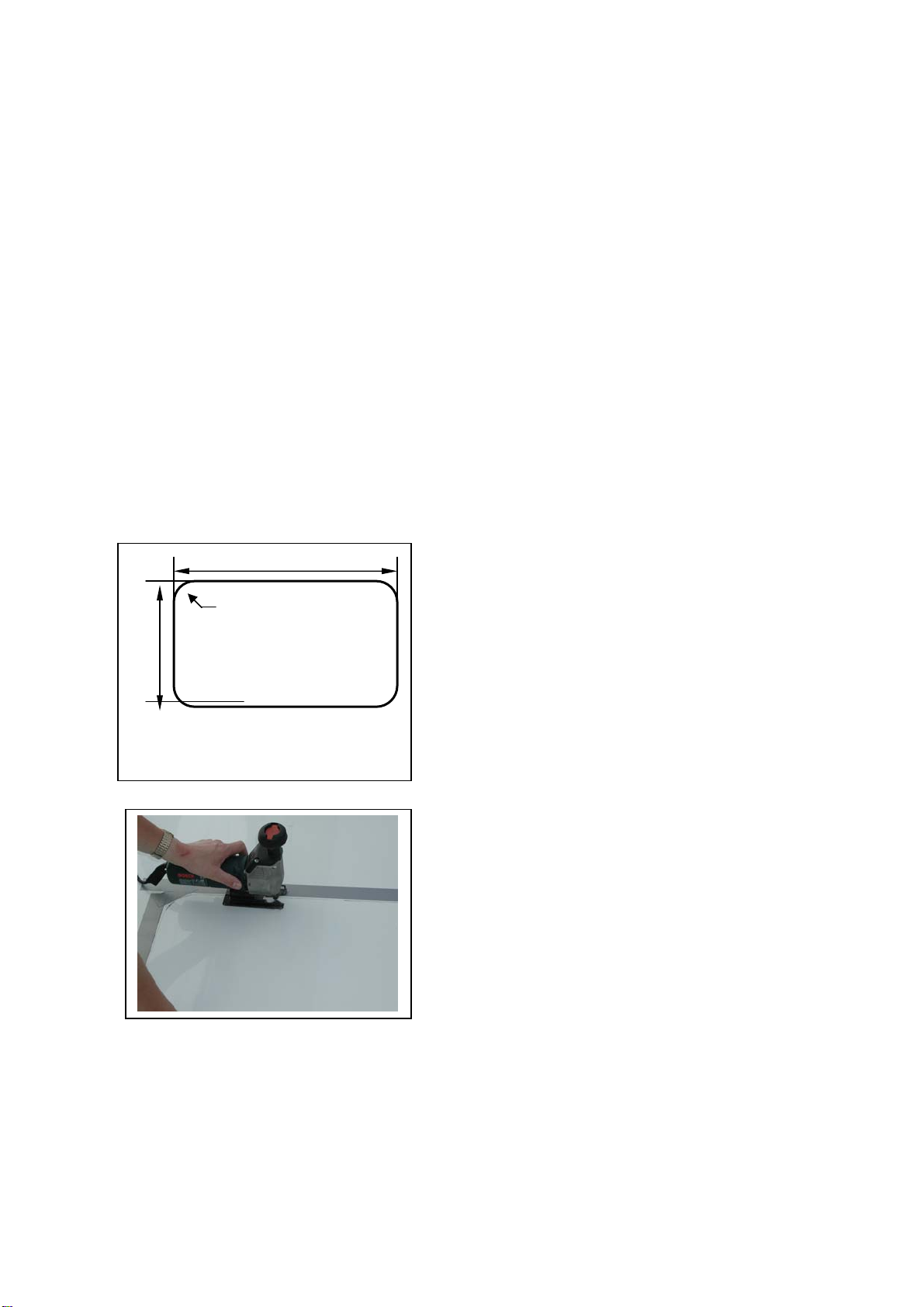

2. Determine the dimensions of the cut-out. The

aperture size correspond to the ordering size of the

window. Max. Tolerance of the cut out +1/32" [1mm]/-0.

Corner radius 4 x R 2-15/16" [75 mm](Photo 1).

3. In order to avoid scratches on the wall surface, the

perimeter should be covered with sticky tape before

the cutting or mill-cutting begins. Execute the cut-out

with a suitable tool (for example jig saw or a routing

machine - Photo 2).

B Cut-out

A = xxx +1/32" [1mm]/-0

B = xxx +1/32" [1mm]/-0

Radius = 2-15/16" [75 mm]

Photo 2

Photo 1

15/16" - 1 21/32"

1 3/32" - 1 9/16"

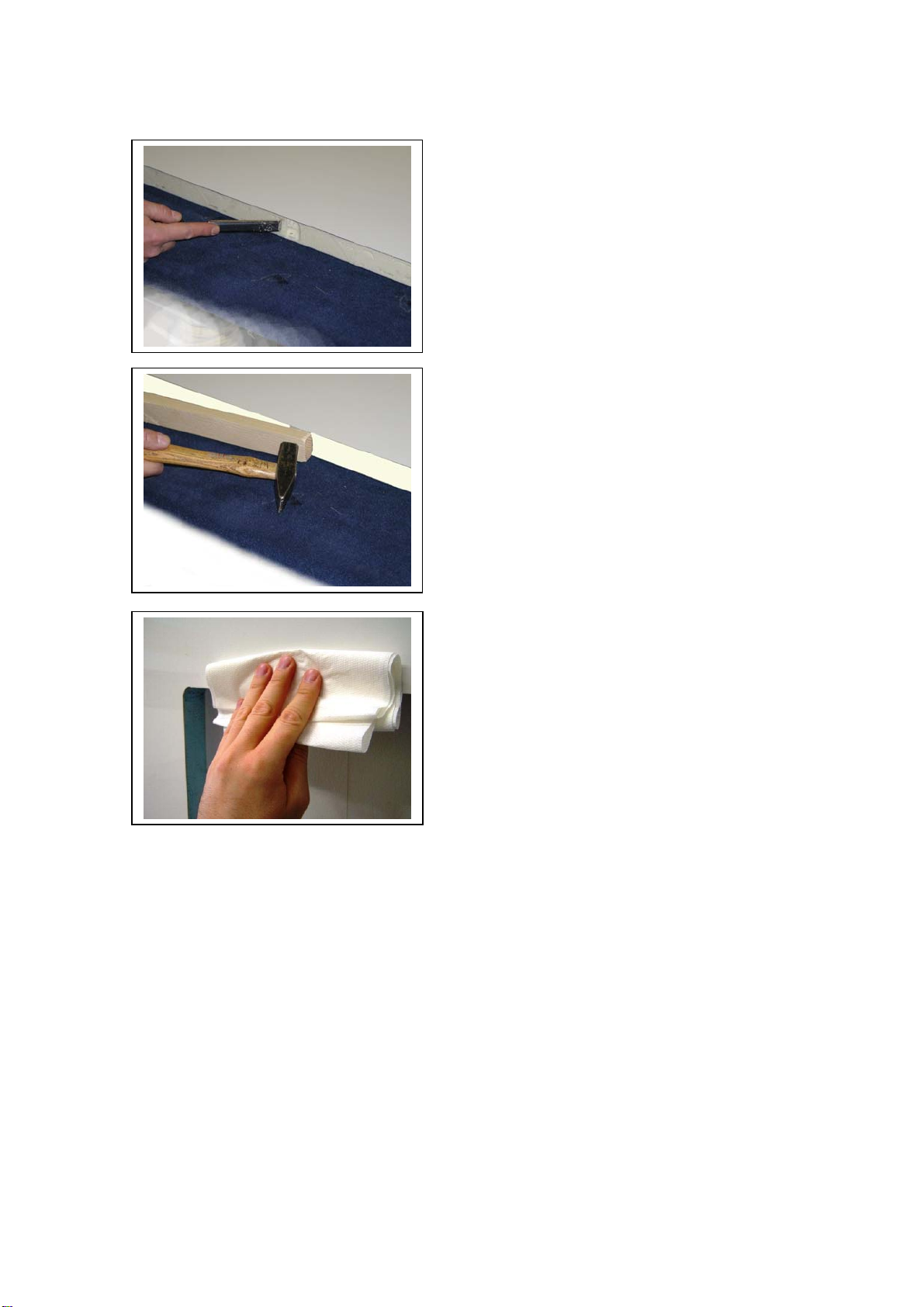

4. Remove the insulating material between the wall’s

outer surface and the inner lining for a depth of about

1" [25 mm]all around the perimeter (Photo 3). (Depth

depends on the reinforcing frames to be introduced in

the next step).

5. Insert reinforcing frames (e.g. wood) (Photo 4).

Hint: This „reinforcing frame“ is needed in order to

avoid permanently the insulting material being

compressed and the bending of the roof wall.

6. To check the cut-out, place the frame to check the

exact position before applying the sealant.

7. Clean the wall surface where the sealant is to be

applied (always follow the instruction of the sealant

supplier Photo 5).

8. A bead of permanently elastic sealant is applied all

around in the corner of the frame to seal the frame to

the vehicle wall.

9. Position the outer frame from the outside and

consider that the frame is aligned horizontally with an

equal contact surface all around. The frame and the

clamps are now srewed together from the inside.

Photo 3

Photo 4

Photo 5

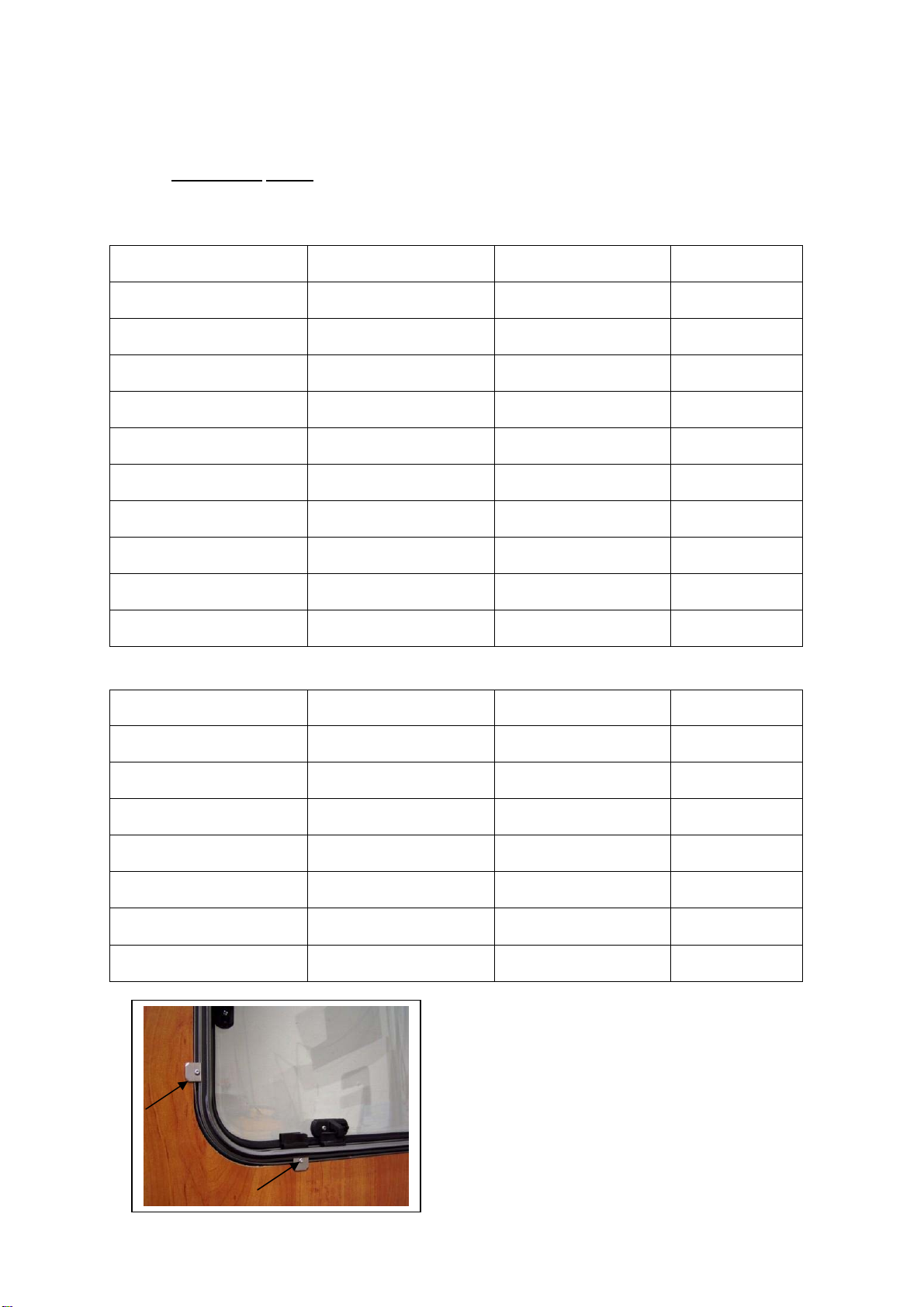

Attention: The plastic clamps and the screw guide inside the aluminium-profile are constructed in such a

way that only flat head screws d= 3.9mm can be used for screwing. The type of clamps (Photo 6) and the

length of the screws depend on the wall thickness (see table).

S7-Window

Wall thickness Type of clamps Type and length

of screws Colour

24-25 mm M 1110 lense head screw

15/16"-1" 3.5 x 13 mm high-grade steel

26-27 mm M 1134 lense head screw

1 1/32"-1 1/16" 3.5 x 13 mm high-grade steel

28-29 mm M 1135 lense head screw

1 1/8"-1 3/32" 3.5 x 13 mm high-grade steel

30-31 mm M 1136 lense head screw

1 3/16-1 7/32" 3.5 x 13 mm high-grade steel

32-33 mm M 1137 lense head screw

1 1/4"-1 9/32" 3.5 x 13 mm high-grade steel

34-35 mm M 1142 lense head screw

1 5/16"-1 3/8" 3.5 x 13 mm high-grade steel

36-37 mm M 1143 lens head screw

1 7/16"-1 15/32" 3.5 x 16 mm high-grade steel

38-39 mm M 1144 lens head screw

1 1/2"-1 17/32" 3.5 x 16 mm high-grade steel

40-41 mm M 1145 lens head screw

1 9/16"-1 5/8" 3.5 x 19 mm high-grade steel

42 mm M 1146 lens head screw

1 11/32" 3.5 x 19 mm high-grade steel

S7Z-Window

Wall thickness Type of clamps Type and length

of screws Colour

28-29 mm M 1139 counter sunk screw

1 1/8"-1 3/32" 3.5 x 13 mm high-grade steel

30-31 mm M 1110 counter sunk screw

1 3/16-1 7/32" 3.5 x 13 mm high-grade steel

32-33 mm M 1134 counter sunk screw

1 1/4"-1 9/32" 3.5 x 13 mm high-grade steel

34-35 mm SP 8006 lense head screw

1 5/16"-1 3/8" 3.5 x 13 mm black

36-37 mm SP 8007 lens head screw

1 7/16"-1 15/32" 3.5 x 16 mm black

38-39 mm SP 8007 lens head screw

1 1/2"-1 17/32" 3.5 x 16 mm black

40 mm SP 8008 lens head screw

1 9/16" 3.5 x 19 mm black

The amount of clamps used depends on the window size (see table). We recommend to install the

Photo 6

first two clamps on the right and left side at the bottom. In cases where the frame is not aligned with an

equal contact surface all around it is necessary to use more clamps as shown in the table.

Approx. Need of Clamps

Window Size

Width x Height approx.

Quantity

horizontally

(each side)

approx.

Quantity

vertically

(each side)

approx.

Total quantity

(each window)

300 x 450 2 4/3 11

450 x 510 4 3 14

500 x 300 4 2 12

500 x 400 4 3 14

510 x 510 4 3 14

550 x 600 4 4 16

600 x 250 4 2 12

600 x 510 4 3 14

600 x 550 4 4 16

650 x 300 4 2 12

650 x 400 4 3 14

700 x 350 6 2 16

700 x 500 6 3 18

800 x 400 6 3 18

800 x 510 6 3 18

900 x 450 6 3 18

900 x 500 6 3 18

900 x 600 6 4 20

1000 x 300 6 2 16

1000 x 450 6 3 18

1000 x 510 6 3 18

1000 x 600 6 4 20

1100 x 350 6 2 16

1100 x 600 6 4 20

1200 x 300 6 2 20

1200 x 450 8 3 22

1300 x 510 8 3 22

1300 x 600 8 4 24

1300 x 700 8 6 28

1400 x 600 8 4 24

1450 x 550 8 4 24

10.The clamps are covered by a seal from inside

(siehe picture cross section).

11.Check function after installation.

12. Remove the protectice foil from the window

pane.

Operating instructions

Attention: Always close the window before

setting off or leaving the vehicle.

S7-Windows

To open the window all toggle catches must be

opened. Press the knob in the middle of the toggle

catch and turn through 90°. The pane is now

swivelled open until it locks in the required position.

To close the window, the pane is pushed open a little

bit and then slowly closed again. The stays allow to

close the window by swivelling outwards just a little

bit from any engaged position. To lock the window

press the knob in the middle of the toggle catch and

turn all toggle catches trough 90°.

S7Z - Window

It is enough to use only one toggle catch

(central locking system) to open the window.

Press the red button in the middle of the toggle

catch and turn it 90° anticlockwise (Photo 8).

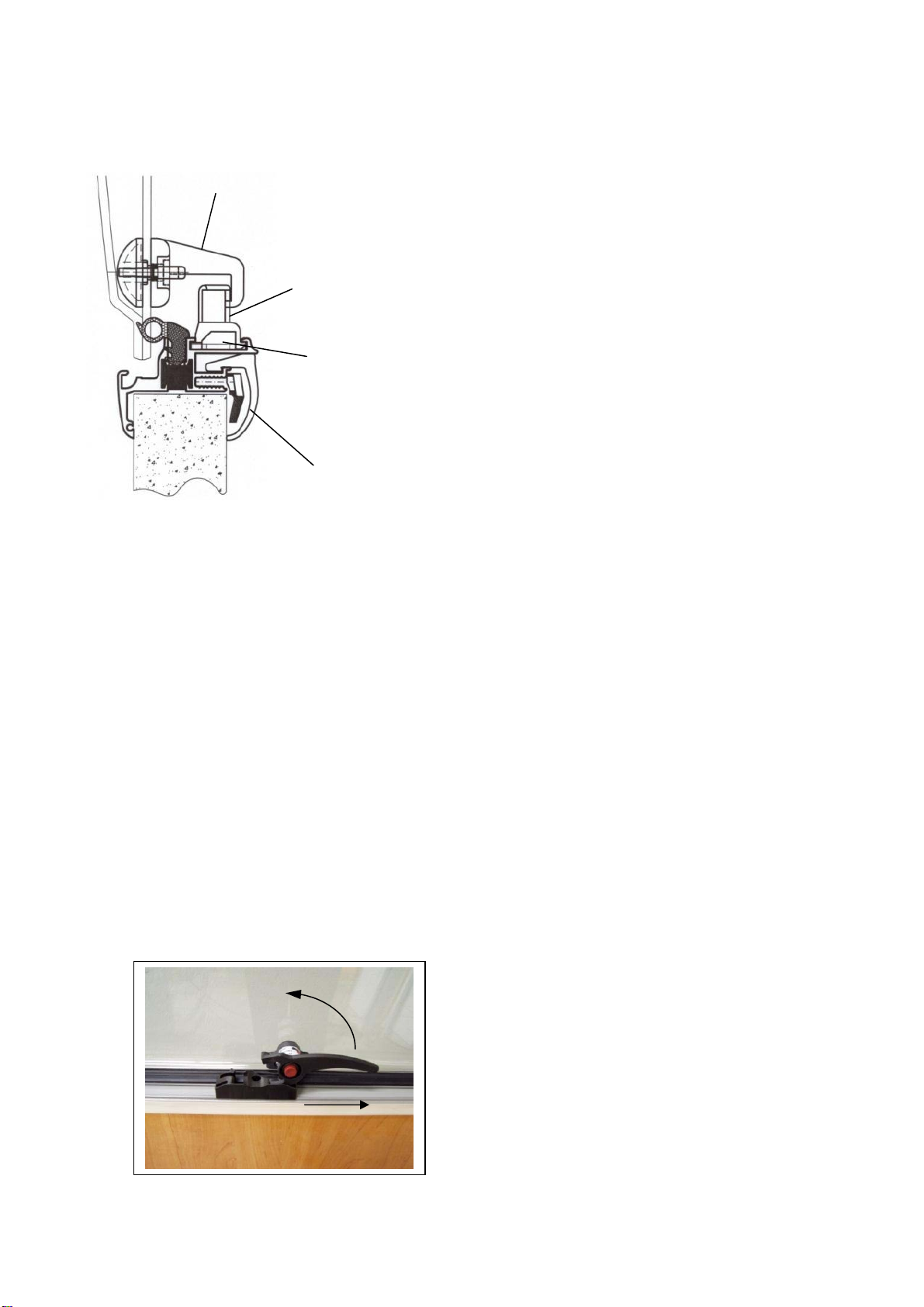

PVC-Keder

Schiebeband

Sliding belt

Kunststoffkeder

Seal

Festnocken

Fixed cam

Schiebenocken

Sliding cam

Vertikalschnitt S7Z - Fenster

Cross section S7Z - Window

Photo 7

Photo 8

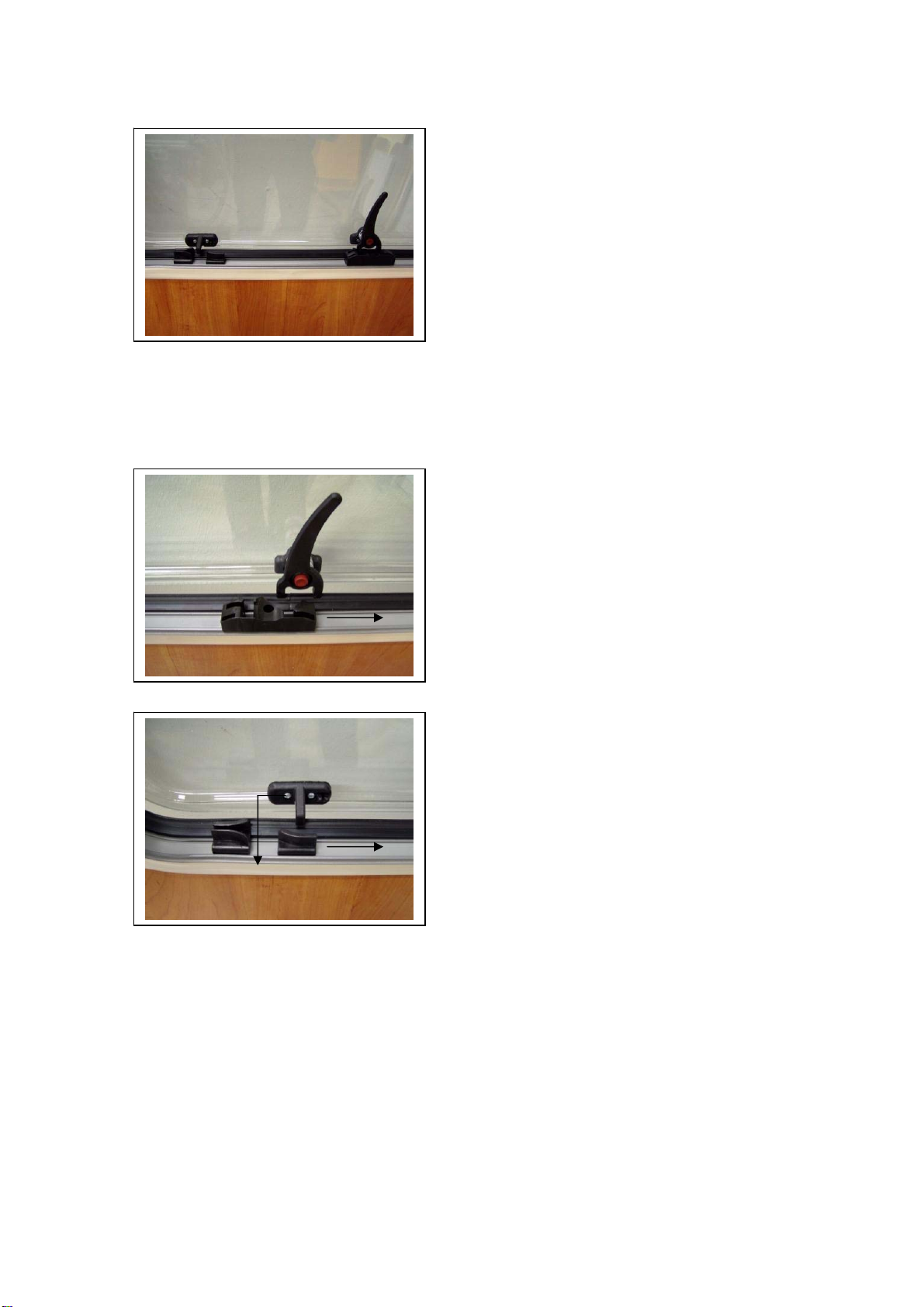

The right journal of the handle moves both the

fixed cam positioning on the sliding belt and

the sliding cam in a position where the fixed

cams on the pane get free and the window can

be swivelled outwards (Photo 9).

Open the window until it locks in the required

position. To close the window, the pane is

swivelled outwards only a little bit, and then

closed slowly. The stays allow to close the

window by swivelling outwards just a little bit

from any engaged position.

Attention!

If the lock cam on the sliding belt moved in an

opened position of the window by accident,

move it back carefully by hand in a position

which allows an easy insertion of the tenon into

the cam mortise (Photo 10 and 11). Otherwise

the window cannot be closed!

The toggle catch of the central locking system

contains a red safety button. Always press the

button strongly in order to ensure a long term

function. Otherwise it can destroy the safety

button and the central locking system.

Do not use force!

Photo 11

Photo 9

Photo 10

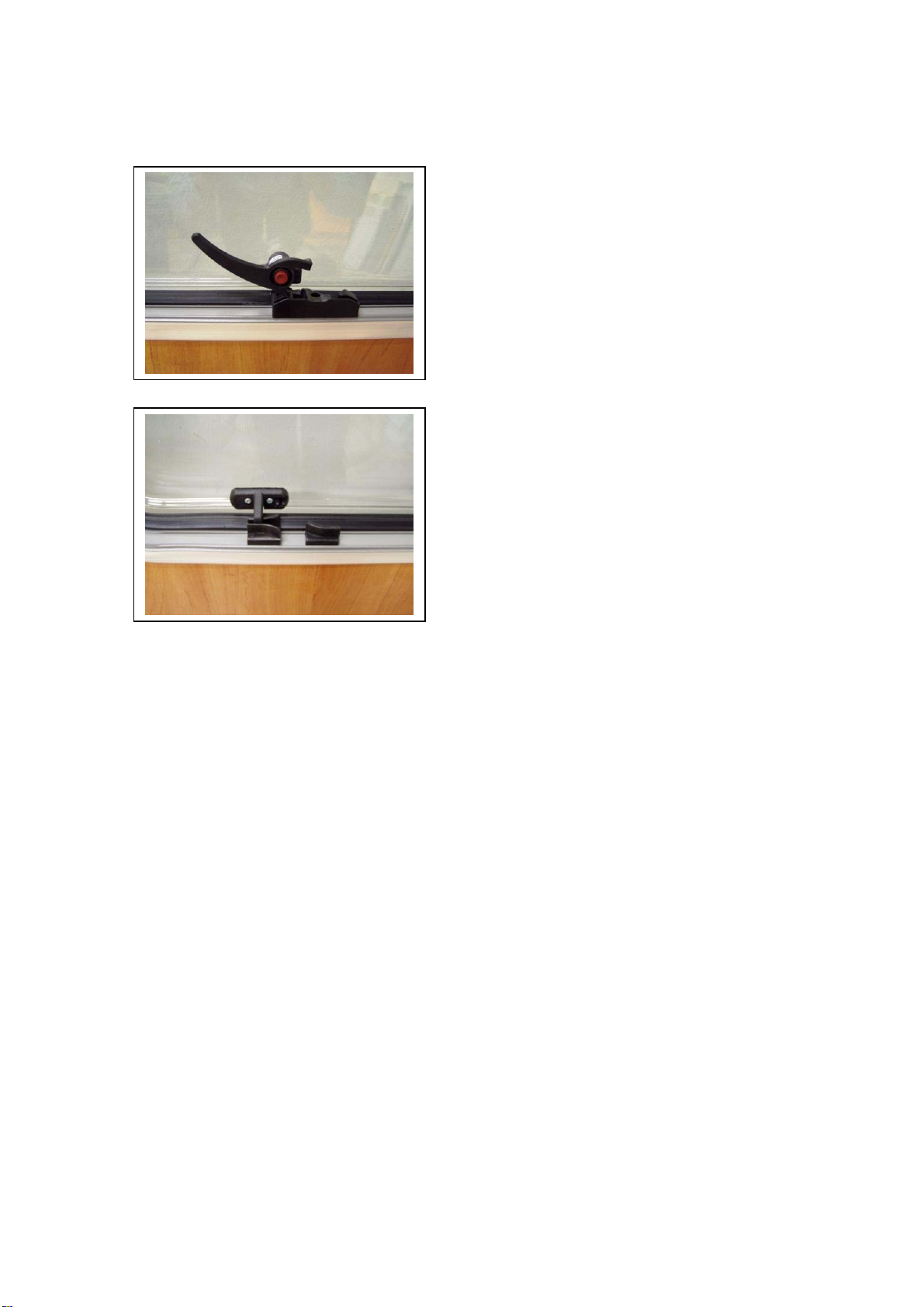

Night ventilation position:

The toggle catch can be used both to close the

window completely and to fix it in the

ventilating position. Turn the toggle catch (90°

anticlockwise) and swivel the window 5/16" [8mm].

Turn the toggle catch again 90° anticlockwise

and lock it in the cam. (Photo 12 and 13).

Care instructions:

To clean the window it is enough to use clear water

only. In case of stronger dirtiness use warm water

and a mild washing-up liquid. Use always plenty of

water. Never clean the dry window.

Clean the frame and the sliding belt with a damp

cloth. In case of stronger dirtiness use the cloth with

watery washing-up liquid or watery washing powder.

Avoid liquids with solvent and alkaline working

liquids.

Bild 12

Bild 13
