Installation and Operating Instructions
DN 01004/001 - 02/2023
SL30DBL Cobalt Double
Sideload Lock
2
Table of Contents
1. Document Information 3
1.1 Contents and Purpose 3
1.2 Target Group 3
2. Safety and Compliance 4
2.1 Safety Information 4
2.2 Regulatory Compliance Information 5
3. Product Information 7
3.1 Product Description 7
3.2 Package Contents 8
3.3 Technical Data 9
4. Product Dimensions 10
4.1 Lock Dimensions 10
4.2 Strike Dimensions 11
4.3 Housing Dimensions (Available Separately) 12
4.4 Dress Plate Dimensions (Available Separately) 12
4.5 Fitting Tab Dimensions (Available Separately) 13
5. Pre-Installation Assessment 14
5.1 Mounting Assessment 14
5.2 Wiring Assessment 15
5.3 Operating Mode Assessment 15
6. Mounting 16
6.1 Mortice Installation (Solid Wood) 16
6.2 Mortice Installation (Metal Extrusion) 17
6.3 Surface Mounting Installation (Solid Wood) 18
6.4 Surface Mounting Installation (Glass) 19
7. Wiring 20
7.1 Wiring Guide 20
7.2 Fail Safe Connection 20
7.3 Fail Secure Connection 20
8. Operating Mode 21
8.1 Fail Safe Operation 21
8.2 Fail Secure Operation 21
9. Maintenance 22
9.1 Maintenance and Cleaning 22
9.2 End of Service Life 22
3
1. Document Information
1.1 Contents and Purpose
This document describes installation, connection, operation, and maintenance of the lock SL30DBL.
Read the document carefully and observe the instructions it contains. They contain important
information for reliable installation and trouble-free operation.
1.2 Target Group
Target group of these instructions are:
• Installer
• Service Technician
Installers and service technicians are skilled personnel who have the specialist knowledge required for
installation, commissioning, and maintenance.
4
2. Safety and Compliance
2.1 Safety Information
WARNING
• Live parts inside.
• The handling and installation of this device is recommended for a professional.
• Use of an unsuitable power supply unit may cause product failure or injury.
• Do not remove the cover plates or face plate.
• Ensure installation does not expose sharp edges of the product to users.
5
2.2 Regulatory Compliance Information
This product is in compliance with the Regulatory Compliance Mark (RCM) for Australia and New
Zealand.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential, commercial, or industrial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
Modications:
void the authority granted to the user by the FCC to operate this equipment.
Innovation, Science and Economic Development Canada ICES-003:
CAN ICES-3(B)/NMB-3(B)
6
In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the
manual and in the warranty, and/or on its packaging indicates that this product shall not be treated
as household waste. Instead it should be taken to an applicable collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help to prevent potential negative
consequences to the environment and human health, which could otherwise be caused by
inappropriate handling of this product.
In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to dis-
pose of this product please contact your local authorities and ask for the correct way of disposal.
7
3. Product Information
3.1 Product Description
The SL30DBL is a motor driven low voltage electric lock designed to secure commercial and
residential swing-through (180°) doors. The lock has been designed to address the two biggest issues
in concealed electric locking today;
1. The ability to ‘pull’ a door into alignment even if the door has not closed in a central position.
2. The ability to release when requested even if there is excessive load on the door.
The design of the SL30DBL is unique as it has two motors which independently operate two bolt pins.
The bolt pins operate on a cam action which enables each bolt pin to pull a door into place. In practice
as the door closes it may come to rest in a position that is not fully closed. The SL30DBL senses when
its resting position to the closed and secured position.
With the door secured and locked the SL30DBL can be given an unlock signal and it will instantly
unlock. If the door is loaded (pre-load) when the unlock signal is given the SL30DBL will still unlock,
even with loads in excess of 100kg on the door from either side. Critically the ability of the SL30DBL to
instantly release with excessive pre-load on the door even occurs in the event of a power failure if the
Additional features of the SL30DBL are;
• Multi-voltage input (12 - 24VDC)
• Very low current consumption
• Door position and bolt position monitors
• High physical strength
• Fail-safe / Fail-secure on-site conversion with the re-positioning of a single switch
8
3.2 Package Contents
1x Lock 1x Strike Plate
4x 10G self-tapping screws 1x 300mm 7-way wire loom
9
3.3 Technical Data
Materials
Bolt Stainless Steel 17-4PH
Lock / Strike Plate Stainless Steel 304
Mechanical
Bolt Extension 13mm
Door Gap
Misalignment Correction
Cycle Life 1,000,000 cycles
Holding Force 10,000N (2,250 lbf) (factory tested)
Side Load Release 6,000N (1,350 lbf) (factory tested)
Locking Time 1.0 seconds (typical)
Unlocking Time 0.3 seconds (typical)
Electrical
Power Requirements 12-24 VDC ±15%
Initial Power Up Time 11 seconds
Initial Current Draw 750mA@12VDC, 400mA@24VDC
Standby Current 40mA@12VDC, 25mA@24VDC
Signal Contacts Bolt Position (NO) 30VDC max., 100mA max.
Door Position (NO)
Compliance
CE, UKCA, FCC, IC, RCM, RoHS 2
10
4. Product Dimensions

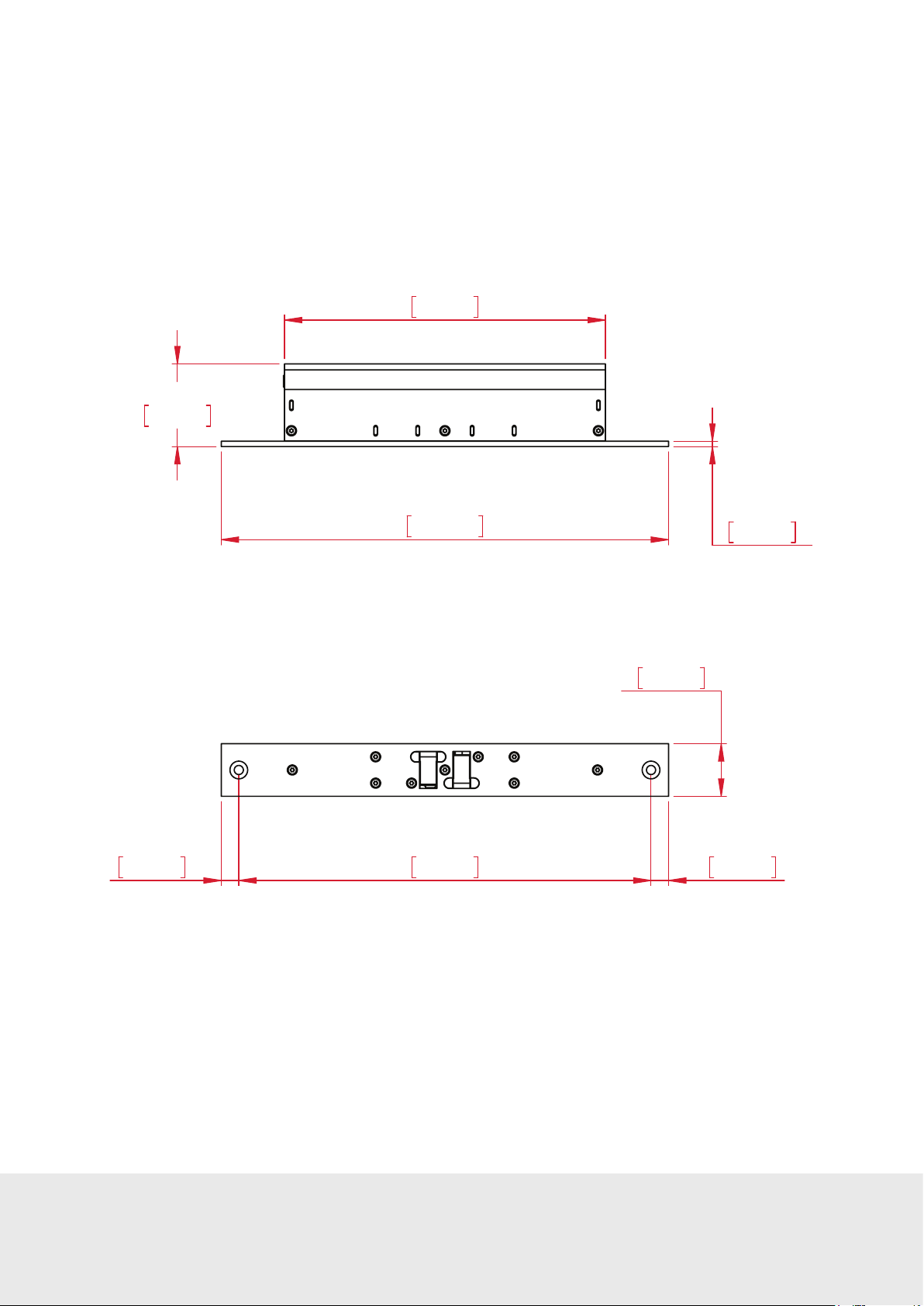

4.1 Lock Dimensions
The dimensions shown are approximate and subject to change without prior notice.
183mm
7.205in
47mm
1.854in
3mm
0.118in
255mm
10.039in
10mm
0.394in
235mm
9.252in
10mm
0.394in
30mm
1.181in
