Dpnao YW-012 Manuale utente

0



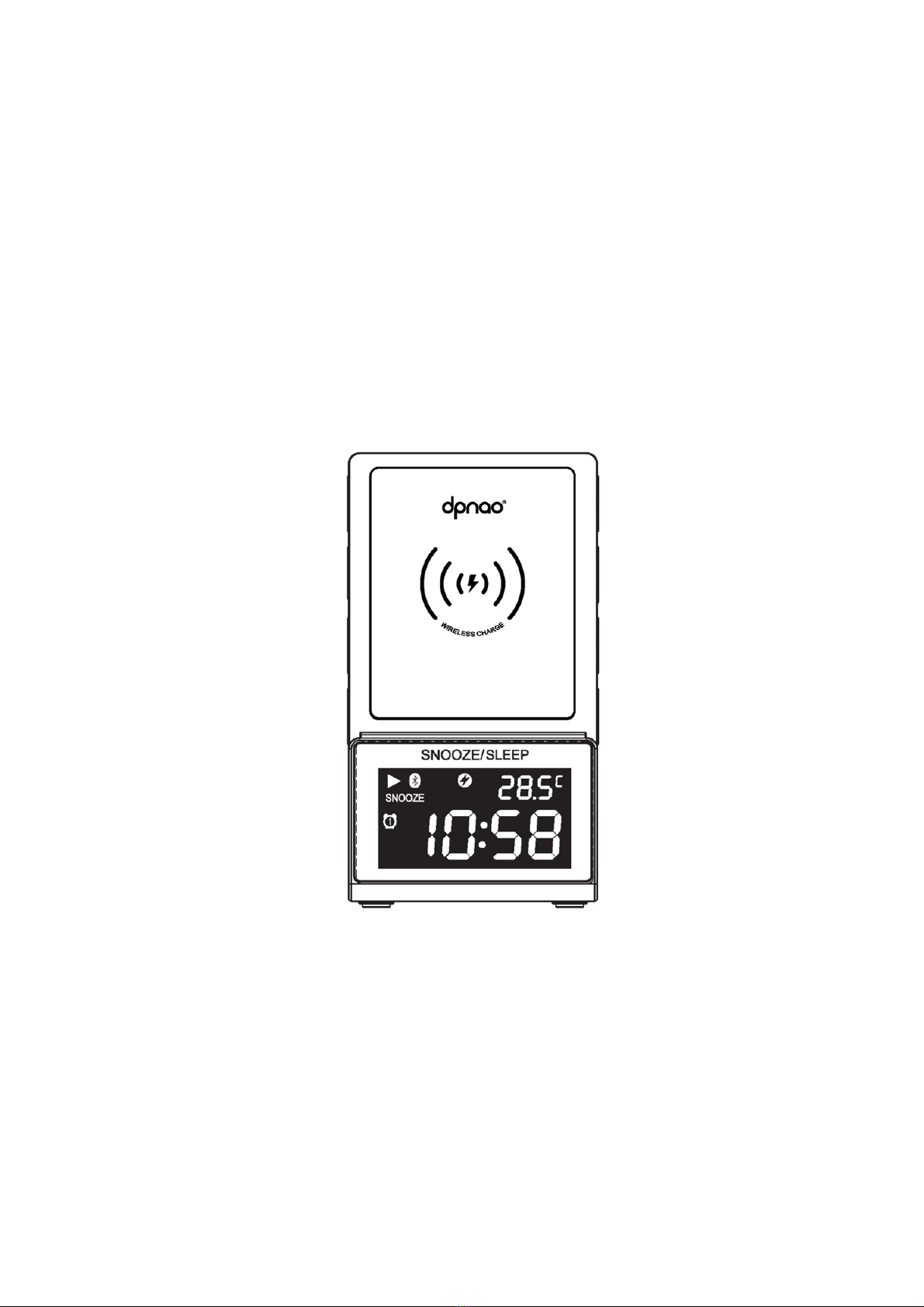

YW-012

USER’S GUIDE

NIGHT LIGHT SPEAKER WITH

WIRELESS CHARGING

V 1.1

PLEASE READ BEFORE OPERATING THIS EQUIPMENT

1



FCCNOTICE:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

To assure continued operation, follow the attached installation instructions and

use only shield cables when connecting to other devices. Changes or

modiﬁcations not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

The equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. The equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.



•Wireless Charging for Mobile

•USB Port for Mobile battery charging

•Bluetooth for music share

•Display show Temperature C/F

•Display show Clock Time Digit

•Dual alarm for wake up

•Snooze function

Features

Feature / Included

2



•Sleep time

•Light function in rear of main unit

•Dimmer control for display & rear light

•External power adapter for main power DC 9V, 2000mA

•Digital Clock with Wireless Charger Unit

•AC power Adapter

•Instruction Manual



Included

Introduction

3



1. POWER Button: Press to turn on / off the unit.

2. AL1 (Alarm 1) Button: Press to set alarm clock 1 in standby mode.

3. AL2 (Alarm 2) Button: Press to set alarm clock 2 in standby mode.

4. CLK Set Button: In standby mode, press and hold to clock setup

Press to change temperature display of Celsius (℃)or

Fahrenheit (℉).

5. TEMPERATURE SENSOR : Temperature sensor location

6. WIRELESS CHARGER : Wireless Charger location

7. SNOOZE/SLEEP: When the alarm sounds, touch to temporarily stop.

In Bluetooth mode, touch to set sleep function.

8. DISPLAY: Show time, temperature and current operation

9. SPEAKER: Unit Speaker location.

10. USB Charging: For external device charging.

11. DC INPUT Jack: Connect power adapter for AC power.

12. PLAY/PAUSE Button: Press to play or pause BT playback.

13. LAMP : Lamp location

14. VOL+ Button: Press to increase the volume sound level.

15. VOL- Button: Press to decrease the volume sound level.

16. BT PAIR Button: Press to connect another BT device.

17. LIGHT Button: Touch to switch LOW / Mid / High / OFF brightness for the

night light.

18. Dimmer Button: Touch to dim the display light .

Connect Power Adapter

Plug the included AC adapter into the standard AC power outlet to power the

UNIT. Connect small end to DC INPUT jack of main unit. After adapter

connection, Press POWER Button to turn on the unit.



Location Controls

Setu

Power

4



Follow Connect Power Adapter section to plug in DC INPUT jack of main unit,

Place the smart phone (wireless charging compatible) on the charging pad in

Vertical Position or Horizontal Position. the indicator will light which

indicates the Device is charging.

When the smart phone is indicated fully charging, please take away the device

from the charging pad.

NOTE:

In order to get more effective for wireless charging, please take off the protective

case from the mobile phone.

The above description is applicable to most wireless charging mobile phones, but there may

have discrepancies depending on the power consumption of different mobile phones and

versions of the operating system.

This unit features a USB port for charging your portable device (iPod, iPhone,

Android phone, etc.).

1. Plug the standard end of the USB cable (not included) into the USB port

located on the back of the unit. Plug the small end of the USB cable into the

charging port on the device you wish to charge.

2. Unplug the cable when your device is fully charged.

CAUTION:

Before charging, please refer to the user manual of the device you wish to

charge to make sure the charging current required does not exceed 1Amp (1,000

mA) of charging current. Overloading the charge circuit may damage the unit and

void the warranty.

Charging your smart phone or portable device

Wireless Charging your smart phone

5



1. The USB charging port of this unit supplies a DC 5V output at 1000mA

maximum current to charge your smart phone or portable device battery and it

cannot support any other voltage range.

2. Make sure the device you want to charge has a battery charge rating of DC 5V

only.

3. The USB port of this unit is designed for smart phone or portable device

battery charging only and it cannot support data transfer or connect to

computer.

4. Do not connect the USB port of this unit to other external power charger USB

ports, it may damage both units and void the warranty.

NOTE:

1.) Some smart phones and portable devices use proprietary USB connections

and circuitry, so they may not charge when plugged into the USB port. Please

refer to your device user manual before you attempt to charge them.

2.) It is normal for the unit to be warm while the USB port is in use and charging

your smart phone or portable device.

3.) Unplug the cable when your device is fully charged

The unit go into standby mode when it is plugged in for the first time.

TO SET THE TIME MANUALLY

1. In Standby mode, press and hold the CLK SET button unit the “12 Hr” or “24

Hr” blink on the LCD display.

2. Repeatedly tap the VoL- or VoL+ button to set the unit to the 24-hour mode or

12-hour mode.

3. Press the CLK SET button to confirm and the hour digits will blink.

4. Repeatedly tap the VoL- or VoL+ button to adjust the hour. Press and hold the

button for fast advance / reverse setting.

Note: Make sure the hour is set so that the PM indicator is displayed correctly.

5. Press the CLK SET button to confirm the hour setting, the minute digits will

flash to prompt for input.

6. Repeatedly tap the VoL- or VoL+ button to adjust the minute. Press and hold

the button for fast advance / reverse setting.

7. Press the CLK SET button to confirm and complete the setting.

TEMPERATURE DISPLAY

Tap the CLK SET button to change temperature display between Celsius (℃)or

Fahrenheit (℉)

Clock Setting

6



1. In standby mode, press and hold the AL1 or AL2 button, the or icon will

light and the hour of the alarm time will blink to prompt for input.

2. Repeatedly tap the VoL- or VoL+ button to adjust the hour. Press and hold

the button for fast advance / reverse setting.

3. Tap the AL1 or AL2 button to confirm the hour setting, the minute digits will

blink to prompt for input.

4. Repeatedly tap the VoL- or VoL+ button to adjust the minute. Press and hold

the button for fast advance / reverse setting.

5. Press the AL1 or AL2 button to confirm and finish setting the alarm time. The

alarm indicator or will appear to indicate it is enabled.

6. To disable the alarm, in Standby mode, double tap the AL1 or AL2 button,

the relative alarm indicator or will disappear from display.

7. Tap AL1 or AL2 button again will enable the alarm.

8. After the alarm sounds, press the any buttons to turn the alarm off.

Snooze Function

1. When the alarm sounds, it can be temporarily stopped by pressing the

SNOOZE/SLEEP button. The display will show the “SNOOZE” indicator and

the relative alarm indicator or will be flashing.

2. The alarm will be delayed for 9 minutes and then come again.

3. This manual snooze operation can be repeated again and again.

1. In BT mode, press the SNOOZE / SLEEP button once, then the “SLEEP”

indicator will appear on the display.

2. Tap the SNOOZE / SLEEP button repeatedly to select the desired sleep time.

The sleep timer can be chosen from 15 - 60 minutes in 15 minute step. After

sleep timer selected, wait for 5 seconds to confirm. The “SLEEP” indicator

continues to appear on the Display. The unit will stop and go into Standby

mode automatically after selected sleep time has expired.

3. To check remained sleep time, simply press the SNOOZE / SLEEP button.

4. Press the button to switch off the unit before the selected sleep time

expires.

NOTE:

If you touch the SNOOZE / SLEEP button once and the “SLEEP”

Alarm Setting

Sleep Timer Operation

7



indicator appears on the display, the unit will go into Standby mode

automatically after selected time has expired.

Touch the DIMMER button to adjust the display intensity from High / Mid / Low

to obtain the best clarity of display readout.

Touch the LIGHT button to switch LOW / Mid / High / OFF brightness for the

night light.



1. Press the POWER button to turn on the unit, the BT indicator will flash

on the display

2. Set the Bluetooth function of your external device to ON and begin searching

for devices.

NOTE: The effective distance between your external device and this

apparatus is 10 meters (30 feet)

3. Once “YW-012” appears on the paired device list of your external device,

select it.

Notes: If cannot connect, press and hole BT PAIR button to reconnect again.

4. If you are asked for a password, enter “0000”

5. When both devices are successfully connected, the indicator will light on,

now you are ready to play music wirelessly from your device.

6. Press the PLAY/Pause button of external Bluetooth device or PLAY/Pause

button on the unit to start music playback.

7. Press the / button on external Bluetooth device to switch between

music tracks.

Note: After initial pairing, the unit will stay paired unless unpaired manually by

the user or erased due to a reset of the device. If your device should become

unpaired of your find it is unable to connect, repeat the above steps or press

BT PAIR button again.

AC Power

Adapter Connect DC Jack Use included adapter

AC~ Input 120 / 60 Hz , DC Output 9V , 2000mA

Wireless Charging Fast Charging

Loud Speakers Spec 2 Inch, 5 Watt , 4 Ohm

Specifications are typical, individual units might vary. They are subject to continuous

improvement without notice and without incurring any obligation.

Connectin

Bluetooth to Your Smart

hone / Tablet

Dimmer

Light Function

ecification

Indice

Altri manuali dpnao Altoparlanti

dpnao

dpnao YW-017 Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente

dpnao YW-012 Manuale utente

Manuali Altoparlanti popolari di altre marche
