Duerkopp Adler 195 Manuale utente

Contents: Page:

Preface and General Safety Information

Description of proper use or proper application

Part 1: Operating Instructions Cl. 195

1. Product Description . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Short Description and Proper Use . . . . . . . . . . . . . . . . . 5

1.2 Sub-Classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 Technical Specification . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 6

2. Operating Elements and Their Function . . . . . . . . . . . . 7

2.1 Elements at the Sewing Head . . . . . . . . . . . . . . . . . . . . 7

2.2 Elements on the Frame . . . . . . . . . . . . . . . . . . . . . . . 11

3. Operating the Sewing Machine . . . . . . . . . . . . . . . . . . 13

3.1 Threading the Needle Thread . . . . . . . . . . . . . . . . . . . . 13

3.2 Needle Thread Quantity for Sure Stitch Formation . . . . . . . . 14

3.3 Threading the Bobbin Thread . . . . . . . . . . . . . . . . . . . . 15

3.4 Setting the Thread Tensions . . . . . . . . . . . . . . . . . . . . . 16

3.5 Setting the Bobbin Thread Take-Up . . . . . . . . . . . . . . . . . 17

3.6 Setting the Pressure Foot Stroke . . . . . . . . . . . . . . . . . . 18

3.7 Edge trimmer shut-on and shut-off . . . . . . . . . . . . . . . . . 19

4. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Following Patents and Registered Utility Models apply:

Status April 1994

DE 30 43 141 JP 1 258 920

IT 209 238 JP 1 339 944

KR 24 686 JP 1 803 181

TW 31 498 JP 1 931 464

US 4 116 145

US 4 446 803

1. Product Description

1.1 Short Description and Proper Use

The special sewing machine 195 is a single needle-double chain stitch

machine with lower transport and an upper transport with alternating

pressure feet. The hook of the 195 is set crosswise to the direction of sewing

(Crossline). With the parts set 195 5002 it can be converted to a two-needle

sewing machine.

The machines are designed and may only be used for sewing materials of

textile fiber and leather.

As of 11/95 Class 195-171110 is equipped at the factory so that thread

thicknesses greater than 25/3 Nm can be sewn (airbag production).

For this, the machine and the parts kit 195 5002 each have a second hook,

this means that:

The single needle machine can be equipped with

hook 195 4753 for threads up to 25/3 Nm or with

hook 195 4753a for threads thicker than 25/3 Nm as required.

The dual needle machine can be equipped with the

hooks 195 4753 and 195 5055 for threads up to 25/3 Nm or with

hooks 195 4753a and 195 5055a for threads thicker than 25/3 Nm as required.

Attention!

The hook or hooks not inserted in the machine are enclosed with the machine.

1.2 Sub-Classes

195-171110 Execution without thread trimmer.

Electropneumatic lifting of the

pressure foot

195-171521 Execution with electropneumatic

thread trimmer for needle and

bobbin thread, electropneumatic

automatic interlock and

pressure foot stroke

1.3 Technical Specification

Needle system: 933

Maximum number of stitches: 4000 rpm

dependent on pressure foot stroke

and stitch length

Maximum stitch length: Upper transport 10 mm

Lower transport 8 mm

Maximaler pressure foot stroke: 2-7 mm

Clearance under the pressure feet:

when sewing: 10 mm

when raised: 17 mm

Maximum thread thickness: 20/3 Nm

Operating pressure: 6 +/- 0,5 bar

Line pressure: 7-10 bar

Air consumption per work cycle:

-171110 0,05 Nl

-171521 0,1 Nl

Through-feed area: 280 x 132 mm

1.4 Optional Equipment

195 5002 Parts set for converting a single-needle

to a two-needle machine. Max. needle

pitch 14 mm dependent on the E-Nr.

Not

for 195-171521.

Z 133 601 Reflecting light barrier for recognizing

the seam end.

Z 132 1501 Needle cooling from above.

2. Operating Elements and TheirFunction

2.1 Elements on the Sewing Head

Element Function

1 - Screw - This screw for the pressure foot pressure is

screwed in completely at the factory.

Do not alter the screw position!

2 - Thread regulator - Setting the correct needle thread quantity

3 - Needle thread puller - For formation clean stitches at the beginning of

the seam pull out sufficient thread.

4 - Adjustment wheel - Setting pressure foot stroke.

5 - Control knob - Setting needle thread tension.

6 - Control knob - Setting bobbin thread tension.

7 - Viewing glass - Show the oil level in the reservoir. The oil level

with fill opening must be kept above "MIN". If necessary fill

"Esso SP NK 10" oil up the the "MAX" marking.

8 - Plate - Bobbin thread guide

9 - Light barrier - Recognition of the material edge and thereby the

precise position of the stitch condensation at

the seam end.

10 - Needle - 933, Needle thicknesses depending on the sewing

garrangement.Caution Risk of Injury!

11 - Knob - Lock the pressure foot in the raised position.

12 - Lever - Edge trimmer shut-on and shut-off. (195-671110)

234567

91011

Element Function

13 - Operating field - See motor manufacturer’s instructions

Note: For thread trimming with the sub-class

171521 the thread wiper on the thread

trimming key must also always be turned on.

Diodes aand b must be lit.

The upper diode cmust be lit on the "Stitch

Condensation at the Seam End" key.

14 - Bobbin thread- - For formation a clean stitch at the seam beginning

puller pull out sufficient thread.

15 - Adjustment wheel - Setting the stitch length of the upper transport.

16 - Adjustment wheel - Setting the stitch length of the lower transport.

17 - Screw - Setting the stitch condensation

(Length of the stitches).

18 - Hand lever - Continuous adjustment of the stitch length.

bac1415161718 13

Element Function

16 - Block of Keys

17 - Key - Key not just.

18 - Key - Suppression of stitch condensation at seam

beginning

19 - Key - Sew single stitches

20 - Key - Bring the needle alternatingly in position

high/low, stitch condensation at any desired

seam position during sewing.

1617181920

Element Function

20 - Dip stick - Measuring the oil level in the hook drive

housing . Dip stick is in the enclosed package.

21 - Screw To check the oil level screw out screw 21

and place the dip stick 20 in the opening. The

oil level must be between the markings.

Fill only Esso SP NK 10-type oil.

Attention!

When overfilling the excess oil will come

out of the ventilation hole in screw 21.

22 - Thread take-up - Automatic adaption of the bobbin thread quantity

to the set stitch length. Settings for tight,

normal and highly elastic seams see

Section 3.5.

UMB 2.2

2.2 Elements on the Frame

Element Function

1 - Main switch - Switch the machine on and off.

2 - Screw - Compensation for floor irregularities

3 - Pedal

Rest position - No function

Position forward - Sewing with desired rpm

Position "half back" - Raise pressure foot when machine at rest

Position "full back" - Thread trimming and raise pressure foot

4 - Screws - Adjusting the work height

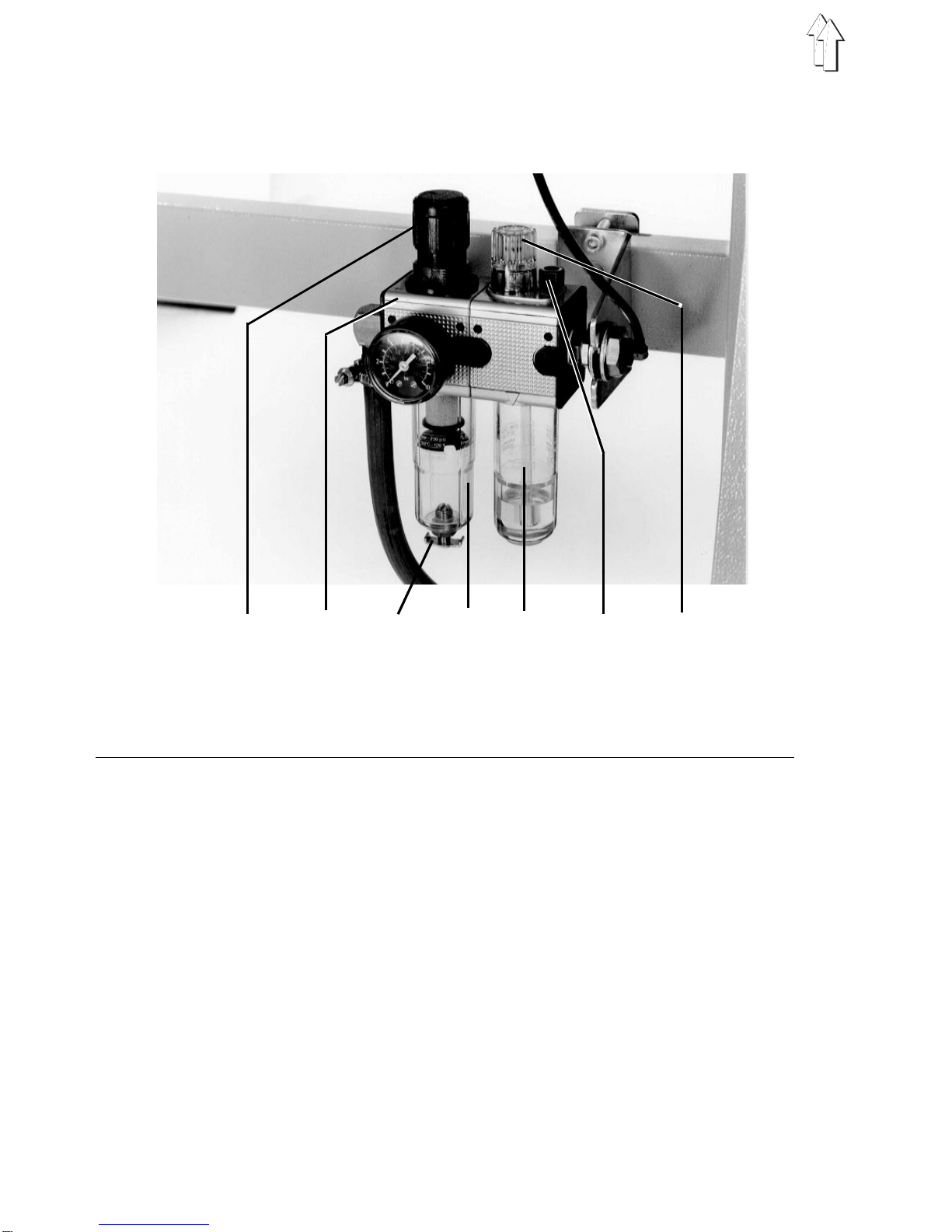

Maintenance Unit

Element Function

7 - Oil mister - With the regulating screw 5 set approx. 1 drop

for 10 work cycles.To fill interrupt the

compressed air feed and vent the system with

screw 9. Screw out screw 6 and fill

"Esso SP NK 10"-type oil up to the groove in

the glass.

8 - Air filter and - Before the water level reaches the filter, screw

water trap in screw 9 far enough to drain water.

not

interrupt the compressed air supply.

10 - Pressure Regulator - To set to 6 bar pull the bushing 11 up

and turn appropriately.

UMBRUCH =

11 10 9 8 7 6 5
