Duerkopp Adler 511 Manuale utente
511
CNC-Automat für Riegel- und Kurznähte
CNC automat for bartacking seams
and short seams
Bedienanleitung / Operating Instructions
Aufstellanleitung / Installation Instructions
Serviceanleitung / Service Instructions
Postfach 17 03 51, D-33703 Bielefeld Potsdamer Straße 190, D-33719 Bielefeld
Telefon +49 (0) 5 21/ 9 25-00 Telefax+49(0)521/9252435www.duerkopp-adler.com
1
2
3
Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:
08/2009 Rev. index: 00.0 Printed in Federal Republic of Germany 0791 511001
Alle Rechte vorbehalten.
Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise
Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG
verboten.
All rights reserved.
Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,
even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.
Copyright © Dürkopp Adler AG - 2009
Foreword
This instruction manual is intended to help the user to become familiar
with the machine and take advantage of its application possibilities in
accordance with the recommendations.
The instruction manual contains important information on how to
operate the machine securely, properly and economically. Observation
of the instructions eliminates danger, reduces costs for repair and
down-times, and increases the reliability and life of the machine.
The instruction manual is intended to complement existing national
accident prevention and environment protection regulations.
The instruction manual must always be available at the machine/sewing
unit.
The instruction manual must be read and applied by any person that is
authorized to work on the machine/sewing unit. This means:
–Operation, including equipping, troubleshooting during the work
cycle, removing of fabric waste,
–Service (maintenance, inspection, repair) and/or
–Transport.
The user also has to assure that only authorized personnel work on the
machine.
The user is obliged to check the machine at least once per shift for
apparent damages and to immediatly report any changes (including the
performance in service), which impair the safety.
The user company must ensure that the machine is only operated in
perfect working order.
Never remove or disable any safety devices.
If safety devices need to be removed for equipping, repairing or
maintaining, the safety devices must be remounted directly after
completion of the maintenance and repair work.
Unauthorized modification of the machine rules out liability of the
manufacturer for damage resulting from this.
Observe all safety and danger recommendations on the machine/unit!
The yellow-and-black striped surfaces designate permanend danger
areas, eg danger of squashing, cutting, shearing or collision.
Besides the recommendations in this instruction manual also observe
the general safety and accident prevention regulations!
General safety instructions
The non-observance of the following safety instructions can cause
bodily injuries or damages to the machine.
1. The machine must only be commissioned in full knowledge of the
instruction book and operated by persons with appropriate training.
2. Before putting into service also read the safety rules and
instructions of the motor supplier.
3. The machine must be used only for the purpose intended. Use of
the machine without the safety devices is not permitted. Observe all
the relevant safety regulations.
4. When gauge parts are exchanged (e.g. needle, presser foot, needle
plate, feed dog and bobbin) when threading, when the workplace is
left, and during service work, the machine must be disconnected
from the mains by switching off the master switch or disconnecting
the mains plug.
5. Daily servicing work must be carried out only by appropriately
trained persons.
6. Repairs, conversion and special maintenance work must only be
carried out by technicians or persons with appropriate training.
7. For service or repair work on pneumatic systems, disconnect the
machine from the compressed air supply system (max. 7-10 bar).
Before disconnecting, reduce the pressure of the maintenance unit.
Exceptions to this are only adjustments and functions checks made
by appropriately trained technicians.
8. Work on the electrical equipment must be carried out only by
electricians or appropriately trained persons.
9. Work on parts and systems under electric current is not permitted,
except as specified in regulations DIN VDE 0105.
10. Conversion or changes to the machine must be authorized by us
and made only in adherence to all safety regulations.
11. For repairs, only replacement parts approved by us must be used.
12. Commissioning of the sewing head is prohibited until such time as
the entire sewing unit is found to comply with EC directives.
13. The line cord should be equipped with a country-specific mains
plug. This work must be carried out by appropriately trained
technicians (see paragraph 8).
It is absolutely necessary to respect the safety
instructions marked by these signs.
Danger of bodily injuries !
Please note also the general safety instructions.
Contents Page:
Part 2: Installation Instructions – Class 511 (DAC III)
1. Items delivered ............................................... 3
2. General and transport packaging ................................... 3
3. Mount stand and control circuitry cabinet
3.1 Tabletops................................................... 5
3.2 Framepartsassembly........................................... 5
3.3 Completethetabletop........................................... 6
3.4 Connect the control box to the main switch............................... 7
3.5 Mount the reference value transmitter and the equipotential bonding ............... 8
3.6 Adjustingworkingheight.......................................... 9
4. Assembly of automatic bartacker
4.1 Mount the oil pan .............................................. 10
4.2 Setuptheautomaticbartacker...................................... 11
4.3 Mount the oil lines .............................................. 12
4.4 Mount the control panel .......................................... 12
4.5 Mount the cover ............................................... 13
5. Connect the plug connections to the control box
5.1 Plug connections at the four-way multiple pin strip .......................... 14
5.2 Wiring..................................................... 15
6. Change sewing feet and fabric support plate ........................... 16
7. Fit eye protection ............................................. 17
8. Convert automatic bartacker 511-213 to thick fabrics
8.1 General .................................................... 18
8.2 Adjustclampheight............................................. 19
8.3 Change stop position ........................................... 19
9. Oil lubrication
9.1 Topping up with oil ............................................. 20
9.2 Oilthewicksandthefeltpartintheoilpan............................... 21
9.3 Oiling the hook path............................................. 22
10. Setting in motion
10.1 Standard delivery .............................................. 22
10.2 Softwareinstallation ............................................ 23
10.2.1 General .................................................... 23
10.2.2 Loading the program ............................................ 24
10.2.3 Dongle update via Internet......................................... 26
10.3 Sewingtest.................................................. 27
11. Additional equipment
11.1 Sewinglight ................................................. 28
2
1
3
9
8
76
2
5
4
2
1. Items Delivered
The items that are supplied depend on your order.
Before setup, please check that all the required components are
present.
This description refers to an automatic bartacker and the individual
components which are completely delivered by Dürkopp Adler AG.
–1 Upper part (head) including oil pan
“Electro” parts set with:
–2 Control panel
–5 Mains switch
–6 DAC control unit
Dürkopp-Adler accessory kit with:
–3 Reel stand
–Protective cover (not shown)
–8 Frame (optional)
–7 Pedal and rods (optional)
–4 Table plate (optional)
–9 Drawer (optional)
2. General and transport packaging
CAUTION !
The automatic bartacker should only be installed by trained specialists.
Transport packing
If you have bought an assembled automatic bartacker, the following
transport securing devices have to be removed:
–Safety straps and battens from the upper machine head, table and
frame.
3
Punch-marks from the
underside (1 x), only at
this point
Four punch marks
for Spax screws
4
5
2
3. Mount stand and control circuitry cabinet
3.1 Table tops
The cutouts of self-manufactured table tops must have the dimensions
indicated in the sketch.
Caution – Risk of Injury !
The table tops must have the required load-carrying capacity and
strength.
3.2 Frame parts assembly
–Mount the individual parts of the stand as shown in the illustration.
–Set the adjusting screw 3 to ensure the stability of the stand.
The frame must be resting with all four feet on the floor.
–Screw pedal 2 on the stand strut 1.
–Align pedal laterally (side-to-side).
Shift the pedal sideways so that it is positioned centrally to the oil
pan.
The stand strut is provided with slotted holes for aligning the pedal.
3
2
1

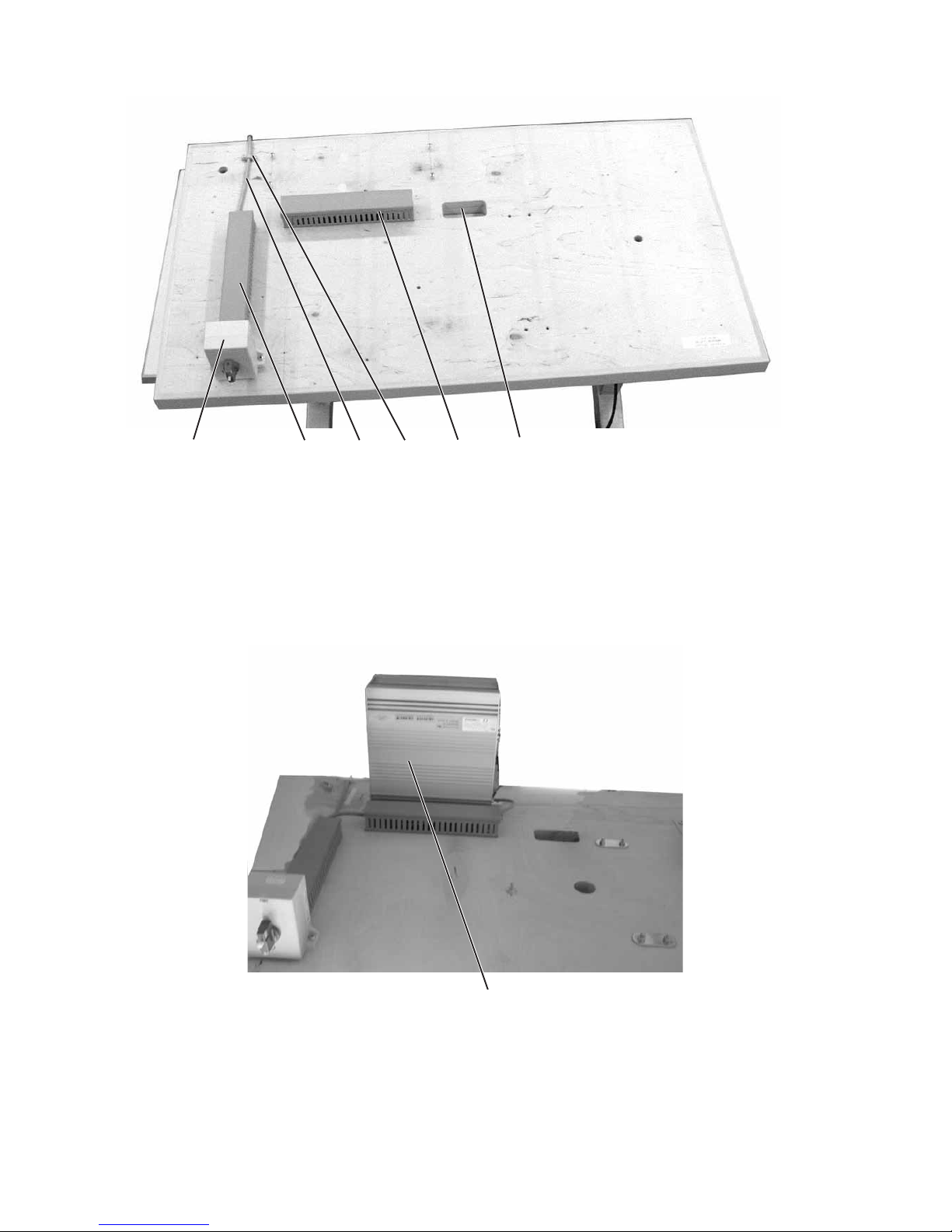

3.3 Complete the table top
–Place the table top on a worktop upside down.
–Screw the main switch 6 on the underside of the table top on the
left.
–Screw cable duct 5 tight behind the main switch 6.
–Screw cable duct 2 tight to the left of the lead-through 1.
–Put the access line 4 in the cable duct.
–Fasten the access line 4 by means of strain relief 3.
–Place the control box 7 on the underside of the table top and
position it in such a way that the side with the four sockets points to
the left (towards the thread reel holder).
–Screw the control box with four screws on the punch-marked spot
at the underside of the table top.
6
654321
7
