Contents Page:

Part 2: Installation Instructions Cl. 558

1. Scope of Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Work Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Shift Linkage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.4 Yarn Unreeler for Yarn and Wool Cones . . . . . . . . . . . . . . . . . . 7

2.5 Yarn Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3. Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1 Nominal Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.2 Drive Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.3 Direction of Motor Turn . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.4 V-belt Tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4. Installation of a Sewing Light . . . . . . . . . . . . . . . . . . . . . . 12

5. Filling the Oil Reservoir . . . . . . . . . . . . . . . . . . . . . . . . . 14

1. Scope of Delivery

–Basic equipment, depending on sub-class, with short trimmers and

electromagnetic upper thread catcher

–Yarn stand

–Small parts in the accessories pack

2. Installation

ATTENTION !

The buttonhole machine may only be installed by trained

personnel.

Prior to installation the following work must be conducted:

–Remove the transport fastening screw 3 !

The screw is marked red.

–The needle bar is turned into its low position for transport.

By turning the handwheel 1 in the direction of the arrow bring the needle bar into

the high position !

–Push on crank handle 2 and lock in place !

2.1 Transport

For in-house transport the machine must be lifted and transported on a suitable wagon

(e.g. pallet truck).

2.2 Work Height

The work height is adjustable between 76 and 104 cm.

The machine was set at a work height of 82 cm at the factory.

–Loosen screws 4.

–Set the machine horizontally at the desired work height.

–Tighten screws 4.

2.3 Shift Linkage

The shift linkage from the hand shift lever to the pedal is to be set appropriate to the

work height.

–Loosen screw 5.

–Set the pedal.

The operator must be able to switch off the machine unhindered by stepping

forward on the pedal.

–Tighten screw 5.

2.4 Yarn Unreeler for Yarn and Wool Cones

Optional equipment Article no. 558 3001

The yarn unreeler 1 is fastened to the middle traverse.

Additionally, the yarn unreeler can be equipped with a drawer.

This could be necessary, for example, when a small table is used and there is thus no

room available under the table.

2.5 Yarn Stand

The mounting and position of the yarn stand can be seen in the illustration alongside.

–Insert stand 2 and fasten as shown in the picture with the nuts and washers.

–Fasten the yarn roll holder and take-off arms.

The yarn roll holder and take-off arms must stand vertically above one another.

" Star " " Delta "

1 2 3 4

L1 L2 L3

UVW

XYZ

L1 L2 L3

UVW

XYZ

3. Electrical Connection

ATTENTION !

All work on the electrical equipment of the buttonhole

machine may only be conducted by electricians or suitablly

instructed personnel.

The mains plug must be disconnected.

3.1 NominalVoltage

The nominal voltage listed on the motor rating plate and the mains voltage must be the

same !

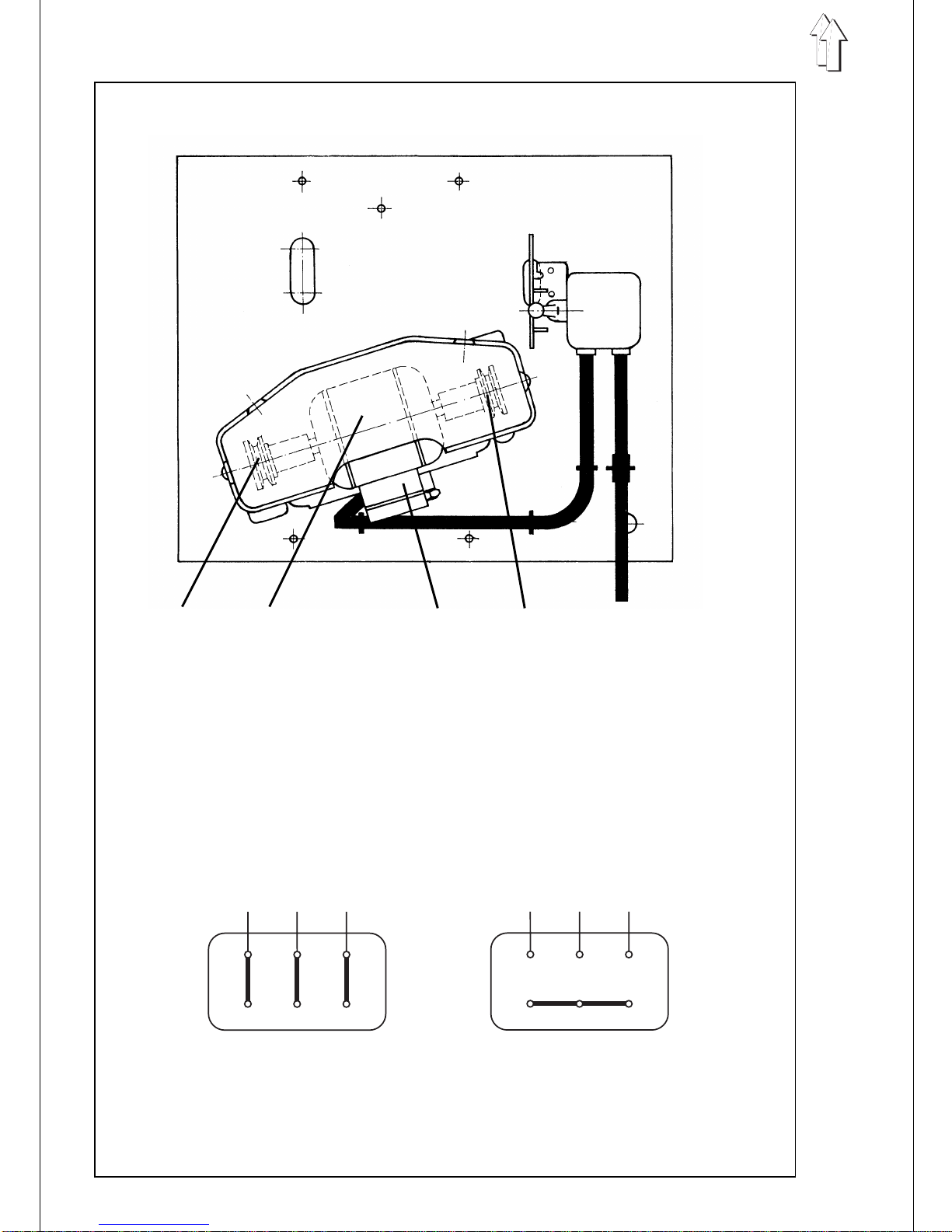

3.2 Drive Package

For conversion to a different mains voltage the appropriate drive package must be

mounted.

The drive package consists of:

Motor 2, belt pulleys 1+ 4, V-belt and switch.

Order no.: Nominal voltage:

- 2410591 3 ~ 400 V + N, 50 Hz

- 2410575 3 ~ 230 V, 60 Hz

- 2295482 3 ~ 230 V, 50 Hz

- 2410540 1 ~ 230 V, 50 Hz

- 2410478 1 ~ 230 V, 60 Hz

For conversion to a different mains voltage the following changes are to be made:

–If changed from 3-phase to 2-phase or vice versa, the whole drive package must

be changed.

–If changed from 50 Hz to 60 Hz or vice versa, only the belt pulley and the V-belt

must be replaced.

–If changed from 3 ~ 400 V to 3 ~ 230 V or vice versa, the bridges in the motor

terminal box 3must be switched in " Star " or " Delta ", appropriate to the mains

voltage !

The wiring is shown in the hook-up diagram.

3.3 Checking the Direction of Motor Turn

ATTENTION !

Before commissioning the buttonhole machine it is

essential that the direction of motor turn be checked.

Turning on the machine with an incorrect direction of motor

turn can lead to damage of unit.

With single phase, alternating current motors the direction of turn is set automatically if

terminal connections are made according to the hook-up diagram.

With 3-phase motors the direction of turn must be checked.

–The correct direction of turn is shown be the arrow on the high-speed wheel 1.

–If the direction of turn is incorrect, then a check must be must if the voltage supply

generates a clockwise rotary field.

If this is the case, then 2 phases in the connecting plug must be interchanged.
