ASSEMBLY INSTRUCTIONS

GL95D

BASE SIZE: 2.690m x 1.520m

CHECK OUT OUR ASSEMBLY VIDEO

Let Keith and Jusn show you how to build your

Guardian shed like a professional.

When used in conjuncon with these assembly instrucons, Keith’s praccal ps and tricks will make your

assembly experience much simpler. Giving you visual guidance through secons that seem tricky on pa-

per, and helping you achieve a awless end result.

To view the video visit www.duratuf.co.nz/guardian-assembly

Note: Assembly video features a GL57. But can be used for reference for any other Guardian model.

BEFORE YOU START:

• Read all instructions carefully

• Identify all parts and check quantities against parts list

• Select a level site

• Do not mark cladding with pencil as lead can cause corrosion to cladding

• During assembly, ensure all drill filings are removed between layers of steel, before riveting together

SAFETY:

• Do not attempt to build your shed in high winds

• Beware of sharp edges, we recommend that you use gloves

• Protect your eyes and ears

• For ease of assembly, use a friend to help

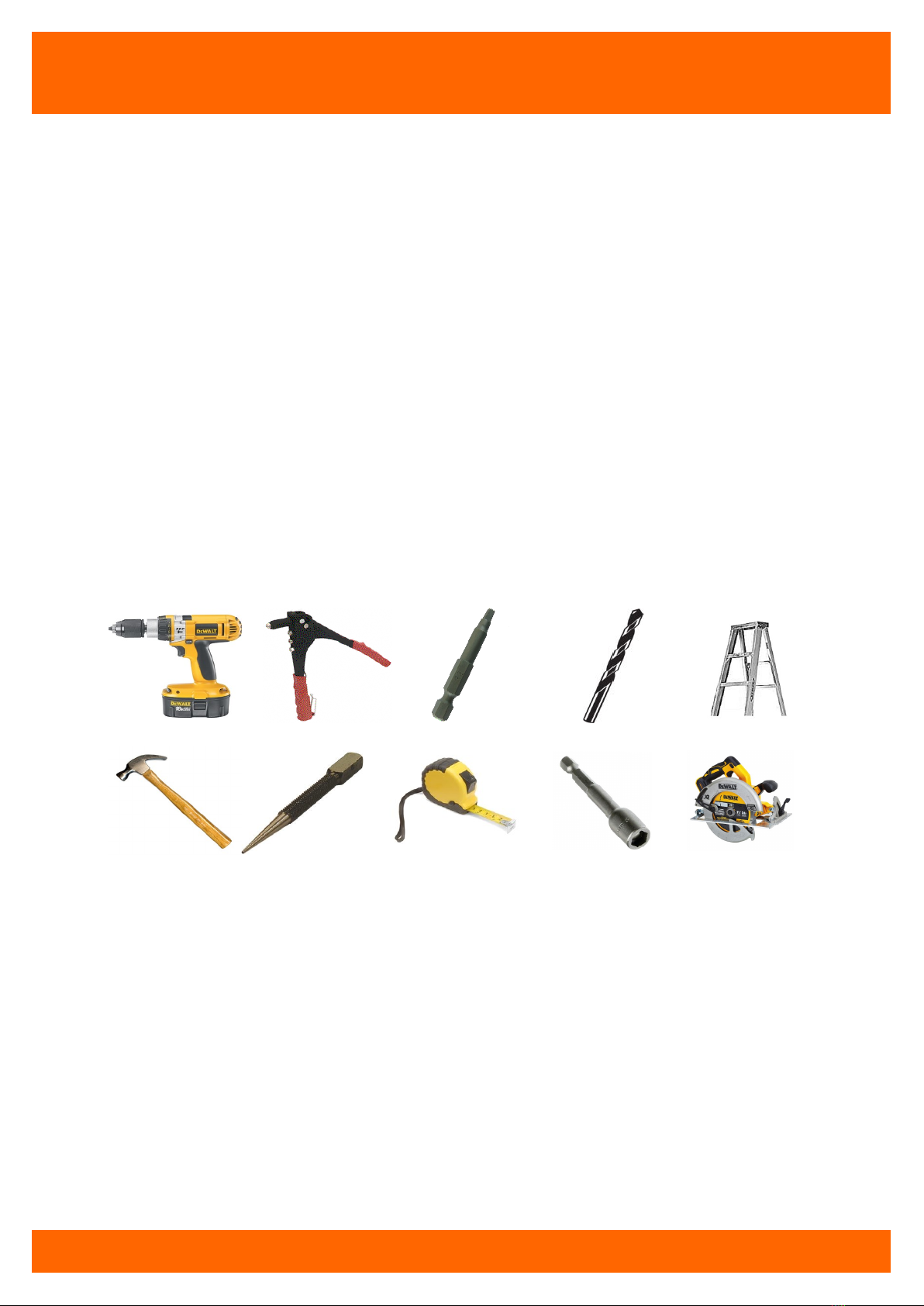

TOOLS REQUIRED:

WARRANTY REQUIREMENTS:

The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Guardian

shed.

• Wash all surfaces annually using a hose and soft nylon brush.

• Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon

as possible to remove any highly corrosive salt deposits.

• Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.

• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.

CONGRATULATIONS ON PURCHASING A DURATUF GUARDIAN SHED.

BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS

DRILL RIVETER 3.5mm DRILL BIT

HAMMER

LADDER

TAPE MEASURE HEX DRIVENAIL PUNCH

SQUARE DRILL BIT

SKILL SAW

(timber floor only)

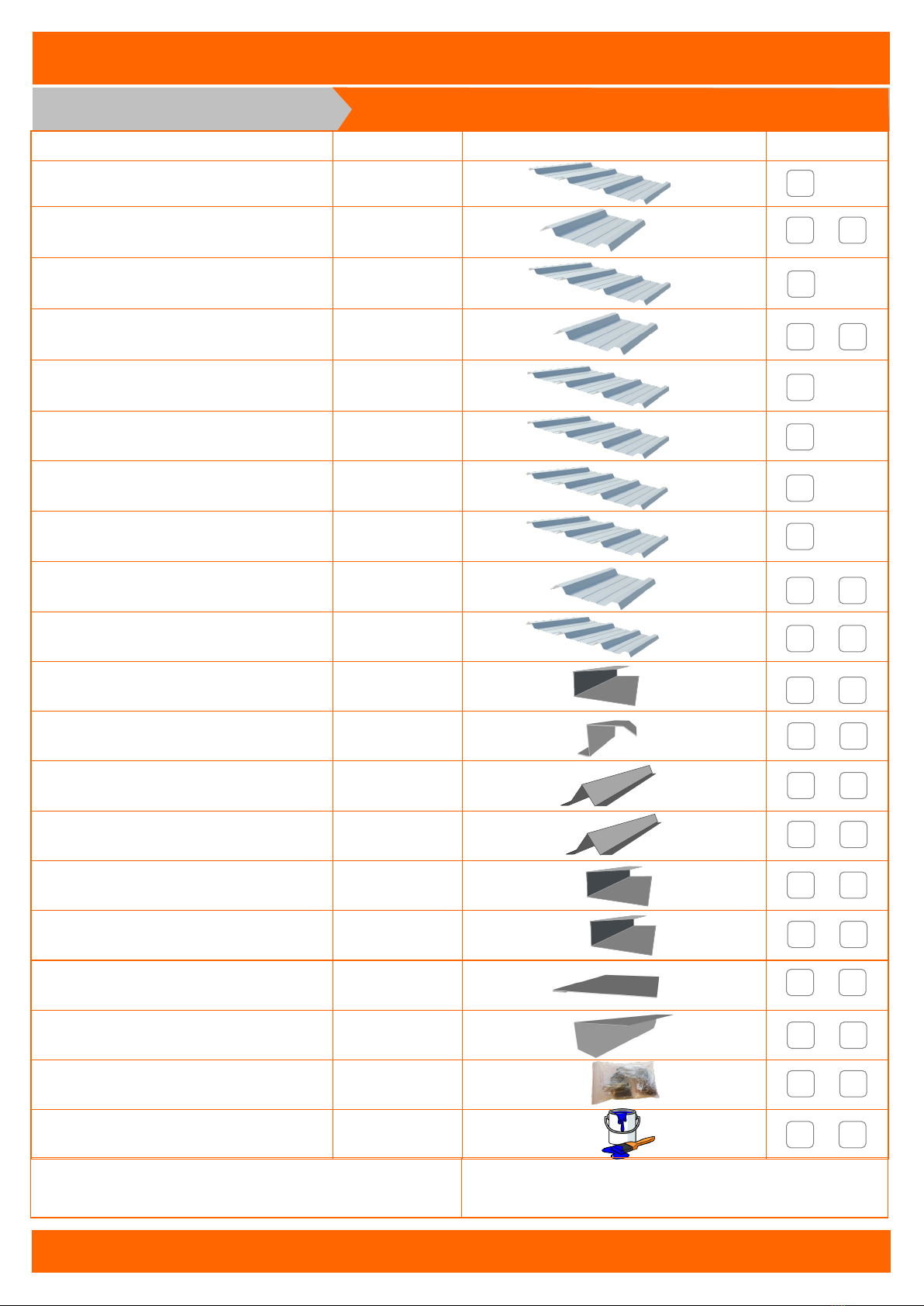

GL95D PARTS LIST

CLADDING PACK 1

DESCRIPTION QTY DIAGRAM CHECKED

Front Wall - 1.980m 2

Front Wall 1Pan Sheet - 1.980m 1

Back Wall - 1.890m 5

Back Wall 1 Pan Sheet - 1.890m 1

Side Wall Angle- 1.965m 2

Side Wall Angle - 1.935m 2

Side Wall Angle- 1.905m 2

Roof - 1.720m 5

Roof 1 Pan Sheet - 1.720m 1

Door Sheet Narrow - 1.940m 3

Door Sides - 1.940m 4

Door Jamb - 1.980m 2

Door Brace - 1.200m 2

Door Brace - 0.955m 2

Door Top/Bottom - 0.945m 2

Door Top/Bottom - 0.495m 2

Weather-strip - 1.940m 1

Barge - 1.720m 2

Hardware Pack 1

Touchup Paint & Brush 1

Packed By:

Checked By:

Time:

Date:

GL95D PARTS LIST

TIMBER

DESCRIPTION QTY DIAGRAM CHECKED

Front/Back Bottom Plates - H4 (Green)

2.690 m 2

Front/Back Top Plate - H1 (Red)

2.690 m 2

Side Wall Bottom Plates - H4 (Green)

1.520 m 2

Side Wall Top Plates - H1 (Red)

1.522m 2

Spouting - 2.725m 1

PACK 2

LAY FOUNDATION

ASSEMBLE DOOR

ASSEMBLE SIDE

PANELS

ASSEMBLE FRONT

PANEL

ASSEMBLE WALLS

ASSEMBLE ROOF

SECURE SHED

ASSEMBLE BACK

PANEL

ASSEMBLE SIDE

PANELS

ASSEMBLE SIDE

PANELS

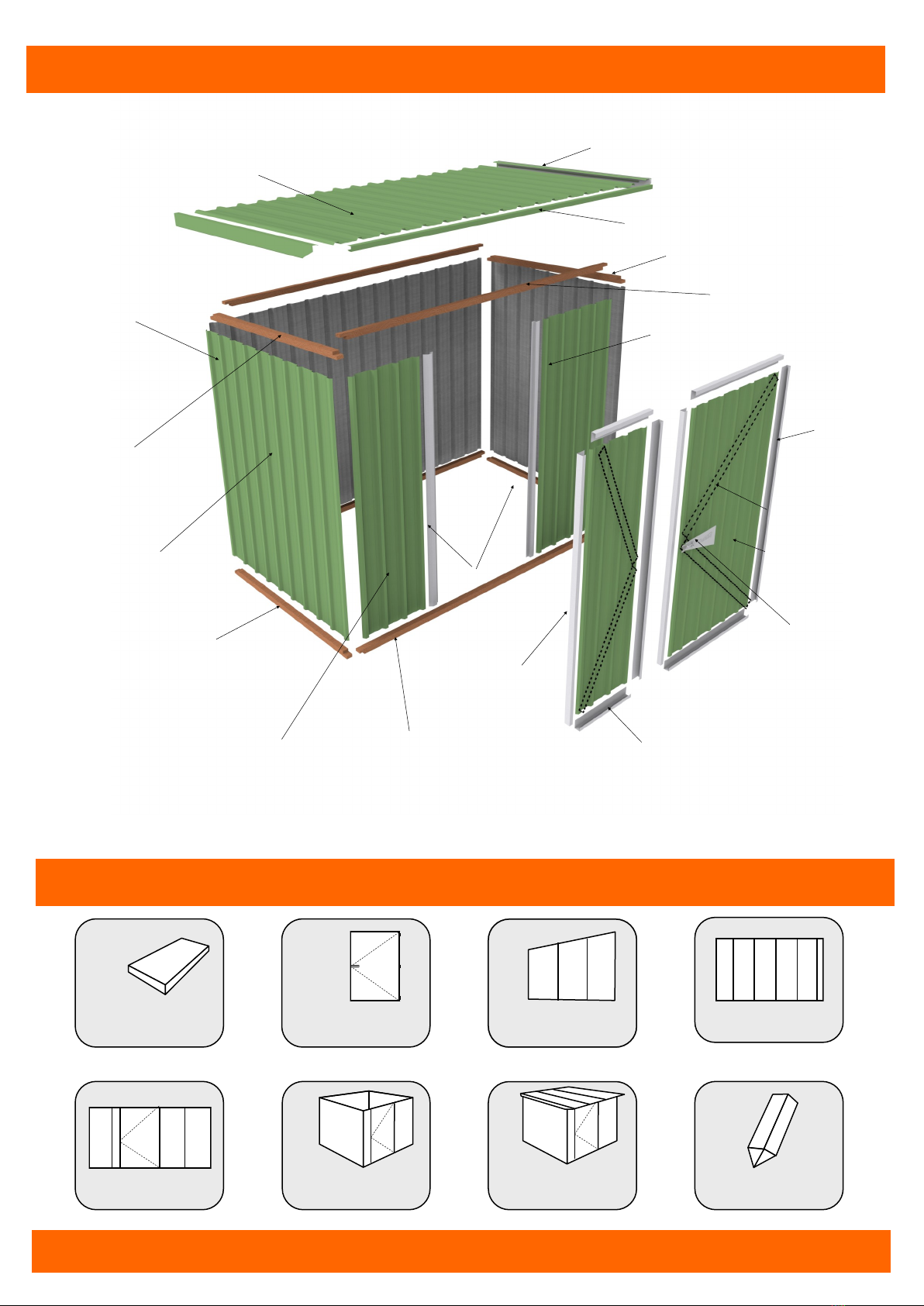

PARTS LOCATION

QUICK OVERVIEW

Top Plate Back

Side Wall Sheets

Barge Flashing

Spouting

Roof Sheets

5 Sheets + 1 Pan Sheet

Top Plate Side

Top Plate Front

Bottom Plate Front

Bottom Plate Side

Back Wall Sheets

5 Sheets + 1Pan Sheet

Front Wall Sheets

Door Jambs

Front Wall Sheet

Door Sheets

Door Side Flashing

Hinge

Door Brace

Door Top/Bottom

Padbolt Support

FOUNDATION

GUARDIAN WOODEN FLOOR

• The optional Guardian kitset wooden floor is precut and designed

to be fitted into the shed after the shed is assembled.

• Assemble shed as per instructions and fit floor last.

(see page 13 for details).

CONCRETE SLAB FOR RAISED BASE PLATE SHED

To build a raised concrete slab for your shed to sit on, we recom-

mend the following:

• The raised slab size should be 15mm smaller than the base

size of the shed and at least 30mm above ground line.

• The slab should be 80mm thick in the middle and 100mm

thick around the edges.

• The slab should be laid on a solid or compacted base.

• Plastic sheeting under slab will prevent moisture coming

through from underneath.

• During construction, you may raise the bottom timber

plate to allow the wall cladding to protrude 20mm below

the bottom plate. This will stop water flowing between

the bottom plate and the concrete floor.

See note on page 8.

80mm

100mm

7.5mm

20mm

Concrete Floor

Base Plate

Wall Cladding

RAISED BASE PLATE OPTION

(For sheds placed on a raised concrete floor)

No doubt by now you will have decided what sort of base you are putting down.

Please read the section that applies to your situation.

If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.

This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.

See concrete pad specifications below

By choosing this option you will need to make the concrete pad to the specification below.

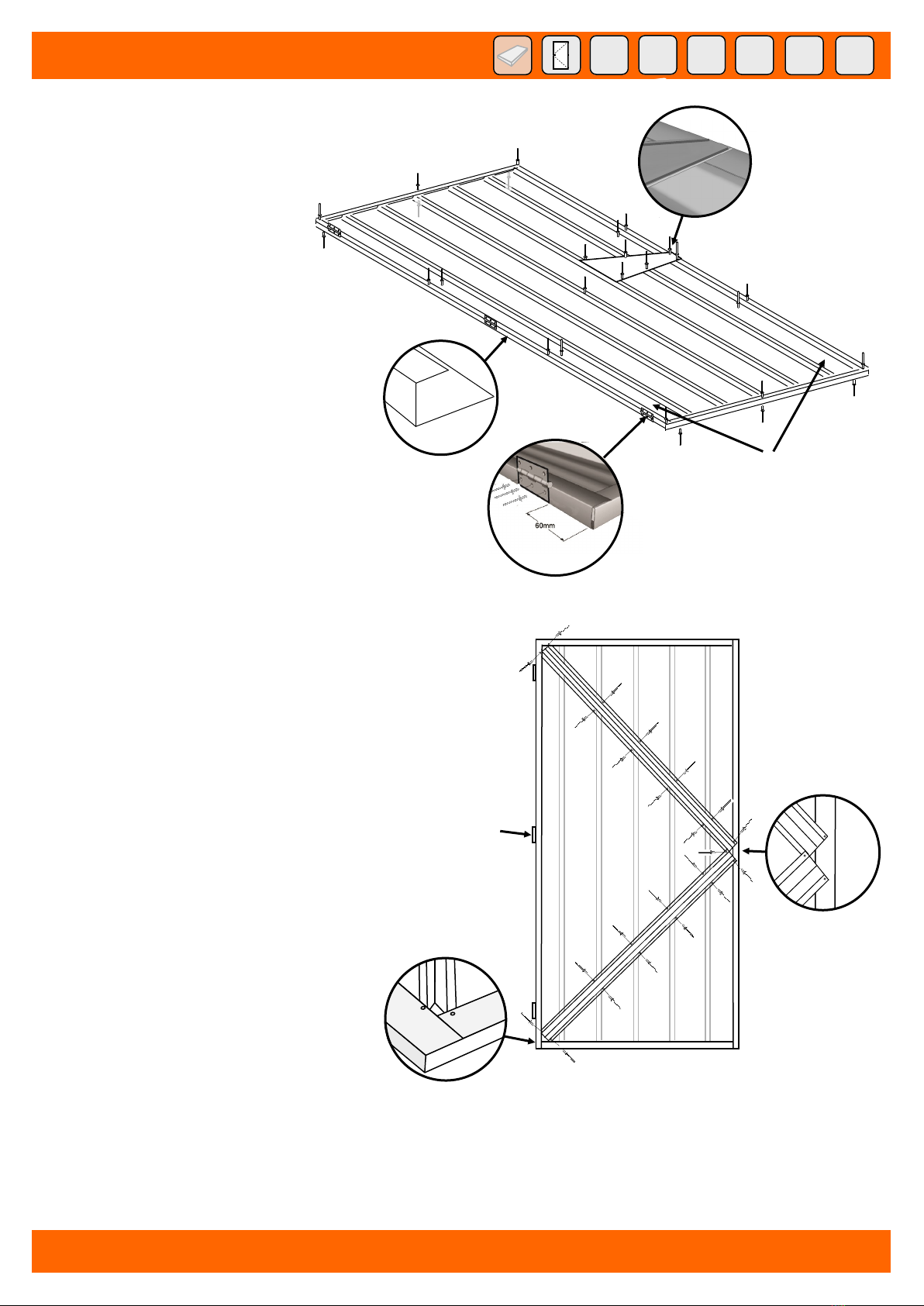

ASSEMBLE DOOR

SELECT:

3 x 1.940m Door Sheets (Narrow)

2 x 0.945m Door Top/Bottom Flashings

2 x 0.495m Door Top/Bottom Flashings

4 x 1.940m Door Side Flashings

2 x 1.160m Door Brace Flashings

2 x 0.955m Door Brace Flashings

1 x 1.940m Weather-strip Flashing

6 x Hinges

1 x Padbolt Support Flashing

108 x Rivets

STEP 1:

• Lay out 2 x door sheets on a flat surface

making sure narrow pans are on the outside.

• Rivet sheets together ensuring ends are

flush with each other.

STEP 2:

• Position door side flashings and door top and

bottom flashings and assemble door as shown,

ensuring narrow face of flashing is on the front

as per fig.1

• Drill and rivet as per diagram.

STEP 4:

• On the back of the door, place door braces in

position as shown in fig.4.

• Ensure that the top and bottom ends of the

braces are under the door flashings as

shown in fig.5 and opposite ends of the brac-

es overlap in the middle as shown in fig.6.

• Rivet door brace flashings onto back of door

as shown. Where possible, rivet from front of

door.

STEP 3:

• Attach hinges to door side flashing using rivets

provided. Ensure hinge is flush with back of

door, and 60mm in from each end as per fig.2.

• Using six rivets, attach padbolt support as

shown in fig.3.

NARROW PANS

fig.3

fig.4

fig.

Hinges

fig.6

fig.1

fig.2

SMALL DOOR:

• Assemble small door in same way as large door using 0.495 m top and bottom flashings.

• Before screwing on 0.955m door braces, attach weather strip flashing to back of door side flashing using six rivets

ensuring it protrudes 20mm out from door side.

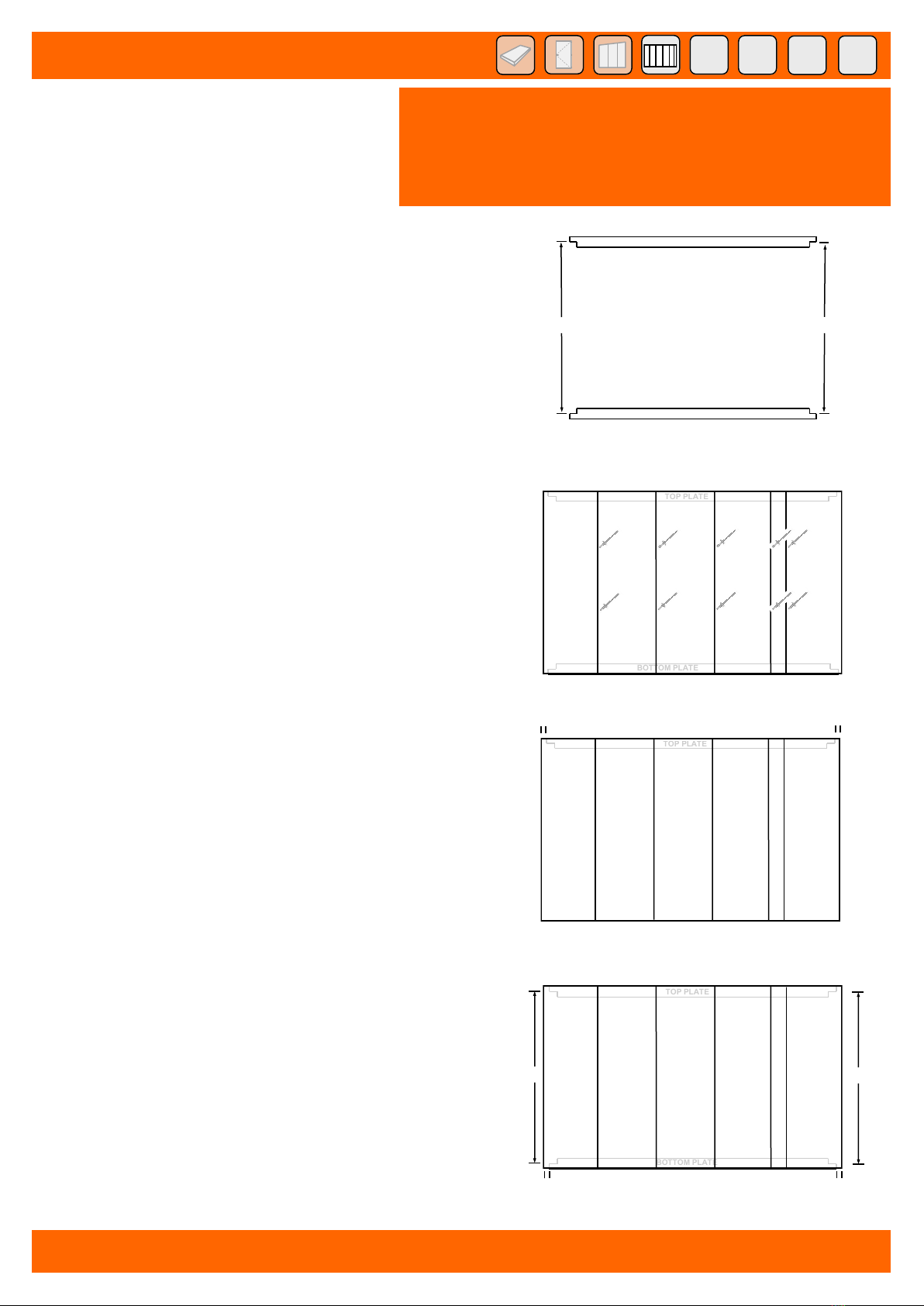

ASSEMBLE SIDE PANELS

BOTTOM PLATE

SELECT:

2 x 1.905 m Side Wall Sheets (Angled)

2 x 1.935 m Side Wall Sheets (Angled)

2 x 1.965 m Side Wall Sheets (Angled)

2 x 1.522 m Top Plates (Red)

2 x 1.520 m Bottom Plates (Green)

72 x 30mm Galv Clouts

8 x Rivets

IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER

BASE PLATE –READ THE FOLLOWING;

For sheds with Raised Base Plate option only (see page 6), deduct

30mm from measurement shown between Top and Bottom Plates on

all wall panels, so cladding protrudes 20mm below bottom plate.

BOTTOM PLATE

1857mm 1947mm

15mm

BOTTOM PLATE

1857mm

1947mm

Second Side

Panel

STEP 1:

• Lay out 1 x Top Plate and 1 x Bottom Plate on a flat surface (corner

cutouts to face as shown). Measurements between Top and Bottom

plates are critical to ensure wall panels fit together.

STEP 2:

• Place 1 x 1.905m, 1 x 1.935m and 1 x 1.965m Side wall sheets on

top of timber plates, with bottom of sheets flush with each other.

• Rivet sheets together on overlaps as shown.

STEP 3:

• Nail wall sheets to the Top Plate at each end making

sure that the top of the sheets are flush with the top of

the Top Plate and the sides of the wall sheet overhang

the Top Plate by approx 15mm as shown.

• Check that the Top Plate is straight then nail the wall

sheet to the Top Plate, two clouts per pan (see fig. 1).

STEP 4:

• Nail the wall sheets to the Bottom Plate at each end ensuring each

side of wall sheets overhangs the end of Bottom Plate by 15mm.

Check that the distance between the Top and Bottom Plates is

correct. (As per diagram in step 1)

• Check that the Bottom Plate is straight then nail the wall sheets to

the Bottom Plate, two clouts per pan (see fig. 1).

Repeat with second side panel ensuring Top Plate is as shown.

fig.1

RIB

PAN

CLOUT

TIMBER PLATE

Standard Shed — Bottom Plate will protrude below

wall sheet by approximately 10mm.

Raised base plate shed — Wall sheet will protrude

below the Bottom Plate by 20mm.

15mm 15mm

1857mm 1947mm

15mm

RIVET

BOTTOM PLATE

15mm

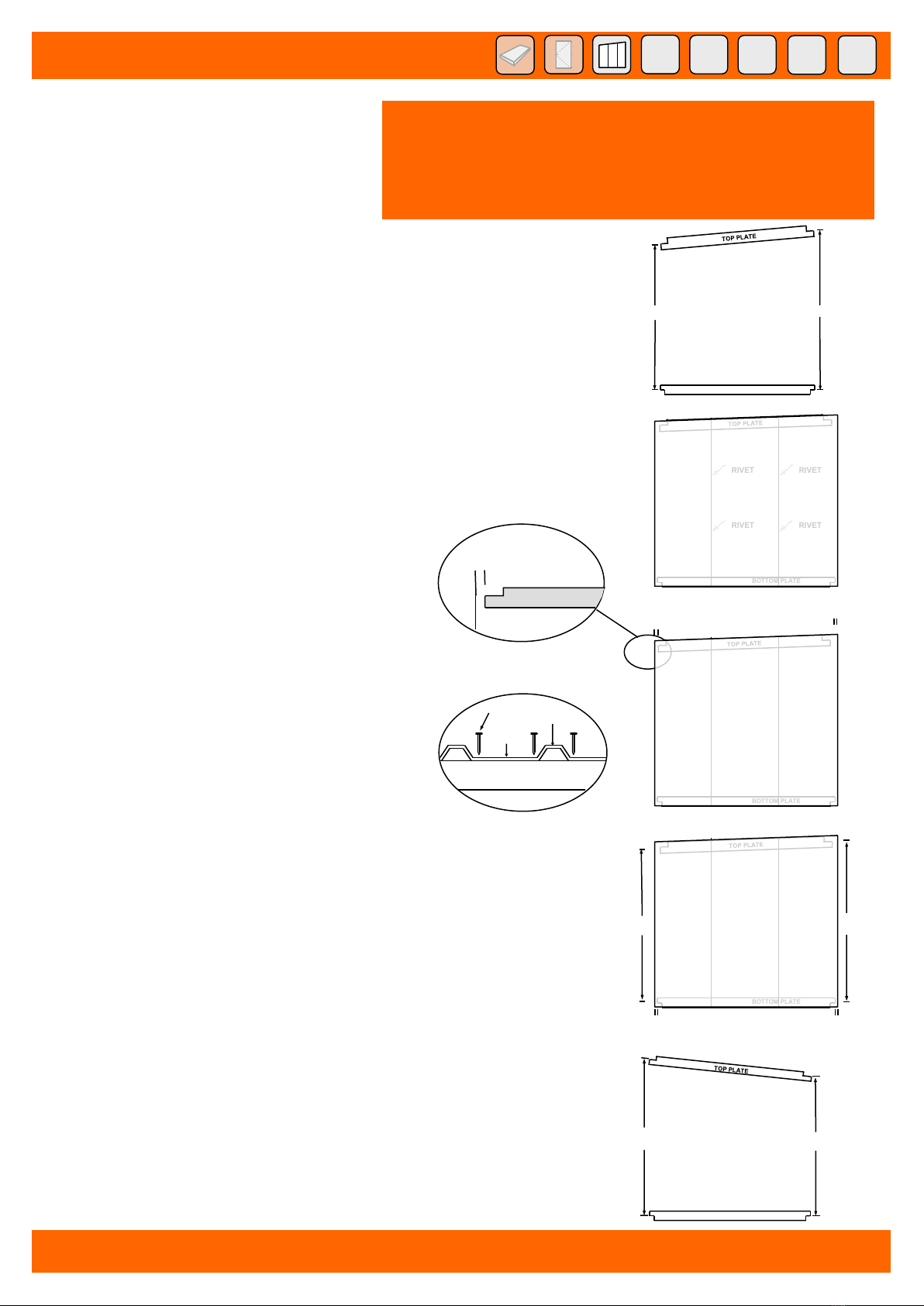

ASSEMBLE BACK PANEL

SELECT:

5 x 1.890 m Wall Sheets

1 x 1.890 m 1Pan Wall sheet

1 x 2.690 m Top Plate (Red)

1 x 2.690 m Bottom Plate (Green)

64 x 30mm Galv Clouts

10 x Rivets

IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER

BASE PLATE –READ THE FOLLOWING;

For sheds with Raised Base Plate option only (see page 6), deduct

30mm from measurement shown between Top and Bottom Plates on

all wall panels, so cladding protrudes 20mm below bottom plate.

1858mm

BOTTOM PLATE

1858mm

TOP PLATE

STEP 1:

• Lay out 1 x Top Plate and 1 x Bottom Plate on a

flat surface (corner cutouts to face as shown).

STEP 2:

• Place 5 x 1.890 m wall sheets and 1 x 1Pan wall

sheet on top of timber Plates with bottom of sheets

flush with each other.

• Rivet the sheets together on overlaps as shown.

STEP 3:

• Nail the wall sheets to the Top Plate at each end making sure

that the top of the sheets are flush with the top of the Top

Plate and that the sides of the wall sheets overhang the Top

Plate by 15mm as shown.

• Check that the Top Plate is straight then nail wall sheets to

the Top Plate, using two clouts per pan.

STEP 4:

• Nail the wall sheets to the Bottom Plate at each end,

ensuring that each side of the wall sheets overhangs the

Bottom Plate by 15mm and that the distance between

the Top and Bottom Plates is correct. (As shown)

• Check that the Bottom Plate is straight then nail

wall sheets to the Bottom Plate, using two clouts per pan.

Standard Shed — Bottom Plate will protrude below wall

sheet by approximately 10mm.

Raised base plate shed — Wall sheet will protrude below

the Bottom Plate by 20mm.

TOP PLATE

BOTTOM PLATE

TOP PLATE

15mm 15mm

1858mm 1858mm

BOTTOM PLATE

15mm 15mm

TOP PLATE

Indice

Altri manuali Duratuf Deposito all'aperto

Duratuf

Duratuf GG109 Manuale utente

Duratuf

Duratuf Sentry Shed SL1507 Manuale utente

Duratuf

Duratuf SG3020 Manuale utente

Duratuf

Duratuf GS63 Manuale utente

Duratuf

Duratuf Havelock Manuale utente

Duratuf

Duratuf Guardian Sheds GS73 Manuale utente

Duratuf

Duratuf PL46 Manuale utente

Duratuf

Duratuf PL43 Manuale utente

Duratuf

Duratuf GL95 Manuale utente

Duratuf

Duratuf Gurdian Sheds GG101 Manuale utente

Duratuf

Duratuf GS62 Manuale utente

Duratuf

Duratuf MK3B Manuale utente

Duratuf

Duratuf KAIPARA Manuale utente

Duratuf

Duratuf Kiwi MK1 Manuale utente

Duratuf

Duratuf Paihia Manuale utente

Duratuf

Duratuf TUF 800 Manuale utente

Duratuf

Duratuf SENTRY SS2007 Manuale utente

Duratuf

Duratuf TUF 50 Manuale utente

Duratuf

Duratuf KL3 Manuale utente

Duratuf

Duratuf PG66 Manuale utente

Duratuf

Duratuf SG2520 Manuale utente

Duratuf

Duratuf Kapiti Manuale utente

Duratuf

Duratuf TUF LOCKER Manuale utente

Duratuf

Duratuf Garrison PL84 Manuale utente

Manuali Deposito all'aperto popolari di altre marche

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Manuale utente

TYGO

TYGO Nyland Manuale utente

Viking

Viking SD5300SS Manuale tecnico

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Manuale utente

ModuLaro

ModuLaro Lojo WC202200 Manuale utente

Lifetime

Lifetime 6418 Manuale utente

rollaway container

rollaway container ARPCA24 Manuale utente

X-METAL

X-METAL 4065 Manuale utente

Outdoor Life Products

Outdoor Life Products FP2030 F Manuale utente

Royalcraft

Royalcraft Faro 295L Storage Box Manuale utente

Riverlea

Riverlea Duratuf KIWI KS3 Manuale utente

OLT

OLT GS84D-FJ-Plywood Manuale utente

Rubbermaid

Rubbermaid 5L45 Manuale utente

garofalo

garofalo TUSCANY EVO Manuale utente

Eden

Eden CA2988 Manuale utente

Palram

Palram CANOPIA RUBICON 6x10 Guida per l'amministratore

Suncast

Suncast 774098 Manuale utente

Lifetime

Lifetime 60186 Manuale utente
