Dymo LETRATAG 100T Manuale utente

LetraTag

LT-100T

www.dymo.com

UserGuide. .. .. .. .. .. .. .. .. .. .. .. Page 2

GuideD’Utilisation..............Page24

Gebruikershandleiding.........Pagina48

Bedienungsanleitung ... ... .. ...Seite70

LT Momentum WEU.indd 1 09-01-2007 17:23:36

LetraTagUserGuide

≠Label Exit

ÆMemory Save

ßMemory Recall

∞Print

±LCD Display

≤Power Connector

≥Power

¥Cutter

µInsert

∂Format

∑Settings

∏Clear

πSpace Bar

∫OK

ªNavigation

ºCancel

ΩNum Lock

æCAPS

øBack Space

≠Æß∞±≤

≥

¥∫

µª

∂º

∑Ω

∏ø

Figure 1 DYMO LetraTag Labelmaker

Cancel

Clear

LT Momentum WEU.indd 2 09-01-2007 17:23:36

AboutYourNewLabelmaker

With your new DYMO LetraTag® labelmaker, you can create a wide

variety of high-quality, self-adhesive labels.You can choose to print

your labels in many different font sizes and styles. The labelmaker

uses DYMO LetraTag (LT)

12 mm

label cassettes. LT cassettes are

available in multiple colors of plastic and metallic tape, and in

white iron-on tape.

Visit www.dymo.com for information on obtaining labels and

accessories for your labelmaker.

Warranty Registration

Please complete the warranty registration card and return it to

the appropriate Customer Support address within seven days. Visit

www.dymo.com/registration for details or to register online.

GettingStarted

Follow the instructions in this section to print your first label.

Connecting the Power

The labelmaker is powered by standard batteries or an AC power

adapter.To save power, the labelmaker will automatically turn off

after two minutes of inactivity.

LT Momentum WEU.indd 3 09-01-2007 17:23:36

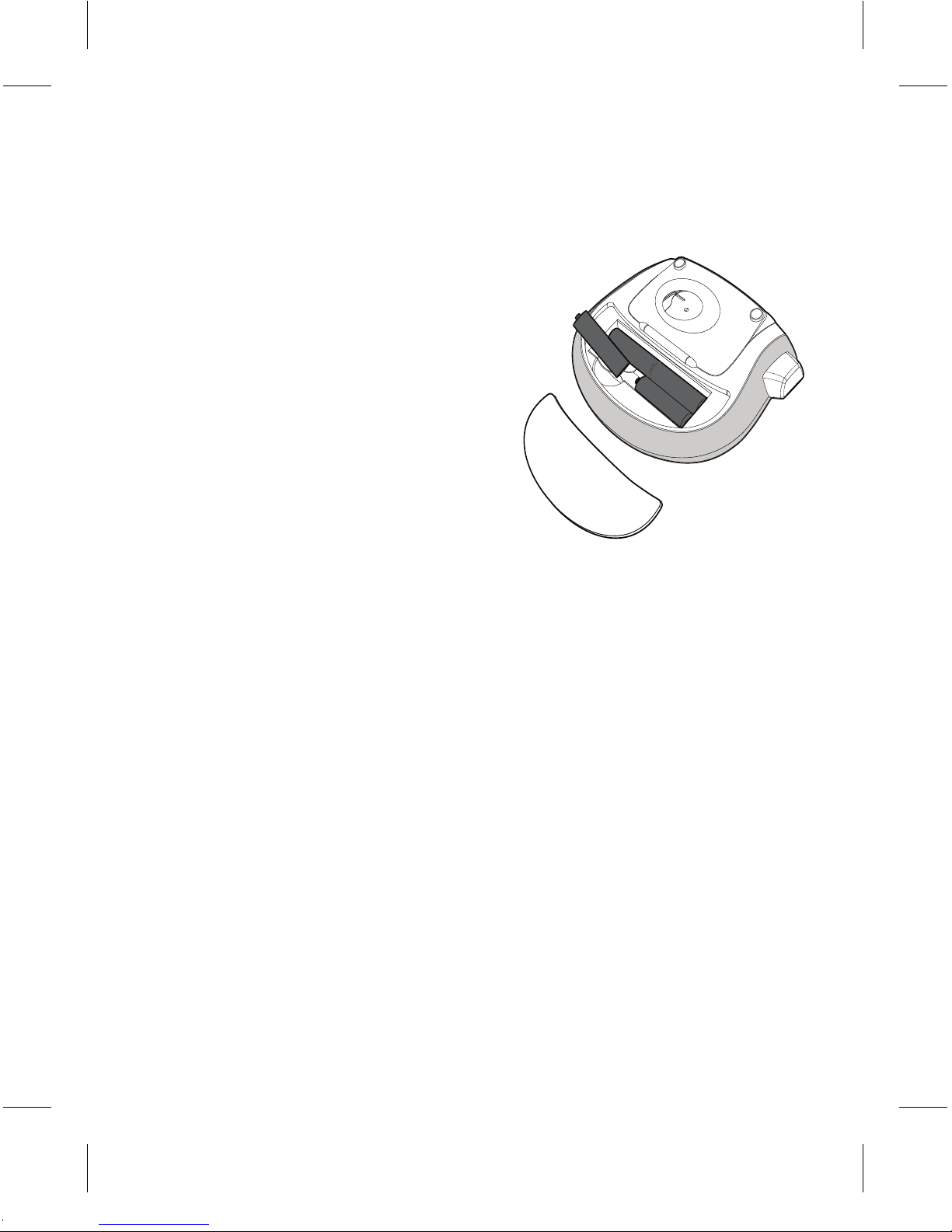

Inserting the Batteries

The labelmaker uses four high-capacity AA alkaline batteries.

To insert the batteries

1. Remove the battery compartment

cover. See Figure 2.

2. Insert the batteries following the

polarity markings (+ and –).

3. Replace the cover.

ÇRemove the batteries if the

labelmaker will not be used for a long

period of time.

Figure 2

Connecting the Optional Power Adapter

An optional 9Volt,1.5 A power adapter can also be used to power

the labelmaker. Connecting the AC adapter to the labelmaker

disconnects the batteries as a power source.

To connect the power adapter

1. Plug the power adapter into the power connector on the top of

the labelmaker.

2. Plug the other end of the power adapter into a power outlet.

LT Momentum WEU.indd 4 09-01-2007 17:23:36

ÇMake sure the labelmaker power is turned off before you

disconnect the power adapter from the main power source.

Otherwise, your most recent memory settings will be lost.

Inserting the Label Cassette

Your labelmaker comes with one

label cassette.Visit www.dymo.

comfor information about purchasing

additional label cassettes.

Figure 3

To insert the label cassette

1. Lift the label cassette cover to open

the label compartment.

See Figure 3.

Ç Before using the labelmaker for

the first time, remove the protective

cardboard insert from label exit slot.

See Figure 4.

Figure 4

2. Insert the cassette with the label positioned

between the print head and pinch roller.

3. Press firmly until cassette clicks into place.

4. Close the label cassette cover and press âto turn on the power.

LT Momentum WEU.indd 5 09-01-2007 17:23:37

Selecting a Language

The first time you turn on the power, you are asked to select your

desired language. By default, the language is set to English.The

language option you choose determines the character set that is

available.

To select a language

1. Press ä.

2. Use the up or down arrow key to select Language and press ã.

3. Use the up or down arrow key to select the language you want

and press ã.

Setting the Date and Time

You need to set the current date and time so that the date is correct

if you choose to automatically insert a date on your label.

To set the date and time

1. Press ä.

2. Use the up or down arrow key to select Set Date and press ã.

The default date is displayed.

3. Use the left or right arrow key to move the cursor over each

setting (month, day, and year) and use the up or down arrow

keys to increase or decrease the value.

LT Momentum WEU.indd 6 09-01-2007 17:23:37

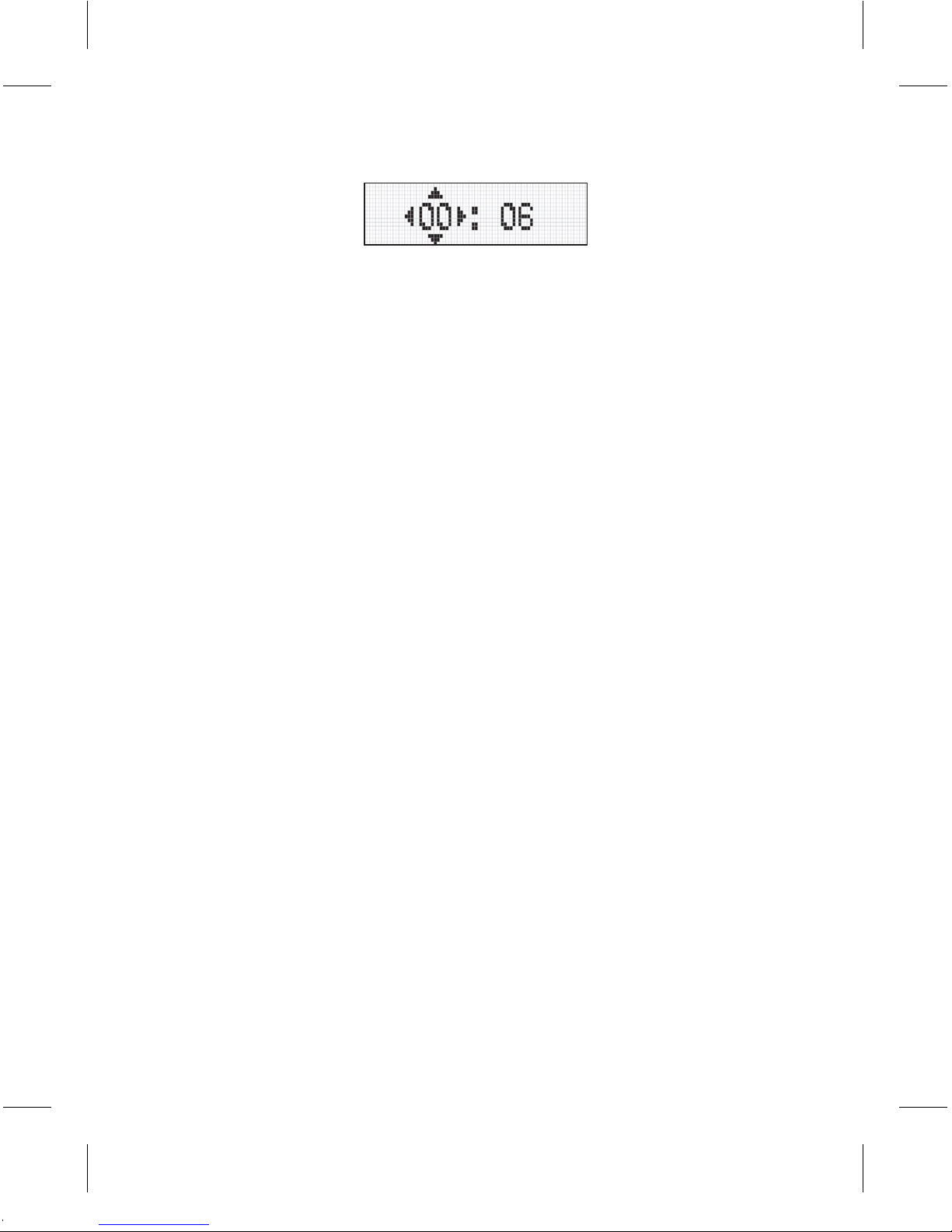

4. When finished, press ã.The default time is displayed.

5. Use the left or right arrow key to move the cursor over each

setting (hours and minutes) and use the up or down arrow keys

to increase or decrease the value.

6. When finished, press ã.

Printing Your First Label

You are now ready to print your first label.

To print a label

1. Enter text to create a simple label.

2. Press å.

3. Press the cutter button to cut the label.

Congratulations! You printed your first label. Continue reading to

learn more about the options available for creating labels.

LT Momentum WEU.indd 7 09-01-2007 17:23:37

GettingtoKnowtheLabelmaker

Become familiar with the location of the feature and function keys

on your labelmaker. Refer to Figure 1 on the inside front cover.The

following sections describe each feature in detail.

Power

The âbutton turns the power on and off. After two minutes of

no activity, the power is switched off automatically.The last label

created is remembered and displayed when the power is turned

back on.The previously selected style settings are also restored.

You can also press âto cancel printing and return to edit mode.

LCD Display

You can enter up to 100 characters and

spaces on a label; however, the display

will only show a small portion of the

characters. And, with DYMO’s exclusive

graphical display, any formatting you

add is visible instantly.

For example, the italics and rounded

border added to the text in Figure 5

are clearly displayed.

 ≠ Font size ßCAPS

Æ # lines ∞Num Lock

Figure 5

Feature indicators appear along the top of the display to let you

know when a feature is selected.

LT Momentum WEU.indd 8 09-01-2007 17:23:37

CAPS Mode

The [key toggles capitalization on or o.When CAPS mode is

turned on, the CAPS mode indicator is shown on the display and all

letters that you enter will be capitalized. The default setting is CAPS

mode on.When CAPS mode is o, all letters appear in lower case.

Num Lock

The ñkey provides access to the numbers located on some of

the alphabetic keys.When Num Lock mode is turned on, the Num

Lock indicator is shown on the display and the numbers 0 through

9 appear when you press the corresponding letter keys. Num Lock is

turned o by default.

Backspace

The ókey removes the character to the left of the cursor.

Clear

The îkey clears all label text and formatting.

Navigation Keys

You can review and edit your label using the left and right arrow keys

on the Navigation key.You can navigate through menu selections

using the up and down arrow keys, and then press

to make a selection.

LT Momentum WEU.indd 9 09-01-2007 17:23:37

Cancel

The úkey allows you to exit from a menu without making a

selection or to cancel an action.

Format

The ôkey displays the Size, Style, and Borders submenus. These

formatting features are described later in this User Guide.

Insert

The òkey allows you to insert symbols, a second line, or the

date on your label.

Settings

The äkey displays the Preview, Language, Set Date, and Set

Contrast submenus.These features are described later in this User

Guide.

FormattingYourLabel

You can choose from a number of formatting options to enhance

the appearance of your labels.

Changing the Font Size

Five font sizes are available for your labels: Extra Small, Small, Medium,

Large, and Extra Large. When you select a size, that size

applies to all characters on a label.

LT Momentum WEU.indd 10 09-01-2007 17:23:37
